TOYOTA YARIS GRMN 2017 Owners Manual

2315-3. Using the storage features
YARIS_GRMN_OM_Europe_OM52J40E
5
Interior features
■Front
■Rear
Cup holders
WARNING
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks when placed in
the cup holders.

2325-3. Using the storage features
YARIS_GRMN_OM_Europe_OM52J40E
■When using the bottle holders
● When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
Open the cover.
Bottle holders
WARNING
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
Put the cap on before stowing a bottle. Do not place open bottles in the bottle
holders, or glasses and paper cups containing liquid. The contents may spill
and glasses may break.
Auxiliary box

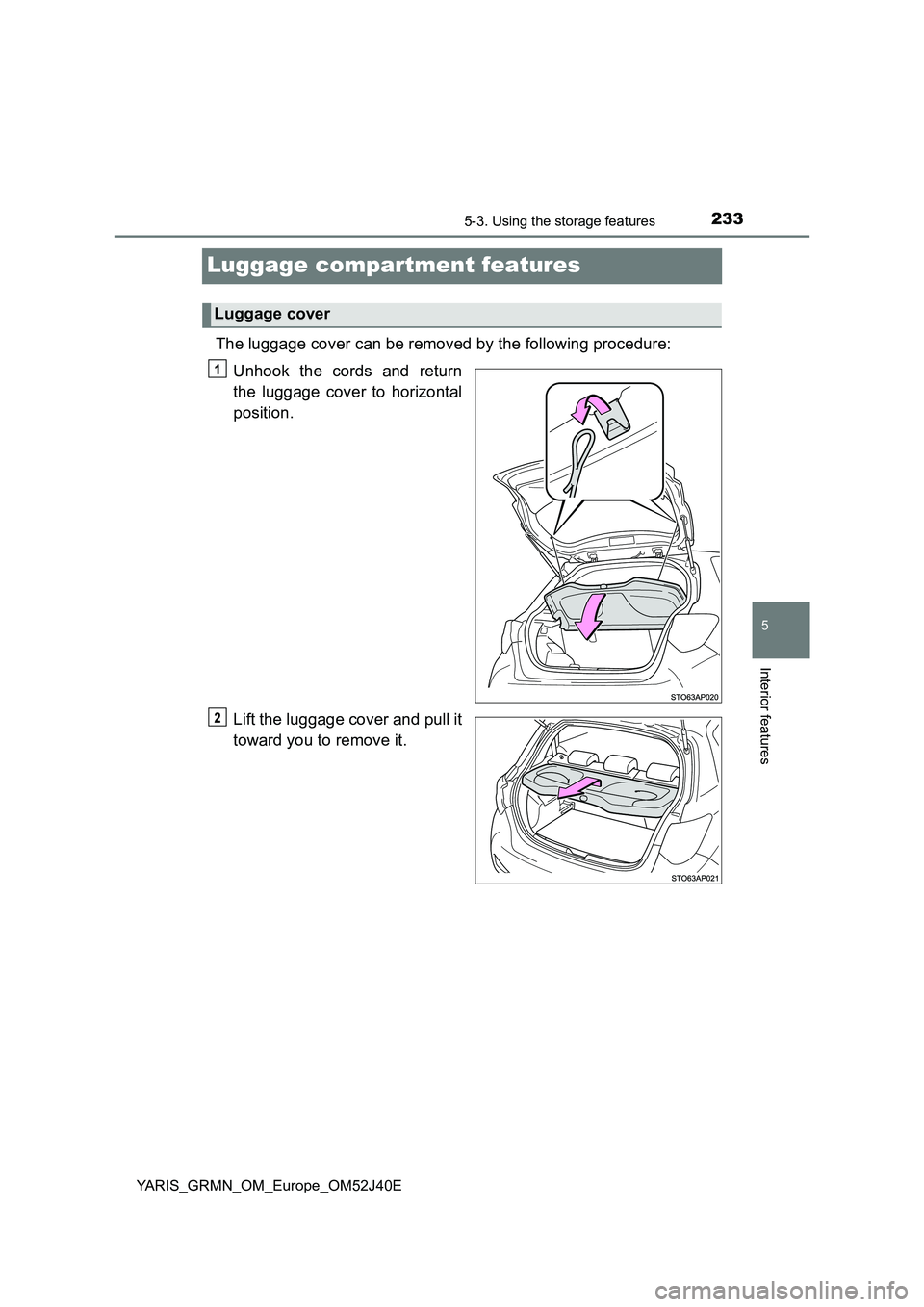

2335-3. Using the storage features
YARIS_GRMN_OM_Europe_OM52J40E
5
Interior features
Luggage compartment features
The luggage cover can be removed by the following procedure:
Unhook the cords and return
the luggage cover to horizontal
position.
Lift the luggage cover and pull it
toward you to remove it.
Luggage cover

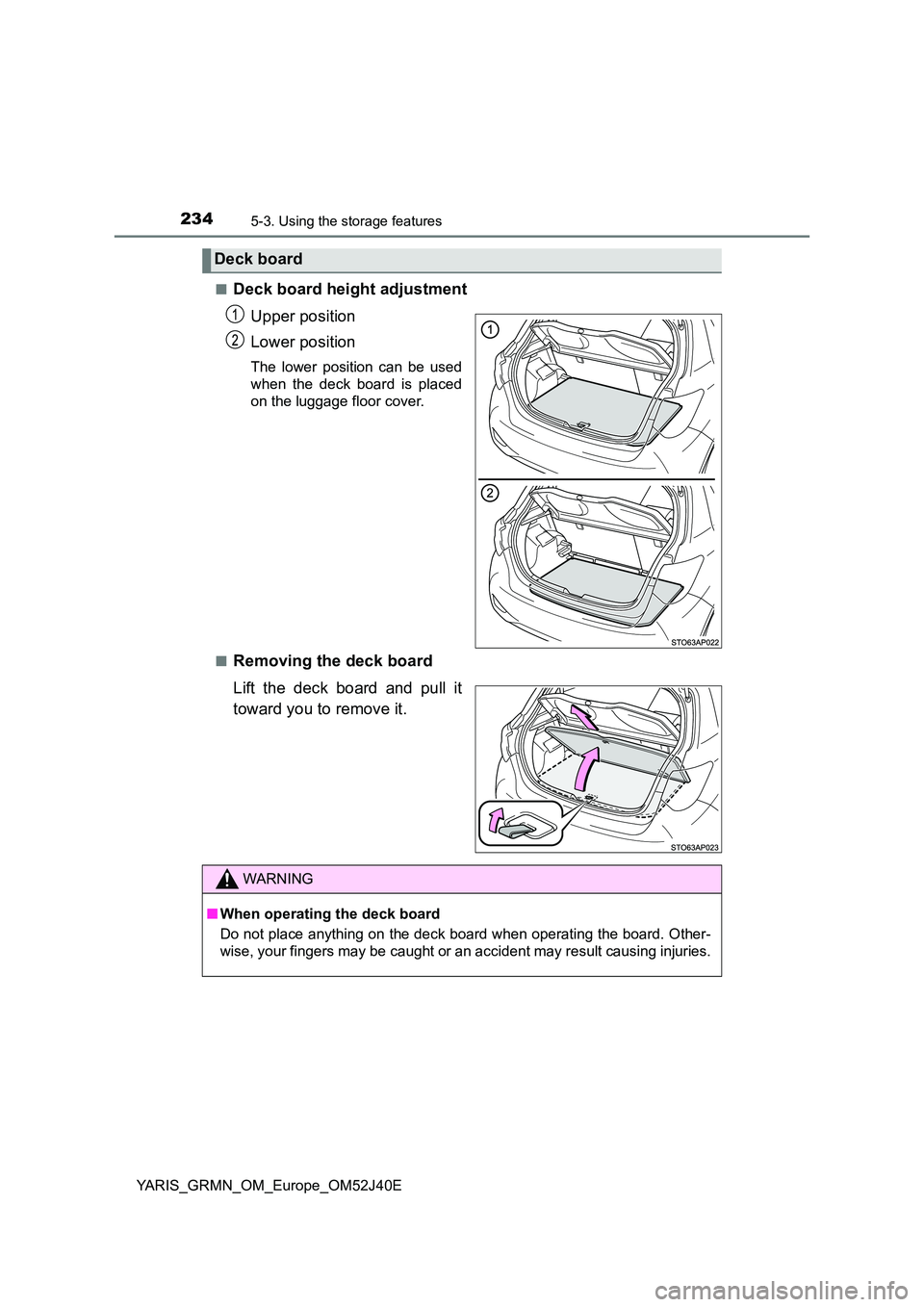

2345-3. Using the storage features
YARIS_GRMN_OM_Europe_OM52J40E
■Deck board height adjustment
Upper position
Lower position
The lower position can be used
when the deck board is placed
on the luggage floor cover.
■Removing the deck board
Lift the deck board and pull it
toward you to remove it.
Deck board
WARNING
■ When operating the deck board
Do not place anything on the deck board when operating the board. Other-
wise, your fingers may be caught or an accident may result causing injuries.

2355-3. Using the storage features
YARIS_GRMN_OM_Europe_OM52J40E
5
Interior features
Lift the deck board and the lug-
gage floor cover.
Auxiliary box

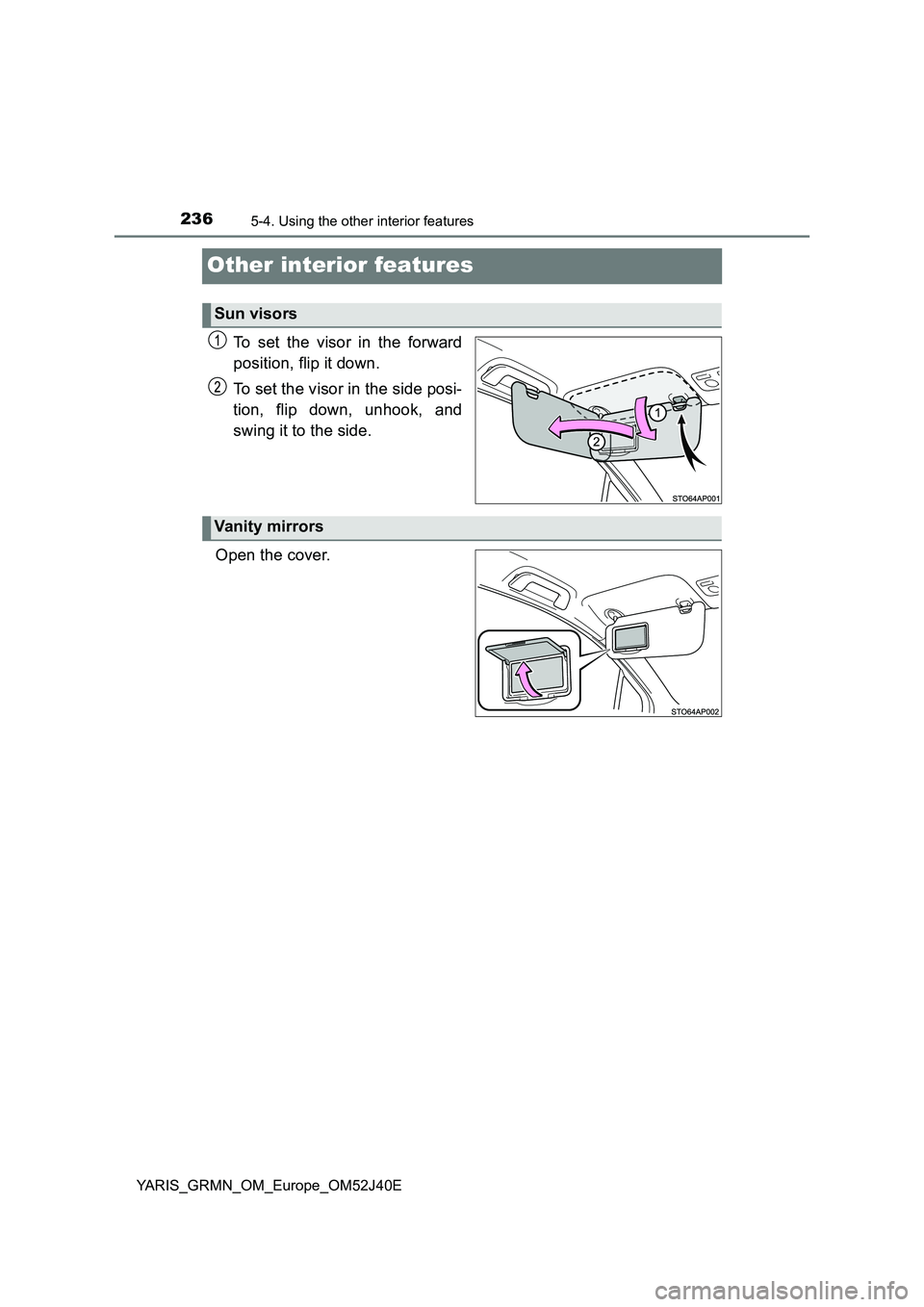

2365-4. Using the other interior features
YARIS_GRMN_OM_Europe_OM52J40E
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Open the cover.
Sun visors
Vanity mirrors

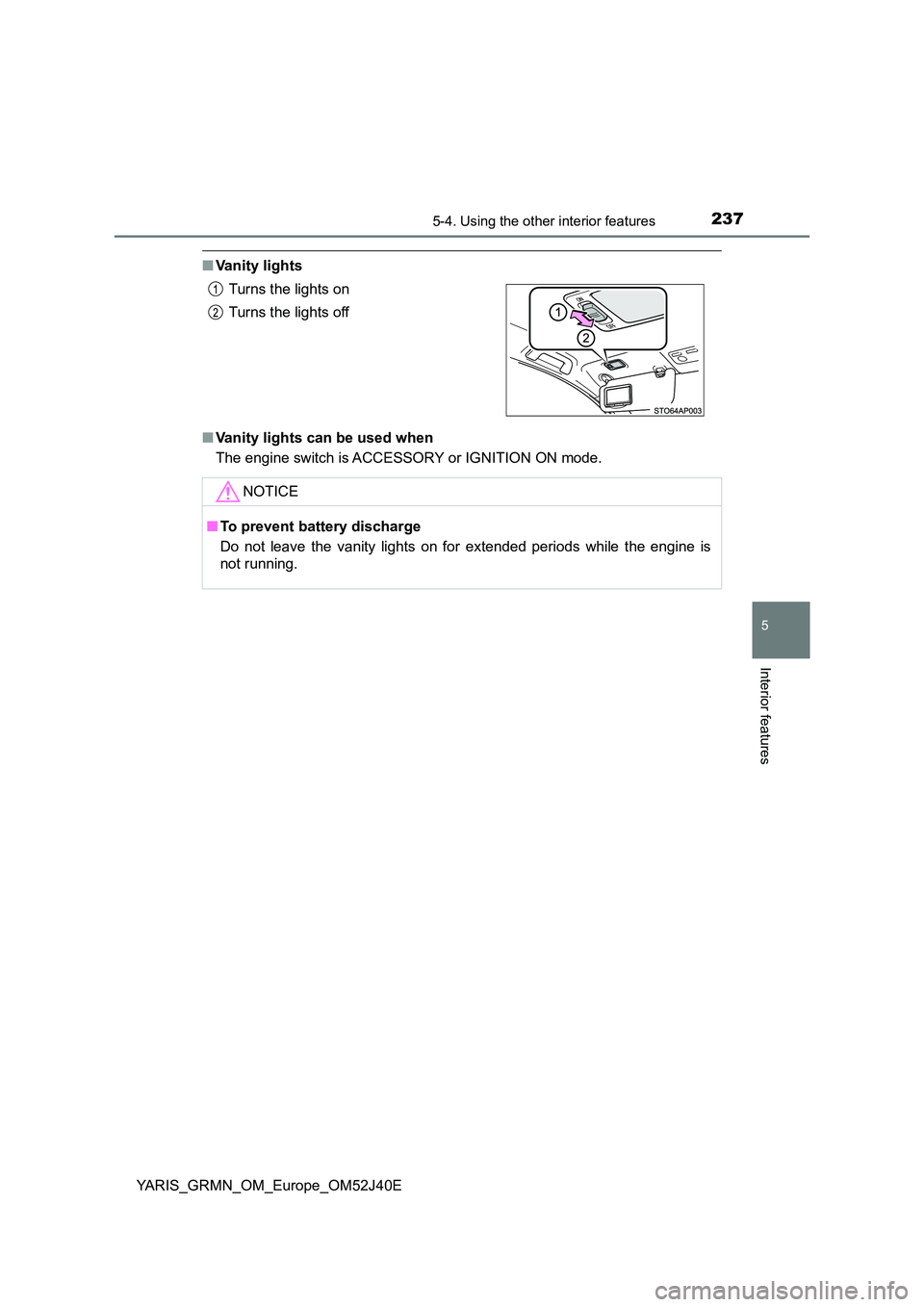

2375-4. Using the other interior features
YARIS_GRMN_OM_Europe_OM52J40E
5
Interior features
■Vanity lights
■ Vanity lights can be used when
The engine switch is ACCESSORY or IGNITION ON mode.
Turns the lights on
Turns the lights off
NOTICE
■ To prevent battery discharge
Do not leave the vanity lights on for extended periods while the engine is
not running.

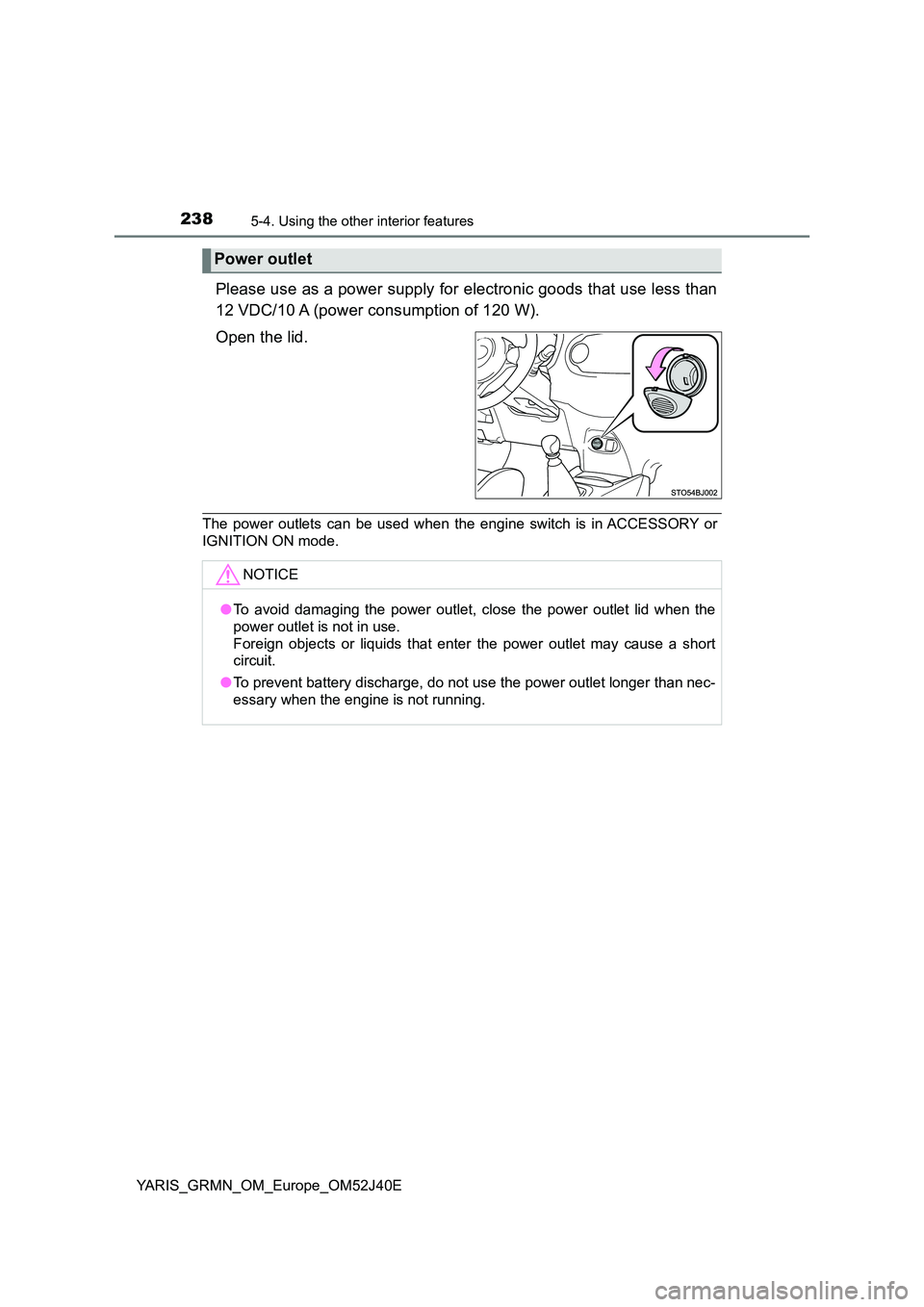

2385-4. Using the other interior features
YARIS_GRMN_OM_Europe_OM52J40E
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
Open the lid.
The power outlets can be used when the engine switch is in ACCESSORY or
IGNITION ON mode.
Power outlet
NOTICE
● To avoid damaging the power outlet, close the power outlet lid when the
power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short
circuit.
● To prevent battery discharge, do not use the power outlet longer than nec-
essary when the engine is not running.

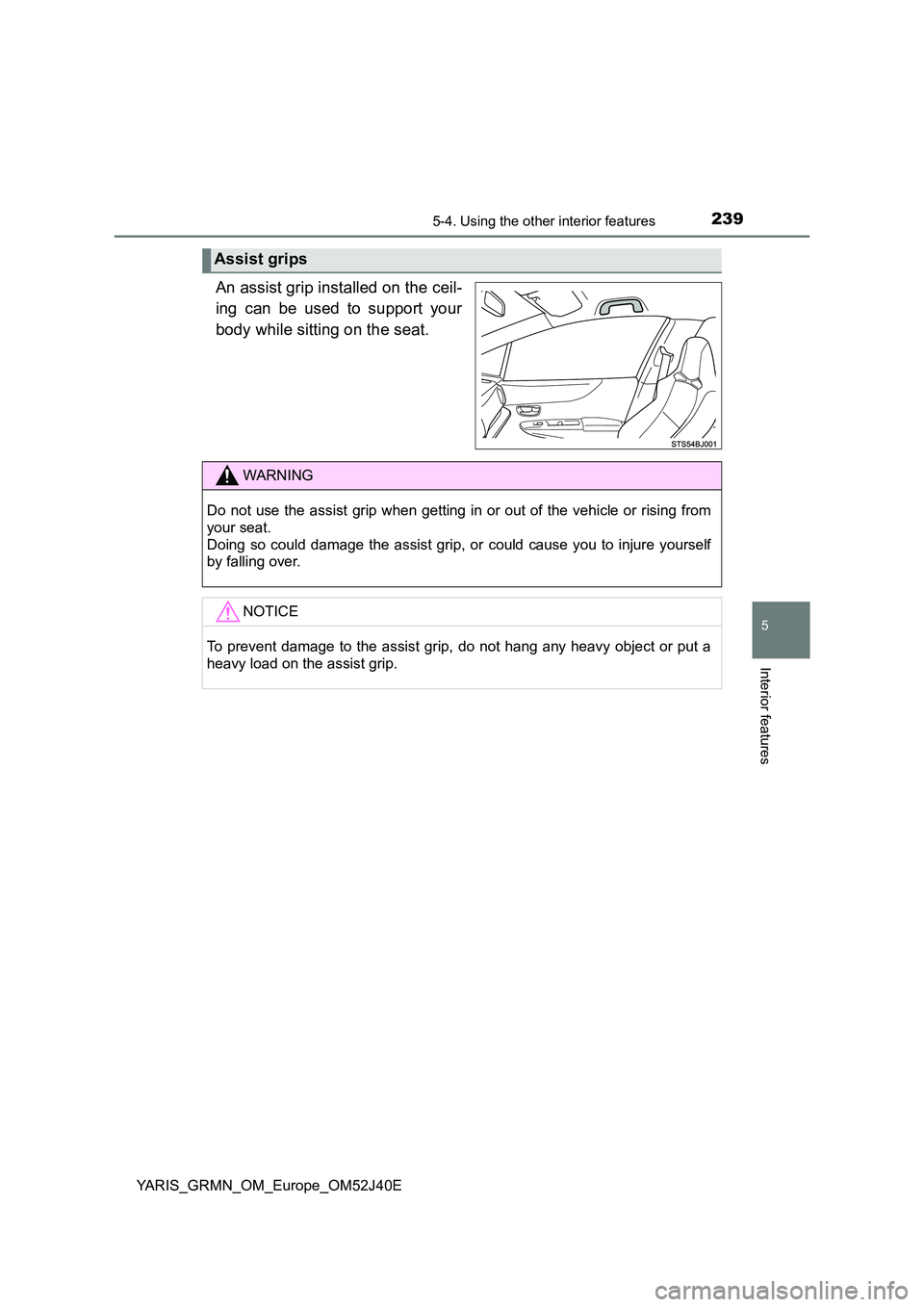

2395-4. Using the other interior features
YARIS_GRMN_OM_Europe_OM52J40E
5
Interior features
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
Doing so could damage the assist grip, or could cause you to injure yourself
by falling over.
NOTICE
To prevent damage to the assist grip, do not hang any heavy object or put a
heavy load on the assist grip.

2405-4. Using the other interior features
YARIS_GRMN_OM_Europe_OM52J40E
