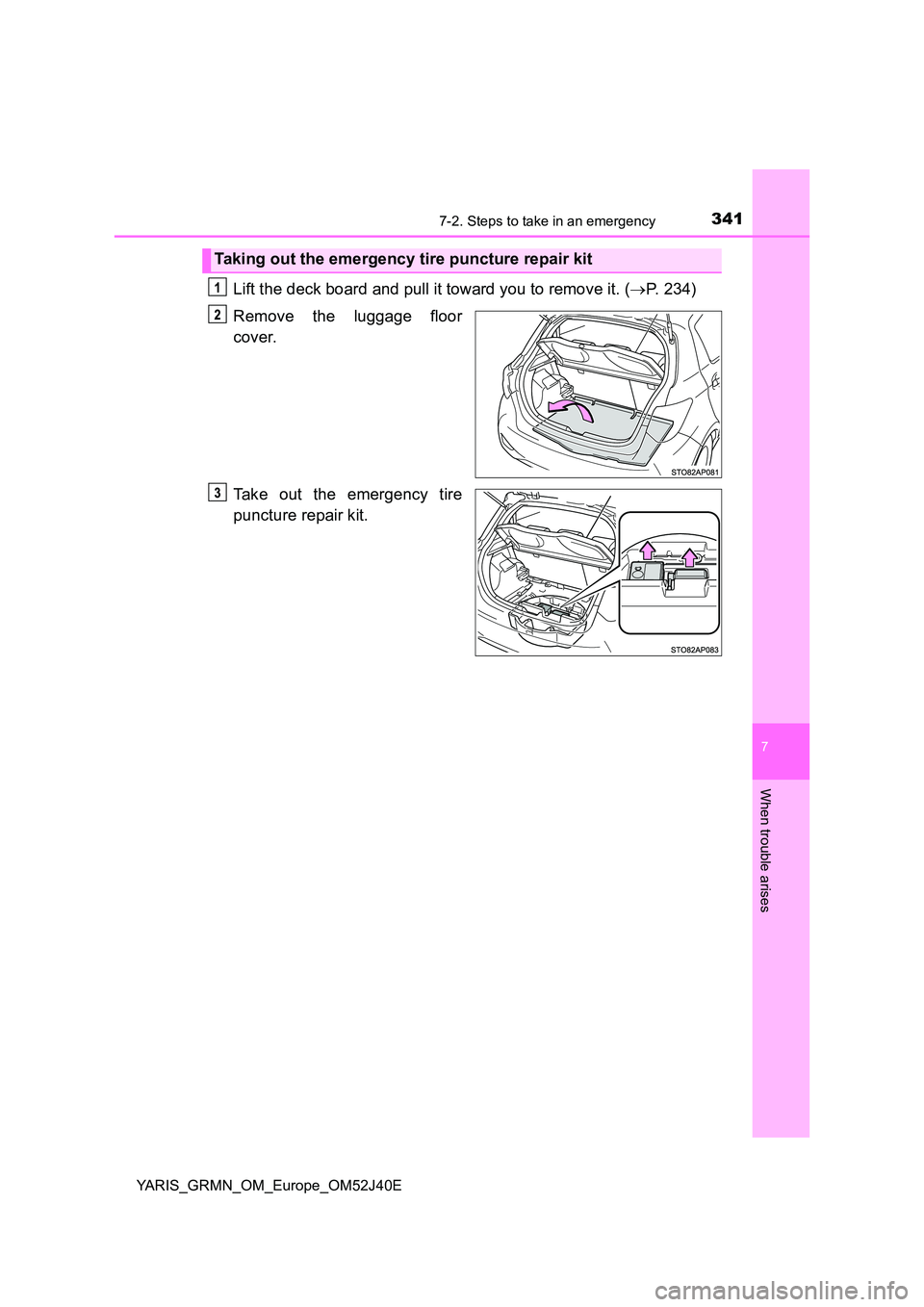

Page 341 of 404

TOYOTA YARIS GRMN 2017  Owners Manual 3417-2. Steps to take in an emergency
YARIS_GRMN_OM_Europe_OM52J40E
7
When trouble arises
Lift the deck board and pull it toward you to remove it. (P. 234)
Remove the luggage floor
cover.
Take o

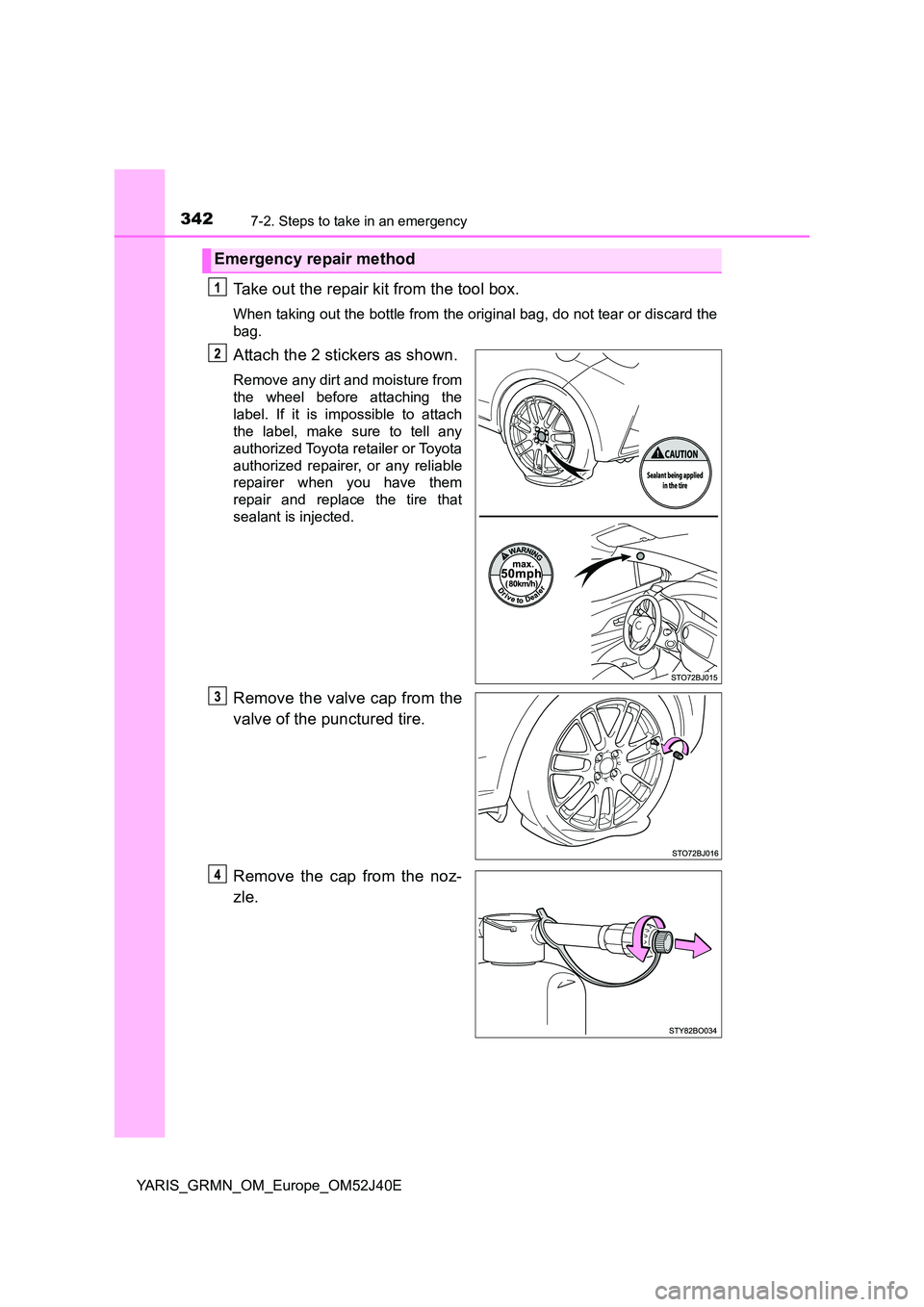

Page 342 of 404

TOYOTA YARIS GRMN 2017  Owners Manual 3427-2. Steps to take in an emergency
YARIS_GRMN_OM_Europe_OM52J40E
Take out the repair kit from the tool box.
When taking out the bottle from the original bag, do not tear or discard the
bag.
Attach

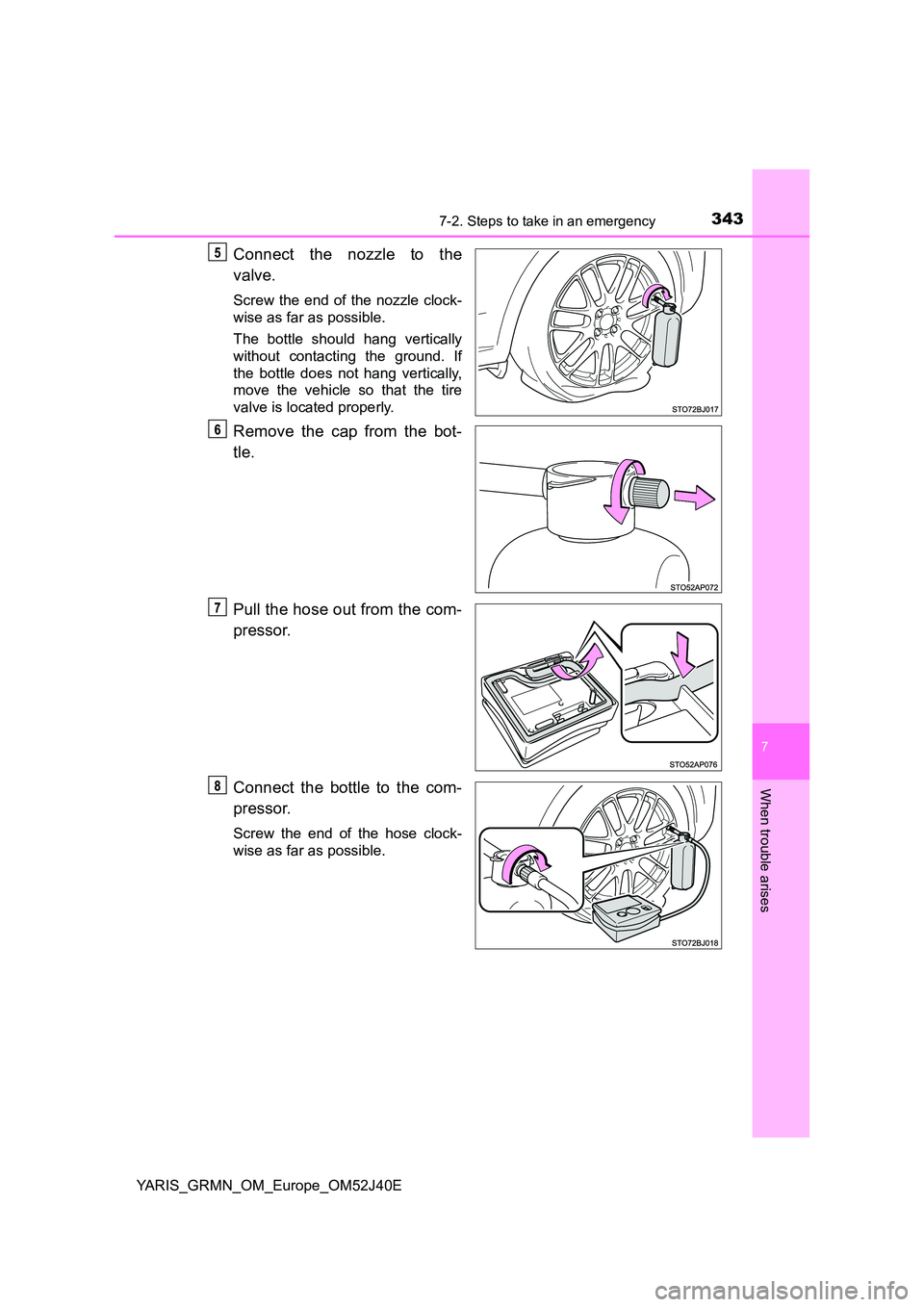

Page 343 of 404

TOYOTA YARIS GRMN 2017  Owners Manual 3437-2. Steps to take in an emergency
YARIS_GRMN_OM_Europe_OM52J40E
7
When trouble arises
Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle sho

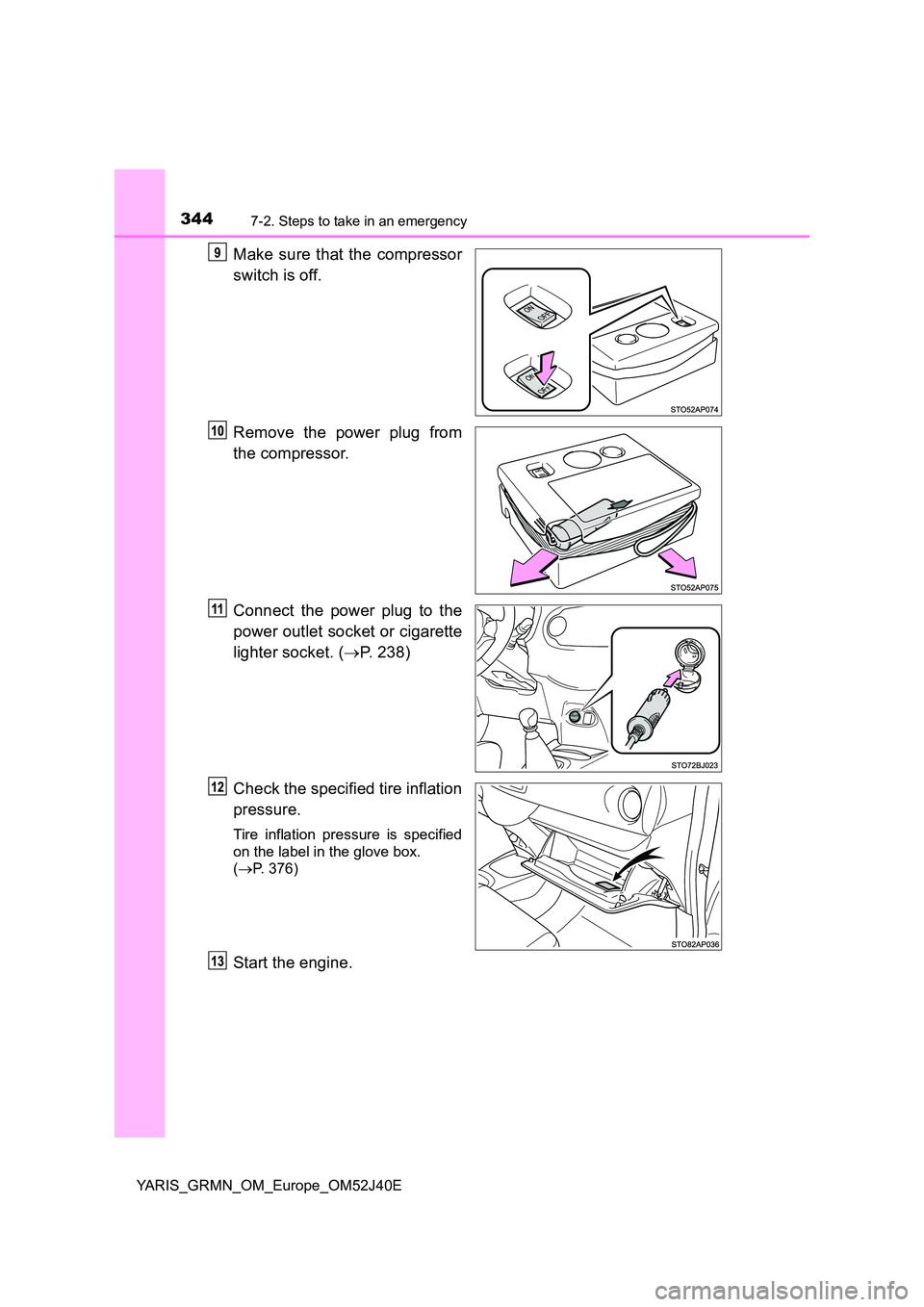

Page 344 of 404

TOYOTA YARIS GRMN 2017  Owners Manual 3447-2. Steps to take in an emergency
YARIS_GRMN_OM_Europe_OM52J40E
Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
Connect the power plug to the
power out

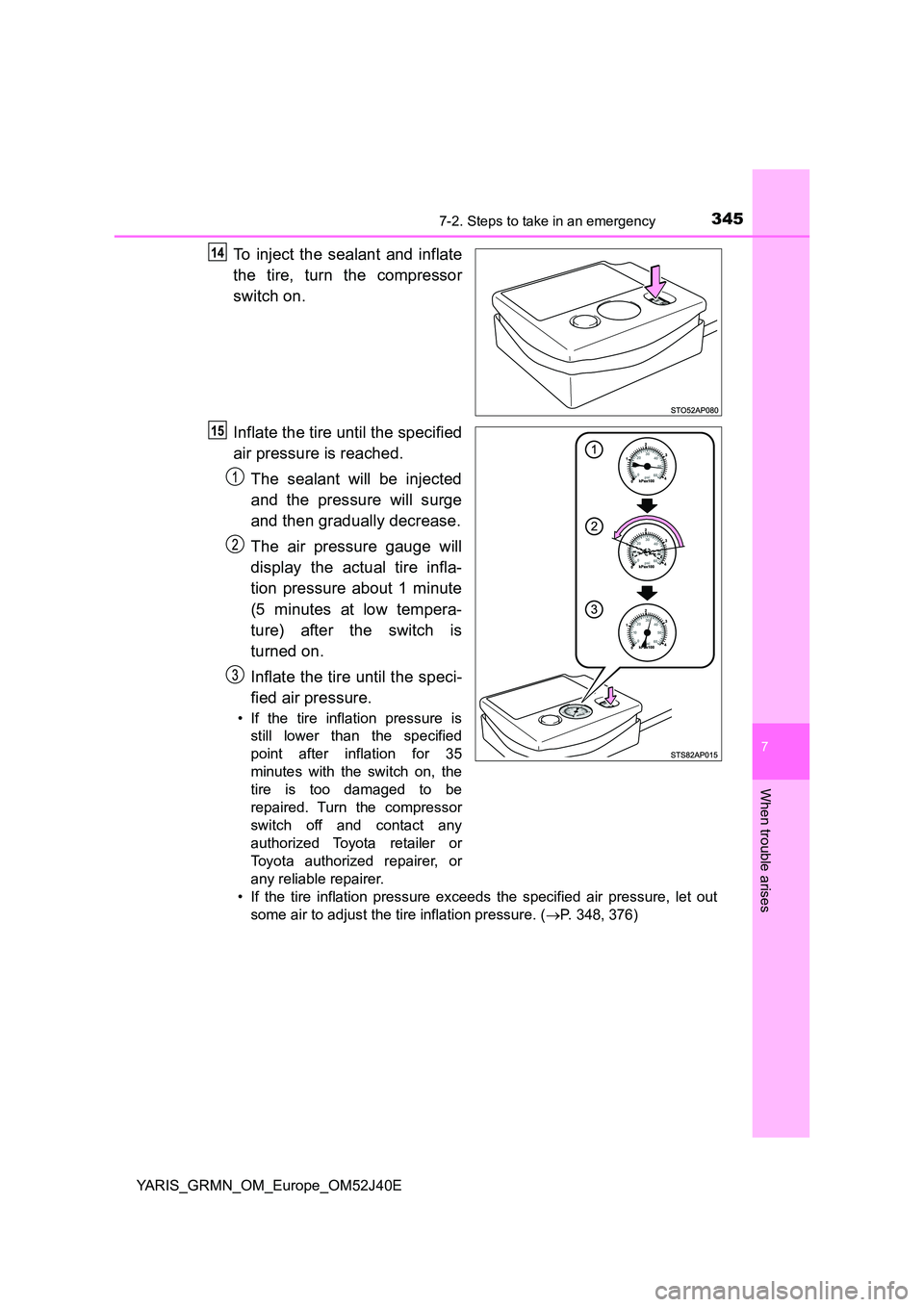

Page 345 of 404

TOYOTA YARIS GRMN 2017  Owners Manual 3457-2. Steps to take in an emergency
YARIS_GRMN_OM_Europe_OM52J40E
7
When trouble arises
To inject the sealant and inflate
the tire, turn the compressor
switch on.
Inflate the tire until the speci

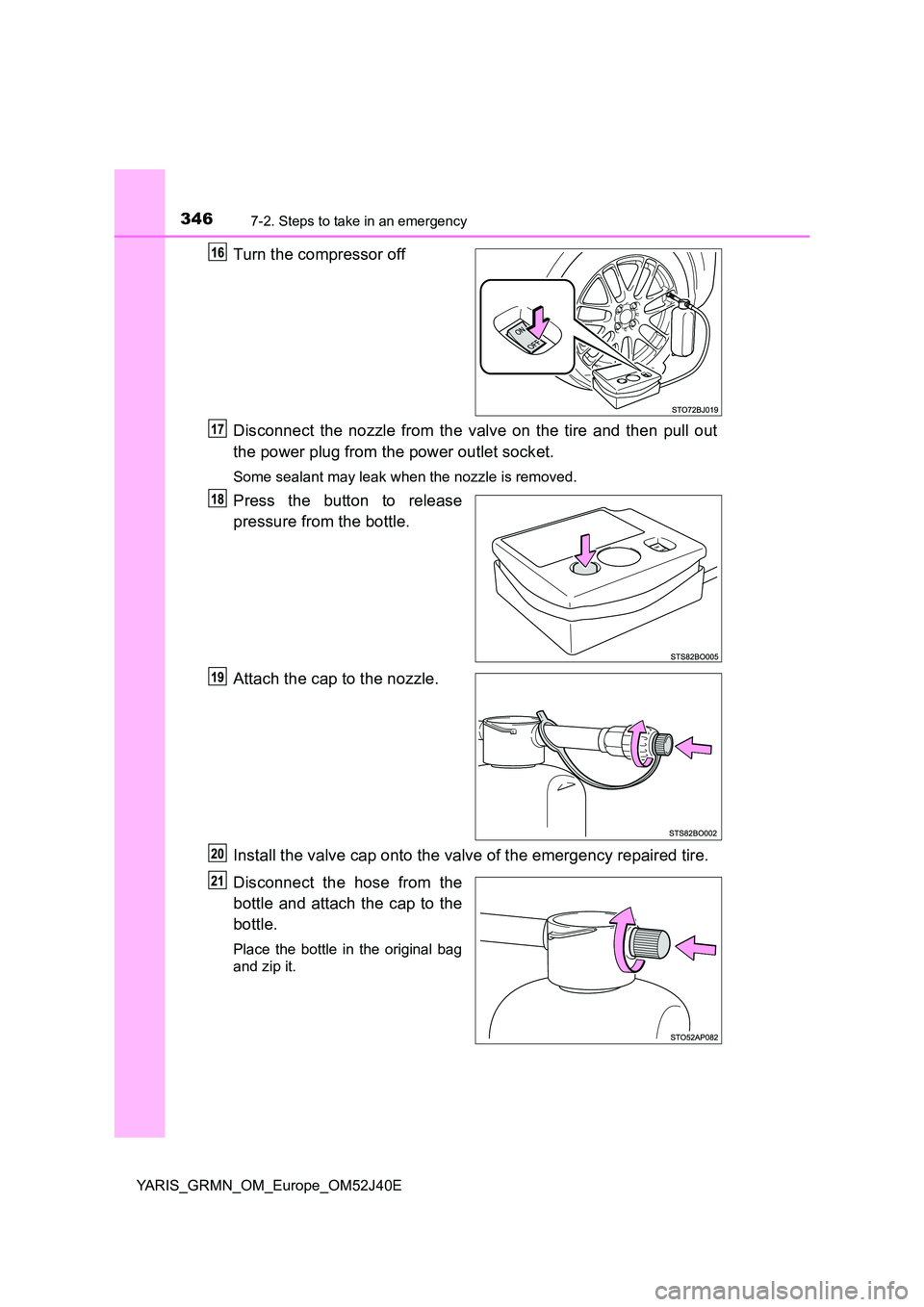

Page 346 of 404

TOYOTA YARIS GRMN 2017  Owners Manual 3467-2. Steps to take in an emergency
YARIS_GRMN_OM_Europe_OM52J40E
Turn the compressor off
Disconnect the nozzle from the valve on the tire and then pull out
the power plug from the power outlet so

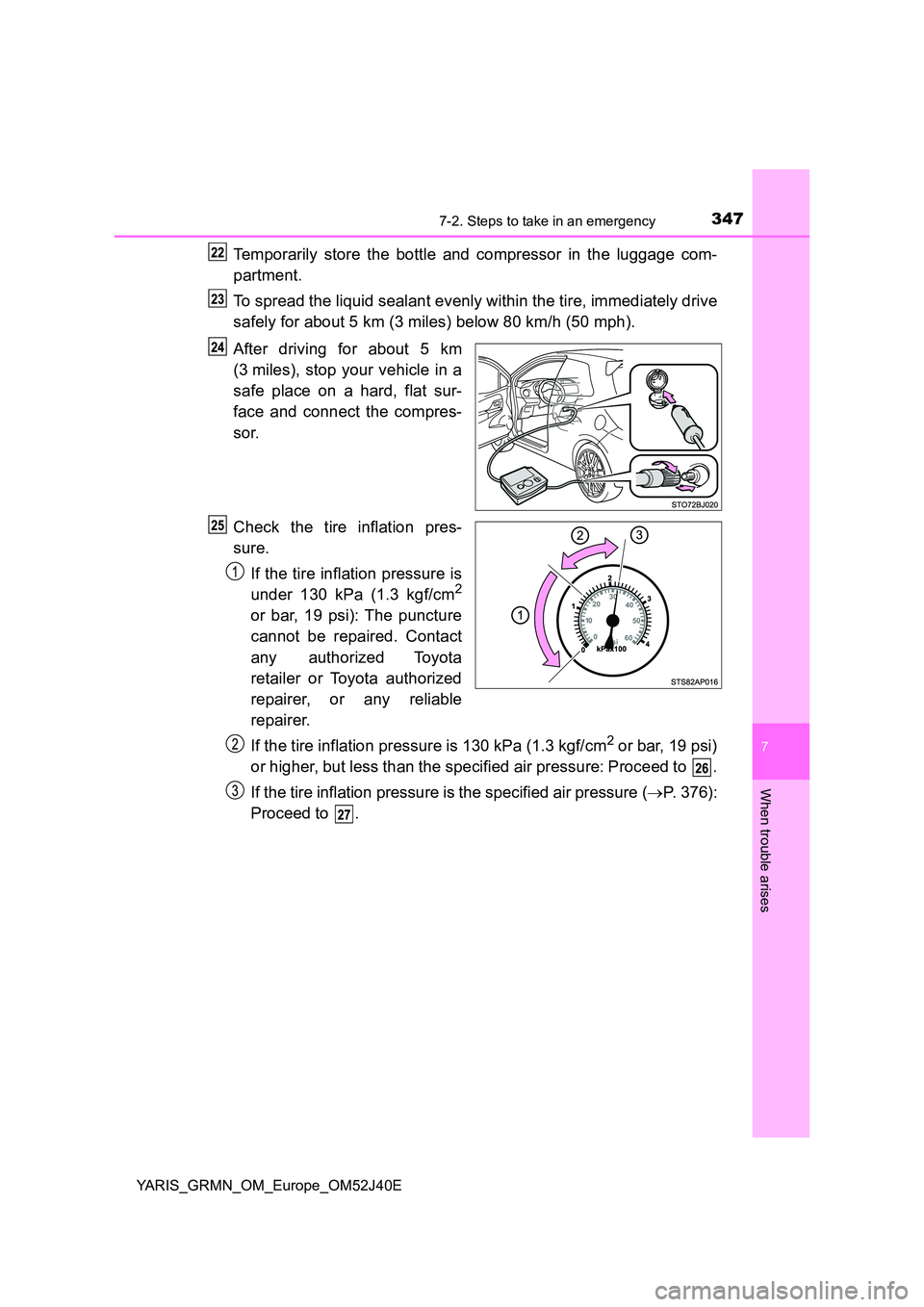

Page 347 of 404

TOYOTA YARIS GRMN 2017  Owners Manual 3477-2. Steps to take in an emergency
YARIS_GRMN_OM_Europe_OM52J40E
7
When trouble arises
Temporarily store the bottle and compressor in the luggage com-
partment.
To spread the liquid sealant evenl

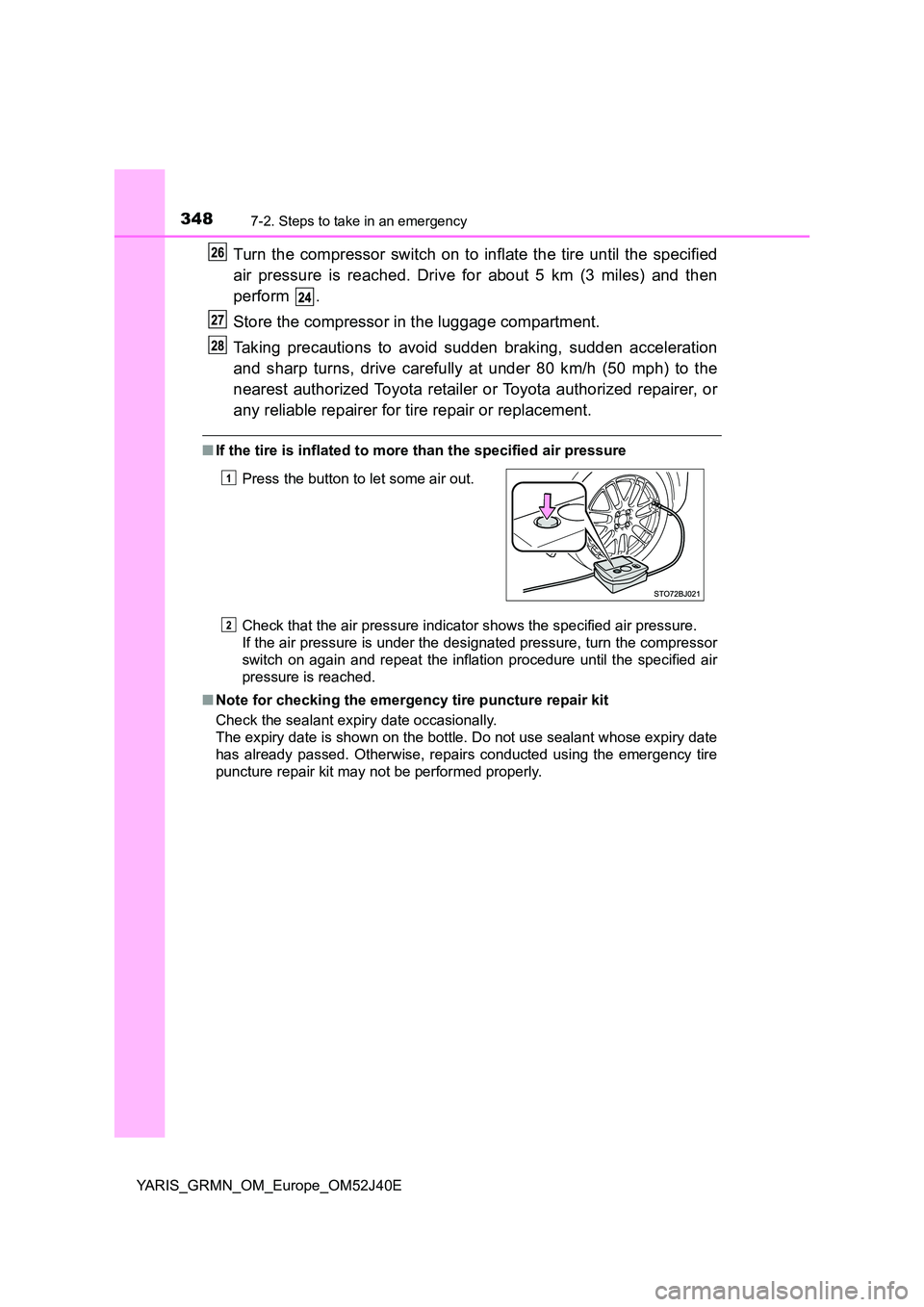

Page 348 of 404

TOYOTA YARIS GRMN 2017  Owners Manual 3487-2. Steps to take in an emergency
YARIS_GRMN_OM_Europe_OM52J40E
Turn the compressor switch on to inflate the tire until the specified
air pressure is reached. Drive for about 5 km (3 miles) and t

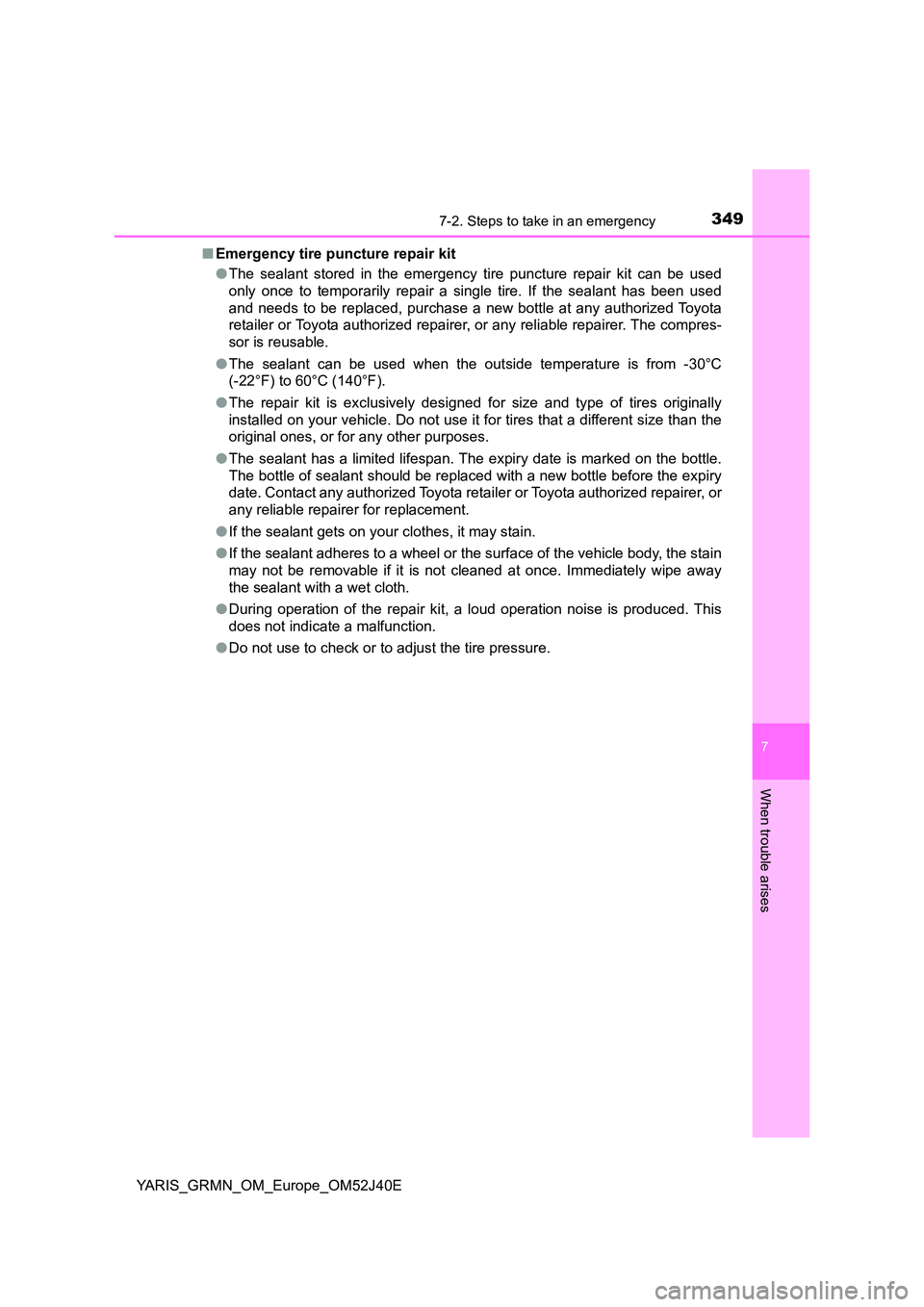

Page 349 of 404

TOYOTA YARIS GRMN 2017  Owners Manual 3497-2. Steps to take in an emergency
YARIS_GRMN_OM_Europe_OM52J40E
7
When trouble arises
■Emergency tire puncture repair kit
● The sealant stored in the emergency tire puncture repair kit can be

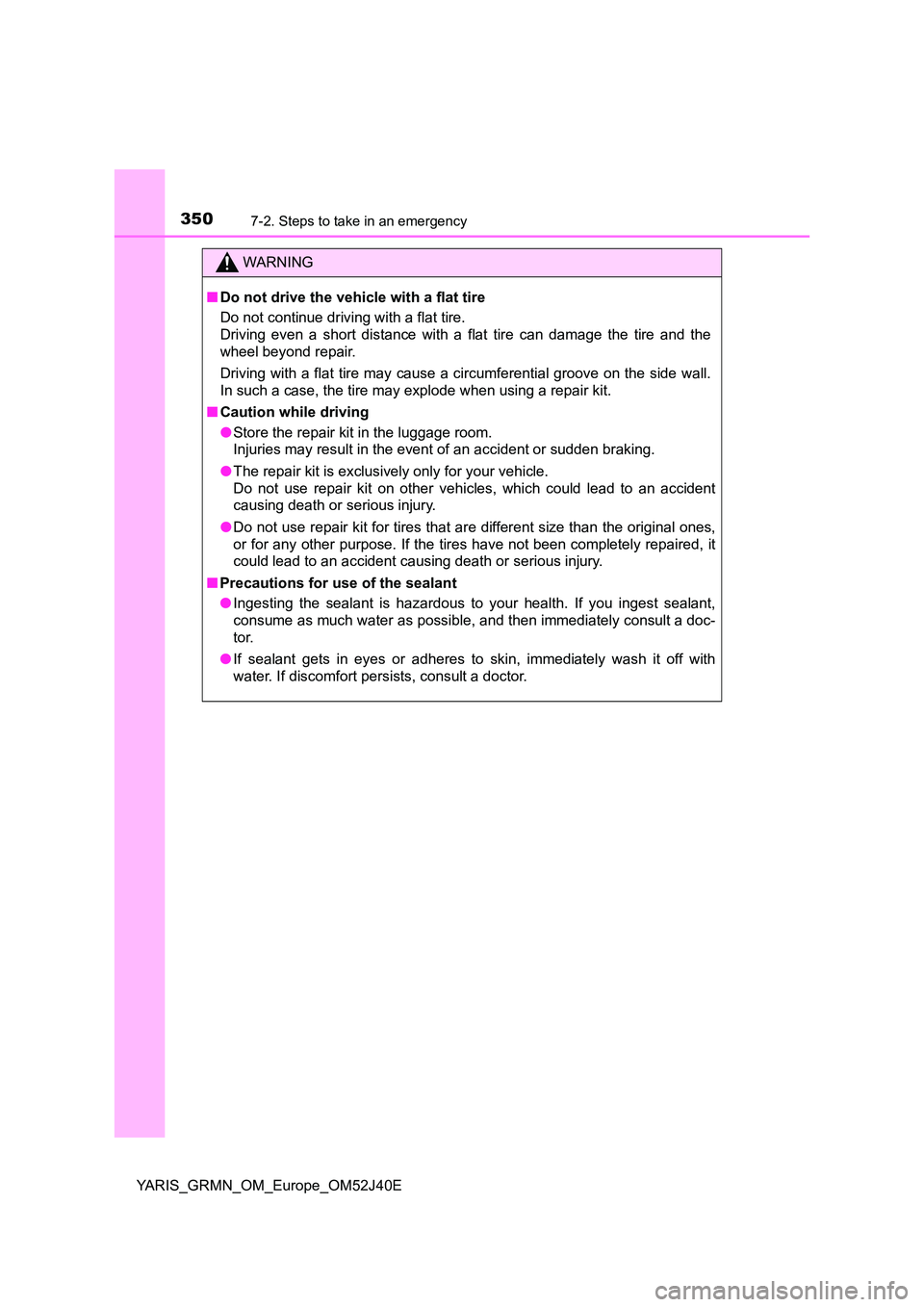

Page 350 of 404

TOYOTA YARIS GRMN 2017  Owners Manual 3507-2. Steps to take in an emergency
YARIS_GRMN_OM_Europe_OM52J40E
WARNING
■Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with
