TOYOTA YARIS GRMN 2017 Owners Manual

3116-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E
6
Maintenance and care

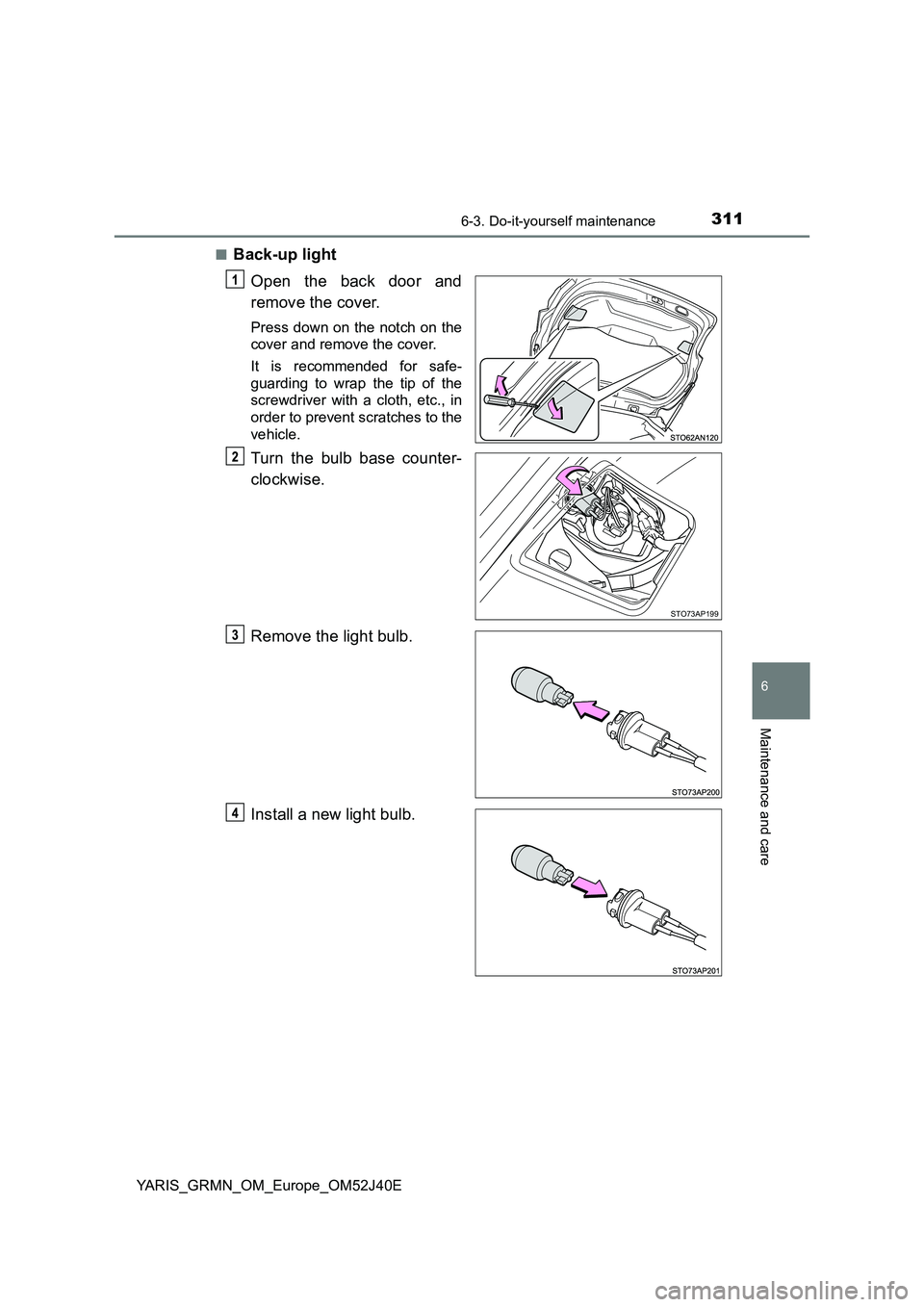

■Back-up light
Open the back door and
remove the cover.
Press down on the notch on the
cover and remove the cover.
It is recommended for safe-
guarding to wrap the tip of the
screwdriver with a cloth, etc., in
order to prevent scratches to the
vehicle.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
Install a new light bulb.
STO73AP199

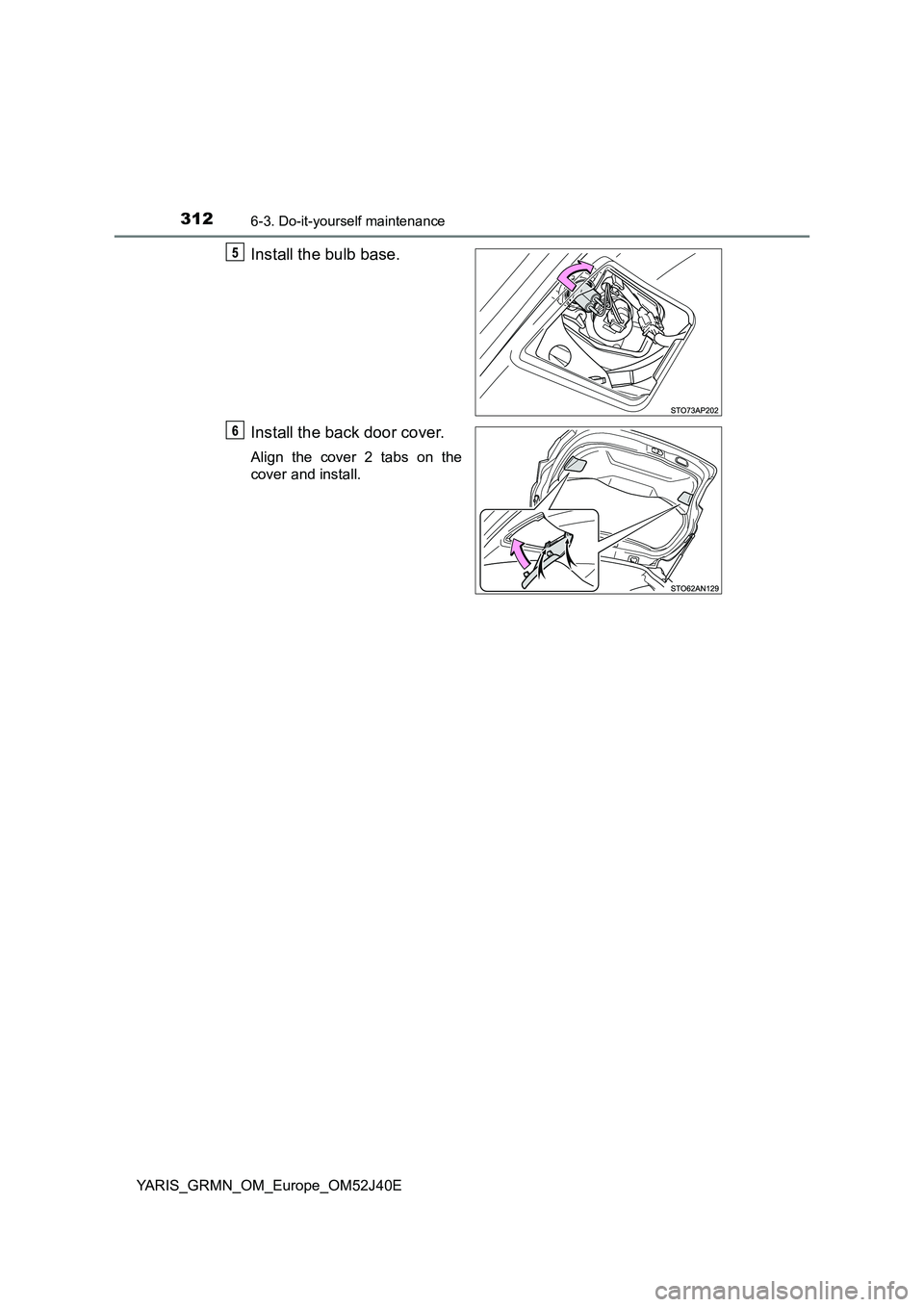

3126-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E
Install the bulb base.
Install the back door cover.
Align the cover 2 tabs on the
cover and install.

3136-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E
6
Maintenance and care

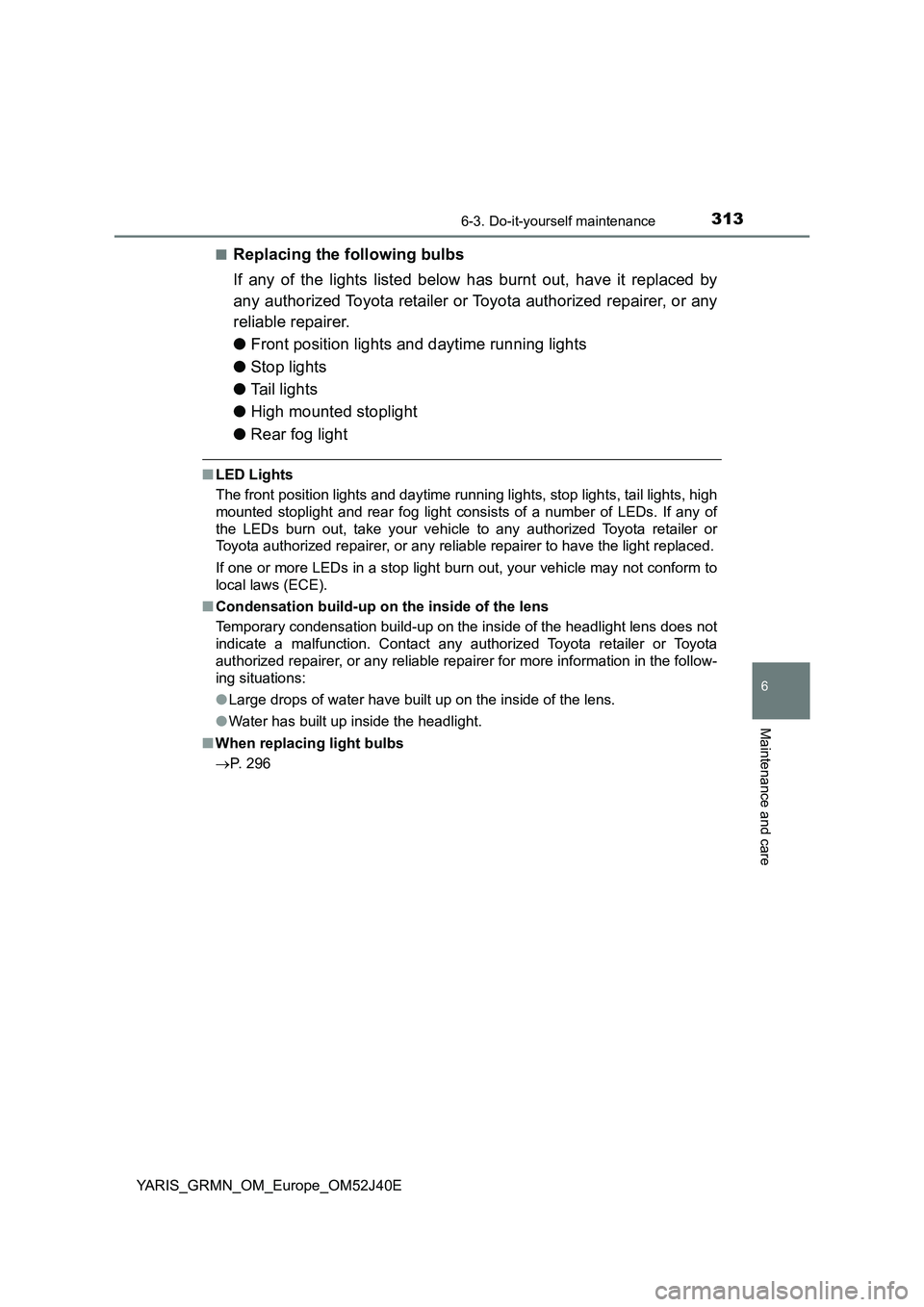

■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Front position lights and daytime running lights
● Stop lights
● Tail lights
● High mounted stoplight
● Rear fog light
■LED Lights
The front position lights and daytime running lights, stop lights, tail lights, high
mounted stoplight and rear fog light consists of a number of LEDs. If any of
the LEDs burn out, take your vehicle to any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer to have the light replaced.
If one or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer for more information in the follow-
ing situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
 P. 296

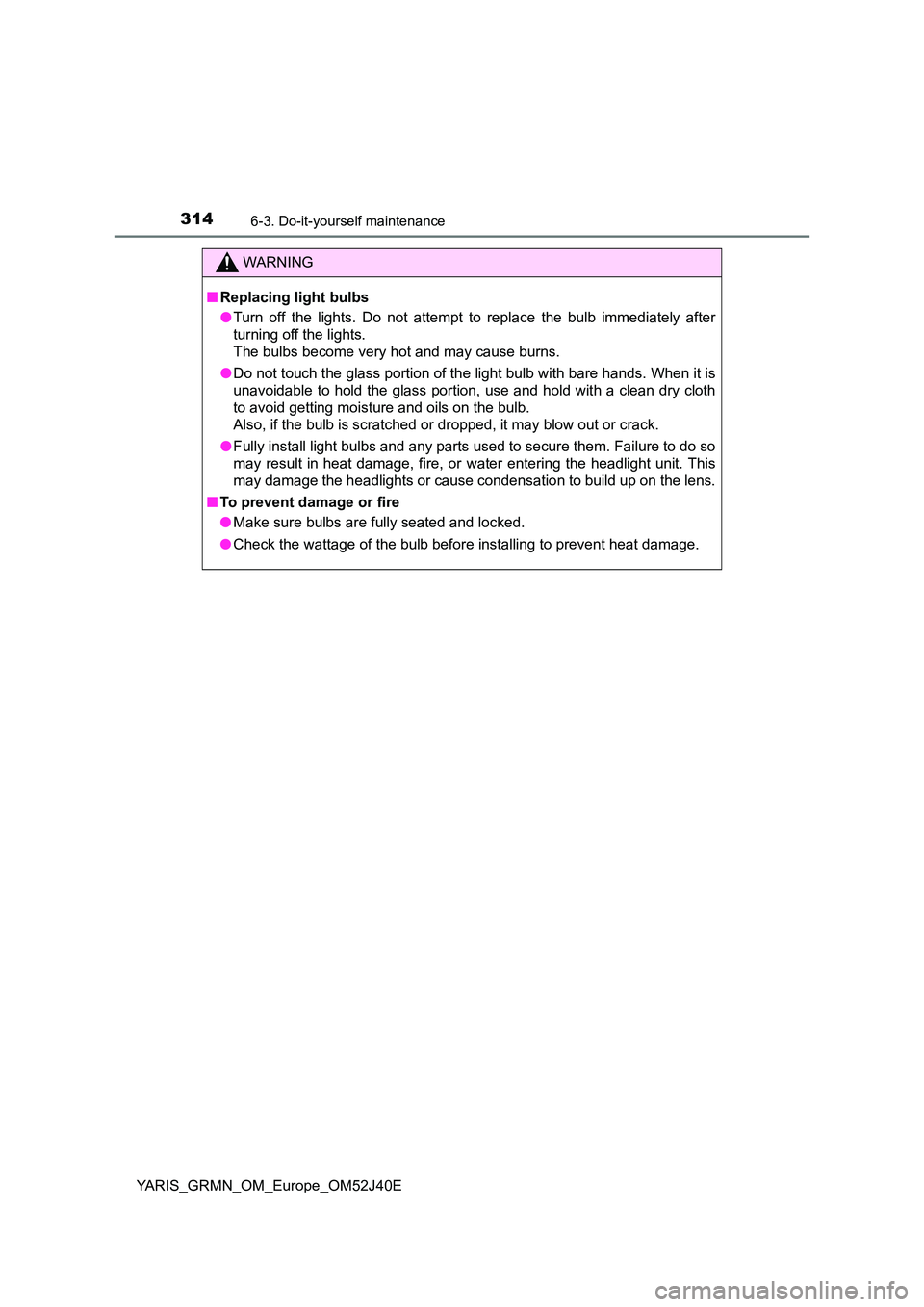

3146-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

315

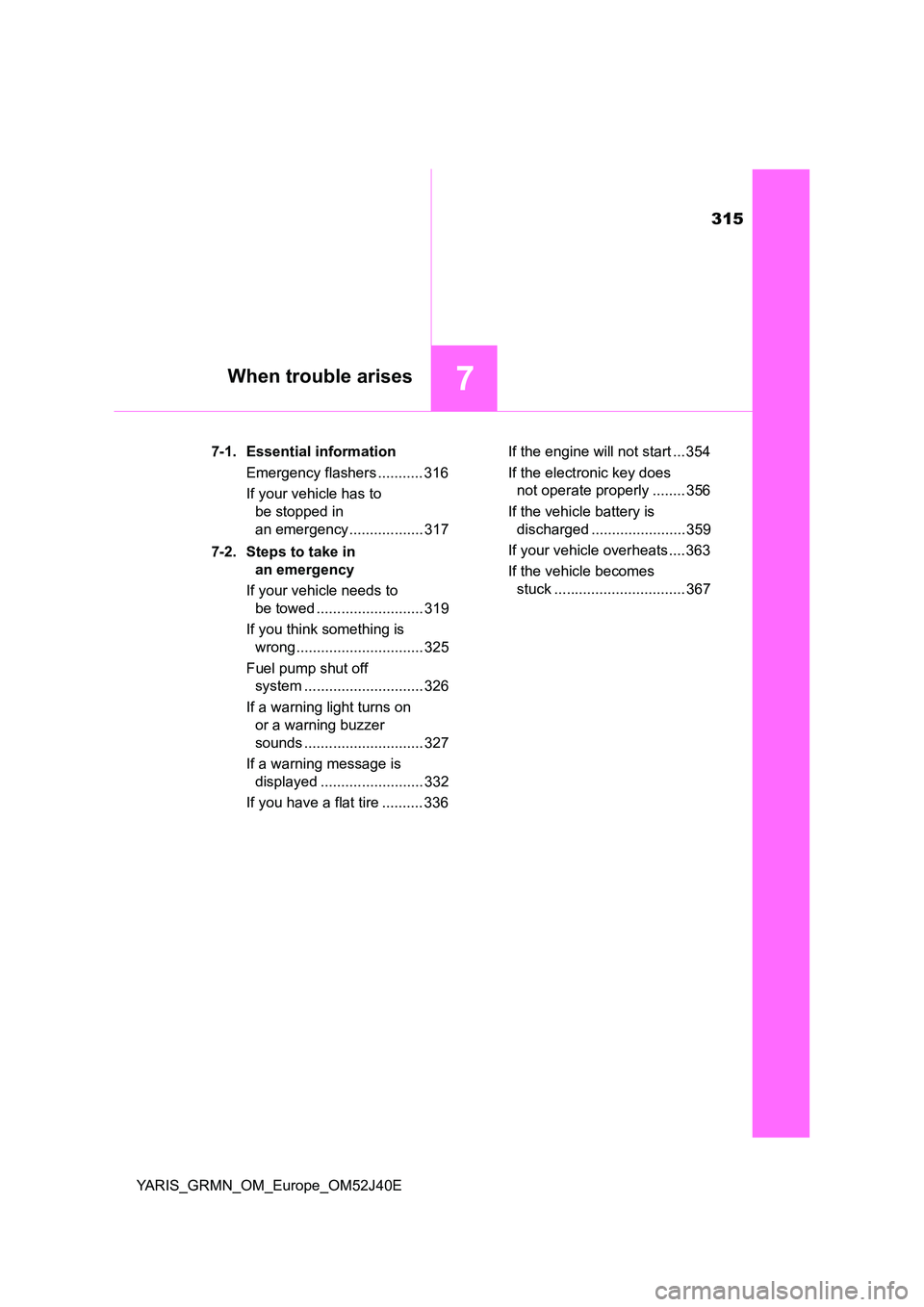

7When trouble arises
YARIS_GRMN_OM_Europe_OM52J40E
7-1. Essential information
Emergency flashers ........... 316
If your vehicle has to
be stopped in
an emergency .................. 317
7-2. Steps to take in
an emergency
If your vehicle needs to
be towed .......................... 319
If you think something is
wrong ............................... 325
Fuel pump shut off
system ............................. 326
If a warning light turns on
or a warning buzzer
sounds ............................. 327
If a warning message is
displayed ......................... 332
If you have a flat tire .......... 336
If the engine will not start ... 354
If the electronic key does
not operate properly ........ 356
If the vehicle battery is
discharged ....................... 359
If your vehicle overheats .... 363
If the vehicle becomes
stuck ................................ 367

3167-1. Essential information
YARIS_GRMN_OM_Europe_OM52J40E

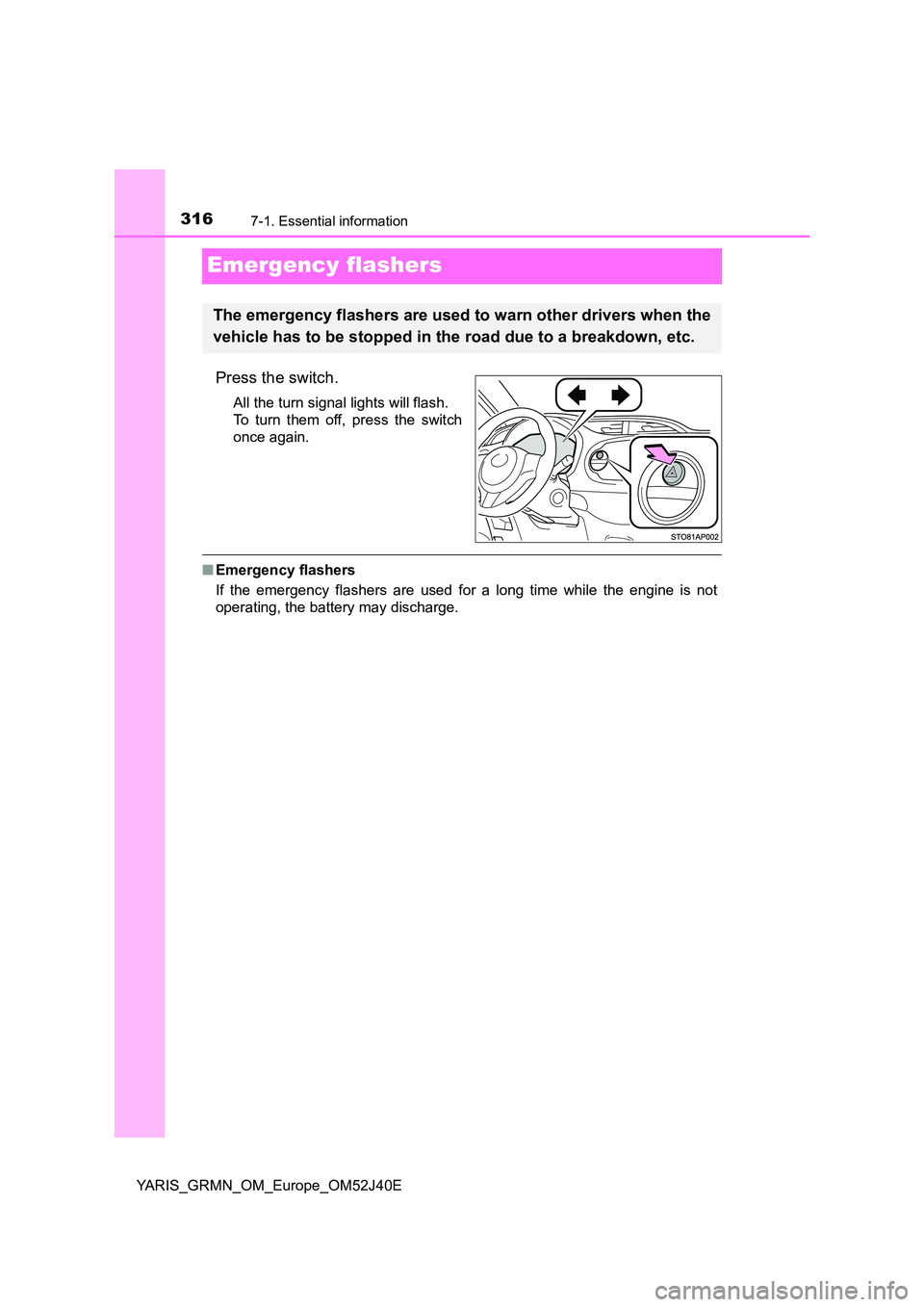

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■ Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.

3177-1. Essential information
YARIS_GRMN_OM_Europe_OM52J40E
7
When trouble arises

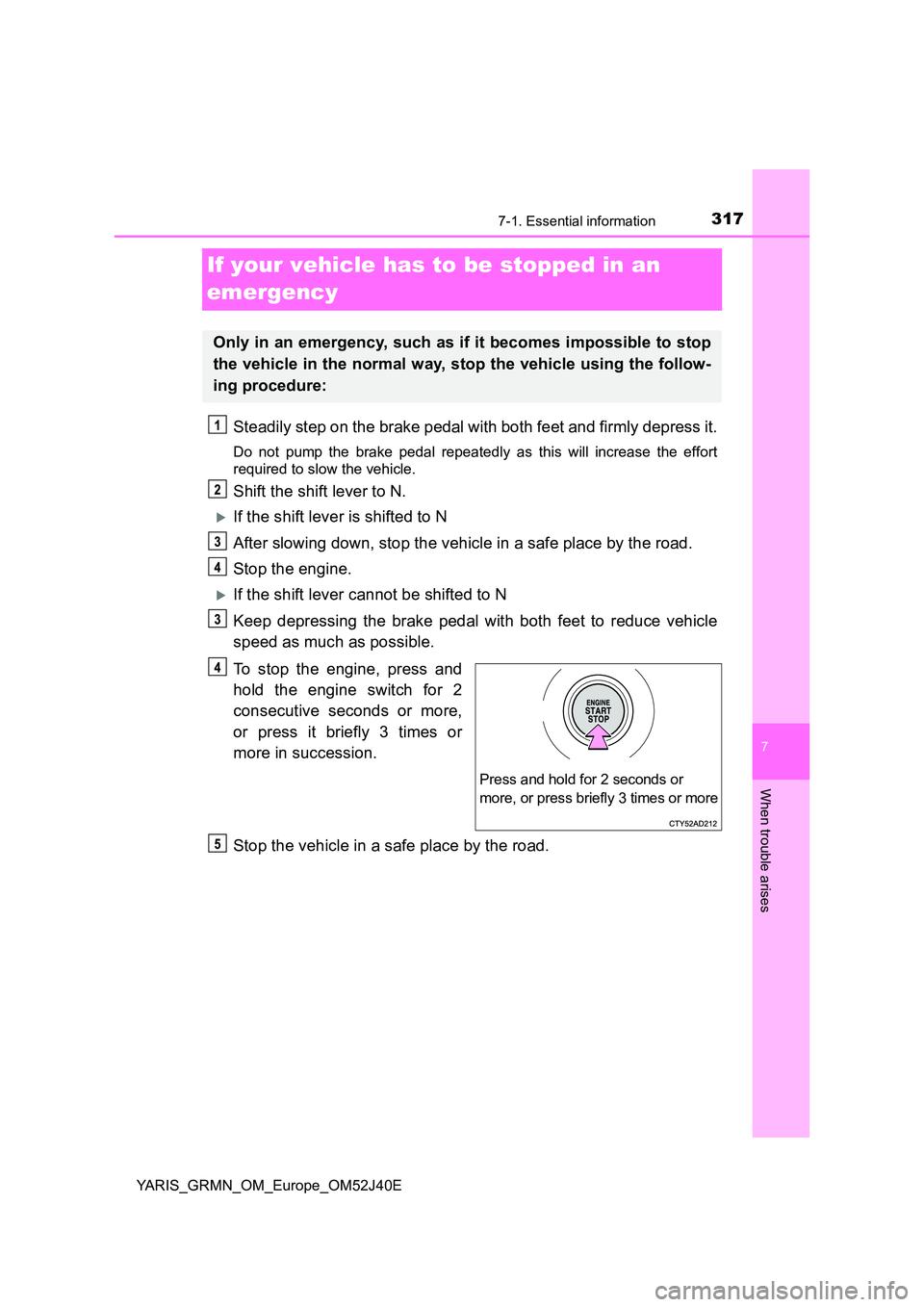

If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
To stop the engine, press and
hold the engine switch for 2
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
Press and hold for 2 seconds or
more, or press briefly 3 times or more

3187-1. Essential information
YARIS_GRMN_OM_Europe_OM52J40E

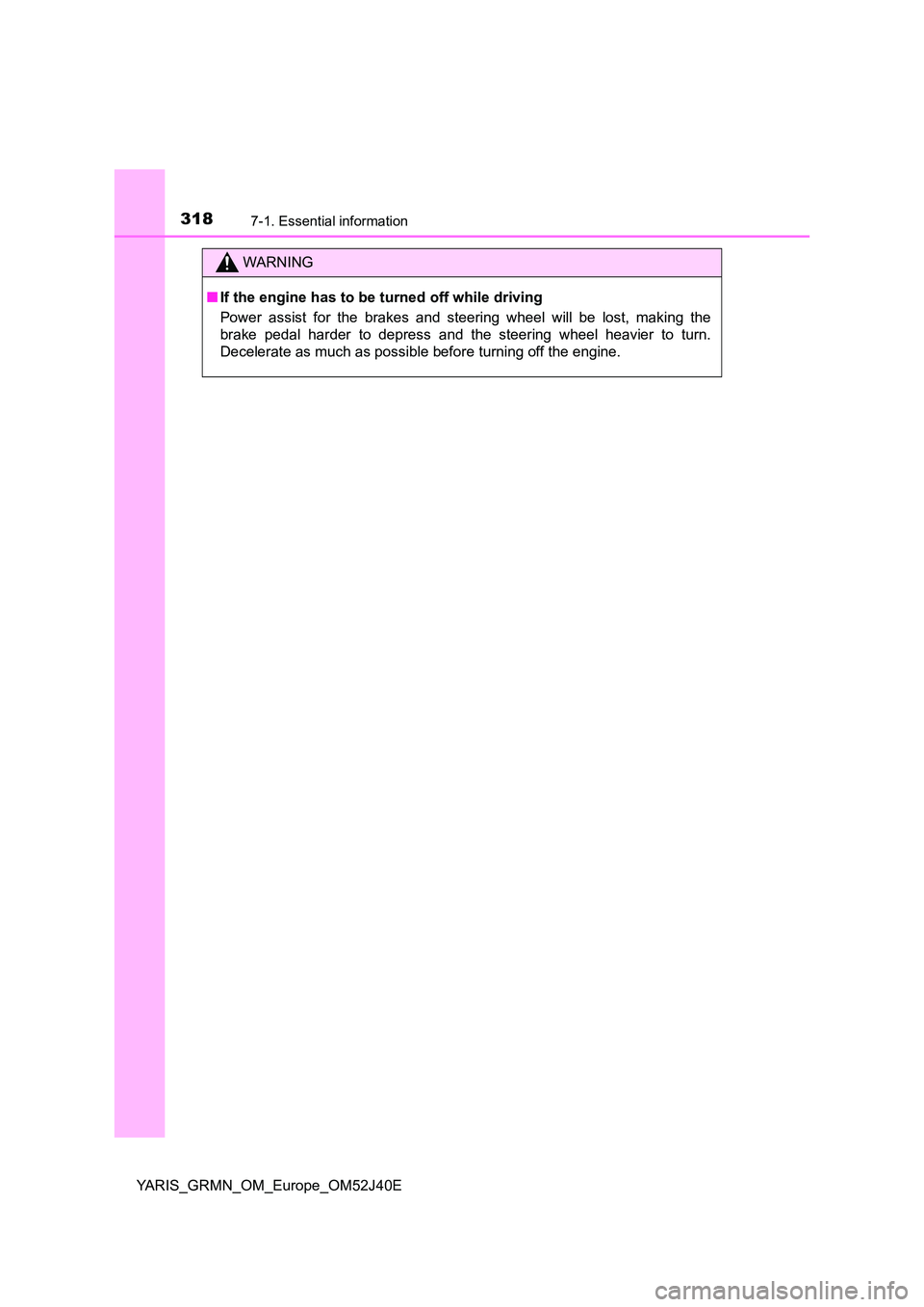

WARNING
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.

3197-2. Steps to take in an emergency
YARIS_GRMN_OM_Europe_OM52J40E
7
When trouble arises

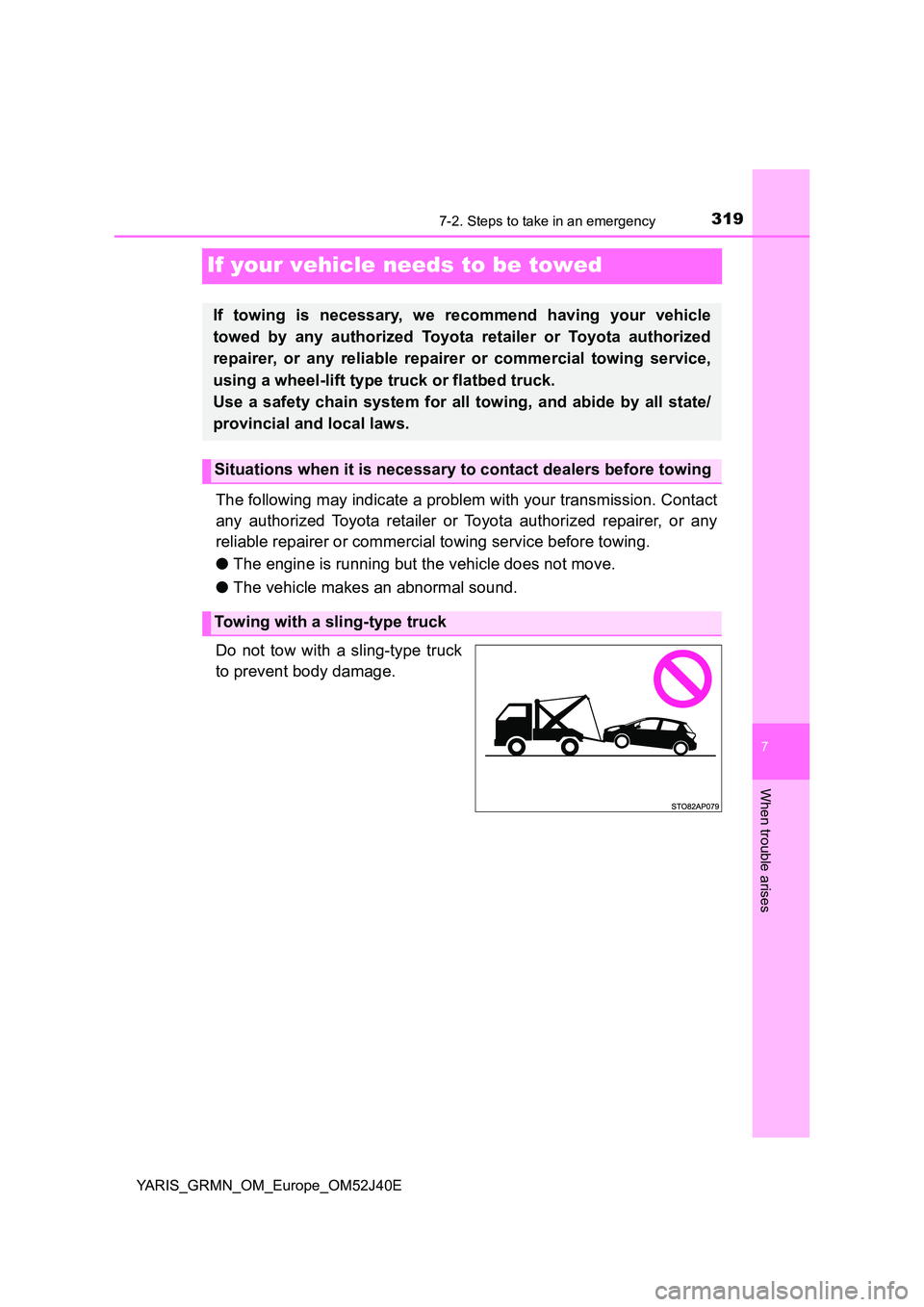

If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer or commercial towing service before towing.
● The engine is running but the vehicle does not move.
● The vehicle makes an abnormal sound.
Do not tow with a sling-type truck
to prevent body damage.
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer or commercial towing service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Situations when it is necessary to contact dealers before towing
Towing with a sling-type truck

3207-2. Steps to take in an emergency
YARIS_GRMN_OM_Europe_OM52J40E

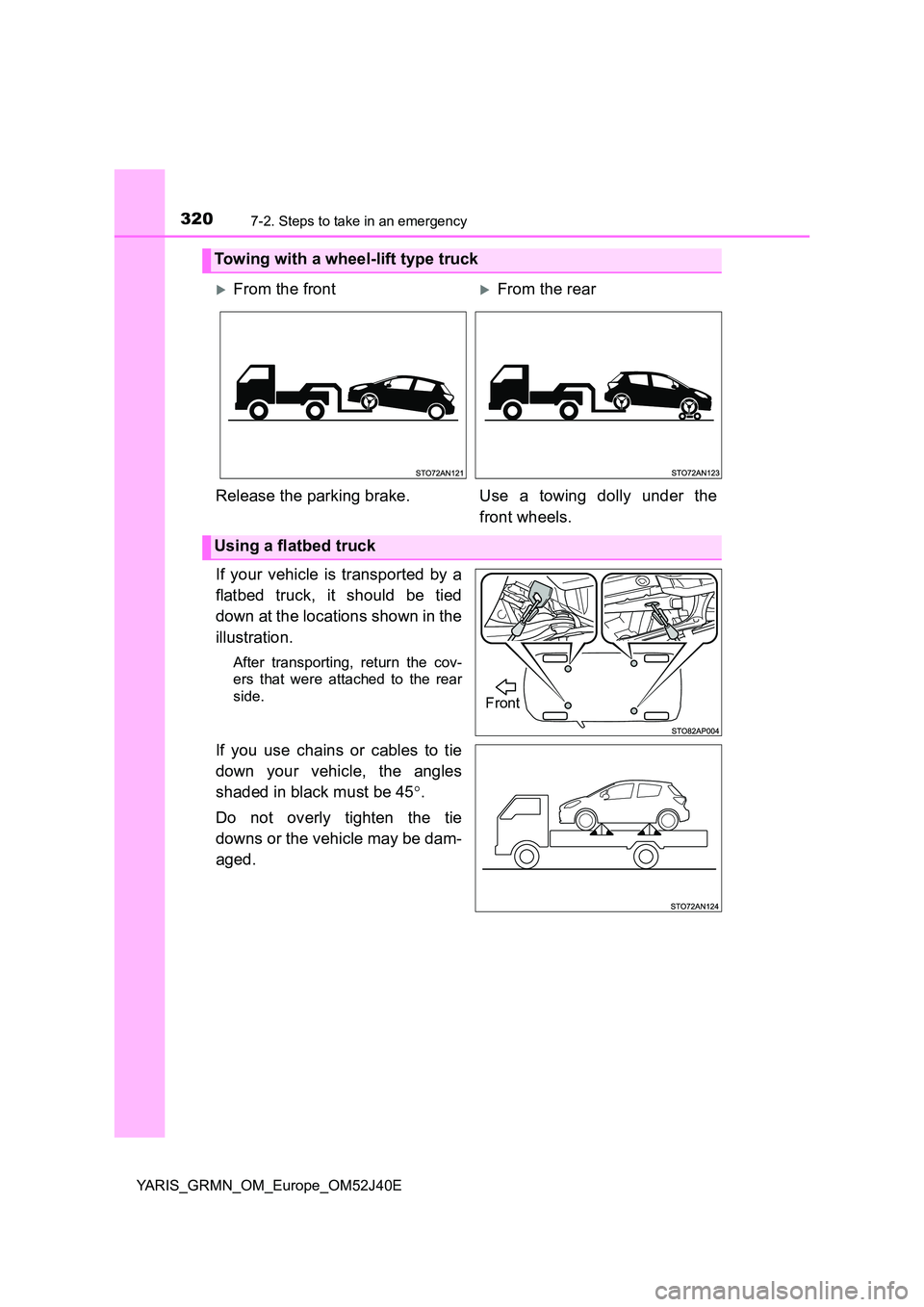

If your vehicle is transported by a
flatbed truck, it should be tied
down at the locations shown in the
illustration.
After transporting, return the cov-
ers that were attached to the rear
side.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45 .
Do not overly tighten the tie
downs or the vehicle may be dam-
aged.
Towing with a wheel-lift type truck
From the frontFrom the rear
Release the parking brake. Use a towing dolly under the
front wheels.
Using a flatbed truck
Front
