TOYOTA YARIS GRMN 2017 Owners Manual

3016-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E
6
Maintenance and care

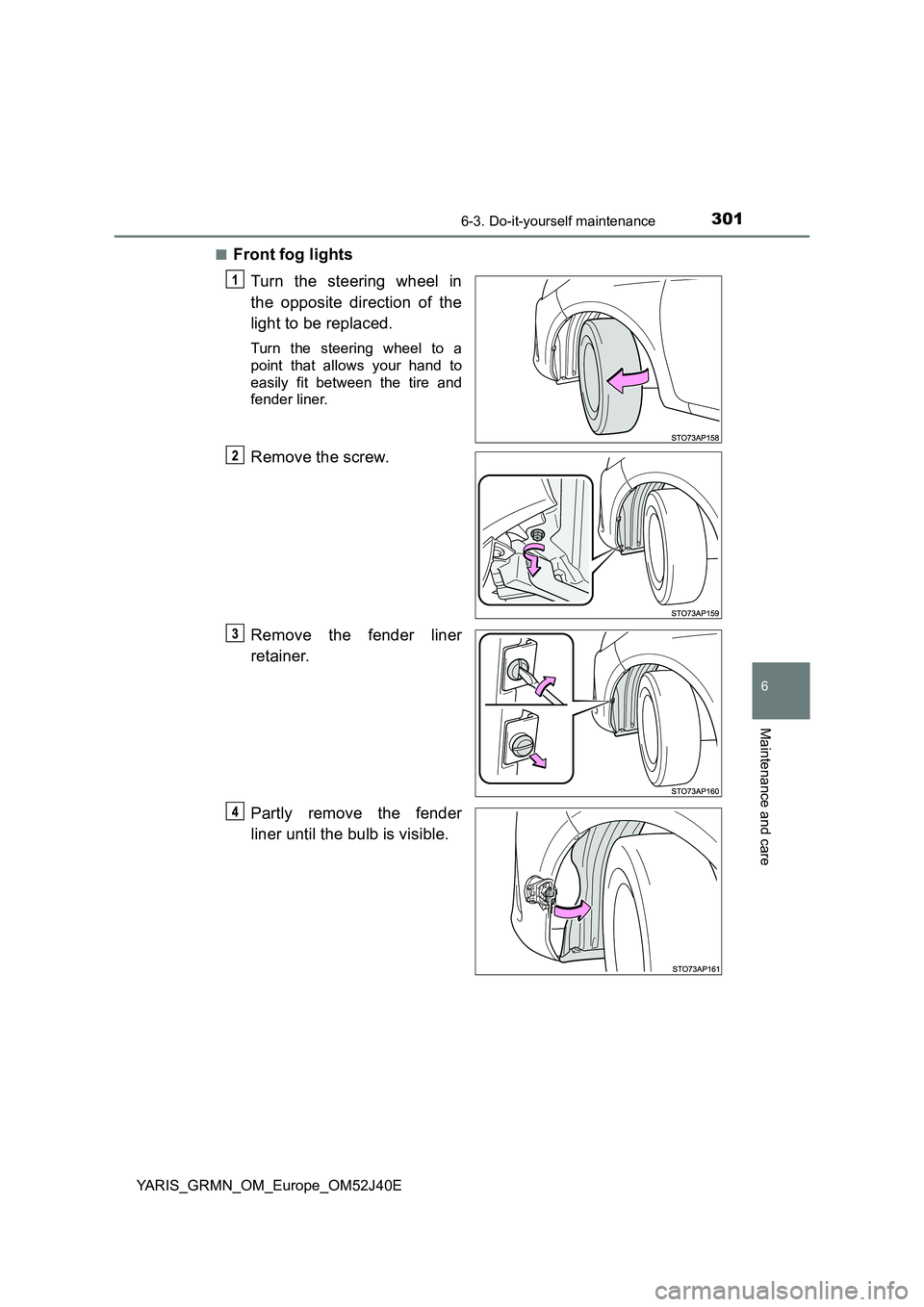

■Front fog lights
Turn the steering wheel in
the opposite direction of the
light to be replaced.
Turn the steering wheel to a
point that allows your hand to
easily fit between the tire and
fender liner.
Remove the screw.
Remove the fender liner
retainer.
Partly remove the fender
liner until the bulb is visible.

3026-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E

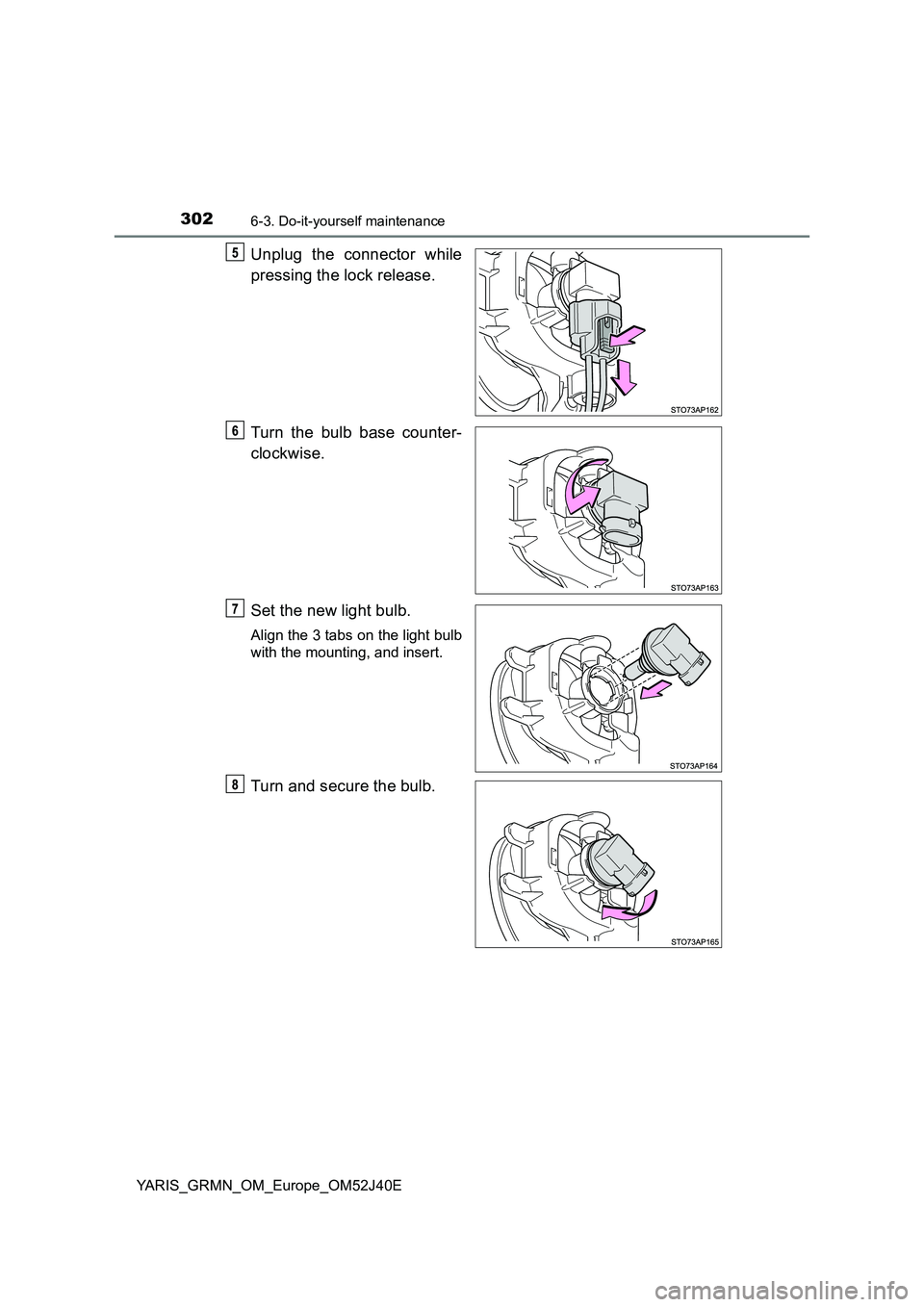

Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb.

3036-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E
6
Maintenance and care

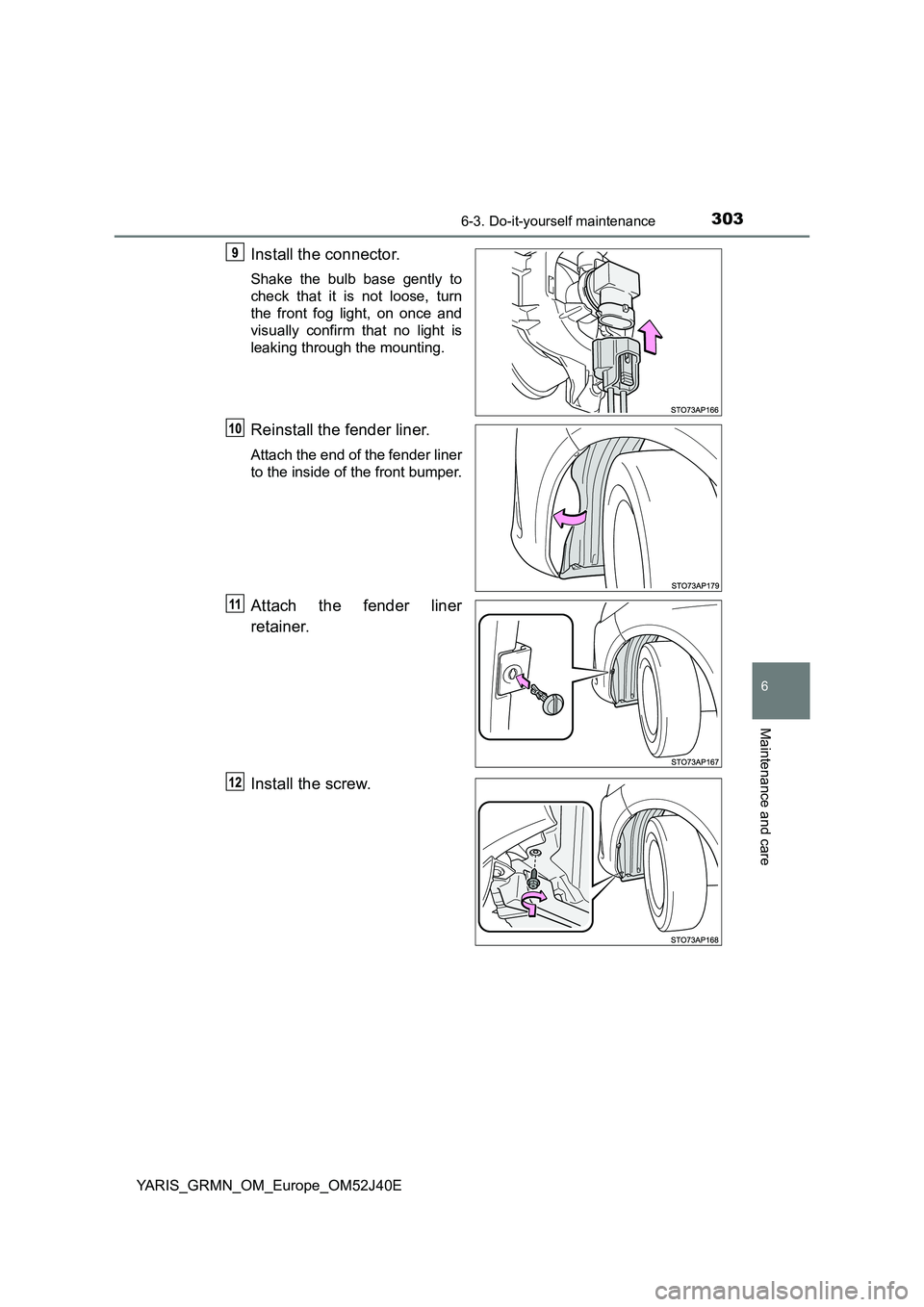

Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light, on once and
visually confirm that no light is
leaking through the mounting.
Reinstall the fender liner.
Attach the end of the fender liner
to the inside of the front bumper.
Attach the fender liner
retainer.
Install the screw.

3046-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E

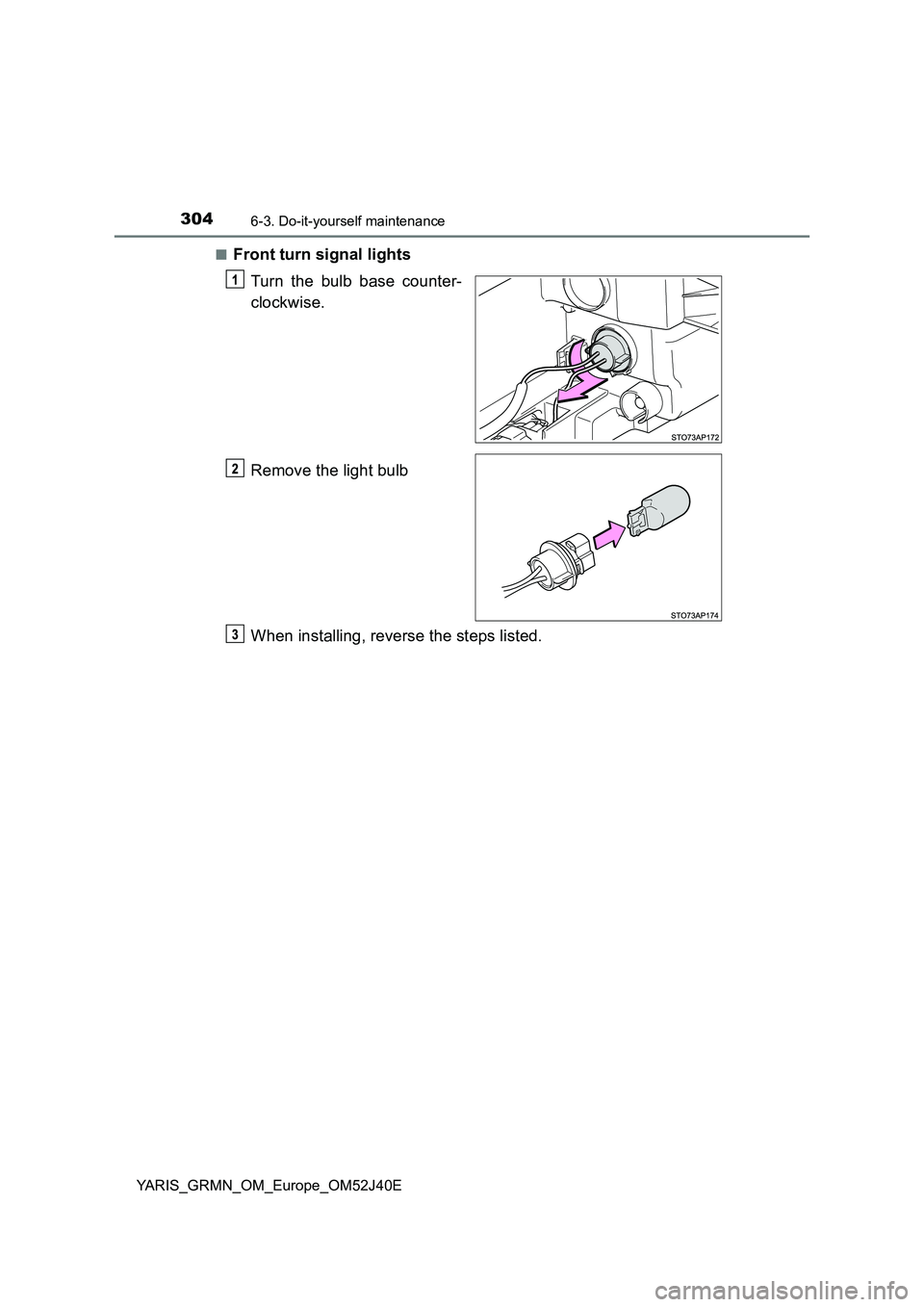

■Front turn signal lights
Turn the bulb base counter-
clockwise.
Remove the light bulb
When installing, reverse the steps listed.

3056-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E
6
Maintenance and care

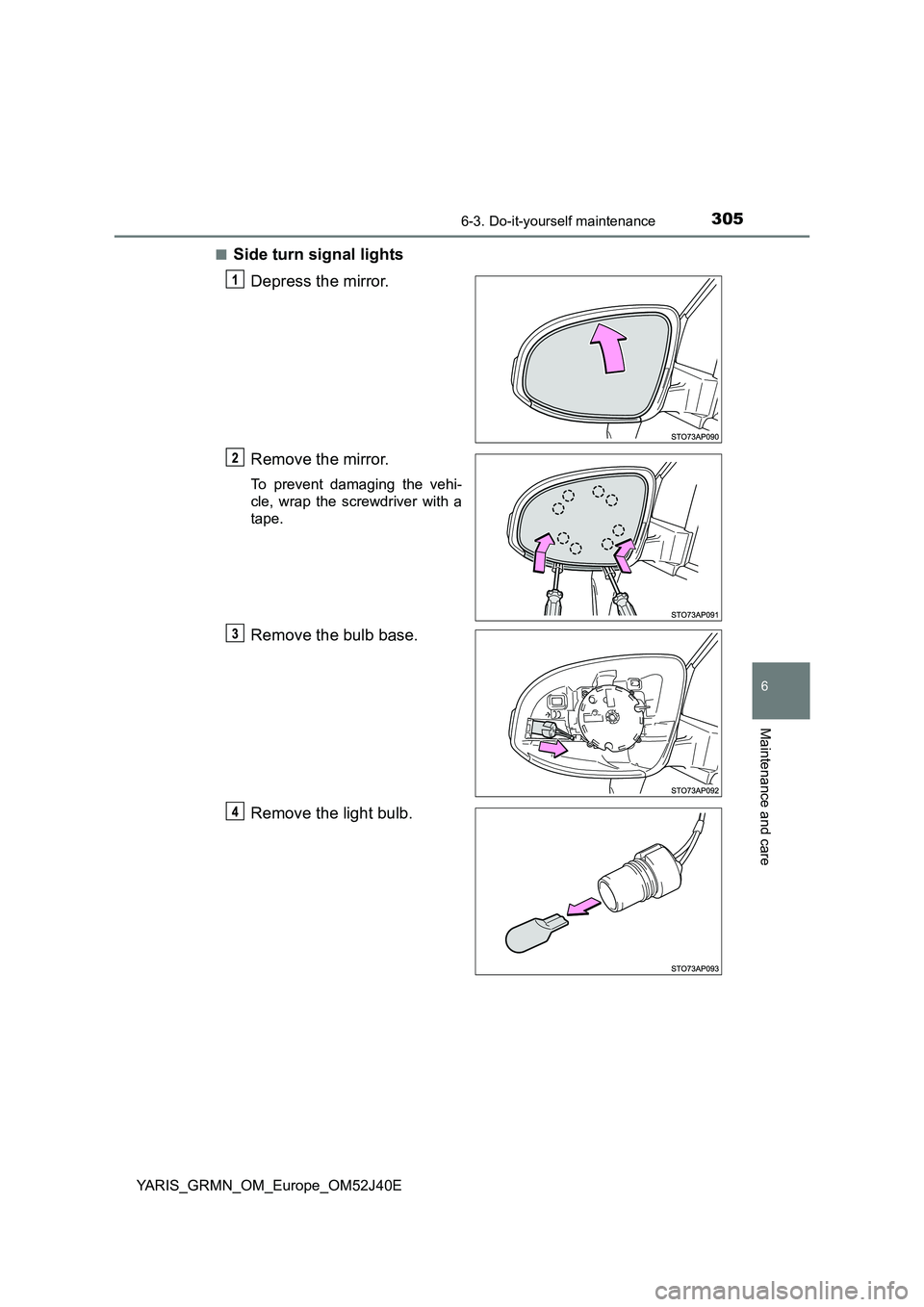

■Side turn signal lights
Depress the mirror.
Remove the mirror.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Remove the bulb base.
Remove the light bulb.

3066-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E

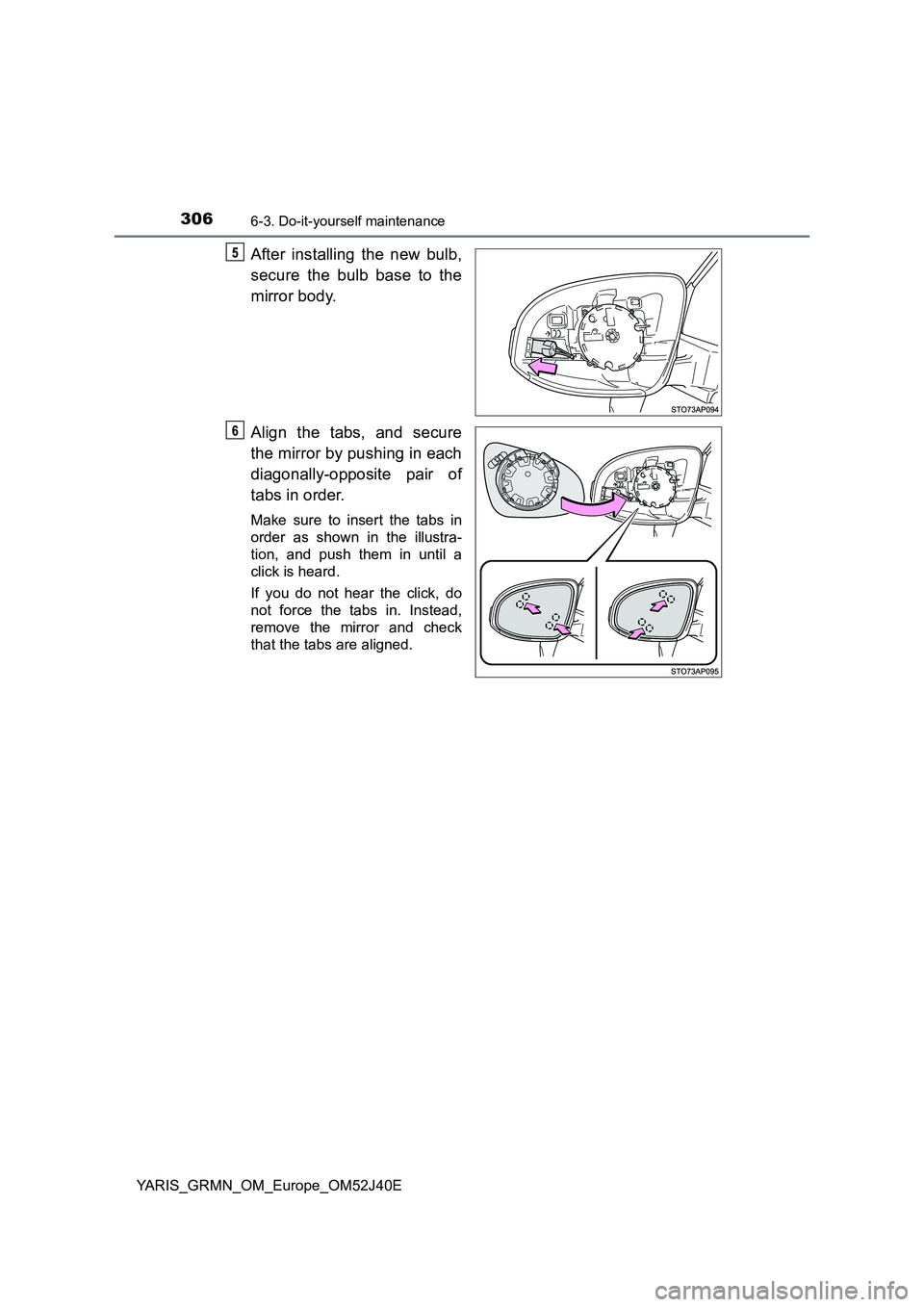

After installing the new bulb,
secure the bulb base to the
mirror body.
Align the tabs, and secure
the mirror by pushing in each
diagonally-opposite pair of
tabs in order.
Make sure to insert the tabs in
order as shown in the illustra-
tion, and push them in until a
click is heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check
that the tabs are aligned.

3076-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E
6
Maintenance and care

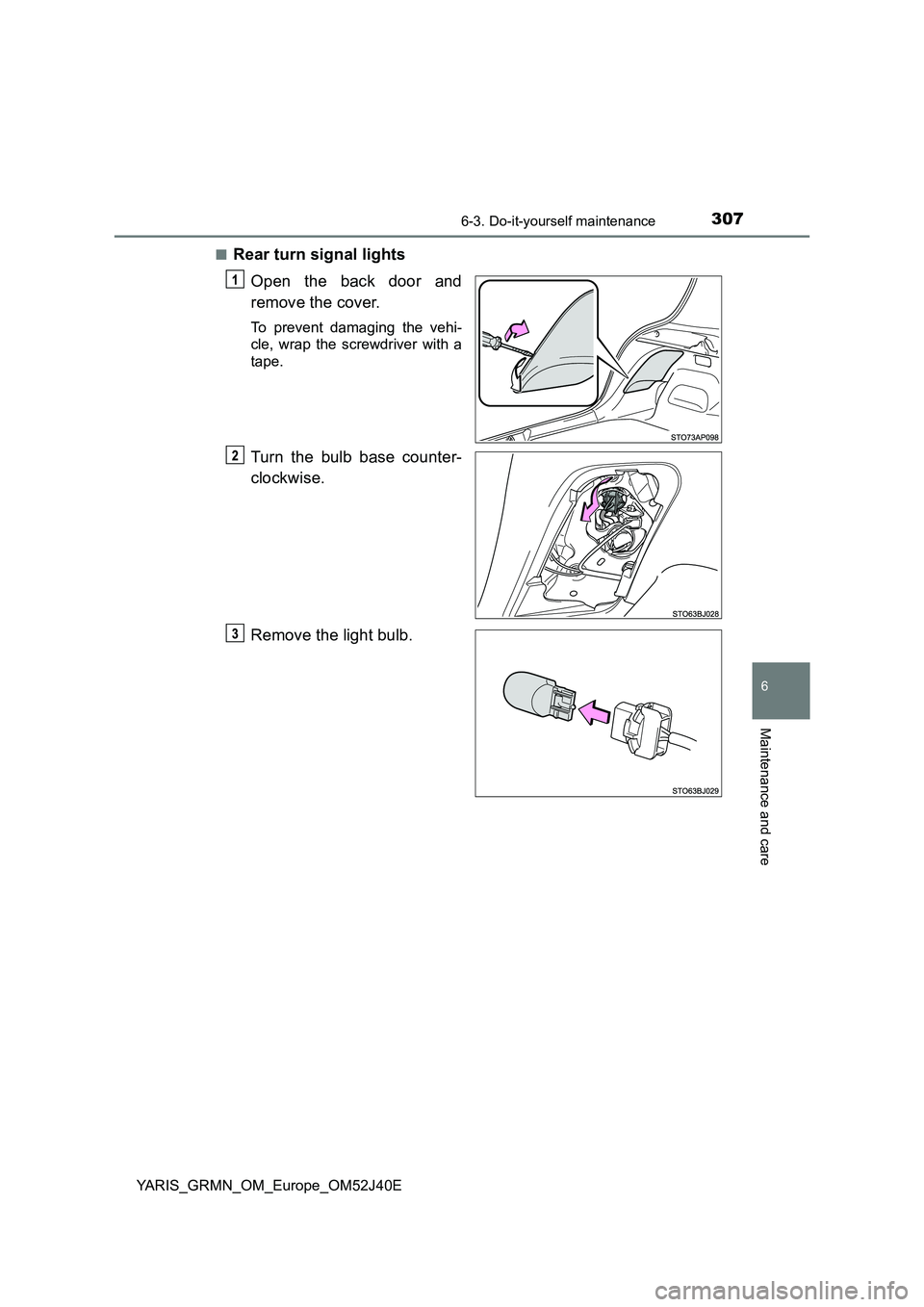

■Rear turn signal lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Turn the bulb base counter-
clockwise.
Remove the light bulb.

3086-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E

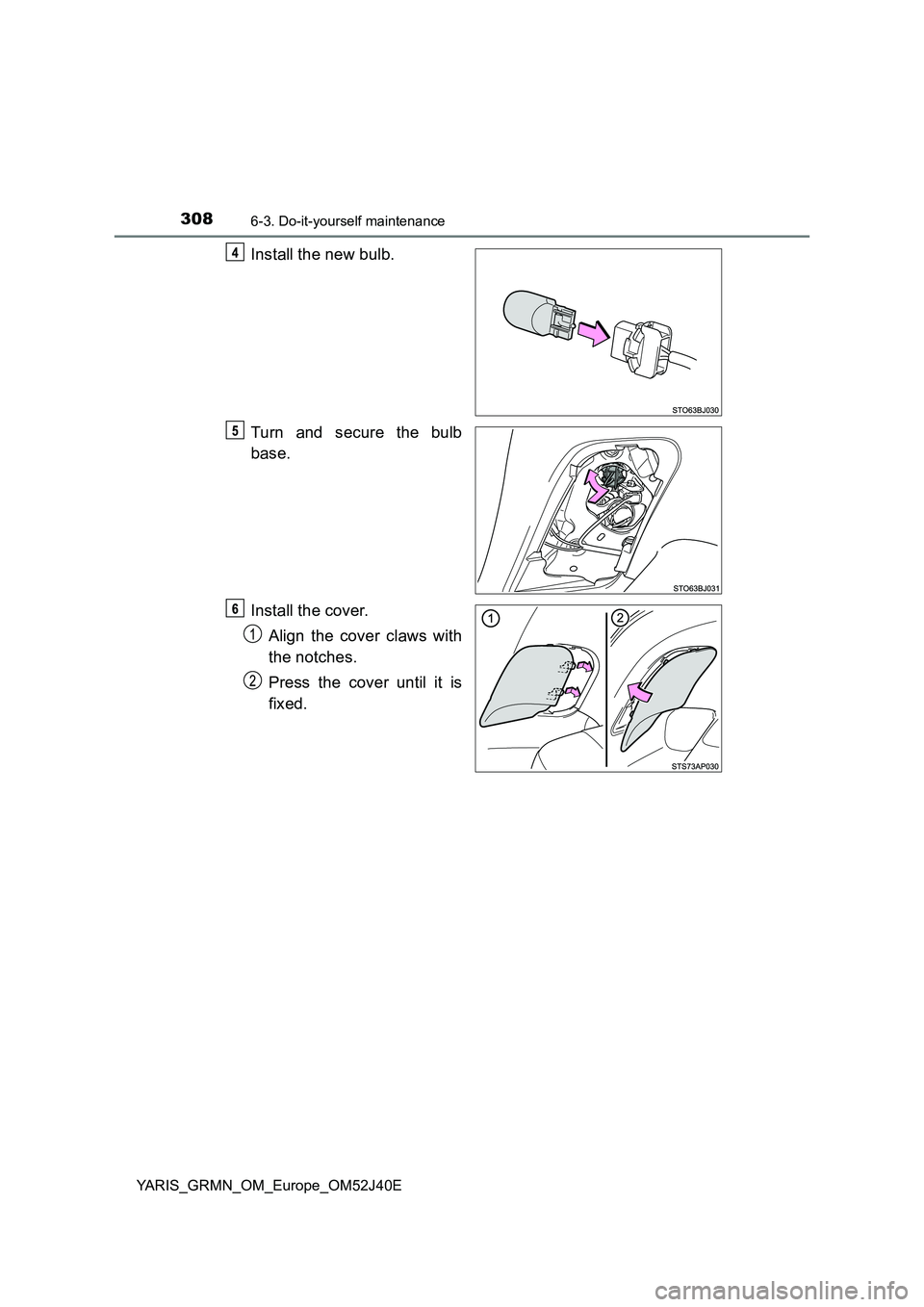

Install the new bulb.
Turn and secure the bulb
base.
Install the cover.
Align the cover claws with
the notches.
Press the cover until it is
fixed.

3096-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E
6
Maintenance and care

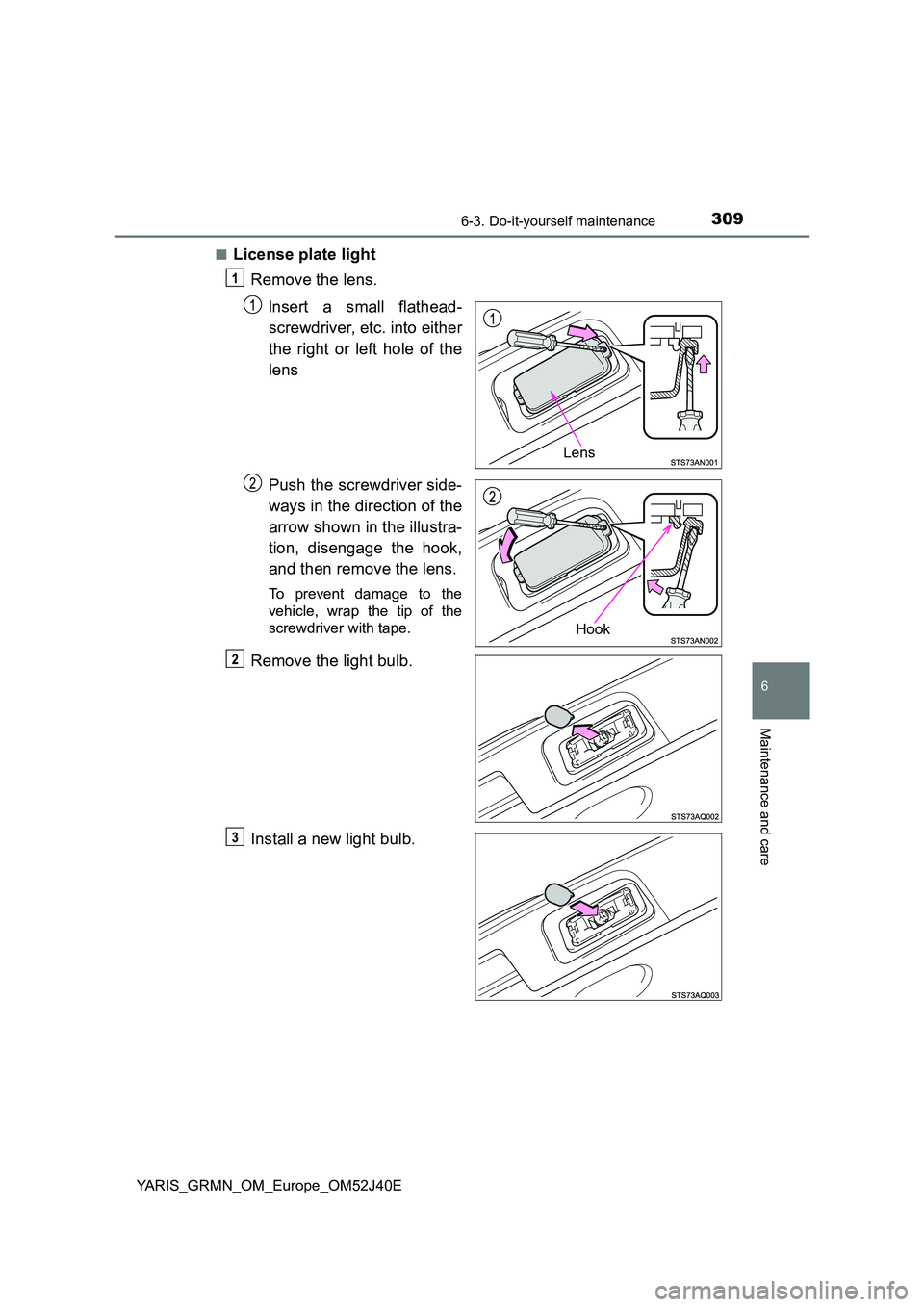

■License plate light
Remove the lens.
lnsert a small flathead-
screwdriver, etc. into either
the right or left hole of the
lens
Push the screwdriver side-
ways in the direction of the
arrow shown in the illustra-
tion, disengage the hook,
and then remove the lens.
To prevent damage to the
vehicle, wrap the tip of the
screwdriver with tape.
Remove the light bulb.
Install a new light bulb.
Lens
Hook

3106-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E

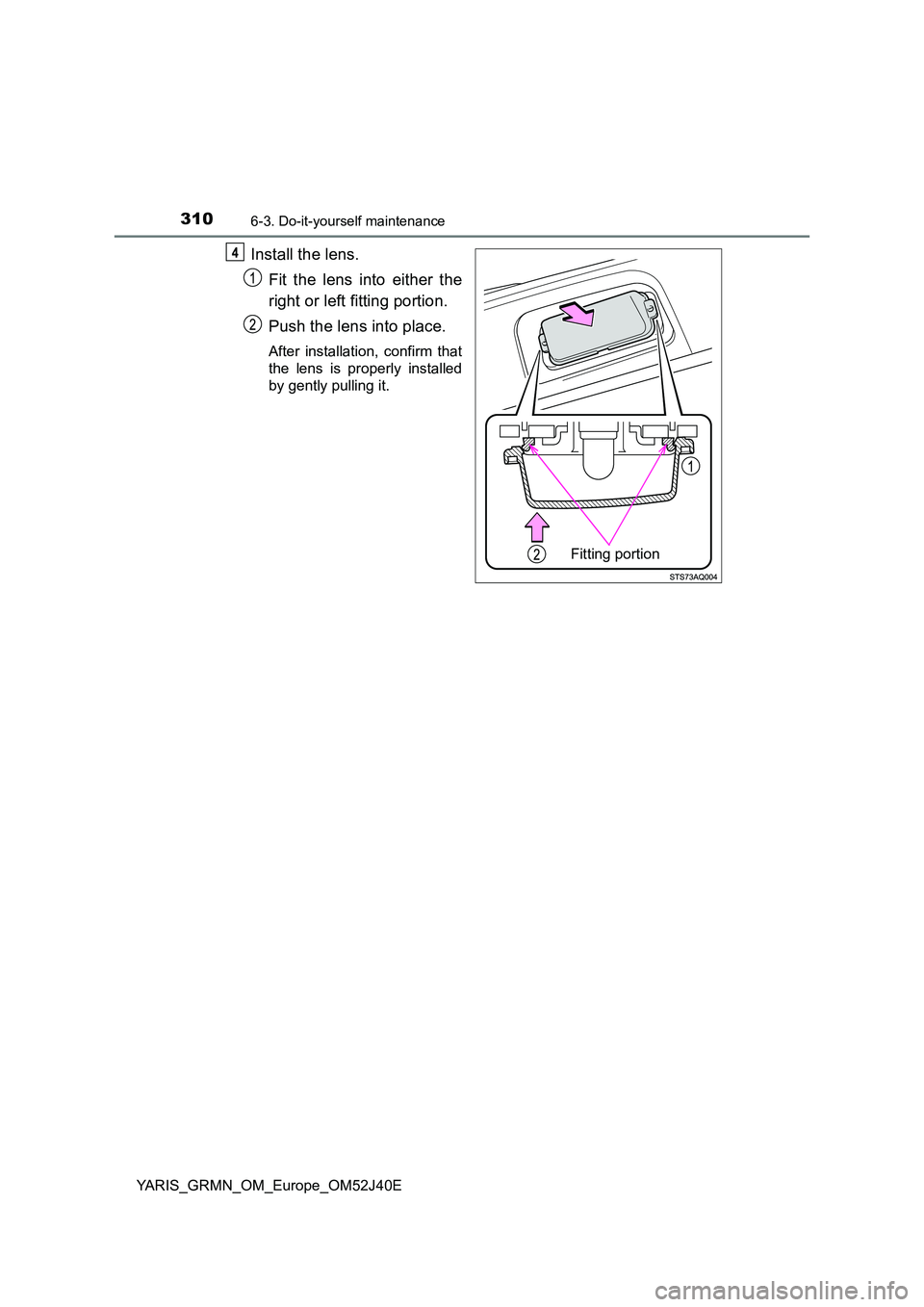

Install the lens.
Fit the lens into either the
right or left fitting portion.
Push the lens into place.
After installation, confirm that
the lens is properly installed
by gently pulling it.
Fitting portion
