1012. Instrument cluster
2
Instrument cluster
When disconnecting and reconnecting battery terminals
The following information data will be reset.
Average fuel consumption
Driving range
Average vehicle speed
Clock data
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal display, and there is no problem continuing to
use the display.
WARNING
Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
The Multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.

1022. Instrument cluster

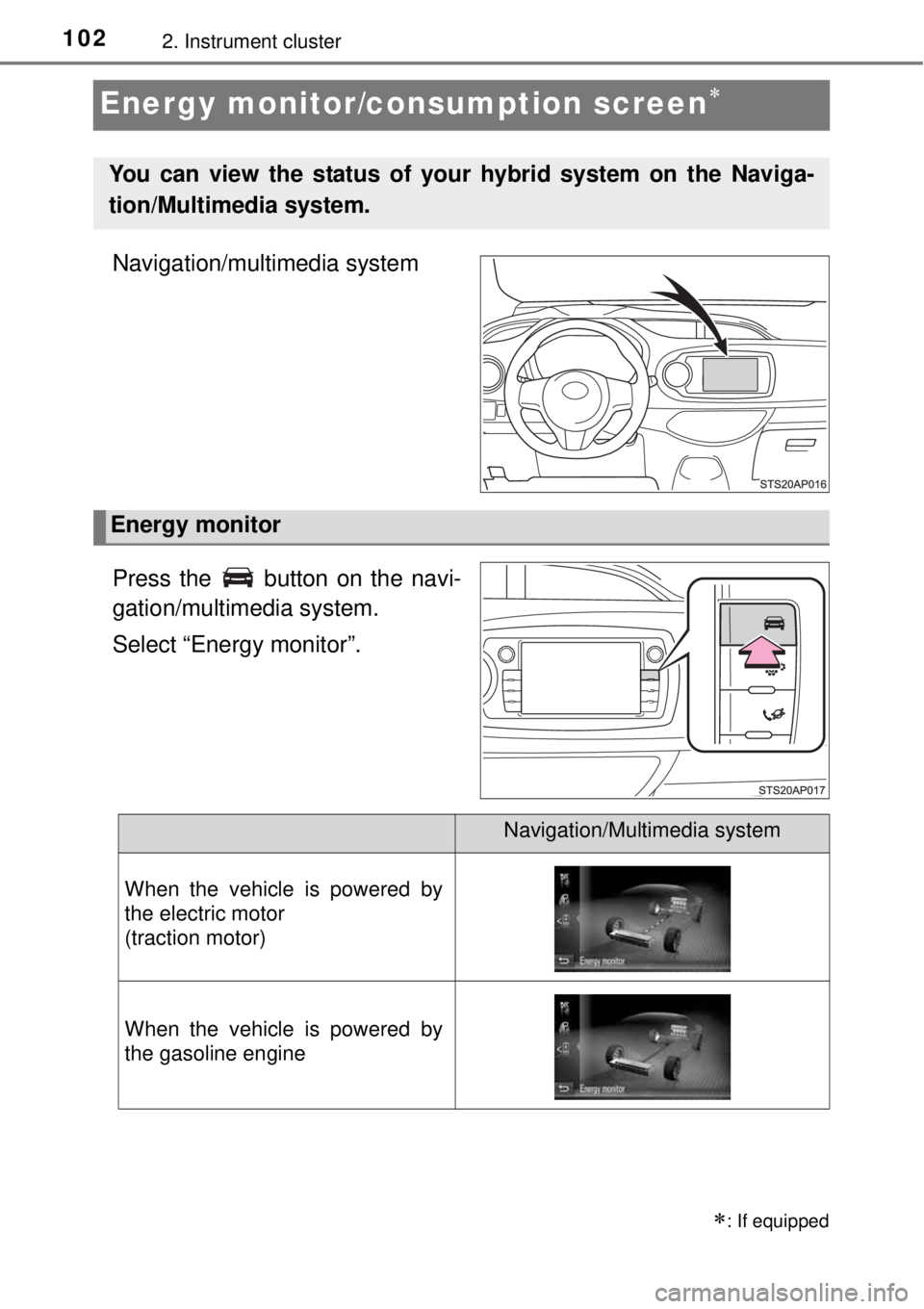

Energy monitor/consumption screen
Navigation/multimedia system
Press the button on the navi-
gation/multimedia system.
Select “Energy monitor”.
: If equipped
You can view the status of your hybrid system on the Naviga-
tion/Multimedia system.
Energy monitor
Navigation/Multimedia system
When the vehicle is powered by
the electric motor
(traction motor)
When the vehicle is powered by
the gasoline engine

1032. Instrument cluster
2
Instrument cluster
These images are examples only, and may vary slightly from actual condi-
tions.

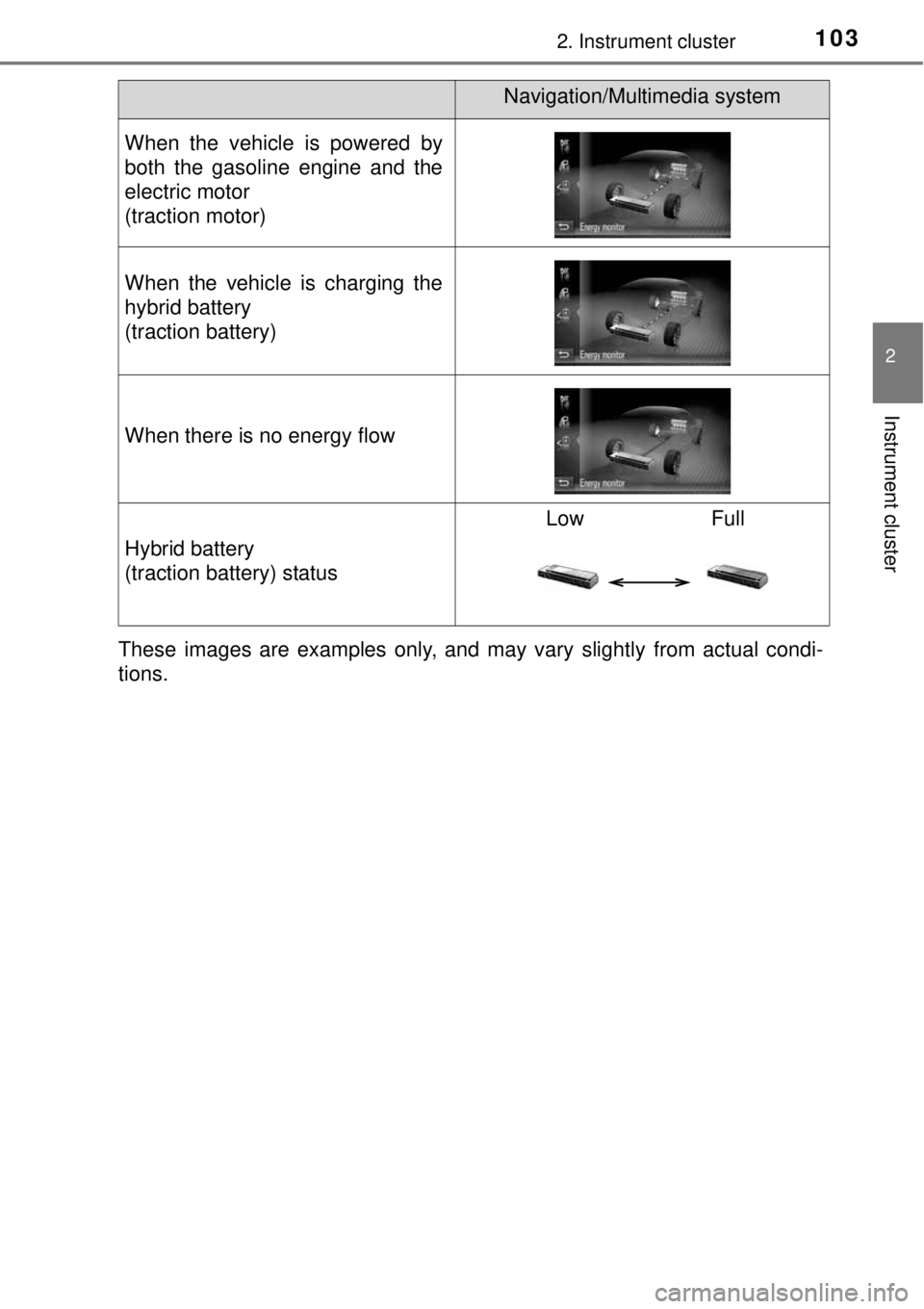

When the vehicle is powered by
both the gasoline engine and the
electric motor
(traction motor)
When the vehicle is charging the
hybrid battery
(traction battery)
When there is no energy flow
Hybrid battery
(traction battery) status
Low Full

Navigation/Multimedia system

1042. Instrument cluster
Press the button on the
navigation/multimedia system.
Select “Trip information”.
Displays the average vehicle
speed since the hybrid system
was started.
Cruising range (P. 106)
Fuel consumption in the past
15 minutes
Regenerated energy in the
past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
Displays the elapsed time since the hybrid system was started.
Resetting the consumption data
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
This image is an example only.

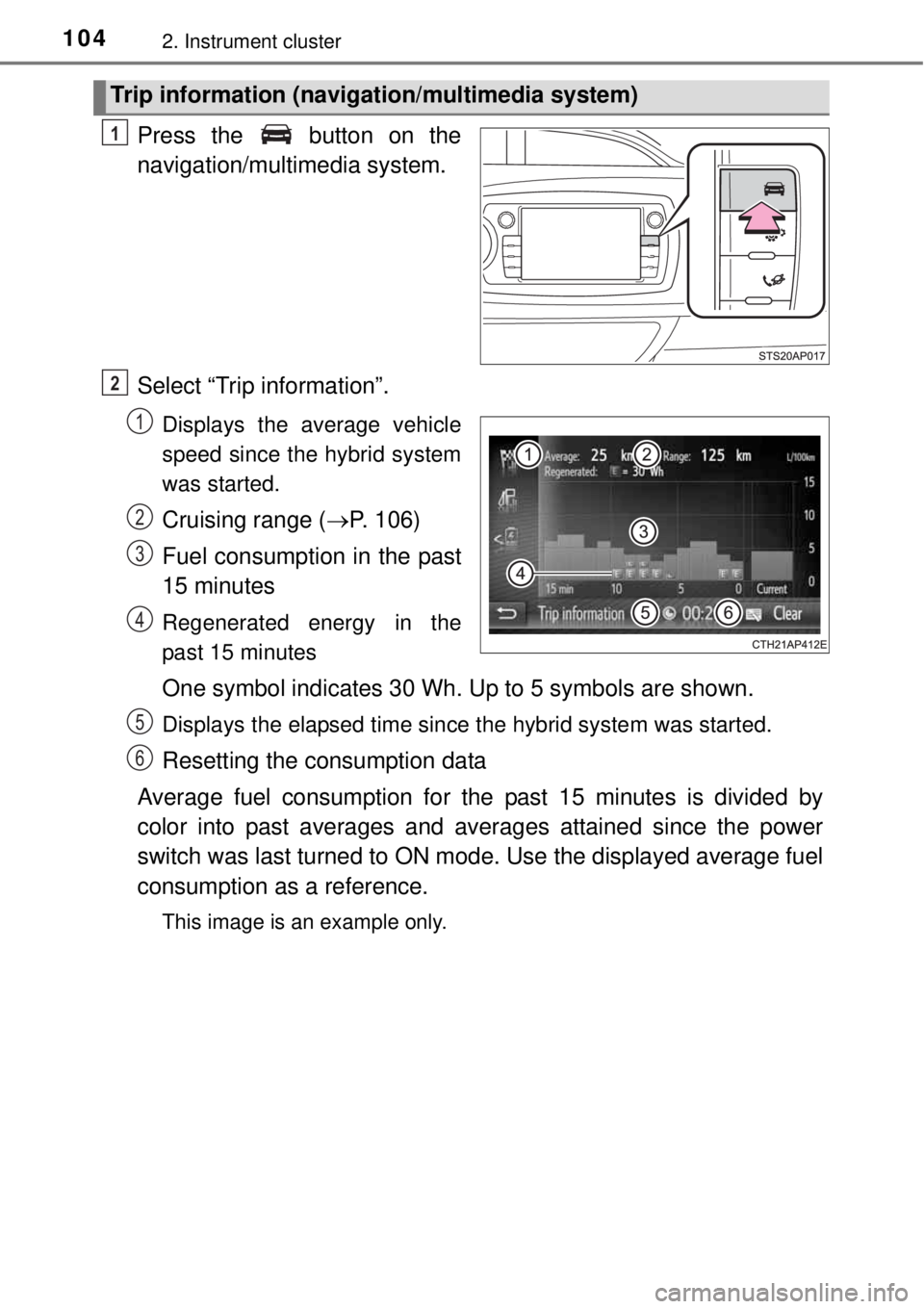

Trip information (navigation/multimedia system)
1
2
1
2
3
4
5
6

1052. Instrument cluster
2
Instrument cluster
Press the button on the
navigation/multimedia system.
Select “Past record”.
Best recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record
data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
This image is an example only.

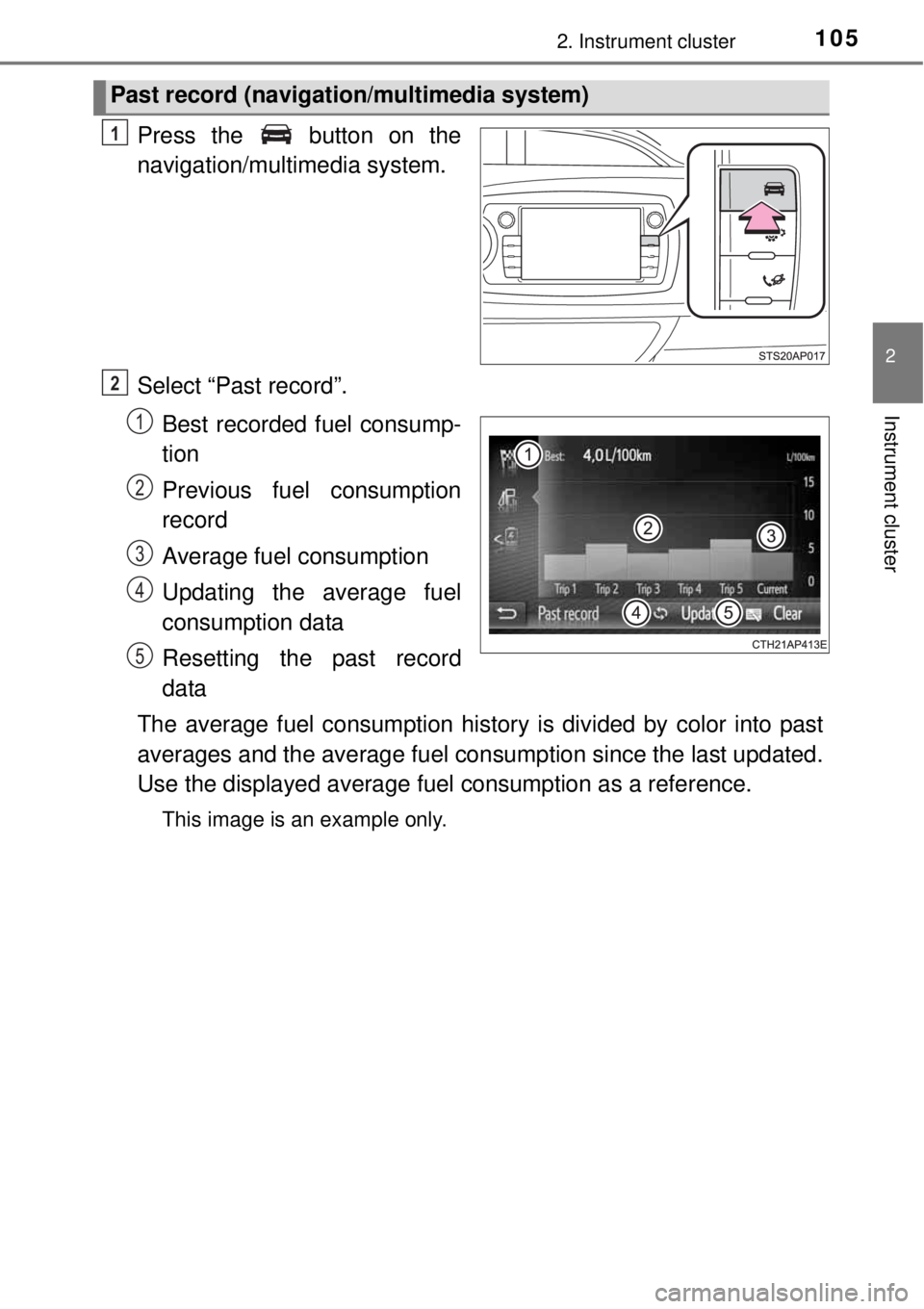

Past record (navigation/multimedia system)
1
2
1
2
3
4
5

1062. Instrument cluster
Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

107
3
Operation of
each component
3-1. Key information
Keys ................................... 108
3-2. Opening, closing
and locking the doors
Side doors.......................... 120
Back door........................... 126
Smart entry &
start system ..................... 132
3-3. Adjusting the seats
Front seats ......................... 147
Rear seats ......................... 149
Head restraints .................. 152
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 154
Inside rear view mirror ....... 156
Outside rear view mirrors... 158
3-5. Opening and closing
the windows
Power windows .................. 161

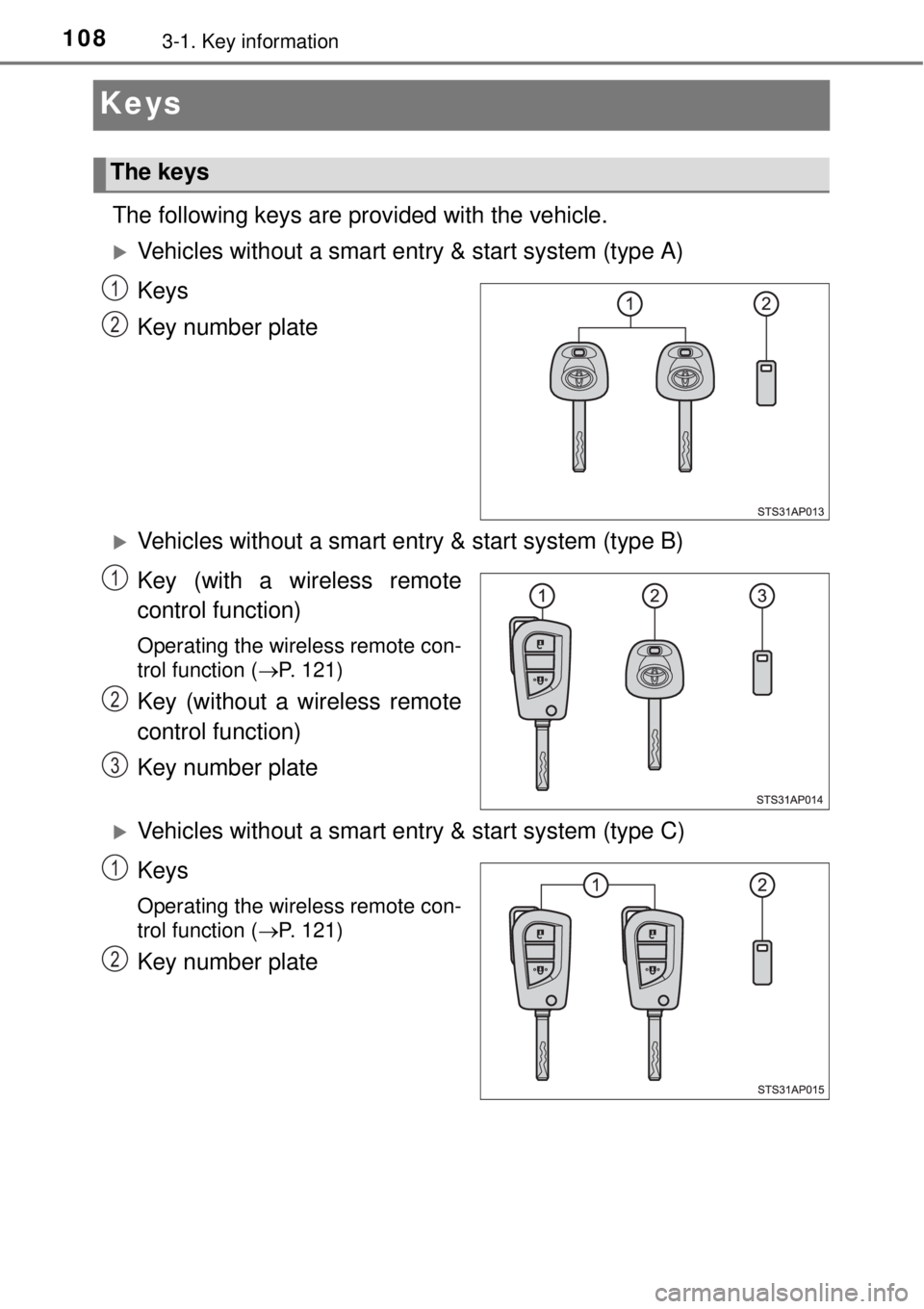

1083-1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles without a smart entry & start system (type A)
Keys
Key number plate
Vehicles without a smart entry & start system (type B)
Key (with a wireless remote
control function)
Operating the wireless remote con-
trol function (P. 121)
Key (without a wireless remote
control function)
Key number plate
Vehicles without a smart entry & start system (type C)
Keys
Operating the wireless remote con-
trol function (P. 121)
Key number plate
The keys
1
2
1
2
3
1
2

1093-1. Key information
3
Operation of each component

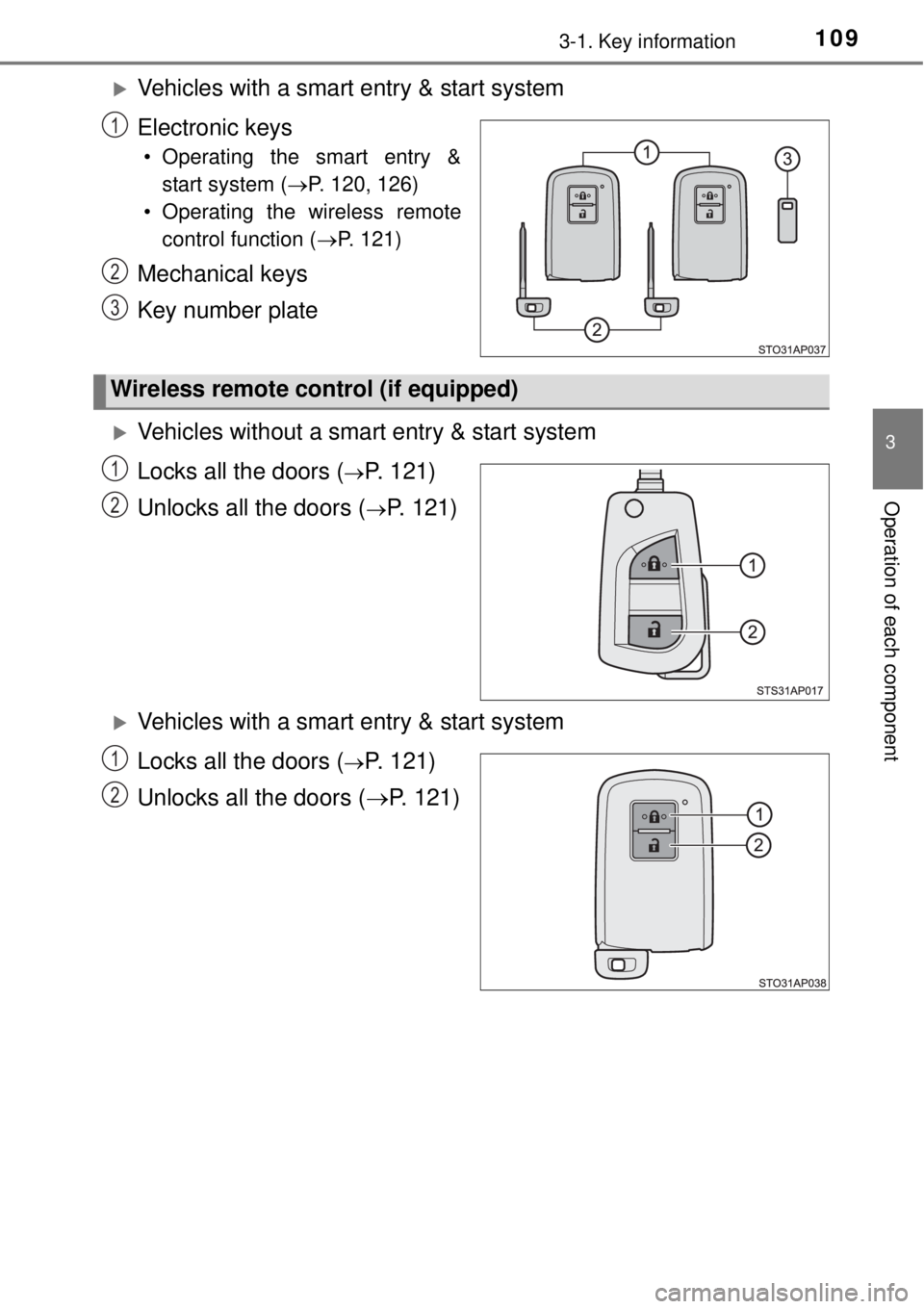

Vehicles with a smart entry & start system
Electronic keys
• Operating the smart entry &
start system (P. 120, 126)
• Operating the wireless remote
control function (P. 121)
Mechanical keys
Key number plate
Vehicles without a smart entry & start system
Locks all the doors (
P. 121)
Unlocks all the doors (
P. 121)
Vehicles with a smart entry & start system
Locks all the doors (
P. 121)
Unlocks all the doors (P. 121)
1
2
3
Wireless remote control (if equipped)
1
2
1
2

1103-1. Key information
Press the button to open the key.
To stow, press the button then fold
the key.
To take out the mechanical key,
push the release button and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function (if equipped) does not
operate properly, you will need the
mechanical key. (P. 413)
If you lose your keys
New genuine keys can be made by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional using the other key and
the key number stamped on your key number plate. Keep the plate in a safe
place such as your wallet, not in the vehicle.
When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying a key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.

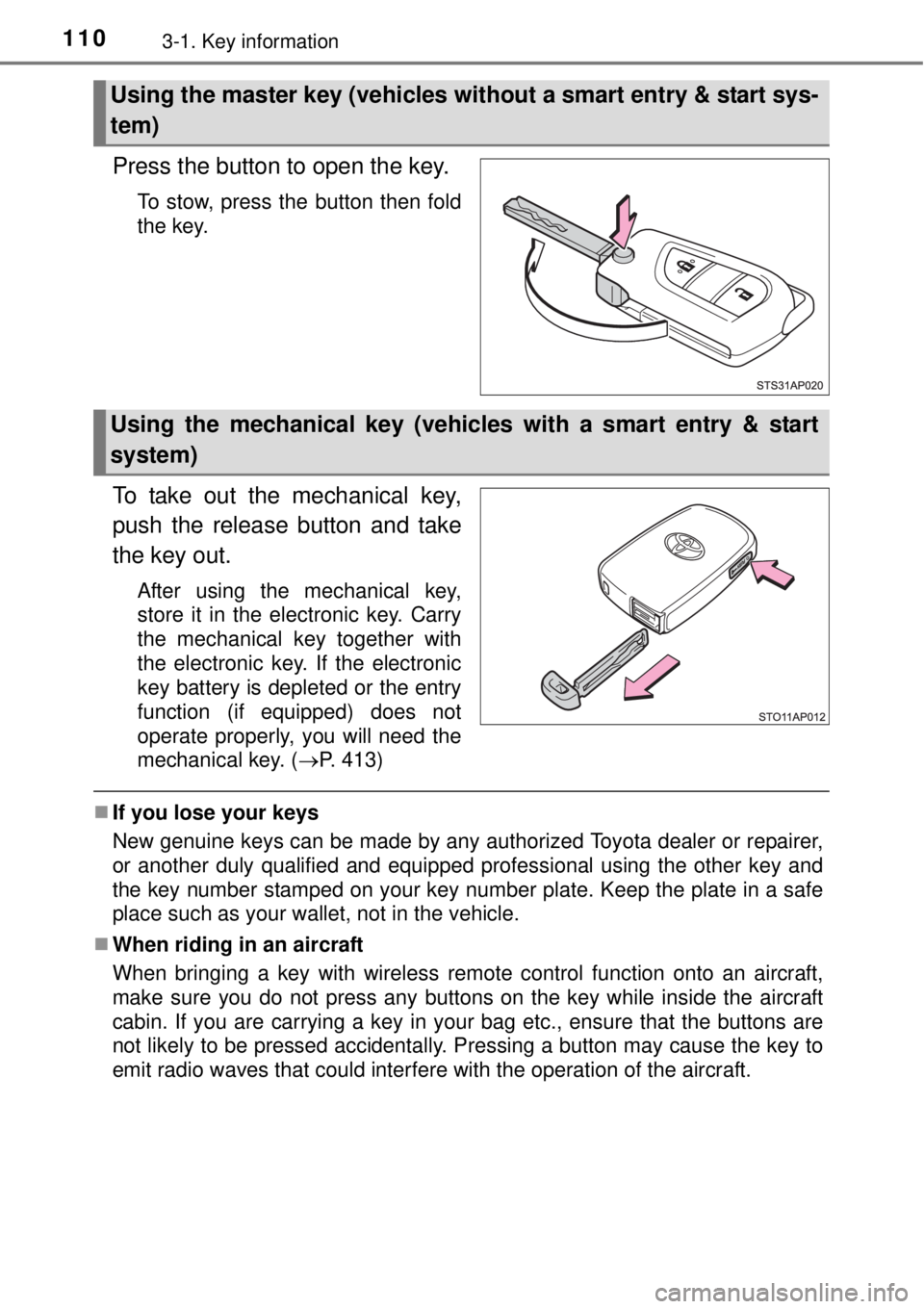

Using the master key (vehicles without a smart entry & start sys-
tem)
Using the mechanical key (vehicles with a smart entry & start
system)
