811-2. Hybrid system
1
For safety and security
NOTICE
Hybrid battery air intake vent
Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
Do not place objects that will block the
air intake vent. The hybrid battery (trac-
tion battery) may overheat and be dam-
aged.
Clean the air intake vent regularly to
prevent the hybrid battery (traction bat-
tery) from overheating.
Do not wet or allow foreign substances
to enter the air intake vent as this may
cause a short circuit and damage the
hybrid battery (traction battery).

821-3. Theft deterrent system
Immobilizer system
Vehicles without a smart entry & start system
The system begins operating after the key has been removed from
the power switch. The system is canceled after the registered key has
been inserted into the power switch.
Vehicles with a smart entry & start system
The system begins operating after the power switch has been turned
off. The system is canceled after the power switch has been turned to
ACCESSORY or ON mode.
System maintenance
The vehicle has a maintenance-free type immobilizer system.
Conditions that may cause the system to malfunction
If the grip portion of the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

831-3. Theft deterrent system
1
For safety and security

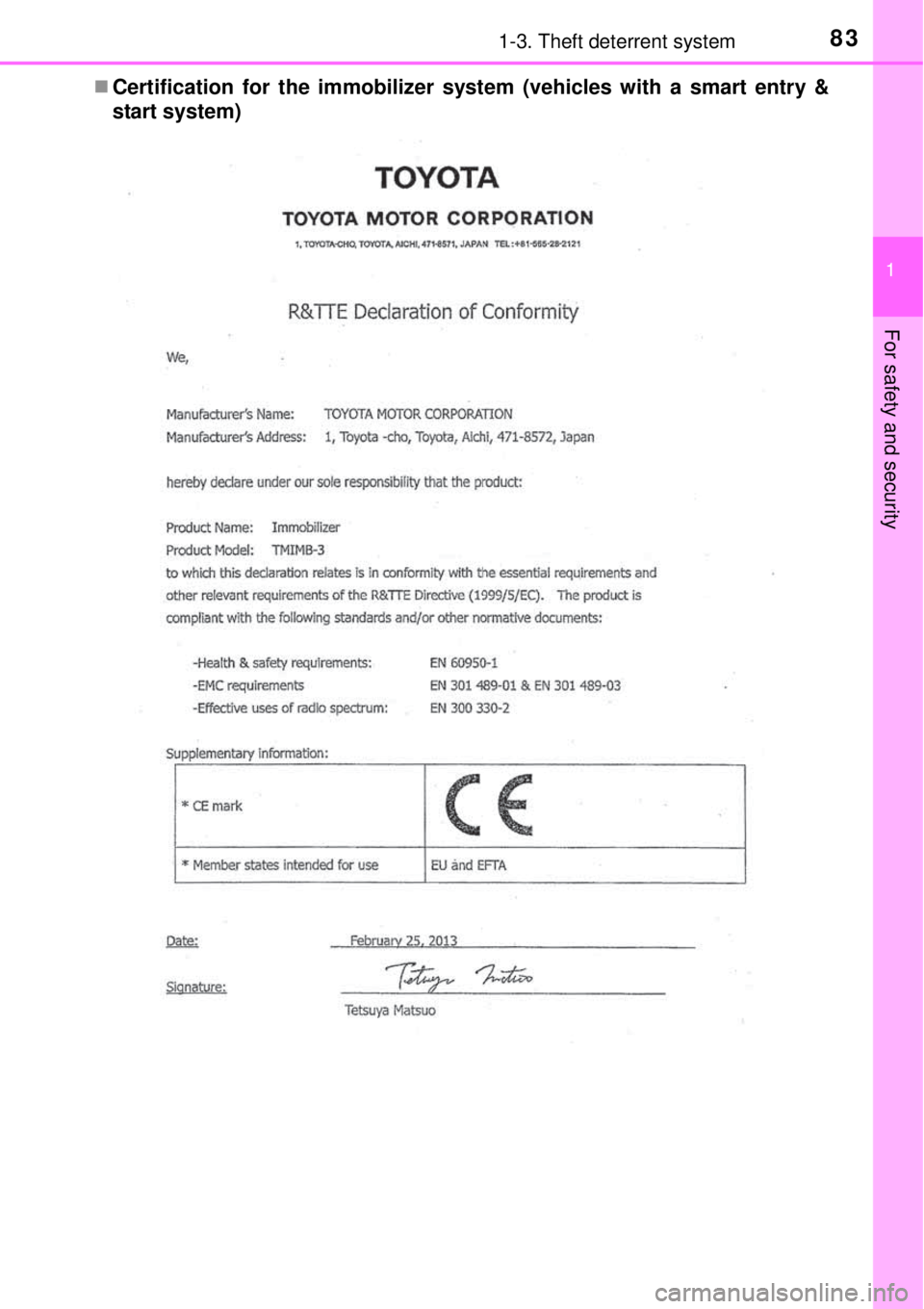

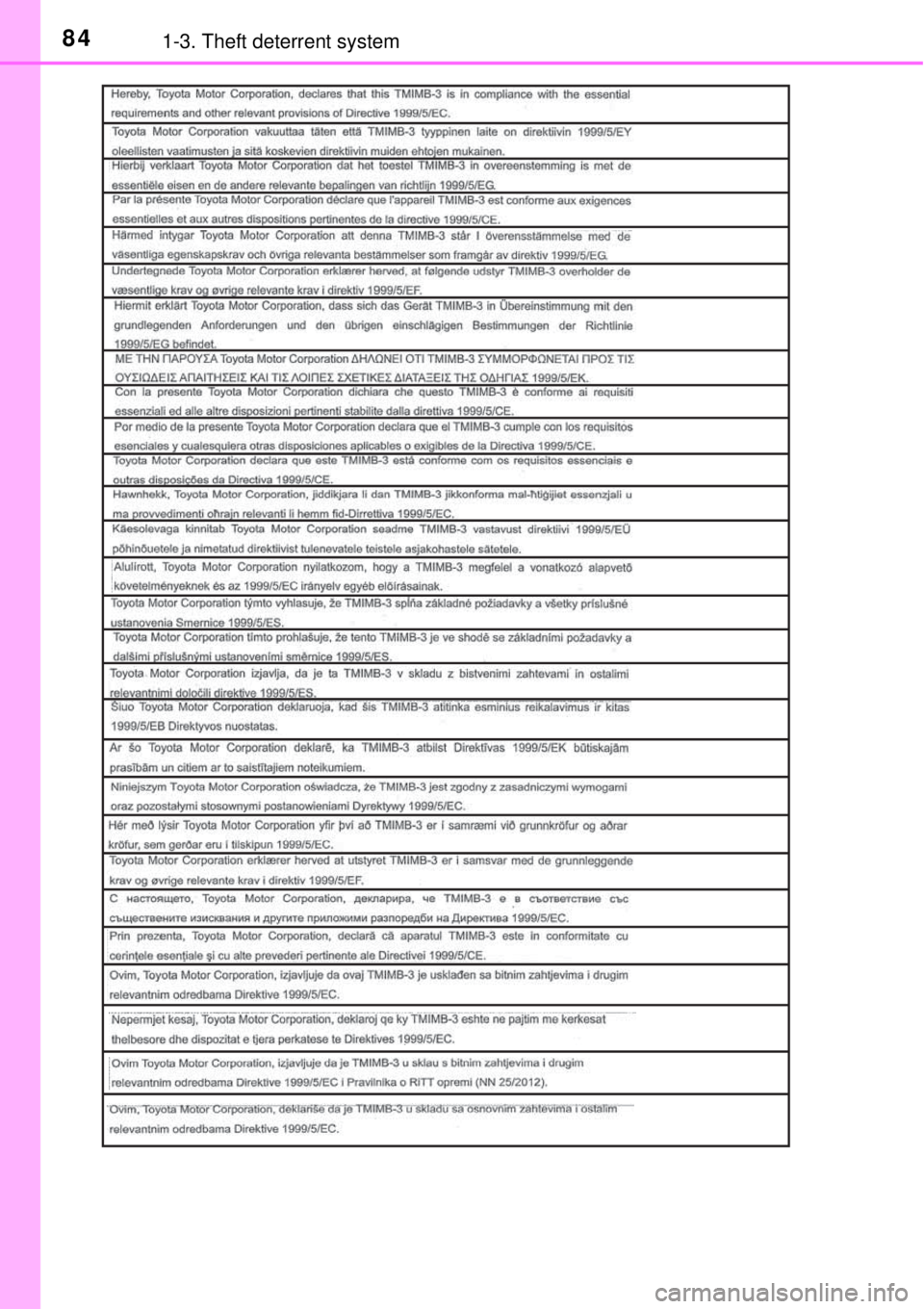

Certification for the immobilizer system (vehicles with a smart entry &
start system)

841-3. Theft deterrent system

851-3. Theft deterrent system
1
For safety and security

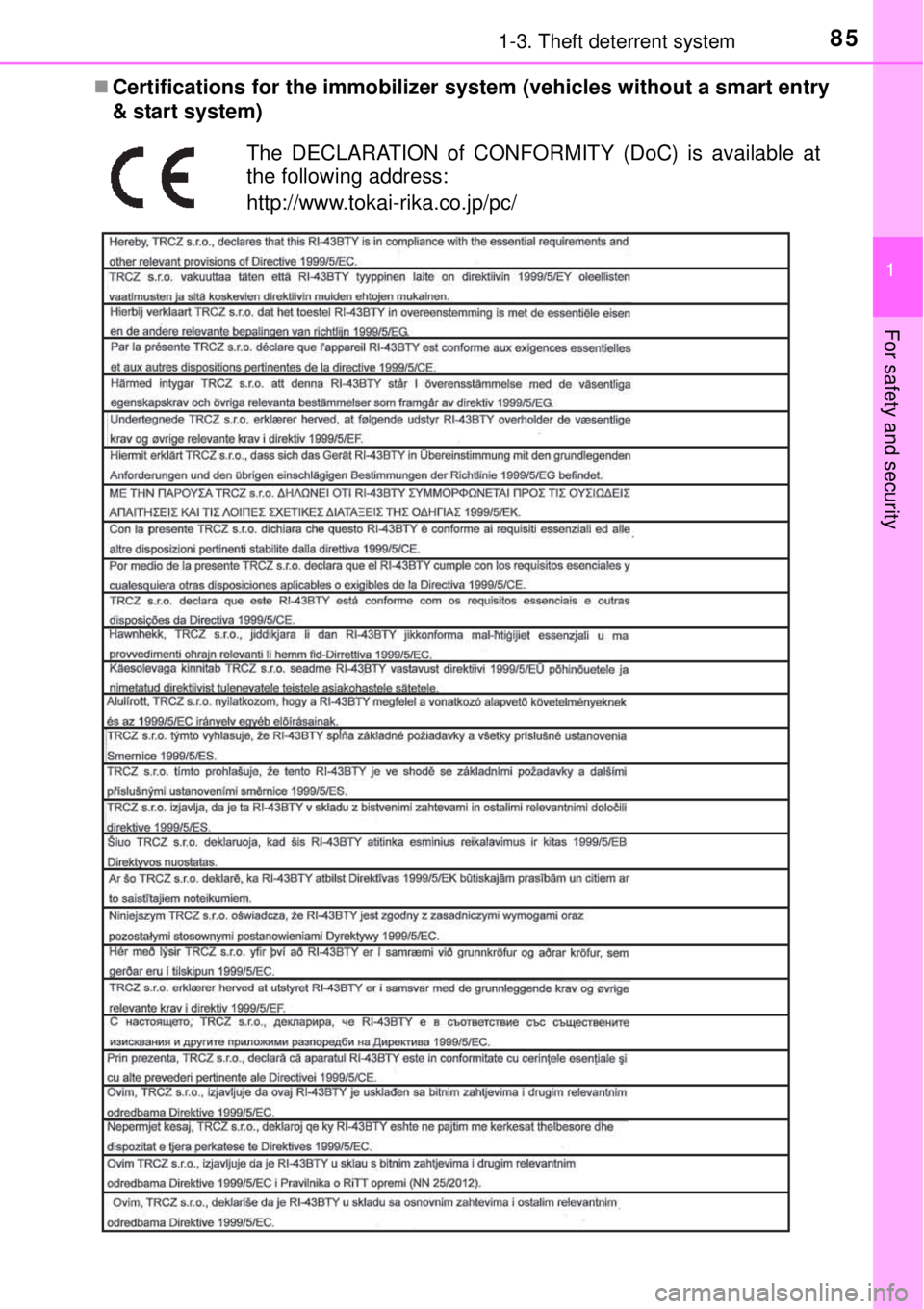

Certifications for the immobilizer system (vehicles without a smart entry
& start system)
The DECLARATION of CONFORMITY (DoC) is available at
the following address:
http://www.tokai-rika.co.jp/pc/

861-3. Theft deterrent system
NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

87
1
1-3. Theft deterrent system
For safety and security

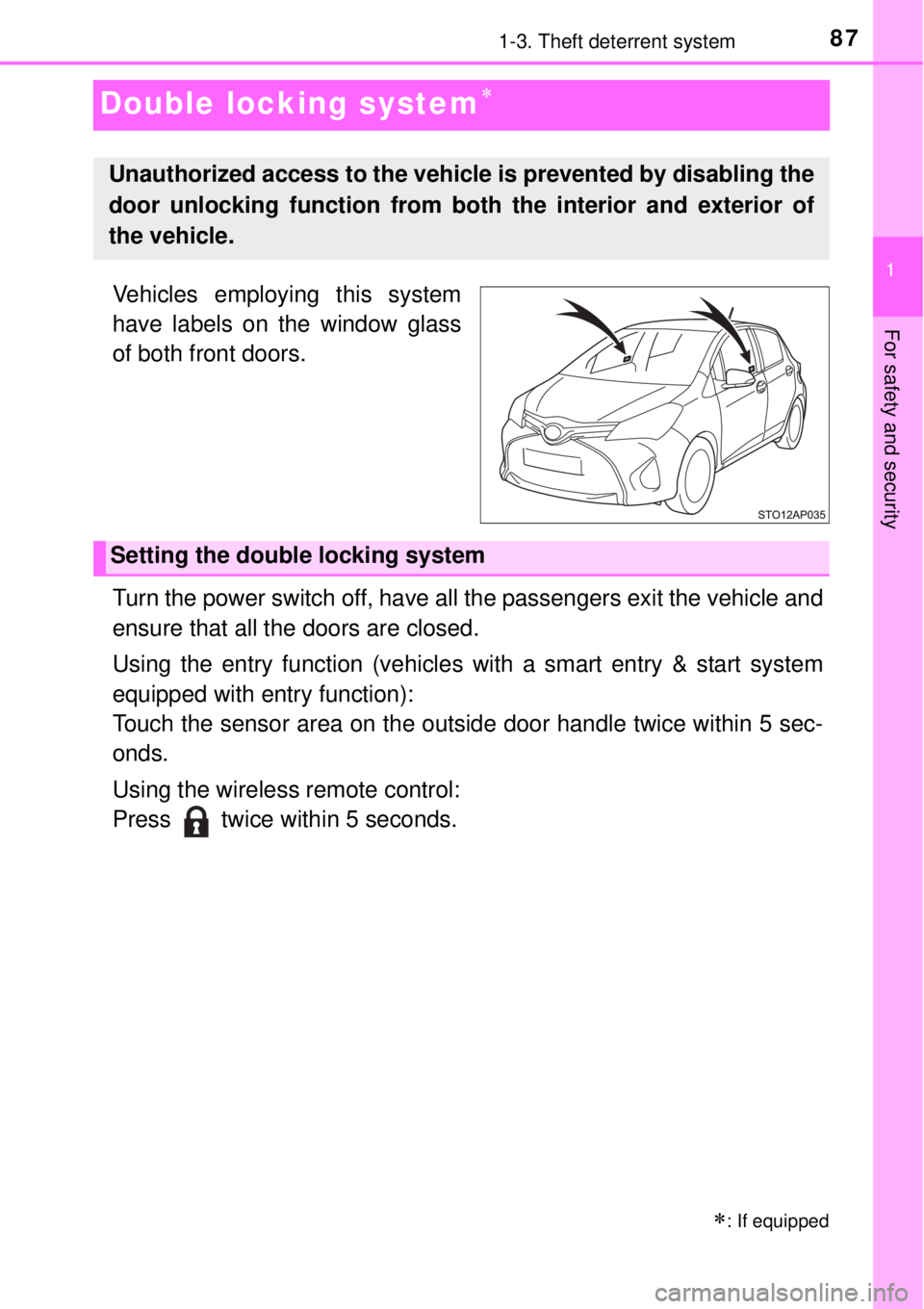

Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the power switch off, have all the passengers exit the vehicle and
ensure that all the doors are closed.
Using the entry function (vehicles with a smart entry & start system
equipped with entry function):
Touch the sensor area on the outside door handle twice within 5 sec-
onds.
Using the wireless remote control:
Press twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system

881-3. Theft deterrent system
Using the entry function (vehicles with a smart entry & start system
equipped with entry function):
Hold either front outside door handle or push up the back door opener
switch.
Using the wireless remote control:
Press .
Canceling the double locking system
WARNING
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.

89
2Instrument cluster
2. Instrument cluster
Warning lights and
indicators ........................... 90
Gauges and meters ............. 95
Multi-information display ...... 98
Energy monitor/
consumption screen ........ 102

902. Instrument cluster

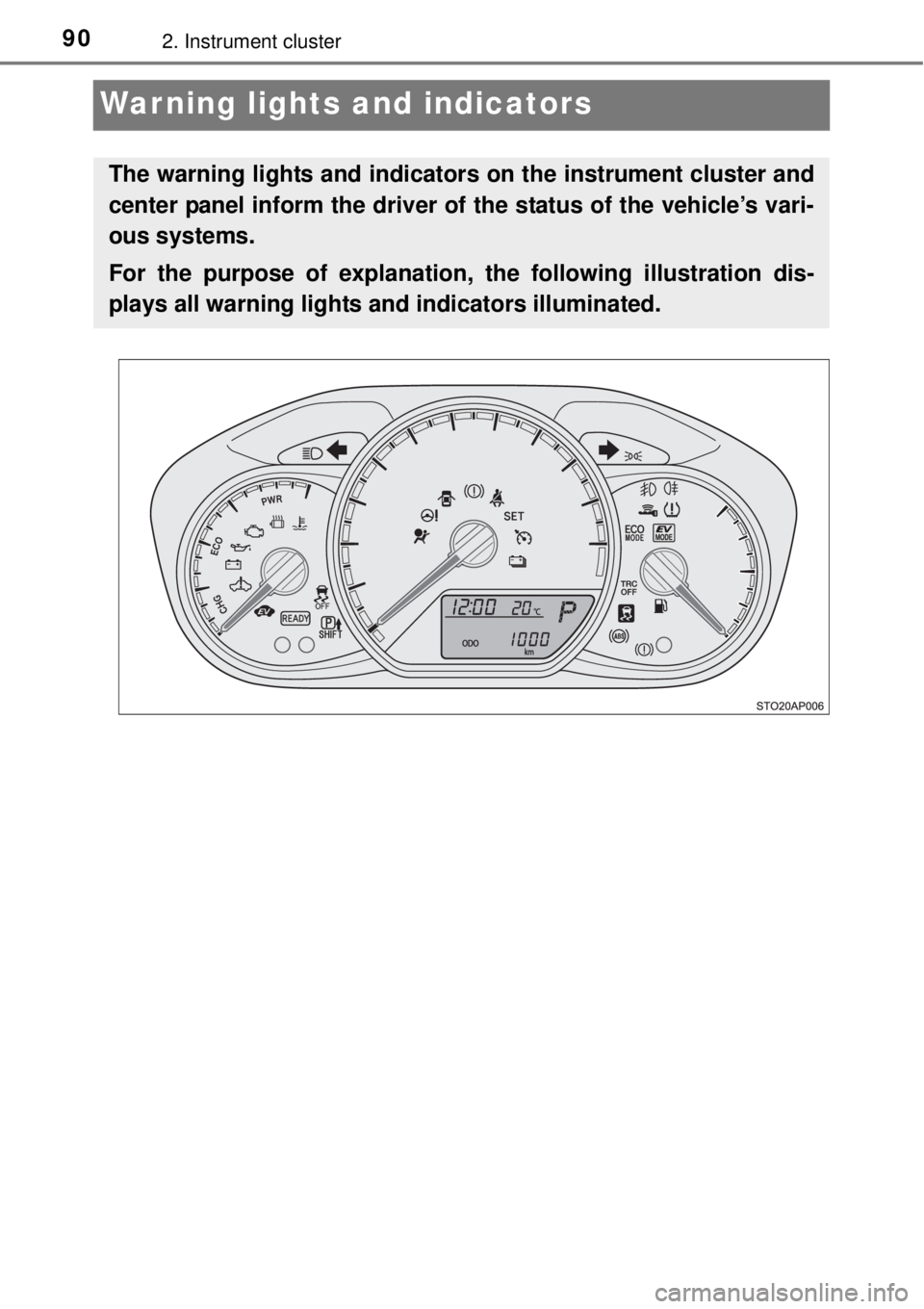

War ning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.
