TOYOTA YARIS HYBRID 2014 Owners Manual

912. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(Red)
Brake system warning
light (P. 369)
*1, 3
Slip indicator light
(P. 371)
*1
Charging system warn-
ing light (P. 369)
*1
(Yellow)
Brake system warning
light (P. 371)
*1
Low engine oil pressure
warning light (P. 369)
*2
(Yellow)
Cruise control indicator
light (P. 371)
*1
(Red)
High engine coolant
temperature warning
light (P. 370)*2, 4
(Yellow)
Smart entry & start sys-
tem indicator light
(P. 371, 377)
*1Hybrid system warning
light (P. 370)*1Low traction battery
warning light (P. 372)
*1Malfunction indicator
lamp (P. 370)Open door warning light
(P. 372)
*1SRS warning light
(P. 370)Low fuel level warning
light (P. 372)
*1ABS warning light
(P. 370)Driver’s and front pas-
senger’s seat belt
reminder light (P. 372)
*1Electric power steering
system warning light
(P. 371)*5Rear passengers’ seat
belt reminder lights
(P. 372)

922. Instrument cluster
*1: These lights turn on when the power switch is turned to the “ON” position
(vehicles without a smart entry & start system) or ON mode (vehicles with
a smart entry & start system) to indicate that a system check is being per-
formed. They will turn off after the hybrid system on, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
*2: If equipped
*3: The light turns on to indicate a malfunction.
*4: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*5: The light illuminate on the center panel.
*2Tire pressure warning
light (P. 372)*1P position request warn-
ing light (P. 373)
*1Hybrid system overheat
warning light (P. 373)

932. Instrument cluster
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(P. 191)*1, 3
Slip indicator (P. 214)
Headlight high beam
indicator (P. 194)
*1“TRC OFF” indicator
(P. 214)
Tail light indicator
(P. 193)
*1VSC OFF indicator
(P. 215)
*2Front fog light indicator
(P. 198)EV drive mode indicator
(P. 186)
Rear fog light indicator
(P. 198)
*1“ECO MODE” indicator
(P. 189)
*2
(Green)
Smart entry & start sys-
tem indicator light
(P. 180)EV indicator (P. 75)
*2
(Green)
Cruise control indicator
(P. 209)“READY” indicator
(P. 176, 180)
*2
“SET” indicator
(P. 209)
“PASSENGER AIR BAG” indicator
(P. 50)
*4

942. Instrument cluster
*1: These lights turn on when the power switch is turned to the “ON” position
(vehicles without a smart entry & start system) or ON mode (vehicles with
a smart entry & start system) to indicate that a system check is being per-
formed. They will turn off after the hybrid system on, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
*2: If equipped
*3: The light flashes to indicate that the system is operating.
*4: This light illuminates on the center panel.
WARNING
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately if this occurs.
NOTICE
To prevent damage to the engine and its components
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
(P. 420)

95
2
2. Instrument cluster
Instrument cluster
Gauges and meters
Hybrid System Indicator
Displays hybrid system power output and regenerative level
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Display change button
P. 9 8
Multi-information display
P. 9 8
Clock adjusting buttons
P. 100
1
2
3
4
5
6

962. Instrument cluster
The brightness of the instrument panel lights (when the headlight
switch is on) can be adjusted.
Display the instrument panel light
control by pressing the display
change button. (P. 98)
Then, press and hold the button.
Adjust the brightness to the
desired level by pressing the but-
ton.
The meters and display illuminate when
Vehicles without a smart entry & start system
The power switch is in the “ON” position.
Vehicles with a smart entry & start system
The power switch is in ON mode.
Instrument panel light control

972. Instrument cluster
2
Instrument cluster

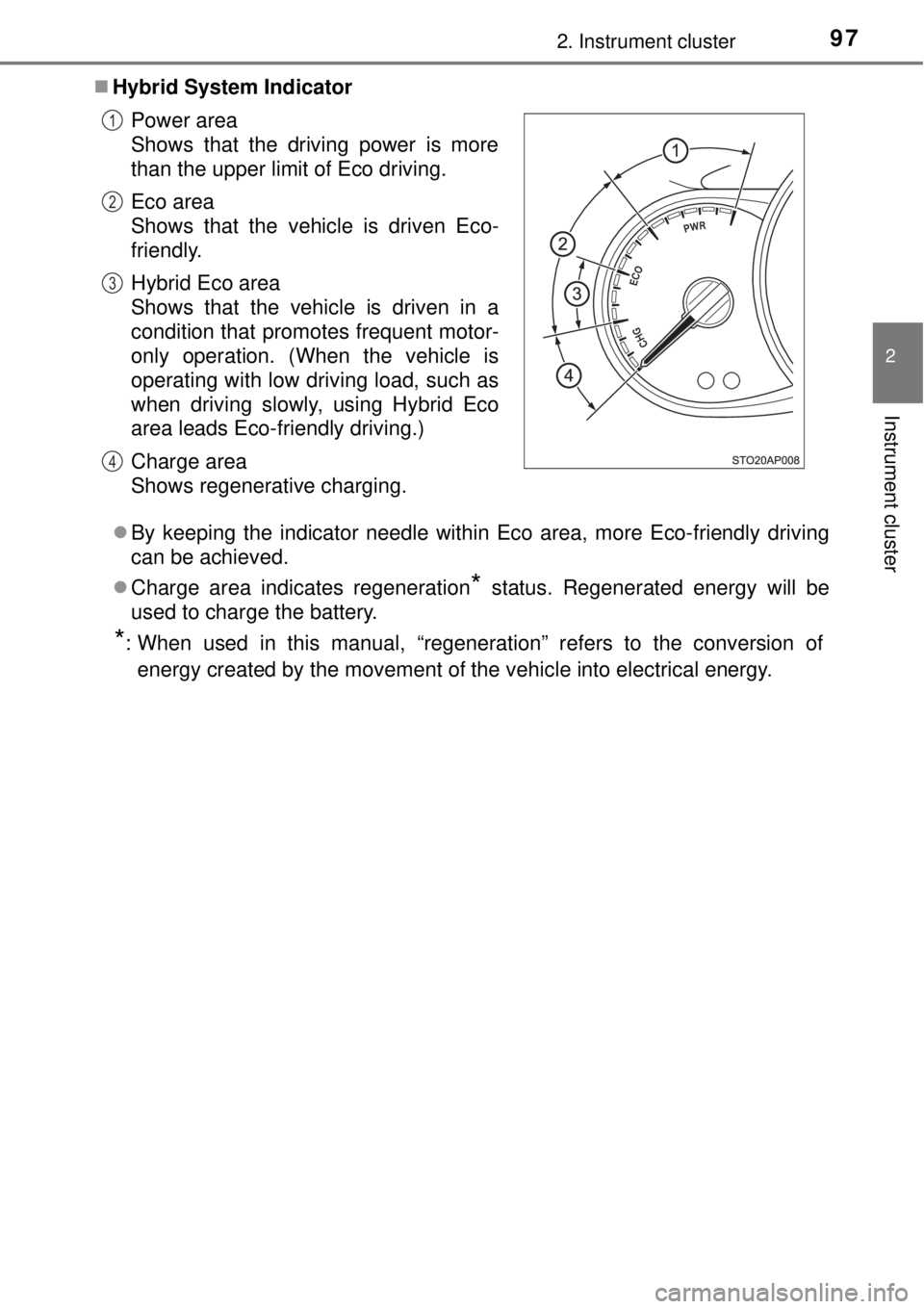

Hybrid System Indicator
By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
Charge area indicates regeneration
* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy. Power area
Shows that the driving power is more
than the upper limit of Eco driving.
Eco area
Shows that the vehicle is driven Eco-
friendly.
Hybrid Eco area
Shows that the vehicle is driven in a
condition that promotes frequent motor-
only operation. (When the vehicle is
operating with low driving load, such as
when driving slowly, using Hybrid Eco
area leads Eco-friendly driving.)
Charge area
Shows regenerative charging.
1
2
3
4

982. Instrument cluster

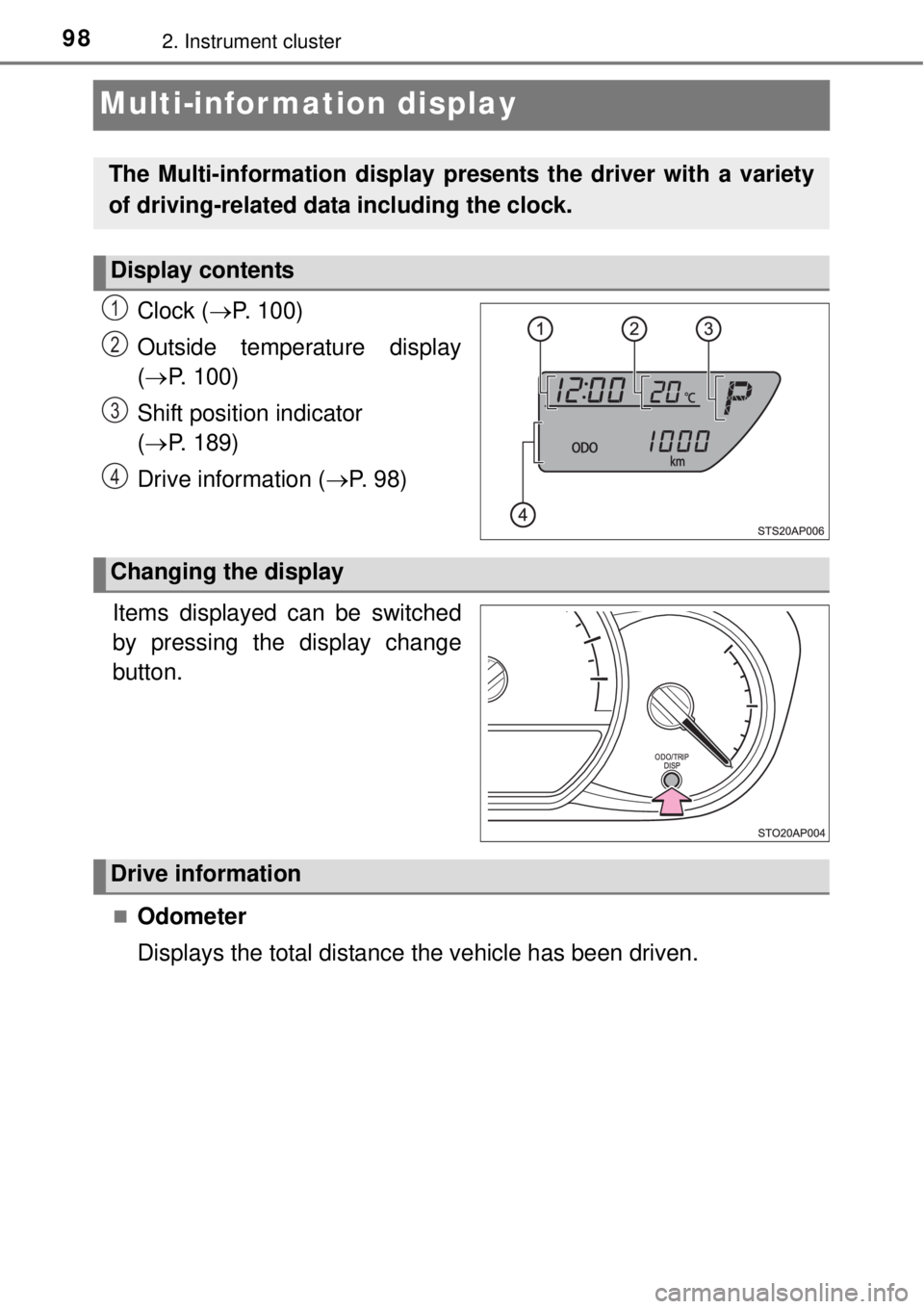

Multi-infor mation display
Clock (P. 100)
Outside temperature display
(P. 100)
Shift position indicator
(P. 189)
Drive information (P. 9 8 )
.
Items displayed can be switched
by pressing the display change
button.
Odometer
Displays the total distance the vehicle has been driven.
The Multi-information display presents the driver with a variety
of driving-related data including the clock.
Display contents
1
2
3
4
Changing the display
Drive information

992. Instrument cluster
2
Instrument cluster
Tr i p m e t e r
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
Press and hold the button for longer than 1 second to reset. Pressing and
holding the button while the trip meter is displayed will reset the trip meter
to “0”.

Instantaneous fuel consumption
Displays the instantaneous of fuel consumption.
• The function can be reset by pressing the button for longer than 1 sec-
ond when the instantaneous fuel consumption is displayed.
• Use the displayed instantaneous fuel consumption as a reference.

Average fuel consumption
Displays the average rate of fuel consumption.
• The function can be reset by pressing the button for longer than 1 sec-
ond when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.

Driving range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the power switch to the “LOCK” position (vehicles
without a smart entry & start system) or off (vehicles with a smart entry &
start system). If the vehicle is refueled without turning the power switch to
the “LOCK” position or off, the display may not be updated.

Average vehicle speed
Displays the average vehicle speed since the hybrid system was
last started or the function was reset.
The function can be reset by pressing the button for longer than 1 second
when the average vehicle speed is displayed.

1002. Instrument cluster
EV indicator can be activated or deactivated by pressing the display
change button when the EV indicator customization display is dis-
played.
To change the EV indicator customization display, display the odometer
and press and hold the display change button until the display changes.
The clock can be adjusted by pressing the buttons.
Adjust the hours
Adjust the minutes
The temperature display shows temperatures within the range of
-40°C (-40°F) and 50°C (122°F).
Display
In the following situations, the correct outside temperature may not
be displayed, or the display may take longer than normal to change:
When the vehicle is stopped, or moving at low speeds (less than
25 km/h [16 mph])
When the outside temperature has changed suddenly (at the
entrance/exit of a garage, tunnel, etc.)
When “” or “E” is displayed
The system may be malfunctioning. Take your vehicle to any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
EV indicator customization
Clock
1
2
Outside temperature display
