TOYOTA YARIS LIFTBACK 2020 Accessories, Audio & Navigation (in English)

81
3. MEDIA OPERATION
AUDIO SYSTEM
3
3. Bluetooth® AUDIO
OVERVIEW■
CONTROL SCREEN
The Bluetooth® audio system enables users to enjoy listening to music that is
played on a portable player on the vehicle speakers via wireless communi\
cation.
This audio system supports Bluetooth
®, a wireless data system capable of playing
portable audio music without cables. If your device does not support Bluetooth
®,
the Bluetooth
® audio system will not function.
Select “ Au
dio” on the “Select Audio Source” screen. ( →P.54)
Depending on the type of portable player connected, some functions may not be
available and/or the screen may look differently than shown in this manual.

82
3. MEDIA OPERATION
■CONTROL PANEL

No.Function
•Displays cover art.•Select to display a track list.
•Turn to select a track.•Turn to move up/down the list. Also, the knob can be used to enter selections on the
list screens by pressing it.
• Press to select a track.•Press and hold to fast forward/rewind.
•Turn to adjust volume.
• Press to turn th e audio system on/of f.
• Press and hold to re star t the system.
83
3. MEDIA OPERATION
AUDIO SYSTEM
3

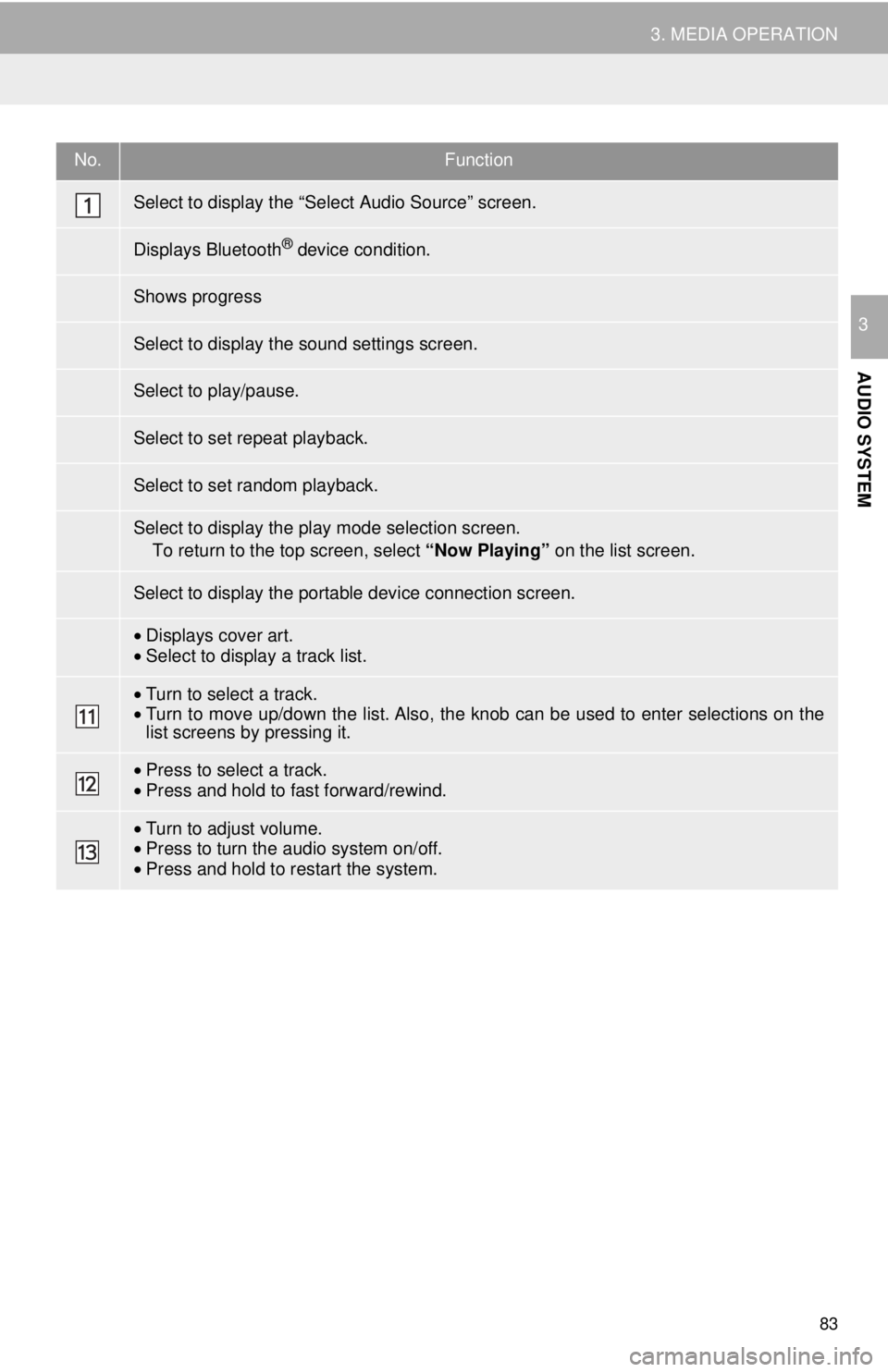

Select to display the “Select Audio Source” screen.
Displays Bluetooth® device condition.
Shows progress
Select to display the sound settings screen.
Select to play/pause.
Select to set repeat playback.
Select to set random playback.
Select to display the play mode selection screen.
To return to the top screen, select “Now Playing” on the list screen.
Select to display the portable device connection screen.

●Do not operate the player’s controls or connect to the Bluetooth® audio system while driv -
ing.
● Your audio unit is fitted with Bluetooth
® antennas. People with implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable cardioverter
d efi
brillators should maintain a reasonable distance between themselves and the Blue -
tooth
® antennas. The radio waves may affect the operation of such devices.
● Bef ore using Bluetooth
® devices, users of any electrical medical device other than
implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves. Radio waves could
have unexpected effects on the operation of such medical devices.
●Do not leave your portable player in the vehicle. In particular, high temperatures inside
the vehicle may damage the portable player.
●Depending on the Bluetooth® device that is connected to the system, the music may start
playing when selecting
while it is paused. Conversely, the music may pause when
selecting
while it is playing.
● In the following conditions, the system may not function:
● It may take time to connect the phone when Blueto oth
® audio is being played.
● For operating the portable player, see the instruction manual that comes with it.
● If the Bluetooth
® device is disconnected due to poor reception from the Bluetooth® net -
work when the engine switch is turned to the “ACC” or “ON” position, the system auto-
matically reconnects the portable player.
● If the system is attempting to connect to a Bluetooth
® device and the Bluetooth® device is
turned off and then back on, the system will attempt to reconnect.
● Bluetooth
® device information is registered when the Bluetooth® device is connected to
the Blueto oth® audio system. When selling or disposing of the vehicle, remove the
Blueto oth® audio information from the system. ( →P. 4 5 )
84
3. MEDIA OPERATION
WA R N I N G
NOTICE
INFORMATION
• The Bluetooth® device is turned off.
• The Bluetooth
® device is not connected.
• The Bluetooth
® device has a low battery.

CONNECTING A Bluetooth®
DEVICE
85
3. MEDIA OPERATION
AUDIO SYSTEM
3
 Registering an additional device
1Select “Select Device” on the
Bluetooth
® audio control screen.
2For more information: →P.35
 Selecting a registered device
1Select “Select Device” on the
Bluetooth
® audio control screen.
2For more information: →P.36
LISTENING TO Bluetooth®
AUDIO
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
To use the Bluetooth® audio system, it
is necessary to register a Bluetooth
®
device with the system.
REPEATING
The track or album currently being lis-
tened to can be repeated.
RANDOM ORDER
Tracks or albums can be automatically
and randomly selected.

86
3. MEDIA OPERATION
4. AUX
OVERVIEW■
CONTROL SCREEN
Select “AUX” on the “Select Audio Source” screen. ( →P.54)

87
3. MEDIA OPERATION
AUDIO SYSTEM
3
■CONTROL PANEL
No.Function
•Turn to adjust volume.
• Press to turn th e audio system on/of f.
• Press and hold to re star t the system.
●Do not connect portable audio device or operate the controls while driving.
●Do not leave portable audio device in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the player.
● Do not push down on or apply unnecessary pressure to the portable audio device while it
i s

connected as this may damage the portable audio device or its terminal.
● Do not insert foreign objects into the port as this may damage the portable audio device
or it s te

rminal.
Select to display the “Select Audio Source” screen.
Select to display the sound setting screen.
WA R N I N G
NOTICE

88
4. AUDIO REMOTE CONTROLS
1. STEERING SWITCHES
Volume control switch
 Press th e “+
” side to increase the volume.
The volume continues to increase while
the switch is being pressed.
 Press t he “-”
si
de to decrease the vol -
ume. The volume continues to decrease
wh il
e the switch is being pressed.
“ ” switch
When in radio mode
 Press the “” or “” switch to change
the station/channel up or down.
 Pres s and hold the
“
” or “” switch to
quickly change the station/channel.
 Pres s and hold the
“
” or “” switch to
type seek up or down. (XM Satelite Radio)
 When in media mode
 Press the “” or “” switch to skip to the
next or previous track/file.
 Pres s and hold the
“
” or “” switch to
fast forward/rewind.
“MODE” swit

ch
 Press the “MO
DE” switch to select an
audio mode. Each press changes the
mode sequentially if the desired mode is
ready to use.
 To turn the audio system on, press the

“MODE” switch.
 Pres s and hold the
“MODE” swi
tch to turn
the audio system off.
Some parts of the audio system can be
adjusted using the switches on the
steering wheel.
No.Switch
Volume control switch
“ ” switch
“MODE” switch

89
AUDIO SYSTEM
3
5. SETUP
1. AUDIO SETTINGS
1Press the “APPS” button.
2Select “Setup” .
3Select “Audio” .
4Select the items to be set.
“Audio Settings” SCREENDetailed audio settings can be pro-
grammed.
No.FunctionPage
Select to change the num-
ber of preset radio stations
displayed on the screen.
90
Select to set cover art set-
tings.⎯
Select to set automatic
sound levelizer.90

90
5. SETUP
1Display the “Audio Settings” screen.
(→P.89 )
2Select “Number of Radio Presets” .
3Select the button with the desired num -
ber to be displayed.
1Display the “Audio Settings” screen.
(→P.89 )
2Select the “Automatic Sound Level-
izer” .
3Select the “High”, “Mid”, “Low”, or
“Off” .
SETTING THE NUMBER OF
RADIO PRESETS
AUTOMATIC SOUND
LEVELIZER (ASL)
The system adjusts to the optimum vol-
ume and tone quality according to ve-
hicle speed to compensate for
increased vehicle noise.
