Side view

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1) Fuel filler flap
(2) CSC roof
(3) Outside door handle
(4) Outside mirror
– Additional turn signal light
– Background lighting
(5) Side marker light
(6) Lift points for the jack

Front view

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Sensor on mirror base for:
– Rain sensor
– Low-light sensor
(2) Front windshield
(3) Windshield wipers
(4) Engine hood
(5) Engine hood release
(6) Headlights
(7) Side marker lights
(8) Fog lights/static cornering lights
(9) Headlight washers
(10) Front license plate bracket
(11) Threaded hole for the front towing eye (behind cover)

Rear view

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) Rear window
– Rear window defroster
(2) High-mounted brake light
(3) Taillights
(4) Luggage compartment lid
– Antenna in the luggage compartment lid
(5) License plate lights
(6) Park Distance Control sensors
(7) Threaded hole for the rear towing eye (behind cover)
(8) Rear license plate bracket
(9) Volkswagen Emblem. Area for:
– Luggage compartment release
– Rear Assist camera

Driver door overview

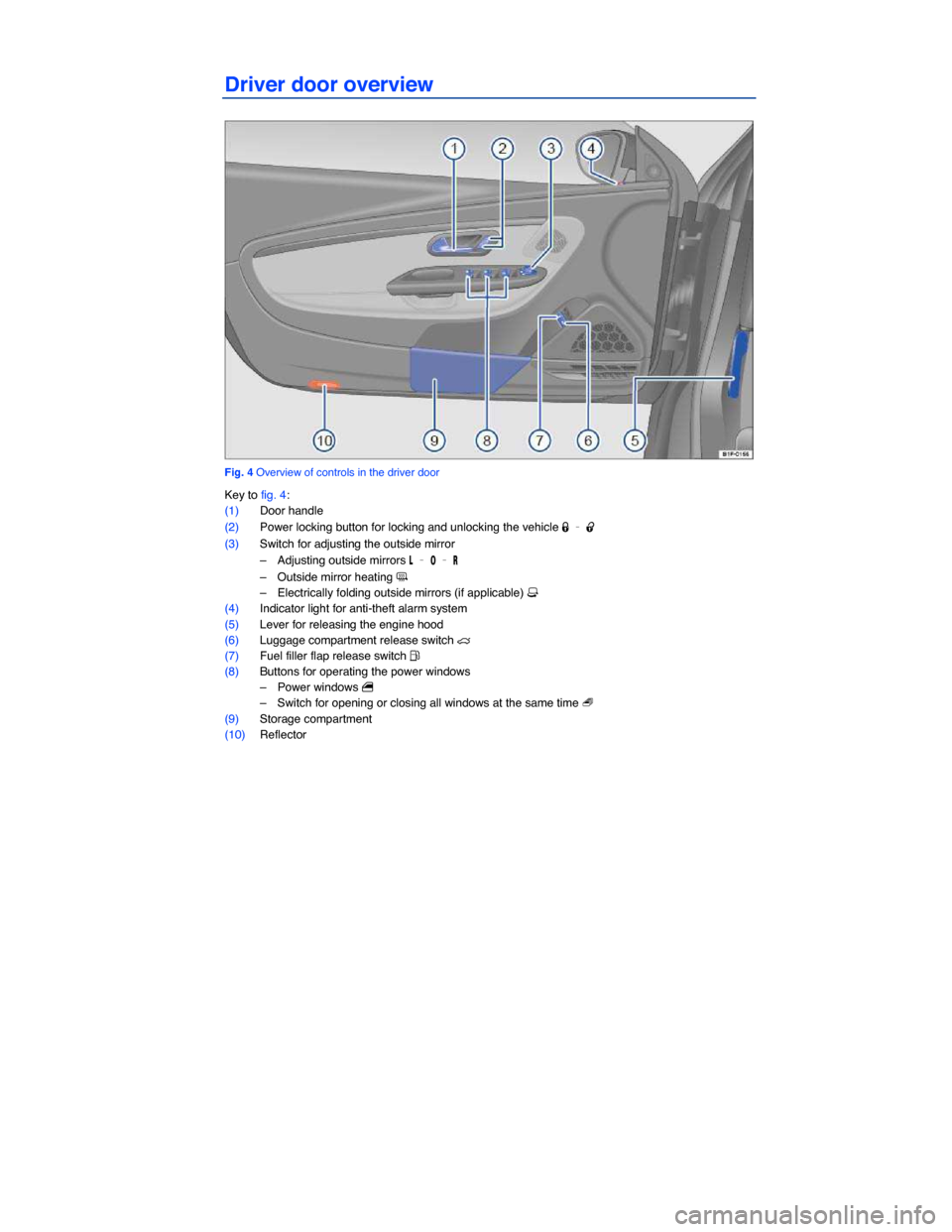

Fig. 4 Overview of controls in the driver door
Key to fig. 4:
(1) Door handle
(2) Power locking button for locking and unlocking the vehicle 1 – 0
(3) Switch for adjusting the outside mirror
– Adjusting outside mirrors , – / – 2
– Outside mirror heating ?
– Electrically folding outside mirrors (if applicable) #
(4) Indicator light for anti-theft alarm system
(5) Lever for releasing the engine hood
(6) Luggage compartment release switch q
(7) Fuel filler flap release switch
(8) Buttons for operating the power windows
– Power windows
– Switch for opening or closing all windows at the same time -
(9) Storage compartment
(10) Reflector

Driver side overview

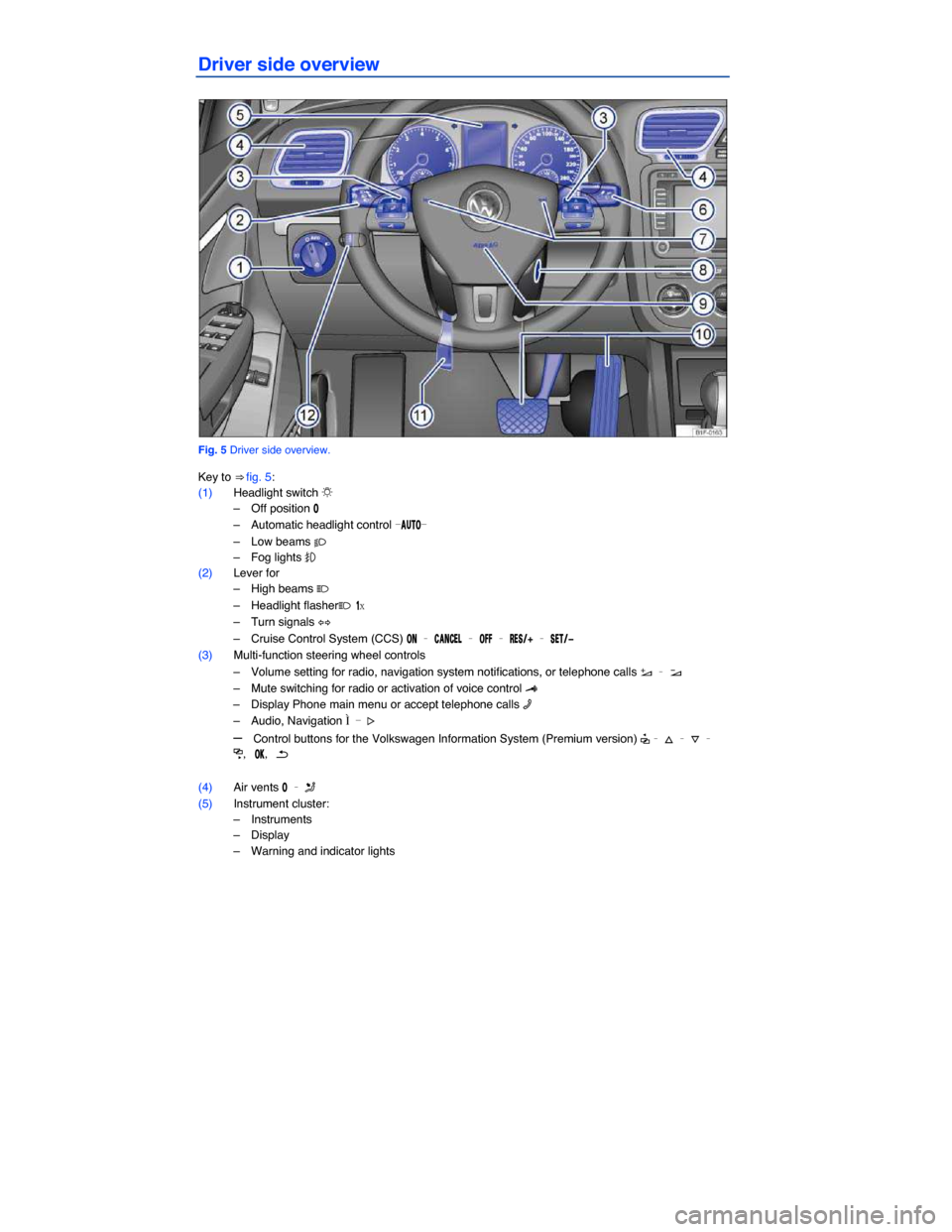

Fig. 5 Driver side overview.
Key to ⇒ fig. 5:
(1) Headlight switch

(6) Windshield wiper and washer lever
– Windshield wiper ()'( – ,/7
– Intermittent operation for windshield wipersz
– Windshield wiper /&&
– “One-tap wiping” x
– Windshield wiper U
– Automatic wipe/wash for windshield W
– Lever with buttons for the Volkswagen Information System (Basic version) 42)0, /+

Applicable only in Canada
Upper center console

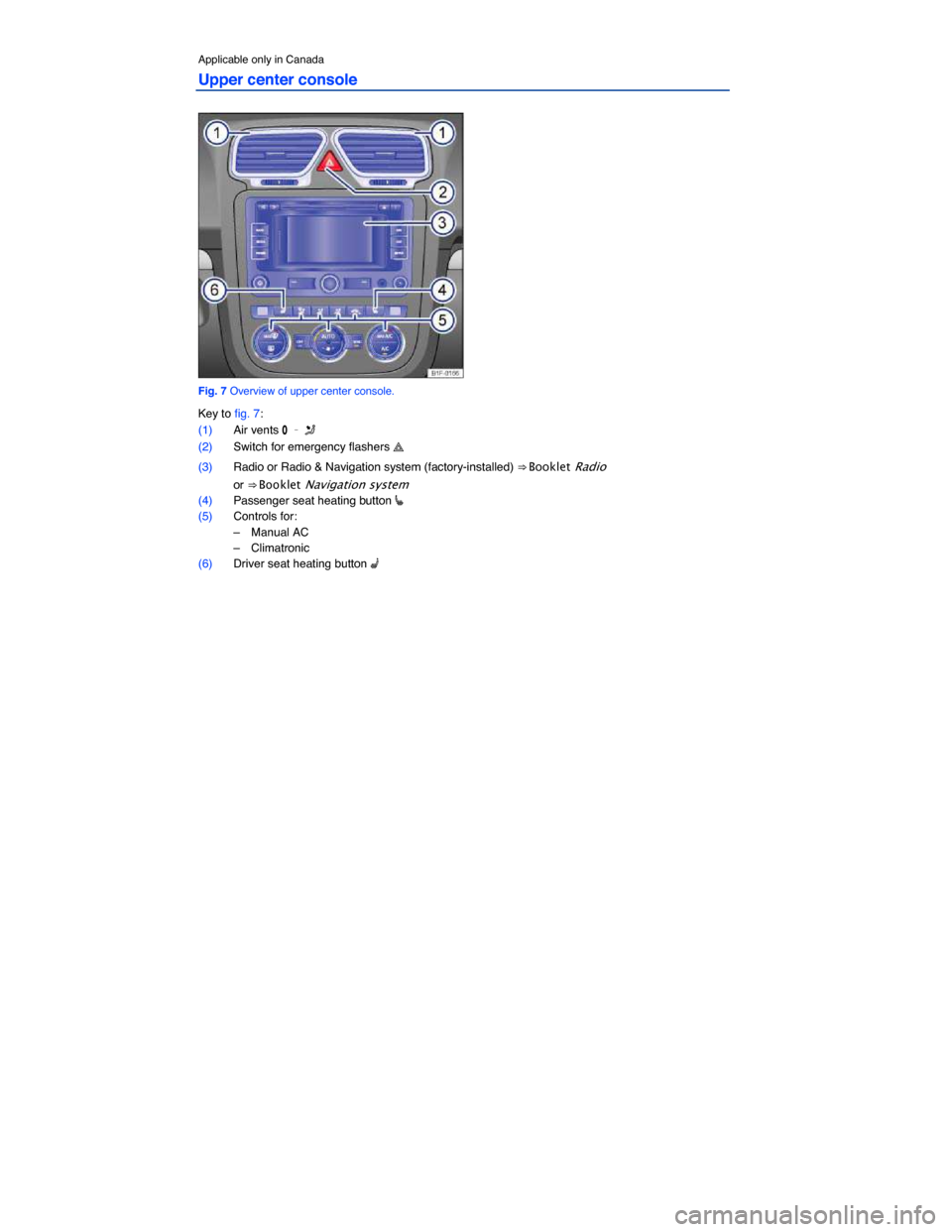

Fig. 7 Overview of upper center console.
Key to fig. 7:
(1) Air vents / – J
(2) Switch for emergency flashers
(3) Radio or Radio & Navigation system (factory-installed) ⇒ Booklet Radio
or ⇒ Booklet Navigation system
(4) Passenger seat heating button [
(5) Controls for:
– Manual AC
– Climatronic
(6) Driver seat heating button A

Lower center console

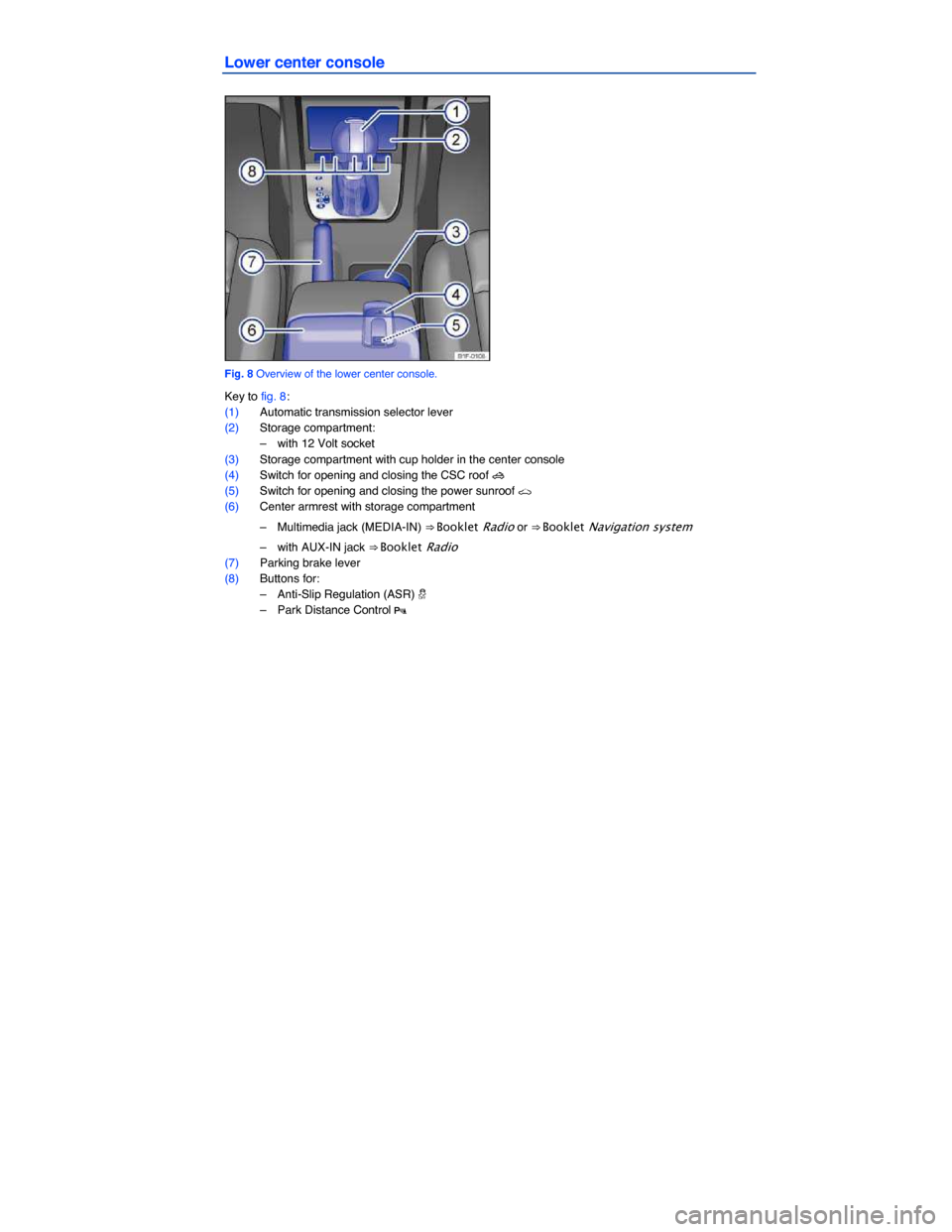

Fig. 8 Overview of the lower center console.
Key to fig. 8:
(1) Automatic transmission selector lever
(2) Storage compartment:
– with 12 Volt socket
(3) Storage compartment with cup holder in the center console
(4) Switch for opening and closing the CSC roof &
(5) Switch for opening and closing the power sunroof
(6) Center armrest with storage compartment
– Multimedia jack (MEDIA-IN) ⇒ Booklet Radio or ⇒ Booklet Navigation system
– with AUX-IN jack ⇒ Booklet Radio
(7) Parking brake lever
(8) Buttons for:
– Anti-Slip Regulation (ASR) m
– Park Distance Control '

Applicable only in the United States
Front passenger side overview

Fig. 9 Overview of the front passenger side.
Key to ⇒ fig. 9:
(1) Passenger front airbag location in the instrument panel (approximate)
(2) Opening handle for the lockable glove compartment
(3) Air vent / – J
Applicable only in Canada
Front passenger side overview

Fig. 10 Overview of the front passenger side.
Key to ⇒ fig. 10:
(1) Passenger front airbag location in the instrument panel (approximate)
(2) Inside the glove compartment: SET button for Tire Pressure Monitoring System Ç SET
(3) Opening handle for the lockable glove compartment
(4) Air vent / – J

Applicable only in the United States
Symbols on the roof console

Symbol Meaning
*  / s  Interior and reading lights

Applicable only in Canada
Symbols on the roof console and sun visor

Symbol Meaning
*  / s  Interior and reading lights
1 2 3 HomeLink® Universal Transmitter
