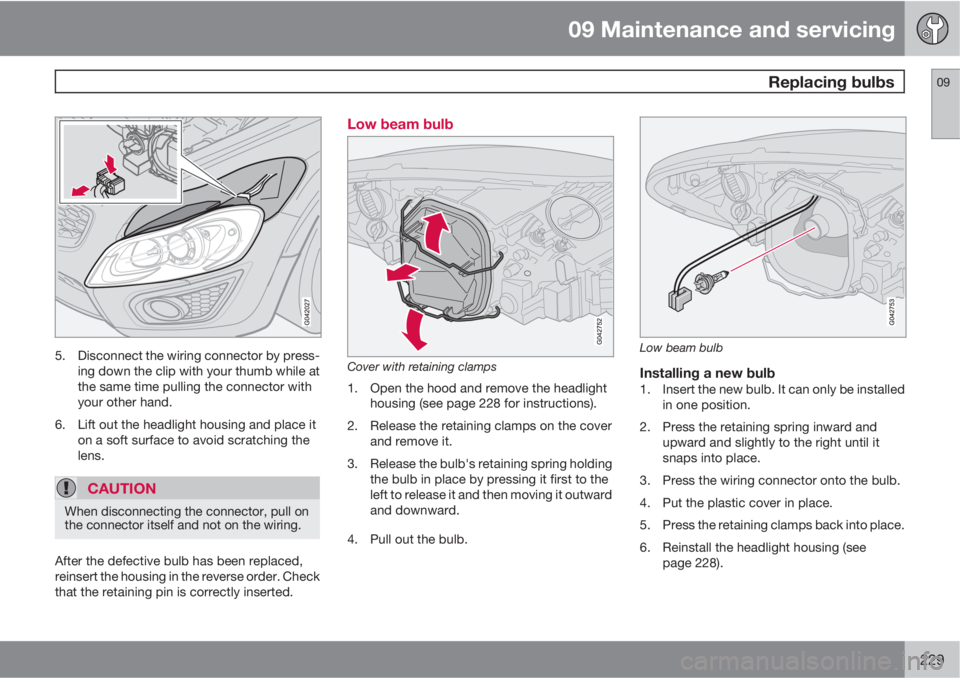

5. Disconnect the wiring connector by press-
ing down the clip with your thumb while at
the same time pulling the connector with
your other hand.
6. Lift out the headlight housing and place it
on a soft surface to avoid scratching the
lens.
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.
After the defective bulb has been replaced,
reinsert the housing in the reverse order. Check
that the retaining pin is correctly inserted.
Low beam bulb
Cover with retaining clamps
1. Open the hood and remove the headlight
housing (see page 228 for instructions).
2. Release the retaining clamps on the cover
and remove it.
3. Release the bulb's retaining spring holding
the bulb in place by pressing it first to the
left to release it and then moving it outward
and downward.
4. Pull out the bulb.
Low beam bulb
Installing a new bulb1. Insert the new bulb. It can only be installed
in one position.
2. Press the retaining spring inward and
upward and slightly to the right until it
snaps into place.
3. Press the wiring connector onto the bulb.
4. Put the plastic cover in place.
5. Press the retaining clamps back into place.
6. Reinstall the headlight housing (see
page 228).

09 Maintenance and servicing
Replacing bulbs 09
230* Option/accessory, for more information, see Introduction.

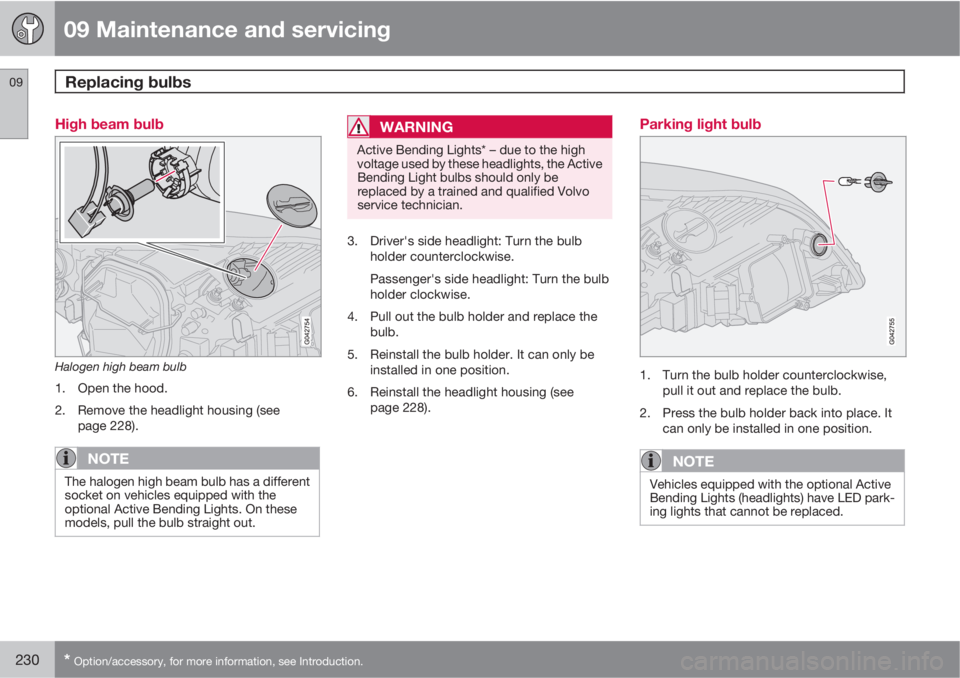

High beam bulb
Halogen high beam bulb
1. Open the hood.
2. Remove the headlight housing (see
page 228).
NOTE
The halogen high beam bulb has a different
socket on vehicles equipped with the
optional Active Bending Lights. On these
models, pull the bulb straight out.
WARNING
Active Bending Lights* – due to the high
voltage used by these headlights, the Active
Bending Light bulbs should only be
replaced by a trained and qualified Volvo
service technician.
3. Driver's side headlight: Turn the bulb
holder counterclockwise.
Passenger's side headlight: Turn the bulb
holder clockwise.
4. Pull out the bulb holder and replace the
bulb.
5. Reinstall the bulb holder. It can only be
installed in one position.
6. Reinstall the headlight housing (see
page 228).
Parking light bulb
1. Turn the bulb holder counterclockwise,
pull it out and replace the bulb.
2. Press the bulb holder back into place. It
can only be installed in one position.
NOTE
Vehicles equipped with the optional Active
Bending Lights (headlights) have LED park-
ing lights that cannot be replaced.

09 Maintenance and servicing
Replacing bulbs09

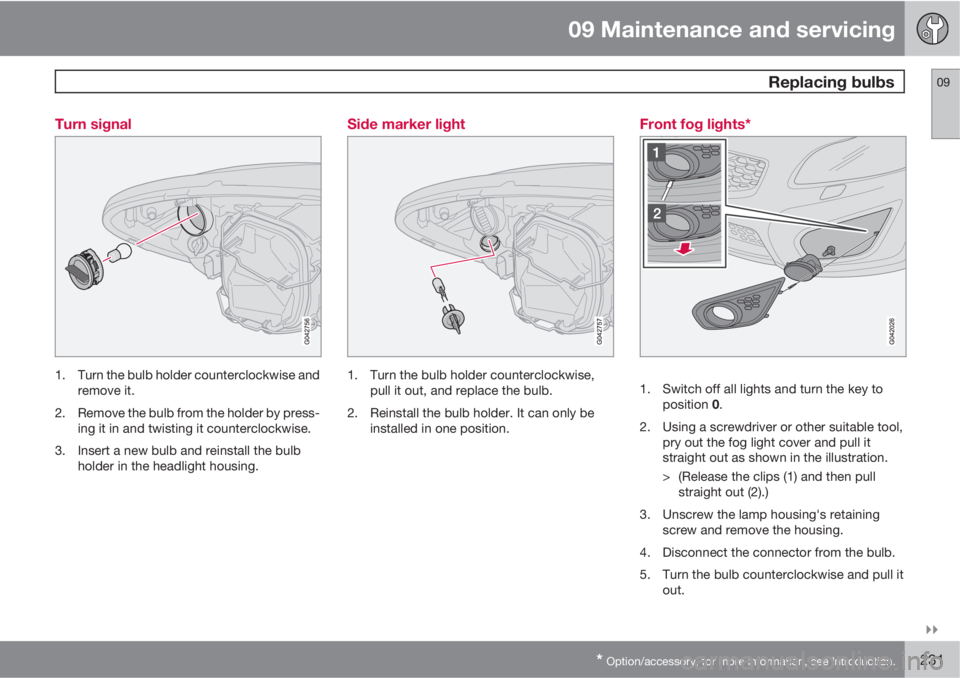

* Option/accessory, for more information, see Introduction.231 Turn signal
1. Turn the bulb holder counterclockwise and
remove it.
2. Remove the bulb from the holder by press-
ing it in and twisting it counterclockwise.
3. Insert a new bulb and reinstall the bulb
holder in the headlight housing.
Side marker light
1. Turn the bulb holder counterclockwise,
pull it out, and replace the bulb.
2. Reinstall the bulb holder. It can only be
installed in one position.
Front fog lights*
1. Switch off all lights and turn the key to
position 0.
2. Using a screwdriver or other suitable tool,
pry out the fog light cover and pull it
straight out as shown in the illustration.
> (Release the clips (1) and then pull
straight out (2).)
3. Unscrew the lamp housing's retaining
screw and remove the housing.
4. Disconnect the connector from the bulb.
5. Turn the bulb counterclockwise and pull it
out.

09 Maintenance and servicing
Replacing bulbs 09
232
6. Press a new bulb into place and turn it
clockwise.
7.
Reinsert the bulb holder. The mark TOP
should be upward.
8. Secure the fog light housing with the
retaining screw and press the panel back
into place.

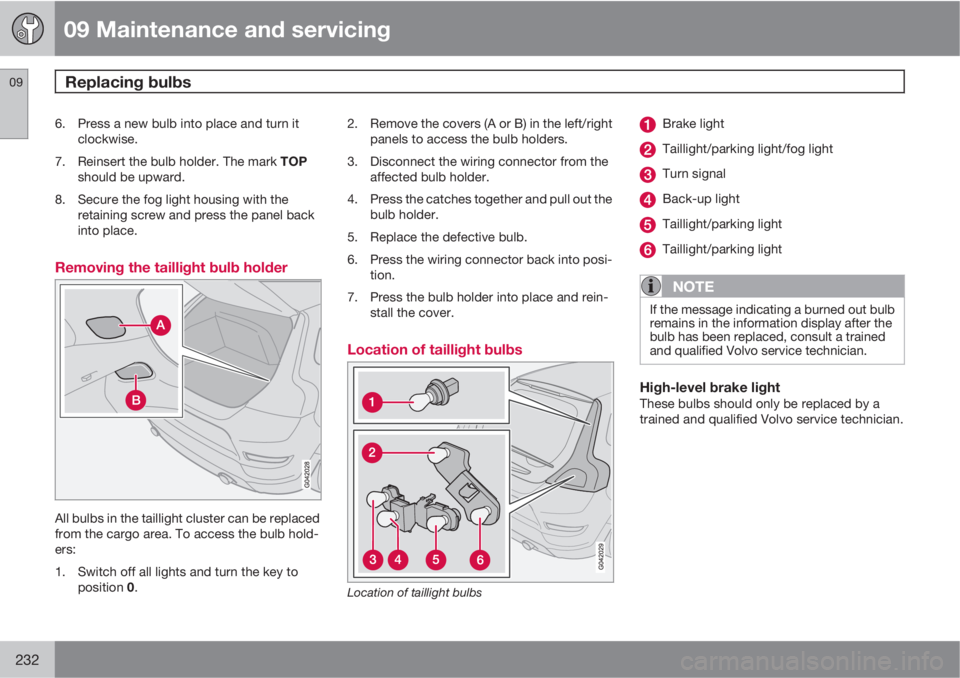

Removing the taillight bulb holder
All bulbs in the taillight cluster can be replaced
from the cargo area. To access the bulb hold-
ers:
1. Switch off all lights and turn the key to
position 0.2. Remove the covers (A or B) in the left/right
panels to access the bulb holders.
3. Disconnect the wiring connector from the
affected bulb holder.
4. Press the catches together and pull out the
bulb holder.
5. Replace the defective bulb.
6. Press the wiring connector back into posi-
tion.
7. Press the bulb holder into place and rein-
stall the cover.
Location of taillight bulbs
Location of taillight bulbs
Brake light
Taillight/parking light/fog light
Turn signal
Back-up light
Taillight/parking light
Taillight/parking light
NOTE
If the message indicating a burned out bulb
remains in the information display after the
bulb has been replaced, consult a trained
and qualified Volvo service technician.
High-level brake lightThese bulbs should only be replaced by a
trained and qualified Volvo service technician.

09 Maintenance and servicing
Replacing bulbs09

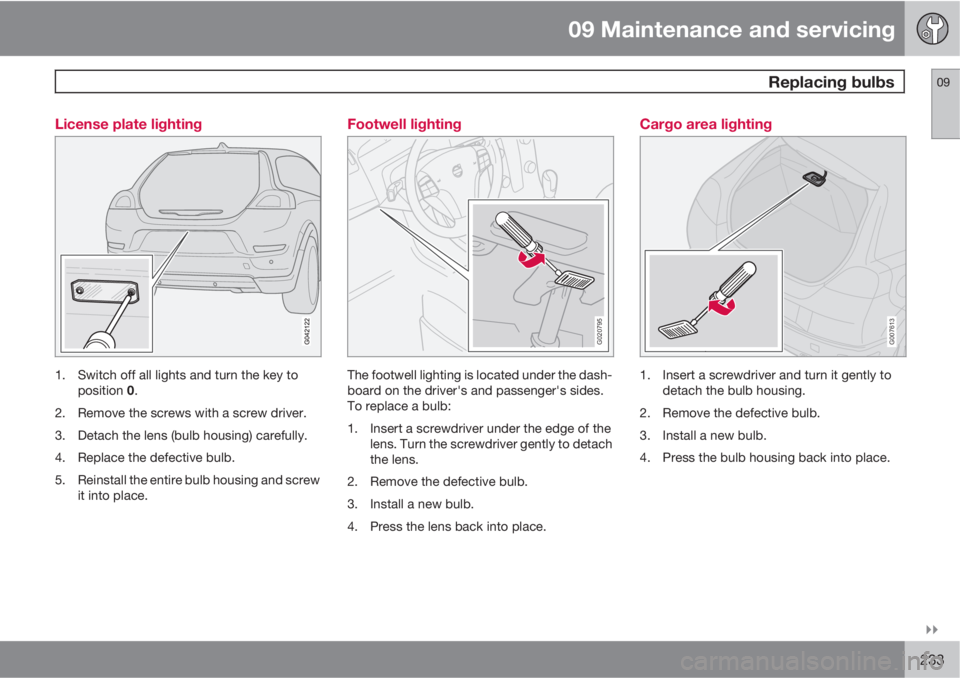

233 License plate lighting
1. Switch off all lights and turn the key to
position 0.
2. Remove the screws with a screw driver.
3. Detach the lens (bulb housing) carefully.
4. Replace the defective bulb.
5. Reinstall the entire bulb housing and screw
it into place.
Footwell lighting
G020795
The footwell lighting is located under the dash-
board on the driver's and passenger's sides.
To replace a bulb:
1. Insert a screwdriver under the edge of the
lens. Turn the screwdriver gently to detach
the lens.
2. Remove the defective bulb.
3. Install a new bulb.
4. Press the lens back into place.
Cargo area lighting
G007613
1. Insert a screwdriver and turn it gently to
detach the bulb housing.
2. Remove the defective bulb.
3. Install a new bulb.
4. Press the bulb housing back into place.

09 Maintenance and servicing
Replacing bulbs 09
234* Option/accessory, for more information, see Introduction.

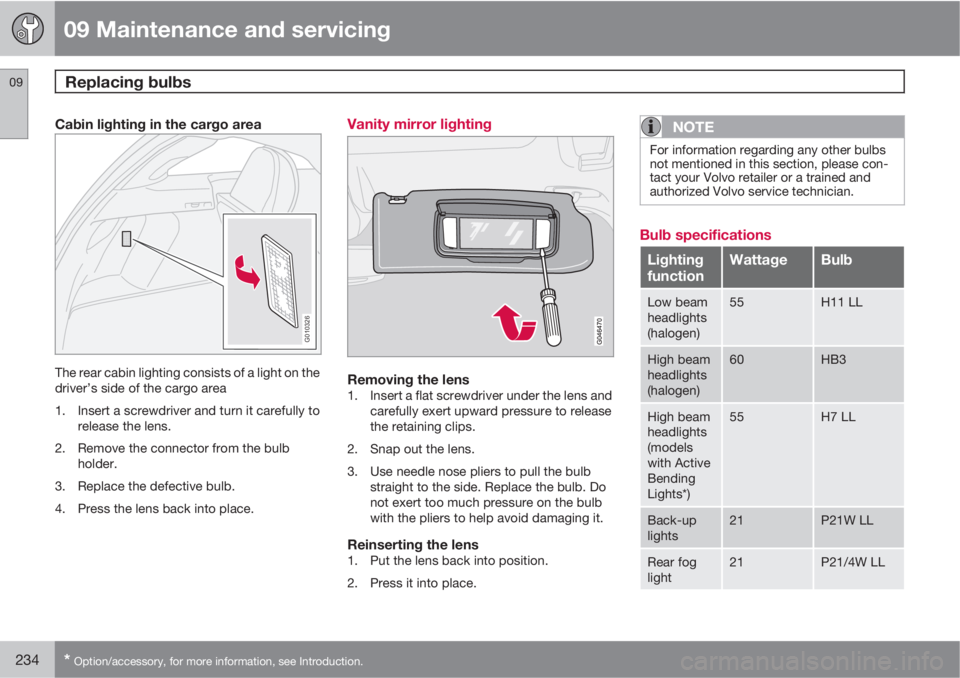

Cabin lighting in the cargo area
G010326
The rear cabin lighting consists of a light on the
driver’s side of the cargo area
1. Insert a screwdriver and turn it carefully to
release the lens.
2. Remove the connector from the bulb
holder.
3. Replace the defective bulb.
4. Press the lens back into place.
Vanity mirror lighting
Removing the lens1. Insert a flat screwdriver under the lens and
carefully exert upward pressure to release
the retaining clips.
2. Snap out the lens.
3. Use needle nose pliers to pull the bulb
straight to the side. Replace the bulb. Do
not exert too much pressure on the bulb
with the pliers to help avoid damaging it.
Reinserting the lens1. Put the lens back into position.
2. Press it into place.
NOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.
Bulb specifications
Lighting
functionWattageBulb
Low beam
headlights
(halogen)55H11 LL
High beam
headlights
(halogen)60HB3
High beam
headlights
(models
with Active
Bending
Lights*)55H7 LL
Back-up
lights21P21W LL
Rear fog
light21P21/4W LL

09 Maintenance and servicing
Replacing bulbs09
* Option/accessory, for more information, see Introduction.235
Lighting
functionWattageBulb
Taillights4P21/4W LL
Rear turn
signals21PY21W LL
Brake lights21P21W LL
Front turn
signals24PY24W SV
License
plate light-
ing5C5W LL
Vanity mir-
ror2W2x4.6d
type T5
Front park-
ing lights5W5W LL BV
Front side
marker
lights5W5W LL
Front fog
lights*35H8
Glove com-
partment
light3W2.1x9.5d
type T10
Lighting
functionWattageBulb
Footwell
lighting3W2.1x9.5d
type T10
Cargo
compart-
ment light5SV8.5 (length
38mm)
NOTE
Please consult a Volvo retailer’s Parts
department for the most up-to-date speci-
fications.

09 Maintenance and servicing
Fuses 09
236
Replacing fuses
There are relay/fuse boxes located in the
engine compartment and the passenger com-
partment.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
3. If the wire is broken, insert a new fuse of
the same color and amperage (written on
the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.

09 Maintenance and servicing
Fuses09

237 Fuse box in the engine compartment
G007446
The fuse box in the engine compartment has
positions for 36 fuses.
•Fuses 1–18 are relays/circuit breakers and
should only be removed or replaced by an
authorized Volvo service technician.
•Fuses 19–36 may be changed at any time
when necessary.
Several extra fuses and a fuse removal tool to
assist in removing/replacing fuses can be
found on the underside of the fuse box cover
in the engine compartment.

09 Maintenance and servicing
Fuses 09
238
Fuses in the engine compartment
G020250
1.Coolant fan (radiator)50A
2.Power steering80A
3.Feed to passenger com-
partment fuse box60A
4.Feed to passenger com-
partment fuse box60A
5.Element, climate unit80A
6.Not in use
7.ABS pump30A
8.ABS valves20A
9.Engine functions30A
10.Climate system blower40A
11.Headlight washers20A
12.Feed to heated rear window30A
13.Starter motor relay30A
14.Trailer connector (acces-
sory)40A
15.Not in use
16.Feed to audio system30A
17.Windshield wipers30A
18.Feed to passenger com-
partment fuse box40A
19.Not in use
20.Horn15A
21.Not in use
22.Not in use
23.Engine control module
(ECM)/transmission control
module (TCM)10A
