VOLVO C30 2013 Owner´s Manual

10 Audio

10
269

270
Label information.................................................................................. 272
Dimensions and weights....................................................................... 274
Fuel, oils, and fluids..............................................................................277
Engine oil............................................................................................... 279
Engine specifications............................................................................ 280
Electrical system................................................................................... 282
Three-way catalytic converter............................................................... 283
Overview of information and warning symbols..................................... 284
Volvo programs..................................................................................... 286

SPECIFICATIONS

11 Specifications

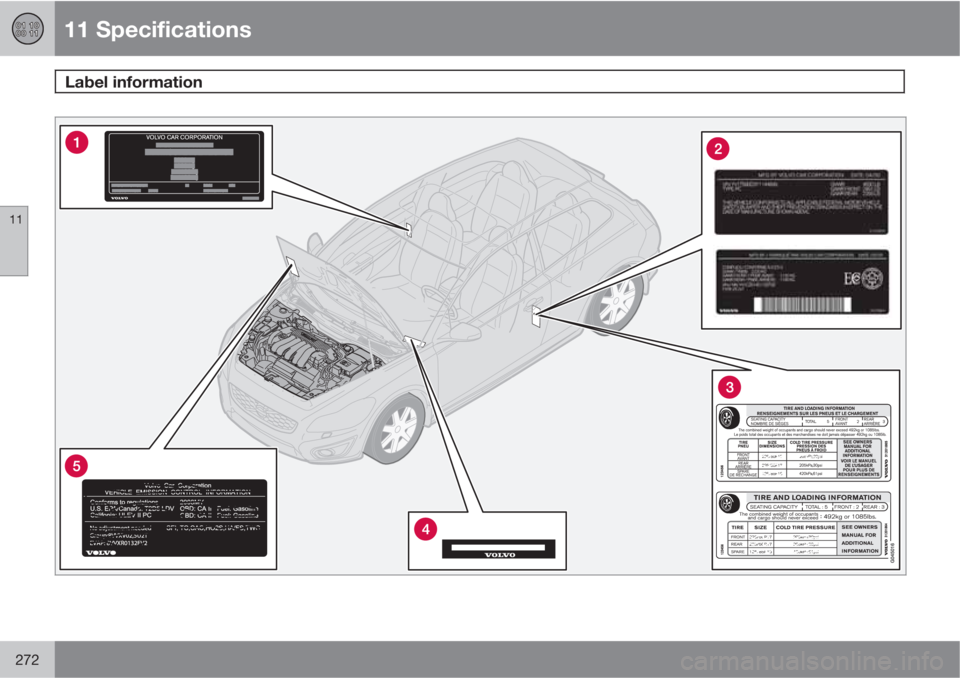

Label information
11
272

11 Specifications
Label information
11
273

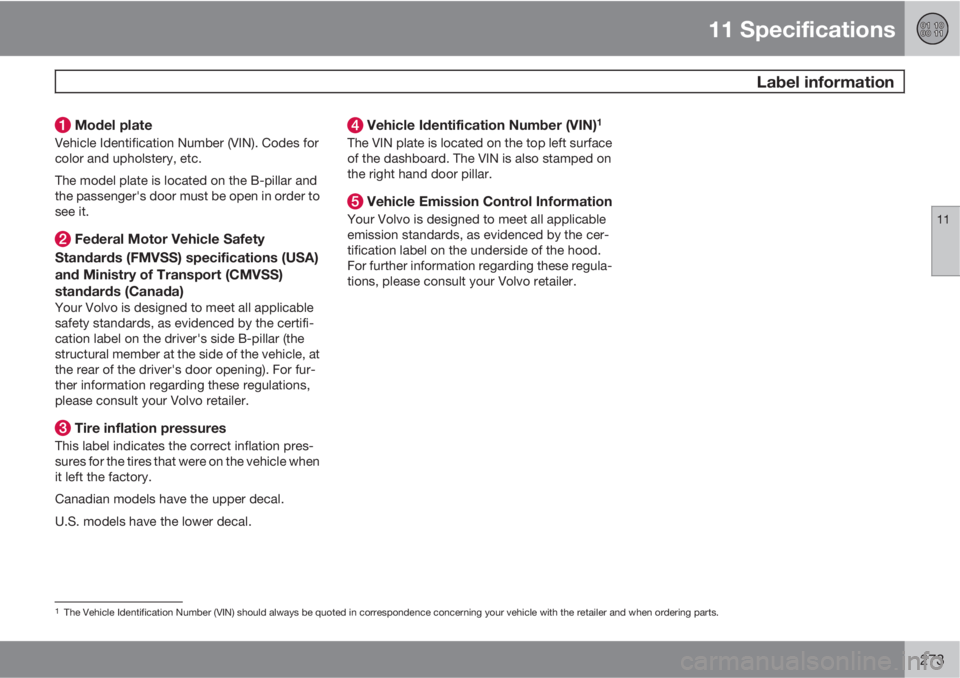

Model plate
Vehicle Identification Number (VIN). Codes for
color and upholstery, etc.
The model plate is located on the B-pillar and
the passenger's door must be open in order to
see it.
Federal Motor Vehicle Safety
Standards (FMVSS) specifications (USA)
and Ministry of Transport (CMVSS)
standards (Canada)
Your Volvo is designed to meet all applicable
safety standards, as evidenced by the certifi-
cation label on the driver's side B-pillar (the
structural member at the side of the vehicle, at
the rear of the driver's door opening). For fur-
ther information regarding these regulations,
please consult your Volvo retailer.
Tire inflation pressures
This label indicates the correct inflation pres-
sures for the tires that were on the vehicle when
it left the factory.
Canadian models have the upper decal.
U.S. models have the lower decal.
Vehicle Identification Number (VIN)1
The VIN plate is located on the top left surface
of the dashboard. The VIN is also stamped on
the right hand door pillar.
Vehicle Emission Control Information
Your Volvo is designed to meet all applicable
emission standards, as evidenced by the cer-
tification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.
1The Vehicle Identification Number (VIN) should always be quoted in correspondence concerning your vehicle with the retailer and when ordering parts.

11 Specifications
Dimensions and weights
11
274

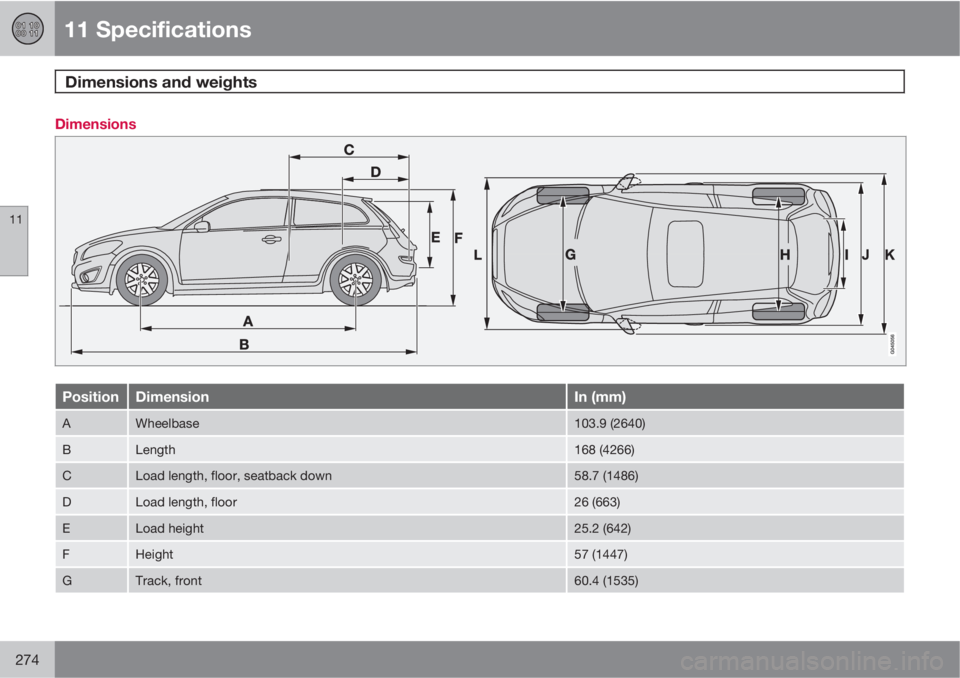

Dimensions
PositionDimensionIn (mm)
AWheelbase103.9 (2640)
BLength168 (4266)
CLoad length, floor, seatback down58.7 (1486)
DLoad length, floor26 (663)
ELoad height25.2 (642)
FHeight57 (1447)
GTrack, front60.4 (1535)

11 Specifications
Dimensions and weights
11

275

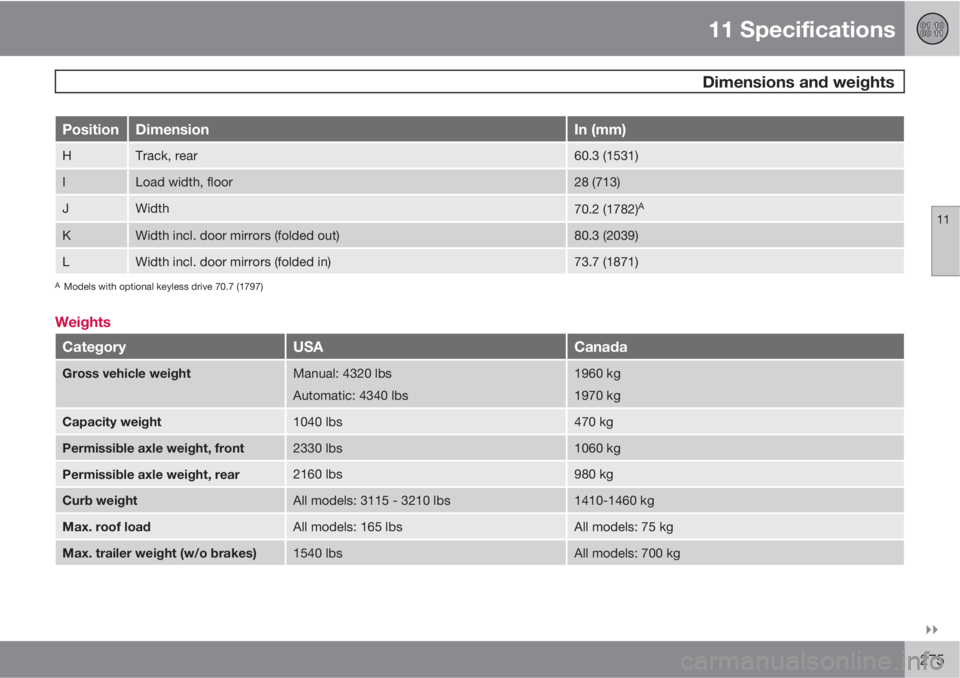

PositionDimensionIn (mm)
HTrack, rear60.3 (1531)
ILoad width, floor28 (713)
JWidth70.2 (1782)A
KWidth incl. door mirrors (folded out)80.3 (2039)
LWidth incl. door mirrors (folded in)73.7 (1871)
AModels with optional keyless drive 70.7 (1797)
Weights
CategoryUSACanada
Gross vehicle weightManual: 4320 lbs
Automatic: 4340 lbs1960 kg
1970 kg
Capacity weight1040 lbs470 kg
Permissible axle weight, front2330 lbs1060 kg
Permissible axle weight, rear2160 lbs980 kg
Curb weightAll models: 3115 - 3210 lbs1410-1460 kg
Max. roof loadAll models: 165 lbsAll models: 75 kg
Max. trailer weight (w/o brakes)1540 lbsAll models: 700 kg

11 Specifications
Dimensions and weights
11
276

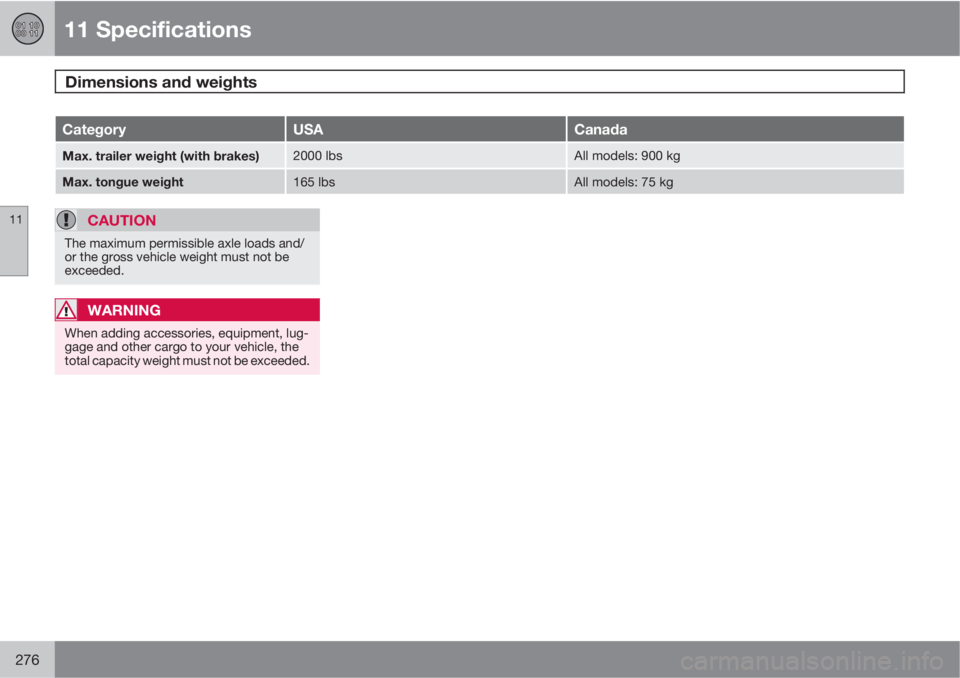

CategoryUSACanada
Max. trailer weight (with brakes)2000 lbsAll models: 900 kg
Max. tongue weight165 lbsAll models: 75 kg
CAUTION
The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.
WARNING
When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.

11 Specifications
Fuel, oils, and fluids
11

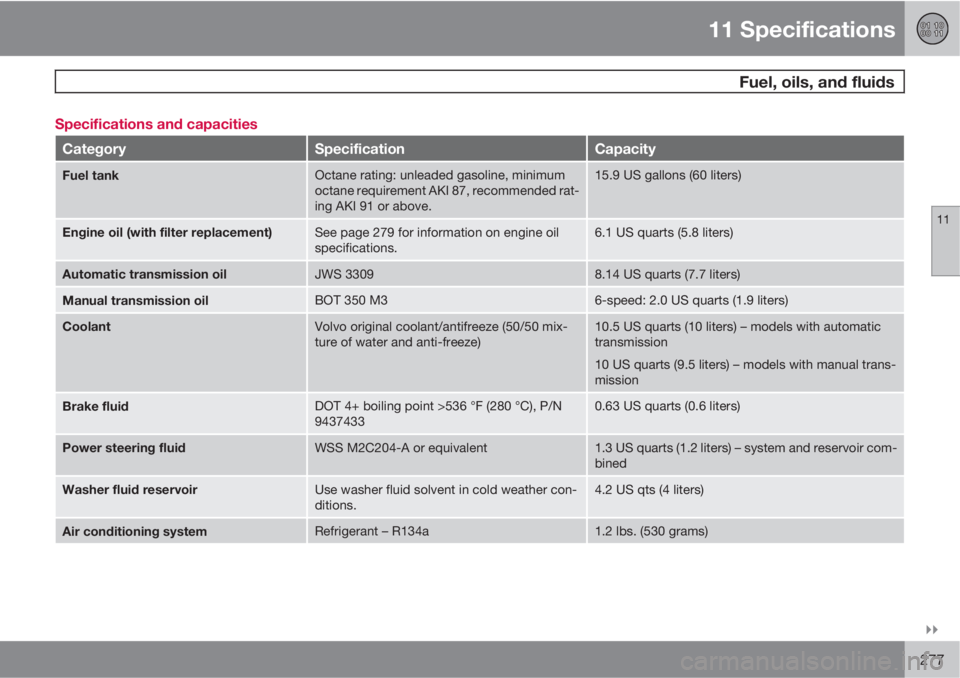

277 Specifications and capacities
CategorySpecificationCapacity
Fuel tankOctane rating: unleaded gasoline, minimum
octane requirement AKI 87, recommended rat-
ing AKI 91 or above.15.9 US gallons (60 liters)
Engine oil (with filter replacement)See page 279 for information on engine oil
specifications.6.1 US quarts (5.8 liters)
Automatic transmission oilJWS 33098.14 US quarts (7.7 liters)
Manual transmission oilBOT 350 M36-speed: 2.0 US quarts (1.9 liters)
CoolantVolvo original coolant/antifreeze (50/50 mix-
ture of water and anti-freeze)10.5 US quarts (10 liters) – models with automatic
transmission
10 US quarts (9.5 liters) – models with manual trans-
mission
Brake fluidDOT 4+ boiling point >536 °F (280 °C), P/N
94374330.63 US quarts (0.6 liters)
Power steering fluidWSS M2C204-A or equivalent1.3 US quarts (1.2 liters) – system and reservoir com-
bined
Washer fluid reservoirUse washer fluid solvent in cold weather con-
ditions.4.2 US qts (4 liters)
Air conditioning systemRefrigerant – R134a1.2 lbs. (530 grams)

11 Specifications
Fuel, oils, and fluids
11
278

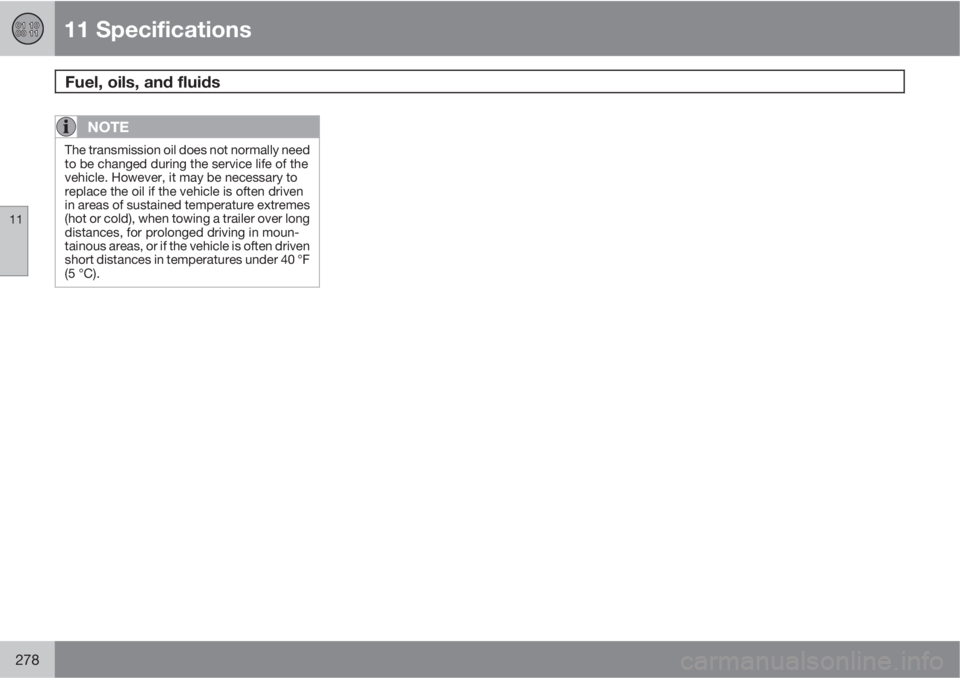

NOTE
The transmission oil does not normally need
to be changed during the service life of the
vehicle. However, it may be necessary to
replace the oil if the vehicle is often driven
in areas of sustained temperature extremes
(hot or cold), when towing a trailer over long
distances, for prolonged driving in moun-
tainous areas, or if the vehicle is often driven
short distances in temperatures under 40 °F
(5 °C).
