VOLVO C30 2013 Owner´s Manual

10 Audio
Audio functions
10
249
to index the files on the drive if it contains any-
thing other than compatible music files.
NOTE
•The system supports removable media
that uses the USB 2.0 standard and the
FAT32 file system. It can index up to
1,000 folders and a maximum of 254
sub-folders/files for each folder. How-
ever, the highest folder level can sup-
port up to 1,000 sub-folders/files.
•When using a longer type of USB
device, connecting it with a USB
adapter cable will help reduce mechan-
ical wear on the USB socket and on the
device.
MP3 playerMany MP3 players have a file indexing system
that is not supported by the vehicle's audio
system. In order to use an MP3 player, the sys-
tem must be set to USB Removable device/
Mass Storage Device.
iPodŸ
An iPodŸ receives current and its battery is
charged through the connecting cord. How-
ever, if the iPod's battery is completely
drained, it should be recharged before the
iPodŸ is connected to the audio system.
NOTE
When an iPodŸ is used as a sound source,
the vehicle's audio system has a menu
structure similar to the one in the iPod
Ÿ. See
the iPod's manual for detailed information.
For further information, refer to the accessory
manual USB/iPodŸ Music Interface.
Adjusting volume for an external deviceThe volume of an external device may be dif-
ferent from the volume of the internal sound
sources such as the CD player or the radio. It
the external device's volume is too high, the
quality of the sound may be impaired. To help
prevent this, adjust the external device's input
volume as follows:
1. While playing the radio or a CD, lower the
audio volume to about one-quarter.
2.
Switch to
AUX mode on the audio system
by pressing the MODE button.
3. Connect the headphone output from your
music player to the AUX input using a cable
with a stereo 3.5 mm miniplug at both
ends.
4. Set your music player's headphone vol-
ume to three-quarters using the player's
volume controls.5.
Press MENU on the audio system, and
navigate to
AUX input volume.
6. Turn the volume knob to raise or lower the
AUX input volume until you hear music at
a comfortable level.
7. If there is distortion, lower your music play-
er's headphone volume until the distortion
goes away.
8. Finally, exit the menu and adjust the audio
volume to a comfortable level.
BluetoothŸ streaming audio (BT)The vehicle's audio system is equipped with
BluetoothŸ, which makes it possible to play
streaming audio files from a BluetoothŸcon-
nected cell phone. Navigation and control of
the phone can be done through the vehicle's
center console control panel or the steering
wheel keypad. On certain cell phones, it is also
possible to change tracks from the phone
itself.
In order to listen streaming audio, BT must be
selected as a sound source (see page 247) and
a Bluetooth
Ÿ cell phone must be connected
(paired) with the audio system. See page 264
for more information.

10 Audio
Audio functions
10
250
NOTE
Any Bluetooth cell phones used must sup-
port Audio/Video Remote Control Profile
(AVRCP) and Advanced Audio Distribution
Profile (A2DP). The phone must use AVRCP
version 1.3 and A2DP 1.2. If older versions
of these standards are used, certain fea-
tures (e.g., scan or random) may not func-
tion.
Not all cell phones are fully compatible with
the vehicle's Bluetooth system. A list of
compatible phones is available at you Volvo
retailer or at www.volvocars.us.
Listening to streaming audioPress MODE several times to select BT as a
sound source.
Audio files on the connected device can be
selected in three ways:
•Turn the TUNING dial (4) in either direction.
•Use the navigation buttons / (6) to
select an audio file.
•Use the / buttons on the steering
wheel keypads.
Sound settings
Optimal sound reproductionThe audio system is calibrated for optimal
sound reproduction through the use of digital
signal processing. This calibration takes into
account the speakers, amplifier, cabin acous-
tics, the seating position of the listener, etc., for
each combination of vehicle and audio system.
There is also dynamic calibration that takes
into account the setting of the volume control,
radio reception, and the vehicle's speed. The
sound settings described in this manual, such
as
BASS, TREBLE, and Equalizer front…/Equalizer rear… are only intended to enable
the user to adapt sound reproduction to his/her
personal preferences.
1.
Press SOUND (5). Press this button
repeatedly until you come to the setting
that you wish to change.
2.
Turn the TUNING dial (4) to make the
desired setting.
The following settings can be made:
BASS–set the bass level
TREBLE–set the treble level
BALANCE–set the left/right sound balance
FADER–set the front/rear sound balance
CENTER–make settings for the center speaker
SURROUND–make settings for surround
sound
Surround soundSurround sound settings are used to
balance sound levels throughout the
vehicle. Surround settings for the var-
ious sound sources are made sepa-
rately.
G021216
NOTE
•Dolby Surround Pro Logic II is only
available on the Premium Sound sys-
tem.
•When listening to FM radio stations,
Dolby Surround Pro Logic II functions
best in areas with strong reception. If
reception is weak, selecting 2 or 3-
channel stereo may provide better
sound quality.
The Dolby symbol will appear in the display
when Dolby Pro Logic II is activated.
There are three alternative settings:
•Pro Logic II
•3-channel
•Off (normal 2-channel stereo)
Dolby Surround Pro Logic II
Ÿ distributes the
stereo sound's two channels to the left, center,

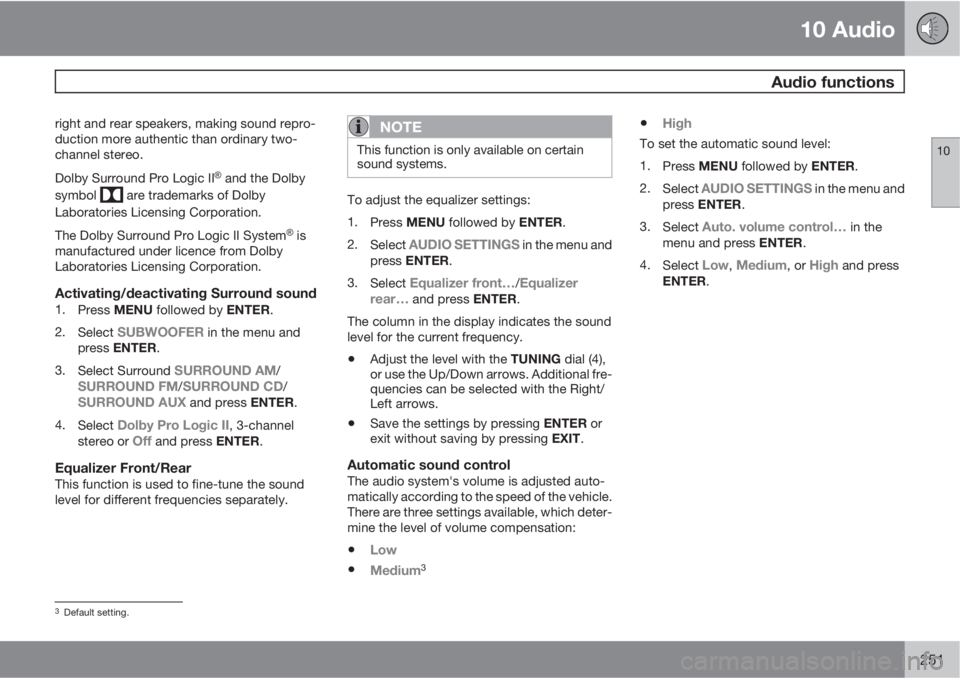

10 Audio
Audio functions
10
251
right and rear speakers, making sound repro-
duction more authentic than ordinary two-
channel stereo.
Dolby Surround Pro Logic II
Ÿ and the Dolby
symbol
are trademarks of Dolby
Laboratories Licensing Corporation.
The Dolby Surround Pro Logic II System
Ÿ is
manufactured under licence from Dolby
Laboratories Licensing Corporation.
Activating/deactivating Surround sound1.
Press MENU followed by ENTER.
2.
Select
SUBWOOFER in the menu and
press ENTER.
3.
Select Surround
SURROUND AM/SURROUND FM/SURROUND CD/SURROUND AUX and press ENTER.
4.
Select
Dolby Pro Logic II, 3-channel
stereo or Off and press ENTER.
Equalizer Front/RearThis function is used to fine-tune the sound
level for different frequencies separately.
NOTE
This function is only available on certain
sound systems.
To adjust the equalizer settings:
1.
Press MENU followed by ENTER.
2.
Select
AUDIO SETTINGS in the menu and
press ENTER.
3.
Select
Equalizer front…/Equalizer
rear… and press ENTER.
The column in the display indicates the sound
level for the current frequency.
•Adjust the level with the TUNING dial (4),
or use the Up/Down arrows. Additional fre-
quencies can be selected with the Right/
Left arrows.
•Save the settings by pressing ENTER or
exit without saving by pressing EXIT.
Automatic sound controlThe audio system's volume is adjusted auto-
matically according to the speed of the vehicle.
There are three settings available, which deter-
mine the level of volume compensation:
•Low
•Medium3
•High
To set the automatic sound level:
1.
Press MENU followed by ENTER.
2.
Select
AUDIO SETTINGS in the menu and
press ENTER.
3.
Select
Auto. volume control… in the
menu and press ENTER.
4.
Select
Low, Medium, or High and press
ENTER.
3Default setting.

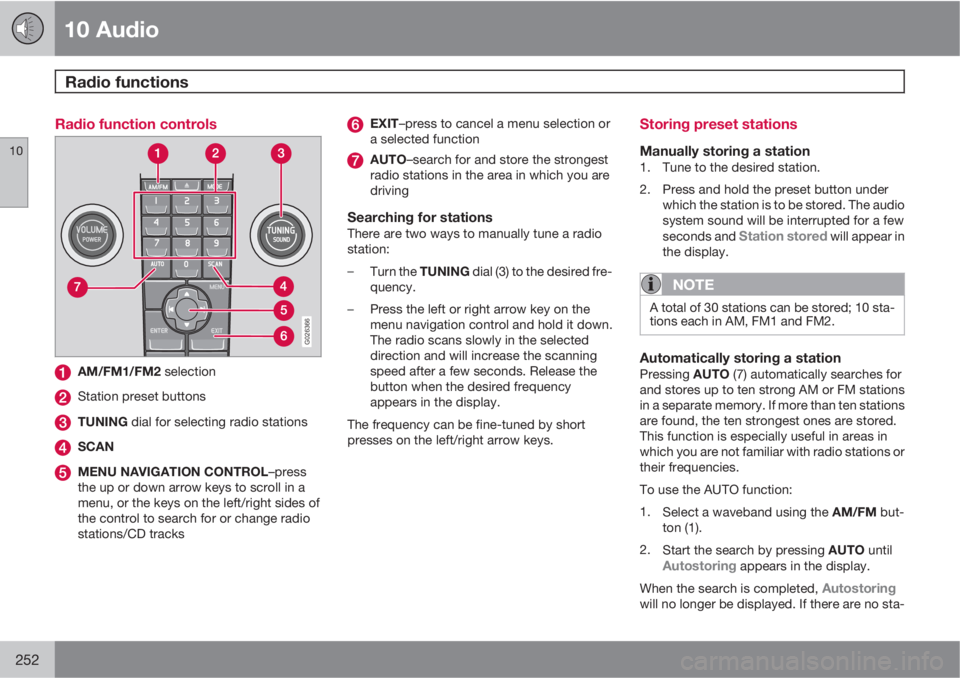

10 Audio
Radio functions
10
252
Radio function controls
G026366
AM/FM1/FM2 selection
Station preset buttons
TUNING dial for selecting radio stations
SCAN
MENU NAVIGATION CONTROL–press
the up or down arrow keys to scroll in a
menu, or the keys on the left/right sides of
the control to search for or change radio
stations/CD tracks
EXIT–press to cancel a menu selection or
a selected function
AUTO–search for and store the strongest
radio stations in the area in which you are
driving
Searching for stationsThere are two ways to manually tune a radio
station:
–
Turn the TUNING dial (3) to the desired fre-
quency.
–Press the left or right arrow key on the
menu navigation control and hold it down.
The radio scans slowly in the selected
direction and will increase the scanning
speed after a few seconds. Release the
button when the desired frequency
appears in the display.
The frequency can be fine-tuned by short
presses on the left/right arrow keys.
Storing preset stations
Manually storing a station1. Tune to the desired station.
2. Press and hold the preset button under
which the station is to be stored. The audio
system sound will be interrupted for a few
seconds and
Station stored will appear in
the display.
NOTE
A total of 30 stations can be stored; 10 sta-
tions each in AM, FM1 and FM2.
Automatically storing a stationPressing AUTO (7) automatically searches for
and stores up to ten strong AM or FM stations
in a separate memory. If more than ten stations
are found, the ten strongest ones are stored.
This function is especially useful in areas in
which you are not familiar with radio stations or
their frequencies.
To use the AUTO function:
1.
Select a waveband using the AM/FM but-
ton (1).
2.
Start the search by pressing AUTO until
Autostoring appears in the display.
When the search is completed,
Autostoringwill no longer be displayed. If there are no sta-

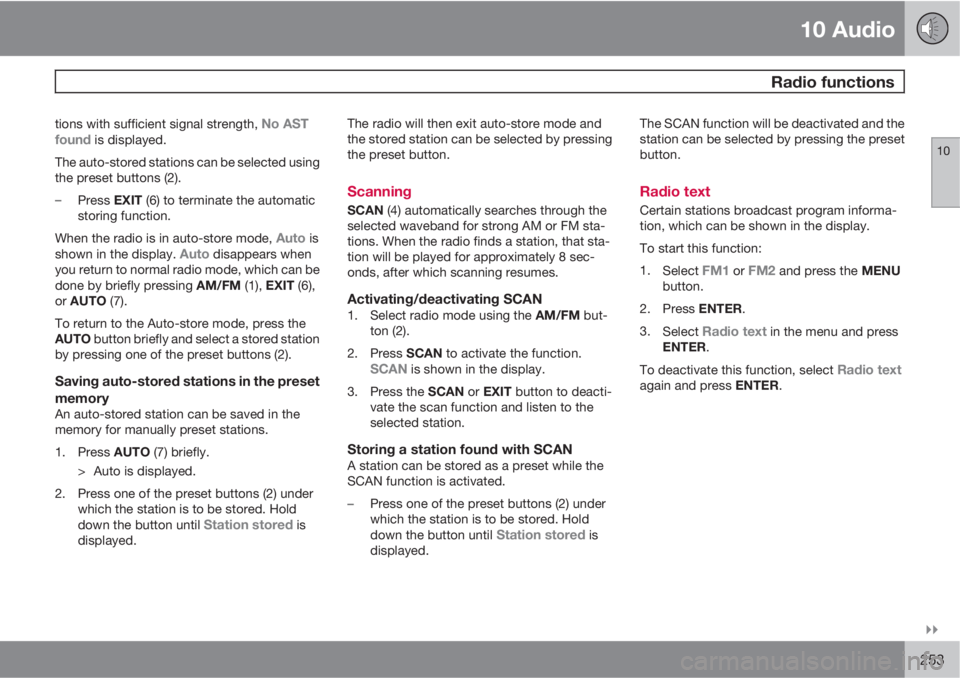

10 Audio
Radio functions
10

253
tions with sufficient signal strength, No AST
found is displayed.
The auto-stored stations can be selected using
the preset buttons (2).
–
Press EXIT (6) to terminate the automatic
storing function.
When the radio is in auto-store mode,
Auto is
shown in the display. Auto disappears when
you return to normal radio mode, which can be
done by briefly pressing AM/FM (1), EXIT (6),
or AUTO (7).
To return to the Auto-store mode, press the
AUTO button briefly and select a stored station
by pressing one of the preset buttons (2).
Saving auto-stored stations in the preset
memory
An auto-stored station can be saved in the
memory for manually preset stations.
1.
Press AUTO (7) briefly.
> Auto is displayed.
2. Press one of the preset buttons (2) under
which the station is to be stored. Hold
down the button until
Station stored is
displayed.The radio will then exit auto-store mode and
the stored station can be selected by pressing
the preset button.
Scanning
SCAN (4) automatically searches through the
selected waveband for strong AM or FM sta-
tions. When the radio finds a station, that sta-
tion will be played for approximately 8 sec-
onds, after which scanning resumes.
Activating/deactivating SCAN1.
Select radio mode using the AM/FM but-
ton (2).
2.
Press SCAN to activate the function.
SCAN is shown in the display.
3.
Press the SCAN or EXIT button to deacti-
vate the scan function and listen to the
selected station.
Storing a station found with SCANA station can be stored as a preset while the
SCAN function is activated.
–Press one of the preset buttons (2) under
which the station is to be stored. Hold
down the button until
Station stored is
displayed.The SCAN function will be deactivated and the
station can be selected by pressing the preset
button.
Radio text
Certain stations broadcast program informa-
tion, which can be shown in the display.
To start this function:
1.
Select
FM1 or FM2 and press the MENU
button.
2.
Press ENTER.
3.
Select
Radio text in the menu and press
ENTER.
To deactivate this function, select
Radio textagain and press ENTER.

10 Audio
Radio functions
10
254

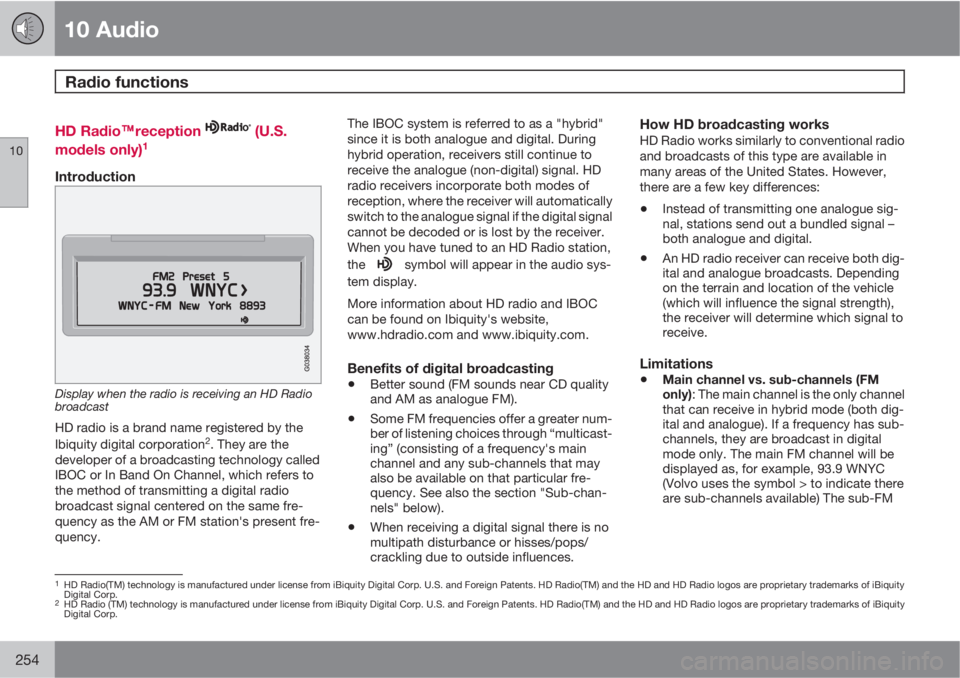

HD Radio
E
Ereception (U.S.
models only)1
Introduction
Display when the radio is receiving an HD Radio
broadcast
HD radio is a brand name registered by the
Ibiquity digital corporation2. They are the
developer of a broadcasting technology called
IBOC or In Band On Channel, which refers to
the method of transmitting a digital radio
broadcast signal centered on the same fre-
quency as the AM or FM station's present fre-
quency.The IBOC system is referred to as a "hybrid"
since it is both analogue and digital. During
hybrid operation, receivers still continue to
receive the analogue (non-digital) signal. HD
radio receivers incorporate both modes of
reception, where the receiver will automatically
switch to the analogue signal if the digital signal
cannot be decoded or is lost by the receiver.
When you have tuned to an HD Radio station,
the
symbol will appear in the audio sys-
tem display.
More information about HD radio and IBOC
can be found on Ibiquity's website,
www.hdradio.com and www.ibiquity.com.
Benefits of digital broadcasting
•Better sound (FM sounds near CD quality
and AM as analogue FM).
•Some FM frequencies offer a greater num-
ber of listening choices through “multicast-
ing” (consisting of a frequency's main
channel and any sub-channels that may
also be available on that particular fre-
quency. See also the section "Sub-chan-
nels" below).
•When receiving a digital signal there is no
multipath disturbance or hisses/pops/
crackling due to outside influences.
How HD broadcasting worksHD Radio works similarly to conventional radio
and broadcasts of this type are available in
many areas of the United States. However,
there are a few key differences:
•Instead of transmitting one analogue sig-
nal, stations send out a bundled signal –
both analogue and digital.
•An HD radio receiver can receive both dig-
ital and analogue broadcasts. Depending
on the terrain and location of the vehicle
(which will influence the signal strength),
the receiver will determine which signal to
receive.
Limitations
•Main channel vs. sub-channels (FM
only): The main channel is the only channel
that can receive in hybrid mode (both dig-
ital and analogue). If a frequency has sub-
channels, they are broadcast in digital
mode only. The main FM channel will be
displayed as, for example, 93.9 WNYC
(Volvo uses the symbol > to indicate there
are sub-channels available) The sub-FM
1HD Radio(TM) technology is manufactured under license from iBiquity Digital Corp. U.S. and Foreign Patents. HD Radio(TM) and the HD and HD Radio logos are proprietary trademarks of iBiquity
Digital Corp.
2HD Radio (TM) technology is manufactured under license from iBiquity Digital Corp. U.S. and Foreign Patents. HD Radio(TM) and the HD and HD Radio logos are proprietary trademarks of iBiquity
Digital Corp.

10 Audio
Radio functions
10
255

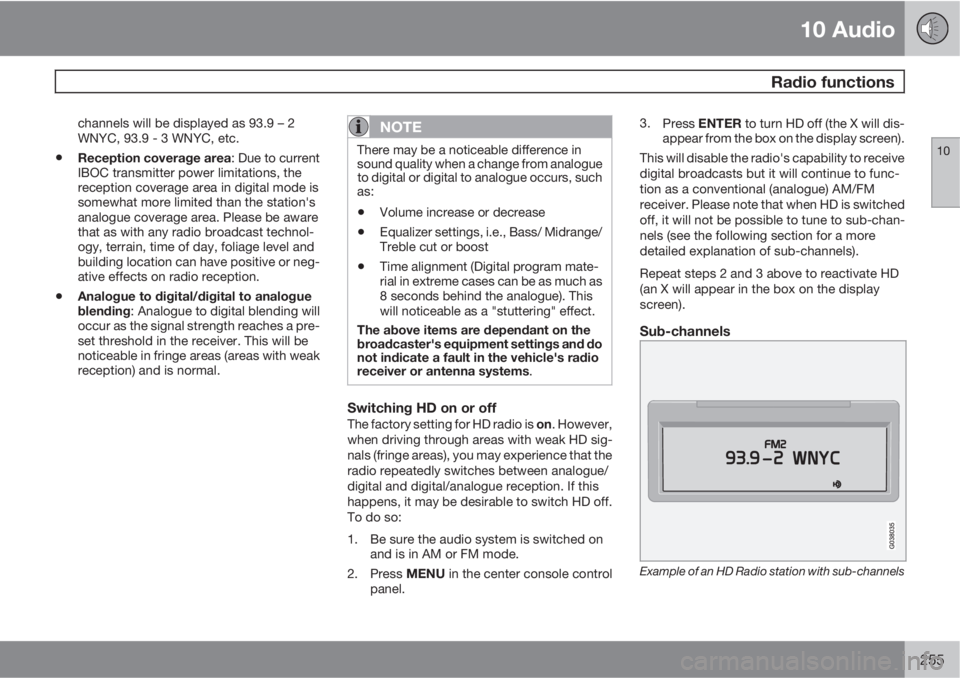

channels will be displayed as 93.9 – 2
WNYC, 93.9 - 3 WNYC, etc.
•Reception coverage area: Due to current
IBOC transmitter power limitations, the
reception coverage area in digital mode is
somewhat more limited than the station's
analogue coverage area. Please be aware
that as with any radio broadcast technol-
ogy, terrain, time of day, foliage level and
building location can have positive or neg-
ative effects on radio reception.
•Analogue to digital/digital to analogue
blending: Analogue to digital blending will
occur as the signal strength reaches a pre-
set threshold in the receiver. This will be
noticeable in fringe areas (areas with weak
reception) and is normal.
NOTE
There may be a noticeable difference in
sound quality when a change from analogue
to digital or digital to analogue occurs, such
as:
•Volume increase or decrease
•Equalizer settings, i.e., Bass/ Midrange/
Treble cut or boost
•Time alignment (Digital program mate-
rial in extreme cases can be as much as
8 seconds behind the analogue). This
will noticeable as a "stuttering" effect.
The above items are dependant on the
broadcaster's equipment settings and do
not indicate a fault in the vehicle's radio
receiver or antenna systems.
Switching HD on or offThe factory setting for HD radio is on. However,
when driving through areas with weak HD sig-
nals (fringe areas), you may experience that the
radio repeatedly switches between analogue/
digital and digital/analogue reception. If this
happens, it may be desirable to switch HD off.
To do so:
1. Be sure the audio system is switched on
and is in AM or FM mode.
2.
Press MENU in the center console control
panel.3.
Press ENTER to turn HD off (the X will dis-
appear from the box on the display screen).
This will disable the radio's capability to receive
digital broadcasts but it will continue to func-
tion as a conventional (analogue) AM/FM
receiver. Please note that when HD is switched
off, it will not be possible to tune to sub-chan-
nels (see the following section for a more
detailed explanation of sub-channels).
Repeat steps 2 and 3 above to reactivate HD
(an X will appear in the box on the display
screen).
Sub-channels
Example of an HD Radio station with sub-channels

10 Audio
Radio functions
10
256

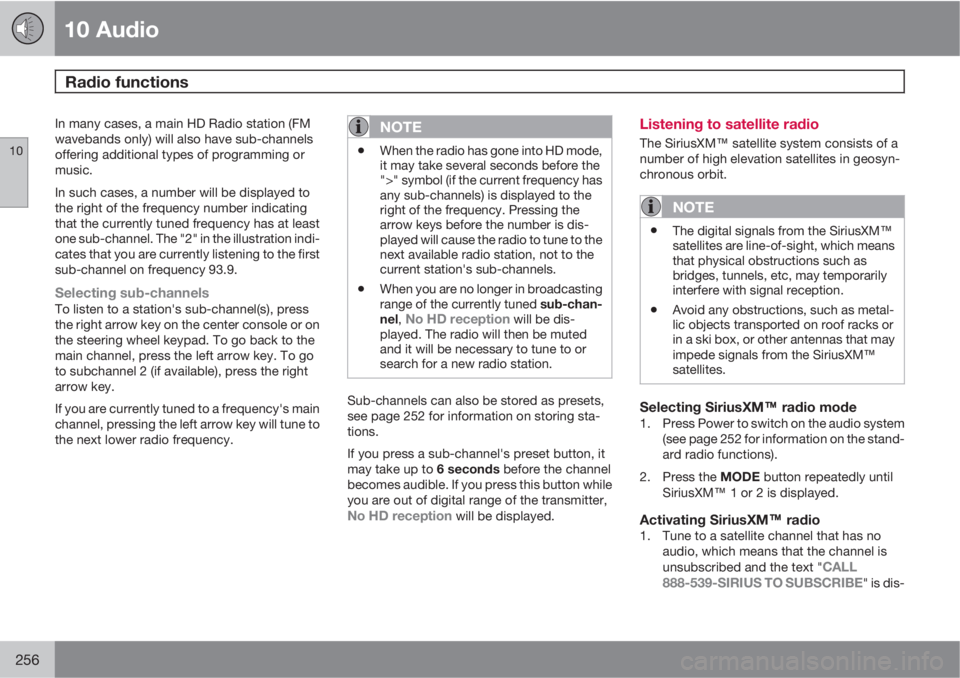

In many cases, a main HD Radio station (FM
wavebands only) will also have sub-channels
offering additional types of programming or
music.
In such cases, a number will be displayed to
the right of the frequency number indicating
that the currently tuned frequency has at least
one sub-channel. The "2" in the illustration indi-
cates that you are currently listening to the first
sub-channel on frequency 93.9.
Selecting sub-channelsTo listen to a station's sub-channel(s), press
the right arrow key on the center console or on
the steering wheel keypad. To go back to the
main channel, press the left arrow key. To go
to subchannel 2 (if available), press the right
arrow key.
If you are currently tuned to a frequency's main
channel, pressing the left arrow key will tune to
the next lower radio frequency.
NOTE
•When the radio has gone into HD mode,
it may take several seconds before the
">" symbol (if the current frequency has
any sub-channels) is displayed to the
right of the frequency. Pressing the
arrow keys before the number is dis-
played will cause the radio to tune to the
next available radio station, not to the
current station's sub-channels.
•When you are no longer in broadcasting
range of the currently tuned sub-chan-
nel,
No HD reception will be dis-
played. The radio will then be muted
and it will be necessary to tune to or
search for a new radio station.
Sub-channels can also be stored as presets,
see page 252 for information on storing sta-
tions.
If you press a sub-channel's preset button, it
may take up to 6 seconds before the channel
becomes audible. If you press this button while
you are out of digital range of the transmitter,
No HD reception will be displayed.
Listening to satellite radio
The SiriusXM
E satellite system consists of a
number of high elevation satellites in geosyn-
chronous orbit.
NOTE
•The digital signals from the SiriusXM
E
satellites are line-of-sight, which means
that physical obstructions such as
bridges, tunnels, etc, may temporarily
interfere with signal reception.
•Avoid any obstructions, such as metal-
lic objects transported on roof racks or
in a ski box, or other antennas that may
impede signals from the SiriusXM
E
satellites.
Selecting SiriusXM
E radio mode1. Press Power to switch on the audio system
(see page 252 for information on the stand-
ard radio functions).
2.
Press the MODE button repeatedly until
SiriusXM
E 1 or 2 is displayed.
Activating SiriusXM
E radio1. Tune to a satellite channel that has no
audio, which means that the channel is
unsubscribed and the text "
CALL
888-539-SIRIUS TO SUBSCRIBE" is dis-

10 Audio
Radio functions
10
257

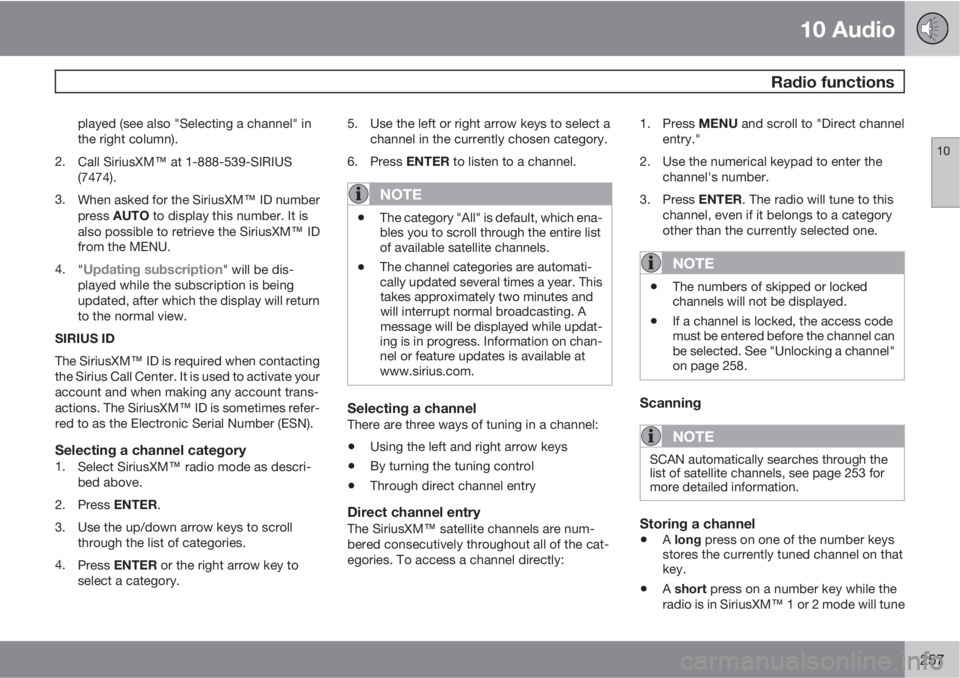

played (see also "Selecting a channel" in
the right column).
2.
Call SiriusXM
E at 1-888-539-SIRIUS
(7474).
3.
When asked for the SiriusXM
E ID number
press AUTO to display this number. It is
also possible to retrieve the SiriusXM
E ID
from the MENU.
4.
"
Updating subscription" will be dis-
played while the subscription is being
updated, after which the display will return
to the normal view.
SIRIUS ID
The SiriusXM
E ID is required when contacting
the Sirius Call Center. It is used to activate your
account and when making any account trans-
actions. The SiriusXM
E ID is sometimes refer-
red to as the Electronic Serial Number (ESN).
Selecting a channel category1.
Select SiriusXM
E radio mode as descri-
bed above.
2.
Press ENTER.
3. Use the up/down arrow keys to scroll
through the list of categories.
4.
Press ENTER or the right arrow key to
select a category.5. Use the left or right arrow keys to select a
channel in the currently chosen category.
6.
Press ENTER to listen to a channel.
NOTE
•The category "All" is default, which ena-
bles you to scroll through the entire list
of available satellite channels.
•The channel categories are automati-
cally updated several times a year. This
takes approximately two minutes and
will interrupt normal broadcasting. A
message will be displayed while updat-
ing is in progress. Information on chan-
nel or feature updates is available at
www.sirius.com.
Selecting a channelThere are three ways of tuning in a channel:
•Using the left and right arrow keys
•By turning the tuning control
•Through direct channel entry
Direct channel entry
The SiriusXM
E satellite channels are num-
bered consecutively throughout all of the cat-
egories. To access a channel directly:1.
Press MENU and scroll to "Direct channel
entry."
2. Use the numerical keypad to enter the
channel's number.
3.
Press ENTER. The radio will tune to this
channel, even if it belongs to a category
other than the currently selected one.
NOTE
•The numbers of skipped or locked
channels will not be displayed.
•If a channel is locked, the access code
must be entered before the channel can
be selected. See "Unlocking a channel"
on page 258.
Scanning
NOTE
SCAN automatically searches through the
list of satellite channels, see page 253 for
more detailed information.
Storing a channel
•A long press on one of the number keys
stores the currently tuned channel on that
key.
•A short press on a number key while the
radio is in SiriusXM
E 1 or 2 mode will tune

10 Audio
Radio functions
10
258

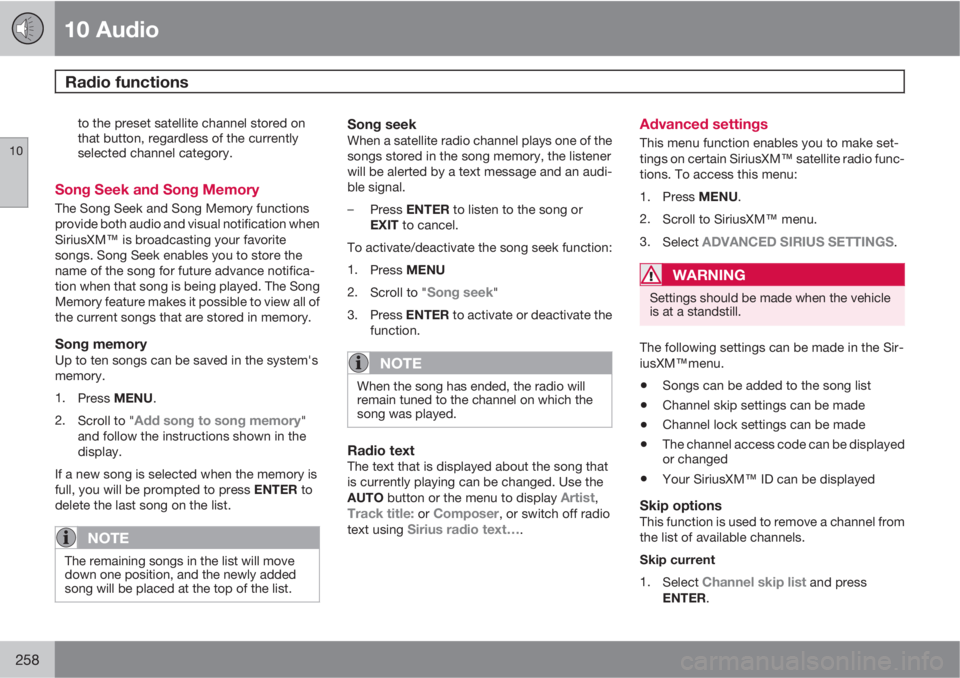

to the preset satellite channel stored on
that button, regardless of the currently
selected channel category.
Song Seek and Song Memory
The Song Seek and Song Memory functions
provide both audio and visual notification when
SiriusXM
E is broadcasting your favorite
songs. Song Seek enables you to store the
name of the song for future advance notifica-
tion when that song is being played. The Song
Memory feature makes it possible to view all of
the current songs that are stored in memory.
Song memoryUp to ten songs can be saved in the system's
memory.
1.
Press MENU.
2.
Scroll to "
Add song to song memory"
and follow the instructions shown in the
display.
If a new song is selected when the memory is
full, you will be prompted to press ENTER to
delete the last song on the list.
NOTE
The remaining songs in the list will move
down one position, and the newly added
song will be placed at the top of the list.
Song seekWhen a satellite radio channel plays one of the
songs stored in the song memory, the listener
will be alerted by a text message and an audi-
ble signal.
–
Press ENTER to listen to the song or
EXIT to cancel.
To activate/deactivate the song seek function:
1.
Press MENU
2.
Scroll to "
Song seek"
3.
Press ENTER to activate or deactivate the
function.
NOTE
When the song has ended, the radio will
remain tuned to the channel on which the
song was played.
Radio textThe text that is displayed about the song that
is currently playing can be changed. Use the
AUTO button or the menu to display
Artist,Track title: or Composer, or switch off radio
text using Sirius radio text….
Advanced settings
This menu function enables you to make set-
tings on certain SiriusXM
E satellite radio func-
tions. To access this menu:
1.
Press MENU.
2.
Scroll to SiriusXM
E menu.
3.
Select
ADVANCED SIRIUS SETTINGS.
WARNING
Settings should be made when the vehicle
is at a standstill.
The following settings can be made in the Sir-
iusXM
Emenu.
•Songs can be added to the song list
•Channel skip settings can be made
•Channel lock settings can be made
•The channel access code can be displayed
or changed
•Your SiriusXM
E ID can be displayed
Skip optionsThis function is used to remove a channel from
the list of available channels.
Skip current
1.
Select
Channel skip list and press
ENTER.
