VOLVO C30 2013 Owner´s Manual

09 Maintenance and servicing
Fuses09

* Option/accessory, for more information, see Introduction.239
24.Not in use
25.Not in use
26.Ignition switch15A
27.A/C compressor10A
28.Not in use
29.Front fog lights*15A
30.Not in use
31.Not in use
32.Fuel injectors10A
33.Heated oxygen sensor, vac-
uum pump20A
34.Ignition coils, climate unit
pressure sensor10A
35.Engine sensor valves, A/C
relay, relay coil, PTC ele-
ment oil trap, canister, mass
air meter15A
36.Engine control module
(ECM), throttle sensor10A

09 Maintenance and servicing
Fuses 09
240
Fuse box in the passenger compartment
G020601
The fuse box in the passenger compartment is
located under the glove compartment.
To access the fuses:
1. Remove the upholstery covering the fuse
box by first pressing in the center pins in
the mounting clips approximately 0.5 in
(1 cm) with a small screwdriver and then
pulling the clips out.
2. Turn both retaining screws (2) counter-
clockwise until they release.
3. Fold down the fuse box (3) half way. Pull it
toward the seat until it stops. Fold it down
completely. The fuse box can be unhooked
completely.
4. Replace the blown fuse.
5. Close the fuse box in reverse order.6. Pull the center pins fully out of the mount-
ing clips, secure the upholstery with the
mounting clips and press the pins into the
mounting clips again. The mounting clips
then expand, holding the upholstery in
position.

09 Maintenance and servicing
Fuses09

* Option/accessory, for more information, see Introduction.241
Fuses in the passenger compartment
-Fuse 37-42, not in use-
43.Audio system, Blue-
tooth,Volvo Navigation sys-
tem*15A
44.Supplemental Restrain Sys-
tem (SRS), engine control
module10A
45.12-volt sockets15A
46.Lighting – glove compart-
ment, instrument panel, and
footwells5A
47.Interior lighting5A
48.Rear liftgate wiper/washer15A
49.Supplemental Restrain Sys-
tem (SRS), Occupant
Weight Sensor (OWS)10A
50.Not in use
51.Fuel filter relay10A
52.Transmission control mod-
ule (TCM), ABS5A
53.Power steering10A
54.Park assist*, Active Bending
Lights*10A
55.Not in use
56.Volvo Navigation System
remote key module, alarm
siren control module10A
57.On-board diagnostic
socket, brake light switch15A
58.Right high beam, auxiliary
lights relay7.5A
59.Left high beam7.5A

09 Maintenance and servicing
Fuses 09
242* Option/accessory, for more information, see Introduction.
60.Heated driver's seat*15A
61.Heated passenger's seat*15A
62.Moonroof*20A
63.Not in use
64.SiriusXM
E satellite radio*5A
65.Audio system5A
66.Audio system control mod-
ule (ICM), climate system10A
67.Not in use
68.Cruise control5A
69.Climate system, rain sen-
sor*, BLIS button*5A
70.Not in use
71.Not in use
72.Not in use
73.Moonroof, front ceiling
lighting, auto-dim mirror*,
seat belt reminder5A
74.Fuel pump relay15A
75.Not in use
76.Not in use
77.Not in use
78.Not in use
79.Back-up lights5A
80.Not in use
81.Not in use
82.Power window – front pas-
senger's side door25A
83.Power window and door
lock – front driver's side
door25A
84.Power passenger's seat25A
85.Power driver's seat25A
86.Interior lighting relay, cargo
area light, power seats5A

09 Maintenance and servicing
09
243

244
Introduction .......................................................................................... 246
Audio functions..................................................................................... 247
Radio functions..................................................................................... 252
CD player.............................................................................................. 260
Audio menu........................................................................................... 263
Bluetooth
® hands-free connection....................................................... 264

AUDIO

10 Audio
Introduction
10
246* Option/accessory, for more information, see Introduction.

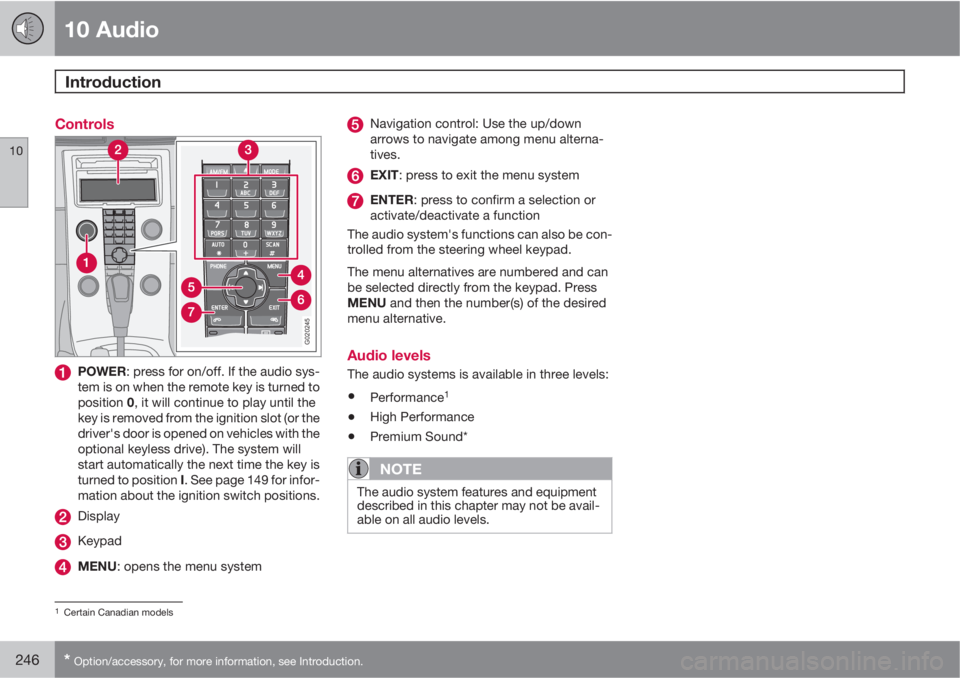

Controls
G020245
POWER: press for on/off. If the audio sys-
tem is on when the remote key is turned to
position 0, it will continue to play until the
key is removed from the ignition slot (or the
driver's door is opened on vehicles with the
optional keyless drive). The system will
start automatically the next time the key is
turned to position I. See page 149 for infor-
mation about the ignition switch positions.
Display
Keypad
MENU: opens the menu system
Navigation control: Use the up/down
arrows to navigate among menu alterna-
tives.
EXIT: press to exit the menu system
ENTER: press to confirm a selection or
activate/deactivate a function
The audio system's functions can also be con-
trolled from the steering wheel keypad.
The menu alternatives are numbered and can
be selected directly from the keypad. Press
MENU and then the number(s) of the desired
menu alternative.
Audio levels
The audio systems is available in three levels:
•Performance1
•High Performance
•Premium Sound*
NOTE
The audio system features and equipment
described in this chapter may not be avail-
able on all audio levels.
1Certain Canadian models

10 Audio
Audio functions
10

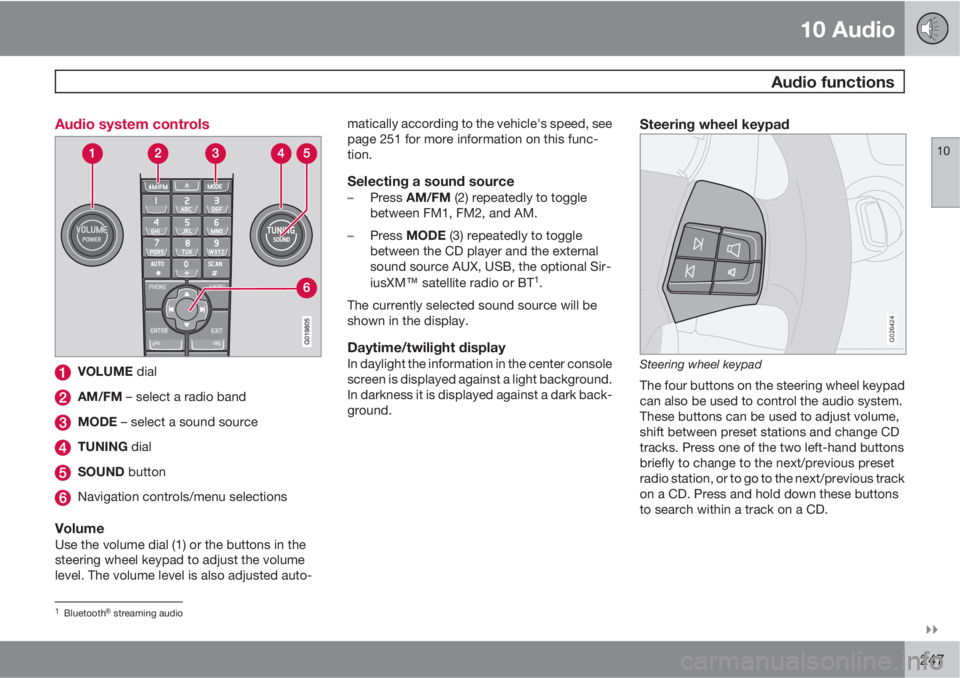

247 Audio system controls
VOLUME dial
AM/FM – select a radio band
MODE – select a sound source
TUNING dial
SOUND button
Navigation controls/menu selections
VolumeUse the volume dial (1) or the buttons in the
steering wheel keypad to adjust the volume
level. The volume level is also adjusted auto-matically according to the vehicle's speed, see
page 251 for more information on this func-
tion.
Selecting a sound source–
Press AM/FM (2) repeatedly to toggle
between FM1, FM2, and AM.
–
Press MODE (3) repeatedly to toggle
between the CD player and the external
sound source AUX, USB, the optional Sir-
iusXM
E satellite radio or BT
1.
The currently selected sound source will be
shown in the display.
Daytime/twilight displayIn daylight the information in the center console
screen is displayed against a light background.
In darkness it is displayed against a dark back-
ground.
Steering wheel keypad
G026424
Steering wheel keypad
The four buttons on the steering wheel keypad
can also be used to control the audio system.
These buttons can be used to adjust volume,
shift between preset stations and change CD
tracks. Press one of the two left-hand buttons
briefly to change to the next/previous preset
radio station, or to go to the next/previous track
on a CD. Press and hold down these buttons
to search within a track on a CD.
1BluetoothŸ streaming audio

10 Audio
Audio functions
10
248

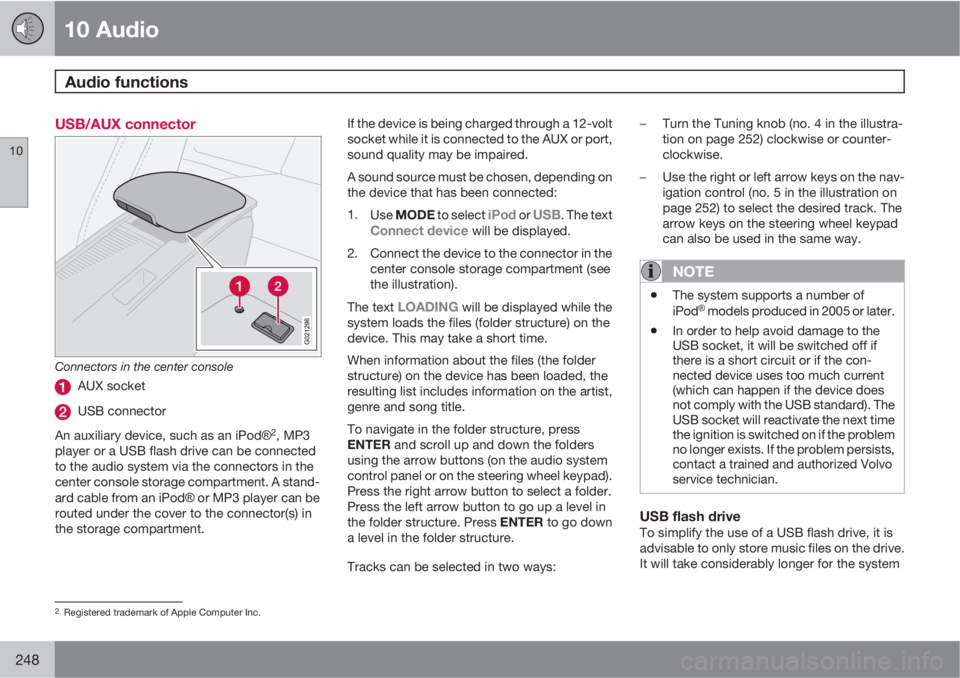

USB/AUX connector
Connectors in the center console
AUX socket
USB connector
An auxiliary device, such as an iPodŸ
2, MP3
player or a USB flash drive can be connected
to the audio system via the connectors in the
center console storage compartment. A stand-
ard cable from an iPodŸ or MP3 player can be
routed under the cover to the connector(s) in
the storage compartment.If the device is being charged through a 12-volt
socket while it is connected to the AUX or port,
sound quality may be impaired.
A sound source must be chosen, depending on
the device that has been connected:
1.
Use MODE to select
iPod or USB. The textConnect device will be displayed.
2. Connect the device to the connector in the
center console storage compartment (see
the illustration).
The text
LOADING will be displayed while the
system loads the files (folder structure) on the
device. This may take a short time.
When information about the files (the folder
structure) on the device has been loaded, the
resulting list includes information on the artist,
genre and song title.
To navigate in the folder structure, press
ENTER and scroll up and down the folders
using the arrow buttons (on the audio system
control panel or on the steering wheel keypad).
Press the right arrow button to select a folder.
Press the left arrow button to go up a level in
the folder structure. Press ENTER to go down
a level in the folder structure.
Tracks can be selected in two ways:–Turn the Tuning knob (no. 4 in the illustra-
tion on page 252) clockwise or counter-
clockwise.
–Use the right or left arrow keys on the nav-
igation control (no. 5 in the illustration on
page 252) to select the desired track. The
arrow keys on the steering wheel keypad
can also be used in the same way.
NOTE
•The system supports a number of
iPodŸ models produced in 2005 or later.
•In order to help avoid damage to the
USB socket, it will be switched off if
there is a short circuit or if the con-
nected device uses too much current
(which can happen if the device does
not comply with the USB standard). The
USB socket will reactivate the next time
the ignition is switched on if the problem
no longer exists. If the problem persists,
contact a trained and authorized Volvo
service technician.
USB flash driveTo simplify the use of a USB flash drive, it is
advisable to only store music files on the drive.
It will take considerably longer for the system
2Registered trademark of Apple Computer Inc.
