VOLVO C30 2013 Owner´s Manual

11 Specifications
Engine oil
11
279 Oil specifications
Engine oil must meet the minimum
ACEA A5/B5. Lower quality oils may not offer
the same fuel economy, engine performance,
or engine protection.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will provide
good fuel economy and engine protection. See
the viscosity chart.
Viscosity chart
Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require-
ments is recommended for driving in areas with
sustained low temperatures.

11 Specifications

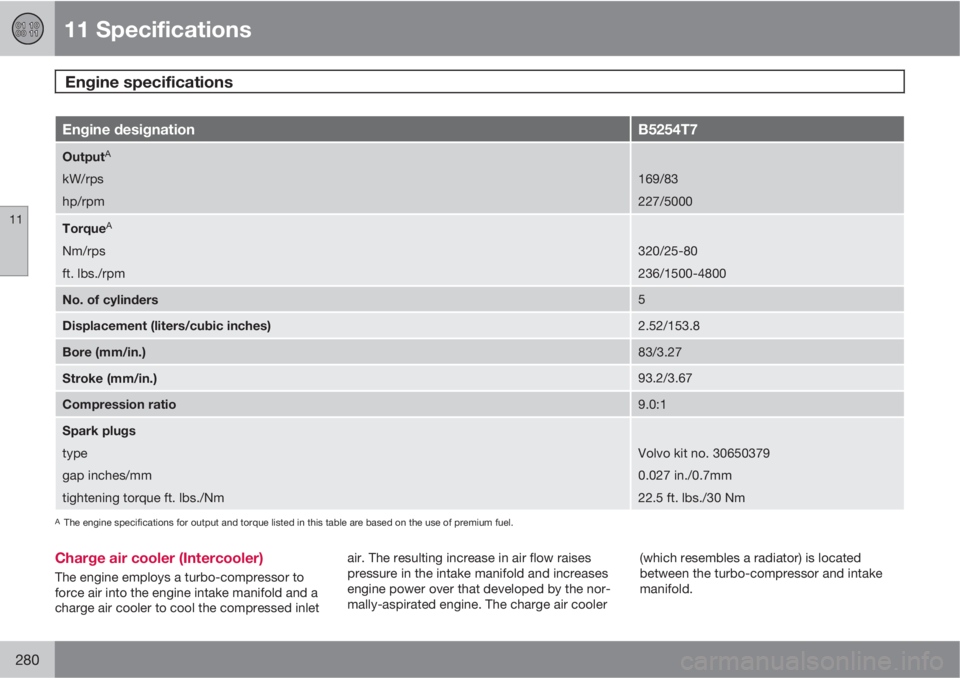

Engine specifications
11
280
Engine designationB5254T7
OutputA
kW/rps
hp/rpm169/83
227/5000
TorqueA
Nm/rps
ft. lbs./rpm320/25-80
236/1500-4800
No. of cylinders5
Displacement (liters/cubic inches)2.52/153.8
Bore (mm/in.)83/3.27
Stroke (mm/in.)93.2/3.67
Compression ratio9.0:1
Spark plugs
type
gap inches/mm
tightening torque ft. lbs./Nm
Volvo kit no. 30650379
0.027 in./0.7mm
22.5 ft. lbs./30 Nm
AThe engine specifications for output and torque listed in this table are based on the use of premium fuel.
Charge air cooler (Intercooler)
The engine employs a turbo-compressor to
force air into the engine intake manifold and a
charge air cooler to cool the compressed inletair. The resulting increase in air flow raises
pressure in the intake manifold and increases
engine power over that developed by the nor-
mally-aspirated engine. The charge air cooler(which resembles a radiator) is located
between the turbo-compressor and intake
manifold.

11 Specifications
Engine specifications
11
281 Fuel system
The engine is equipped with a multiport fuel
injection system.

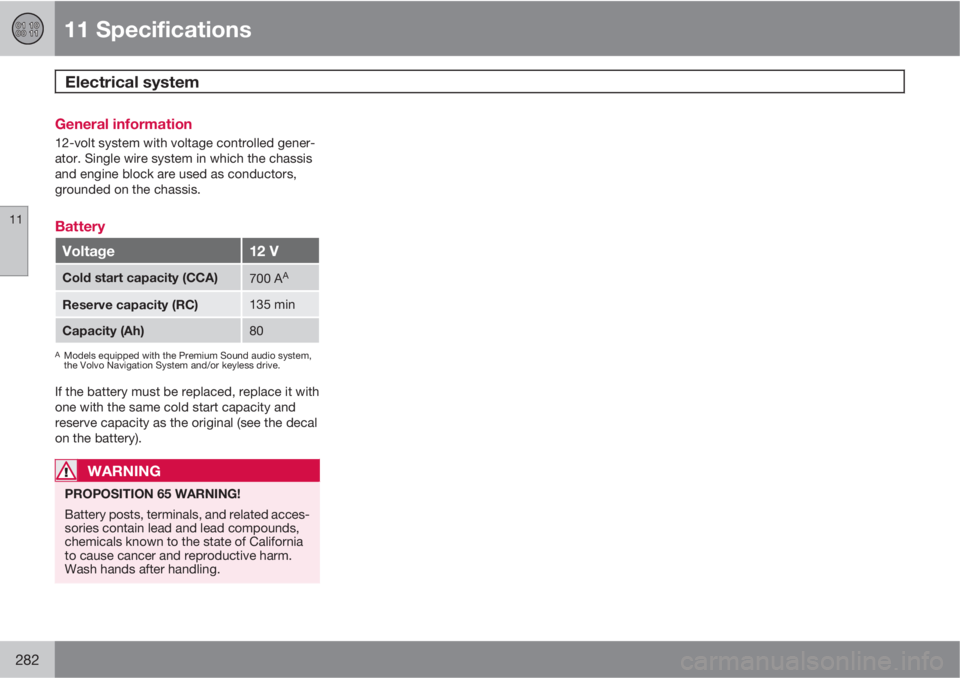

11 Specifications
Electrical system
11
282
General information
12-volt system with voltage controlled gener-
ator. Single wire system in which the chassis
and engine block are used as conductors,
grounded on the chassis.
Battery
Voltage12 V
Cold start capacity (CCA)700 AA
Reserve capacity (RC)135 min
Capacity (Ah)80
AModels equipped with the Premium Sound audio system,
the Volvo Navigation System and/or keyless drive.
If the battery must be replaced, replace it with
one with the same cold start capacity and
reserve capacity as the original (see the decal
on the battery).
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.

11 Specifications
Three-way catalytic converter
11
283 Three-way catalytic converter –
general information
•Keep your engine properly tuned. Certain
engine malfunctions, particularly involving
the electrical, fuel or distributor ignition
systems, may cause unusually high three-
way catalytic converter temperatures. Do
not continue to operate your vehicle if you
detect engine misfire, noticeable loss of
power or other unusual operating condi-
tions, such as engine overheating or back-
firing. A properly tuned engine will help
avoid malfunctions that could damage the
three-way catalytic converter.
•Do not park your vehicle over combustible
materials, such as grass or leaves, which
can come into contact with the hot exhaust
system and cause such materials to ignite
under certain wind and weather condi-
tions.
•Excessive starter cranking (in excess of
one minute), or an intermittently firing or
flooded engine can cause three-way cata-
lytic converter or exhaust system over-
heating.
•Remember that tampering or unauthorized
modifications to the engine, the Electronic
Control Module, or the vehicle may be ille-
gal and can cause three-way catalytic con-
verter or exhaust system overheating. This
includes: altering fuel injection settings or
components, altering emission systemcomponents or location, or removing com-
ponents, and/the repeated use of leaded
fuel.
NOTE
Unleaded fuel is required for vehicles with
three-way catalytic converters.

11 Specifications

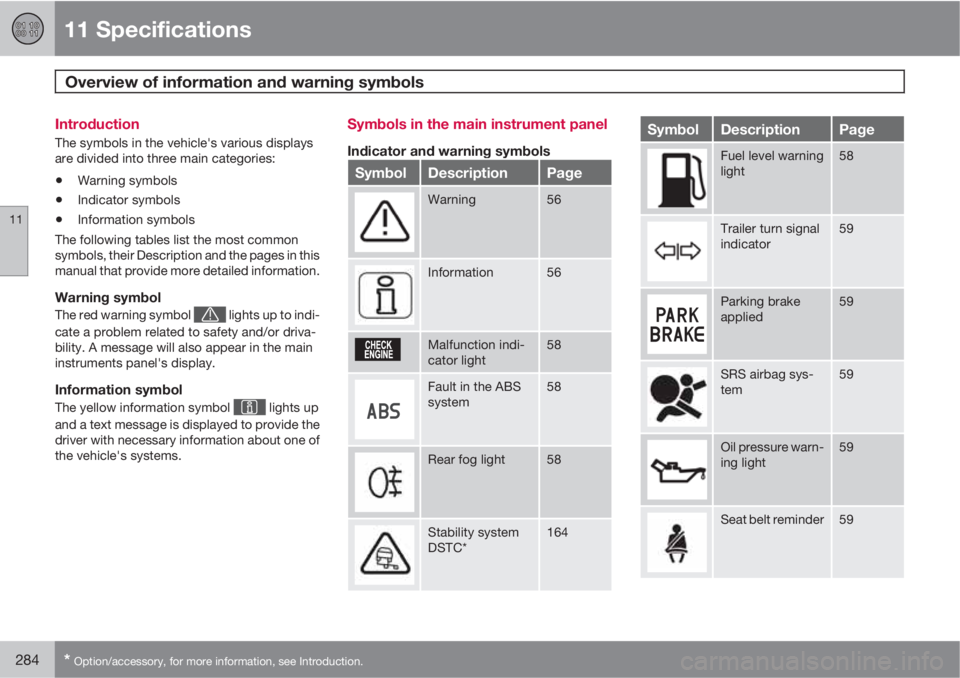

Overview of information and warning symbols
11
284* Option/accessory, for more information, see Introduction.
Introduction
The symbols in the vehicle's various displays
are divided into three main categories:
•Warning symbols
•Indicator symbols
•Information symbols
The following tables list the most common
symbols, their Description and the pages in this
manual that provide more detailed information.
Warning symbol
The red warning symbol lights up to indi-
cate a problem related to safety and/or driva-
bility. A message will also appear in the main
instruments panel's display.
Information symbol
The yellow information symbol lights up
and a text message is displayed to provide the
driver with necessary information about one of
the vehicle's systems.
Symbols in the main instrument panel
Indicator and warning symbols
SymbolDescriptionPage
Warning56
Information56
Malfunction indi-
cator light58
Fault in the ABS
system58
Rear fog light58
Stability system
DSTC*164
SymbolDescriptionPage
Fuel level warning
light58
Trailer turn signal
indicator59
Parking brake
applied59
SRS airbag sys-
tem59
Oil pressure warn-
ing light59
Seat belt reminder59

11 Specifications
Overview of information and warning symbols
11
* Option/accessory, for more information, see Introduction.285
SymbolDescriptionPage
Generator warn-
ing light59
Brake failure
warning light59
High beam indica-
tor54
Left turn signal54
Right turn signal54
Other information symbols
SymbolDescriptionPage
Rain sensor*75
Cruise control*72
Information symbols in the center
console display
SymbolDescriptionPage
G021216
Surround sound
(Premium Sound
only)250
HD radio254
Audio files260
CD folder260
Bluetooth-con-
nected cell phone264
BluetoothTM
hands-free
264
Information symbols in the ceiling
console
SymbolDescriptionPage
Seat belt reminder59
Occupant weight
sensor28

11 Specifications
Volvo programs
11
286
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON
CALL roadside assistance. Additional informa-
tion, features, and benefits are described in a
separate information package in your glove
compartment.
If you require assistance, dial:
In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)
In Canada 1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo sup-
ports certification by the National Institute for
Automotive Service Excellence (A.S.E.). Certi-
fied technicians have demonstrated a high
degree of competence in specific areas.
Besides passing exams, each technician must
also have worked in the field for two or more
years before a certificate is issued. These pro-
fessional technicians are best able to analyze
vehicle problems and perform the necessary
maintenance procedures to keep your Volvo at
peak operating condition.

11 Specifications

11
287

12 Index
12
288
1, 2, 3 ...
12-volt sockets.......................................... 63
A
A/C (air conditioning)................................. 92
ABS (anti-lock brake system).................. 160
Accessory installation warning.................. 14
Adaptive brake lights............................... 159
Airbags
front...................................................... 24
inflatable curtain................................... 33
side impact........................................... 31
Airbag system............................................ 24
Air conditioning.......................................... 92
Air distribution table................................. 102
Air vents..................................................... 94
Alarm system........................................... 137
turning off sensors.............................. 138
Anti-lock Brake System (ABS)................. 160
Approach lighting...................................... 85
Audio files................................................ 260Audio system
audio functions................................... 247
automatic sound control..................... 251
AUX port............................................. 248
Bluetooth streaming audio................. 249
compact disc care.............................. 261
Dolby Surround Pro Logic II............... 250
equalizer............................................. 251
HD digital radio................................... 254
menu settings..................................... 263
radio functions.................................... 252
selecting a sound source.................... 247
SiriusXM
E satellite radio.................... 256
sound settings.................................... 250
steering wheel keypad........................ 247
storing radio stations.......................... 252
USB/iPodŸ connector........................ 248
Auto-dim rearview mirror........................... 79
Autolock..................................................... 84
Automatic locking retractor....................... 39
Automatic sound control.........................251
Automatic transmission........................... 155
kickdown............................................ 156
oil........................................................ 277
shiftlock override................................ 158
Automatic transmission - Geartronic....... 156AUX port.................................................. 248
Axle weight......................................187, 275
B
Backrest, rear seat, folding...................... 117
Bass......................................................... 250
Battery
maintenance....................................... 226
remote key, replacing......................... 128
specifications...................................... 282
warning symbols................................. 226
Battery – replacing................................... 227
Blind Spot Information System (BLIS)..... 170
Bluetooth cell phone connection............. 264
Booster cushion
accessory............................................. 46
Brake fluid........................................ 224, 277
Brake lights........................................ 66, 159
Brake system
anti-lock brakes (ABS)........................ 160
Brake pad inspection.......................... 159
emergency brake assistance.............. 161
fluid..................................................... 224
general information............................. 159
