VOLVO S80 1999 Owner's Guide

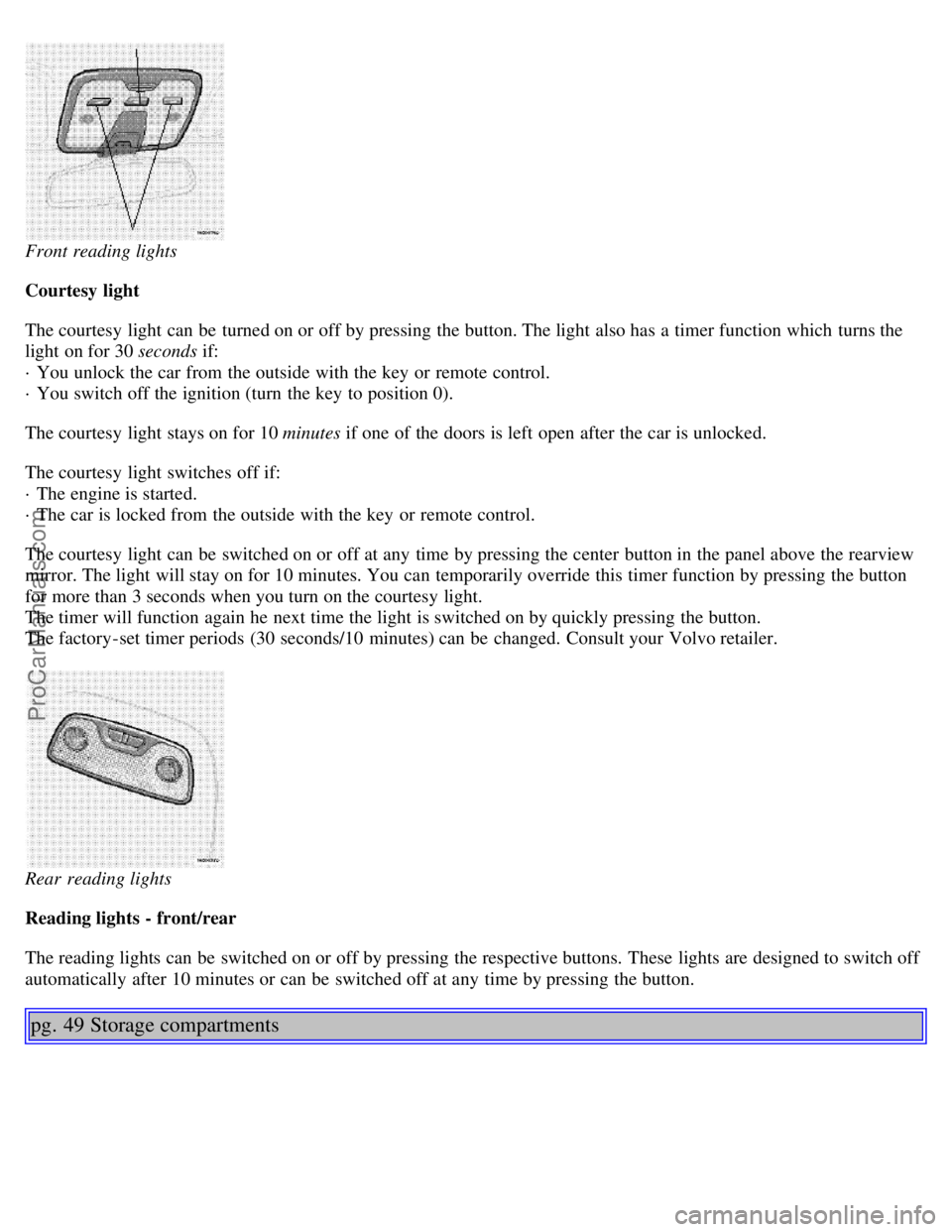

Front reading lights
Courtesy light
The courtesy light can be turned on or off by pressing the button. The light also has a timer function which turns the
light on for 30 seconds if:
· You unlock the car from the outside with the key or remote control.
· You switch off the ignition (turn the key to position 0).
The courtesy light stays on for 10 minutes if one of the doors is left open after the car is unlocked.
The courtesy light switches off if:
· The engine is started.
· The car is locked from the outside with the key or remote control.
The courtesy light can be switched on or off at any time by pressing the center button in the panel above the rearview
mirror. The light will stay on for 10 minutes. You can temporarily override this timer function by pressing the button
for more than 3 seconds when you turn on the courtesy light.
The timer will function again he next time the light is switched on by quickly pressing the button.
The factory-set timer periods (30 seconds/10 minutes) can be changed. Consult your Volvo retailer.
Rear reading lights
Reading lights - front/rear
The reading lights can be switched on or off by pressing the respective buttons. These lights are designed to switch off
automatically after 10 minutes or can be switched off at any time by pressing the button.

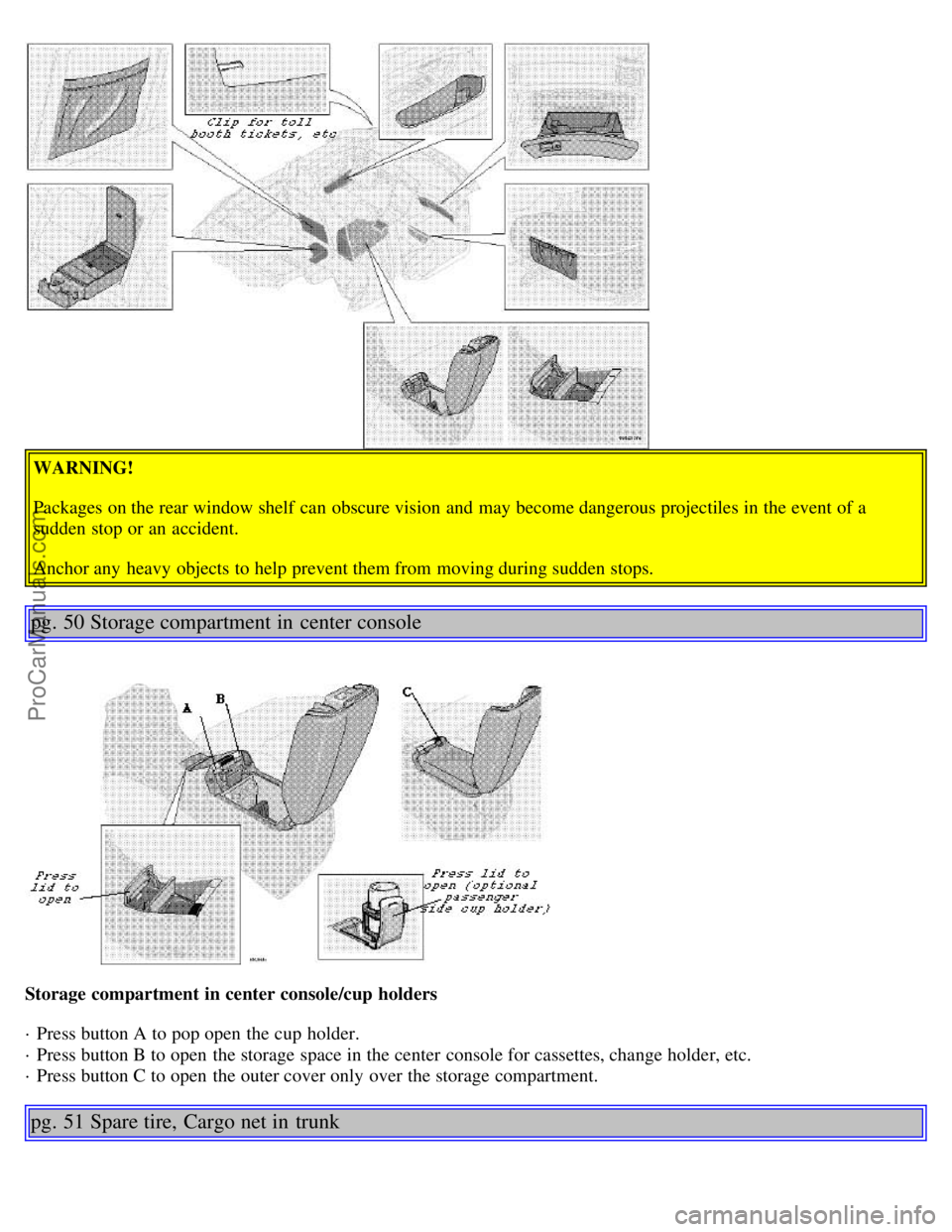

pg. 49 Storage compartments
ProCarManuals.com

WARNING!
Packages on the rear window shelf can obscure vision and may become dangerous projectiles in the event of a
sudden stop or an accident.
Anchor any heavy objects to help prevent them from moving during sudden stops.
pg. 50 Storage compartment in center console
Storage compartment in center console/cup holders
· Press button A to pop open the cup holder.
· Press button B to open the storage space in the center console for cassettes, change holder, etc.
· Press button C to open the outer cover only over the storage compartment.
pg. 51 Spare tire, Cargo net in trunk
ProCarManuals.com

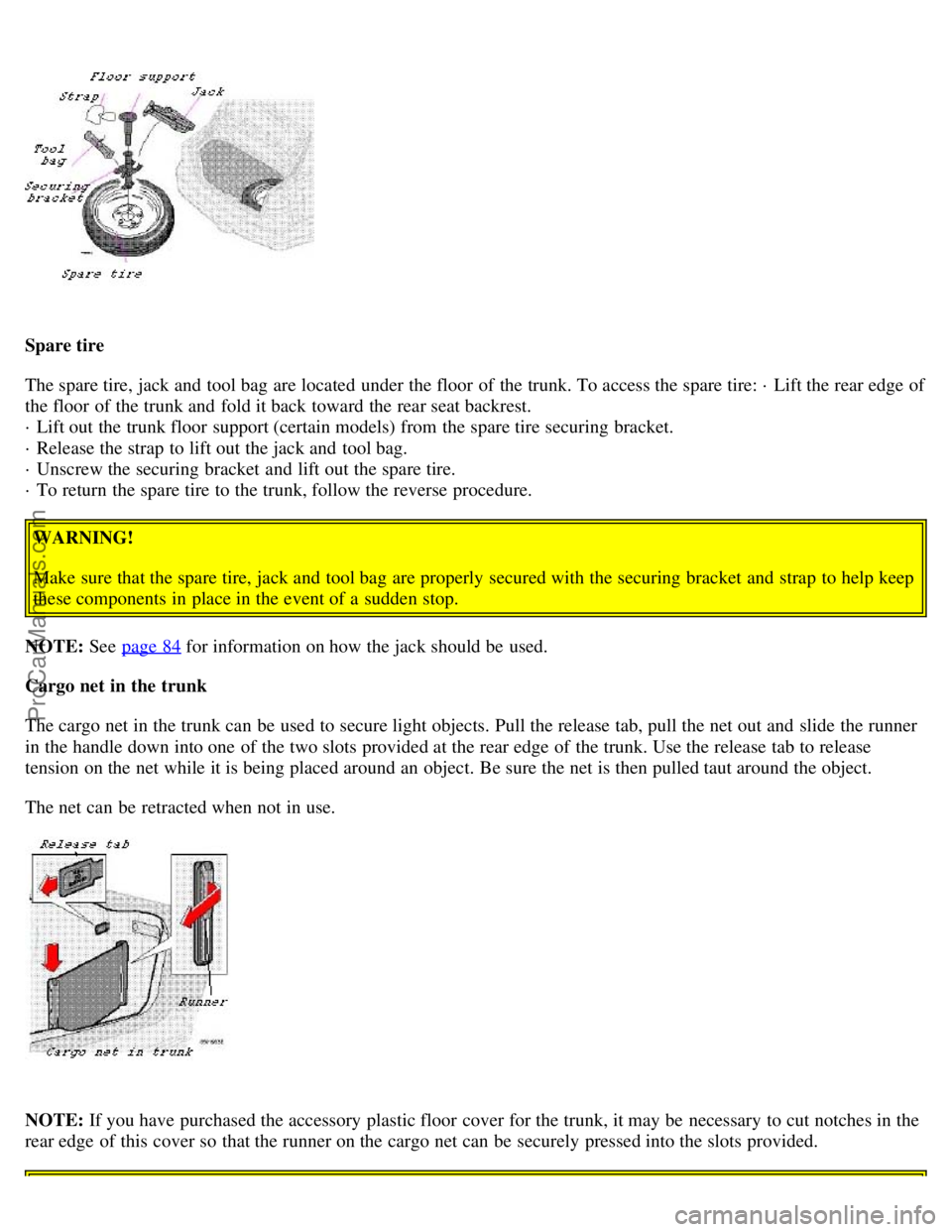

Spare tire
The spare tire, jack and tool bag are located under the floor of the trunk. To access the spare tire: · Lift the rear edge of
the floor of the trunk and fold it back toward the rear seat backrest.
· Lift out the trunk floor support (certain models) from the spare tire securing bracket.
· Release the strap to lift out the jack and tool bag.
· Unscrew the securing bracket and lift out the spare tire.
· To return the spare tire to the trunk, follow the reverse procedure.WARNING!
Make sure that the spare tire, jack and tool bag are properly secured with the securing bracket and strap to help keep
these components in place in the event of a sudden stop.
NOTE: See page 84
for information on how the jack should be used.
Cargo net in the trunk
The cargo net in the trunk can be used to secure light objects. Pull the release tab, pull the net out and slide the runner
in the handle down into one of the two slots provided at the rear edge of the trunk. Use the release tab to release
tension on the net while it is being placed around an object. Be sure the net is then pulled taut around the object.
The net can be retracted when not in use.
NOTE: If you have purchased the accessory plastic floor cover for the trunk, it may be necessary to cut notches in the
rear edge of this cover so that the runner on the cargo net can be securely pressed into the slots provided.
ProCarManuals.com

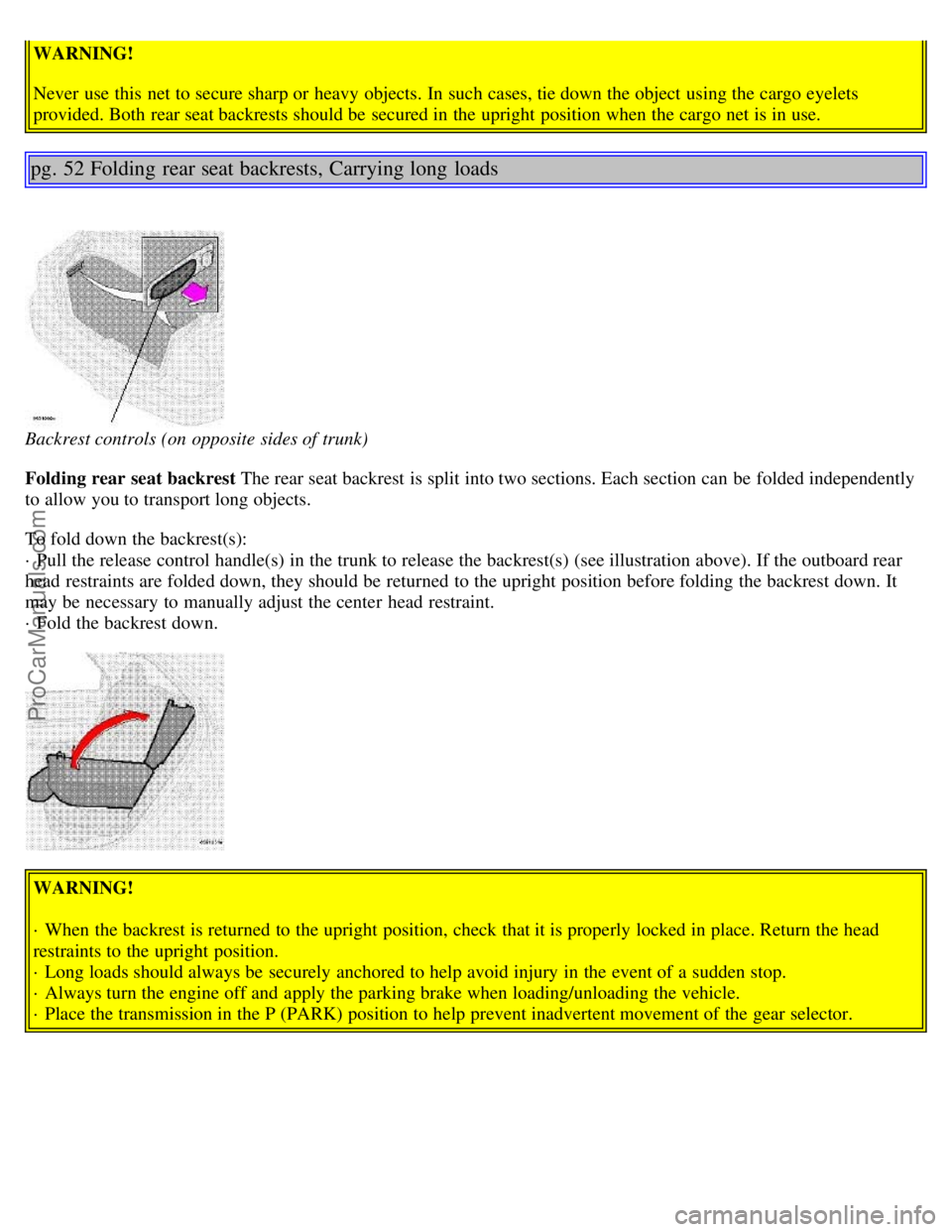

WARNING!
Never use this net to secure sharp or heavy objects. In such cases, tie down the object using the cargo eyelets
provided. Both rear seat backrests should be secured in the upright position when the cargo net is in use.
pg. 52 Folding rear seat backrests, Carrying long loads
Backrest controls (on opposite sides of trunk)
Folding rear seat backrest The rear seat backrest is split into two sections. Each section can be folded independently
to allow you to transport long objects.
To fold down the backrest(s):
· Pull the release control handle(s) in the trunk to release the backrest(s) (see illustration above). If the outboard rear
head restraints are folded down, they should be returned to the upright position before folding the backrest down. It
may be necessary to manually adjust the center head restraint.
· Fold the backrest down.
WARNING!
· When the backrest is returned to the upright position, check that it is properly locked in place. Return the head
restraints to the upright position.
· Long loads should always be securely anchored to help avoid injury in the event of a sudden stop.
· Always turn the engine off and apply the parking brake when loading/unloading the vehicle.
· Place the transmission in the P (PARK) position to help prevent inadvertent movement of the gear selector.
ProCarManuals.com

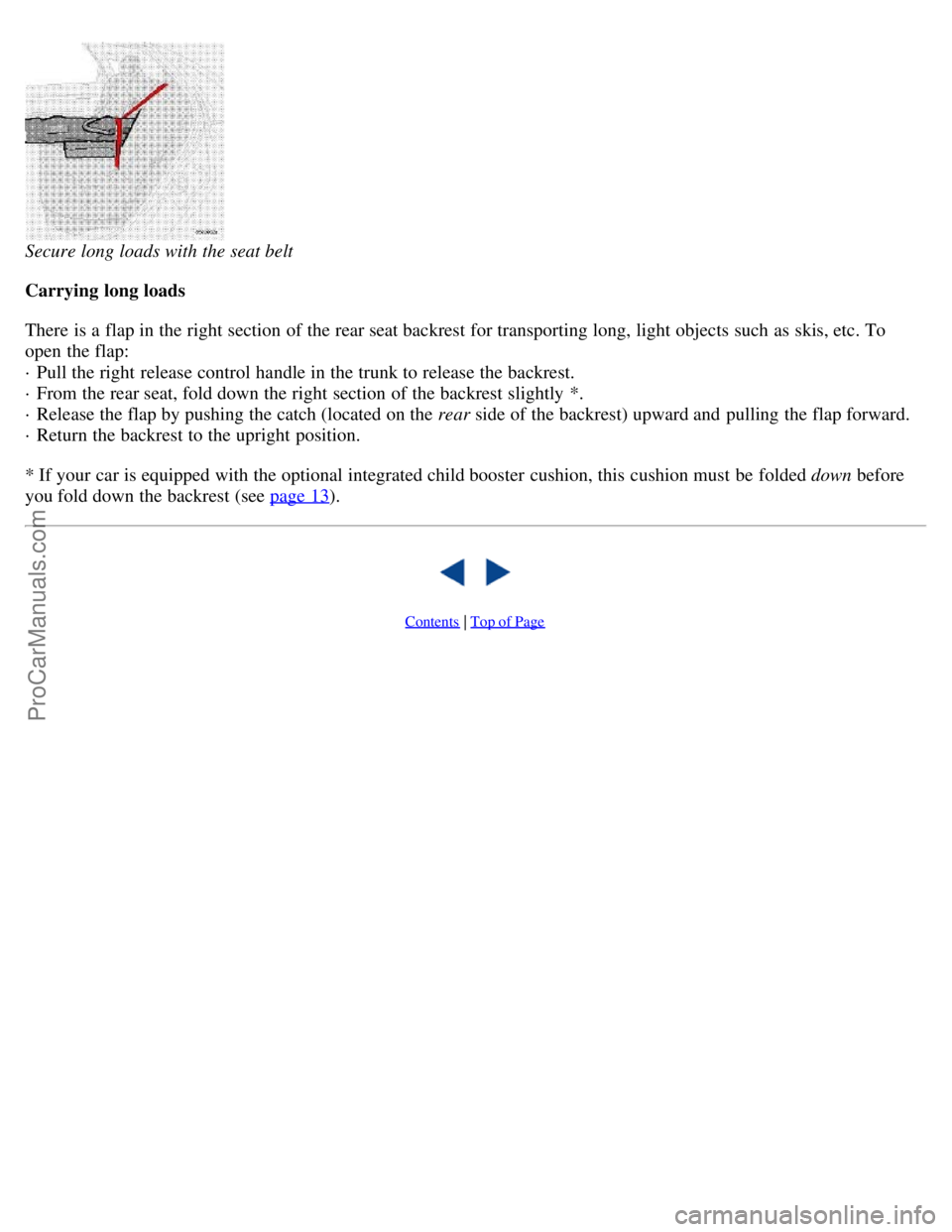

Secure long loads with the seat belt
Carrying long loads
There is a flap in the right section of the rear seat backrest for transporting long, light objects such as skis, etc. To
open the flap:
· Pull the right release control handle in the trunk to release the backrest.
· From the rear seat, fold down the right section of the backrest slightly *.
· Release the flap by pushing the catch (located on the rear side of the backrest) upward and pulling the flap forward.
· Return the backrest to the upright position.
* If your car is equipped with the optional integrated child booster cushion, this cushion must be folded down before
you fold down the backrest (see page 13
).

Contents | Top of Page
ProCarManuals.com

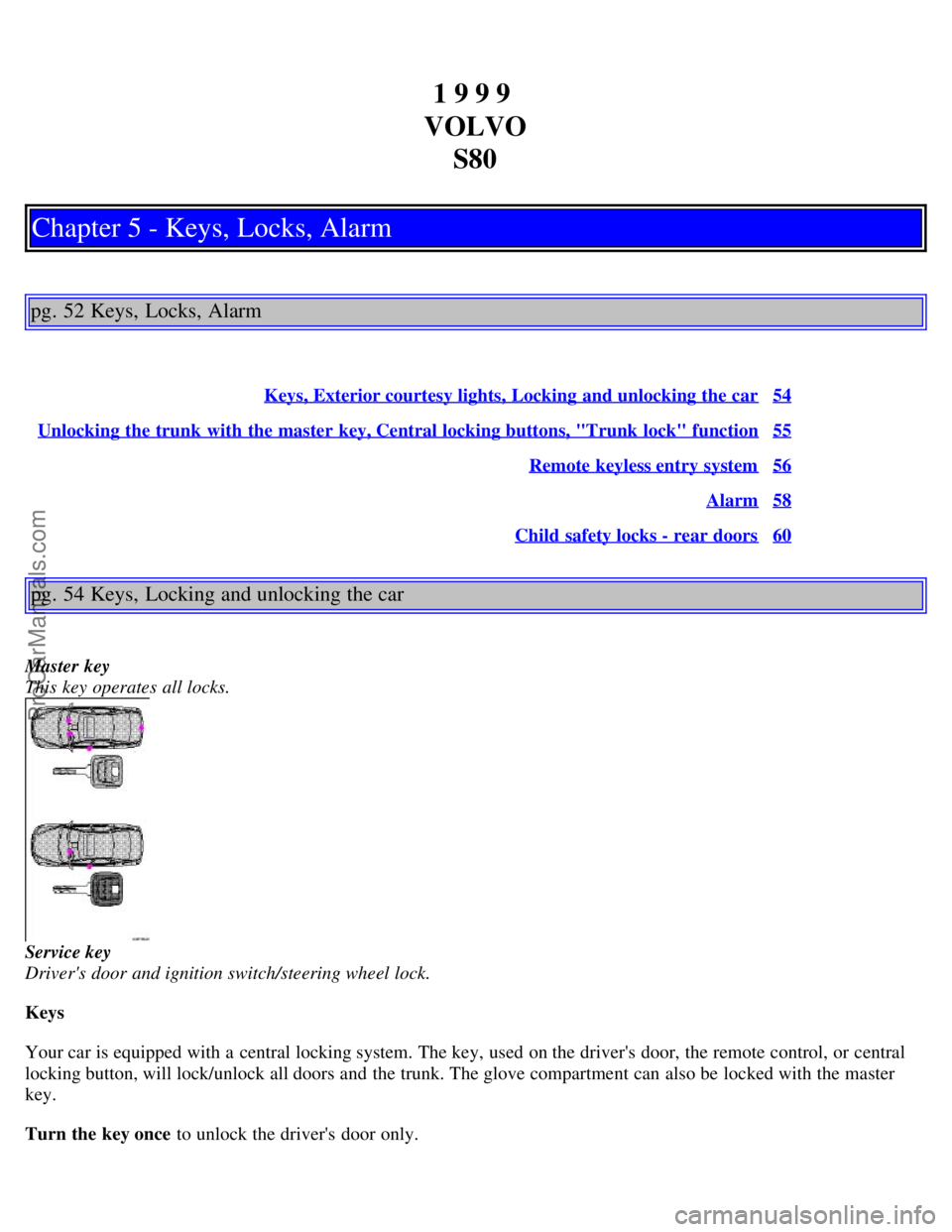

1 9 9 9
VOLVO S80
Chapter 5 - Keys, Locks, Alarm
pg. 52 Keys, Locks, Alarm
Keys, Exterior courtesy lights, Locking and unlocking the car54
Unlocking the trunk with the master key, Central locking buttons, "Trunk lock" function55
Remote keyless entry system56
Alarm58
Child safety locks - rear doors60
pg. 54 Keys, Locking and unlocking the car
Master key
This key operates all locks.
Service key
Driver's door and ignition switch/steering wheel lock.
Keys
Your car is equipped with a central locking system. The key, used on the driver's door, the remote control, or central
locking button, will lock/unlock all doors and the trunk. The glove compartment can also be locked with the master
key.
Turn the key once to unlock the driver's door only.
ProCarManuals.com

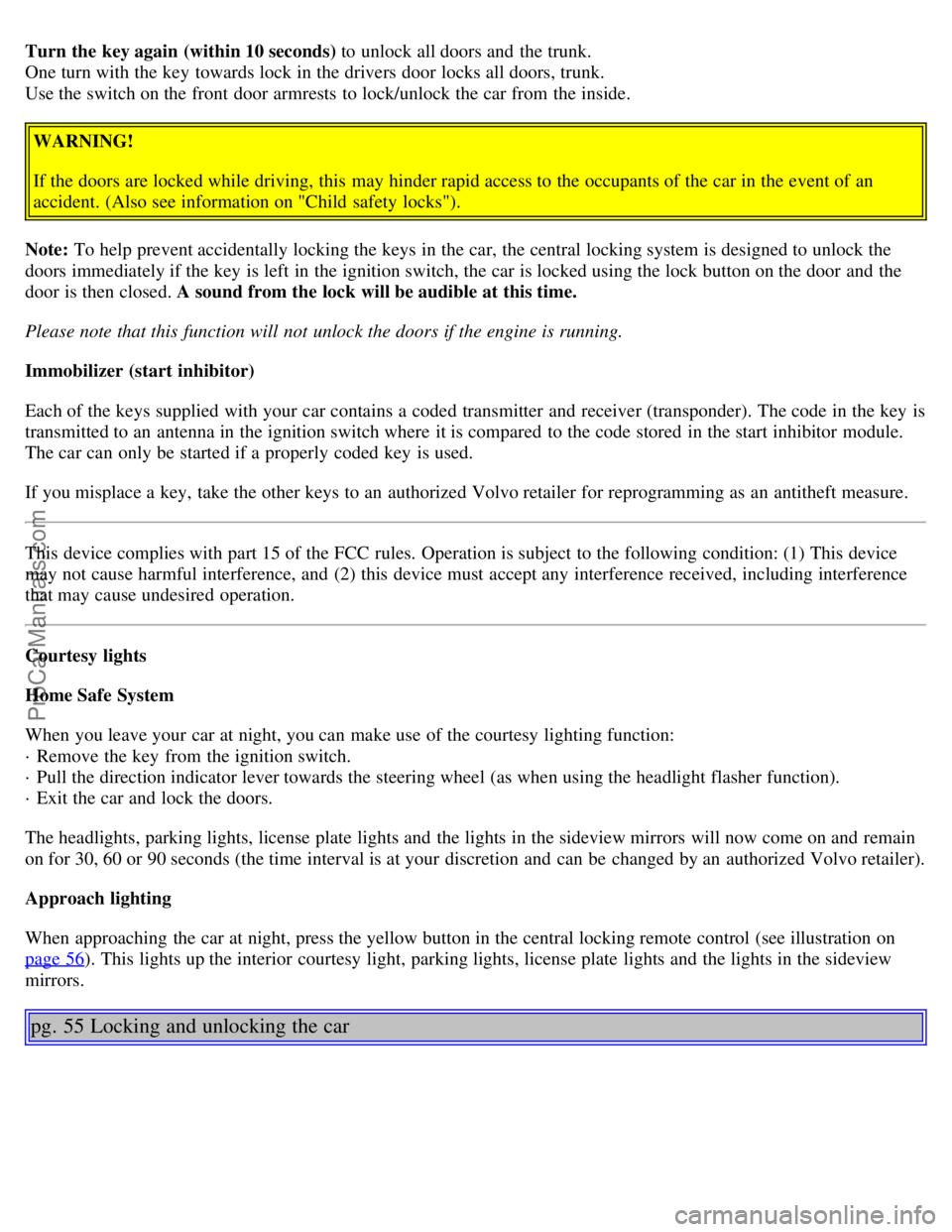

Turn the key again (within 10 seconds) to unlock all doors and the trunk.
One turn with the key towards lock in the drivers door locks all doors, trunk.
Use the switch on the front door armrests to lock/unlock the car from the inside.
WARNING!
If the doors are locked while driving, this may hinder rapid access to the occupants of the car in the event of an
accident. (Also see information on "Child safety locks").
Note: To help prevent accidentally locking the keys in the car, the central locking system is designed to unlock the
doors immediately if the key is left in the ignition switch, the car is locked using the lock button on the door and the
door is then closed. A sound from the lock will be audible at this time.
Please note that this function will not unlock the doors if the engine is running.
Immobilizer (start inhibitor)
Each of the keys supplied with your car contains a coded transmitter and receiver (transponder). The code in the key is
transmitted to an antenna in the ignition switch where it is compared to the code stored in the start inhibitor module.
The car can only be started if a properly coded key is used.
If you misplace a key, take the other keys to an authorized Volvo retailer for reprogramming as an antitheft measure.
This device complies with part 15 of the FCC rules. Operation is subject to the following condition: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Courtesy lights
Home Safe System
When you leave your car at night, you can make use of the courtesy lighting function:
· Remove the key from the ignition switch.
· Pull the direction indicator lever towards the steering wheel (as when using the headlight flasher function).
· Exit the car and lock the doors.
The headlights, parking lights, license plate lights and the lights in the sideview mirrors will now come on and remain
on for 30, 60 or 90 seconds (the time interval is at your discretion and can be changed by an authorized Volvo retailer).
Approach lighting
When approaching the car at night, press the yellow button in the central locking remote control (see illustration on
page 56
). This lights up the interior courtesy light, parking lights, license plate lights and the lights in the sideview
mirrors.
pg. 55 Locking and unlocking the car
ProCarManuals.com

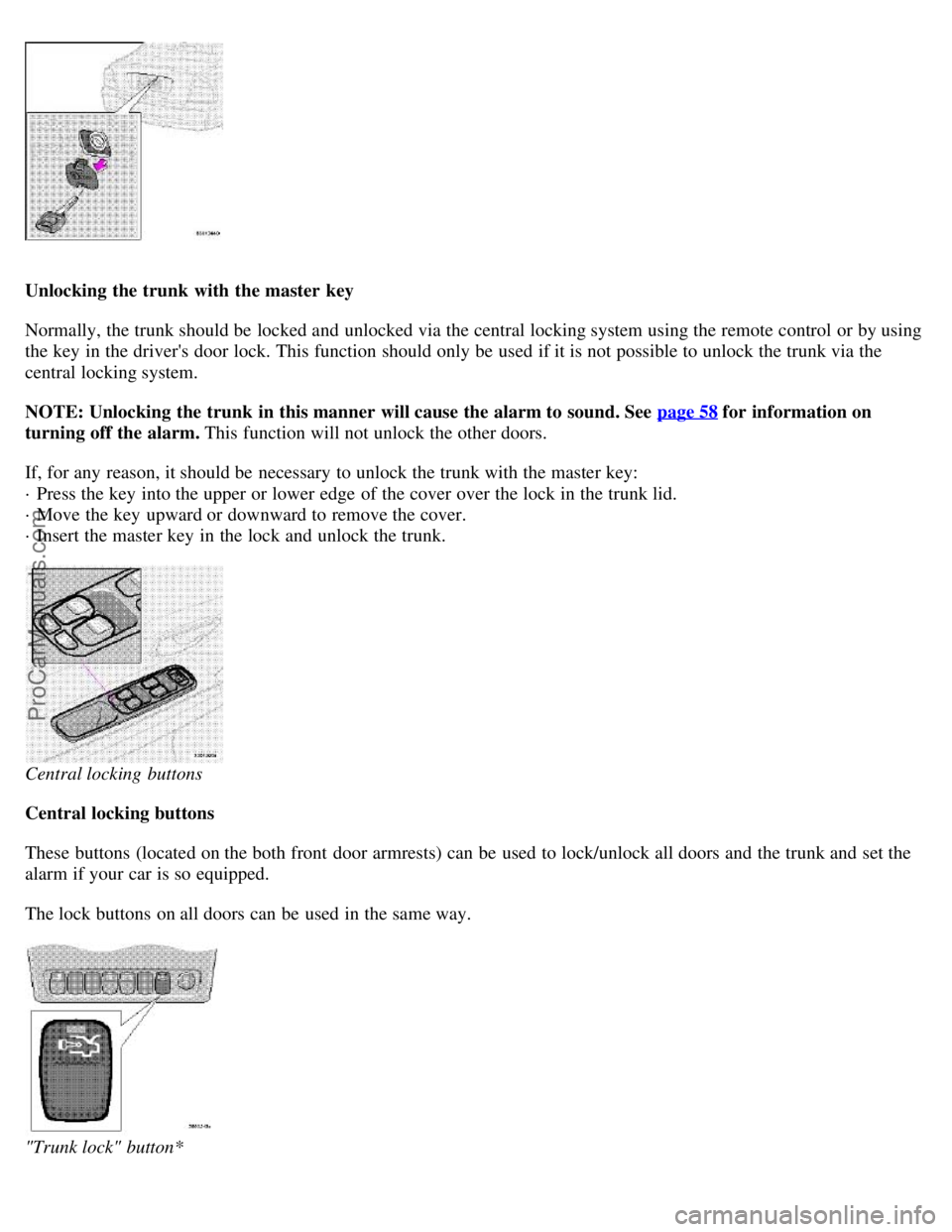

Unlocking the trunk with the master key
Normally, the trunk should be locked and unlocked via the central locking system using the remote control or by using
the key in the driver's door lock. This function should only be used if it is not possible to unlock the trunk via the
central locking system.
NOTE: Unlocking the trunk in this manner will cause the alarm to sound. See page 58
for information on
turning off the alarm. This function will not unlock the other doors.
If, for any reason, it should be necessary to unlock the trunk with the master key:
· Press the key into the upper or lower edge of the cover over the lock in the trunk lid.
· Move the key upward or downward to remove the cover.
· Insert the master key in the lock and unlock the trunk.
Central locking buttons
Central locking buttons
These buttons (located on the both front door armrests) can be used to lock/unlock all doors and the trunk and set the
alarm if your car is so equipped.
The lock buttons on all doors can be used in the same way.
"Trunk lock" button*
ProCarManuals.com

"Trunk lock" function
Pressing this switch locks the trunk, even if the
doors are unlocked. The trunk will remain locked even if the doors are locked/unlocked using the master key or the
remote control.
To use this function:
· Turn the master key to position II.
· Press the "trunk lock" button. An LED in the button will light up and a message will be displayed in the text window
to indicate that this function is activated.
· The function can be turned off (deactivated) by turning the ignition key to position II and pressing the "trunk lock"
button again (the LED in the button will go out).
* The position of this button may vary, depending on the specifications of your car.
pg. 56 Remote keyless entry system
Remote keyless entry system
Your car is equipped with a remote control transmitter. This transmitter uses a radio frequency which will allow
"keyless" entry into the passenger compartment or the trunk. You will be supplied with two coded key ring
transmitters, which will enable you to lock/unlock all doors and the trunk from a distance of 10-15 feet (3-5 meters).
On vehicles equipped with an alarm, the alarm will also be activated/deactivated by this system.
The car can also be locked/unlocked with the key.
As an extra security precaution in certain situations (valet parking, etc.), Volvo recommends that the transmitter not be
included when the keys are given to anyone. The service key can be used instead. If one of the transmitters is
misplaced, contact the nearest authorized Volvo retailer for assistance.
Buttons in remote control
1 - Lock, 2 - Unlock, 3 - Open trunk
4 - "Panic" function *, 5 - Exterior courtesy lights
ProCarManuals.com

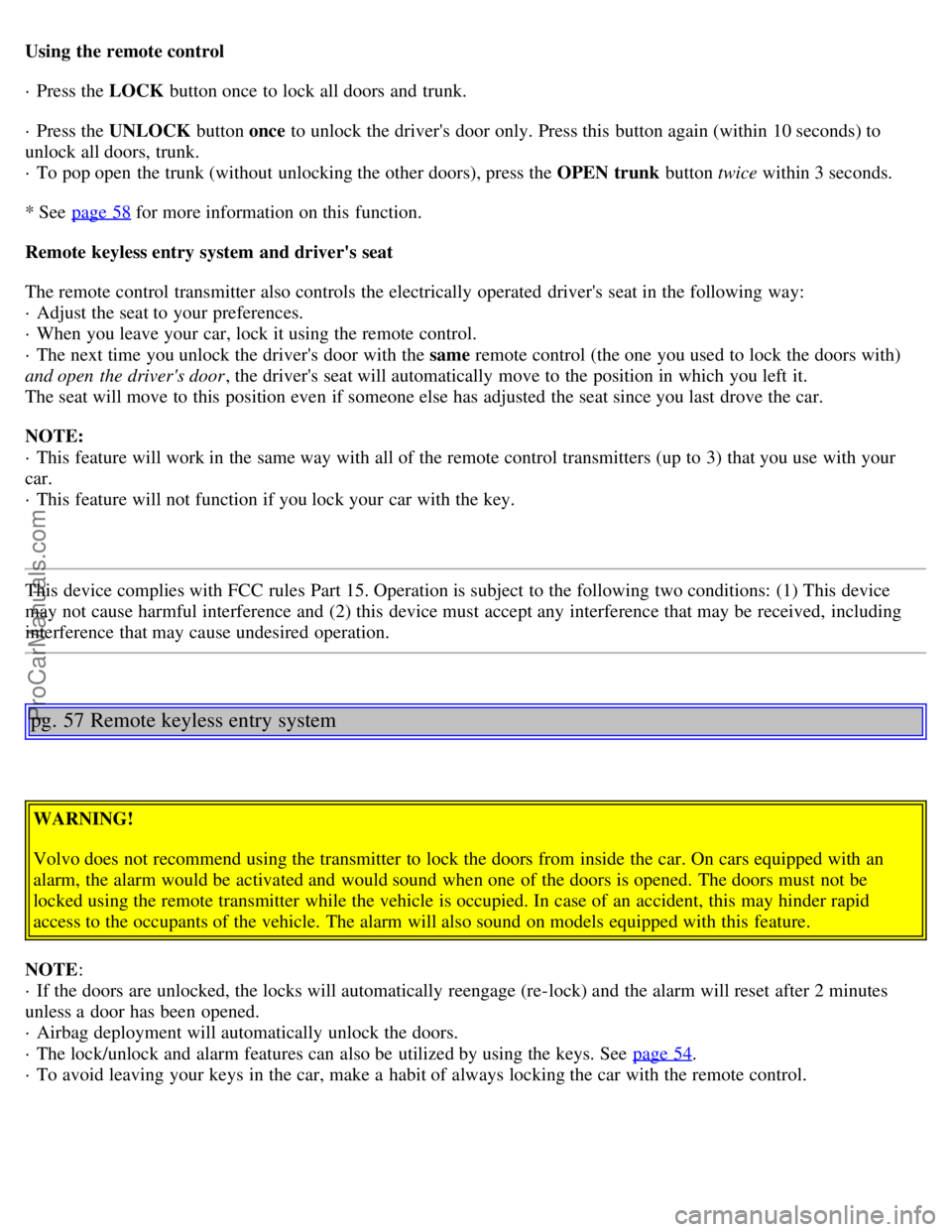

Using the remote control
· Press the LOCK button once to lock all doors and trunk.
· Press the UNLOCK button once to unlock the driver's door only. Press this button again (within 10 seconds) to
unlock all doors, trunk.
· To pop open the trunk (without unlocking the other doors), press the OPEN trunk button twice within 3 seconds.
* See page 58
for more information on this function.
Remote keyless entry system and driver's seat
The remote control transmitter also controls the electrically operated driver's seat in the following way:
· Adjust the seat to your preferences.
· When you leave your car, lock it using the remote control.
· The next time you unlock the driver's door with the same remote control (the one you used to lock the doors with)
and open the driver's door , the driver's seat will automatically move to the position in which you left it.
The seat will move to this position even if someone else has adjusted the seat since you last drove the car.
NOTE:
· This feature will work in the same way with all of the remote control transmitters (up to 3) that you use with your
car.
· This feature will not function if you lock your car with the key.
This device complies with FCC rules Part 15. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference and (2) this device must accept any interference that may be received, including
interference that may cause undesired operation.
pg. 57 Remote keyless entry system
WARNING!
Volvo does not recommend using the transmitter to lock the doors from inside the car. On cars equipped with an
alarm, the alarm would be activated and would sound when one of the doors is opened. The doors must not be
locked using the remote transmitter while the vehicle is occupied. In case of an accident, this may hinder rapid
access to the occupants of the vehicle. The alarm will also sound on models equipped with this feature.
NOTE :
· If the doors are unlocked, the locks will automatically reengage (re-lock) and the alarm will reset after 2 minutes
unless a door has been opened.
· Airbag deployment will automatically unlock the doors.
· The lock/unlock and alarm features can also be utilized by using the keys. See page 54
.
· To avoid leaving your keys in the car, make a habit of always locking the car with the remote control.
ProCarManuals.com
