VOLVO S80 2009 Owner´s Manual

06 Maintenance and specifications
Battery
06``231
CAUTION
•
Always use distilled or deionized water
(battery water).
•
Never fill above the level mark in the cell.

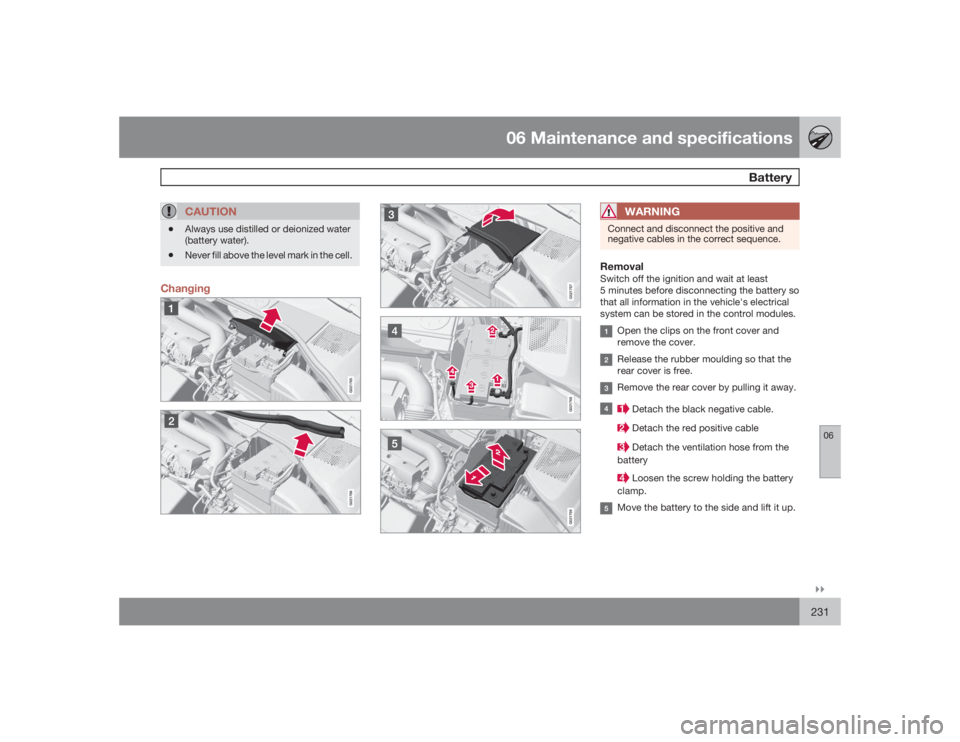

Changing
G021768G021769
WARNING
Connect and disconnect the positive and
negative cables in the correct sequence.RemovalSwitch off the ignition and wait at least
5 minutes before disconnecting the battery so
that all information in the vehicle's electrical
system can be stored in the control modules.
Open the clips on the front cover and
remove the cover.Release the rubber moulding so that the
rear cover is free.Remove the rear cover by pulling it away. Detach the black negative cable. Detach the red positive cable Detach the ventilation hose from the
battery Loosen the screw holding the battery
clamp.Move the battery to the side and lift it up.

06 Maintenance and specificationsBattery
06232
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.

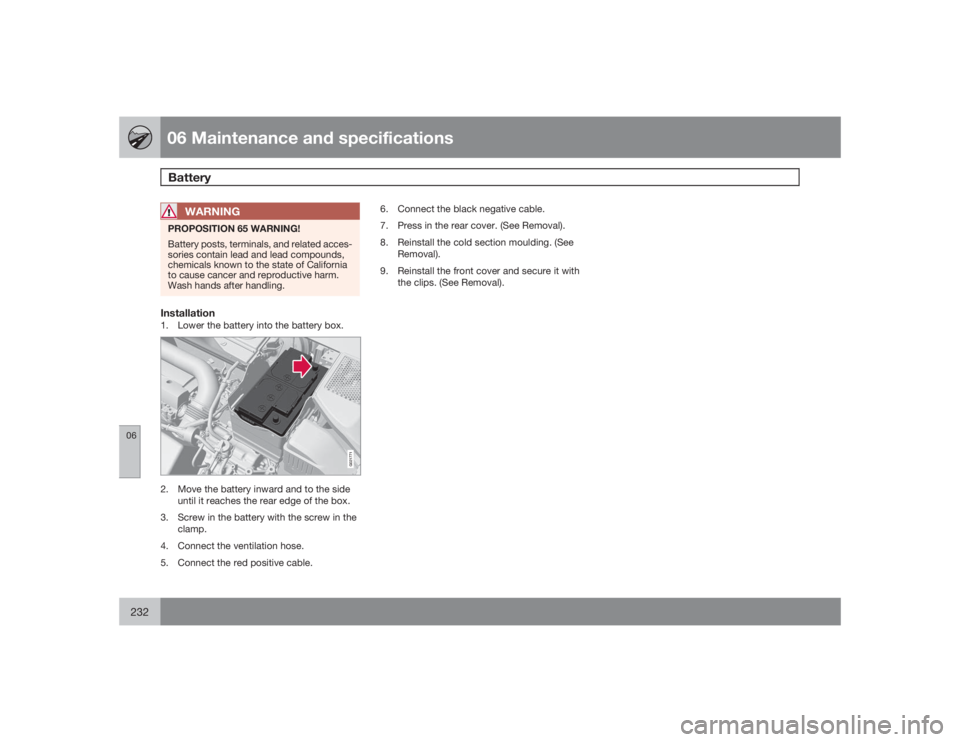

Wash hands after handling.Installation1. Lower the battery into the battery box.
G021771
2. Move the battery inward and to the side
until it reaches the rear edge of the box.
3. Screw in the battery with the screw in the
clamp.
4. Connect the ventilation hose.
5. Connect the red positive cable.6. Connect the black negative cable.
7. Press in the rear cover. (See Removal).
8. Reinstall the cold section moulding. (See
Removal).
9. Reinstall the front cover and secure it with
the clips. (See Removal).

06 Maintenance and specifications
Fuses
06``233 Replacing fuses
There are relay/fuse boxes located in the
engine compartment, the passenger compart-
ment, and the trunk.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
If the wire is broken, insert a new fuse of the
same color and amperage (written on the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.
Location of the fuse boxes
G021772
Under the glove compartmentEngine compartmentTrunk

06 Maintenance and specificationsFuses
06234
Engine compartment
G025600

06 Maintenance and specifications
Fuses
06``235
Engine compartment, upperEngine compartment, frontEngine compartment, lower
PositionsThese fuses are all located in the engine com-
partment box. Fuses in
are located under
.
NOTE
•
Fuses 16 – 33 and 35 – 41 may be
changed at any time when necessary.
•
Fuses 1 – 15, 34 and 42 – 44 are relays/
circuit breakers and should only be
removed or replaced by a trained and
qualified Volvo service technician.
•
There is a special fuse removal tool on
the underside of the cover.
Function
A
Circuit breaker
50
Circuit breaker
50
Circuit breaker
60
Circuit breaker
60
Function
A
Circuit breaker
50
–––Windshield wipers
30
–Climate system blower
40
–ABS pump
40
ABS valves
20
–Active Bi-XenonŸ Lights.
Headlight leveling (option)
10
Central electrical module
20
Radar. ACC control module
(option)
5
Speed related power steering
5
Function
A
Engine Control Module (ECM),
transmission, SRS
10
Heated washer nozzles
10
Vacuum pump I5T
20
Lighting panel
5
Headlight washers
15
12-volt socket, front and rear
seat
15
Moonroof (option), ceiling con-
sole/ECC (option)
10
Engine compartment box
5
Auxiliary lights (option)
20
Horn
15
Engine Control Module (ECM)
10
Control module, automatic
transmission
15
Compressor A/C
15
Coils
5

06 Maintenance and specificationsFuses
06236
Function
A
Starter motor relay
30
Ignition coils
20
Engine Control Module (ECM),
throttle
10
Injection system
15
Engine valves
10
EVAP/heated oxygen sensor/
Injection
15
Water pump (V8)
Crank case ventilation heater
10
Fuel leakage detection
5
–-Cooling fan
80

06 Maintenance and specifications
Fuses
06``237 Under the glove compartment
10
11
12
13
14
1
2
3
4
56
7
8
923
22
21
20
19
18 17 16
15
24
25
26
27
28
G032918
Fold aside the iupholstery covering the fuse
box.
1. Press the cover's lock and fold it up.
2. The fuses are accessible.Positions
Function
A
Rain sensor (option)
5
SRS system
10
ABS brakes. Electric parking
brake
5
Function
A
Accelerator pedal, heated
seats (option)
7.5
–ICM display, CD & Radio
15
Steering wheel module
7.5
–High beam
15
Function
A
Moonroof (option)
20
Backup lights
7.5
–Front fog light (option)
15
Windshield washers
15
Adaptive cruise control ACC
(option)
10

06 Maintenance and specificationsFuses
06238
Function
A
–Overhead courtesy lighting,
Control panel driver's door/
Power passenger seat (option)
7.5
Information display
5
Power driver's seat (option)
5
–Remote key receiver, Alarm
sensors
5
Fuel pump
20
Electric steering column lock
20
–Lock, tank/trunk
10
Alarm siren. ECC
5
START/STOP ENGINE button
5
Brake light switch
5

06 Maintenance and specifications
Fuses

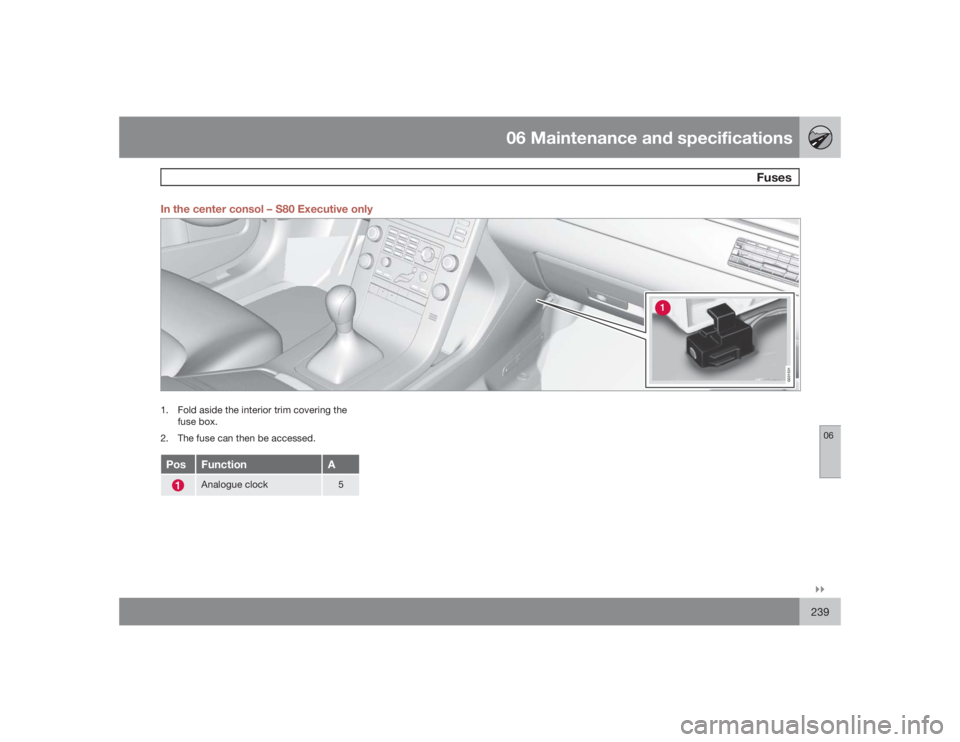

06``239 In the center consol – S80 Executive only
G031531
1. Fold aside the interior trim covering the
fuse box.
2. The fuse can then be accessed.Pos
Function
A
Analogue clock
5

06 Maintenance and specificationsFuses
06240

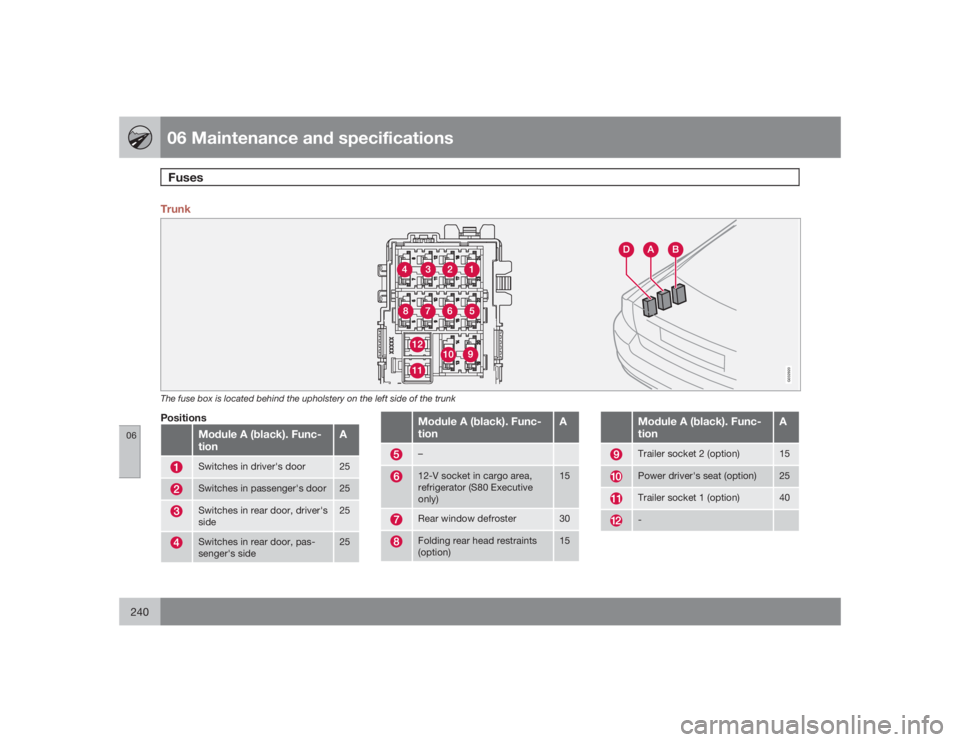

Trunk
G032920
The fuse box is located behind the upholstery on the left side of the trunkPositions
Module A (black). Func-
tion
A
Switches in driver's door
25
Switches in passenger's door
25
Switches in rear door, driver's
side
25
Switches in rear door, pas-
senger's side
25
Module A (black). Func-
tion
A
–12-V socket in cargo area,
refrigerator (S80 Executive
only)
15
Rear window defroster
30
Folding rear head restraints
(option)
15
Module A (black). Func-
tion
A
Trailer socket 2 (option)
15
Power driver's seat (option)
25
Trailer socket 1 (option)
40
-
