VOLVO S90 2017 Owner´s Manual

MAINTENANCE AND SERVICING
}}
499

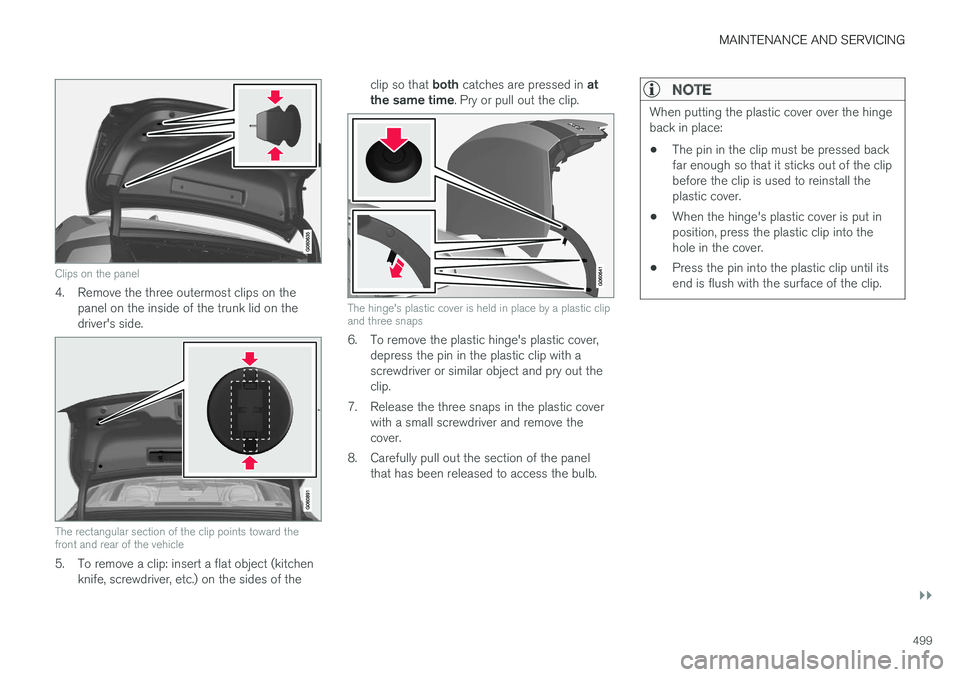

Clips on the panel
4. Remove the three outermost clips on thepanel on the inside of the trunk lid on the driver's side.
The rectangular section of the clip points toward the front and rear of the vehicle
5. To remove a clip: insert a flat object (kitchenknife, screwdriver, etc.) on the sides of the clip so that
both catches are pressed in at
the same time . Pry or pull out the clip.
The hinge's plastic cover is held in place by a plastic clip and three snaps
6. To remove the plastic hinge's plastic cover,
depress the pin in the plastic clip with a screwdriver or similar object and pry out theclip.
7. Release the three snaps in the plastic cover with a small screwdriver and remove thecover.
8. Carefully pull out the section of the panel that has been released to access the bulb.
NOTE
When putting the plastic cover over the hinge back in place: • The pin in the clip must be pressed back far enough so that it sticks out of the clipbefore the clip is used to reinstall theplastic cover.
• When the hinge's plastic cover is put inposition, press the plastic clip into thehole in the cover.
• Press the pin into the plastic clip until itsend is flush with the surface of the clip.

||
MAINTENANCE AND SERVICING
500

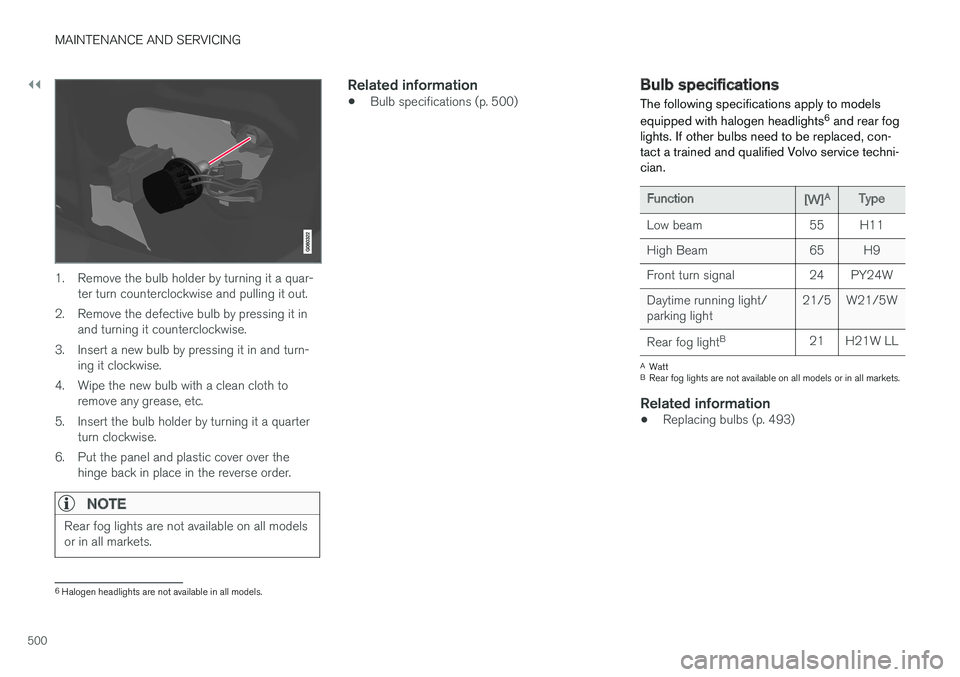

1. Remove the bulb holder by turning it a quar-ter turn counterclockwise and pulling it out.
2. Remove the defective bulb by pressing it in and turning it counterclockwise.
3. Insert a new bulb by pressing it in and turn- ing it clockwise.
4. Wipe the new bulb with a clean cloth to remove any grease, etc.
5. Insert the bulb holder by turning it a quarter turn clockwise.
6. Put the panel and plastic cover over the hinge back in place in the reverse order.
NOTE
Rear fog lights are not available on all models or in all markets.
Related information
• Bulb specifications (p. 500)
Bulb specifications The following specifications apply to models equipped with halogen headlights 6
and rear fog
lights. If other bulbs need to be replaced, con- tact a trained and qualified Volvo service techni-cian.
Function [W]A
Type
Low beam 55 H11
High Beam 65 H9
Front turn signal 24 PY24WDaytime running light/ parking light 21/5 W21/5W
Rear fog light B
21 H21W LL
AWatt
B Rear fog lights are not available on all models or in all markets.
Related information
• Replacing bulbs (p. 493)
6
Halogen headlights are not available in all models.

MAINTENANCE AND SERVICING
}}
* Option/accessory.501

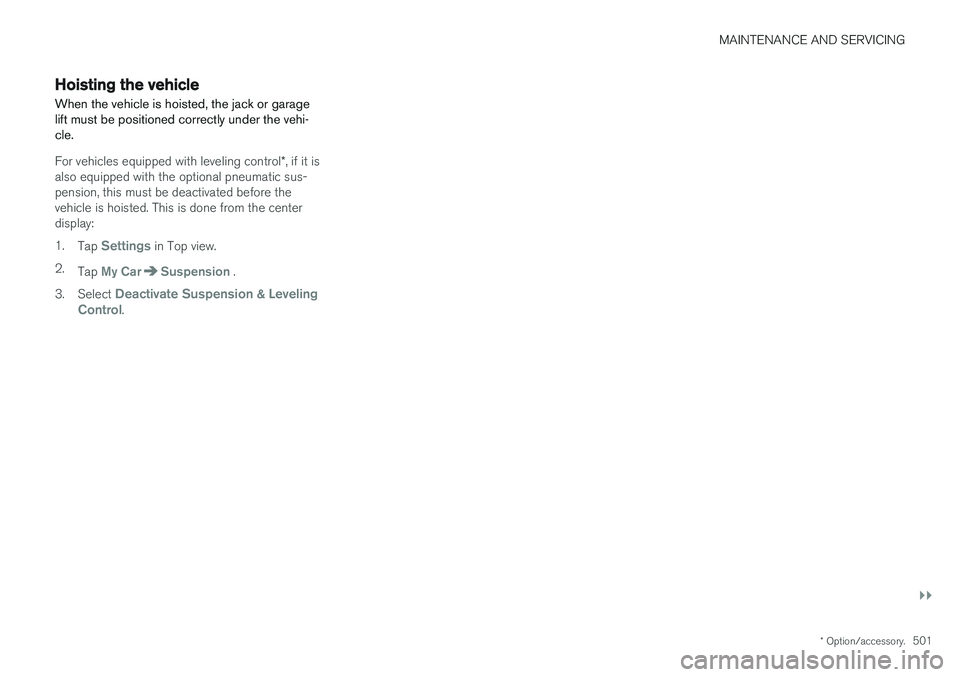

Hoisting the vehicle When the vehicle is hoisted, the jack or garage lift must be positioned correctly under the vehi-cle.
For vehicles equipped with leveling control *, if it is
also equipped with the optional pneumatic sus- pension, this must be deactivated before thevehicle is hoisted. This is done from the centerdisplay: 1. Tap
Settings in Top view.
2. Tap
My CarSuspension .
3. Select
Deactivate Suspension & Leveling
Control.

||
MAINTENANCE AND SERVICING
502

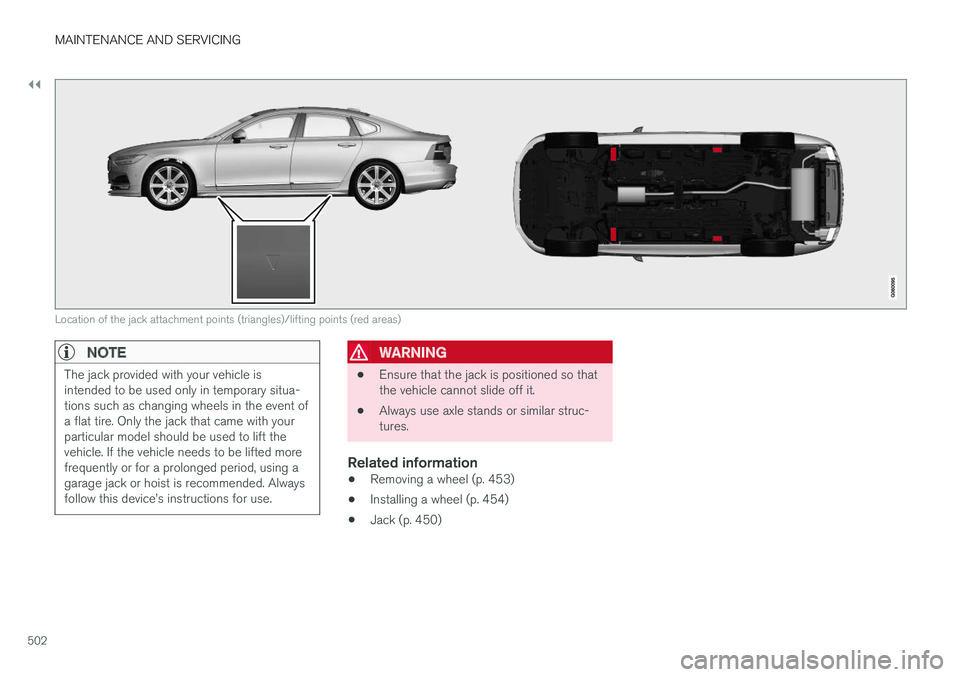

Location of the jack attachment points (triangles)/lifting points (red areas)
NOTE
The jack provided with your vehicle is intended to be used only in temporary situa-tions such as changing wheels in the event ofa flat tire. Only the jack that came with yourparticular model should be used to lift thevehicle. If the vehicle needs to be lifted morefrequently or for a prolonged period, using agarage jack or hoist is recommended. Alwaysfollow this device

MAINTENANCE AND SERVICING
}}
503

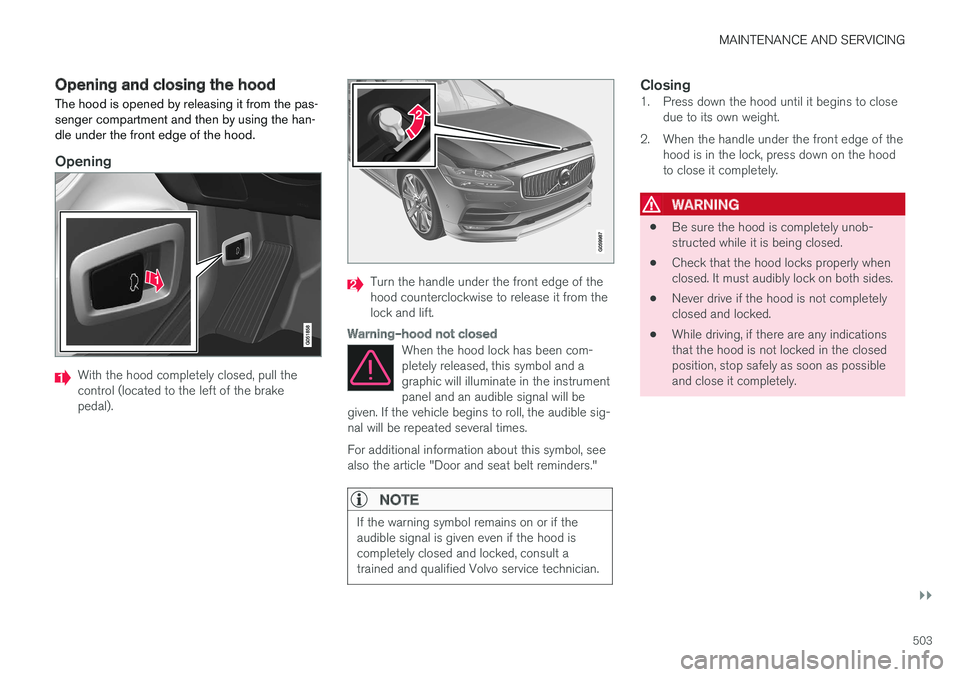

Opening and closing the hood The hood is opened by releasing it from the pas- senger compartment and then by using the han-dle under the front edge of the hood.
Opening
With the hood completely closed, pull the control (located to the left of the brakepedal).
Turn the handle under the front edge of the hood counterclockwise to release it from thelock and lift.
Warning–hood not closed
When the hood lock has been com- pletely released, this symbol and agraphic will illuminate in the instrumentpanel and an audible signal will be
given. If the vehicle begins to roll, the audible sig-nal will be repeated several times. For additional information about this symbol, see also the article "Door and seat belt reminders."
NOTE
If the warning symbol remains on or if the audible signal is given even if the hood iscompletely closed and locked, consult atrained and qualified Volvo service technician.
Closing1. Press down the hood until it begins to close due to its own weight.
2. When the handle under the front edge of the hood is in the lock, press down on the hood to close it completely.
WARNING
• Be sure the hood is completely unob- structed while it is being closed.
• Check that the hood locks properly whenclosed. It must audibly lock on both sides.
• Never drive if the hood is not completelyclosed and locked.
• While driving, if there are any indicationsthat the hood is not locked in the closedposition, stop safely as soon as possibleand close it completely.

||
MAINTENANCE AND SERVICING
504
Hood completely closed
Related information
•Engine compartment overview (p. 504)
• Door and seat belt reminders (p. 64)
Engine compartment overview
The engine compartment overview shows some maintenance points.
The layout of the engine compartment may differ slightly from model to model
Coolant expansion tank
Brake fluid reservoir
Washer fluid reservoir
Relay/fuse box
Air cleaner
Engine oil filler cap
WARNING
• The cooling fan (located at the front of the engine compartment, behind the radi-ator) may start or continue to operate (forup to 6 minutes) after the engine hasbeen switched off.
• Engine cleaning should only be done by aworkshop. If engine cleaning agents areused when the engine has been running,there may a fire risk.
• Before performing any operations in theengine compartment, the ignition shouldalways be completely switched off (in mode
0) and there should be no remote
keys in the passenger compartment. Thegear selector should be in the P (park)
position. If the engine has been running, wait until it has cooled before touchingany components in the engine compart-ment.
• The distributor ignition system operatesat very high voltages. Special safety pre-cautions must be followed to preventinjury. Always turn the ignition off whenreplacing distributor ignition componentse.g. plugs, coil, etc.
• Do not touch any part of the distributorignition system while the engine is run-ning. This may result in unintended move-ments and body injury.

MAINTENANCE AND SERVICING
505
Related information
•Ignition modes (p. 370)
• Opening and closing the hood (p. 503)
• Refilling the windshield washer fluid reservoir (p. 510)

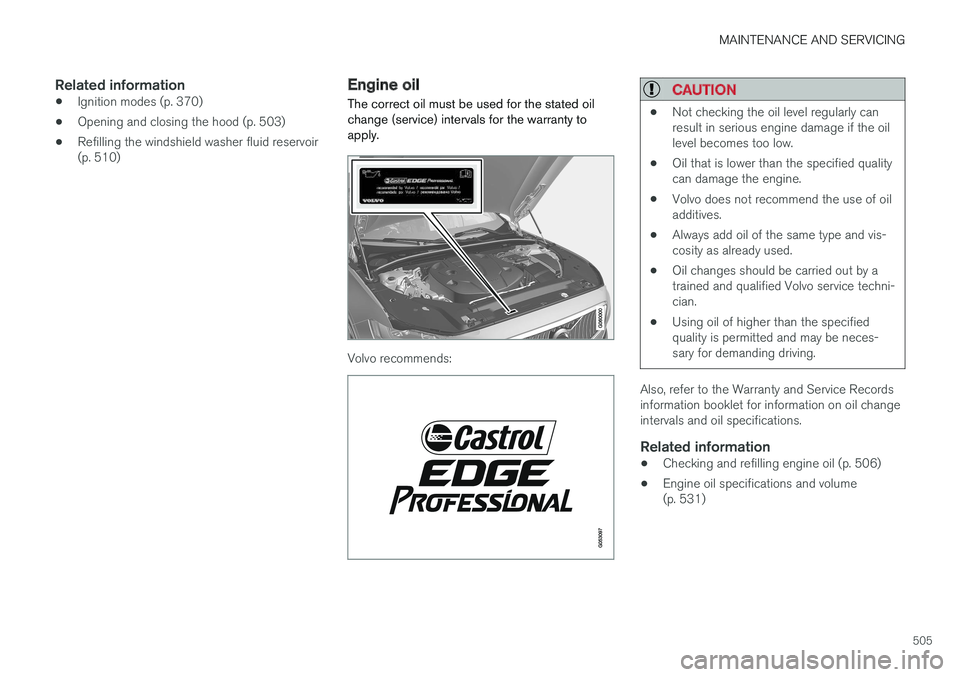

Engine oil
The correct oil must be used for the stated oil change (service) intervals for the warranty toapply.
Volvo recommends:
CAUTION
• Not checking the oil level regularly can result in serious engine damage if the oillevel becomes too low.
• Oil that is lower than the specified qualitycan damage the engine.
• Volvo does not recommend the use of oiladditives.
• Always add oil of the same type and vis-cosity as already used.
• Oil changes should be carried out by atrained and qualified Volvo service techni-cian.
• Using oil of higher than the specifiedquality is permitted and may be neces-sary for demanding driving.
Also, refer to the Warranty and Service Records information booklet for information on oil changeintervals and oil specifications.
Related information
•
Checking and refilling engine oil (p. 506)
• Engine oil specifications and volume(p. 531)

MAINTENANCE AND SERVICING
506

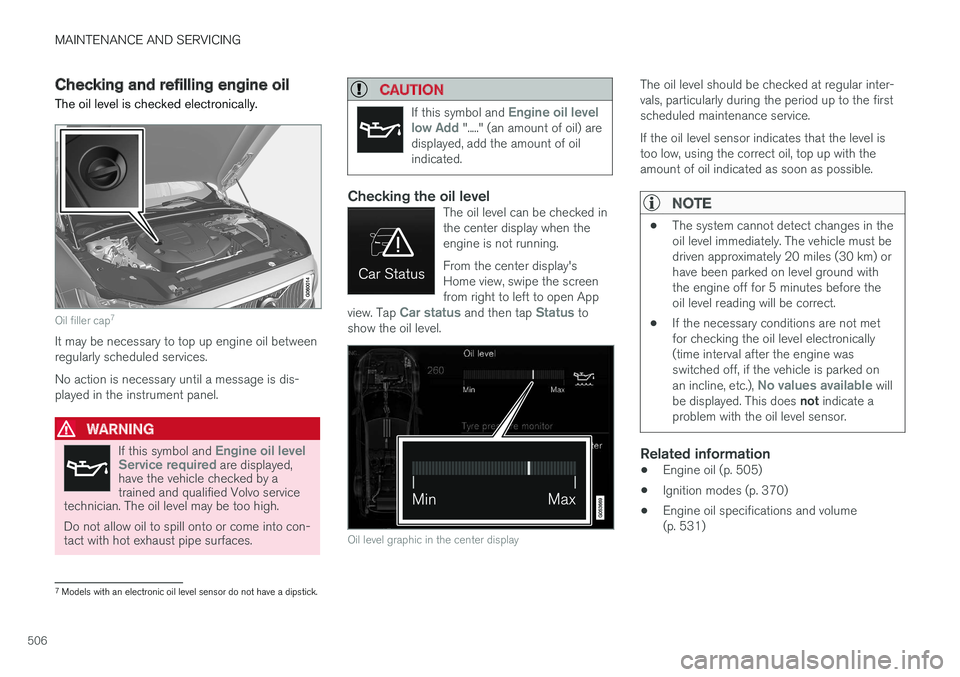

Checking and refilling engine oil The oil level is checked electronically.
Oil filler cap7
It may be necessary to top up engine oil between regularly scheduled services. No action is necessary until a message is dis- played in the instrument panel.
WARNING
If this symbol and Engine oil level
Service required are displayed,
have the vehicle checked by a trained and qualified Volvo service
technician. The oil level may be too high. Do not allow oil to spill onto or come into con- tact with hot exhaust pipe surfaces.
CAUTION
If this symbol and Engine oil level
low Add "....." (an amount of oil) are
displayed, add the amount of oil indicated.
Checking the oil levelThe oil level can be checked in the center display when theengine is not running. From the center display's Home view, swipe the screenfrom right to left to open App
view. Tap
Car status and then tap Status to
show the oil level.
Oil level graphic in the center display
The oil level should be checked at regular inter- vals, particularly during the period up to the firstscheduled maintenance service. If the oil level sensor indicates that the level is too low, using the correct oil, top up with theamount of oil indicated as soon as possible.
NOTE
• The system cannot detect changes in the oil level immediately. The vehicle must bedriven approximately 20 miles (30 km) orhave been parked on level ground withthe engine off for 5 minutes before theoil level reading will be correct.
• If the necessary conditions are not metfor checking the oil level electronically(time interval after the engine wasswitched off, if the vehicle is parked on an incline, etc.),
No values available will
be displayed. This does not indicate a
problem with the oil level sensor.
Related information
• Engine oil (p. 505)
• Ignition modes (p. 370)
• Engine oil specifications and volume (p. 531)
7
Models with an electronic oil level sensor do not have a dipstick.

MAINTENANCE AND SERVICING
}}
507

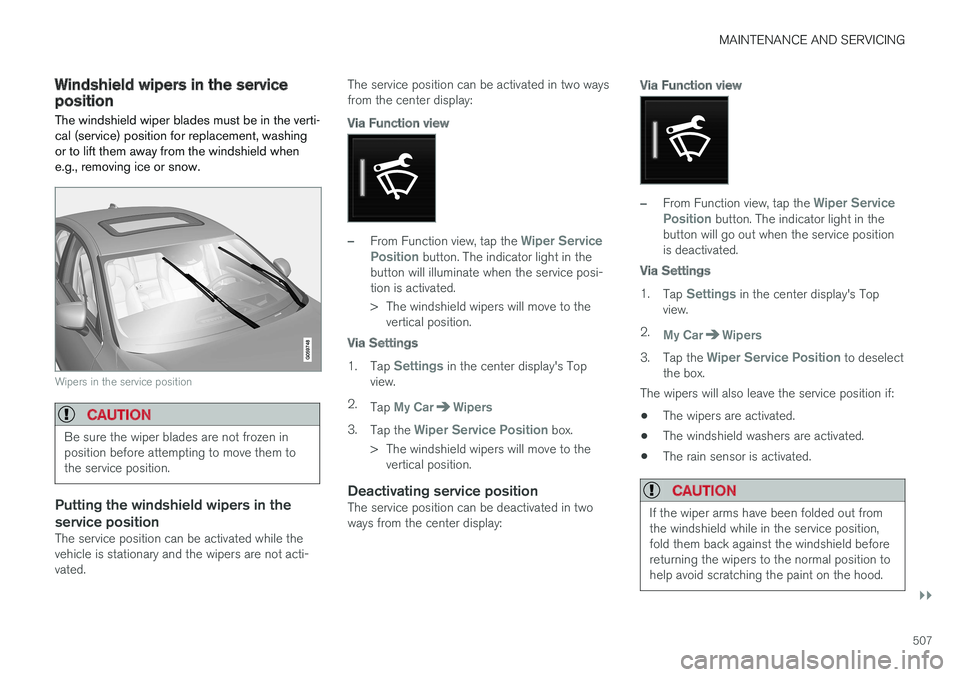

Windshield wipers in the service positionThe windshield wiper blades must be in the verti- cal (service) position for replacement, washingor to lift them away from the windshield whene.g., removing ice or snow.
Wipers in the service position
CAUTION
Be sure the wiper blades are not frozen in position before attempting to move them tothe service position.
Putting the windshield wipers in the service position
The service position can be activated while the vehicle is stationary and the wipers are not acti-vated. The service position can be activated in two waysfrom the center display:
Via Function view
–From Function view, tap the Wiper Service
Position button. The indicator light in the
button will illuminate when the service posi- tion is activated.
> The windshield wipers will move to the vertical position.
Via Settings
1. Tap Settings in the center display's Top
view.
2. Tap
My CarWipers
3.Tap the Wiper Service Position box.
> The windshield wipers will move to the vertical position.
Deactivating service positionThe service position can be deactivated in two ways from the center display:
Via Function view
–From Function view, tap the Wiper Service
Position button. The indicator light in the
button will go out when the service position is deactivated.
Via Settings
1. Tap Settings in the center display's Top
view.
2.
My CarWipers
3. Tap the Wiper Service Position to deselect
the box.
The wipers will also leave the service position if:
• The wipers are activated.
• The windshield washers are activated.
• The rain sensor is activated.
CAUTION
If the wiper arms have been folded out from the windshield while in the service position,fold them back against the windshield beforereturning the wipers to the normal position tohelp avoid scratching the paint on the hood.

||
MAINTENANCE AND SERVICING
508
Related information
•Replacing wiper blades (p. 508)
• Using the windshield wipers (p. 157)

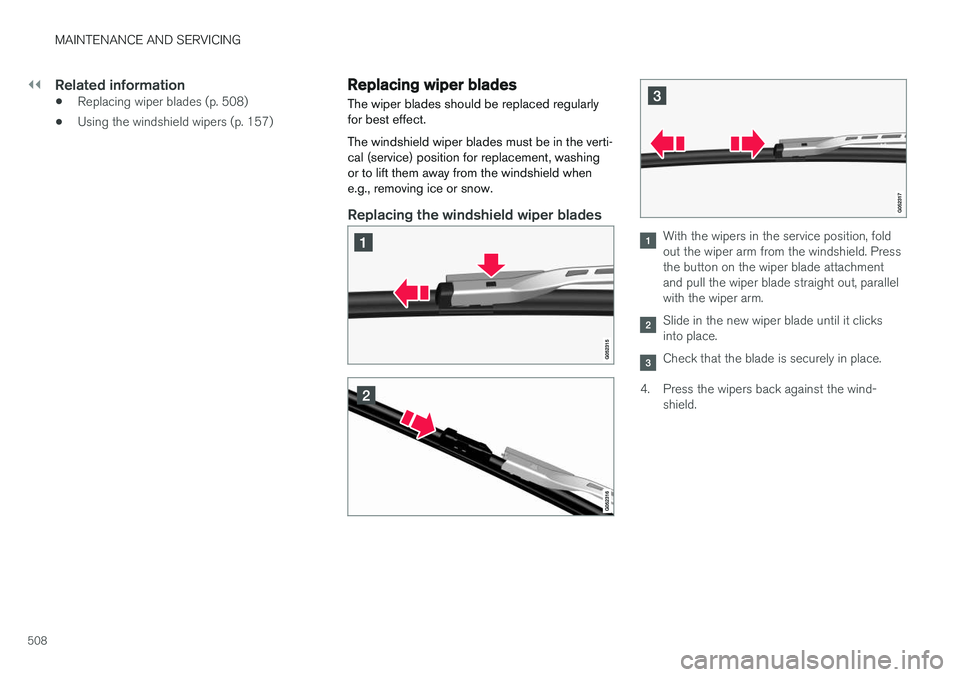

Replacing wiper blades
The wiper blades should be replaced regularly for best effect. The windshield wiper blades must be in the verti- cal (service) position for replacement, washingor to lift them away from the windshield whene.g., removing ice or snow.
Replacing the windshield wiper blades
With the wipers in the service position, fold out the wiper arm from the windshield. Pressthe button on the wiper blade attachmentand pull the wiper blade straight out, parallelwith the wiper arm.
Slide in the new wiper blade until it clicks into place.
Check that the blade is securely in place.
4. Press the wipers back against the wind- shield.
