VOLVO S90 2017 Owner´s Manual

SPECIFICATIONS
}}
529
Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Not all engines listed here are available in allmarkets.
Specification
T6 AWD
Engine designation B4204T27
Output (kW/rps) 235/95
Output (hp/rpm) 316/5700
Torque (Nm/rps) 400/37–90
Torque (ft. lbs./rpm) 295/2,200–5,400
No. of cylinders 4
Specification T6
Engine designation B4204T23
Output (kW/rps) 187/92
Output (hp/rpm) 250/5,500
Torque (Nm/rps) 350/25–80
Torque (ft. lbs./rpm) 258/1,500-4,800
No. of cylinders 4

||
SPECIFICATIONS
530

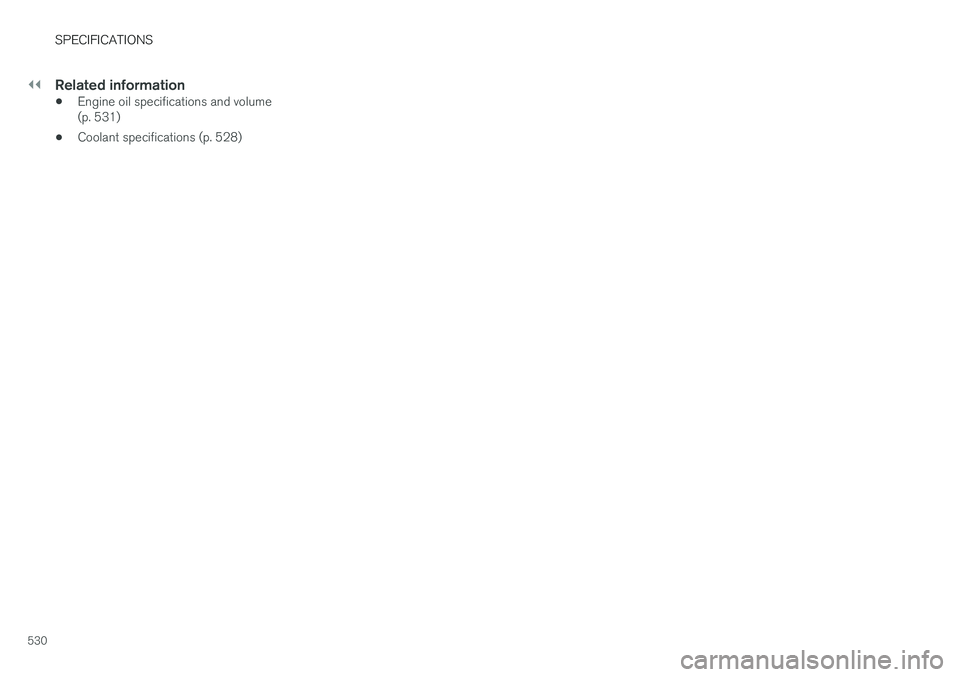

Related information
•Engine oil specifications and volume (p. 531)
• Coolant specifications (p. 528)

SPECIFICATIONS
531

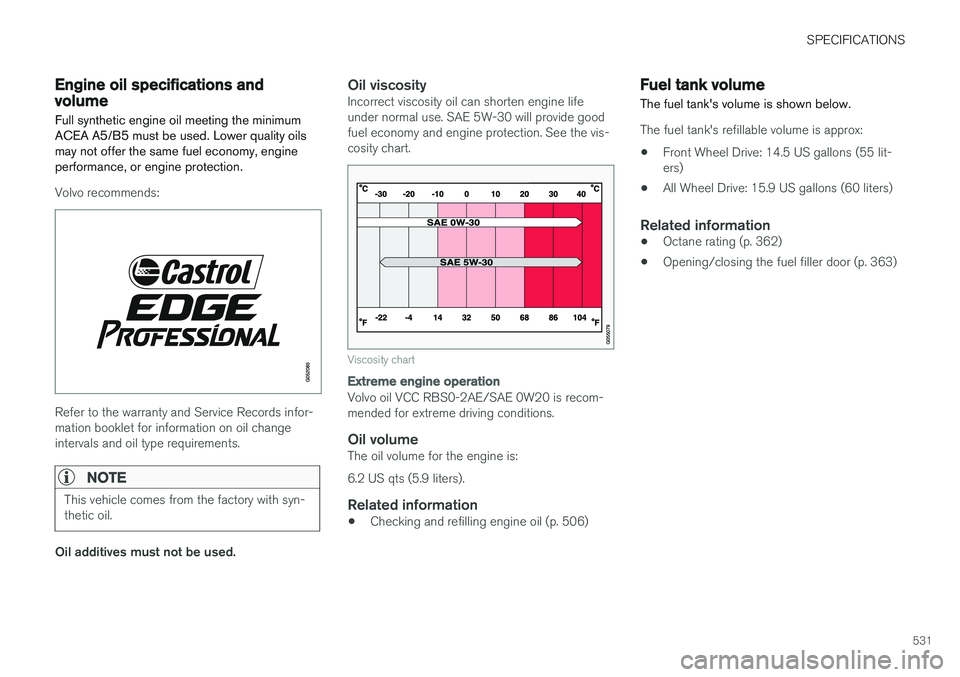

Engine oil specifications and volume
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor- mation booklet for information on oil changeintervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn- thetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart
Extreme engine operation
Volvo oil VCC RBS0-2AE/SAE 0W20 is recom- mended for extreme driving conditions.
Oil volumeThe oil volume for the engine is: 6.2 US qts (5.9 liters).
Related information
• Checking and refilling engine oil (p. 506)
Fuel tank volume
The fuel tank's volume is shown below.
The fuel tank's refillable volume is approx:
• Front Wheel Drive: 14.5 US gallons (55 lit- ers)
• All Wheel Drive: 15.9 US gallons (60 liters)
Related information
•
Octane rating (p. 362)
• Opening/closing the fuel filler door (p. 363)

SPECIFICATIONS
532

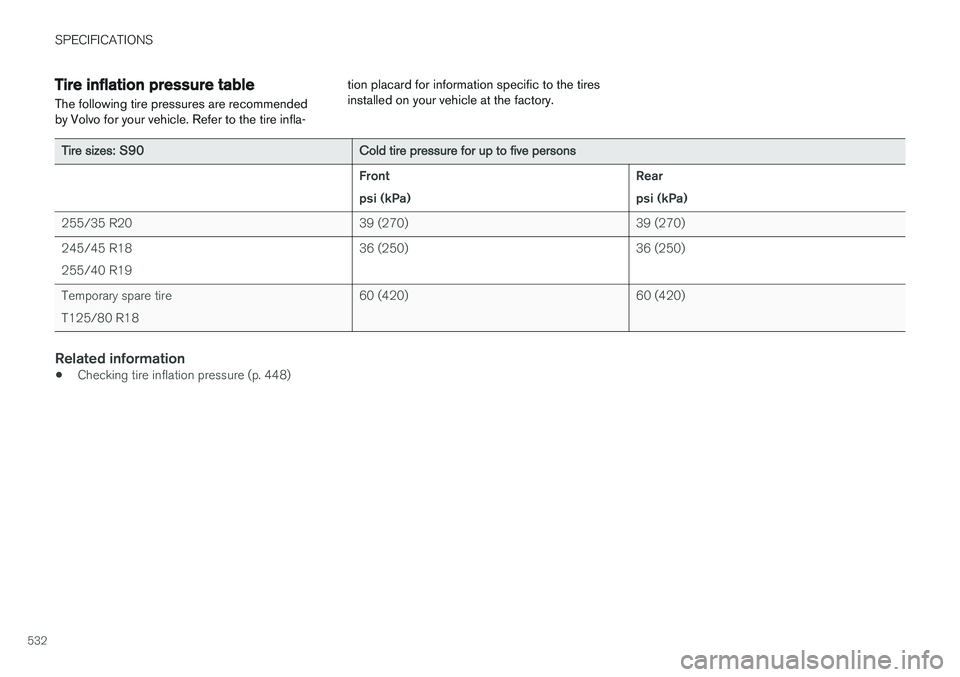

Tire inflation pressure table The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla-tion placard for information specific to the tiresinstalled on your vehicle at the factory.
Tire sizes: S90
Cold tire pressure for up to five persons Front psi (kPa)Rearpsi (kPa)
255/35 R20 39 (270)39 (270)
245/45 R18255/40 R19 36 (250)
36 (250)
Temporary spare tireT125/80 R18 60 (420)
60 (420)
Related information
•Checking tire inflation pressure (p. 448)

SPECIFICATIONS
533

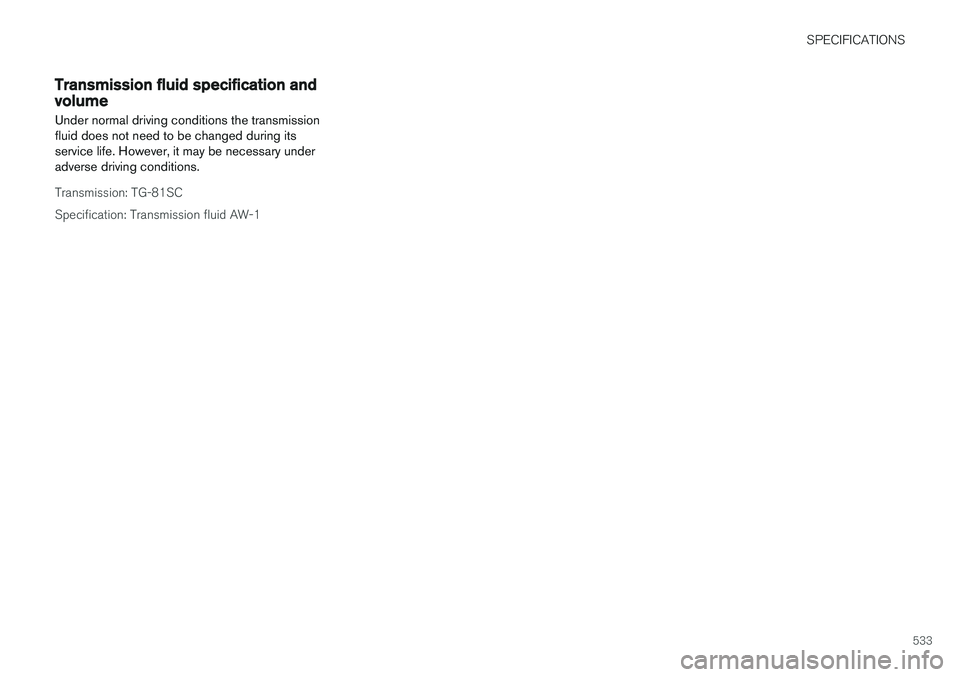

Transmission fluid specification and volume
Under normal driving conditions the transmission fluid does not need to be changed during itsservice life. However, it may be necessary underadverse driving conditions.
Transmission: TG-81SC Specification: Transmission fluid AW-1

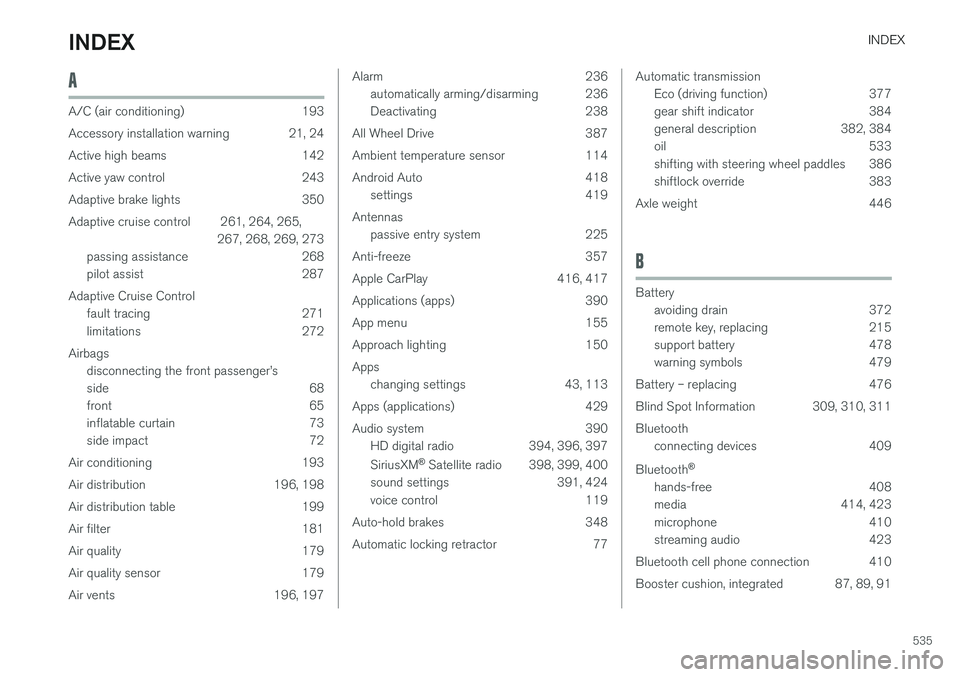

INDEX
535
A
A/C (air conditioning) 193
Accessory installation warning 21, 24
Active high beams 142
Active yaw control 243
Adaptive brake lights 350
Adaptive cruise control 261, 264, 265,267, 268, 269, 273
passing assistance 268
pilot assist 287
Adaptive Cruise Control fault tracing 271
limitations 272
Airbags disconnecting the front passenger

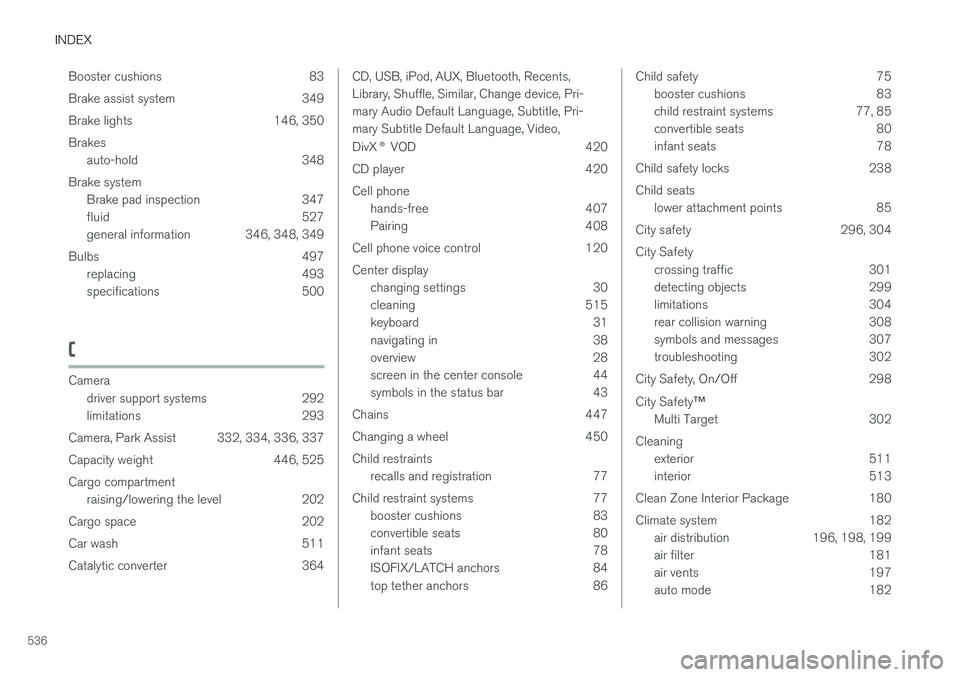

INDEX
536Booster cushions 83
Brake assist system 349
Brake lights 146, 350Brakes
auto-hold 348
Brake system Brake pad inspection 347
fluid 527
general information 346, 348, 349
Bulbs 497 replacing 493
specifications 500
C
Cameradriver support systems 292
limitations 293
Camera, Park Assist 332, 334, 336, 337
Capacity weight 446, 525Cargo compartment raising/lowering the level 202
Cargo space 202
Car wash 511
Catalytic converter 364
CD, USB, iPod, AUX, Bluetooth, Recents, Library, Shuffle, Similar, Change device, Pri-mary Audio Default Language, Subtitle, Pri-mary Subtitle Default Language, Video, DivX ® VOD 420
CD player 420 Cell phone hands-free 407
Pairing 408
Cell phone voice control 120 Center display changing settings 30
cleaning 515
keyboard 31
navigating in 38
overview 28
screen in the center console 44
symbols in the status bar 43
Chains 447
Changing a wheel 450Child restraints recalls and registration 77
Child restraint systems 77 booster cushions 83
convertible seats 80
infant seats 78
ISOFIX/LATCH anchors 84
top tether anchors 86Child safety 75
booster cushions 83
child restraint systems 77, 85
convertible seats 80
infant seats 78
Child safety locks 238 Child seats lower attachment points 85
City safety 296, 304City Safety crossing traffic 301
detecting objects 299
limitations 304
rear collision warning 308
symbols and messages 307
troubleshooting 302
City Safety, On/Off 298 City Safety ™
Multi Target 302
Cleaning exterior 511
interior 513
Clean Zone Interior Package 180
Climate system 182 air distribution 196, 198, 199
air filter 181
air vents 197
auto mode 182

INDEX
537
blower 185
center display controls 183
Electronic Climate Control 182
introduction 178, 182
passenger compartment filter 180
rear controls 182, 185
recirculation 189
refrigerant 527
service 475
setting the temperature 187
voice commands 122
Clock 115
Cold weather driving 357
Collision warning system 297
Compass in rearview mirror 136 calibrate 137
Connected service booking 472
Convertible seats 80
Coolant 528 refilling 509
Corrosion protection 516
Courtesy lighting 147
Crash event data 26
Crash mode 73, 74
Cross Traffic Alert 311, 312, 313, 315
Cruise control 254, 255, 256, 257, 258 adaptive 258, 261, 264, 265, 267, 268 , 269 , 271 , 272 , 273 , 280
Curb weight 446, 525 Curtain sun 108
D
Daytime running lights 138, 140 Defrosterrear window and mirrors 190
Detachable key blade 221, 235
Digital owner's manual 50, 51
Dimensions 523
Disconnecting the front passenger

INDEX
538Engine
overheating 356
Start/Stop 379, 381
starting 372
turning off 374
Engine compartment fuses 482
Engine compartment overview 504
Engine oil 531 checking 505, 506
Engine specifications 529
Environment 15Eyelet towing 357
Eyelets for anchoring loads 207
F
Federal Clean Air Act 468 Flat tires repairing with tire sealing system 459, 461 , 465
Floor mats placing correctly 372
Fluid specifications 527, 528, 533
Fog lights front 144
rear 145, 498
Front airbags 65 disconnecting passenger
