VOLVO S90 2020 Quick Guide

MAINTENANCE AND SERVICE
}}
* Option/accessory.559
Removing the plastic cover to replace bulbs The headlight bulbs can be replaced without the assistance of a workshop, but before abulb can be replaced, the plastic cover overthe headlight needs to be removed.
–Release the pins in the plastic cover's four clips by pressing them down with ascrewdriver or similar object and removethe covering.
NOTE
To bear in mind when refitting the cover- ing:
The pin in the clip must be pressedback completely before the clip is rein-stalled in the covering.
When the covering is reinstalled, thepin must be pressed in until the endsurface is level with the surface of theclip.
Related information
Replacing bulbs (p. 558)
Replacing the low beam headlight bulbs (p. 560)
Replacing the high beam headlight bulbs(p. 561)
Replacing daytime running lights/frontparking light bulbs (p. 562)
Replacing front turn signal bulbs(p. 563)
Bulb specifications (p. 566)
Location of exterior lights The vehicle's exterior lighting consists of sev- eral different bulbs. LED 18
bulbs must be
replaced by a workshop. An authorized Volvo workshop is recommended.
Front bulbs (vehicles with halogen headlights)
Low beams
High beams
Daytime running light/parking light
Turn signal
Front fog light/cornering illumination *
(LED)
18 LED (Light Emmitting Diode)

||
MAINTENANCE AND SERVICE
560
Rear bulbs
Fog light
Parking light (LED)
Turn signal19
Parking light (LED)
Brake light (LED)
Parking light (LED)
Backup light 19
Brake light
‒ central, high-mounted (LED)
Related information
Replacing bulbs (p. 558)
Bulb specifications (p. 566)
Lighting control and panel (p. 148)
Replacing the low beam headlight bulbs The low beam bulbs in the halogen head- lights can be changed without the help of aworkshop.
Before the bulbs can be replaced, the plastic covering over the headlight must be removed.
CAUTION
Never touch the bulb glass with your bare fingers. Grease and oils from your fingersvaporize in the heat and will leave adeposit on the reflector, which may dam-age it.
19
Contact a workshop for replacement ‒ an authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE
561
Left headlight.
1. Remove the low beam rubber cover fromthe headlight housing.
2. Remove the connector from the bulb.
3. Remove the bulb by pressing it slightly upward and then pulling it out.
4. Insert the new bulb in the socket. The bulb's guiding pin should point straight up.
5. Press the connector into place.
6. Put the rubber cover back in place.
Related information
Location of exterior lights (p. 559)
Removing the plastic cover to replace bulbs (p. 559)
Bulb specifications (p. 566)
Replacing the high beam headlight bulbs The high beam bulbs in the halogen head- lights can be changed without the help of aworkshop.
Before the bulbs can be replaced, the plastic covering over the headlight must be removed.
CAUTION
Never touch the bulb glass with your bare fingers. Grease and oils from your fingersvaporize in the heat and will leave adeposit on the reflector, which may dam-age it.
Left headlight.
1. Remove the high beam rubber cover from
the headlight housing. 2. Remove the bulb by turning the bulb
holder upward and then pulling it straight out.
3. Carefully pry the plastic sleeve by the con- nector's locking lug to release it.
4. Remove the connector from the bulb.
5. Replace the bulb.
6. Position the bulb in the socket and turn it downward.
7. Put the rubber cover back in place.
Related information
Location of exterior lights (p. 559)
Removing the plastic cover to replace bulbs (p. 559)
Bulb specifications (p. 566)

MAINTENANCE AND SERVICE
562
Replacing daytime running lights/ front parking light bulbs
The daytime running light/parking light bulbs in the halogen headlights can be changedwithout the help of a workshop.
Before the bulbs can be replaced, the plastic covering over the headlight must be removed.
NOTE
Daytime running lights/parking lights are easier to reach if the high beam headlightbulbs are removed. The high beam head-lights are mounted above and to the side ofthe daytime running lights/parking lights.Remove the high beam headlight bulb byturning the bulb holder upward and thenpulling it straight out.
CAUTION
Never touch the bulb glass with your bare fingers. Grease and oils from your fingersvaporize in the heat and will leave adeposit on the reflector, which may dam-age it.
Left headlight.
1. Remove the daytime running light/parking light rubber cover from the headlight housing.
2. Pull the daytime running light/parking light bulb holder straight out.
3. Remove the bulb by pulling it straight out.
4. Replace the bulb.
5. Position the bulb holder in the socket and push it into place.
6. If the high beam bulb holder has come loose, position it in the socket and turn downward.
7. Put the rubber cover back in place.
Related information
Location of exterior lights (p. 559)
Removing the plastic cover to replacebulbs (p. 559)
Bulb specifications (p. 566)
Replacing the high beam headlight bulbs(p. 561)

MAINTENANCE AND SERVICE
}}
563
Replacing front turn signal bulbsThe turn signal bulbs in the halogen head- lights can be changed without the help of aworkshop.
Before the bulbs can be replaced, the plastic covering over the headlight must be removed.
Left headlight.
1. Remove the turn signal rubber cover from the headlight housing.
2. Press the retaining catches together and pull the bulb holder straight out.
3. The bulb holder and bulb must be replaced as one unit.
4. Position the bulb holder in the socket and push it into place.
5. Put the rubber cover back in place.
Related information
Location of exterior lights (p. 559)
Removing the plastic cover to replace bulbs (p. 559)
Bulb specifications (p. 566)
Replacing the rear fog light bulb
The rear fog light bulb is located behind a panel on the inside of the trunk lid on thedriver's side.
NOTE
The rear fog light bulb should be replaced by a workshop – an authorized Volvoworkshop is recommended.
To replace the rear fog light bulb:
Rubber cover the trunk lid lock.
1. Remove the rubber cover over the trunk lid lock by moving it from side to side and pulling it straight off. It can be put backinto position by pressing it into place.

||
MAINTENANCE AND SERVICE
564
Buttons in the trunk lid.
2. Remove the buttons in the trunk lid byinserting a flat object (e.g. a kitchen knife or screwdriver) behind the short sides ofthe button console and prying it out. Theelectrical connector for the buttons doesnot need to be disconnected.
Trunk lid closing handle.
3. The closing handle on the inside of thetrunk lid must be removed on the side of the vehicle in which the fog light is moun-ted. Insert a flat object (kitchen knife,screwdriver, etc.) into the sides of the han-dle console to release the two catcheswhile prying out the handle. To put thehandle back into position, press hard untilthe catches click back into the lockedposition.
CAUTION
Both lock lugs of the closing handle must
be pressed in at the same time before the
handle can be folded out and removed.
Attaching clips on the panel.
4. Remove the three outermost clips on the panel on the inside of the trunk lid on the side in which the fog light is mounted.

MAINTENANCE AND SERVICE
}}
565

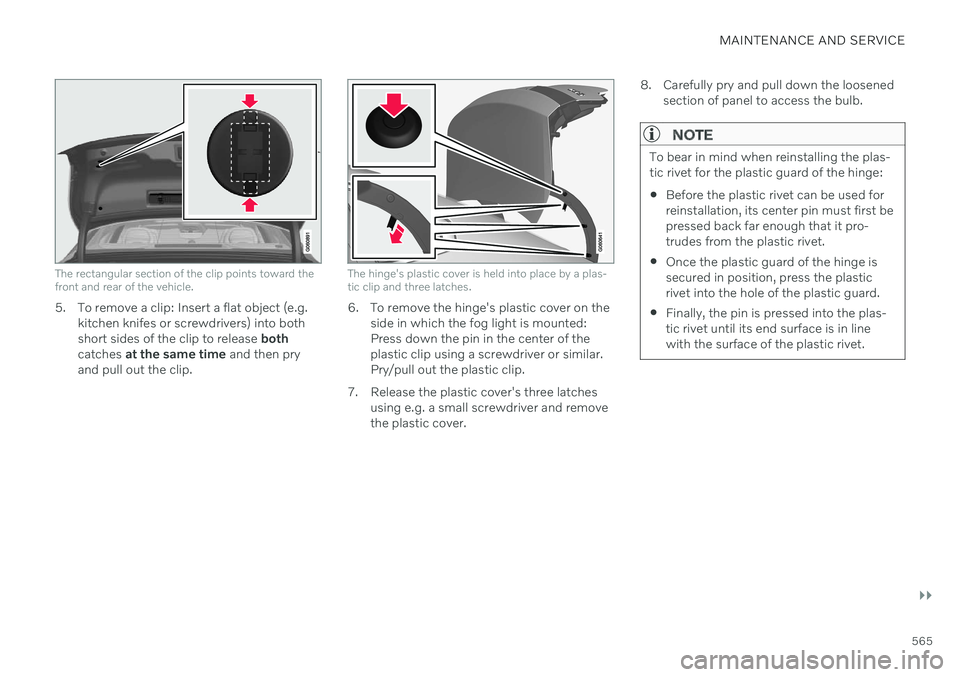

The rectangular section of the clip points toward the front and rear of the vehicle.
5. To remove a clip: Insert a flat object (e.g.kitchen knifes or screwdrivers) into both short sides of the clip to release both
catches at the same time and then pry
and pull out the clip.
The hinge's plastic cover is held into place by a plas- tic clip and three latches.
6. To remove the hinge's plastic cover on the side in which the fog light is mounted: Press down the pin in the center of theplastic clip using a screwdriver or similar.Pry/pull out the plastic clip.
7. Release the plastic cover's three latches using e.g. a small screwdriver and removethe plastic cover. 8. Carefully pry and pull down the loosened
section of panel to access the bulb.
NOTE
To bear in mind when reinstalling the plas- tic rivet for the plastic guard of the hinge:
Before the plastic rivet can be used forreinstallation, its center pin must first bepressed back far enough that it pro-trudes from the plastic rivet.
Once the plastic guard of the hinge issecured in position, press the plasticrivet into the hole of the plastic guard.
Finally, the pin is pressed into the plas-tic rivet until its end surface is in linewith the surface of the plastic rivet.

||
MAINTENANCE AND SERVICE
566
Left-side rear fog light
Left-side bulb housing.
1. Remove the bulb holder by turning it aquarter-turn counterclockwise and then pulling it out.
2. Remove the old bulb from the bulb holder by pressing it in and turning it counter-clockwise.
3. Insert the new bulb by pressing it in and turning it clockwise.
4. Wipe any dirt, grease or moisture from the bulb's glass.
5. Insert the bulb into the bulb holder and turn it a quarter-turn clockwise.
6. Put the panel, plastic cover over the hinge and other parts back into place in thereverse order.
Related information
Location of exterior lights (p. 559)
Bulb specifications (p. 566)
Bulb specifications
Specifications for replaceable light bulbs. If you are experiencing problems with any lights other than light bulbs, contact a work- shop 20
. If there is a problem with an LED 21
light, the entire lamp unit will normally need to be replaced.
Function WA
Type
Low beams 55 H11
High beams 65 H9
Front turn signal 24 PY24W PWY24W
Daytime running light/ parking light, front 21/5 W21/5W
Rear fog light 21 H21W LL
A Watt
Related information
Location of exterior lights (p. 559)
Replacing bulbs (p. 558)
20
An authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE
}}
567
Start battery
The vehicle has a single-pole electrical sys- tem that uses the chassis and engine mountas conductors. The start battery is used to start the electrical system and power the starter motor andother electrical equipment in the vehicle. The start battery should only be replaced by a workshop 22
.
The vehicle has a voltage-regulated alternating current generator. The start battery is a 12 V battery, dimen- sioned for the carbon dioxide-reducing func-tions Start/Stop and regenerative chargingand to support the function of the vehicle'svarious systems. The service life and performance of the start battery are affected by factors such as drivingstyle, driving conditions, climate, battery dis-charges, number of starts, etc. Never disconnect the start battery while the engine is running.
Make sure the cables to the start batteryare correctly connected and the clampsare securely tightened.
WARNING
Batteries generate hydrogen gas, which is flammable and explosive.
Do not connect the jumper cable toany part of the fuel system or to anymoving parts. Avoid touching hotmanifolds.
Battery fluid contains sulfuric acid. Donot allow battery fluid to contact eyes,skin, fabrics or painted surfaces.
If contact occurs, flush the affectedarea immediately with water. Obtainmedical help immediately if eyes areaffected.
Never expose the battery to open flameor electric spark. Do not smoke nearthe battery. Failure to follow theinstructions for jump starting can leadto injury.
Connection points
WARNING
California Proposition 65 Operating, servicing and maintaining a pas- senger vehicle can expose you to chemi-cals including engine exhaust, carbon mon-oxide, phthalates, and lead, which areknown to the State of California to causecancer and birth defects or other reproduc-tive harm. To minimize exposure, avoidbreathing exhaust, do not idle the engineexcept as necessary, service your vehicle ina well ventilated area and wear gloves orwash your hands frequently when servicingyour vehicle. For more information go towww.P65Warnings.ca.gov/passenger-vehicle.
Use the vehicle's connection points in the engine compartment to connect an externalstart battery or battery charger. The battery terminals on the car's start battery in the luggage/cargo area must not be used.
If the start battery is being charged, the sup-port battery will also be charged.
21 LED (Light Emitting Diode)
22 An authorized Volvo workshop is recommended.

||
MAINTENANCE AND SERVICE
568
Positive connection point
Negative connection point
CAUTION
Only a modern battery charger with con- trolled charge voltage should be used tocharge the starter battery and support bat-tery. The rapid charging function shouldnot be used as this could damage the bat-tery.
CAUTION
Failure to observe the following could cause the infotainment energy save modeto temporarily stop working and/or a mes-sage in the driver's display regarding thestate of charge of the starter battery maybe temporarily incorrect after an externalstarter battery or battery charger has beenconnected:
The negative battery terminal of thevehicle's starter battery must
never be
used to connect an external starterbattery or battery charger – only thevehicle's negative charging pointshould be used as a grounding point.
NOTE
If the starter battery becomes discharged too many times, it will shorten its servicelife. The service life of the starter battery is affected by several factors, such as drivingconditions and climate. The startingcapacity of the battery reduces graduallyover time. The battery must therefore berecharged if the vehicle is not used or along period of time or if it is only drivenshort distances. Severe cold further limitsthe starting capacity. To keep the starter battery in a good condi- tion, the vehicle should be driven at least15 minutes per week or the battery shouldbe connected to a battery charger withautomatic trickle charging. A starter battery that is always kept fully charged has the maximum service life.
