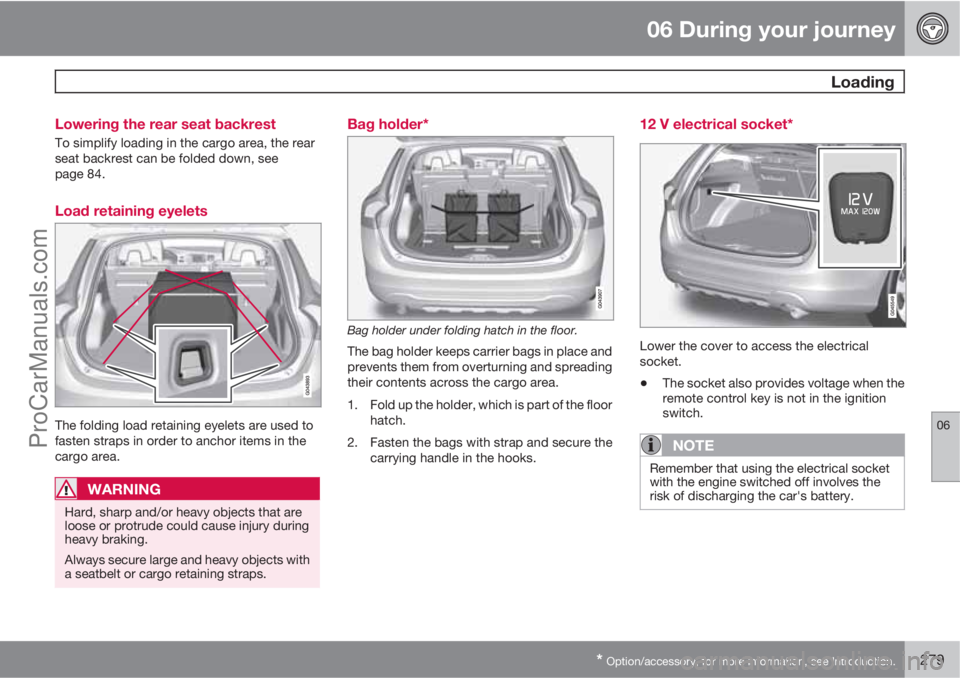

06 During your journey
Loading
06
* Option/accessory, for more information, see Introduction.279 Lowering the rear seat backrest
To simplify loading in the cargo area, the rear
seat backrest can be folded down, see
page 84.
Load retaining eyelets
The folding load retaining eyelets are used to
fasten straps in order to anchor items in the
cargo area.
WARNING
Hard, sharp and/or heavy objects that are
loose or protrude could cause injury during
heavy braking.
Always secure large and heavy objects with
a seatbelt or cargo retaining straps.
Bag holder*
Bag holder under folding hatch in the floor.
The bag holder keeps carrier bags in place and
prevents them from overturning and spreading
their contents across the cargo area.
1. Fold up the holder, which is part of the floor
hatch.
2. Fasten the bags with strap and secure the
carrying handle in the hooks.
12 V electrical socket*
Lower the cover to access the electrical
socket.
•The socket also provides voltage when the
remote control key is not in the ignition
switch.
NOTE
Remember that using the electrical socket
with the engine switched off involves the
risk of discharging the car's battery.
ProCarManuals.com

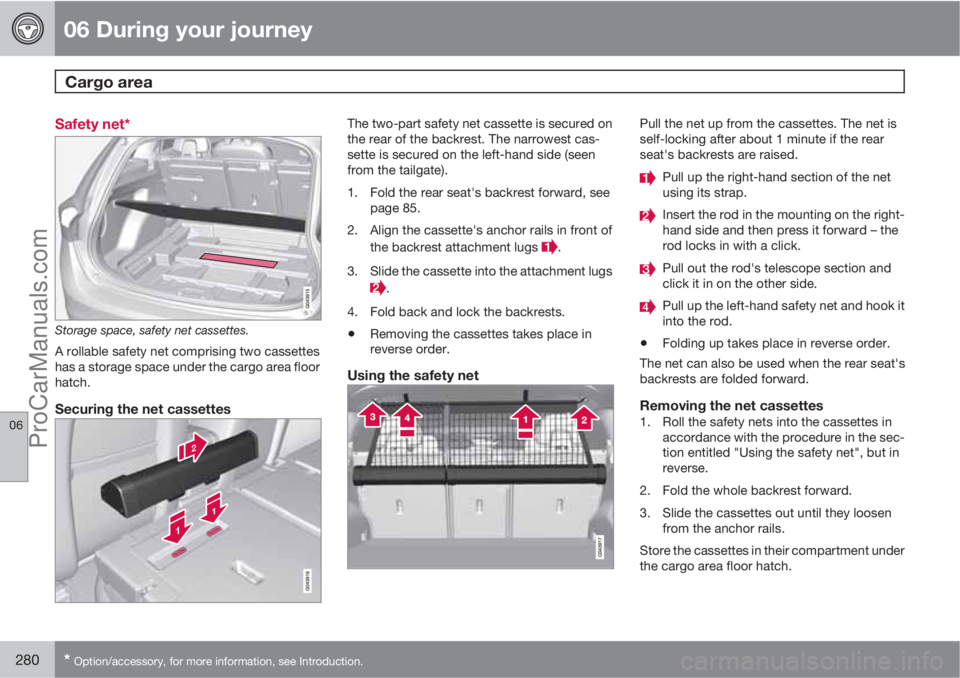

06 During your journey
Cargo area
06
280* Option/accessory, for more information, see Introduction.
Safety net*
Storage space, safety net cassettes.
A rollable safety net comprising two cassettes
has a storage space under the cargo area floor
hatch.
Securing the net cassettes
The two-part safety net cassette is secured on
the rear of the backrest. The narrowest cas-
sette is secured on the left-hand side (seen
from the tailgate).
1. Fold the rear seat's backrest forward, see
page 85.
2. Align the cassette's anchor rails in front of
the backrest attachment lugs
.
3. Slide the cassette into the attachment lugs
.
4. Fold back and lock the backrests.
•Removing the cassettes takes place in
reverse order.
Using the safety net
Pull the net up from the cassettes. The net is
self-locking after about 1 minute if the rear
seat's backrests are raised.
Pull up the right-hand section of the net
using its strap.
Insert the rod in the mounting on the right-
hand side and then press it forward – the
rod locks in with a click.
Pull out the rod's telescope section and
click it in on the other side.
Pull up the left-hand safety net and hook it
into the rod.
•Folding up takes place in reverse order.
The net can also be used when the rear seat's
backrests are folded forward.
Removing the net cassettes1. Roll the safety nets into the cassettes in
accordance with the procedure in the sec-
tion entitled "Using the safety net", but in
reverse.
2. Fold the whole backrest forward.
3. Slide the cassettes out until they loosen
from the anchor rails.
Store the cassettes in their compartment under
the cargo area floor hatch.
ProCarManuals.com

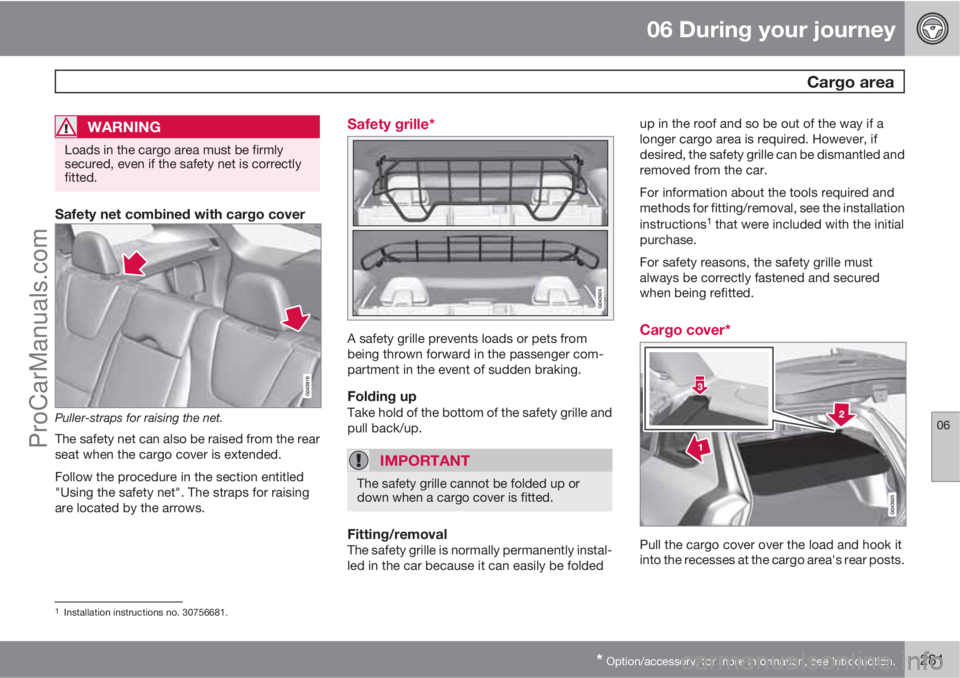

06 During your journey
Cargo area
06
* Option/accessory, for more information, see Introduction.281
WARNING
Loads in the cargo area must be firmly
secured, even if the safety net is correctly
fitted.
Safety net combined with cargo cover
Puller-straps for raising the net.
The safety net can also be raised from the rear
seat when the cargo cover is extended.
Follow the procedure in the section entitled
"Using the safety net". The straps for raising
are located by the arrows.
Safety grille*
A safety grille prevents loads or pets from
being thrown forward in the passenger com-
partment in the event of sudden braking.
Folding upTake hold of the bottom of the safety grille and
pull back/up.
IMPORTANT
The safety grille cannot be folded up or
down when a cargo cover is fitted.
Fitting/removalThe safety grille is normally permanently instal-
led in the car because it can easily be foldedup in the roof and so be out of the way if a
longer cargo area is required. However, if
desired, the safety grille can be dismantled and
removed from the car.
For information about the tools required and
methods for fitting/removal, see the installation
instructions
1 that were included with the initial
purchase.
For safety reasons, the safety grille must
always be correctly fastened and secured
when being refitted.
Cargo cover*
Pull the cargo cover over the load and hook it
into the recesses at the cargo area's rear posts.
1Installation instructions no. 30756681.
ProCarManuals.com

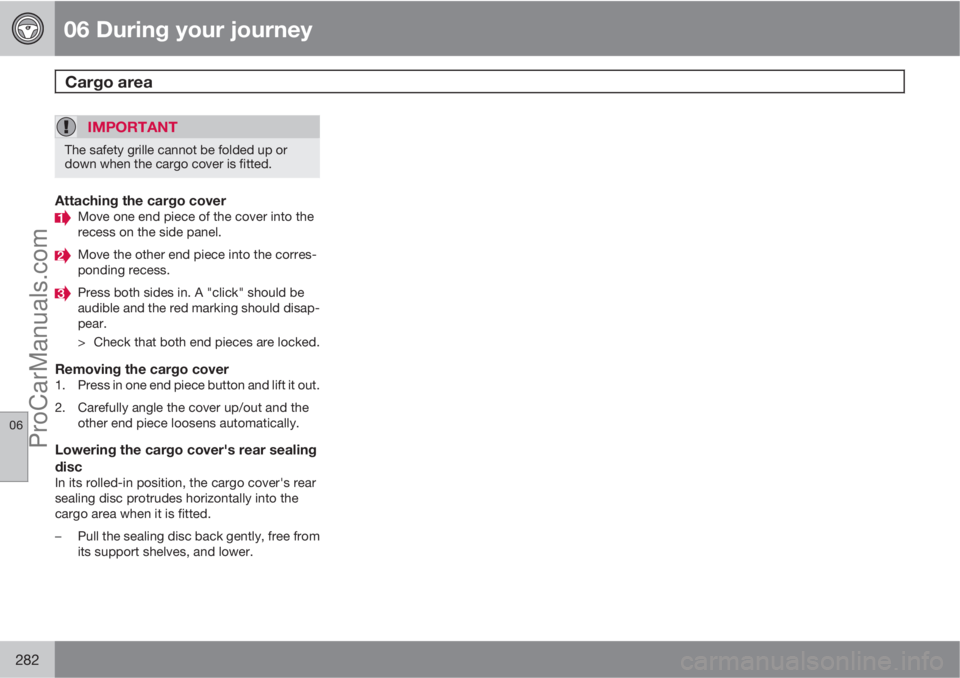

06 During your journey
Cargo area
06
282
IMPORTANT
The safety grille cannot be folded up or
down when the cargo cover is fitted.
Attaching the cargo coverMove one end piece of the cover into the
recess on the side panel.
Move the other end piece into the corres-
ponding recess.
Press both sides in. A "click" should be
audible and the red marking should disap-
pear.
> Check that both end pieces are locked.
Removing the cargo cover1. Press in one end piece button and lift it out.
2. Carefully angle the cover up/out and the
other end piece loosens automatically.
Lowering the cargo cover's rear sealing
disc
In its rolled-in position, the cargo cover's rear
sealing disc protrudes horizontally into the
cargo area when it is fitted.
–Pull the sealing disc back gently, free from
its support shelves, and lower.
ProCarManuals.com

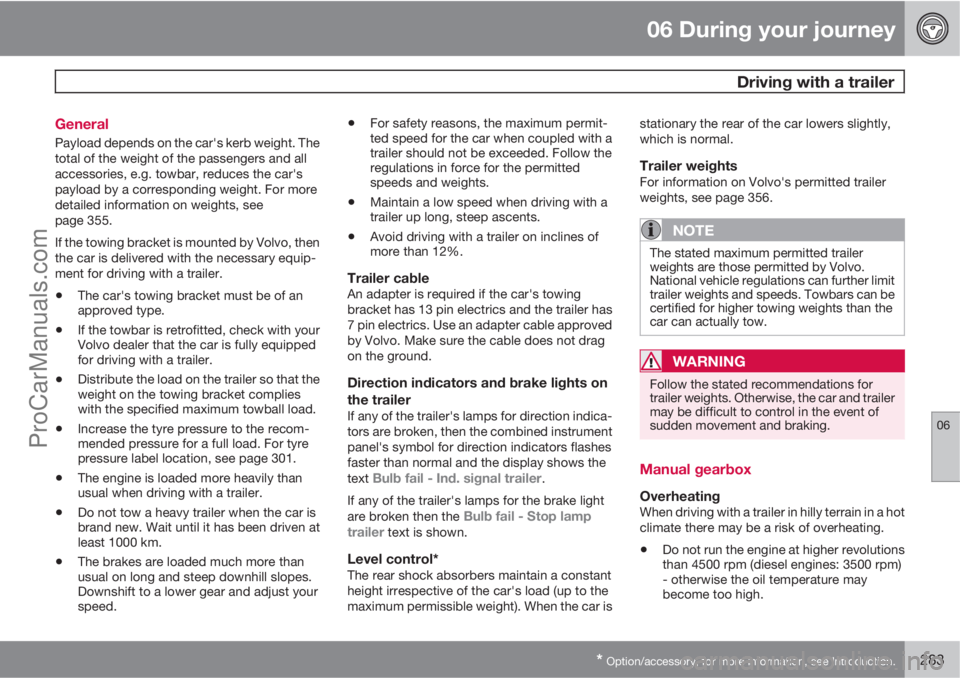

06 During your journey
Driving with a trailer
06
* Option/accessory, for more information, see Introduction.283 General
Payload depends on the car's kerb weight. The
total of the weight of the passengers and all
accessories, e.g. towbar, reduces the car's
payload by a corresponding weight. For more
detailed information on weights, see
page 355.
If the towing bracket is mounted by Volvo, then
the car is delivered with the necessary equip-
ment for driving with a trailer.
•The car's towing bracket must be of an
approved type.
•If the towbar is retrofitted, check with your
Volvo dealer that the car is fully equipped
for driving with a trailer.
•Distribute the load on the trailer so that the
weight on the towing bracket complies
with the specified maximum towball load.
•Increase the tyre pressure to the recom-
mended pressure for a full load. For tyre
pressure label location, see page 301.
•The engine is loaded more heavily than
usual when driving with a trailer.
•Do not tow a heavy trailer when the car is
brand new. Wait until it has been driven at
least 1000 km.
•The brakes are loaded much more than
usual on long and steep downhill slopes.
Downshift to a lower gear and adjust your
speed.
•For safety reasons, the maximum permit-
ted speed for the car when coupled with a
trailer should not be exceeded. Follow the
regulations in force for the permitted
speeds and weights.
•Maintain a low speed when driving with a
trailer up long, steep ascents.
•Avoid driving with a trailer on inclines of
more than 12%.
Trailer cableAn adapter is required if the car's towing
bracket has 13 pin electrics and the trailer has
7 pin electrics. Use an adapter cable approved
by Volvo. Make sure the cable does not drag
on the ground.
Direction indicators and brake lights on
the trailer
If any of the trailer's lamps for direction indica-
tors are broken, then the combined instrument
panel's symbol for direction indicators flashes
faster than normal and the display shows the
text
Bulb fail - Ind. signal trailer.
If any of the trailer's lamps for the brake light
are broken then the
Bulb fail - Stop lamp
trailer text is shown.
Level control*The rear shock absorbers maintain a constant
height irrespective of the car's load (up to the
maximum permissible weight). When the car isstationary the rear of the car lowers slightly,
which is normal.
Trailer weightsFor information on Volvo's permitted trailer
weights, see page 356.
NOTE
The stated maximum permitted trailer
weights are those permitted by Volvo.
National vehicle regulations can further limit
trailer weights and speeds. Towbars can be
certified for higher towing weights than the
car can actually tow.
WARNING
Follow the stated recommendations for
trailer weights. Otherwise, the car and trailer
may be difficult to control in the event of
sudden movement and braking.
Manual gearbox
OverheatingWhen driving with a trailer in hilly terrain in a hot
climate there may be a risk of overheating.
•Do not run the engine at higher revolutions
than 4500 rpm (diesel engines: 3500 rpm)
- otherwise the oil temperature may
become too high.
ProCarManuals.com

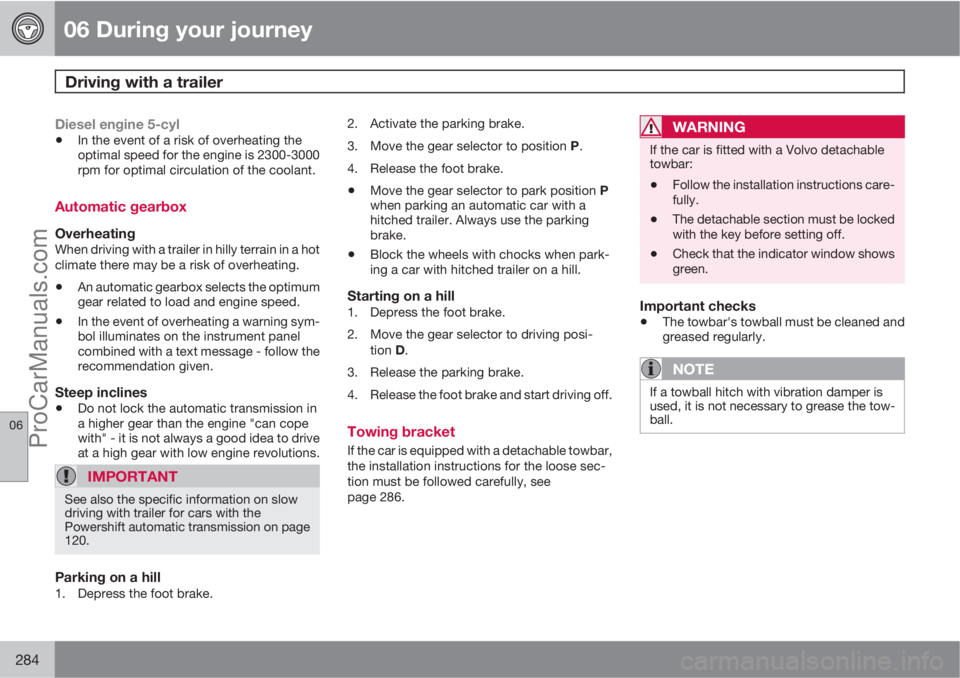

06 During your journey
Driving with a trailer
06
284
Diesel engine 5-cyl
•In the event of a risk of overheating the
optimal speed for the engine is 2300-3000
rpm for optimal circulation of the coolant.
Automatic gearbox
OverheatingWhen driving with a trailer in hilly terrain in a hot
climate there may be a risk of overheating.
•An automatic gearbox selects the optimum
gear related to load and engine speed.
•In the event of overheating a warning sym-
bol illuminates on the instrument panel
combined with a text message - follow the
recommendation given.
Steep inclines
•Do not lock the automatic transmission in
a higher gear than the engine "can cope
with" - it is not always a good idea to drive
at a high gear with low engine revolutions.
IMPORTANT
See also the specific information on slow
driving with trailer for cars with the
Powershift automatic transmission on page
120.
Parking on a hill1. Depress the foot brake.2. Activate the parking brake.
3.
Move the gear selector to position P.
4. Release the foot brake.
•Move the gear selector to park position P
when parking an automatic car with a
hitched trailer. Always use the parking
brake.
•Block the wheels with chocks when park-
ing a car with hitched trailer on a hill.
Starting on a hill1. Depress the foot brake.
2. Move the gear selector to driving posi-
tion D.
3. Release the parking brake.
4. Release the foot brake and start driving off.
Towing bracket
If the car is equipped with a detachable towbar,
the installation instructions for the loose sec-
tion must be followed carefully, see
page 286.
WARNING
If the car is fitted with a Volvo detachable
towbar:
•Follow the installation instructions care-
fully.
•The detachable section must be locked
with the key before setting off.
•Check that the indicator window shows
green.
Important checks
•The towbar's towball must be cleaned and
greased regularly.
NOTE
If a towball hitch with vibration damper is
used, it is not necessary to grease the tow-
ball.
ProCarManuals.com

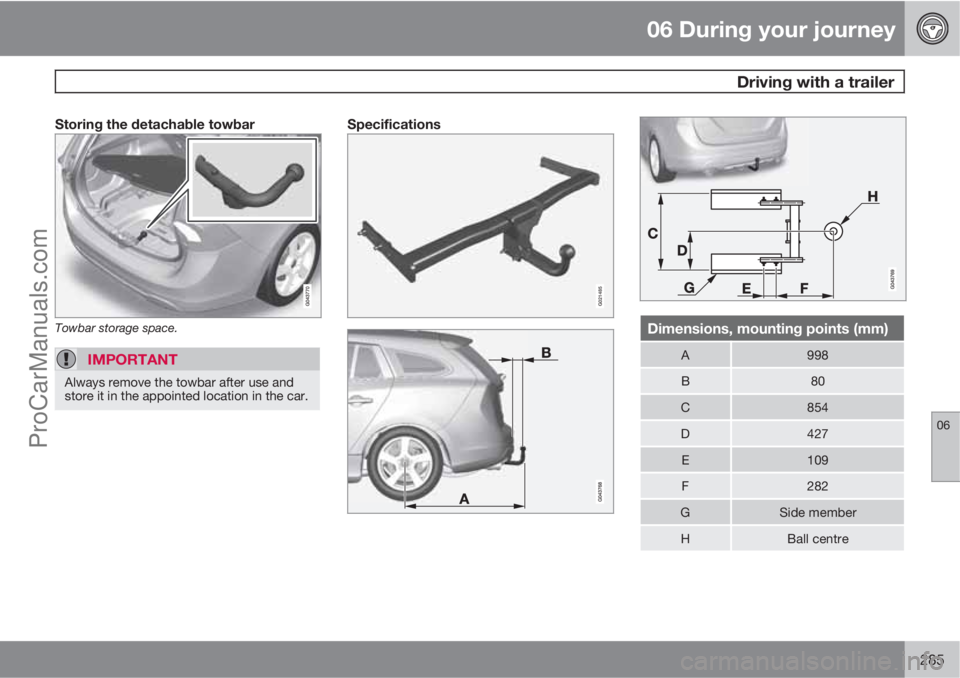

06 During your journey
Driving with a trailer
06
285
Storing the detachable towbar
Towbar storage space.
IMPORTANT
Always remove the towbar after use and
store it in the appointed location in the car.
Specifications
G021485
Dimensions, mounting points (mm)
A998
B80
C854
D427
E109
F282
GSide member
HBall centre
ProCarManuals.com

06 During your journey
Driving with a trailer
06
286

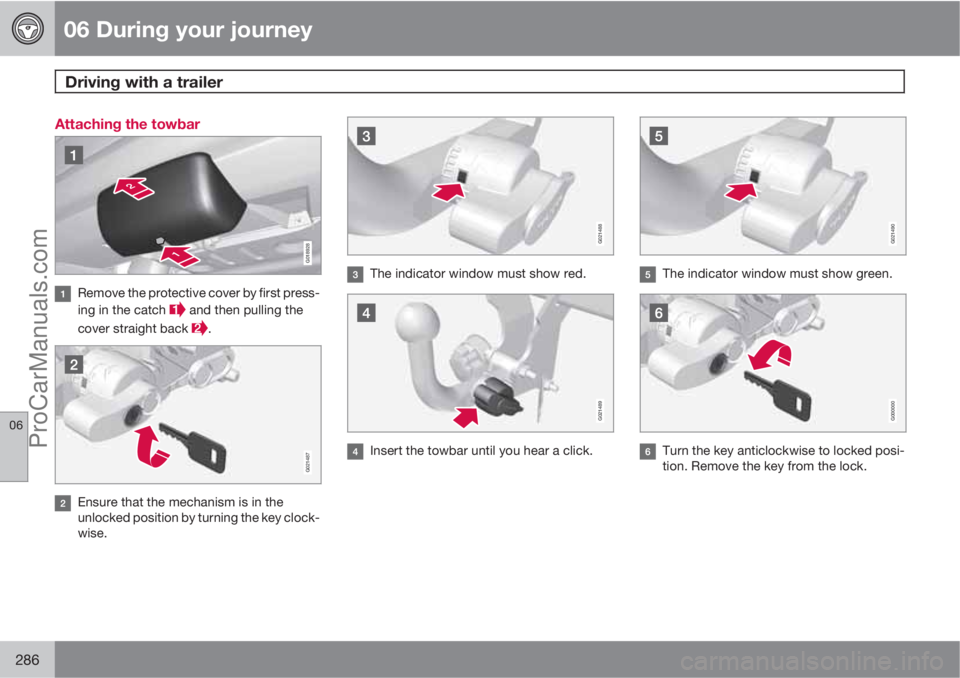

Attaching the towbar
G018928
Remove the protective cover by first press-
ing in the catch
and then pulling the
cover straight back
.
G021487
Ensure that the mechanism is in the
unlocked position by turning the key clock-
wise.
G021488
The indicator window must show red.
G021489
Insert the towbar until you hear a click.
G021490
The indicator window must show green.
G000000
Turn the key anticlockwise to locked posi-
tion. Remove the key from the lock.
ProCarManuals.com

06 During your journey
Driving with a trailer
06
287
G021494

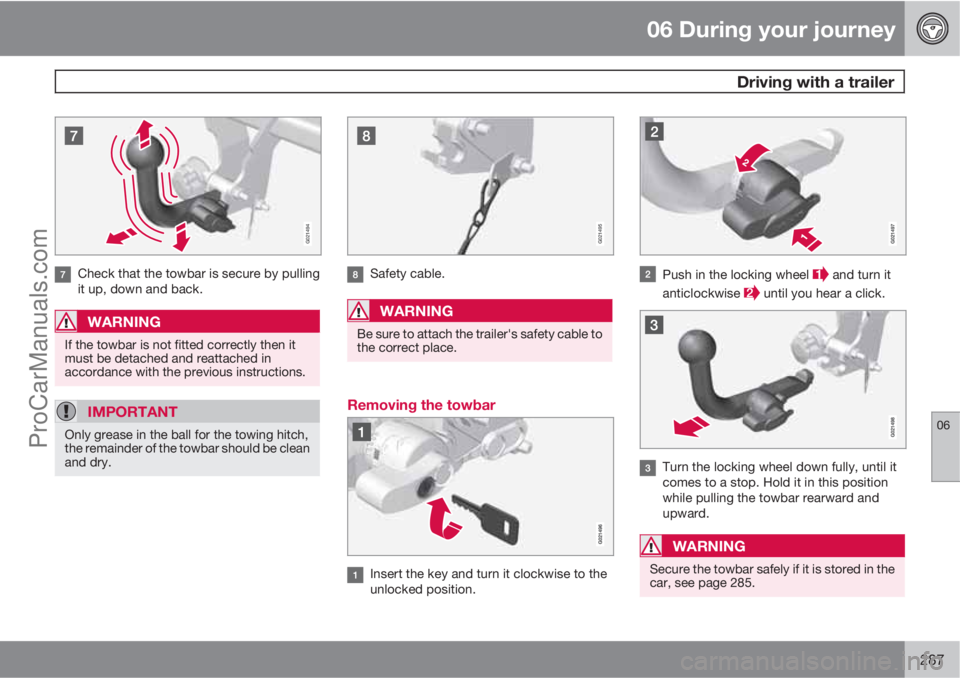

Check that the towbar is secure by pulling
it up, down and back.
WARNING
If the towbar is not fitted correctly then it
must be detached and reattached in
accordance with the previous instructions.
IMPORTANT
Only grease in the ball for the towing hitch,
the remainder of the towbar should be clean
and dry.
G021495
Safety cable.
WARNING
Be sure to attach the trailer's safety cable to
the correct place.
Removing the towbar
Insert the key and turn it clockwise to the
unlocked position.
Push in the locking wheel and turn it
anticlockwise
until you hear a click.
Turn the locking wheel down fully, until it
comes to a stop. Hold it in this position
while pulling the towbar rearward and
upward.
WARNING
Secure the towbar safely if it is stored in the
car, see page 285.
ProCarManuals.com

06 During your journey
Driving with a trailer
06
288* Option/accessory, for more information, see Introduction.
G018929
Push the protective cover until it snaps
tight.
Trailer Stability Assist - TSA*
The TSA system (Trailer Stability Assist) serves
to stabilise the car and trailer combination if it
begins to snake.
The TSA function is part of the DSTC system
(Dynamic Stability and Traction Control), see
page 168.
FunctionThe snaking phenomenon can occur with any
car/trailer combination. Normally, snaking
occurs at extremely high speeds. But, there is
a risk of it occurring at lower speeds
(70-90 km/h) if the trailer is overloaded or the
load is improperly distributed, e.g. too far back.
In order for snaking to occur, there must be a
triggering factor, e.g.:
•Car with trailer subjected to a sudden and
powerful side wind.
•Car with trailer drives on an uneven road
surface or in a pothole.
•Sweeping steering wheel movements.
OperationIf snaking has started, it could be difficult or
even impossible to suppress. This makes the
car/trailer combination difficult to control and
there is a risk that you could, for example, end
up in the wrong lane or leave the carriageway.
TSA system continually monitors car move-
ments, particularly lateral movements. If snak-
ing is detected, the front wheels are individually
braked. This serves to stabilise the car/trailer
combination. This is often enough to help the
driver regain control of the car.
If snaking is not eliminated the first time the
TSA system comes into action, the car/trailer
combination is braked with all wheels and
engine power is reduced. Once snaking has
been gradually suppressed and the car/trailer
combination is once again stable, the TSA sys-
tem stops regulating and the driver once again
has full control of the car.
MiscellaneousThe TSA system can engage within the speed
interval 60 to 160 km/h.
NOTE
TSA function is switched off if the driver
selects Sport mode, see page 168.
TSA may fail to engage if the driver uses severe
steering wheel movements to try to rectify the
snaking because in such a situation the TSA
system cannot determine whether it is the
trailer or the driver that is causing the snaking.
The DSTC symbol in the combined
instrument panel flashes when the
TSA is working.
ProCarManuals.com
