VOLVO V60 2012 Owners Manual

08 Maintenance and service
Fuses
08

* Option/accessory, for more information, see Introduction.339

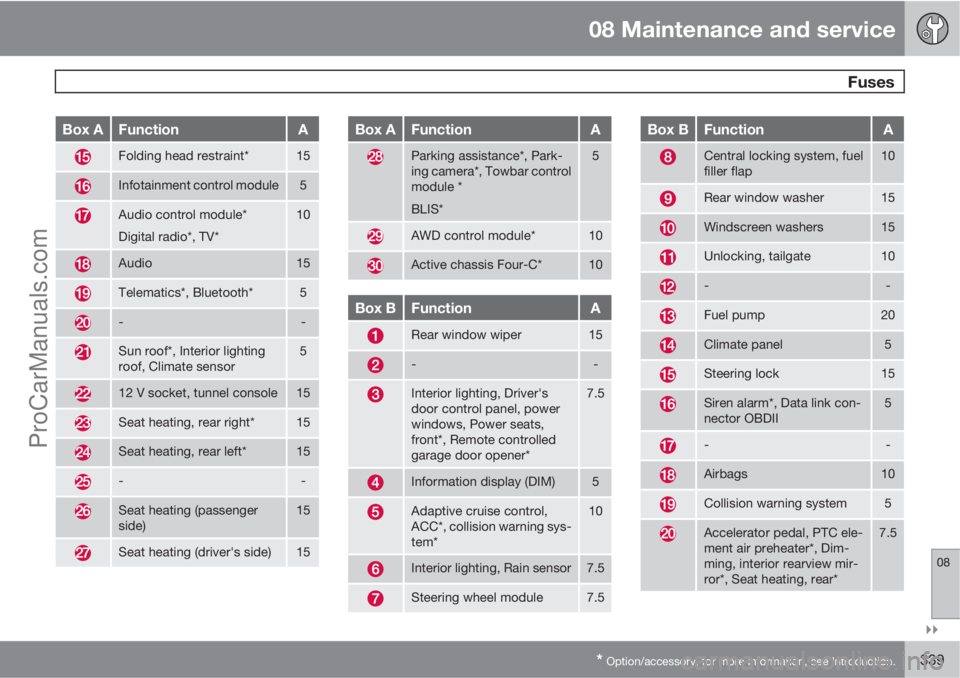

Box AFunctionA
Folding head restraint*15
Infotainment control module5
Audio control module*
Digital radio*, TV*10
Audio15
Telematics*, Bluetooth*5
--
Sun roof*, Interior lighting
roof, Climate sensor5
12 V socket, tunnel console15
Seat heating, rear right*15
Seat heating, rear left*15
--
Seat heating (passenger
side)15
Seat heating (driver's side)15
Box AFunctionA
Parking assistance*, Park-
ing camera*, Towbar control
module *
BLIS*5
AWD control module*10
Active chassis Four-C*10
Box BFunctionA
Rear window wiper15
--
Interior lighting, Driver's
door control panel, power
windows, Power seats,
front*, Remote controlled
garage door opener*7.5
Information display (DIM)5
Adaptive cruise control,
ACC*, collision warning sys-
tem*10
Interior lighting, Rain sensor7.5
Steering wheel module7.5
Box BFunctionA
Central locking system, fuel
filler flap10
Rear window washer15
Windscreen washers15
Unlocking, tailgate10
--
Fuel pump20
Climate panel5
Steering lock15
Siren alarm*, Data link con-
nector OBDII5
--
Airbags10
Collision warning system5
Accelerator pedal, PTC ele-
ment air preheater*, Dim-
ming, interior rearview mir-
ror*, Seat heating, rear*7.5
ProCarManuals.com

08 Maintenance and service
Fuses
08
340* Option/accessory, for more information, see Introduction.

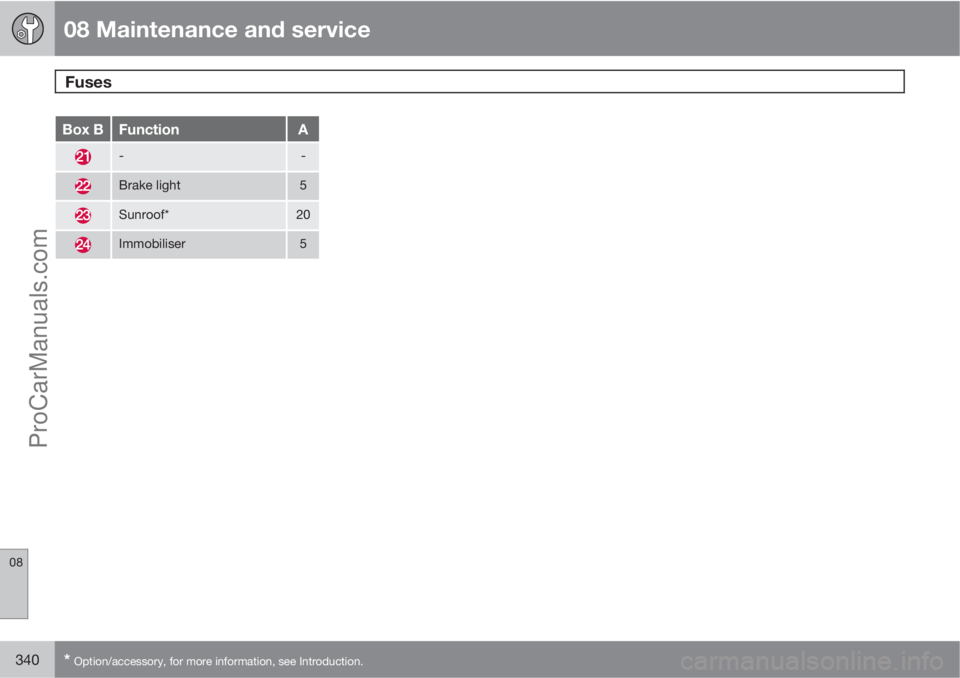

Box BFunctionA
--
Brake light5
Sunroof*20
Immobiliser5
ProCarManuals.com

08 Maintenance and service
Fuses
08

* Option/accessory, for more information, see Introduction.341 Cargo area

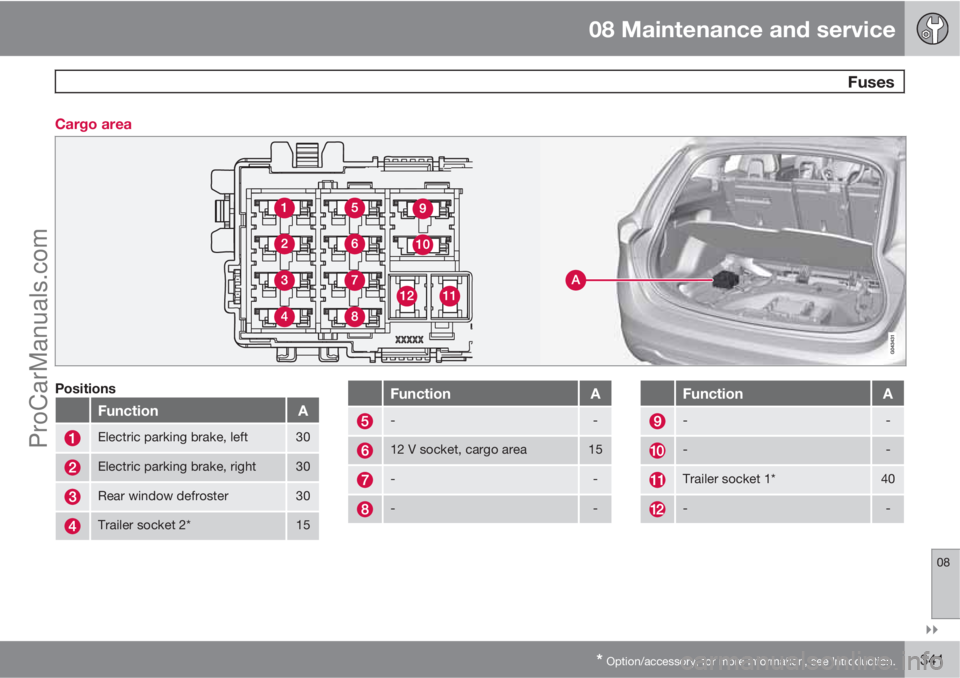

Positions
FunctionA
Electric parking brake, left30
Electric parking brake, right30
Rear window defroster30
Trailer socket 2*15
FunctionA
--
12 V socket, cargo area15
--
--
FunctionA
--
--
Trailer socket 1*40
--
ProCarManuals.com

08 Maintenance and service
Fuses
08
342* Option/accessory, for more information, see Introduction.

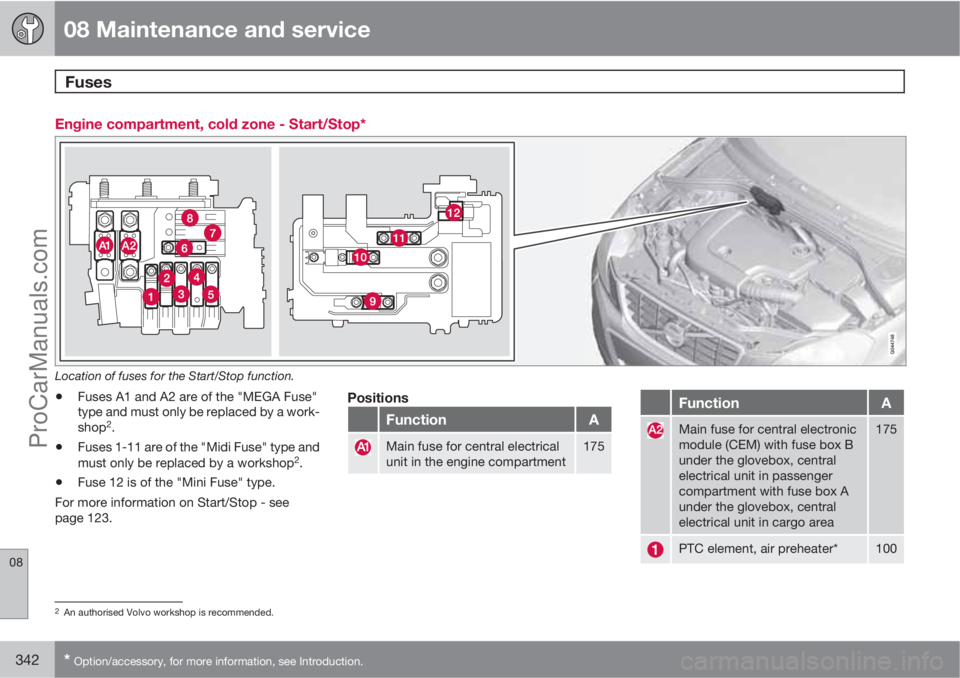

Engine compartment, cold zone - Start/Stop*
Location of fuses for the Start/Stop function.
•Fuses A1 and A2 are of the "MEGA Fuse"
type and must only be replaced by a work-
shop
2.
•Fuses 1-11 are of the "Midi Fuse" type and
must only be replaced by a workshop2.
•Fuse 12 is of the "Mini Fuse" type.
For more information on Start/Stop - see
page 123.
Positions
FunctionA
Main fuse for central electrical
unit in the engine compartment175
FunctionA
Main fuse for central electronic
module (CEM) with fuse box B
under the glovebox, central
electrical unit in passenger
compartment with fuse box A
under the glovebox, central
electrical unit in cargo area175
PTC element, air preheater*100
2An authorised Volvo workshop is recommended.
ProCarManuals.com

08 Maintenance and service
Fuses
08
343

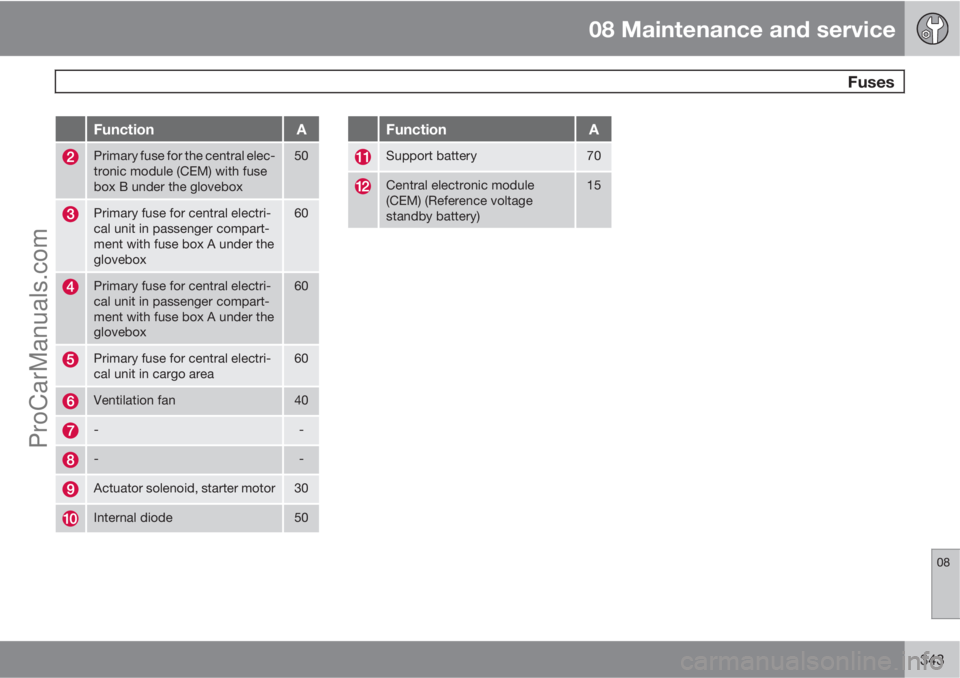

FunctionA
Primary fuse for the central elec-
tronic module (CEM) with fuse
box B under the glovebox50
Primary fuse for central electri-
cal unit in passenger compart-
ment with fuse box A under the
glovebox60
Primary fuse for central electri-
cal unit in passenger compart-
ment with fuse box A under the
glovebox60
Primary fuse for central electri-
cal unit in cargo area60
Ventilation fan40
--
--
Actuator solenoid, starter motor30
Internal diode50
FunctionA
Support battery70
Central electronic module
(CEM) (Reference voltage
standby battery)15
ProCarManuals.com

08 Maintenance and service
Car care
08
344

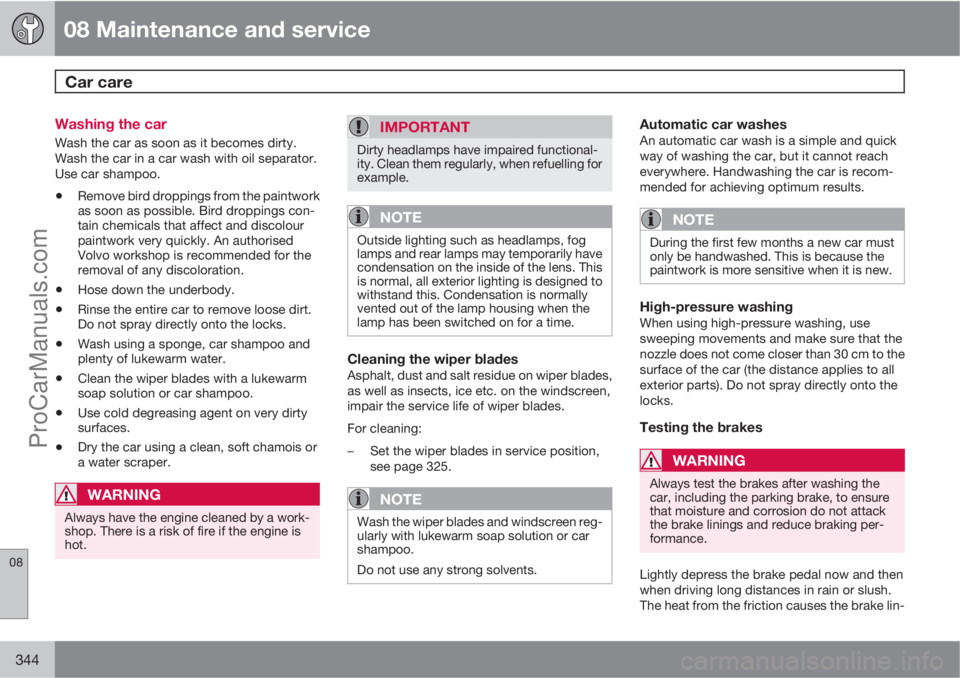

Washing the car
Wash the car as soon as it becomes dirty.
Wash the car in a car wash with oil separator.
Use car shampoo.
•Remove bird droppings from the paintwork
as soon as possible. Bird droppings con-
tain chemicals that affect and discolour
paintwork very quickly. An authorised
Volvo workshop is recommended for the
removal of any discoloration.
•Hose down the underbody.
•Rinse the entire car to remove loose dirt.
Do not spray directly onto the locks.
•Wash using a sponge, car shampoo and
plenty of lukewarm water.
•Clean the wiper blades with a lukewarm
soap solution or car shampoo.
•Use cold degreasing agent on very dirty
surfaces.
•Dry the car using a clean, soft chamois or
a water scraper.
WARNING
Always have the engine cleaned by a work-
shop. There is a risk of fire if the engine is
hot.
IMPORTANT
Dirty headlamps have impaired functional-
ity. Clean them regularly, when refuelling for
example.
NOTE
Outside lighting such as headlamps, fog
lamps and rear lamps may temporarily have
condensation on the inside of the lens. This
is normal, all exterior lighting is designed to
withstand this. Condensation is normally
vented out of the lamp housing when the
lamp has been switched on for a time.
Cleaning the wiper bladesAsphalt, dust and salt residue on wiper blades,
as well as insects, ice etc. on the windscreen,
impair the service life of wiper blades.
For cleaning:
–Set the wiper blades in service position,
see page 325.
NOTE
Wash the wiper blades and windscreen reg-
ularly with lukewarm soap solution or car
shampoo.
Do not use any strong solvents.
Automatic car washesAn automatic car wash is a simple and quick
way of washing the car, but it cannot reach
everywhere. Handwashing the car is recom-
mended for achieving optimum results.
NOTE
During the first few months a new car must
only be handwashed. This is because the
paintwork is more sensitive when it is new.
High-pressure washingWhen using high-pressure washing, use
sweeping movements and make sure that the
nozzle does not come closer than 30 cm to the
surface of the car (the distance applies to all
exterior parts). Do not spray directly onto the
locks.
Testing the brakes
WARNING
Always test the brakes after washing the
car, including the parking brake, to ensure
that moisture and corrosion do not attack
the brake linings and reduce braking per-
formance.
Lightly depress the brake pedal now and then
when driving long distances in rain or slush.
The heat from the friction causes the brake lin-
ProCarManuals.com

08 Maintenance and service
Car care
08
* Option/accessory, for more information, see Introduction.345
ings to warm up and dry. Do the same thing
after starting in very damp or cold weather.
Exterior plastic, rubber and trim
components
A special cleaning agent available from Volvo
dealers is recommended for the cleaning and
care of coloured plastic parts, rubber and trim
components, such as glossy trim mouldings.
When using such a cleaning agent the instruc-
tions must be followed carefully.
IMPORTANT
Avoid waxing and polishing on plastic and
rubber.
When using degreasant on plastic and rub-
ber, only rub with light pressure if it is nec-
essary. Use a soft washing sponge.
Polishing glossy trim mouldings could wear
away or damage the glossy surface layer.
Polishing agent that contains abrasive must
not be used.
RimsOnly use rim cleaning agent recommended by
Volvo.
Strong rim cleaning agents can damage the
surface and cause stains on chrome-plated
aluminium rims.
Polishing and waxing
Polish and wax the car if the paintwork is dull
or to give the paintwork extra protection.
The car does not need to be polished until it is
at least one year old. However, the car can be
waxed during this time. Do not polish or wax
the car in direct sunlight.
Wash and dry the car thoroughly before you
begin polishing or waxing. Clean off asphalt
and tar stains using tar remover or white spirit.
More stubborn stains can be removed using
fine rubbing paste designed for car paintwork.
Polish first with a polish and then wax with liq-
uid or solid wax. Follow the instructions on the
packaging carefully. Many preparations con-
tain both polish and wax.
IMPORTANT
Only paint treatment recommended by
Volvo should be used. Other treatment such
as preserving, sealing, protection, lustre
sealing or similar could damage the paint-
work. Paintwork damage caused by such
treatments is not covered by Volvo war-
ranty.
Water-repellent coating*
Never use products such as car wax,
degreaser or similar on glass surfa-
ces as this could ruin their water-repellent
properties.
Take care when cleaning so as not to damage
the glass surface.
To avoid damaging glass surfaces when
removing ice – only use plastic ice scrapers.
There is natural wear of the water-repellent
coating.
Treatment with a special finishing agent avail-
able from Volvo dealers is recommended in
order to maintain the water-repellent proper-
ties. This should be used first after three years
and then each year.
Rustproofing – inspection and
maintenance
The car received a thorough and complete
rustproofing at the factory. Parts of the body
are made of galvanised sheet metal. The
underbody is protected by a wear-resistant
anti-corrosion compound. A thin, penetrating
rustproofing fluid was sprayed into the
exposed members, cavities, closed sections
and side doors.
ProCarManuals.com

08 Maintenance and service
Car care
08
346
Under normal conditions the rustproofing does
not require treatment for approximately 12
years. After this period, it should be treated at
three-year intervals. Volvo recommends that
you engage an authorised Volvo workshop for
assistance if the car needs further treatment.
Dirt and road salt can lead to corrosion so it is
important to keep the car clean. The car's rust-
proofing needs to be checked regularly and
touched-up if necessary in order for it to be
maintained.

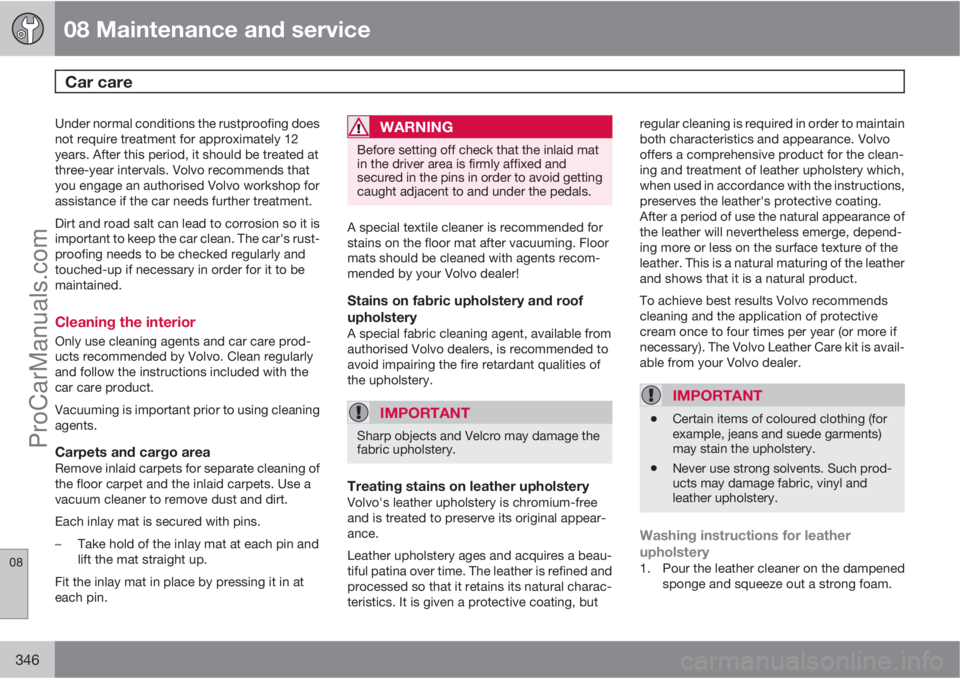

Cleaning the interior
Only use cleaning agents and car care prod-
ucts recommended by Volvo. Clean regularly
and follow the instructions included with the
car care product.
Vacuuming is important prior to using cleaning
agents.
Carpets and cargo areaRemove inlaid carpets for separate cleaning of
the floor carpet and the inlaid carpets. Use a
vacuum cleaner to remove dust and dirt.
Each inlay mat is secured with pins.
–Take hold of the inlay mat at each pin and
lift the mat straight up.
Fit the inlay mat in place by pressing it in at
each pin.
WARNING
Before setting off check that the inlaid mat
in the driver area is firmly affixed and
secured in the pins in order to avoid getting
caught adjacent to and under the pedals.
A special textile cleaner is recommended for
stains on the floor mat after vacuuming. Floor
mats should be cleaned with agents recom-
mended by your Volvo dealer!
Stains on fabric upholstery and roof
upholstery
A special fabric cleaning agent, available from
authorised Volvo dealers, is recommended to
avoid impairing the fire retardant qualities of
the upholstery.
IMPORTANT
Sharp objects and Velcro may damage the
fabric upholstery.
Treating stains on leather upholsteryVolvo's leather upholstery is chromium-free
and is treated to preserve its original appear-
ance.
Leather upholstery ages and acquires a beau-
tiful patina over time. The leather is refined and
processed so that it retains its natural charac-
teristics. It is given a protective coating, butregular cleaning is required in order to maintain
both characteristics and appearance. Volvo
offers a comprehensive product for the clean-
ing and treatment of leather upholstery which,
when used in accordance with the instructions,
preserves the leather's protective coating.
After a period of use the natural appearance of
the leather will nevertheless emerge, depend-
ing more or less on the surface texture of the
leather. This is a natural maturing of the leather
and shows that it is a natural product.
To achieve best results Volvo recommends
cleaning and the application of protective
cream once to four times per year (or more if
necessary). The Volvo Leather Care kit is avail-
able from your Volvo dealer.
IMPORTANT
•Certain items of coloured clothing (for
example, jeans and suede garments)
may stain the upholstery.
•Never use strong solvents. Such prod-
ucts may damage fabric, vinyl and
leather upholstery.
Washing instructions for leather
upholstery
1. Pour the leather cleaner on the dampened
sponge and squeeze out a strong foam.
ProCarManuals.com

08 Maintenance and service
Car care
08

347
2. Work the dirt away with gentle circular
movements.
3. Dab accurately with the sponge on the
stains. Allow the sponge to absorb the
stain. Do not rub.
4. Wipe off with soft paper or a cloth and
allow the leather to dry completely.
Protective treatment of leather
upholstery
1. Pour a small amount of the protective
cream on the felted cloth and massage in
a thin layer of cream with gentle circular
movements on the leather.
2. Allow the leather to dry for 20 minutes
before use.
The leather has now been given improved pro-
tection against stains and improved UV pro-
tection.
Washing instructions for the leather
steering wheel
•Remove dirt and dust with a soft pre-mois-
tened sponge and neutral soap.
•Leather needs to breathe. Never cover the
leather steering wheel with protective plas-
tic.
•Use natural oils. Volvo's leather care
agents are recommended for best results.If the steering wheel has stains:
Group 1 (ink, wine, coffee, milk, sweat and
blood)
–Use a soft cloth or sponge. Mix a 5%
ammonia solution. (For blood stains, use a
solution of 2 dl water and 25g salt.)
Group 2 (fats, oils, sauces and chocolate)
1. Same procedure as group I.
2. Polish with an absorbent paper or cloth.
Group 3 (dry dirt, dust)
1. Use a soft brush to remove the dirt.
2. Same procedure as group I.
Treating stains on interior plastic, metal
and wood parts
A fibrillated fibre or microfibre cloth, lightly
moistened with water, available from Volvo
dealers, is recommended for cleaning interior
parts and surfaces.
Do not scrape or rub stains. Never use strong
stain removers. A special cleaning agent avail-
able from Volvo dealers can be used for more
difficult cleaning.
Cleaning seatbeltsUse water and a synthetic detergent. A special
textile cleaning agent is available from yourVolvo dealer. Make sure the seatbelt is dry
before allowing it to retract.
Touching up minor paintwork damage
Paint is an important part of the car's rust-
proofing and should therefore be checked reg-
ularly. To avoid the onset of rust, damaged
paintwork should be rectified immediately. The
most common types of paintwork damage are
stone chips, scratches, and marks on the
edges of wings and doors.
Materials
•primer in a can
•spray can or touch-up pen1
•masking tape
1Follow the instructions that are included with the package for the touch-up pen.
ProCarManuals.com

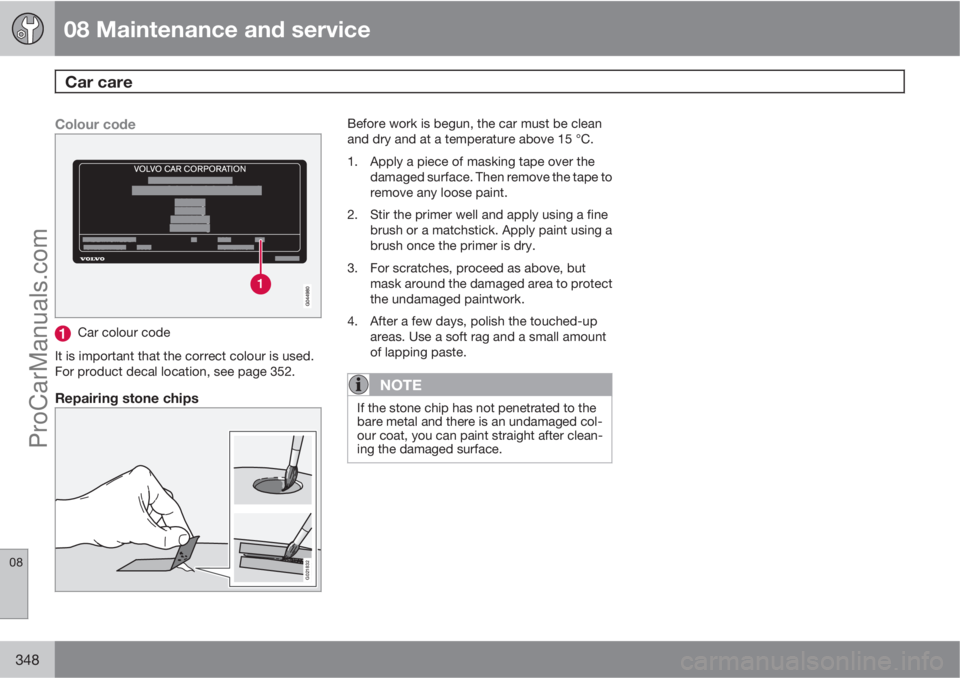

08 Maintenance and service
Car care
08
348
Colour code
Car colour code
It is important that the correct colour is used.
For product decal location, see page 352.
Repairing stone chips
G021832
Before work is begun, the car must be clean
and dry and at a temperature above 15 °C.
1. Apply a piece of masking tape over the
damaged surface. Then remove the tape to
remove any loose paint.
2. Stir the primer well and apply using a fine
brush or a matchstick. Apply paint using a
brush once the primer is dry.
3. For scratches, proceed as above, but
mask around the damaged area to protect
the undamaged paintwork.
4. After a few days, polish the touched-up
areas. Use a soft rag and a small amount
of lapping paste.
NOTE
If the stone chip has not penetrated to the
bare metal and there is an undamaged col-
our coat, you can paint straight after clean-
ing the damaged surface.
ProCarManuals.com
