VOLVO V60 2012 Owners Manual

09 Specifications
Engine oil09
359 Adverse driving conditions
Adverse driving conditions can lead to abnor-
mally high oil temperature or oil consumption.
Below are some examples of adverse driving
conditions.
Check the oil level more frequently for long
journeys:
•towing a caravan or trailer
•in mountainous regions
•at high speeds
•in temperatures colder than -30 °C or hot-
ter than +40 °C
The above also apply to shorter driving dis-
tances at low temperatures.Choose a fully synthetic engine oil for adverse
driving conditions. It provides extra protection
for the engine.
Volvo recommends Castrol oil products.
IMPORTANT
In order to fulfil the requirements for the
engine's service intervals all engines are
filled with a specially adapted synthetic
engine oil at the factory. The choice of oil
has been made very carefully with regard to
service life, starting characteristics, fuel
consumption and environmental impact.
An approved engine oil must be used in
order that the recommended service inter-
vals can be applied. Only use a prescribed
grade of oil for both filling and oil change,
otherwise you will risk affecting service life,
starting characteristics, fuel consumption
and environmental impact.
Volvo Car Corporation disclaims all war-
ranty liability if engine oil of the prescribed
grade and viscosity is not used.
Volvo recommends that oil changes are car-
ried out at an authorised Volvo workshop.
ProCarManuals.com

09 Specifications
Engine oil 09
360

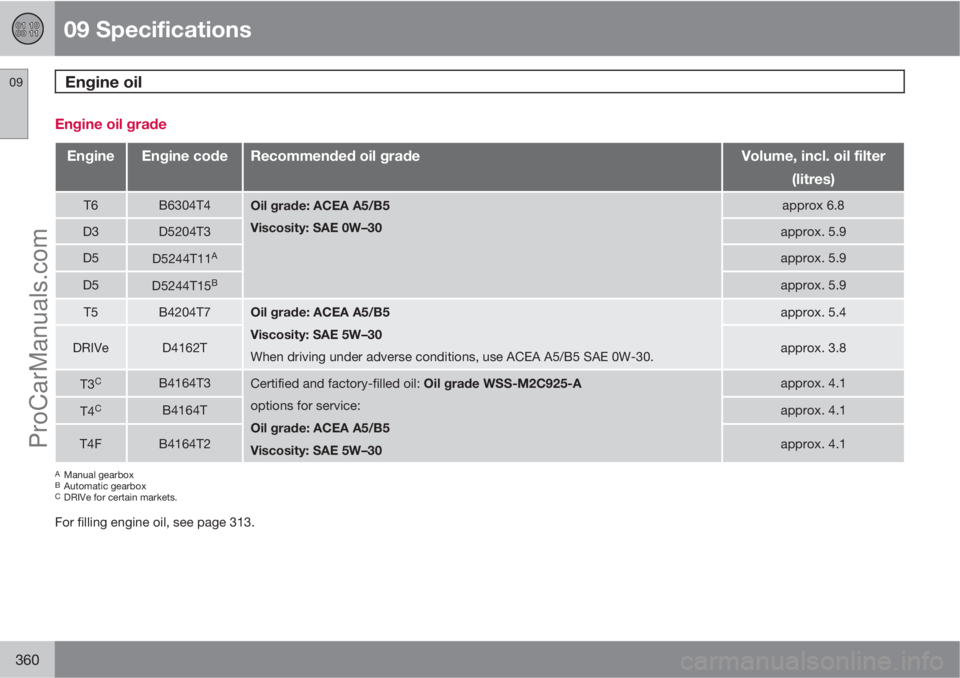

Engine oil grade
EngineEngine codeRecommended oil gradeVolume, incl. oil filter
(litres)
T6B6304T4Oil grade: ACEA A5/B5
Viscosity: SAE 0W–30approx 6.8
D3D5204T3approx. 5.9
D5D5244T11Aapprox. 5.9
D5D5244T15Bapprox. 5.9
T5B4204T7Oil grade: ACEA A5/B5
Viscosity: SAE 5W–30
When driving under adverse conditions, use ACEA A5/B5 SAE 0W-30.approx. 5.4
DRIVeD4162Tapprox. 3.8
T3CB4164T3Certified and factory-filled oil: Oil grade WSS-M2C925-A
options for service:
Oil grade: ACEA A5/B5
Viscosity: SAE 5W–30approx. 4.1
T4CB4164Tapprox. 4.1
T4FB4164T2approx. 4.1
AManual gearboxBAutomatic gearboxCDRIVe for certain markets.
For filling engine oil, see page 313.
ProCarManuals.com

09 Specifications
Fluids and lubricants09

361 Other fluids and lubricants
Manual gearboxVolume (litres)Prescribed transmission fluid
MMT61.7BOT 350M3M661.9
Automatic gearboxVolume (litres)Prescribed transmission fluid
MPS67.3BOT 341
TF-80SC7.0AW1
TF-80SD7.0AW1
FluidSystemVolume (litres)Prescribed grade
CoolantT510.5
Coolant recommended by Volvo mixed with 50% waterA, see the packaging.
T6, D3 and D58.9
T3B, T4B, C and T4FC9.2
T4B, D and T4FD9.8
DRIVe10.5
Brake fluidBrake system0.6DOT 4+
Power steering
fluidPower steering-WSS M2C204-A2 or equivalent product.
ProCarManuals.com

09 Specifications
Fluids and lubricants 09
362

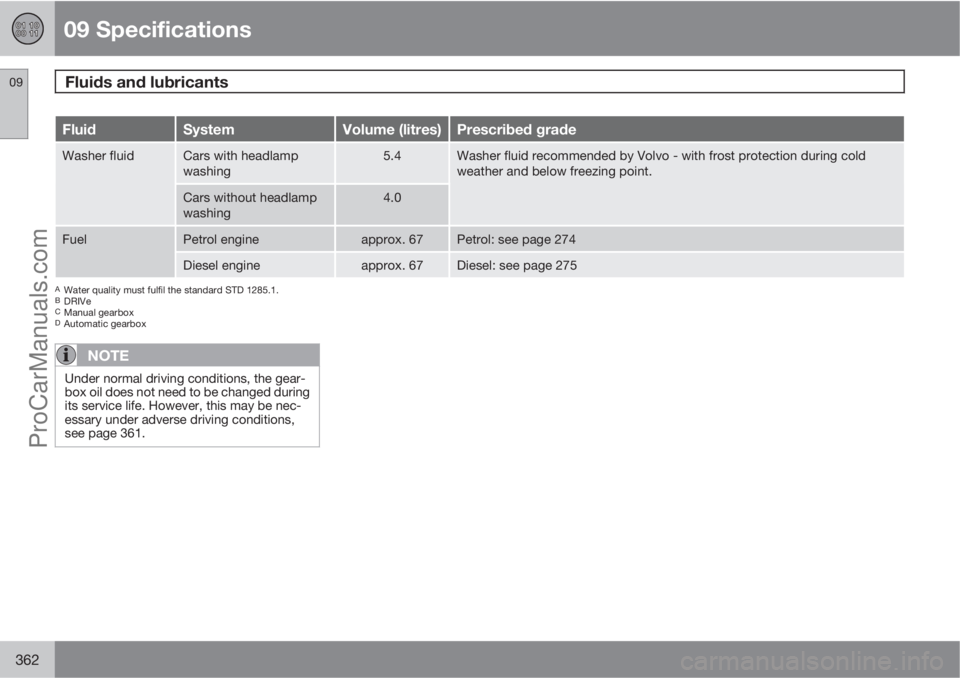

FluidSystemVolume (litres)Prescribed grade
Washer fluidCars with headlamp washing5.4Washer fluid recommended by Volvo - with frost protection during coldweather and below freezing point.
Cars without headlampwashing4.0
FuelPetrol engineapprox. 67Petrol: see page 274
Diesel engineapprox. 67Diesel: see page 275
AWater quality must fulfil the standard STD 1285.1.BDRIVeCManual gearboxDAutomatic gearbox
NOTE
Under normal driving conditions, the gear- box oil does not need to be changed duringits service life. However, this may be nec-essary under adverse driving conditions,see page 361.
ProCarManuals.com

09 Specifications
Fuel09

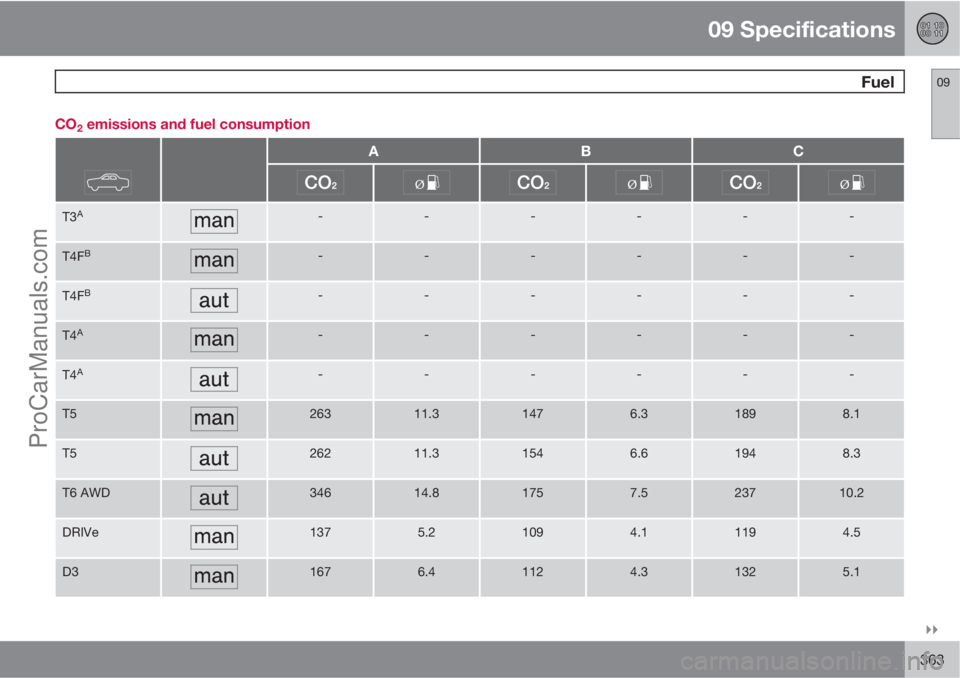

363 CO
2 emissions and fuel consumption
ABC
T3A------
T4FB------
T4FB------
T4A------
T4A------
T526311.31476.31898.1
T526211.31546.61948.3
T6 AWD34614.81757.523710.2
DRIVe1375.21094.11194.5
D31676.41124.31325.1
ProCarManuals.com

09 Specifications
Fuel 09
364

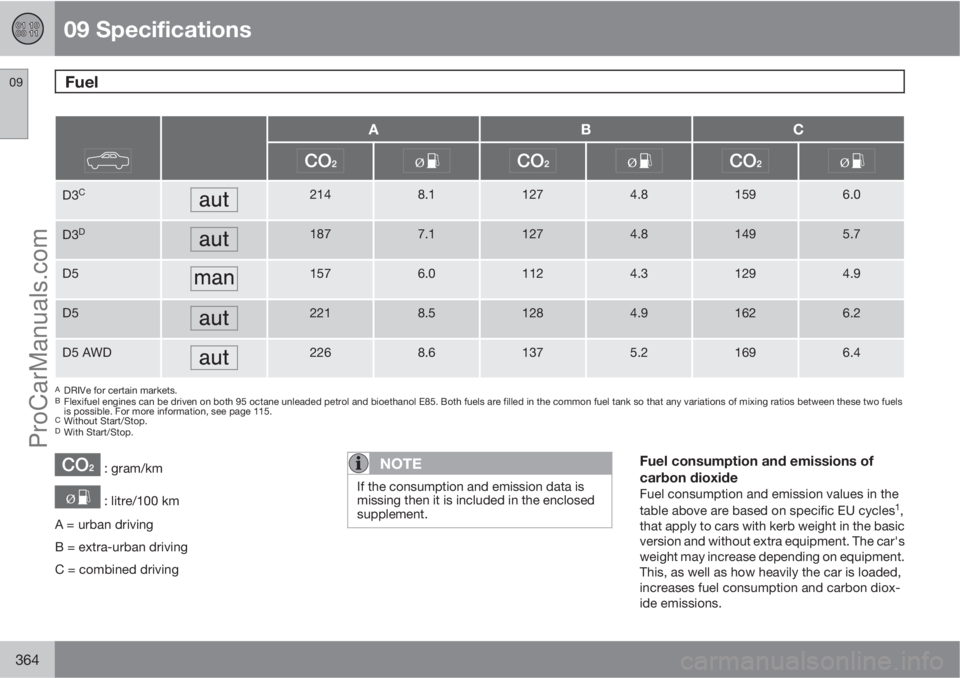

ABC
D3C2148.11274.81596.0
D3D1877.11274.81495.7
D51576.01124.31294.9
D52218.51284.91626.2
D5 AWD2268.61375.21696.4
ADRIVe for certain markets.BFlexifuel engines can be driven on both 95 octane unleaded petrol and bioethanol E85. Both fuels are filled in the common fuel tank so that any variations of mixing ratios between these two fuels
is possible. For more information, see page 115.
CWithout Start/Stop.DWith Start/Stop.
: gram/km
: litre/100 km
A = urban driving
B = extra-urban driving
C = combined driving
NOTE
If the consumption and emission data is
missing then it is included in the enclosed
supplement.
Fuel consumption and emissions of
carbon dioxide
Fuel consumption and emission values in the
table above are based on specific EU cycles1,
that apply to cars with kerb weight in the basic
version and without extra equipment. The car's
weight may increase depending on equipment.
This, as well as how heavily the car is loaded,
increases fuel consumption and carbon diox-
ide emissions.
ProCarManuals.com

09 Specifications
Fuel09
365
There are several reasons for increased fuel
consumption compared with the table's val-
ues. Examples of this are:
•The driver's driving style.
•If the customer has specified wheels larger
than those fitted as standard on the mod-
el's basic version, then resistance increa-
ses.
•High speed results in increased wind resis-
tance.
•Fuel quality, road and traffic conditions,
weather and the condition of the car.
Even a combination of the above-mentioned
examples can result in significantly improved
consumption. For further information, please
refer to the regulations referred to
1.
Large deviations in fuel consumption may arise
in a comparison with the EU driving cycles
1
which are used in the certification of the car
and on which the consumption figures in the
table are based.
To bear in mindTips that the driver can use in order to reduce
consumption:
•Drive gently and avoid unnecessary accel-
eration as well as braking too hard.
•Drive with the correct air pressure in the
tyres and check this regularly - select ECO
tyre pressure for best results, see the tyre
pressure table on page 366.
•Choice of tyres can affect fuel consump-
tion - seek advice on suitable tyres from a
dealer.
See further information and more advice on
pages 12 and 270.
See page 274 for general information on fuel.
1Official fuel consumption figures are based on two standardised driving cycles in a laboratory environment ("EU driving cycles") all in accordance with EU Directive 80/1268/EEC (Euro 4), EU Regulation
no 692/2008 (Euro 5) and UN ECE Regulation no 101. The regulations cover the driving cycles for urban driving and extra-urban driving. - Urban driving - the measurement starts with cold starting
the engine. The driving is simulated. - Extra-urban driving - the car is accelerated and braked at speeds between 0-120 km/h. The driving is simulated. - Cars with the D5 engine and 6-speed manual
transmission or DRIVe engine and 6-speed manual transmission, are started in 2nd gear. The value for combined driving, which is given in the table, according to legislation, is a combination of
urban driving and extra-urban driving. CO
2 emission - to calculate the carbon dioxide emissions from the two driving cycles, the exhaust gases are collected. These are then analysed and give the
value for CO2 emissions.
ProCarManuals.com

09 Specifications
Wheel and tyres, dimensions and pressure 09
366

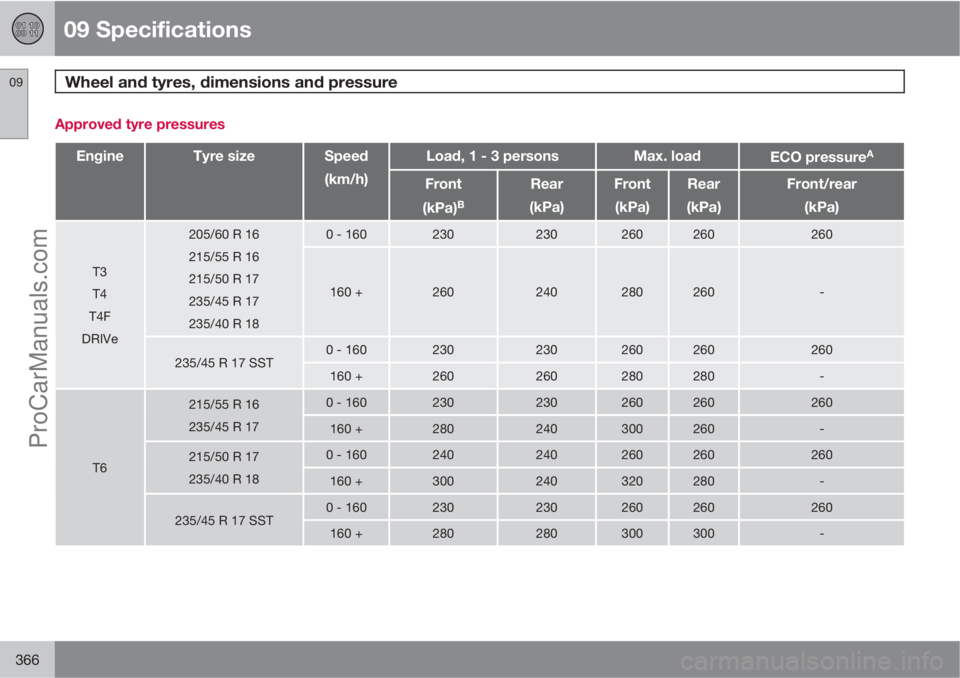

Approved tyre pressures
EngineTyre sizeSpeed
(km/h)Load, 1 - 3 personsMax. loadECO pressureA
Front
(kPa)
B
Rear
(kPa)Front
(kPa)Rear
(kPa)Front/rear
(kPa)
T3
T4
T4F
DRIVe
205/60 R 16
215/55 R 16
215/50 R 17
235/45 R 17
235/40 R 180 - 160230230260260260
160 +260240280260-
235/45 R 17 SST0 - 160230230260260260
160 +260260280280-
T6
215/55 R 16
235/45 R 170 - 160230230260260260
160 +280240300260-
215/50 R 17
235/40 R 180 - 160240240260260260
160 +300240320280-
235/45 R 17 SST0 - 160230230260260260
160 +280280300300-
ProCarManuals.com

09 Specifications
Wheel and tyres, dimensions and pressure09

367

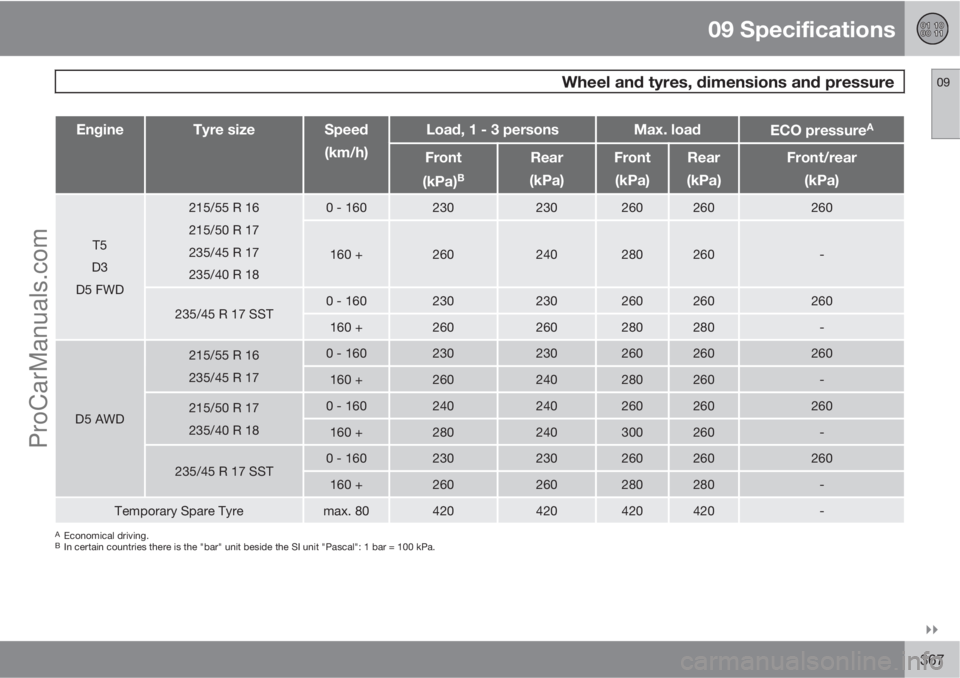

EngineTyre sizeSpeed
(km/h)Load, 1 - 3 personsMax. loadECO pressureA
Front
(kPa)
B
Rear
(kPa)Front
(kPa)Rear
(kPa)Front/rear
(kPa)
T5
D3
D5 FWD
215/55 R 16
215/50 R 17
235/45 R 17
235/40 R 180 - 160230230260260260
160 +260240280260-
235/45 R 17 SST0 - 160230230260260260
160 +260260280280-
D5 AWD
215/55 R 16
235/45 R 170 - 160230230260260260
160 +260240280260-
215/50 R 17
235/40 R 180 - 160240240260260260
160 +280240300260-
235/45 R 17 SST0 - 160230230260260260
160 +260260280280-
Temporary Spare Tyremax. 80420420420420-
AEconomical driving.BIn certain countries there is the "bar" unit beside the SI unit "Pascal": 1 bar = 100 kPa.
ProCarManuals.com

09 Specifications
Wheel and tyres, dimensions and pressure 09
368
NOTE
All engines, tyres or combinations of these
are not always available in all markets.
