VOLVO V60 2014 Owners Manual

07 Driver support
07
* Option/accessory, for more information, see Introduction.179

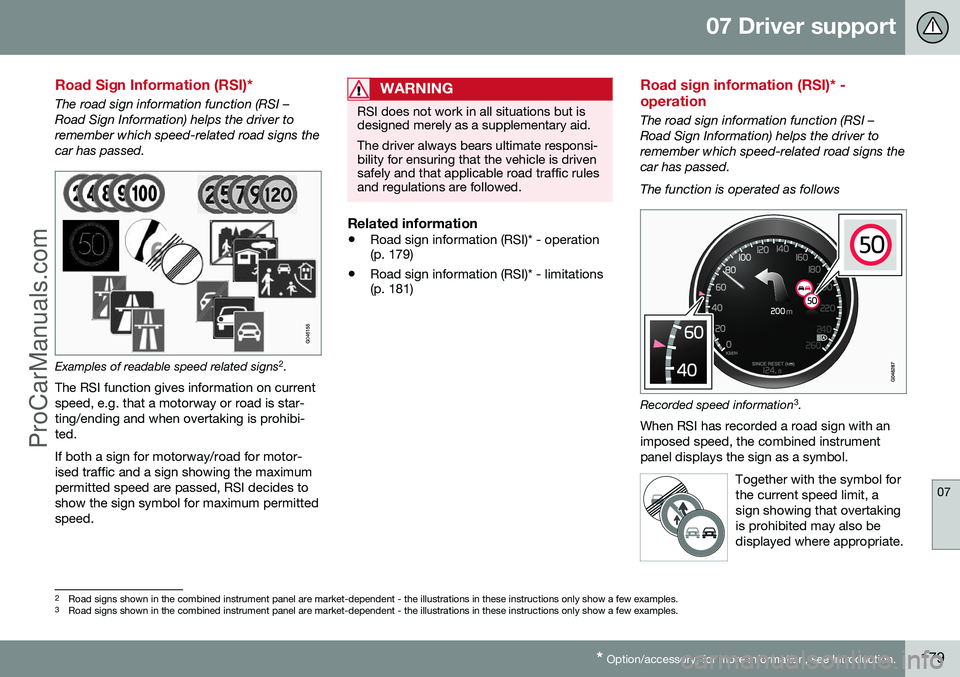

Road Sign Information (RSI)*
The road sign information function (RSI – Road Sign Information) helps the driver toremember which speed-related road signs thecar has passed.
Examples of readable speed related signs 2
.
The RSI function gives information on current speed, e.g. that a motorway or road is star-ting/ending and when overtaking is prohibi-ted. If both a sign for motorway/road for motor- ised traffic and a sign showing the maximumpermitted speed are passed, RSI decides toshow the sign symbol for maximum permittedspeed.
WARNING
RSI does not work in all situations but is designed merely as a supplementary aid. The driver always bears ultimate responsi- bility for ensuring that the vehicle is drivensafely and that applicable road traffic rulesand regulations are followed.
Related information
• Road sign information (RSI)* - operation (p. 179)
• Road sign information (RSI)* - limitations(p. 181)
Road sign information (RSI)* - operation
The road sign information function (RSI – Road Sign Information) helps the driver toremember which speed-related road signs thecar has passed. The function is operated as follows
Recorded speed information 3
.
When RSI has recorded a road sign with an imposed speed, the combined instrumentpanel displays the sign as a symbol.
Together with the symbol forthe current speed limit, asign showing that overtakingis prohibited may also bedisplayed where appropriate.
2Road signs shown in the combined instrument panel are market-dependent - the illustrations in these instructions only show a few examples.
3 Road signs shown in the combined instrument panel are market-dependent - the illustrations in these instructions only show a few examples.
ProCarManuals.co’

||
07 Driver support
07
180
End of restriction or motorwayA corresponding road sign is shown in the combined instrument panel forapprox. 10 seconds in situations where RSIdetects a sign that involves the end of aspeed limit - or other speed-related informa-tion, e.g. end of a motorway. Examples of such signs are:
End of all restrictions.
End of motorway. Following which, the sign information is hid- den until the next speed-related sign isdetected.
Additional signs
Examples of additional signs3
.
Sometimes different speed limits are signpos- ted for the same road - an additional signthen indicates the circumstances under whichthe different speeds apply. The road sectionmay be particularly susceptible to accidentsin rain and/or fog, for example. An additional sign relating to rain is displayed only if the windscreen wipers are in use.
The speed applicable on anexit is indicated in certainmarkets by means of anadditional sign containing anarrow. Speed signs linked to this
type of additional sign are displayed only if the driver is using the direction indicator.
Some speeds are applicable only after e.g. a specific distance or at a certain time of day.The driver's attention is drawn to the situationby means of a symbol for an additional signunder the symbol showing speed.
Display of additional information
A symbol for additional sign in the form of an empty frame under the combined instrumentpanel's speed symbol means that the RSI hasdetected an additional sign with supplemen-tary information for the current speed limit.
Setting in MY CARThere are options for RSI in the MY CAR
menu system; see MY CAR (p. 103).
3 Road signs shown in the combined instrument panel are market-dependent - the illustrations in these instructions only show a few examples.
ProCarManuals.co’

07 Driver support
07
* Option/accessory, for more information, see Introduction.181
Road sign information On/Off
The combined instrument panel's speed sym- bol display can be disabled. The function canbe activated/deactivated in the menu systemMY CAR . For a description of the menu sys-
tem, see MY CAR (p. 103).
Speed warning
The driver can opt to receive a warning when the applicable speed limit is exceeded by5 km/h or more. This warning is given by thesymbol showing the applicable maximumspeed temporarily flashing when this speed is exceeded. The function can be activated/deactivated in the menu system
MY CAR. For
a description of the menu system, see MYCAR (p. 103).
Related information
• Road Sign Information (RSI)* (p. 179)
• Road sign information (RSI)* - limitations (p. 181)
• MY CAR (p. 103)
Road sign information (RSI)* - limitations
The road sign information function (RSI – Road Sign Information) helps the driver toremember which speed-related road signs thecar has passed. The function has the follow-ing limitations. The RSI function's camera sensor has limita- tions just like the human eye - read moreabout camera sensor limitations (p. 220)). Signs which indirectly provide information on a prevailing speed limit, e.g. name signs fortowns/districts, are not recorded by the RSIfunction. Here are several examples of what can dis- rupt the function:
• Faded signs
• Signs positioned on bends
• Rotated or damaged signs
• Concealed or poorly positioned signs
• Signs completely or partly covered with frost, snow and/or dirt.
Related information
•
Road Sign Information (RSI)* (p. 179)
• Road sign information (RSI)* - operation(p. 179)
ProCarManuals.co’

07 Driver support
07
182* Option/accessory, for more information, see Introduction.

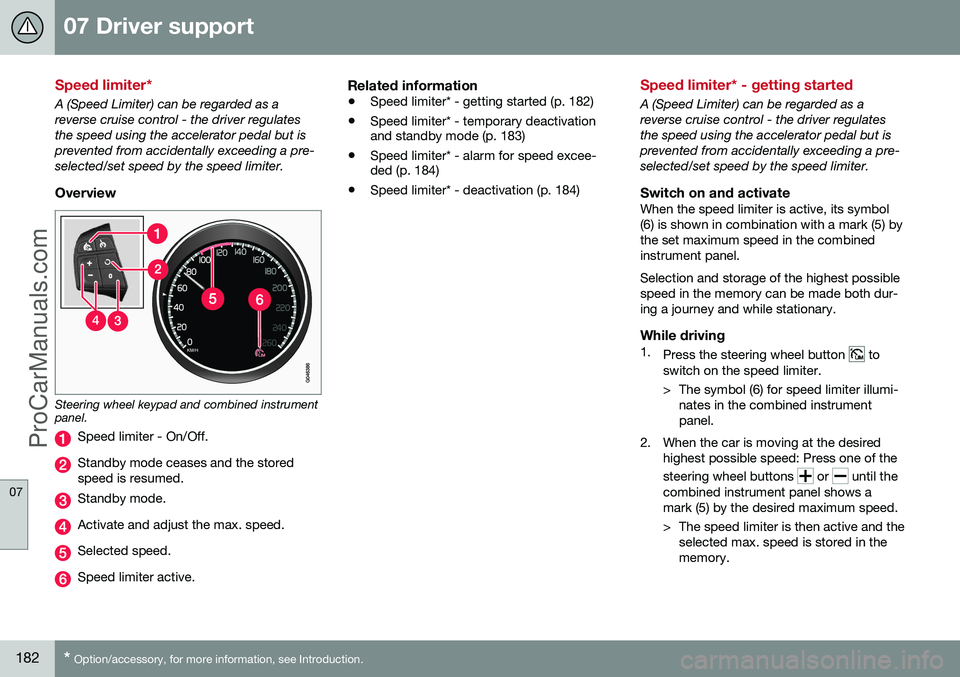

Speed limiter*
A (Speed Limiter) can be regarded as a reverse cruise control - the driver regulatesthe speed using the accelerator pedal but isprevented from accidentally exceeding a pre-selected/set speed by the speed limiter.
Overview
Steering wheel keypad and combined instrument panel.
Speed limiter - On/Off.
Standby mode ceases and the stored speed is resumed.
Standby mode.
Activate and adjust the max. speed.
Selected speed.
Speed limiter active.
Related information
• Speed limiter* - getting started (p. 182)
• Speed limiter* - temporary deactivation and standby mode (p. 183)
• Speed limiter* - alarm for speed excee-ded (p. 184)
• Speed limiter* - deactivation (p. 184)
Speed limiter* - getting started
A (Speed Limiter) can be regarded as a reverse cruise control - the driver regulatesthe speed using the accelerator pedal but isprevented from accidentally exceeding a pre-selected/set speed by the speed limiter.
Switch on and activateWhen the speed limiter is active, its symbol(6) is shown in combination with a mark (5) bythe set maximum speed in the combinedinstrument panel. Selection and storage of the highest possible speed in the memory can be made both dur-ing a journey and while stationary.
While driving1.
Press the steering wheel button to
switch on the speed limiter.
> The symbol (6) for speed limiter illumi- nates in the combined instrument panel.
2. When the car is moving at the desired highest possible speed: Press one of the steering wheel buttons
or until the
combined instrument panel shows a mark (5) by the desired maximum speed.
> The speed limiter is then active and the selected max. speed is stored in the memory.
ProCarManuals.co’

07 Driver support
07
* Option/accessory, for more information, see Introduction.183

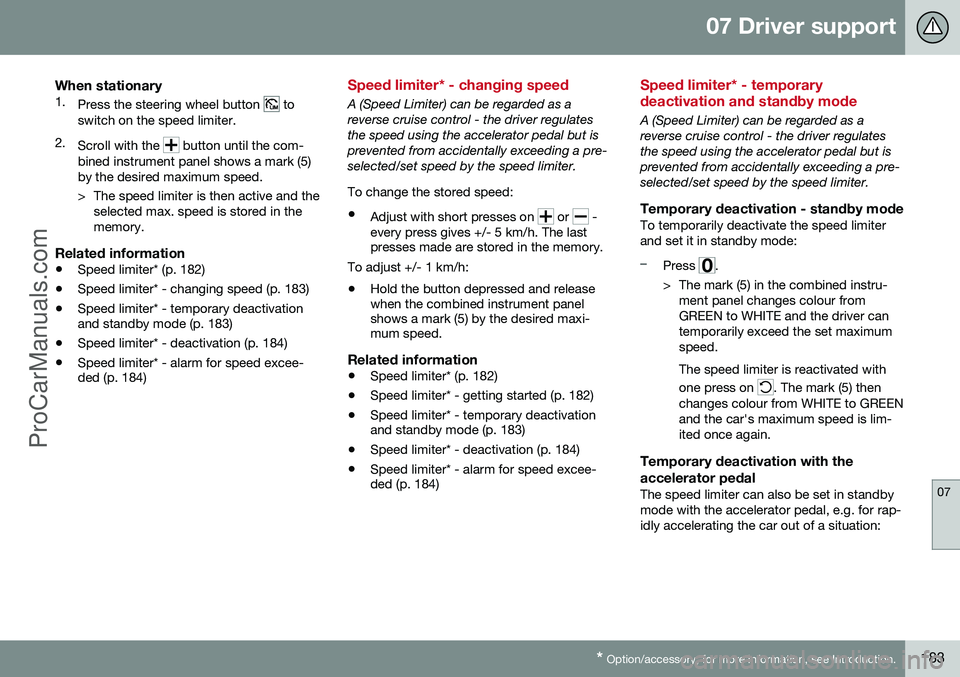

When stationary1.
Press the steering wheel button to
switch on the speed limiter.
2. Scroll with the
button until the com-
bined instrument panel shows a mark (5) by the desired maximum speed.
> The speed limiter is then active and the selected max. speed is stored in the memory.
Related information
• Speed limiter* (p. 182)
• Speed limiter* - changing speed (p. 183)
• Speed limiter* - temporary deactivation and standby mode (p. 183)
• Speed limiter* - deactivation (p. 184)
• Speed limiter* - alarm for speed excee-ded (p. 184)
Speed limiter* - changing speed
A (Speed Limiter) can be regarded as a reverse cruise control - the driver regulatesthe speed using the accelerator pedal but isprevented from accidentally exceeding a pre-selected/set speed by the speed limiter. To change the stored speed: •
Adjust with short presses on
or -
every press gives +/- 5 km/h. The last presses made are stored in the memory.
To adjust +/- 1 km/h: • Hold the button depressed and release when the combined instrument panelshows a mark (5) by the desired maxi-mum speed.
Related information
•Speed limiter* (p. 182)
• Speed limiter* - getting started (p. 182)
• Speed limiter* - temporary deactivationand standby mode (p. 183)
• Speed limiter* - deactivation (p. 184)
• Speed limiter* - alarm for speed excee-ded (p. 184)
Speed limiter* - temporary deactivation and standby mode
A (Speed Limiter) can be regarded as a reverse cruise control - the driver regulatesthe speed using the accelerator pedal but isprevented from accidentally exceeding a pre-selected/set speed by the speed limiter.
Temporary deactivation - standby modeTo temporarily deactivate the speed limiterand set it in standby mode:
–Press .
> The mark (5) in the combined instru- ment panel changes colour from GREEN to WHITE and the driver cantemporarily exceed the set maximumspeed. The speed limiter is reactivated with one press on
. The mark (5) then
changes colour from WHITE to GREEN and the car's maximum speed is lim-ited once again.
Temporary deactivation with the accelerator pedal
The speed limiter can also be set in standby mode with the accelerator pedal, e.g. for rap-idly accelerating the car out of a situation:
ProCarManuals.co’

||
07 Driver support
07
184* Option/accessory, for more information, see Introduction.

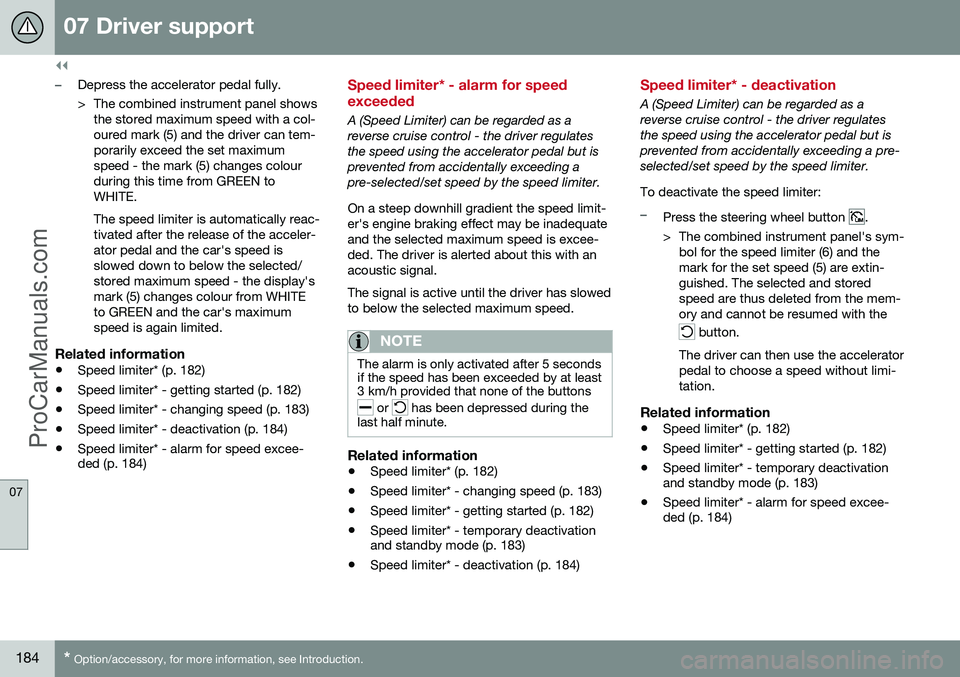

–Depress the accelerator pedal fully.
> The combined instrument panel shows
the stored maximum speed with a col- oured mark (5) and the driver can tem-porarily exceed the set maximumspeed - the mark (5) changes colourduring this time from GREEN toWHITE. The speed limiter is automatically reac- tivated after the release of the acceler-ator pedal and the car's speed isslowed down to below the selected/stored maximum speed - the display'smark (5) changes colour from WHITEto GREEN and the car's maximumspeed is again limited.
Related information
• Speed limiter* (p. 182)
• Speed limiter* - getting started (p. 182)
• Speed limiter* - changing speed (p. 183)
• Speed limiter* - deactivation (p. 184)
• Speed limiter* - alarm for speed excee- ded (p. 184)
Speed limiter* - alarm for speed exceeded
A (Speed Limiter) can be regarded as a reverse cruise control - the driver regulatesthe speed using the accelerator pedal but isprevented from accidentally exceeding apre-selected/set speed by the speed limiter. On a steep downhill gradient the speed limit- er's engine braking effect may be inadequateand the selected maximum speed is excee-ded. The driver is alerted about this with anacoustic signal. The signal is active until the driver has slowed to below the selected maximum speed.
NOTE
The alarm is only activated after 5 seconds if the speed has been exceeded by at least3 km/h provided that none of the buttons
or has been depressed during the
last half minute.
Related information
• Speed limiter* (p. 182)
• Speed limiter* - changing speed (p. 183)
• Speed limiter* - getting started (p. 182)
• Speed limiter* - temporary deactivation and standby mode (p. 183)
• Speed limiter* - deactivation (p. 184)
Speed limiter* - deactivation
A (Speed Limiter) can be regarded as a reverse cruise control - the driver regulatesthe speed using the accelerator pedal but isprevented from accidentally exceeding a pre-selected/set speed by the speed limiter. To deactivate the speed limiter:
–Press the steering wheel button .
> The combined instrument panel's sym- bol for the speed limiter (6) and the mark for the set speed (5) are extin-guished. The selected and storedspeed are thus deleted from the mem-ory and cannot be resumed with the
button.
The driver can then use the accelerator pedal to choose a speed without limi-tation.
Related information
• Speed limiter* (p. 182)
• Speed limiter* - getting started (p. 182)
• Speed limiter* - temporary deactivation and standby mode (p. 183)
• Speed limiter* - alarm for speed excee-ded (p. 184)
ProCarManuals.co’

07 Driver support
07
* Option/accessory, for more information, see Introduction.185

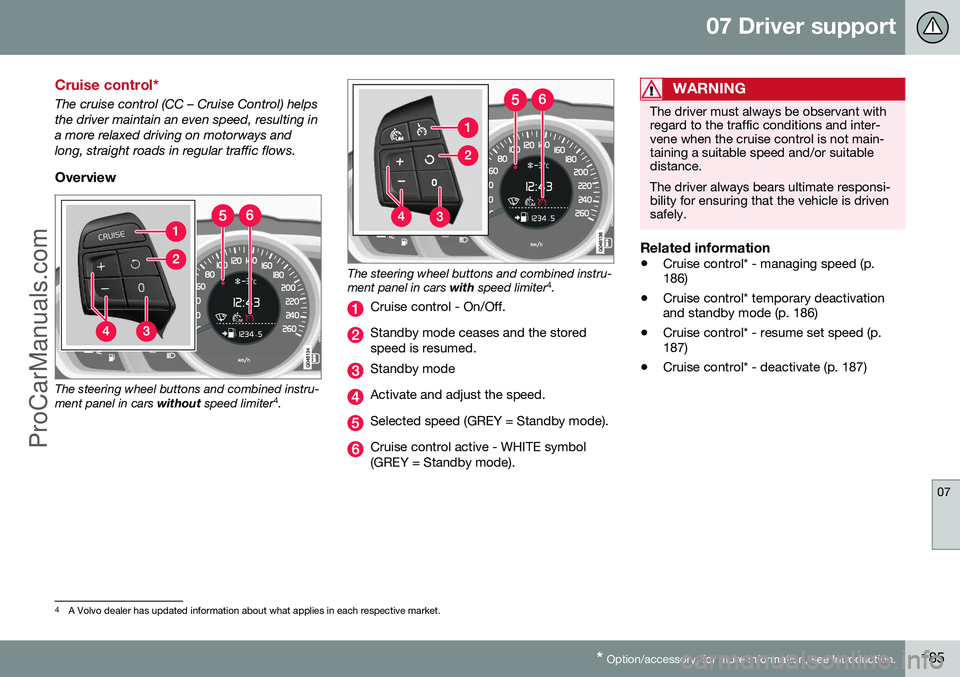

Cruise control*
The cruise control (CC – Cruise Control) helps the driver maintain an even speed, resulting ina more relaxed driving on motorways andlong, straight roads in regular traffic flows.
Overview
The steering wheel buttons and combined instru- ment panel in cars without speed limiter 4
.
The steering wheel buttons and combined instru- ment panel in cars with speed limiter 4
.
Cruise control - On/Off.
Standby mode ceases and the stored speed is resumed.
Standby mode
Activate and adjust the speed.
Selected speed (GREY = Standby mode).
Cruise control active - WHITE symbol (GREY = Standby mode).
WARNING
The driver must always be observant with regard to the traffic conditions and inter-vene when the cruise control is not main-taining a suitable speed and/or suitabledistance. The driver always bears ultimate responsi- bility for ensuring that the vehicle is drivensafely.
Related information
• Cruise control* - managing speed (p. 186)
• Cruise control* temporary deactivationand standby mode (p. 186)
• Cruise control* - resume set speed (p.187)
• Cruise control* - deactivate (p. 187)
4
A Volvo dealer has updated information about what applies in each respective market.
ProCarManuals.co’

07 Driver support
07
186* Option/accessory, for more information, see Introduction.

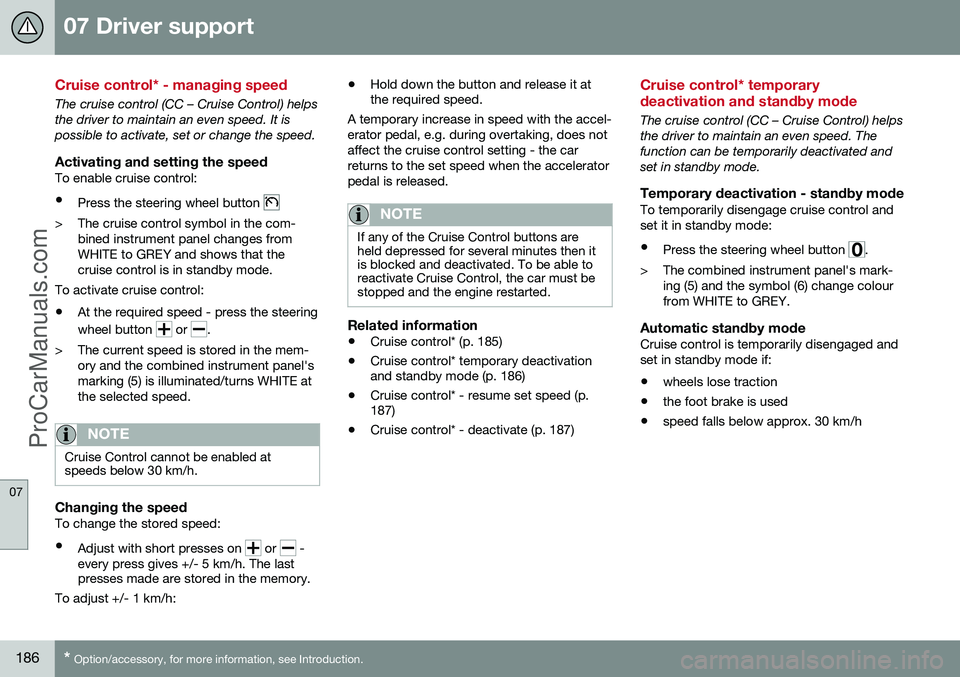

Cruise control* - managing speed
The cruise control (CC – Cruise Control) helps the driver to maintain an even speed. It ispossible to activate, set or change the speed.
Activating and setting the speedTo enable cruise control:
• Press the steering wheel button
> The cruise control symbol in the com-
bined instrument panel changes from WHITE to GREY and shows that thecruise control is in standby mode.
To activate cruise control:
• At the required speed - press the steering wheel button
or .
> The current speed is stored in the mem- ory and the combined instrument panel's marking (5) is illuminated/turns WHITE atthe selected speed.
NOTE
Cruise Control cannot be enabled at speeds below 30 km/h.
Changing the speedTo change the stored speed: • Adjust with short presses on
or -
every press gives +/- 5 km/h. The last presses made are stored in the memory.
To adjust +/- 1 km/h: •
Hold down the button and release it atthe required speed.
A temporary increase in speed with the accel- erator pedal, e.g. during overtaking, does notaffect the cruise control setting - the carreturns to the set speed when the acceleratorpedal is released.
NOTE
If any of the Cruise Control buttons are held depressed for several minutes then itis blocked and deactivated. To be able toreactivate Cruise Control, the car must bestopped and the engine restarted.
Related information
• Cruise control* (p. 185)
• Cruise control* temporary deactivation and standby mode (p. 186)
• Cruise control* - resume set speed (p.187)
• Cruise control* - deactivate (p. 187)
Cruise control* temporary deactivation and standby mode
The cruise control (CC – Cruise Control) helps the driver to maintain an even speed. Thefunction can be temporarily deactivated andset in standby mode.
Temporary deactivation - standby modeTo temporarily disengage cruise control andset it in standby mode:
• Press the steering wheel button
.
> The combined instrument panel's mark- ing (5) and the symbol (6) change colour from WHITE to GREY.
Automatic standby modeCruise control is temporarily disengaged andset in standby mode if:
• wheels lose traction
• the foot brake is used
• speed falls below approx. 30 km/h
ProCarManuals.co’

07 Driver support
07
* Option/accessory, for more information, see Introduction.187
•

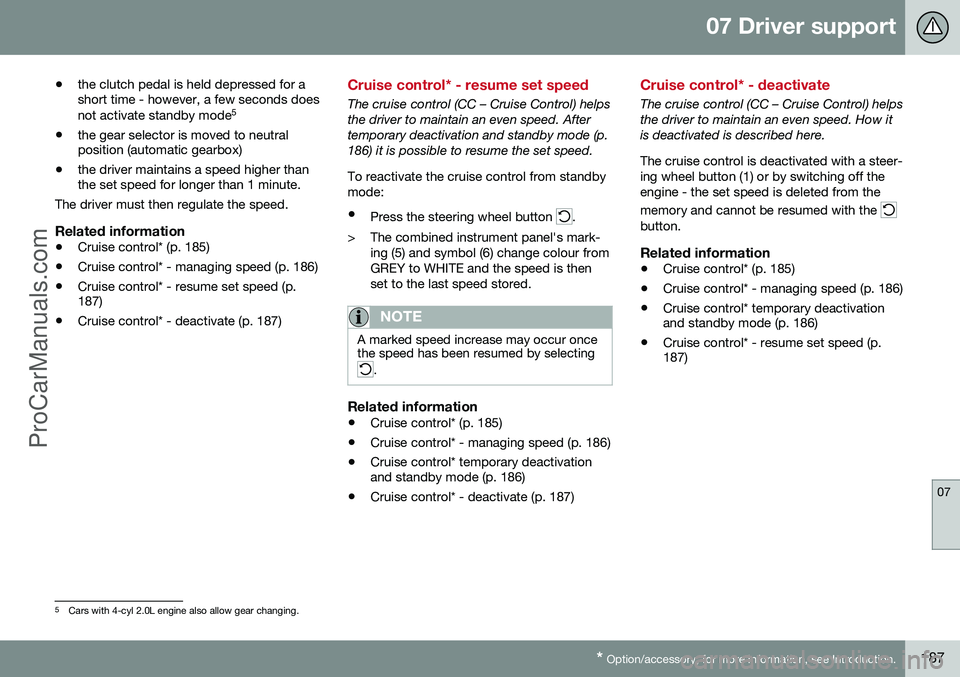

the clutch pedal is held depressed for a short time - however, a few seconds does not activate standby mode 5
• the gear selector is moved to neutral position (automatic gearbox)
• the driver maintains a speed higher thanthe set speed for longer than 1 minute.
The driver must then regulate the speed.
Related information
• Cruise control* (p. 185)
• Cruise control* - managing speed (p. 186)
• Cruise control* - resume set speed (p.187)
• Cruise control* - deactivate (p. 187)
Cruise control* - resume set speed
The cruise control (CC – Cruise Control) helps the driver to maintain an even speed. Aftertemporary deactivation and standby mode (p.186) it is possible to resume the set speed. To reactivate the cruise control from standby mode: •
Press the steering wheel button
.
> The combined instrument panel's mark- ing (5) and symbol (6) change colour from GREY to WHITE and the speed is thenset to the last speed stored.
NOTE
A marked speed increase may occur once the speed has been resumed by selecting
.
Related information
• Cruise control* (p. 185)
• Cruise control* - managing speed (p. 186)
• Cruise control* temporary deactivation and standby mode (p. 186)
• Cruise control* - deactivate (p. 187)
Cruise control* - deactivate
The cruise control (CC – Cruise Control) helps the driver to maintain an even speed. How itis deactivated is described here. The cruise control is deactivated with a steer- ing wheel button (1) or by switching off theengine - the set speed is deleted from the memory and cannot be resumed with the
button.
Related information
•
Cruise control* (p. 185)
• Cruise control* - managing speed (p. 186)
• Cruise control* temporary deactivation and standby mode (p. 186)
• Cruise control* - resume set speed (p.187)
5
Cars with 4-cyl 2.0L engine also allow gear changing.
ProCarManuals.co’

07 Driver support
07
188* Option/accessory, for more information, see Introduction.

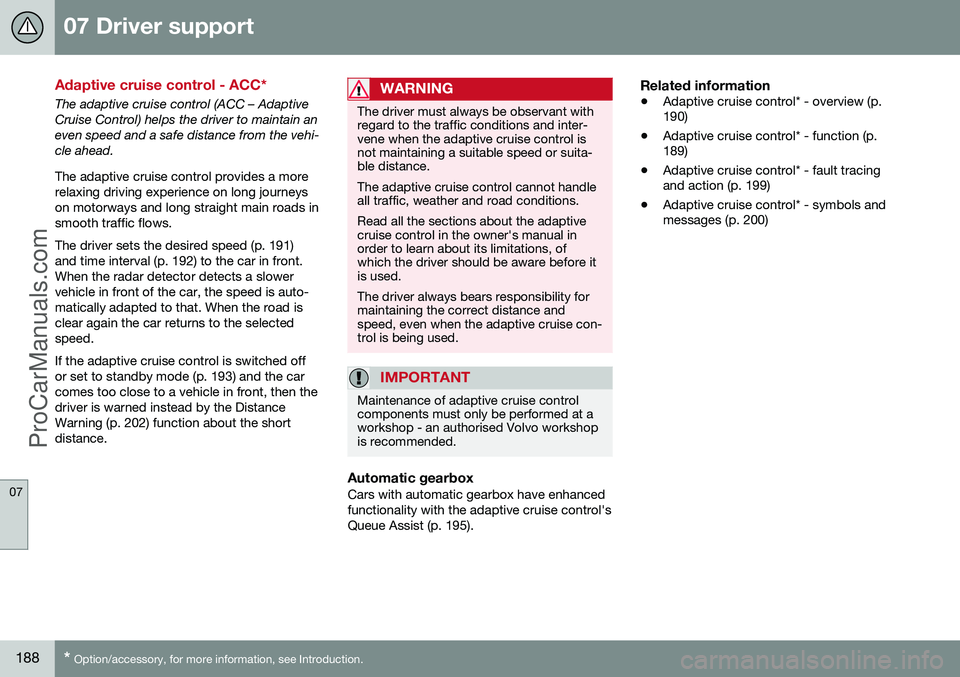

Adaptive cruise control - ACC*
The adaptive cruise control (ACC – Adaptive Cruise Control) helps the driver to maintain aneven speed and a safe distance from the vehi-cle ahead. The adaptive cruise control provides a more relaxing driving experience on long journeyson motorways and long straight main roads insmooth traffic flows. The driver sets the desired speed (p. 191) and time interval (p. 192) to the car in front.When the radar detector detects a slowervehicle in front of the car, the speed is auto-matically adapted to that. When the road isclear again the car returns to the selectedspeed. If the adaptive cruise control is switched off or set to standby mode (p. 193) and the carcomes too close to a vehicle in front, then thedriver is warned instead by the DistanceWarning (p. 202) function about the shortdistance.WARNING
The driver must always be observant with regard to the traffic conditions and inter-vene when the adaptive cruise control isnot maintaining a suitable speed or suita-ble distance. The adaptive cruise control cannot handle all traffic, weather and road conditions. Read all the sections about the adaptive cruise control in the owner's manual inorder to learn about its limitations, ofwhich the driver should be aware before itis used. The driver always bears responsibility for maintaining the correct distance andspeed, even when the adaptive cruise con-trol is being used.
IMPORTANT
Maintenance of adaptive cruise control components must only be performed at aworkshop - an authorised Volvo workshopis recommended.
Automatic gearboxCars with automatic gearbox have enhanced functionality with the adaptive cruise control'sQueue Assist (p. 195).
Related information
• Adaptive cruise control* - overview (p. 190)
• Adaptive cruise control* - function (p.189)
• Adaptive cruise control* - fault tracingand action (p. 199)
• Adaptive cruise control* - symbols andmessages (p. 200)
ProCarManuals.co’
