VOLVO V90 2017 User Guide

9

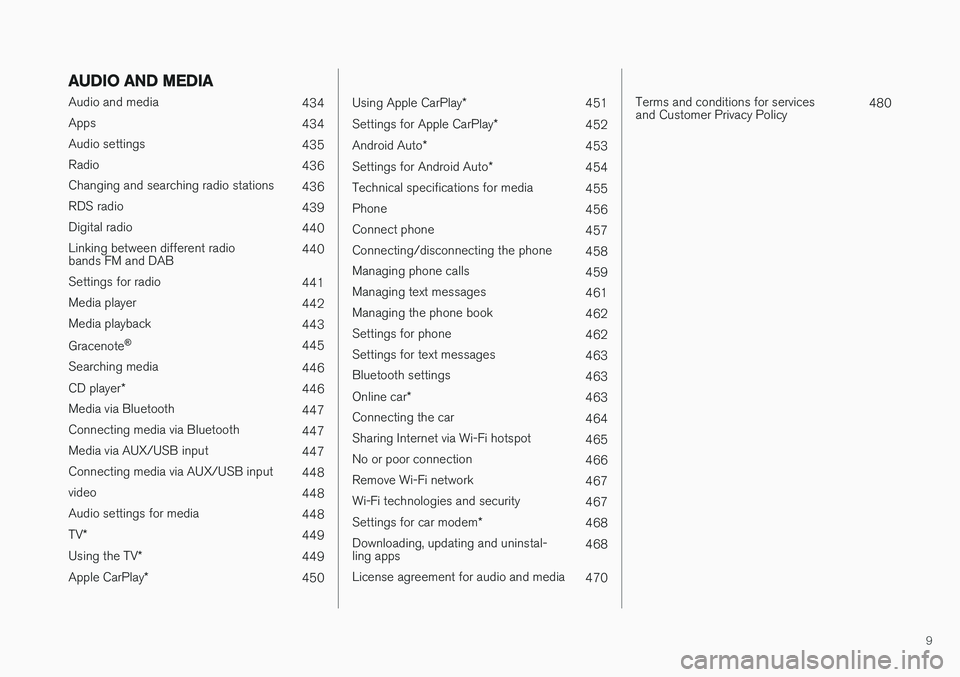

AUDIO AND MEDIA
Audio and media434
Apps 434
Audio settings 435
Radio 436
Changing and searching radio stations 436
RDS radio 439
Digital radio 440
Linking between different radio bands FM and DAB 440
Settings for radio 441
Media player 442
Media playback 443
Gracenote ®
445
Searching media 446
CD player *
446
Media via Bluetooth 447
Connecting media via Bluetooth 447
Media via AUX/USB input 447
Connecting media via AUX/USB input 448
video 448
Audio settings for media 448
TV *
449
Using the TV *
449
Apple CarPlay *
450

Using Apple CarPlay*
451
Settings for Apple CarPlay *
452
Android Auto *
453
Settings for Android Auto *
454
Technical specifications for media 455
Phone 456
Connect phone 457
Connecting/disconnecting the phone 458
Managing phone calls 459
Managing text messages 461
Managing the phone book 462
Settings for phone 462
Settings for text messages 463
Bluetooth settings 463
Online car *
463
Connecting the car 464
Sharing Internet via Wi-Fi hotspot 465
No or poor connection 466
Remove Wi-Fi network 467
Wi-Fi technologies and security 467
Settings for car modem *
468
Downloading, updating and uninstal- ling apps 468
License agreement for audio and media 470

Terms and conditions for services and Customer Privacy Policy480

10
WHEELS AND TYRES
Tyres482
Tyres' rotation direction 483
Tread wear indicators on the tyres 484
Checking the tyre pressures 484
Tyre monitoring *
485
Checking tyre pressure with the tyre monitoring system * 487
Rectifying low tyre pressure with tyremonitoring * 488
Calibrating tyre monitoring *
489
Emergency puncture repair kit 490
Using the emergency puncture repair kit 491
Inflate tyres with the compressor from the emergency puncture repair kit 494
When changing wheels 495
Removing a wheel 495
Fitting the wheels 497
Wheel bolts 498
Spare wheel *
498
Winter wheels 499
Tool kit 500
Warning triangle 500
Jack *
501
First aid kit 501
Dimension designation for wheel rim 502

Dimension designation for tyre502
MAINTENANCE AND SERVICE
Volvo service programme506
Car status 506
Book service and repair 506
Inspection and service of the system for vehicle gas * 509
Remote updates 509
System updates 510
Data transmission between car and workshop 511
Raise the car 512
Opening and closing the bonnet 514
Engine compartment overview 515
Engine oil 516
Checking and filling with engine oil 517
Topping up coolant 518
Servicing the climate control system 520
Bulb replacement 520
Replacing the dipped beam bulb 522
Replacing the main beam lamp 523
Replacing daytime running lightbulb/position lamp bulb, front 524
Replacing the front direction indica-tor bulb 524
Replacing the reversing lamp bulb 525
Replacing the rear fog lamp bulb 526
Bulb specifications 526

11

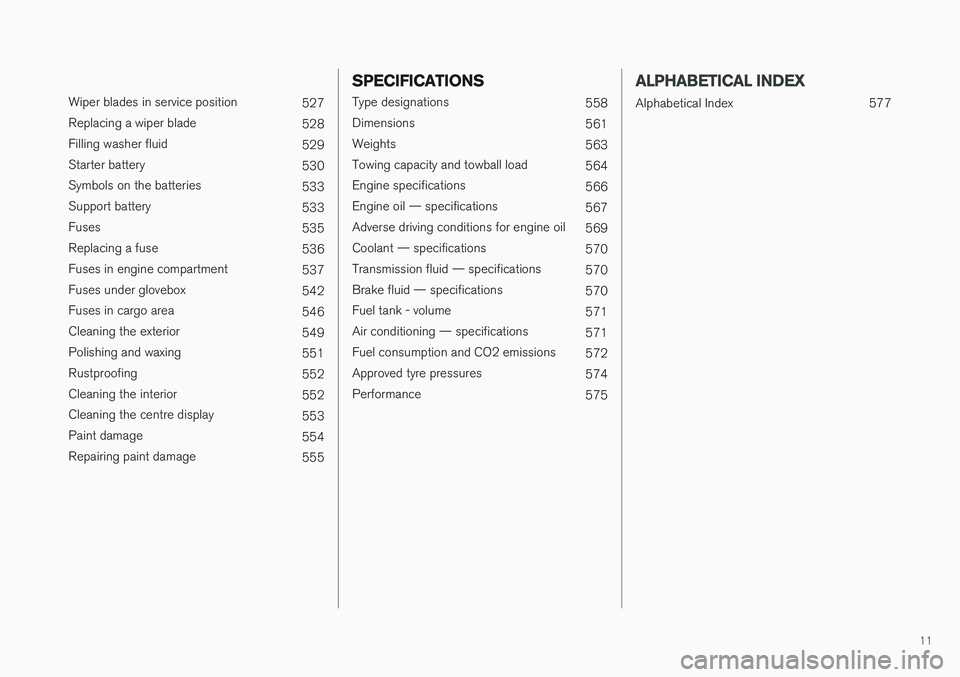

Wiper blades in service position527
Replacing a wiper blade 528
Filling washer fluid 529
Starter battery 530
Symbols on the batteries 533
Support battery 533
Fuses 535
Replacing a fuse 536
Fuses in engine compartment 537
Fuses under glovebox 542
Fuses in cargo area 546
Cleaning the exterior 549
Polishing and waxing 551
Rustproofing 552
Cleaning the interior 552
Cleaning the centre display 553
Paint damage 554
Repairing paint damage 555
SPECIFICATIONS
Type designations558
Dimensions 561
Weights 563
Towing capacity and towball load 564
Engine specifications 566
Engine oil — specifications 567
Adverse driving conditions for engine oil 569
Coolant — specifications 570
Transmission fluid — specifications 570
Brake fluid — specifications 570
Fuel tank - volume 571
Air conditioning — specifications 571
Fuel consumption and CO2 emissions 572
Approved tyre pressures 574
Performance 575
ALPHABETICAL INDEX
Alphabetical Index 577

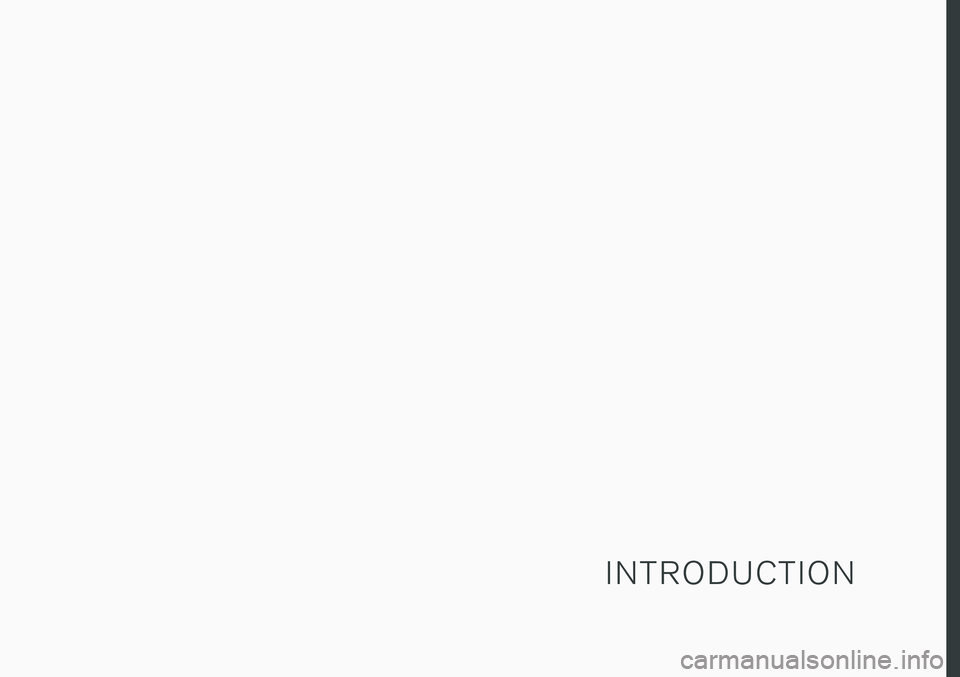

I N T R O D U C T I O N

INTRODUCTION
14
This is how you find owner's informationOwner's information is available in several differ- ent product formats, both digital and printed.The owner's manual is available in the car's cen-tre display, as a mobile app and on the VolvoCars support site. There is a Quick Guide and asupplement to the owner's manual available inthe glovebox, with specifications and fuse infor-mation, amongst other things. A printed owner'smanual can be ordered.The car's centre display 1In the centre display, drag down the top view and tap on
Owner's manual. Available
here are options for visual navi- gation with exterior and interiorimages of the car. The informa-tion is searchable and is also
divided into categories.
Mobile appIn App Store or Google Play, search for "Volvo Manual",download the app to yoursmartphone or tablet and selectthe car. Available in the app arevideo tutorials and options forvisual navigation with exterior
and interior images of the car. It is easy to navi-gate between the different sections in theowner's manual and the content is searchable.
Volvo Cars support siteGo to support.volvocars.com and select your country. Hereyou can find owner's manuals,both online and in PDF format.On the Volvo Cars support sitethere are also video tutorialsand further information and
help regarding your Volvo and your car owner-ship. The page is available for most markets.
Printed informationThere is a supplement to the owner's manual 1
in the glove-
box that contains information on fuses and specifications, aswell as a summary of importantand practical information.
There is also a Quick Guide available in printedformat that helps you to get started with the mostcommonly used functions in the car. Depending on equipment level selected, market, etc. additional owner's information may also beavailable in printed format in the car. A printed owner's manual and associated supple- ment can be ordered. Contact a Volvo dealer toorder.
Changing the language in the car's centre display
Changing the language in the centre display may mean that some owner's information does notcorrespond to national or local laws and regula-tions. Don't change to a language that's difficultto understand, it may then be difficult to find yourway back in the structure on the screen.
1 A complete printed manual is included with the car for markets without owner's manual in the centre display.

INTRODUCTION
}}
15

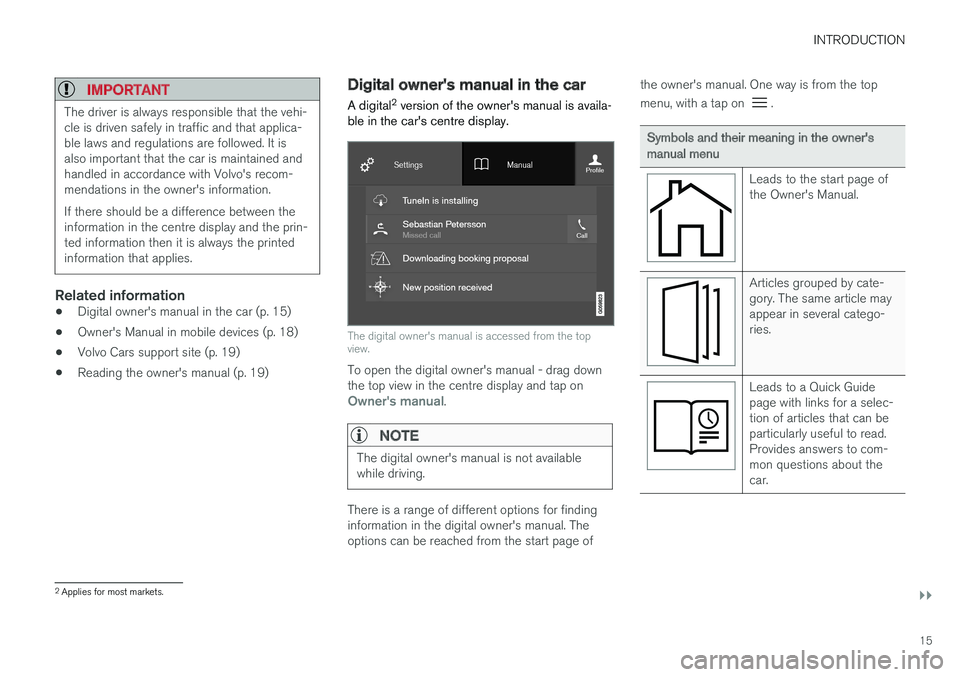

IMPORTANT
The driver is always responsible that the vehi- cle is driven safely in traffic and that applica-ble laws and regulations are followed. It isalso important that the car is maintained andhandled in accordance with Volvo's recom-mendations in the owner's information. If there should be a difference between the information in the centre display and the prin-ted information then it is always the printedinformation that applies.
Related information
•Digital owner's manual in the car (p. 15)
• Owner's Manual in mobile devices (p. 18)
• Volvo Cars support site (p. 19)
• Reading the owner's manual (p. 19)
Digital owner's manual in the car A digital 2
version of the owner's manual is availa-
ble in the car's centre display.
The digital owner's manual is accessed from the top view.
To open the digital owner's manual - drag down the top view in the centre display and tap on
Owner's manual.
NOTE
The digital owner's manual is not available while driving.
There is a range of different options for finding information in the digital owner's manual. Theoptions can be reached from the start page of the owner's manual. One way is from the top menu, with a tap on
.
Symbols and their meaning in the owner's manual menu
Leads to the start page of the Owner's Manual.
Articles grouped by cate- gory. The same article mayappear in several catego-ries.
Leads to a Quick Guide page with links for a selec-tion of articles that can beparticularly useful to read.Provides answers to com-mon questions about thecar.
2
Applies for most markets.

||
INTRODUCTION
16

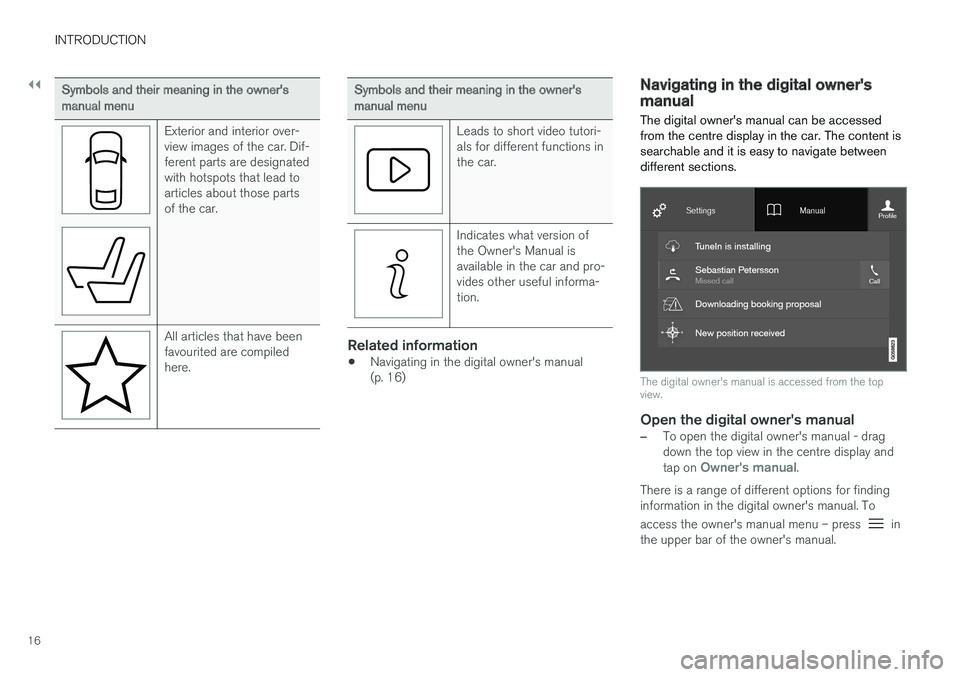

Symbols and their meaning in the owner's manual menu
Exterior and interior over- view images of the car. Dif-ferent parts are designatedwith hotspots that lead toarticles about those partsof the car.
All articles that have been favourited are compiledhere.
Symbols and their meaning in the owner's manual menu
Leads to short video tutori- als for different functions inthe car.
Indicates what version of the Owner's Manual isavailable in the car and pro-vides other useful informa-tion.
Related information
•Navigating in the digital owner's manual (p. 16)
Navigating in the digital owner's manual The digital owner's manual can be accessed from the centre display in the car. The content issearchable and it is easy to navigate betweendifferent sections.
The digital owner's manual is accessed from the top view.
Open the digital owner's manual
–To open the digital owner's manual - drag down the top view in the centre display and tap on
Owner's manual.
There is a range of different options for finding information in the digital owner's manual. To access the owner's manual menu – press
in
the upper bar of the owner's manual.

INTRODUCTION
}}
17

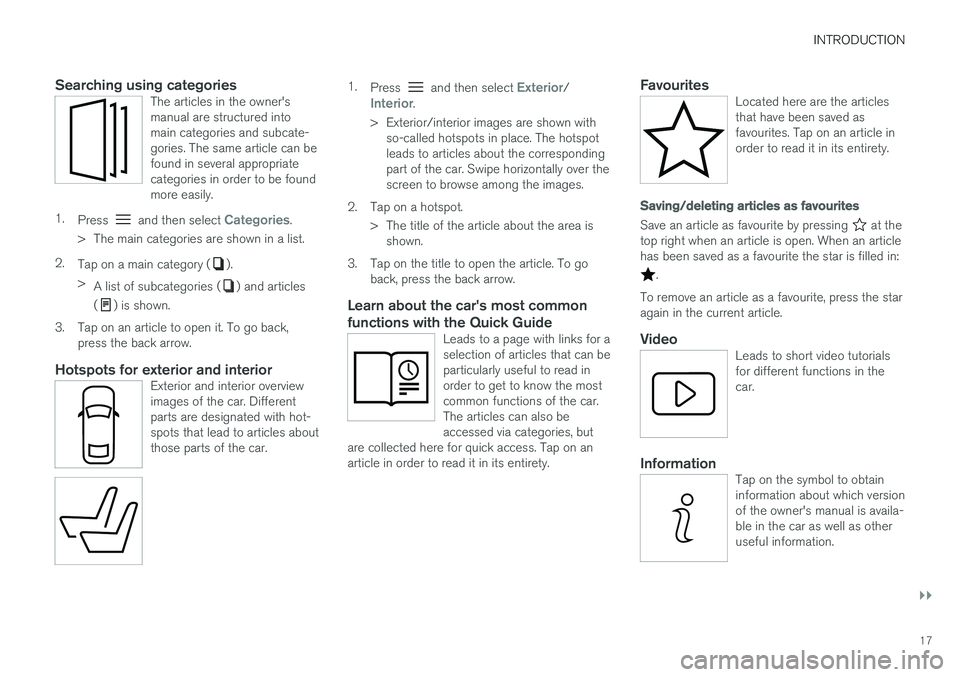

Searching using categoriesThe articles in the owner's manual are structured intomain categories and subcate-gories. The same article can befound in several appropriatecategories in order to be foundmore easily.
1.Press and then select Categories.
> The main categories are shown in a list.
2. Tap on a main category (
).
> A list of subcategories (
) and articles
(
) is shown.
3. Tap on an article to open it. To go back, press the back arrow.
Hotspots for exterior and interiorExterior and interior overview images of the car. Differentparts are designated with hot-spots that lead to articles aboutthose parts of the car.
1.Press and then select Exterior/Interior.
> Exterior/interior images are shown with so-called hotspots in place. The hotspot leads to articles about the correspondingpart of the car. Swipe horizontally over thescreen to browse among the images.
2. Tap on a hotspot. > The title of the article about the area isshown.
3. Tap on the title to open the article. To go back, press the back arrow.
Learn about the car's most common functions with the Quick Guide
Leads to a page with links for a selection of articles that can beparticularly useful to read inorder to get to know the mostcommon functions of the car.The articles can also beaccessed via categories, but
are collected here for quick access. Tap on anarticle in order to read it in its entirety.
FavouritesLocated here are the articles that have been saved asfavourites. Tap on an article inorder to read it in its entirety.
Saving/deleting articles as favourites
Save an article as favourite by pressing at the
top right when an article is open. When an article has been saved as a favourite the star is filled in:
.
To remove an article as a favourite, press the star again in the current article.
VideoLeads to short video tutorialsfor different functions in thecar.
InformationTap on the symbol to obtain information about which versionof the owner's manual is availa-ble in the car as well as otheruseful information.

||
INTRODUCTION
18

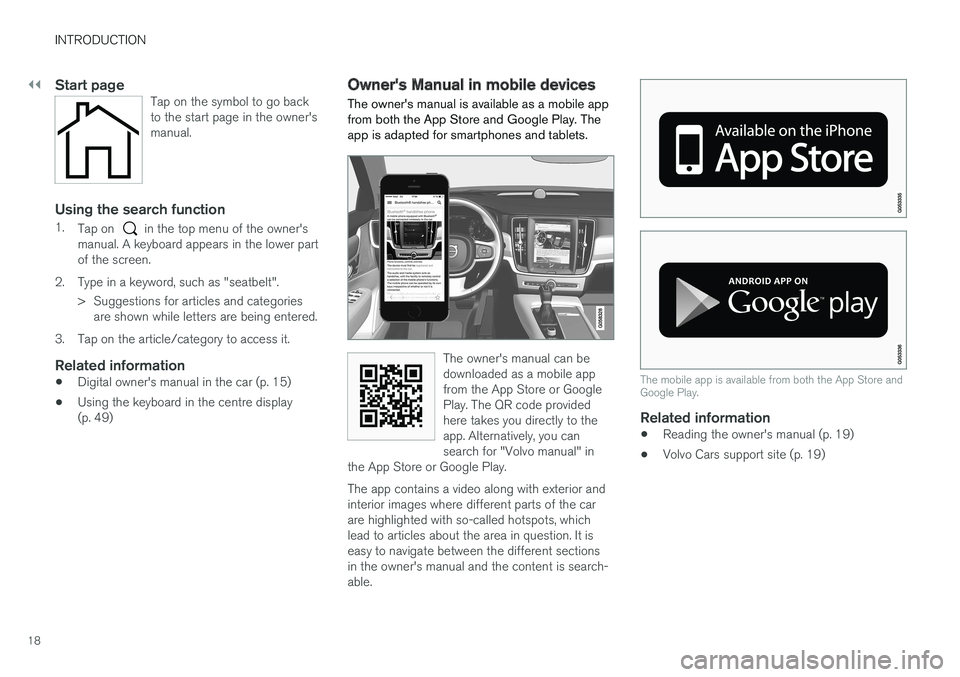

Start pageTap on the symbol to go back to the start page in the owner'smanual.
Using the search function
1.Tap on in the top menu of the owner's
manual. A keyboard appears in the lower part of the screen.
2. Type in a keyword, such as "seatbelt". > Suggestions for articles and categoriesare shown while letters are being entered.
3. Tap on the article/category to access it.
Related information
• Digital owner's manual in the car (p. 15)
• Using the keyboard in the centre display(p. 49)
Owner's Manual in mobile devices
The owner's manual is available as a mobile app from both the App Store and Google Play. Theapp is adapted for smartphones and tablets.
The owner's manual can be downloaded as a mobile appfrom the App Store or GooglePlay. The QR code providedhere takes you directly to theapp. Alternatively, you cansearch for "Volvo manual" in
the App Store or Google Play.
The app contains a video along with exterior and interior images where different parts of the carare highlighted with so-called hotspots, whichlead to articles about the area in question. It iseasy to navigate between the different sectionsin the owner's manual and the content is search-able.
The mobile app is available from both the App Store and Google Play.
Related information
• Reading the owner's manual (p. 19)
• Volvo Cars support site (p. 19)
