SPECIFICATIONS
}}
659

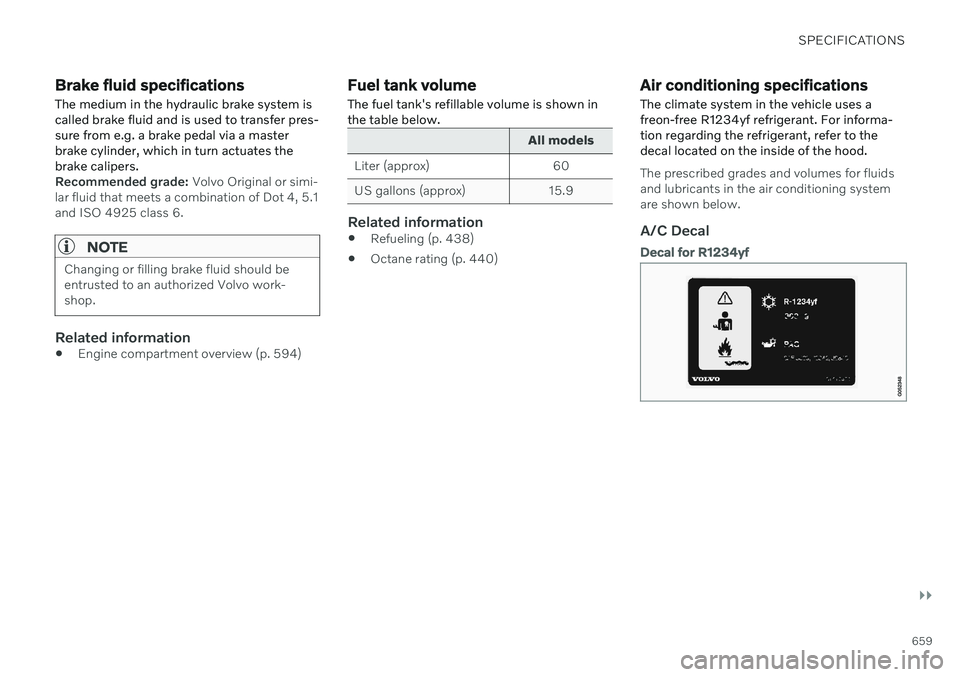

Brake fluid specifications
The medium in the hydraulic brake system is called brake fluid and is used to transfer pres-sure from e.g. a brake pedal via a masterbrake cylinder, which in turn actuates thebrake calipers.
Recommended grade: Volvo Original or simi-
lar fluid that meets a combination of Dot 4, 5.1 and ISO 4925 class 6.
NOTE
Changing or filling brake fluid should be entrusted to an authorized Volvo work-shop.
Related information
Engine compartment overview (p. 594)
Fuel tank volume
The fuel tank's refillable volume is shown in the table below.
All models
Liter (approx) 60
US gallons (approx) 15.9
Related information
Refueling (p. 438)
Octane rating (p. 440)
Air conditioning specifications
The climate system in the vehicle uses a freon-free R1234yf refrigerant. For informa-tion regarding the refrigerant, refer to thedecal located on the inside of the hood.
The prescribed grades and volumes for fluids and lubricants in the air conditioning systemare shown below.
A/C Decal
Decal for R1234yf

||
SPECIFICATIONS
660

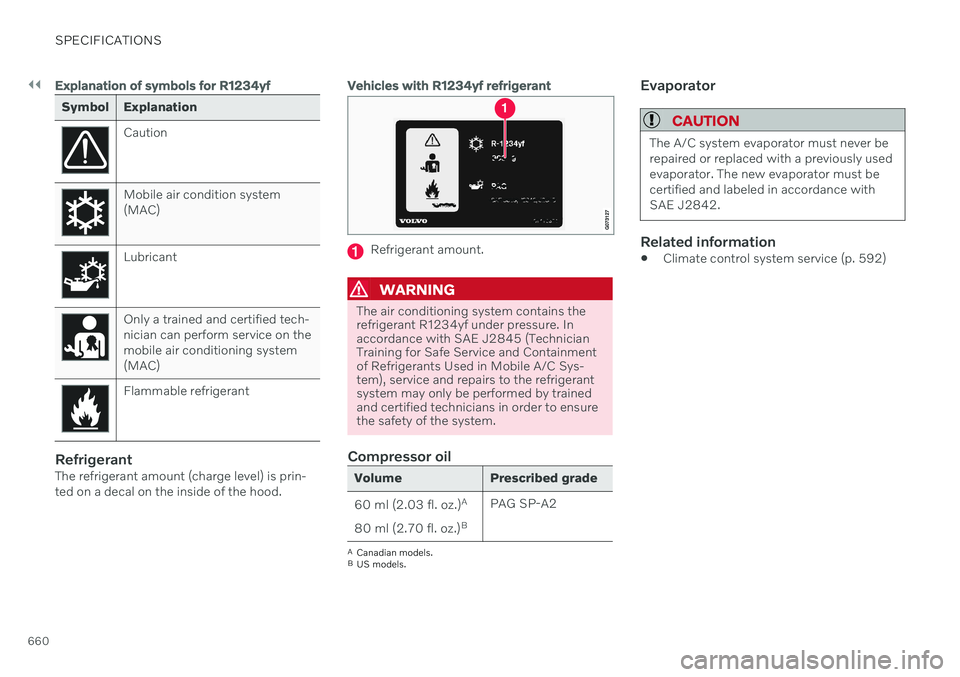

Explanation of symbols for R1234yf
Symbol Explanation
Caution
Mobile air condition system (MAC)
Lubricant
Only a trained and certified tech- nician can perform service on themobile air conditioning system(MAC)
Flammable refrigerant
RefrigerantThe refrigerant amount (charge level) is prin- ted on a decal on the inside of the hood.
Vehicles with R1234yf refrigerant
Refrigerant amount.
WARNING
The air conditioning system contains the refrigerant R1234yf under pressure. Inaccordance with SAE J2845 (TechnicianTraining for Safe Service and Containmentof Refrigerants Used in Mobile A/C Sys-tem), service and repairs to the refrigerantsystem may only be performed by trainedand certified technicians in order to ensurethe safety of the system.
Compressor oil
Volume Prescribed grade 60 ml (2.03 fl. oz.)A
80 ml (2.70 fl. oz.) BPAG SP-A2
A
Canadian models.
B US models.
Evaporator
CAUTION
The A/C system evaporator must never be repaired or replaced with a previously usedevaporator. The new evaporator must becertified and labeled in accordance withSAE J2842.
Related information
Climate control system service (p. 592)

SPECIFICATIONS
661

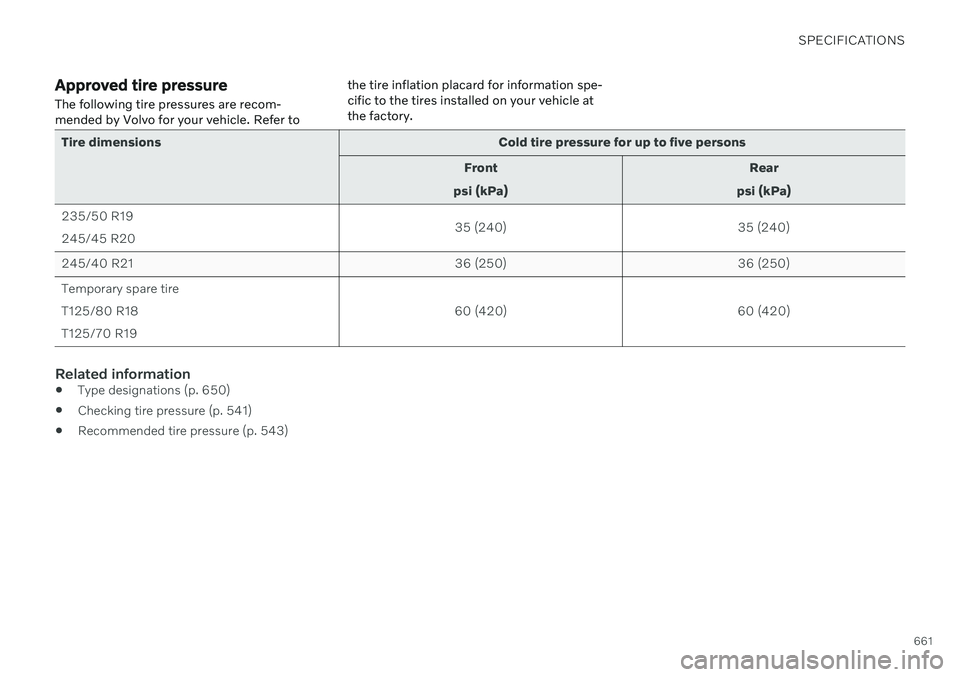

Approved tire pressure The following tire pressures are recom- mended by Volvo for your vehicle. Refer tothe tire inflation placard for information spe-cific to the tires installed on your vehicle atthe factory.
Tire dimensions
Cold tire pressure for up to five persons
Front
psi (kPa) Rear
psi (kPa)
235/50 R19 245/45 R20 35 (240)
35 (240)
245/40 R21 36 (250)36 (250)
Temporary spare tireT125/80 R18T125/70 R19 60 (420)
60 (420)
Related information
Type designations (p. 650)
Checking tire pressure (p. 541)
Recommended tire pressure (p. 543)

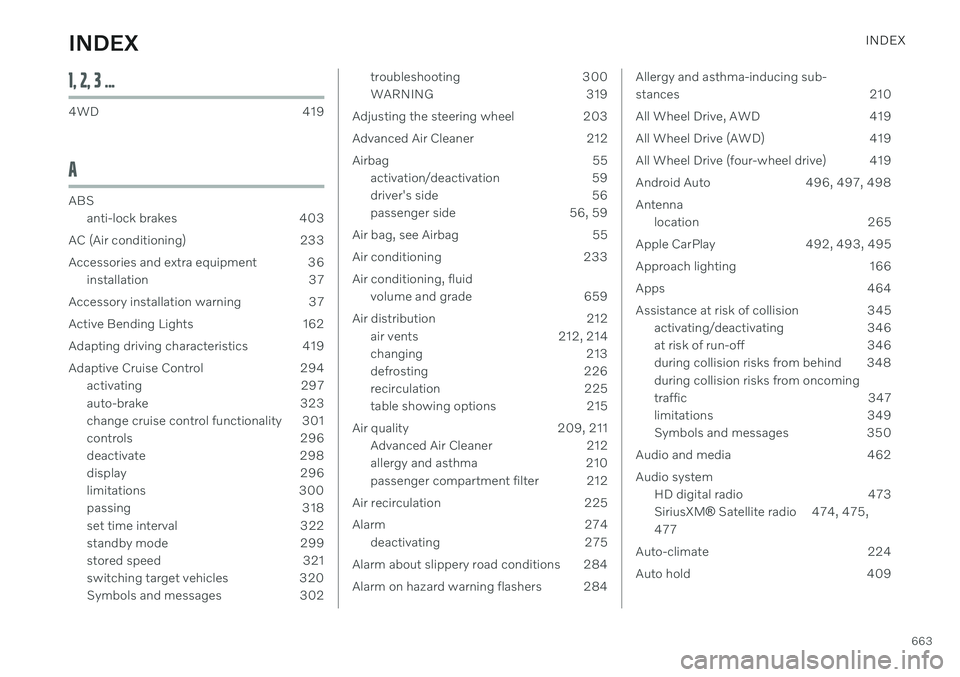

INDEX
663
1, 2, 3 ...
4WD 419
A
ABSanti-lock brakes 403
AC (Air conditioning) 233
Accessories and extra equipment 36 installation 37
Accessory installation warning 37
Active Bending Lights 162
Adapting driving characteristics 419
Adaptive Cruise Control 294 activating 297
auto-brake 323
change cruise control functionality 301
controls 296
deactivate 298
display 296
limitations 300
passing 318
set time interval 322
standby mode 299
stored speed 321
switching target vehicles 320
Symbols and messages 302
troubleshooting 300
WARNING 319
Adjusting the steering wheel 203
Advanced Air Cleaner 212
Airbag 55 activation/deactivation 59
driver's side 56
passenger side 56, 59
Air bag, see Airbag 55
Air conditioning 233 Air conditioning, fluid volume and grade 659
Air distribution 212 air vents 212, 214
changing 213
defrosting 226
recirculation 225
table showing options 215
Air quality 209, 211 Advanced Air Cleaner 212
allergy and asthma 210
passenger compartment filter 212
Air recirculation 225
Alarm 274 deactivating 275
Alarm about slippery road conditions 284
Alarm on hazard warning flashers 284Allergy and asthma-inducing sub-
stances 210
All Wheel Drive, AWD 419
All Wheel Drive (AWD) 419
All Wheel Drive (four-wheel drive) 419
Android Auto 496, 497, 498Antenna location 265
Apple CarPlay 492, 493, 495
Approach lighting 166
Apps 464
Assistance at risk of collision 345 activating/deactivating 346
at risk of run-off 346
during collision risks from behind 348 during collision risks from oncoming
traffic 347
limitations 349
Symbols and messages 350
Audio and media 462 Audio system HD digital radio 473 SiriusXM ®
Satellite radio 474, 475,
477
Auto-climate 224
Auto hold 409
INDEX

INDEX
664Auto-hold brakes 409
activating/deactivating 410
after collision 411
driver support 278
Automatic car wash 637 Automatic engine stop auto-stop 425
Automatic high beam 161
Automatic locking 268
Automatic relocking 249, 263
Automatic transmission 412, 413 kickdown 418
oil 658
Trailer 446
B
Backrestfront seat, adjusting 190, 191, 194, 195 , 196, 197
rear seat, folding 200
Battery jump-start 444
Maintenance 600
recycling 604
starter battery 600
support 602
symbols on the battery 604
Blind Spot Information 352
BLIS 352 activating/deactivating 353
limitations 354
Symbols and messages 355
Blower adjusting 228, 229
air distribution 213
air vents 214
Bluetooth connect 489
connecting vehicle to Internet 515
phone 499
settings 507
Book service and repair 587
Booster cushions 74 Brake assist after collision 411
Brake fluid grade 659
Brake functions 403
Brakes 403 anti-lock brakes, ABS 403
auto-brake with Pilot Assist 323auto-braking with Adaptive Cruise
Control 323automatic when stationary 409
Brake Assist System, BAS 404
brake lights 165
brake system 403
emergency brake lights 165
Maintenance 405
on salted roads 405
on wet roads 405
parking brake 406
brake system fluid 659
C
Camera sensorsee Camera 390
Camera unit 390 limitations 390
maintenance and cleaning 393
Symbols and messages 395
Capacity weight 561, 655 Care Key restricted remote key 256
settings 257
Cargo compartment 569 attachment points 572
cargo net 577

INDEX
665
electrical outlet 566, 567
Lighting 167
Cargo compartment cover 573, 574
cargo net 577
Cargo net 577
Car wash 634, 636, 637, 638, 639, 640
Catalytic converter 442 recovery 451
Cell phone, see Phone 500
Center console 565 Center display change appearance 135
cleaning 629
climate controls 218
Function view 126
handling 116, 119, 123, 128
keyboard 130
messages 144, 145
overview 114
settings 136, 137
switch off and change volume 135
symbols in status bar 128
views 119
Central locking 266
Certificate 510
Change of owner 138
Changing target vehicle 320
Checking engine oil level 596 Child lock activating/deactivating 267
Child restraints 66, 68 booster cushions 74
convertible seats 72
infant seats 70
integrated booster cushion 79
ISOFIX/LATCH anchors 77
lower attachment points 77
recalls and registration 68
top tether anchors 75
Child safety 66
City Safety 331 braking for oncoming vehicles 340
crossing traffic 337
delayed evasive maneuver 339
detecting obstacles 335
evasive maneuver 338
limitations 341
limitations for evasive maneuvers 339
limitations in crossing traffic 338
setting warning distance 334
sub-functions 332
Symbols and messages 344
Cleaning 632, 633, 634 automatic car wash 637
car wash 634, 636, 637, 638, 639,640center display 629
Seat belts 631
textile upholstery 628, 630, 632
upholstery 628, 630, 631, 632,633 , 634
wheels 640
Cleaning wheels 640
Cleaning wiper blades 639
CleanZone 210
Clean Zone Interior Package 210
Climate 206 auto-regulation 224
blower control 228, 229
parking 234
perceived temperature 208
Sensors 207
temperature control 230, 231, 232
voice control 208
zones 206
Climate controls 218 center display 218
rear seat 218
Climate system 206, 218 Refrigerant 659
repairs 592
Clock, setting 98
Collision 44, 49, 55, 64

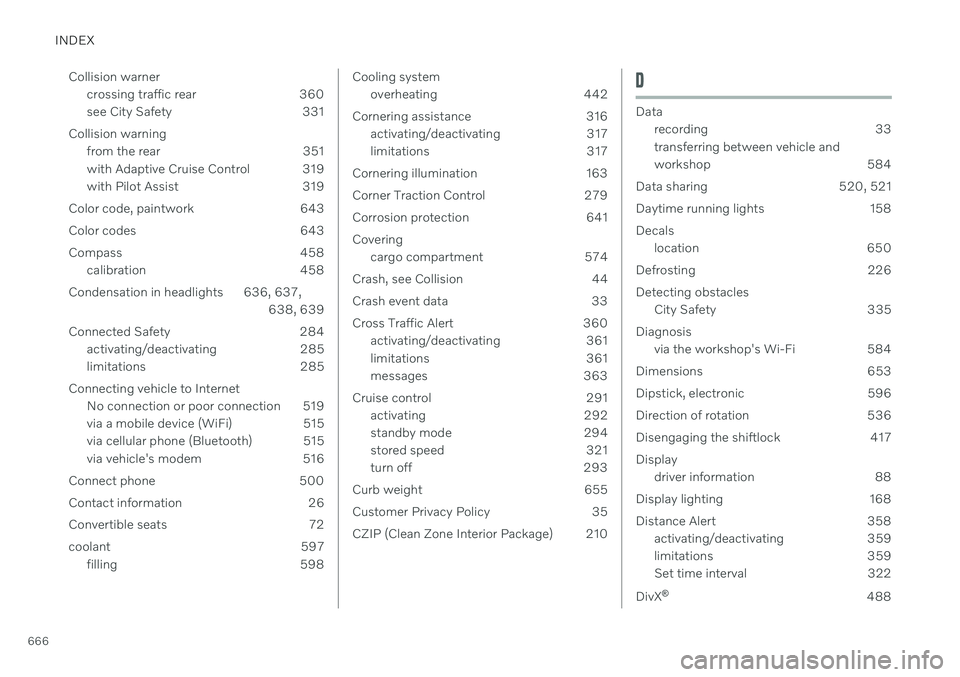

INDEX
666Collision warner
crossing traffic rear 360
see City Safety 331
Collision warning from the rear 351
with Adaptive Cruise Control 319
with Pilot Assist 319
Color code, paintwork 643
Color codes 643
Compass 458 calibration 458
Condensation in headlights 636, 637, 638, 639
Connected Safety 284 activating/deactivating 285
limitations 285
Connecting vehicle to Internet No connection or poor connection 519
via a mobile device (WiFi) 515
via cellular phone (Bluetooth) 515
via vehicle's modem 516
Connect phone 500
Contact information 26
Convertible seats 72
coolant 597 filling 598
Cooling systemoverheating 442
Cornering assistance 316 activating/deactivating 317
limitations 317
Cornering illumination 163
Corner Traction Control 279
Corrosion protection 641Covering cargo compartment 574
Crash, see Collision 44
Crash event data 33
Cross Traffic Alert 360 activating/deactivating 361
limitations 361
messages 363
Cruise control 291 activating 292
standby mode 294
stored speed 321
turn off 293
Curb weight 655
Customer Privacy Policy 35
CZIP (Clean Zone Interior Package) 210D
Data recording 33 transferring between vehicle and
workshop 584
Data sharing 520, 521
Daytime running lights 158Decals location 650
Defrosting 226Detecting obstacles City Safety 335
Diagnosis via the workshop's Wi-Fi 584
Dimensions 653
Dipstick, electronic 596
Direction of rotation 536
Disengaging the shiftlock 417 Display driver information 88
Display lighting 168
Distance Alert 358 activating/deactivating 359
limitations 359
Set time interval 322
DivX ®
488

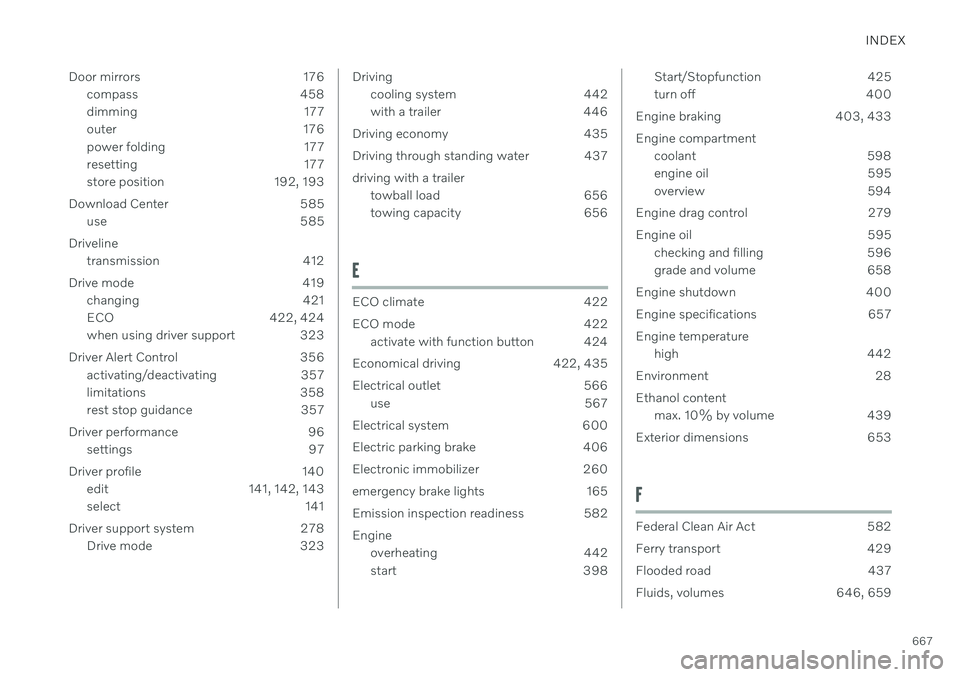

INDEX
667
Door mirrors 176
compass 458
dimming 177
outer 176
power folding 177
resetting 177
store position 192, 193
Download Center 585 use 585
Driveline transmission 412
Drive mode 419 changing 421
ECO 422, 424
when using driver support 323
Driver Alert Control 356 activating/deactivating 357
limitations 358
rest stop guidance 357
Driver performance 96 settings 97
Driver profile 140 edit 141, 142, 143
select 141
Driver support system 278 Drive mode 323
Drivingcooling system 442
with a trailer 446
Driving economy 435
Driving through standing water 437driving with a trailer towball load 656
towing capacity 656
E
ECO climate 422
ECO mode 422
activate with function button 424
Economical driving 422, 435
Electrical outlet 566 use 567
Electrical system 600
Electric parking brake 406
Electronic immobilizer 260
emergency brake lights 165
Emission inspection readiness 582 Engine overheating 442
start 398
Start/Stopfunction 425
turn off 400
Engine braking 403, 433 Engine compartment coolant 598
engine oil 595
overview 594
Engine drag control 279
Engine oil 595 checking and filling 596
grade and volume 658
Engine shutdown 400
Engine specifications 657Engine temperature high 442
Environment 28Ethanol content max. 10% by volume 439
Exterior dimensions 653
F
Federal Clean Air Act 582
Ferry transport 429
Flooded road 437
Fluids, volumes 646, 659

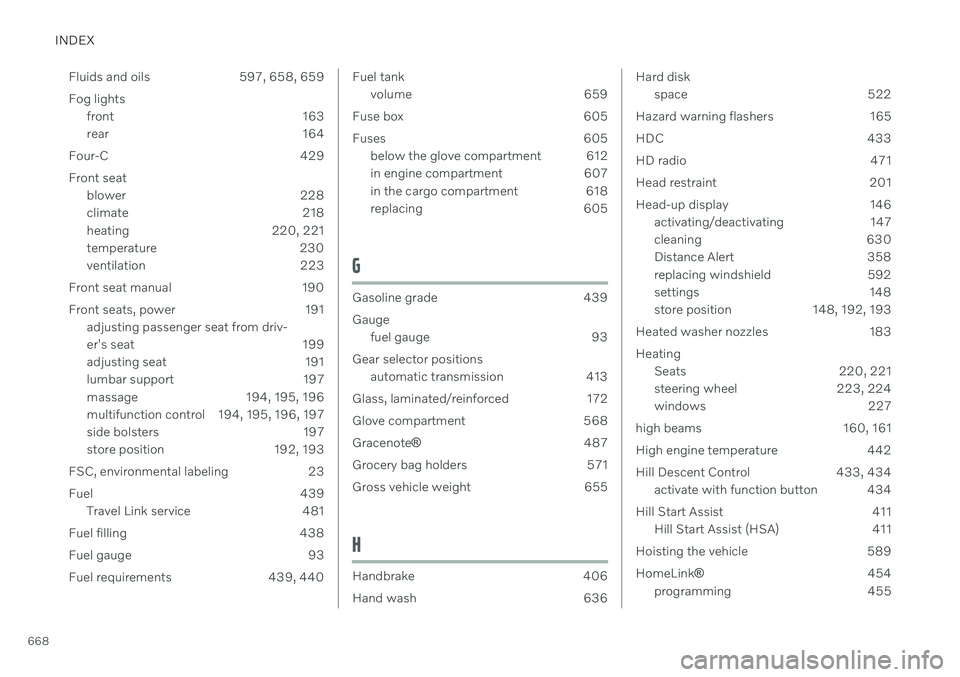

INDEX
668Fluids and oils 597, 658, 659 Fog lights
front 163
rear 164
Four-C 429 Front seat blower 228
climate 218
heating 220, 221
temperature 230
ventilation 223
Front seat manual 190
Front seats, power 191 adjusting passenger seat from driv-
er's seat 199
adjusting seat 191
lumbar support 197
massage 194, 195, 196
multifunction control 194, 195, 196, 197
side bolsters 197
store position 192, 193
FSC, environmental labeling 23
Fuel 439 Travel Link service 481
Fuel filling 438
Fuel gauge 93
Fuel requirements 439, 440
Fuel tank volume 659
Fuse box 605
Fuses 605 below the glove compartment 612
in engine compartment 607
in the cargo compartment 618
replacing 605
G
Gasoline grade 439 Gaugefuel gauge 93
Gear selector positions automatic transmission 413
Glass, laminated/reinforced 172
Glove compartment 568 Gracenote ® 487
Grocery bag holders 571
Gross vehicle weight 655
H
Handbrake 406
Hand wash 636
Hard disk space 522
Hazard warning flashers 165
HDC 433
HD radio 471
Head restraint 201
Head-up display 146 activating/deactivating 147
cleaning 630
Distance Alert 358
replacing windshield 592
settings 148
store position 148, 192, 193
Heated washer nozzles 183 Heating Seats 220, 221
steering wheel 223, 224
windows 227
high beams 160, 161
High engine temperature 442
Hill Descent Control 433, 434 activate with function button 434
Hill Start Assist 411 Hill Start Assist (HSA) 411
Hoisting the vehicle 589 HomeLink ® 454
programming 455
