VOLVO V90 CROSS COUNTRY 2021 Owners Manual

S P E C I F I C A T I O N S

SPECIFICATIONS
650

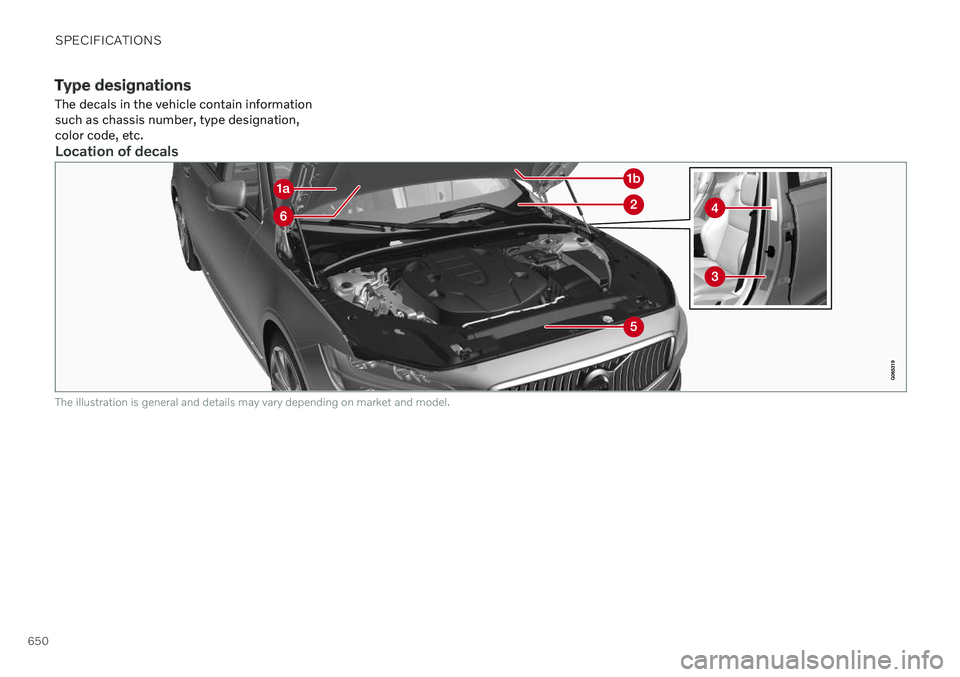

Type designationsThe decals in the vehicle contain information such as chassis number, type designation,color code, etc.
Location of decals
The illustration is general and details may vary depending on market and model.

SPECIFICATIONS
}}
651

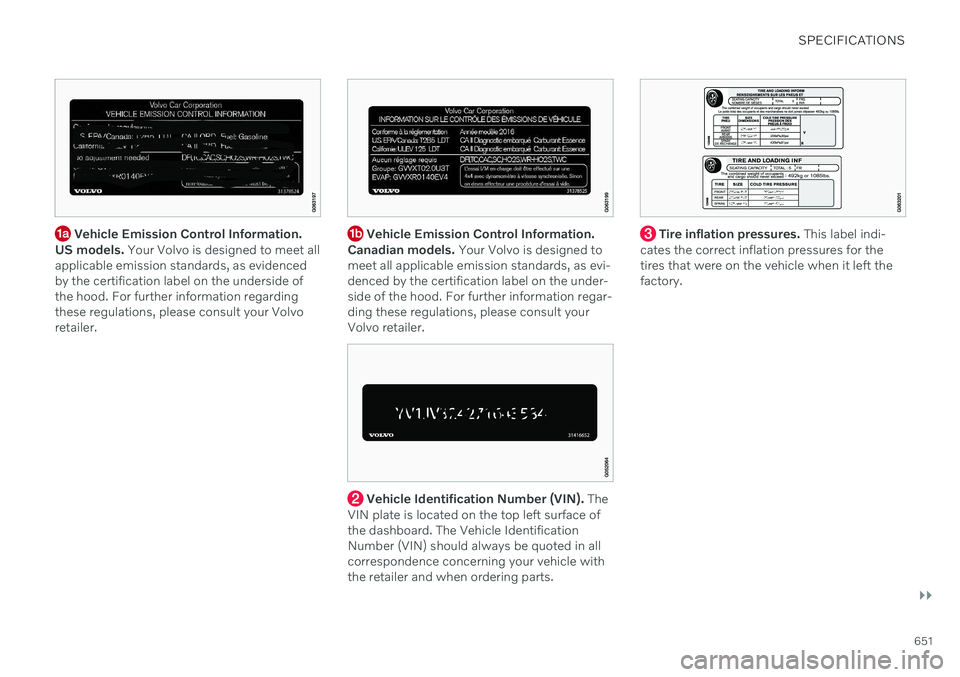

Vehicle Emission Control Information.
US models. Your Volvo is designed to meet all
applicable emission standards, as evidenced by the certification label on the underside ofthe hood. For further information regardingthese regulations, please consult your Volvoretailer. Vehicle Emission Control Information.
Canadian models. Your Volvo is designed to
meet all applicable emission standards, as evi- denced by the certification label on the under-side of the hood. For further information regar-ding these regulations, please consult yourVolvo retailer.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle IdentificationNumber (VIN) should always be quoted in allcorrespondence concerning your vehicle withthe retailer and when ordering parts.
Tire inflation pressures. This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when it left thefactory.

||
SPECIFICATIONS
652

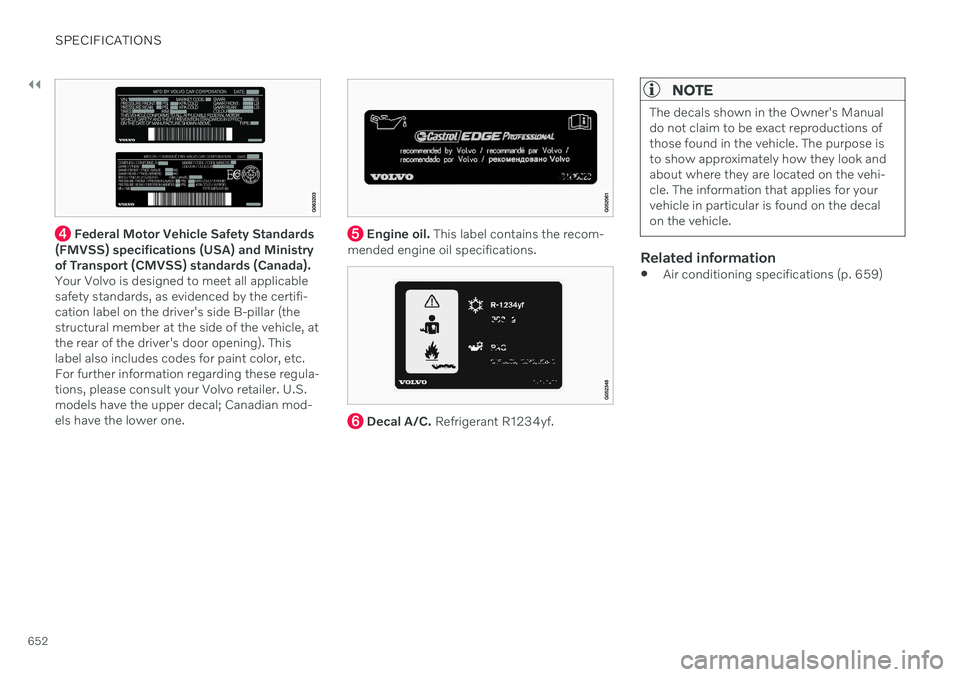

Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada).Your Volvo is designed to meet all applicablesafety standards, as evidenced by the certifi-cation label on the driver's side B-pillar (thestructural member at the side of the vehicle, atthe rear of the driver's door opening). Thislabel also includes codes for paint color, etc.For further information regarding these regula-tions, please consult your Volvo retailer. U.S.models have the upper decal; Canadian mod-els have the lower one. Engine oil. This label contains the recom-
mended engine oil specifications.
Decal A/C. Refrigerant R1234yf.
NOTE
The decals shown in the Owner's Manual do not claim to be exact reproductions ofthose found in the vehicle. The purpose isto show approximately how they look andabout where they are located on the vehi-cle. The information that applies for yourvehicle in particular is found on the decalon the vehicle.
Related information
Air conditioning specifications (p. 659)

SPECIFICATIONS
}}
653

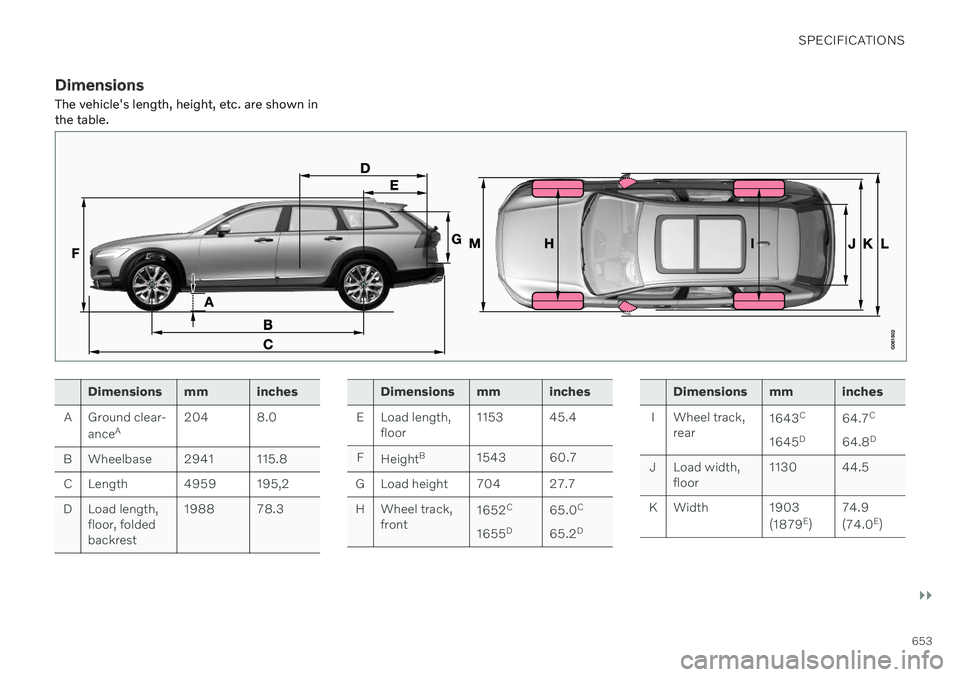

DimensionsThe vehicle's length, height, etc. are shown in the table.
Dimensions mm inches
A Ground clear- ance A 204 8.0
B Wheelbase 2941 115.8 C Length 4959 195,2
D Load length, floor, folded
backrest 1988 78.3Dimensions mm inches
E Load length, floor 1153 45.4
F Height B
1543 60.7
G Load height 704 27.7 H Wheel track, front 1652
C
1655 D 65.0
C
65.2 DDimensions mm inches
I Wheel track, rear 1643
C
1645 D 64.7
C
64.8 D
J Load width, floor 1130 44.5
K Width 1903 (1879E
) 74.9 (74.0
E
)

||

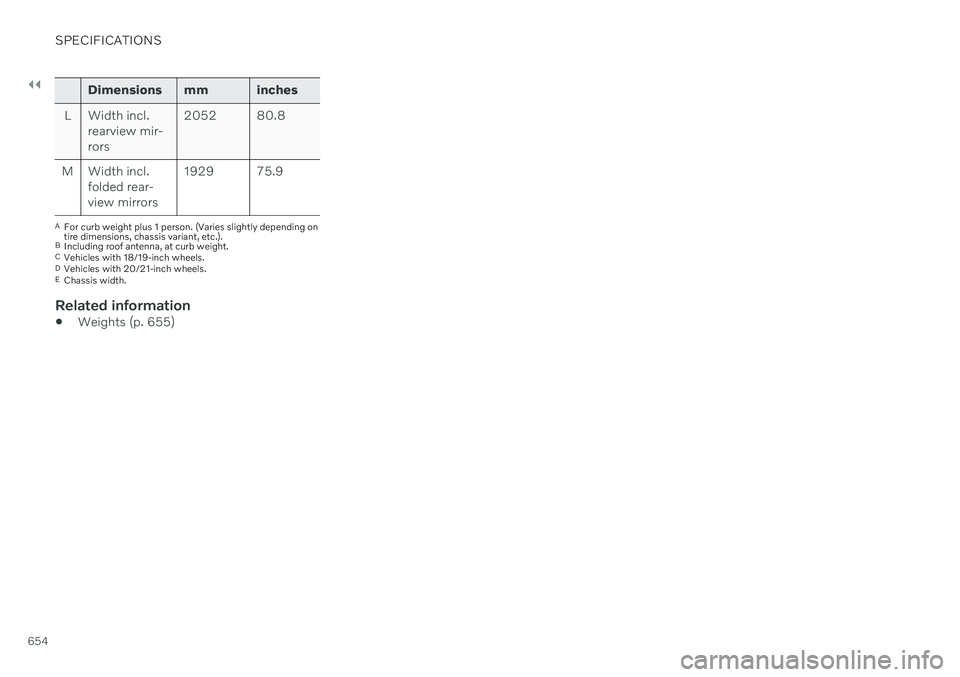

SPECIFICATIONS
654
Dimensions mm inches
L Width incl. rearview mir- rors 2052 80.8
M Width incl. folded rear-view mirrors 1929 75.9
A
For curb weight plus 1 person. (Varies slightly depending on tire dimensions, chassis variant, etc.).
B Including roof antenna, at curb weight.
C Vehicles with 18/19-inch wheels.
D Vehicles with 20/21-inch wheels.
E Chassis width.
Related information
Weights (p. 655)

SPECIFICATIONS
655

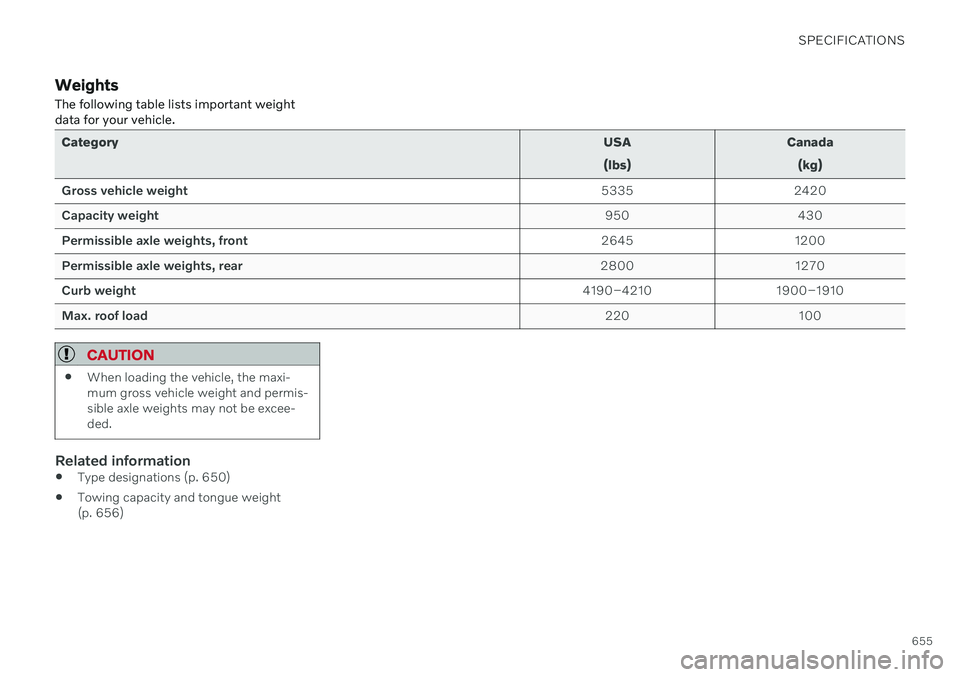

WeightsThe following table lists important weight data for your vehicle.
Category USA
(lbs) Canada
(kg)
Gross vehicle weight 5335 2420
Capacity weight 950 430
Permissible axle weights, front 2645 1200
Permissible axle weights, rear 2800 1270
Curb weight 4190–4210 1900–1910
Max. roof load 220 100
CAUTION
When loading the vehicle, the maxi- mum gross vehicle weight and permis-sible axle weights may not be excee-ded.
Related information
Type designations (p. 650)
Towing capacity and tongue weight (p. 656)

SPECIFICATIONS
* Option/accessory.
656

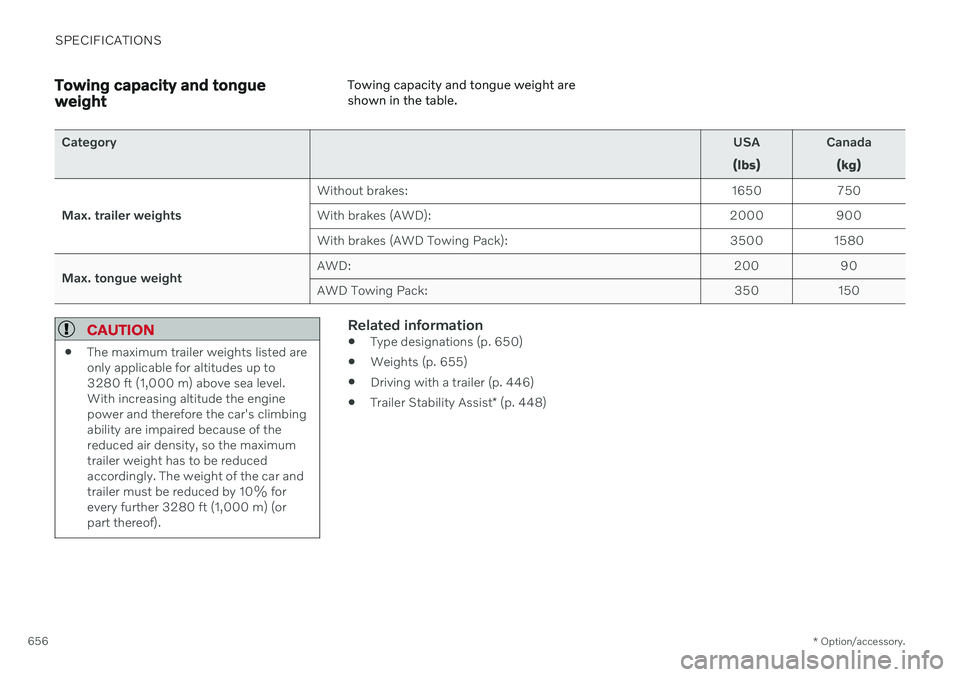

Towing capacity and tongue weight Towing capacity and tongue weight are shown in the table.
Category
USA
(lbs) Canada
(kg)
Max. trailer weights Without brakes:
1650 750
With brakes (AWD): 2000 900
With brakes (AWD Towing Pack): 3500 1580
Max. tongue weight AWD:
200 90
AWD Towing Pack: 350 150
CAUTION
The maximum trailer weights listed are only applicable for altitudes up to3280 ft (1,000 m) above sea level.With increasing altitude the enginepower and therefore the car's climbingability are impaired because of thereduced air density, so the maximumtrailer weight has to be reducedaccordingly. The weight of the car andtrailer must be reduced by 10% forevery further 3280 ft (1,000 m) (orpart thereof).
Related information
Type designations (p. 650)
Weights (p. 655)
Driving with a trailer (p. 446)
Trailer Stability Assist
* (p. 448)

SPECIFICATIONS
657

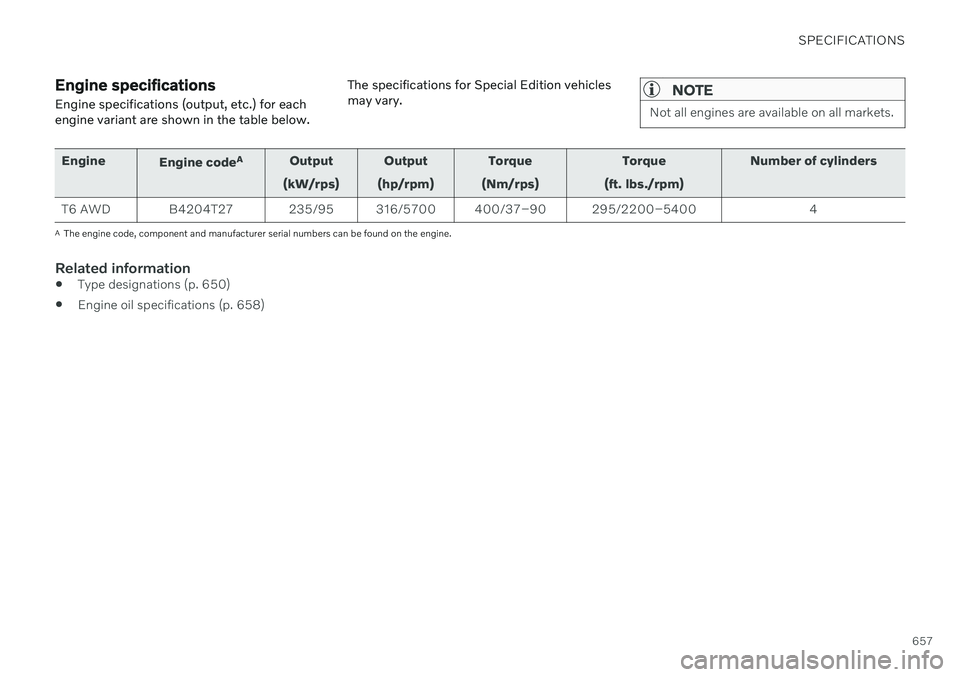

Engine specifications Engine specifications (output, etc.) for each engine variant are shown in the table below.The specifications for Special Edition vehiclesmay vary.NOTE
Not all engines are available on all markets.
Engine
Engine codeA
Output
(kW/rps) Output
(hp/rpm) Torque
(Nm/rps) Torque
(ft. lbs./rpm) Number of cylinders
T6 AWD B4204T27 235/95 316/5700 400/37–90 295/2200–5400 4
A The engine code, component and manufacturer serial numbers can be found on the engine.
Related information
Type designations (p. 650)
Engine oil specifications (p. 658)

SPECIFICATIONS
658

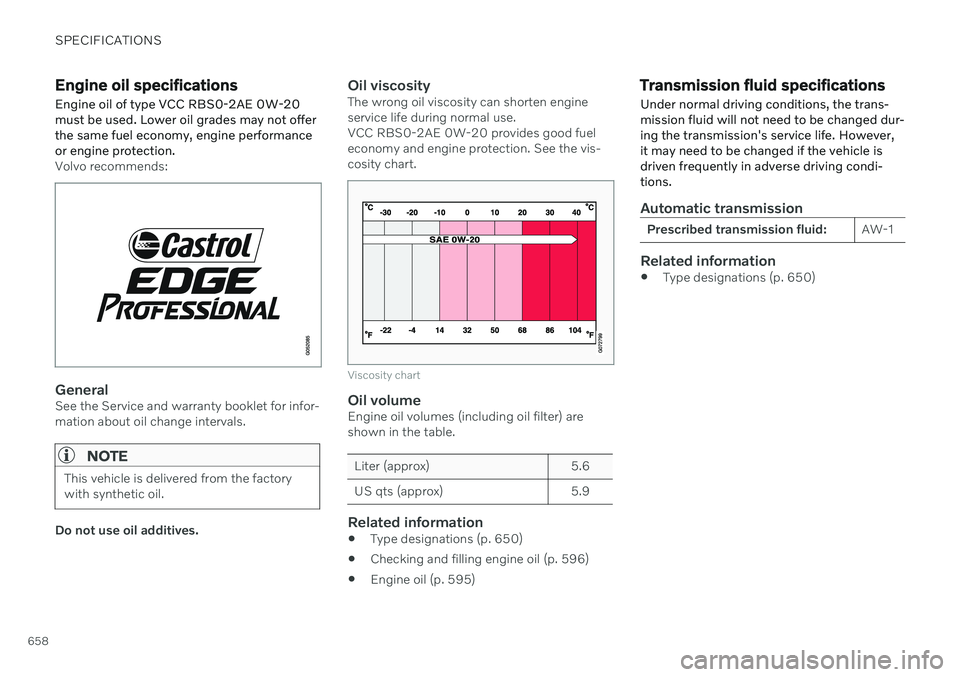

Engine oil specifications Engine oil of type VCC RBS0-2AE 0W-20 must be used. Lower oil grades may not offerthe same fuel economy, engine performanceor engine protection.
Volvo recommends:
GeneralSee the Service and warranty booklet for infor- mation about oil change intervals.
NOTE
This vehicle is delivered from the factory with synthetic oil.
Do not use oil additives.
Oil viscosityThe wrong oil viscosity can shorten engine service life during normal use.VCC RBS0-2AE 0W-20 provides good fueleconomy and engine protection. See the vis-cosity chart.
Viscosity chart
Oil volumeEngine oil volumes (including oil filter) are shown in the table.
Liter (approx) 5.6
US qts (approx) 5.9
Related information
Type designations (p. 650)
Checking and filling engine oil (p. 596)
Engine oil (p. 595)
Transmission fluid specifications
Under normal driving conditions, the trans- mission fluid will not need to be changed dur-ing the transmission's service life. However,it may need to be changed if the vehicle isdriven frequently in adverse driving condi-tions.
Automatic transmission
Prescribed transmission fluid: AW-1
Related information
Type designations (p. 650)
