KEY, LOCKS AND ALARM
* Option/accessory.239
NOTE
Be aware of the risk of locking the remotekey in the vehicle.
If the remote key or Key Tag is left in thevehicle, it will be deactivated when thevehicle is locked and the alarm set usinganother valid key. The deactivated key willbe reactivated when the vehicle isunlocked.
If the remote key or Red Key is left in thevehicle, it will be deactivated even if thevehicle is locked using Volvo On Call, andwill be reactivated when the vehicle isunlocked using Volvo On Call or bypressing the unlock button on the key.
Interference
Electromagnetic fields or obstructing objects mayinterfere with the remote key's functions for key-less start and keyless locking and unlocking*.
NOTE
Avoid storing the remote control key nearmetal objects or electronic devices, e.g. cellphones, tablets, laptops or chargers – pref-erably no closer than 10-15 cm (4-6 in.).
If you experience interference, use the remotekey's detachable blade to unlock the vehicle and
place the remote key in the backup key reader inthe tunnel console cup holder to disarm thealarm.
NOTE
When the remote control key is placed in thecup holder, make sure that no other vehiclekeys, metal objects or electronic devices (e.g.cell phones, tablets, laptops or chargers) arefound in the cup holder. Multiple vehicle keysclose to each other in the cup holder can dis-rupt their functionality.
WARNING
California Proposition 65
Operating, servicing and maintaining a pas-senger vehicle can expose you to chemicalsincluding engine exhaust, carbon monoxide,phthalates, and lead, which are known to theState of California to cause cancer and birthdefects or other reproductive harm. To mini-mize exposure, avoid breathing exhaust, donot idle the engine except as necessary, serv-ice your vehicle in a well ventilated area andwear gloves or wash your hands frequentlywhen servicing your vehicle. For more infor-mation go to www.P65Warnings.ca.gov/passenger-vehicle.
Related information
Locking and unlocking using the remote key(p. 240)
Remote key range (p. 242)
Replacing the remote key's battery (p. 243)
Detachable key blade (p. 248)
Electronic immobilizer (p. 251)
Linking a remote key to a driver profile(p. 138)
Page 242 of 695
KEY, LOCKS AND ALARM
* Option/accessory.240
Locking and unlocking using theremote key
All doors and tailgate can be locked andunlocked simultaneously using the buttons onthe remote key.
Locking with remote key
Remote key5.
–Press the button on the remote key tolock.
To activate the locking sequence, the driver's
door must be closed6. If any of the other doors orthe tailgate are open, they will be locked and thealarm will be armed once they are closed.
NOTE
Be aware of the risk of locking the remotekey in the vehicle.
If the remote key or Key Tag is left in thevehicle, it will be deactivated when thevehicle is locked and the alarm set usinganother valid key. The deactivated key willbe reactivated when the vehicle isunlocked.
If the remote key or Red Key is left in thevehicle, it will be deactivated even if thevehicle is locked using Volvo On Call, andwill be reactivated when the vehicle isunlocked using Volvo On Call or bypressing the unlock button on the key.
Locking when the tailgate is open
NOTE
If the vehicle is locked and the tailgate is stillopen, make sure that the remote key is notleft in the cargo compartment when the tail-gate is closed and the entire vehicle is
locked7.
Unlocking with remote key
–Press the button on the remote key tounlock.
Automatic relocking
If none of the doors or tailgate are opened withintwo minutes after being unlocked, they will auto-matically relock. This function reduces the risk ofinadvertently leaving the vehicle unlocked.
Remote key not working
NOTE
Move closer to the vehicle and try to unlock itagain.
If the remote key is not working to lock or unlockthe vehicle, its battery may be discharged. Usethe detachable key blade to lock/unlock the driv-er's door instead.
Related information
Settings for remote and inside door unlock(p. 241)
Unlocking the tailgate using the remote key(p. 241)
Remote key (p. 237)
5The illustration is generic - details may vary according to vehicle model.6If the vehicle is equipped with keyless locking/unlocking, all side doors must be closed.7If the vehicle is equipped with keyless locking/unlocking and the key is detected inside the vehicle, the tailgate will not lock when it is closed.*
Page 243 of 695
KEY, LOCKS AND ALARM
}}
241
Replacing the remote key's battery (p. 243)
Locking and unlocking with detachable keyblade (p. 249)

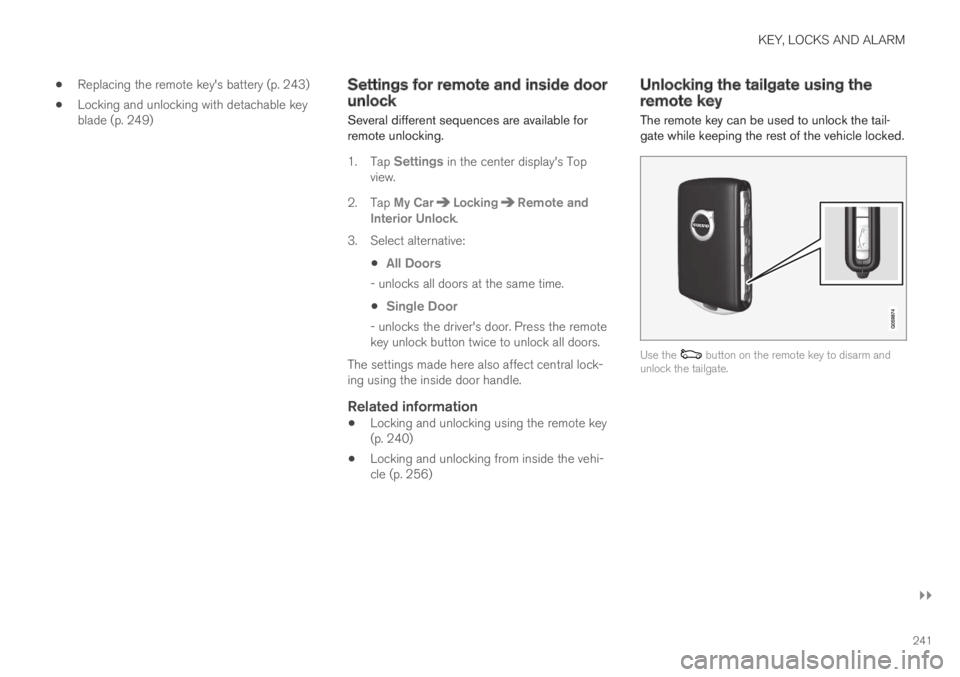

Settings for remote and inside doorunlock
Several different sequences are available forremote unlocking.
1.Tap Settings in the center display's Topview.
2.Tap My CarLockingRemote andInterior Unlock.
3.Select alternative:
All Doors
- unlocks all doors at the same time.
Single Door
- unlocks the driver's door. Press the remotekey unlock button twice to unlock all doors.
The settings made here also affect central lock-ing using the inside door handle.
Related information
Locking and unlocking using the remote key(p. 240)
Locking and unlocking from inside the vehi-cle (p. 256)
Unlocking the tailgate using theremote key
The remote key can be used to unlock the tail-gate while keeping the rest of the vehicle locked.
Use the button on the remote key to disarm andunlock the tailgate.
Page 244 of 695
||
KEY, LOCKS AND ALARM
* Option/accessory.242
1.Press the button on the remote key.
>The lock and alarm indicator on the dash-board will go out to indicate that the vehi-cle is no longer fully armed.
The tailgate will be unlocked but remainclosed. However, the side doors willremain locked and armed.
Press lightly on the rubberized pressureplate under the tailgate handle to openthe tailgate.
If the tailgate is not opened within2 minutes, it will be relocked and thealarm armed.
2.With the optional power tailgate* -
Hold and press (about 1.5 seconds) the button on the remote key
>The tailgate will unlock and open. How-ever, the side doors will remain locked andarmed.
Related information
Locking and unlocking using the remote key(p. 240)
Opening and closing the power tailgate*(p. 260)
Remote key range
In order to function correctly, the remote keymust be within a certain distance from the vehi-cle.
Manual use
The remote key's functions for e.g. locking and
unlocking, which are activated by pressing or
, have a range of approx. 20 meters (65 feet)from the vehicle.
If the vehicle's locks do not react, move closerand try again.
Keyless use 8
The shaded areas around the vehicle illustrate the rangeof the system's antennas.
For keyless use, a remote key or the Key Tagmust be within the shaded areas shown in theillustration, i.e. a semicircle with a radius ofapprox. 1.5 meter (5 feet) along the sides of thevehicle or approx. 1 meter (3 feet) from the tail-gate.
NOTE
The functions of the remote control key canbe disrupted by ambient radio waves, build-ings, topographical conditions, etc. The vehi-cle can always be locked/unlocked using thekey blade.
If the remote key is removed from the
vehicle
If the remote key is removed from thevehicle while the engine is running, thewarning message Vehicle key notfound Removed from vehicle will bedisplayed in the instrument panel and an audiblesignal will sound when the last door is closed.
The message will disappear when the key isreturned to the vehicle and the O button on theright-side steering wheel keypad is pressed orwhen the last door is closed again.
8
Models equipped with keyless locking/unlocking (Passive Entry * ) only.
Page 245 of 695
KEY, LOCKS AND ALARM
}}
* Option/accessory.243
Related information
Remote key (p. 237)
Antenna locations for the start and lock sys-tem (p. 256)
Keyless and touch-sensitive surfaces*(p. 252)
Replacing the remote key's battery
The battery in the remote key must be replacedwhen it is discharged.
NOTE
All batteries have a limited service life andmust eventually be replaced (does not applyfor Key Tag). The battery's service life variesdepending on how often the vehicle/key isused.
The remote key battery should be replaced if:
the information symbol illuminates andthe message Vehicle key bat. lowSee Owner's manual is displayed inthe instrument panel
and/or
the locks do not react after several attemptsto lock or unlock the vehicle using theremote key within approx. 20 meter (65 feet)from the vehicle.
NOTE
Move closer to the vehicle and try to unlock itagain.
The battery in the smaller key without buttons9
(the Key Tag) cannot be replaced. A new key canbe ordered from an authorized Volvo workshop.
CAUTION
An end-of-life Key Tag must be turned in toan authorized Volvo workshop. The key mustbe deleted from the vehicle because it canstill be used to start the vehicle via backupstart.
9This key is provided with vehicles equipped with keyless locking/unlocking (Passive Entry*).
Page 246 of 695
||
KEY, LOCKS AND ALARM
244

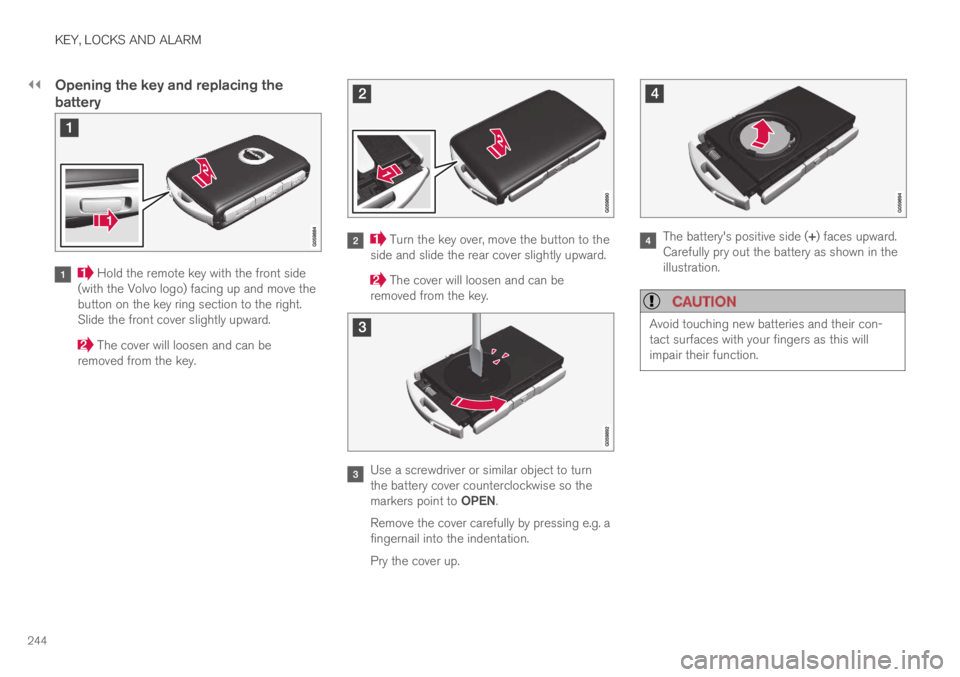

Opening the key and replacing the
battery
Hold the remote key with the front side(with the Volvo logo) facing up and move thebutton on the key ring section to the right.Slide the front cover slightly upward.
The cover will loosen and can beremoved from the key.
Turn the key over, move the button to theside and slide the rear cover slightly upward.
The cover will loosen and can beremoved from the key.
Use a screwdriver or similar object to turnthe battery cover counterclockwise so themarkers point to OPEN.
Remove the cover carefully by pressing e.g. afingernail into the indentation.
Pry the cover up.
The battery's positive side (+) faces upward.Carefully pry out the battery as shown in theillustration.
CAUTION
Avoid touching new batteries and their con-tact surfaces with your fingers as this willimpair their function.
Page 247 of 695
KEY, LOCKS AND ALARM
}}
245

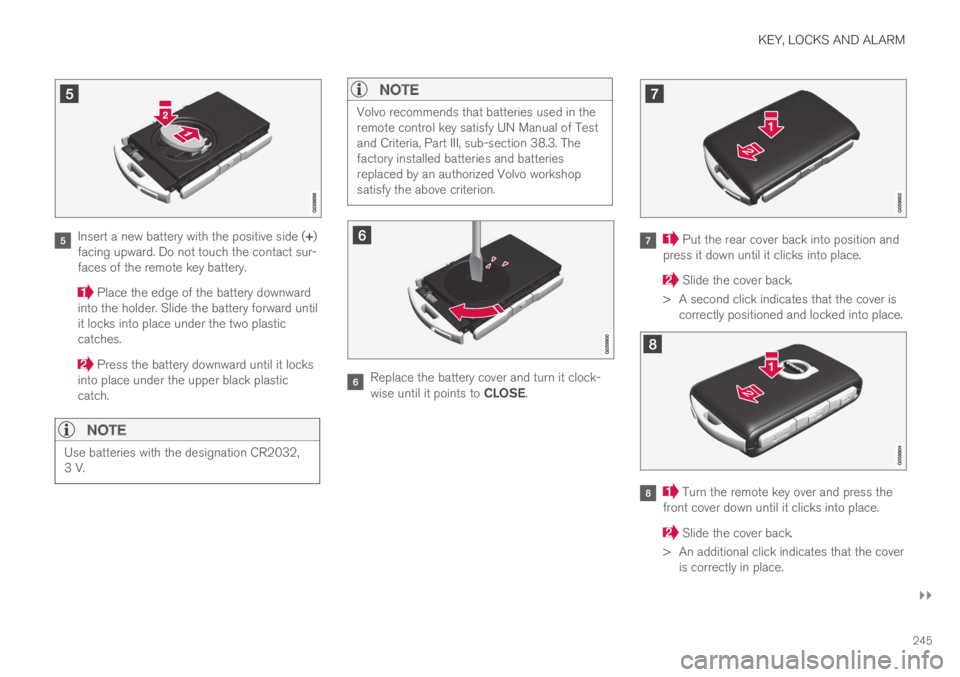

Insert a new battery with the positive side (+)facing upward. Do not touch the contact sur-faces of the remote key battery.
Place the edge of the battery downwardinto the holder. Slide the battery forward untilit locks into place under the two plasticcatches.
Press the battery downward until it locksinto place under the upper black plasticcatch.
NOTE
Use batteries with the designation CR2032,3 V.
NOTE
Volvo recommends that batteries used in theremote control key satisfy UN Manual of Testand Criteria, Part III, sub-section 38.3. Thefactory installed batteries and batteriesreplaced by an authorized Volvo workshopsatisfy the above criterion.
Replace the battery cover and turn it clock-wise until it points to CLOSE.
Put the rear cover back into position andpress it down until it clicks into place.
Slide the cover back.
>A second click indicates that the cover iscorrectly positioned and locked into place.
Turn the remote key over and press thefront cover down until it clicks into place.
Slide the cover back.
>An additional click indicates that the coveris correctly in place.
Page 248 of 695
||
KEY, LOCKS AND ALARM
* Option/accessory.246
CAUTION
Be sure to dispose of end-of-life batteries ina way that protects the environment.
WARNING
California Proposition 65
Operating, servicing and maintaining a pas-senger vehicle can expose you to chemicalsincluding engine exhaust, carbon monoxide,phthalates, and lead, which are known to theState of California to cause cancer and birthdefects or other reproductive harm. To mini-mize exposure, avoid breathing exhaust, donot idle the engine except as necessary, serv-ice your vehicle in a well ventilated area andwear gloves or wash your hands frequentlywhen servicing your vehicle. For more infor-mation go to www.P65Warnings.ca.gov/passenger-vehicle.
Related information
Remote key (p. 237)
Ordering additional remote keys
Two remote keys are provided with the vehicle.One Key Tag is also included if the vehicle isequipped with keyless locking/unlocking*. Addi-tional keys can be ordered.
A total of 12 keys can be programmed and usedfor the same vehicle. An additional driver profilewill be added for each new remote key. This alsoapplies to the key tag.
Loss of a remote key
If you lose your remote key, you can order areplacement from a workshop - an authorizedVolvo workshop is recommended. Bring the otherremaining remote keys to the workshop. As ananti-theft measure, the code of the lost remotekey must be erased from the system.
The current number of keys registered for thevehicle can be checked via driver profiles in the
center display's Top view. Select Settings
SystemDriver Profiles.
NOTE
Volvo recommends that you order a new orduplicate remote control key from an author-ized Volvo workshop.
You can also obtain additional or duplicateremote control keys from certain independentrepair facilities and locksmiths that are quali-fied to make remote control keys. Each keymust be programmed to work with your vehi-cle.
A list of independent repair facilities and/orlocksmiths known to Volvo that can cut andcode replacement keys can be found:
on Volvo's website www.volvocars.com/us
by calling Volvo Customer Care1-800-458-1552.
Related information
Remote key (p. 237)
Page 249 of 695
KEY, LOCKS AND ALARM
}}
* Option/accessory.247
Red Key - restricted remote key*
A Red Key makes it possible for the vehicleowner to set limitations for certain vehicle prop-erties. The limitations are intended to promotesafe use of the vehicle, e.g. when it is loanedout.
For a Red Key, it is possible to define the vehi-cle's maximum speed, set speed reminders andlimit the audio system's volume. Several of thedriver support systems will also always be active.Otherwise, the Red Key functions in the sameway as a standard remote key.
One or more Red Key can be ordered from aVolvo retailer. A total of twelve keys can be pro-grammed and used for the same vehicle. Up toten may be restricted keys, but at least two mustbe standard remote keys.
These restrictions are intended to help reducethe risk of accidents and help the driver feel more
secure when handing over the vehicle to e.g. ayoung driver, parking attendant or workshop. Thesettings for a Red Key cannot be changed by itsuser; a regular remote key is needed to changesettings.
Related information
Red Key* settings (p. 247)
Remote key (p. 237)
Red Key* settings
The holder of a regular remote key can adjustsettings for a Red Key. Certain driver supportfunctions are always active.
1.Tap Settings in the center display's Topview.
2.Tap SystemDriver ProfilesRed Key.
> The following settings can be made:
Set Time Gap For Adaptive CruiseControl
Reduced Maximum Volume
Max Speed Limit
Speed Limit Warning
Adaptive Cruise Control * :
Default setting: Longest interval
Reduced maximum volume (On/Off):
Default setting: On
Speed Limiter (On/Off):
Setting interval: 50-250 km/h (30-160 mph)
The default setting is 120 km/h (75 mph)
Increments: 1 km/h (1 mph)
The following symbol and message willbe shown in the instrument panel
Red key Speed limitation cannotbe exceeded.
Page 250 of 695
||
KEY, LOCKS AND ALARM
* Option/accessory.248

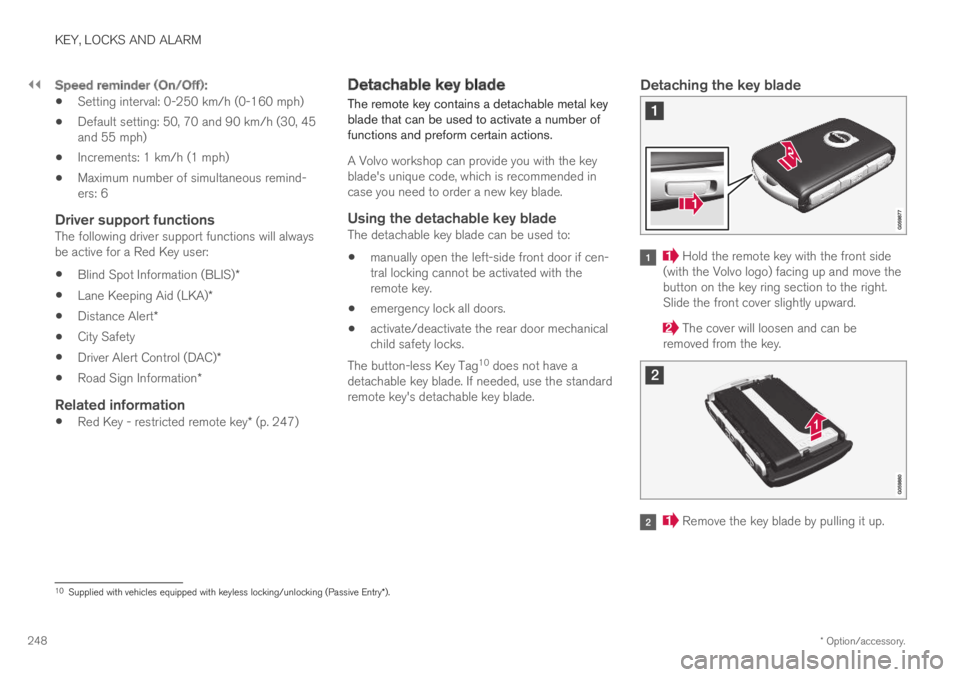

Speed reminder (On/Off):
Setting interval: 0-250 km/h (0-160 mph)
Default setting: 50, 70 and 90 km/h (30, 45and 55 mph)
Increments: 1 km/h (1 mph)
Maximum number of simultaneous remind-ers: 6
Driver support functions
The following driver support functions will alwaysbe active for a Red Key user:
Blind Spot Information (BLIS)*
Lane Keeping Aid (LKA)*
Distance Alert*
City Safety
Driver Alert Control (DAC)*
Road Sign Information*
Related information
Red Key - restricted remote key* (p. 247)
Detachable key blade
The remote key contains a detachable metal keyblade that can be used to activate a number offunctions and preform certain actions.
A Volvo workshop can provide you with the keyblade's unique code, which is recommended incase you need to order a new key blade.
Using the detachable key blade
The detachable key blade can be used to:
manually open the left-side front door if cen-tral locking cannot be activated with theremote key.
emergency lock all doors.
activate/deactivate the rear door mechanicalchild safety locks.
The button-less Key Tag10 does not have adetachable key blade. If needed, use the standardremote key's detachable key blade.
Detaching the key blade
Hold the remote key with the front side(with the Volvo logo) facing up and move thebutton on the key ring section to the right.Slide the front cover slightly upward.
The cover will loosen and can beremoved from the key.
Remove the key blade by pulling it up.
10Supplied with vehicles equipped with keyless locking/unlocking (Passive Entry*).
