DRIVER SUPPORT
* Option/accessory.
386 Park Assist Camera*
The Park Assist Camera can help provide the
driver when maneuvering in tight spaces by alert-
ing the driver to obstacles using the camera
screen and graphics in the center display.
The Park Assist Camera is a support function
that is automatically activated when reverse gear
is engaged. It can also be started manually from
the center display.
Example camera view
116
. Zoom
117
- zoom in/out 360° view* - activate/deactivate all cameras
PAS* - activate/deactivate Parking Assist
Lines - activate/deactivate trajectory lines Towbar
* - activate/deactivate trajectory lines
for towbar* 118 CTA
* - activate/deactivate Cross Traffic Alert
WARNING
•
The Parking Camera function is supple-
mentary driver support intended to facili-
tate driving and help make it safer – it
cannot handle all situations in all traffic,
weather and road conditions.
• The parking cameras have dead/blind
spots where objects cannot be detected.
• Pay particular attention to people and
animals near the vehicle.
• Objects/obstacles may be closer to the
vehicle than they appear on the screen.
• The parking cameras are not a substitute
for the driver's attention and judgment.
The driver is always responsible for
ensuring the vehicle is driven in a safe
manner, at the appropriate speed, with an
appropriate distance to other vehicles,
and in accordance with current traffic
rules and regulations.
Related information
•Park Assist Camera views (p. 387)
• Park Assist Camera trajectory lines (p. 388)
• Sensor field from Park Assist for Park Assist
Camera (p. 390)
• Starting the Park Assist Camera (p. 391)
• Park Assist Camera limitations (p. 391)
• Recommended maintenance of the Park
Assist Camera (p. 393)
• Recommended maintenance of the Park
Assist Camera (p. 393)
• Park Assist Camera symbols and messages
(p. 394) 116
The illustration is generic - details may vary according to vehicle mode\
l.
117 The trajectory lines will not be displayed when zooming in.
118 Not available in all markets.

||DRIVER SUPPORT
* Option/accessory.
390 1.
Tap Towbar (1).
>

The trajectory line for the towbar's antici-
pated path toward the vehicle will appear
and the vehicle's trajectory lines will dis-
appear.
Trajectory lines cannot be displayed for
both the vehicle and the towbar at the
same time.
2. Tap Zoom (2) for a close-up view for more
precise maneuvering.
>

The camera will zoom in.
Related information

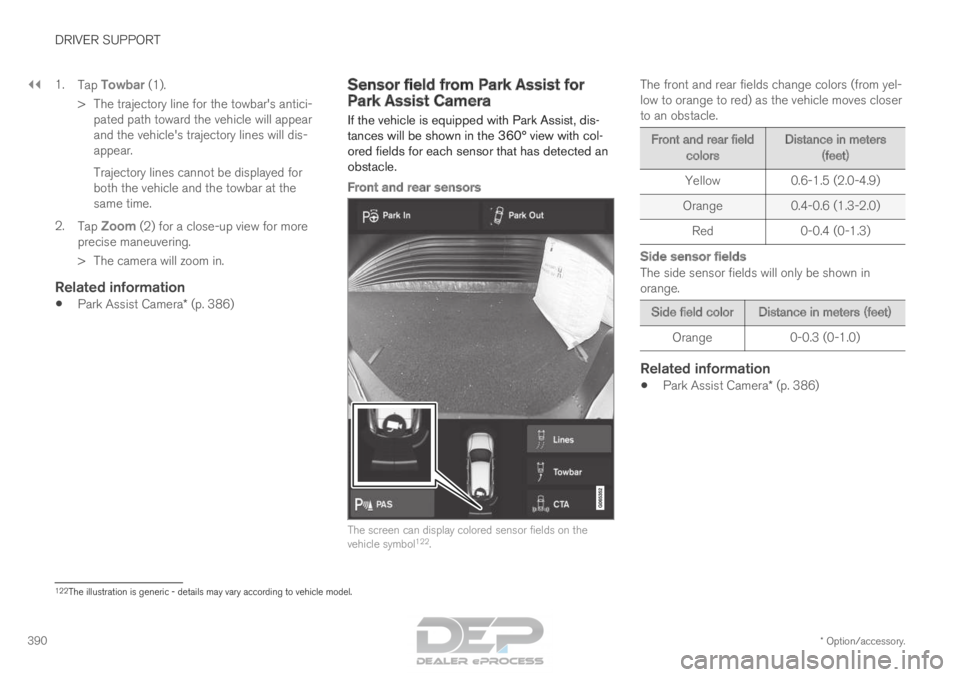

• Park Assist Camera* (p. 386) Sensor field from Park Assist for
Park Assist Camera
If the vehicle is equipped with Park Assist, dis-
tances will be shown in the 360° view with col-
ored fields for each sensor that has detected an
obstacle.
Front and rear sensors The screen can display colored sensor fields on the
vehicle symbol
122
. The front and rear fields change colors (from yel-
low to orange to red) as the vehicle moves closer
to an obstacle. Front and rear field
colors Distance in meters
(feet)
Yellow

0.6-1.5 (2.0-4.9)
Orange 0.4-0.6 (1.3-2.0)
Red 0-0.4 (0-1.3)
Side sensor fields
The side sensor fields will only be shown in
orange. Side field color
Distance in meters (feet)
Orange
0-0.3 (0-1.0)
Related information
•Park Assist Camera* (p. 386) 122
The illustration is generic - details may vary according to vehicle mode\
l.

DRIVER SUPPORT
}}
* Option/accessory. 391
Starting the Park Assist Camera
The Park Assist Camera starts automatically
when reverse gear is engaged or can be started
manually using one of the center display's func-
tion buttons.
Camera view when backing upWhen reverse gear is engaged, the screen shows
the rear view 123
.
Camera view when manually starting
the camera
Start the Park Assist Camera
using this button in the center
display's Function view.
The screen will first show the
most recently used camera
view. However, each time the
engine is started, the previous side view will be
replaced by the 360° view and a previously dis-
played zoomed-in rear view will be replaced by
the regular rear view.
Automatically deactivating the cameraFront view switches off when the vehicle's speed
reaches 25 km/h (16 mph) to help avoid dis-
tracting the driver. It will be automatically reactiva-
ted if the vehicle's speed falls below 22 km/h
(14 mph) within 1 minute as long as the vehicle's
speed has not exceeded 50 km/h (31 mph). Other camera views switch off at 15 km/h
(9 mph) and are not reactivated.
Related information
•
Park Assist Camera* (p. 386) Park Assist Camera limitations
The Park Assist Camera may not be able to
detect all conditions in all situations and func-
tionality may therefore be limited.
The driver should be aware of the following limi-
tations for the Park Assist Camera:
WARNING Be extra cautious when
reversing if this symbol is
shown when a trailer, bike
carrier or similar is attached
and electrically connected
to the vehicle.
The symbol indicates that
the rear parking assist sensors are deacti-
vated and will not warn of any obstacles.
NOTE A bike carrier and other accessories mounted
on the rear of the vehicle can obscure the
camera's view.
123
In Canada, it is also possible to select the 360° view.

DRIVER SUPPORT
* Option/accessory.
394 Park Assist Camera symbols and
messages
Symbols and messages for the Park Assist
Camera may be displayed in the instrument
panel and/or the center display.
Some examples of symbols and messages are shown in the table below. Symbol
Message Meaning The rear Park Assist sensors are turned off and no acoustic warnings or field markings for obsta-
cles/objects will be provided.
The camera is not functioning properly.
Park Assist System
Sensors blocked, cleaning
needed One or more of the sensors are blocked. Check and clean/remove the obsta\
cle as soon as possible.
Park Assist System
Unavailable Service required The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop is
recommended. A text message can be erased by briefly pressing
the
button in the center of the right-side
steering wheel keypad. If the message persists: Contact a workshop ‒ an
authorized Volvo workshop is recommended.
Related information
• Park Assist Camera* (p. 386)

DRIVER SUPPORT
* Option/accessory.399
2. Be prepared to stop the vehicle when
instructed to do so by a graphic and mes-
sage in the center display.
3. Engage reverse gear and back up slowly.
4. Be prepared to stop the vehicle when instructed to do so by a graphic and mes-
sage in the center display.
The function will switch off automatically and a
graphic and message will appear to indicate that
parking has been completed. Adjustments can
always be made be the driver afterward. Only the
driver can determine when the vehicle is correctly
parked.
CAUTION The warning distance is shorter when the
sensors are used by PAP compared to when
they are used by the Parking Assist system.
Related information
•
Park Assist Pilot* (p. 395) Leaving a parking space with Park
Assist Pilot
The function Park Out can also help the driver
to leave a parking space.
NOTE Leaving a parking space with the Park Out
function should only be used in connection
with parallel parking – it does not work for
perpendicular parking.
The Park Out function is acti-
vated in the center display's
Function view or in Camera
view. To do so:
1.
Tap Park Out in Function view or in Camera
view.
2.

Move the gear selector to the suitable posi-
tion (e.g. D or R) for the direction in which
you will be pulling out of the parking space.
3. Be prepared to stop the vehicle when instructed to do so by a graphic and mes-
sage in the center display. Follow the instruc-
tions in the same way as for the parking pro-
cedure.
Note that the steering wheel can "spring" back
when the procedure is completed and the driver may need to turn the steering wheel back to the
maximum position in order to pull out of the park-
ing space.
If PAP determines that the driver can pull out of
the parking space without any extra maneuvers,
the function will be deactivated, even if it seems
as though the vehicle is not completely out of the
parking space.
Related information
•
Park Assist Pilot* (p. 395)

DRIVER SUPPORT
* Option/accessory.
400 Park Assist Pilot* limitations
Park Assist Pilot PAP 127
may not be able to
detect all conditions in all situations and func-
tionality may therefore be limited.
WARNING •
The PAP function is supplementary driver
support intended to facilitate driving and
help make it safer – it cannot handle all
situations in all traffic, weather and road
conditions.
• Pay particular attention to people and
animals near the vehicle.
• Bear in mind that the front end of the
vehicle may swing out towards oncoming
traffic during the parking maneuver.
• Objects situated higher than the detec-
tion area of the sensors are not included
when the parking maneuver is calculated,
which could cause PAP to swing into the
parking space too early. Such parking
spaces should be avoided for this reason.
• PAP is not a substitute for the driver's
attention and judgment. The driver is
always responsible for ensuring the vehi-
cle is driven in a safe manner, at the
appropriate speed, with an appropriate
distance to other vehicles, and in accord-
ance with current traffic rules and regula-
tions.
The driver should be aware of the following limi-
tations for Park Assist Pilot:The parking sequence is cancelledA parking sequence will be cancelled if:
• the driver moves the steering wheel
• the vehicle's speed exceeds 7 km/h (4 mph)
• the driver taps
Cancel in the center display
• when the anti-lock brakes or the Electronic
stability control are engaged - e.g. when a
wheel loses grip on a slippery road
• when the power steering works at reduced
power - e.g. during cooling due to overheat-
ing (see section "Speed-dependent steering
force").
A message in the center display will explain why
the parking sequence was cancelled.
CAUTION Under certain circumstances, PAP may not be
able to find parking spaces – one reason may
be that the sensors are disrupted by external
sound sources that emit the same ultrasonic
frequencies that the system works with.
Examples of such sources include horns, wet
tires on asphalt, pneumatic brakes, exhaust
noise from motorcycles, etc.
127
Park Assist Pilot

DRIVER SUPPORT
* Option/accessory.401
NOTEDirt, ice and snow covering the sensors
reduce their function and can make measure-
ment impossible.
Driver responsibilityThe driver should keep in mind that PAP is a
parking aid ‒ not an infallible fully automatic sys-
tem. The driver must always be prepared to take
control and cancel a parking sequence if neces-
sary.
There are a number of things to keep in mind
when parking, including:
• The driver is always responsible for determin-
ing if the space suggested by PAP is suita-
ble for parking.
• Do not use PAP when using snow chains or
a temporary spare tire.
• Do not use PAP if there are any objects pro-
truding from the vehicle.
• Heavy rain or snowfall may inhibit PAP's abil-
ity to accurately measure a parking space.
• While searching and measuring the parking
space, PAP may be unable to detect objects
located far into the space.
• PAP may not suggest parking spaces on
narrow streets if it does not detect sufficient
space for maneuvering the vehicle. •
Use approved tires 128
inflated to the correct
tire pressure because this affects PAP's abil-
ity to provide parking assistance.
• PAP's function is based on the way the vehi-
cles are parked behind and in front of your
parking space. If they are, for example,
parked too close to the curb, there is a risk
that your vehicle's tires or wheel rims could
be damaged by the curb during the parking
procedure.
• Perpendicular parking spaces may not be
detected or may be suggested unnecessarily
if a parked vehicle is sticking out more than
other parked vehicles.
• PAP is intended to provide parking assis-
tance on straight streets, not sections of
street with sharp curves or bends. Always
make sure that your vehicle is parallel to rel-
evant parking spaces when PAP is measur-
ing the parking space.
CAUTION Switching to another approved wheel and/or
tire dimension could change the tire circum-
ference, which would then require the PAP
system to be updated. Consult a workshop –
an authorized Volvo workshop is recom-
mended.
Related information
•
Park Assist Pilot* (p. 395)
• Speed-dependent steering wheel resistance
(p. 272) 128
"Approved tires" refers to tires of the same type and make as the vehicl\
e's original, factory-installed tires.

DRIVER SUPPORT
* Option/accessory.
402 Recommended maintenance for
Park Assist Pilot
For Park Assist Pilot (PAP
129
) to function opti-
mally, its sensors must be cleaned regularly with
water and car washing detergent. Location of the Park Assist sensors
130
.
NOTE Dirt, ice and snow covering the sensors could
cause false warnings, reduced function, or no
function.
Related information
•
Park Assist Pilot* (p. 395) 129
Park Assist Pilot
130 Note: This illustration is general and details may vary depending on mod\
el.

DRIVER SUPPORT
* Option/accessory.403
Park Assist Pilot* messages
Messages for Park Assist Pilot PAP 131
may be
displayed in the instrument panel and/or the
center display.
Some examples of symbols and messages are shown in the table below. Message
Meaning
Park Assist System
Sensors blocked, cleaning needed One or more of the sensors are blocked. Check and clean/remove the obsta\
cle as soon as possible.
Park Assist System
Unavailable Service required The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop is recommended.A text message can be erased by briefly pressing
the
button in the center of the right-side
steering wheel keypad.
If the message persists: Contact a workshop ‒ an
authorized Volvo workshop is recommended.
Related information
• Park Assist Pilot* (p. 395) 131
Park Assist Pilot

||STARTING AND DRIVING
430
augment braking. This is indicated in the instru-
ment panel with the pointer down in the red area.
Symbols in the instrument panel
Symbol
Meaning A
B
Check the brake fluid level. If the
level is low, fill brake fluid and
check to determine the reason for
the loss of brake fluid. A
B
Fault in pedal sensor. Symbol
Meaning A
B
Steady glow for 2 seconds after
the engine is started: Automatic
function check.
Steady glow for more than 2 sec-
onds: Fault in the ABS system. The
vehicle's regular brake system is
still working, but without the ABS
function. If the message Brake pedal Cha-
racteristics changed Service
required is displayed, the "Brake-
by-wire" system is not functioning
properly. The brake pedal will go
down further than normal and
greater pressure will be needed on
the pedal to achieve braking effect. A
Canadian models.
B US models.
WARNING •
If both symbols illuminate at the same
time and the brake level is below the MIN
mark in the reservoir or if a brake system-
related message is shown in the instru-
ment panel: DO NOT DRIVE. Have the
vehicle towed to a trained and qualified
Volvo service technician and have the
brake system inspected.
• If both symbols illuminate at the same
time and the brake level is normal (not
below the MIN mark in the reservoir) or if
a brake system-related message is
shown in the instrument panel: drive the
vehicle carefully to an authorized Volvo
workshop and have the brake system
inspected by a trained and qualified Volvo
service technician.
Related information
• Brake Assist System (p. 431)
• Auto-hold brakes (p. 436)
• Hill Start Assist (p. 437)
• Braking on wet roads (p. 431)
• Braking on salted roads (p. 431)
• Maintenance of the brake system (p. 432)
• Brake lights (p. 160)
