WHEELS AND TIRES
500
14. Immediately drive the vehicle for approxi-mately 2 miles (3 km) at a maximum speedof 50 mph (80 km/h) to distribute the seal-ing compound in the tire. During the tire'sfirst revolution, some sealing compound mayspray out of the puncture hole.

WARNING
No one should stand closer to the vehiclethan approx. 7 ft (2 m) when it drives away tohelp avoid being sprayed with sealing com-pound.

CAUTION
If your vehicle is equipped with the Tire Pres-sure Monitoring System (TPMS), the use ofthe sealing compound may lead to incorrecttire pressure readings or in rare cases, dam-age to the tire pressure sensor. Use the tiresealing system to check and adjust the dam-aged tire's inflation pressure.

NOTE
•Safely stow the tire sealing system in aconvenient place as it will soon be usedagain to check the tire

MAINTENANCE AND SERVICING
}}
* Option/accessory, for more information, see Introduction.521
Function[A]
Horn20
Alarm siren*5
Brake system control module(valves, parking brake)40
Windshield wipers30
Tailgate window washer25
Heated windshield*, passengerside40
––
Brake system control module(ABS pump)40
––
Heated windshield*, passengersideShunt
Feed when ignition is switchedon to: engine control module,transmission components, elec-trical power steering, centralelectrical module
5
Exterior vehicle sound (certainmarkets)5
Passenger side headlight7,5
Function[A]
––
––
––
Air bags; Occupant Weight Sen-sor (OWS)5
Driver side headlight7.5
Accelerator pedal sensor5
Transmission control module;Gear selector control module15
Engine control module5
––
––
––
––
Engine control module; Actuator;Turbo-charger valve20
Solenoids; Valves; Engine cool-ing system thermostat10
Vacuum regulators; Valve7.5
Function[A]
Spoiler shutter control module;Radiator shutter control module;Fuel leakage detection
5
––
Heated oxygen sensors (frontand rear)15
Oil pump solenoid; A/C mag-netic coupling; heated oxygensensor (center)
15
––
Engine control module20
Ignition coils; Spark plugs15
––
––
Transmission oil pump controlmodule30
Vacuum pump control module40
Transmission actuator25
––

MAINTENANCE AND SERVICING
}}
* Option/accessory, for more information, see Introduction.525

Positions
•Fuses 1, 3–21, 23–36, 39–53 and 55–59are called "Micro".
•Fuses 2, 22, 37–38 and 54 are called"MCase" and should only be replaced by atrained and qualified Volvo service technician.
FunctionA
––
120-volt socket between the rearseats30
––
Alarm system movement sensorA5
Media player5
Instrument panel5
Center console buttons5
Sun sensor5
––
––
Steering wheel module5
Module for start knob and parkingbrake5
FunctionA
Heated steering wheel* module15
––
––
––
––
Climate system control module10
––
On-board diagnostics (OBDII)10
Center display5
Climate system blower module(front)40
––
FunctionA
Instrument lighting; Courtesy light-ing; Rearview mirror auto-dim func-tion; Rain and light sensor; Reartunnel console keypad*; Powerfront seats*
Instrument lighting; Courtesy light-ing; Rearview mirror auto-dim func-tion; Rain and light sensor; Rear
tunnel console keypad*B; Power
front seats*; Power rear seatsC;Display for rear seat conveniencefunctions*; Rear seat massagefunction*
7.5
Control module for driver supportfunctions5
Panorama roof and sun shade*20
Head-up display*5
Courtesy lighting5
––
Ceiling console display (seat beltreminder, front passenger side air-bag indicator)
5
––
Humidity sensor5

||
MAINTENANCE AND SERVICING
542

CAUTION
•Not checking the oil level regularly canresult in serious engine damage if the oillevel becomes too low.
•Oil that is lower than the specified qualitycan damage the engine.
•Volvo does not recommend the use of oiladditives.
•Always add oil of the same type and vis-cosity as already used.
•Oil changes should be carried out by atrained and qualified Volvo service techni-cian.
•Using oil of higher than the specifiedquality is permitted and may be neces-sary for demanding driving.
Also, refer to the Warranty and Service Recordsinformation booklet for information on oil changeintervals and oil specifications.

Related information
•Checking and refilling engine oil (p. 542)
Checking and refilling engine oil
The oil level is checked electronically.
Oil filler cap6
It may be necessary to top up engine oil betweenregularly scheduled services.
No action is necessary until a message is dis-played in the instrument panel.
WARNING
•Do not allow oil to spill onto or come intocontact with hot exhaust pipe surfaces.
•If Engine oil level Service required isdisplayed, have the vehicle checked by atrained and qualified Volvo service techni-cian. The oil level may be too high.
Checking the oil level
The oil level can be checked inthe center display when theengine is not running.
From the center display'sHome view, swipe the screenfrom right to left to open Appview. Tap Car status and then tap Status toshow the oil level.
Oil level graphic in the center display
The oil level should be checked at regular inter-vals, particularly during the period up to the firstscheduled maintenance service.
If the oil level sensor indicates that the level istoo low, using the correct oil, top up with theamount of oil indicated as soon as possible.
6Models with an electronic oil level sensor do not have a dipstick.

MAINTENANCE AND SERVICING
}}
543

NOTE
•The system cannot detect changes in theoil level immediately. The vehicle must bedriven approximately 20 miles (30 km) orhave been parked on level ground withthe engine off for 5 minutes before theoil level reading will be correct.
•If the necessary conditions are not metfor checking the oil level electronically(time interval after the engine wasswitched off, if the vehicle is parked onan incline, etc.), No values available willbe displayed. This does not indicate aproblem with the oil level sensor.

Related information
•Engine oil (p. 541)
•Ignition modes (p. 400)
Windshield wipers in the serviceposition
The windshield wiper blades must be in the verti-cal (service) position for replacement, washingor to lift them away from the windshield whene.g., removing ice or snow.
Wipers in the service position

CAUTION
Be sure the wiper blades are not frozen inposition before attempting to move them tothe service position.

Putting the windshield wipers in the
service position
The service position can be activated while thevehicle is stationary and the wipers are not acti-vated.
The service position can be activated in two waysfrom the center display:
Via Function view
–From Function view, tap the Wiper ServicePosition button. The indicator light in thebutton will illuminate when the service posi-tion is activated.
>The windshield wipers will move to thevertical position.

Via Settings
1.Tap Settings in the center display's Topview.
2.Tap My CarWipers
3.Tap the Wiper Service Position box.
>The windshield wipers will move to thevertical position.

Deactivating service position
The service position can be deactivated in twoways from the center display:

||
MAINTENANCE AND SERVICING
544

Via Function view
–From Function view, tap the Wiper ServicePosition button. The indicator light in thebutton will go out when the service positionis deactivated.

Via Settings
1.Tap Settings in the center display's Topview.
2.My CarWipers
3.Tap the Wiper Service Position to deselectthe box.
The wipers will also leave the service position if:
•The wipers are activated.
•The windshield washers are activated.
•The rain sensor is activated.

CAUTION
If the wiper arms have been folded out fromthe windshield while in the service position,fold them back against the windshield beforereturning the wipers to the normal position tohelp avoid scratching the paint on the hood.
Related information
•Replacing wiper blades (p. 544)
•Using the windshield wipers (p. 161)

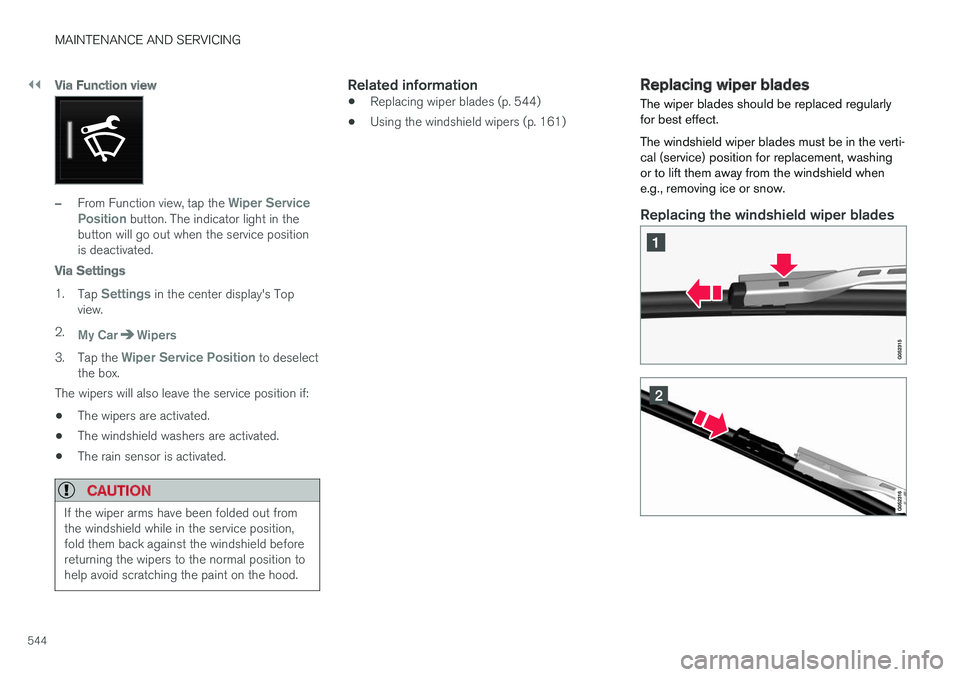

Replacing wiper blades
The wiper blades should be replaced regularlyfor best effect.
The windshield wiper blades must be in the verti-cal (service) position for replacement, washingor to lift them away from the windshield whene.g., removing ice or snow.

Replacing the windshield wiper blades

MAINTENANCE AND SERVICING
549

CAUTION
When using an automatic car wash in whichthe vehicle has to be able to roll freely, theauto-hold brake function must be deactivated.If this is not done, the brakes will automati-cally be applied when the vehicle is stationary.
To deactivate this function:
1.Drive the vehicle into the car wash
2. Turn off the auto-hold function using thecontrol on the center console
3. Turn off the parking brake's automaticfunction in the center display's Top view
(tap Settings, tap My CarElectricParking Brake and deselect AutoActivate Parking Brake)
4.Put the gear selector in N
5.Switch off the ignition by turning the startknob to STOP and holding it in this posi-tion for at least 4 seconds
The vehicle will then be able to roll freely.
CAUTION
•Before driving into an automatic carwash, turn off the optional rain sensor toavoid damaging the windshield wipers.
•Make sure that side view mirrors, auxiliarylamps, etc, are secure, and that anyantenna(s) are retracted or removed. Oth-erwise there is risk of the machine dis-lodging them.
•Chromed wheels: Clean chrome-platedwheels using the same detergents usedfor the body of the vehicle. Aggressivewheel-cleaning agents can permanentlystain chrome-plated wheels.

WARNING
•When the vehicle is driven immediatelyafter being washed, apply the brakes,including the parking brake, several timesin order to remove any moisture from thebrake linings.
•Engine cleaning agents should not beused when the engine is warm. This con-stitutes a fire risk.

Exterior components
Volvo recommends the use of special cleaningproducts, available at your Volvo retailer, forcleaning colored plastic, rubber, or ornamentalcomponents such as chromed strips on the exte-
rior of your vehicle. The instructions for usingthese products should be followed carefully. Sol-vents or stain removers should not be used.
CAUTION
•Avoid waxing or polishing plastic or rub-ber components
•Polishing chromed strips can wear awayor damage the surface
•Polishes containing abrasive substancesshould not be used

Related information
•Paint damage (p. 553)
•Corrosion protection (p. 552)
•Polishing and waxing (p. 554)
•Windshield wipers in the service position(p. 543)
