INSTRUMENTS AND CONTROLS
}}
139
COPYRIGHT NOTICE, DISCLAIMER, and
LICENSE:
If you modify libpng you may insert additionalnotices immediately following this sentence.
libpng versions 1.0.7, July 1, 2000, through1.0.13, April 15, 2002, are Copyright (c)2000-2002 Glenn Randers-Pehrson and aredistributed according to the same disclaimer andlicense as libpng-1.0.6 with the followingindividuals added to the list of ContributingAuthors
Simon-Pierre Cadieux
Eric S. Raymond
Gilles Vollant
and with the following additions to the disclaimer:
There is no warranty against interference withyour enjoyment of the library or againstinfringement. There is no warranty that our effortsor the library will fulfill any of your particularpurposes or needs. This library is provided with allfaults, and the entire risk of satisfactory quality,performance, accuracy, and effort is with the user.
libpng versions 0.97, January 1998, through1.0.6, March 20, 2000, are Copyright (c) 1998,1999 Glenn Randers-Pehrson, and aredistributed according to the same disclaimer andlicense as libpng-0.96, with the followingindividuals added to the list of ContributingAuthors:
Tom Lane
Glenn Randers-Pehrson
Willem van Schaik
libpng versions 0.89, June 1996, through 0.96,May 1997, are Copyright (c) 1996, 1997Andreas Dilger Distributed according to the samedisclaimer and license as libpng-0.88, with thefollowing individuals added to the list ofContributing Authors:
John Bowler
Kevin Bracey
Sam Bushell
Magnus Holmgren
Greg Roelofs
Tom Tanner
libpng versions 0.5, May 1995, through 0.88,January 1996, are Copyright (c) 1995, 1996 GuyEric Schalnat, Group 42, Inc.
For the purposes of this copyright and license,"Contributing Authors" is defined as the followingset of individuals:
Andreas Dilger
Dave Martindale
Guy Eric Schalnat
Paul Schmidt
Tim Wegner
The PNG Reference Library is supplied "AS IS".The Contributing Authors and Group 42, Inc.disclaim all warranties, expressed or implied,including, without limitation, the warranties ofmerchantability and of fitness for any purpose.The Contributing Authors and Group 42, Inc.assume no liability for direct, indirect, incidental,special, exemplary, or consequential damages,which may result from the use of the PNGReference Library, even if advised of thepossibility of such damage.
Permission is hereby granted to use, copy,modify, and distribute this source code, orportions hereof, for any purpose, without fee,subject to the following restrictions:
1. The origin of this source code must not bemisrepresented.
2. Altered versions must be plainly marked assuch and must not be misrepresented asbeing the original source.
3. This Copyright notice may not be removed oraltered from any source or altered sourcedistribution.
The Contributing Authors and Group 42, Inc.specifically permit, without fee, and encouragethe use of this source code as a component tosupporting the PNG file format in commercialproducts. If you use this source code in a product,acknowledgment is not required but would beappreciated.
Page 142 of 584
||
INSTRUMENTS AND CONTROLS
140
A "png_get_copyright" function is available, forconvenient use in "about" boxes and the like:
printf("%s",png_get_copyright(NULL));
Also, the PNG logo (in PNG format, of course) issupplied in the files "pngbar.png" and"pngbar.jpg (88x31) and "pngnow.png" (98x31).
Libpng is OSI Certified Open Source Software.OSI Certified Open Source is a certification markof the Open Source Initiative.
Glenn Randers-Pehrson [email protected] 15, 2002
MIT License
Copyright (c)
Permission is hereby granted, free of charge, toany person obtaining a copy of this software andassociated documentation files (the "Software"),to deal in the Software without restriction,including without limitation the rights to use,copy, modify, merge, publish, distribute,sublicense, and/or sell copies of the Software,and to permit persons to whom the Software isfurnished to do so, subject to the followingconditions:
The above copyright notice and this permissionnotice shall be included in all copies orsubstantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS",WITHOUT WARRANTY OF ANY KIND,EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OFMERCHANTABILITY, FITNESS FOR APARTICULAR PURPOSE ANDNONINFRINGEMENT. IN NO EVENT SHALLTHE AUTHORS OR COPYRIGHT HOLDERS BELIABLE FOR ANY CLAIM, DAMAGES OROTHER LIABILITY, WHETHER IN AN ACTIONOF CONTRACT, TORT OR OTHERWISE,ARISING FROM, OUT OF OR IN CONNECTIONWITH THE SOFTWARE OR THE USE OROTHER DEALINGS IN THE SOFTWARE.
zlib License
The zlib/libpng License Copyright (c)
This software is provided 'as-is', without anyexpress or implied warranty. In no event will theauthors be held liable for any damages arisingfrom the use of this software.
Permission is granted to anyone to use thissoftware for any purpose, including commercialapplications, and to alter it and redistribute itfreely, subject to the following restrictions:
1. The origin of this software must not bemisrepresented; you must not claim that youwrote the original software. If you use thissoftware in a product, an acknowledgment inthe product documentation would beappreciated but is not required.
2. Altered source versions must be plainlymarked as such, and must not be
misrepresented as being the originalsoftware.
3. This notice may not be removed or alteredfrom any source distribution.
SGI Free Software B License Version
2.0.
SGI FREE SOFTWARE LICENSE B (Version 2.0,Sept. 18, 2008)
Copyright (C) [dates of first publication] SiliconGraphics, Inc. All Rights Reserved. Permission ishereby granted, free of charge, to any personobtaining a copy of this software and associateddocumentation files (the "Software"), to deal inthe Software without restriction, including withoutlimitation the rights to use, copy, modify, merge,publish, distribute, sublicense, and/or sell copiesof the Software, and to permit persons to whomthe Software is furnished to do so, subject to thefollowing conditions: The above copyright noticeincluding the dates of first publication and eitherthis permission notice or a reference to http://oss.sgi.com/projects/FreeB/ shall be included inall copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS",WITHOUT WARRANTY OF ANY KIND,EXPRESS OR IMPLIED, INCLUDING BUT NOTLIMITED TO THE WARRANTIES OFMERCHANTABILITY, FITNESS FOR APARTICULAR PURPOSE ANDNONINFRINGEMENT. IN NO EVENT SHALLSILICON GRAPHICS, INC. BE LIABLE FOR ANY
Page 143 of 584
INSTRUMENTS AND CONTROLS
}}
141
CLAIM, DAMAGES OR OTHER LIABILITY,WHETHER IN AN ACTION OF CONTRACT,TORT OR OTHERWISE, ARISING FROM, OUTOF OR IN CONNECTION WITH THE SOFTWAREOR THE USE OR OTHER DEALINGS IN THESOFTWARE.
Except as contained in this notice, the name ofSilicon Graphics, Inc. shall not be used inadvertising or otherwise to promote the sale, useor other dealings in this Software without priorwritten authorization from Silicon Graphics, Inc.
Related information
•Instrument panel (p. 132)
Warning symbols in the instrumentpanel
The warning symbols alert the driver that animportant function is activated or that a seriousfault has occurred.
SymbolMeaning
Warning
The red warning symbol alerts thedriver that an important function isactivated or that a serious faulthas occurred that may affect thevehicle's drivability. The warningsymbol can also illuminate in com-bination with other symbols.
Seat belt reminder
This symbol will flash for approxi-mately 6 seconds if the driver orfront seat passenger has not fas-tened his or her seat belt or if any-one in the rear seat has unbuck-led a seat belt.
SymbolMeaning
Airbags
If this light remains on after thevehicle has been started or comeson while the vehicle is beingdriven, a fault has been detectedin one of the vehicle's safety sys-tems. See the message in theinstrument panel. Have the sys-tem(s) inspected by a trained andqualified Volvo service technicianas soon as possible.
A
B
Brake system
If this symbol illuminates, thebrake fluid level may be too low.Stop the vehicle in a safe placeand check the level in the brakefluid reservoir. See also the warn-ing following this table.
A
B
Parking brake
This symbol flashes while theparking brake is being applied andthen glows steadily when theparking brake has been set.
If the symbol flashes in any othersituation, this indicates a fault. Seethe text message in the instru-ment panel.
Page 144 of 584
||
INSTRUMENTS AND CONTROLS
142
SymbolMeaning
Oil pressure
If the symbol illuminates duringdriving, stop the vehicle, theengine oil level is too low. Stop theengine immediately and check theengine oil level. Add oil if neces-sary. If the oil level is normal andthe symbol remains illuminated,have the vehicle towed to thenearest authorized Volvo work-shop or trained and qualified Volvoservice technician.
Generator not charging
This symbol illuminates duringdriving if a fault has occurred inthe electrical system. Contact anauthorized Volvo workshop ortrained and qualified Volvo servicetechnician.
AUS modelsBCanadian models
WARNING
•If the fluid level is below the MIN mark inthe brake fluid reservoir or if a warningmessage is displayed in the text window:DO NOT DRIVE. Have the vehicle towedto a trained and qualified Volvo servicetechnician and have the brake systeminspected.
•If the BRAKE and ABS symbols illumi-nate at the same time, there is a risk ofreduced vehicle stability.
Door/hood/tailgate/fuel filler door
reminder
It a door, tailgate, the hood or the fuel filler doorare not closed properly, the information or warn-ing symbol will illuminate and a graphic will bedisplayed in the instrument panel.
Related information
•Instrument panel (p. 132)
•Indicator symbols in the instrument panel(p. 130)
Compass
The rear-view mirror has an integrated compassthat shows the direction in which the vehicle istraveling.
Rearview mirror with compass
Eight different directions are shown with theabbreviations: N (north) NE (northeast) E (east),SE (southeast) S (south), SW (southwest) W(west) NW (northwest)
Switching the compass on/off
The compass is displayed automatically when thevehicle is started or in ignition mode II.
To switch the compass on/off:
–Use a pen, paperclip or similar object andpress in the button on the underside of themirror.
Page 145 of 584
INSTRUMENTS AND CONTROLS
}}
* Option/accessory, for more information, see Introduction.143
Related information
•Calibrating the compass (p. 143)
•Ignition modes (p. 400)
Calibrating the compass
North America is divided into 15 magnetic zonesand the compass will need to be calibrated if thevehicle is driven from one zone to another.
To calibrate the compass:
1.Stop the vehicle in a large open area, safelyout of traffic and away from steel structuresand high-tension electrical wires.
2. Start the vehicle.
NOTE
•For best calibration results, switch off allelectrical equipment in the vehicle (climatesystem, windshield wipers, audio system,etc.) and make sure that all doors areclosed.
•Calibration may not succeed or be incor-rect if the vehicle's electrical equipment isnot switched off.
3. Using a pen, paperclip or similar object, pressand hold the button on the underside of mir-ror for approx. 3 seconds until the number ofthe current magnetic zone is displayed.
15
14
13
12
1198
76
5
4
3
2
1
10
Magnetic zones
4. Press the button on the underside of mirrorrepeatedly until the desired magnetic zone(1–15) is displayed (see the map of mag-netic zones).
5.Wait until C is again displayed in the mirroror hold the button on the underside of mirrorfor approx. 6 seconds until C is displayed inthe mirror.
6.Drive slowly in a circle at a speed of no morethan 6 mph (10 km/h) until a direction is dis-played. This indicates that calibration is com-plete. Drive around in a circle an additionaltwo times to fine-tune the calibration.
7.Vehicles with an electrically heated wind-shield:* if C is displayed when the heatingfunction is activated, perform step 6 with theheating function on.
Page 146 of 584
||
INSTRUMENTS AND CONTROLS
144
8. Repeat the calibration procedure if neces-sary.
Related information
•Defrosting windows and mirrors (p. 206)
•Compass (p. 142)
Lighting panel and controls
The lighting ring on the left-side steering wheellever can be used to activate the vehicle's exte-rior lighting.
Instrument lighting brightness can be adjustedusing the thumb wheel on the lighting panel.
Lighting ring on the left-side steering
wheel lever
Lightingring posi-tion
Result
With the ignition in mode II or ifthe engine is running:
•In the US: the Daytime Run-ning Lights (DRL) will be off
•In Canada: the Daytime Run-ning Lights will be on
•High beam flash can be used
With the ignition in mode II or if
the engine is running:A
•Parking lights will be on
•In the US: the Daytime Run-ning Lights will be off
•In Canada: the Daytime Run-ning Lights will be on
•High beam flash can be used
With the ignition in mode II or ifthe engine is running:
•The Daytime Running Lightswill be off
•The low beam headlights willbe on
•High Beams/High Beamflash can be used
Page 147 of 584
INSTRUMENTS AND CONTROLS
145
Lightingring posi-tion
Result
With the ignition in mode II or ifthe engine is running:
•The Daytime Running Lightswill be on in daylight condi-
tionsB
•The low beam headlights willautomatically switch on indark conditions
•Tunnel detection will be acti-vated
•Active High Beams (AHB)can be activated
•High beam flash can be used
•Continuous high beams canbe used in dark conditions
Active High Beams On/Off
AThe parking lights will be on in this position, even if the ignitionis switched off. In dark conditions, the rear parking lights illumi-nate automatically when the tailgate is open, regardless of thering's position or ignition mode.BUS models only: The use of Daytime Running Lights can beactivated/deactivated in the center display's Settings menu.
NOTE
Volvo recommends the use of Daytime Run-ning Lights in the United States. The use ofthese lights is mandatory in Canada.
Volvo recommends using the positionwhenever possible.
WARNING
•Daytime Running Lights are a driving aiddesigned to help make the vehicle visibleto other roads users.
•The driver is always responsible foradapting the use of Daytime RunningLights/headlights according to ambientlighting and weather conditions.
Lighting panel
Instrument lighting
Thumb wheel (to the left) for adjusting display bright-ness
Illumination of the display and instrument lightswill vary, depending on ignition mode.
The display lighting is automatically subdued indarkness and the sensitivity is set with the thumbwheel.
Related information
•Daytime Running Lights (DRL) (p. 146)
•High and low beam headlights (p. 148)
•Ignition modes (p. 400)
Page 148 of 584
INSTRUMENTS AND CONTROLS
146
Parking lights
Turn the parking lights on by turning the lightingring on the left-side steering wheel lever.
Lighting ring in the parking light position
Turn the lighting ring to the position (thelicense plate lighting comes on at the sametime).
Canadian models: If the ignition is in position IIor the engine is running, the daytime runninglights will illuminate instead of the front parkinglights.
With the lighting ring in this position, the parkinglights will remain on even when the ignition isswitched off.
In dark conditions, the rear parking lights alsoilluminate when the tailgate is opened to alertanyone traveling behind your vehicle. This hap-
pens regardless of the position that the lightingring is in or which mode the ignition is in.
Related information
•Lighting panel and controls (p. 144)
Daytime Running Lights (DRL)
The car monitors ambient lighting conditions.
With the ring on the left-side steering wheel
lever in the position and the ignition inmode II (or the engine running), the lights toggleautomatically between DRL and low beam head-lights.
Ring in the AUTO position.
NOTE
Volvo recommends the use of Daytime Run-ning Lights in the United States. The use ofthese lights is mandatory in Canada.
With the lighting ring in the 0 position:
•In the US: DRL will be off
•In Canada: DRL will be on

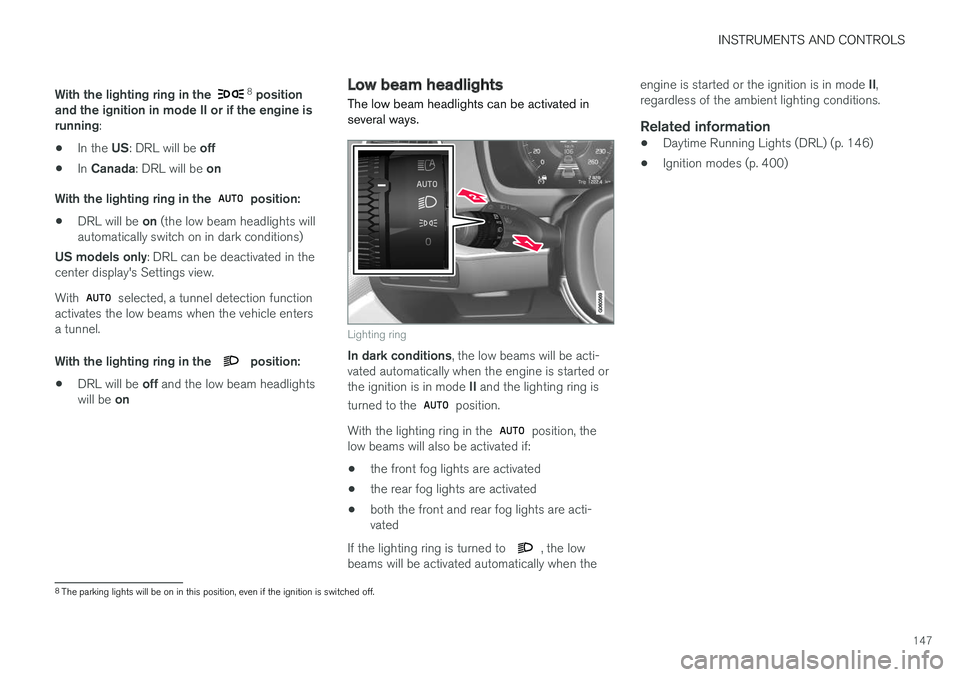

Page 149 of 584
INSTRUMENTS AND CONTROLS
147
With the lighting ring in the 8 positionand the ignition in mode II or if the engine isrunning:
•In the US: DRL will be off
•In Canada: DRL will be on
With the lighting ring in the position:
•DRL will be on (the low beam headlights willautomatically switch on in dark conditions)
US models only: DRL can be deactivated in thecenter display's Settings view.
With selected, a tunnel detection functionactivates the low beams when the vehicle entersa tunnel.
With the lighting ring in the position:
•DRL will be off and the low beam headlightswill be on
Low beam headlights
The low beam headlights can be activated inseveral ways.
Lighting ring
In dark conditions, the low beams will be acti-vated automatically when the engine is started orthe ignition is in mode II and the lighting ring is
turned to the position.
With the lighting ring in the position, thelow beams will also be activated if:
•the front fog lights are activated
•the rear fog lights are activated
•both the front and rear fog lights are acti-vated
If the lighting ring is turned to , the lowbeams will be activated automatically when the
engine is started or the ignition is in mode II,regardless of the ambient lighting conditions.
Related information
•Daytime Running Lights (DRL) (p. 146)
•Ignition modes (p. 400)
8The parking lights will be on in this position, even if the ignition is switched off.
Page 150 of 584
INSTRUMENTS AND CONTROLS
148
High and low beam headlights
If the ignition is in mode II or when the engine isstarted, the low beams are activated automati-
cally if the lighting ring is in position . Indark conditions, the low beams will also be on if
the lighting ring is in the position.
Lighting ring
High beam flash
Continuous high beams
High beam flash
Pull the lever slightly toward the steering wheel.The high beams illuminate until the lever isreleased.
Continuous high beams
Continuous high beams are available if the light-
ing ring is turned to 9 or . Toggle tohigh beams by moving the lever forward. Returnto low beams by moving the lever toward thesteering wheel.
The symbol will illuminate in the instrumentpanel when the high beams are on.
Active high beams
The active high beam system uses a camera atthe upper edge of the windshield to detect theheadlights of oncoming vehicles or the taillightsof a vehicle directly ahead. When this happens,the headlights will automatically switch from highbeams to low beams.
When the camera no longer detects anapproaching vehicle or one that is ahead, yourheadlights will switch back to high beams.
Vehicles with halogen headlights 10
When the camera no longer detects the head-lights of an approaching vehicle or the taillightsof a vehicle ahead, your headlights will switchback to high beams after several seconds.
Operation
Activate/deactivate this function by turning the
lighting ring past the position to .
When released, the ring will automatically return
to the position.
If the active high beam function has not beenactivated, switching between high and low beamsmust be done manually.
A white symbol () in the instrument panelindicates that the function has been activated.
When the high beams are on, the symbol willchange to blue.
NOTE
•Keep the windshield in front of the cam-era free of ice, snow, dirt, etc.
•Do not mount or in any way attach any-thing on the windshield that couldobstruct the camera.
If a message is displayed in the instru-ment panel saying that active highbeams are temporarily unavailable,switching between high and low beamswill have to be done manually. However, the light
switch can remain in the position. Thesame applies if a message saying that the wind-shield sensors are blocked and the symbol above
are displayed. The symbol will go out if thishappens.
9When the low beams are on.
10
Halogen headlights are not available on all models.
