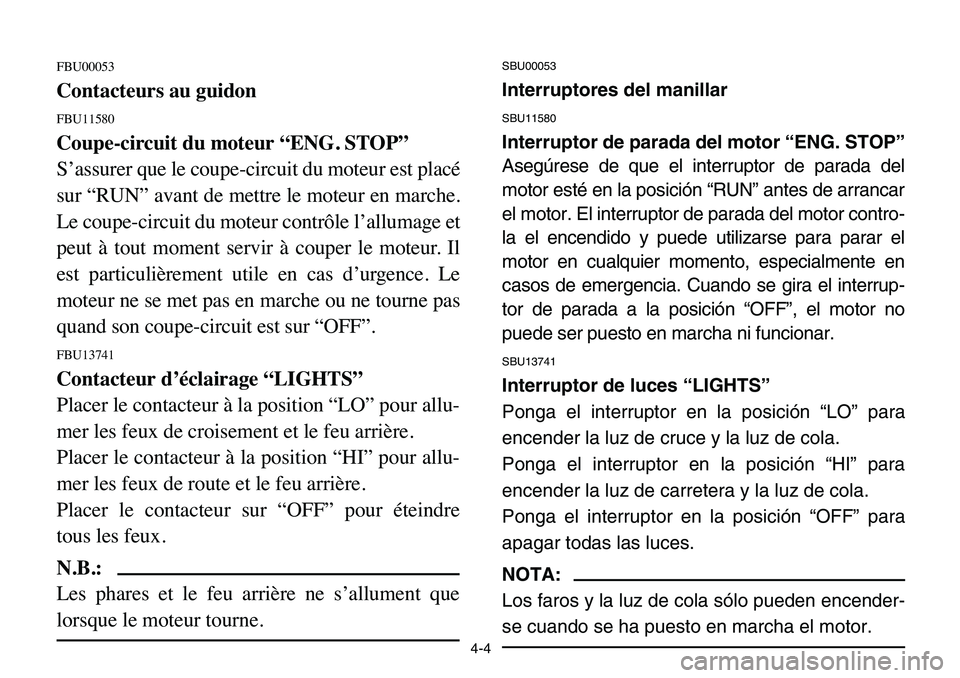

Page 61 of 400

YAMAHA BANSHEE 350 2006 Repair Manual FBU00053
Contacteurs au guidon
FBU11580
Coupe-circuit du moteur “ENG. STOP”
S’assurer que le coupe-circuit du moteur est placé
sur “RUN” avant de mettre le moteur en marche.
Le coupe-circui

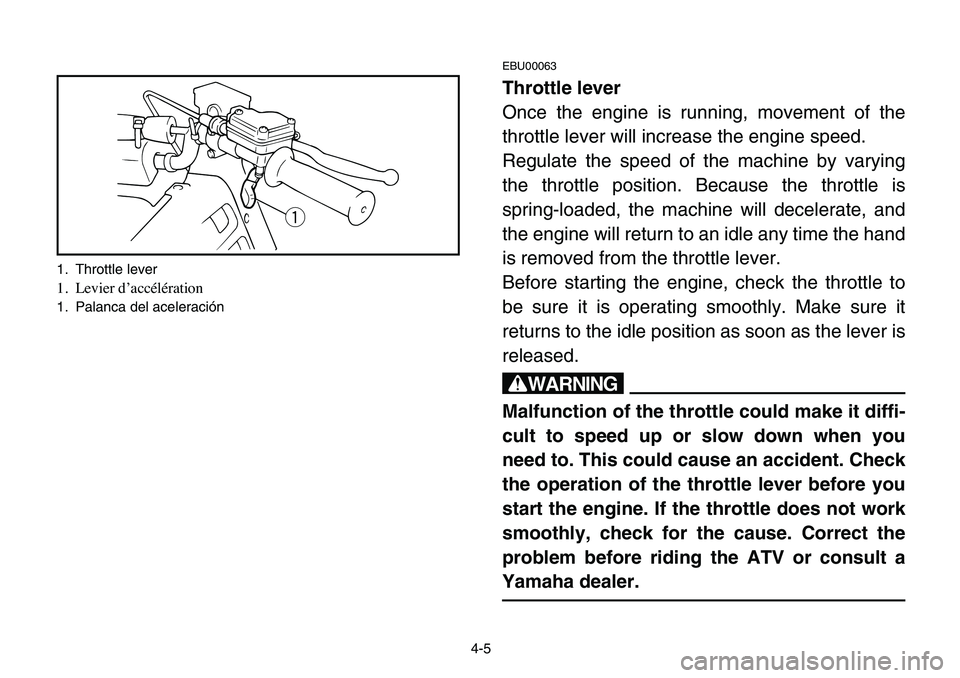

Page 62 of 400

YAMAHA BANSHEE 350 2006 Repair Manual 4-5
EBU00063
Throttle lever
Once the engine is running, movement of the
throttle lever will increase the engine speed.
Regulate the speed of the machine by varying
the throttle position. Because the t

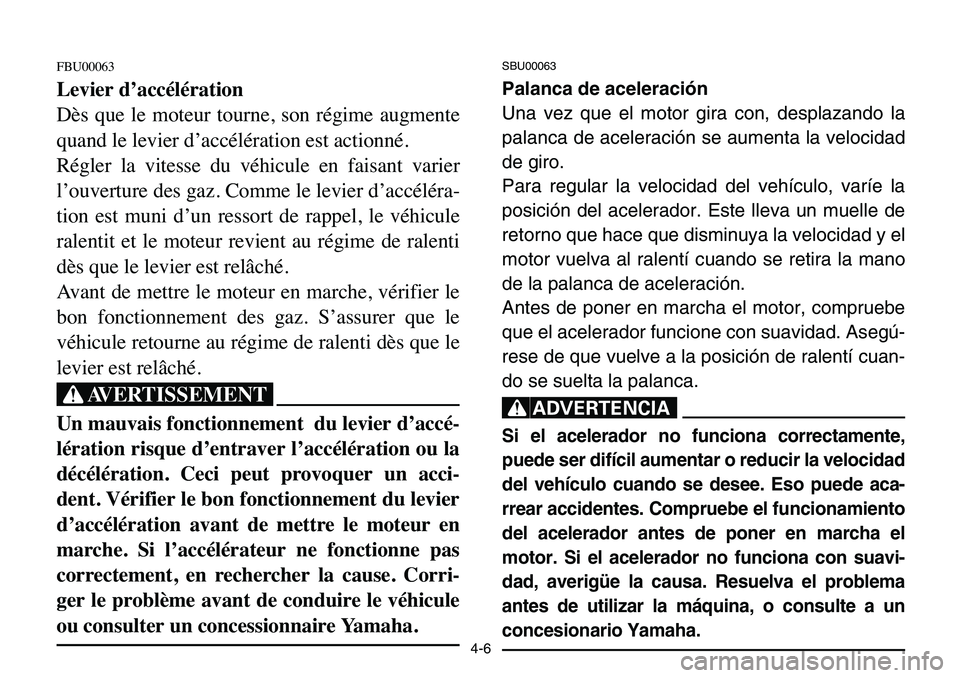

Page 63 of 400

YAMAHA BANSHEE 350 2006 Repair Manual 4-6
FBU00063
Levier d’accélération
Dès que le moteur tourne, son régime augmente
quand le levier d’accélération est actionné.
Régler la vitesse du véhicule en faisant varier
l’ouverture

Page 64 of 400

YAMAHA BANSHEE 350 2006 Repair Manual 4-7
EBU00065
Throttle OverRide System
If during operation, the carburetor or the throttle
cable should malfunction and will not close fully,
take your thumb off the throttle lever.
The throttle overri

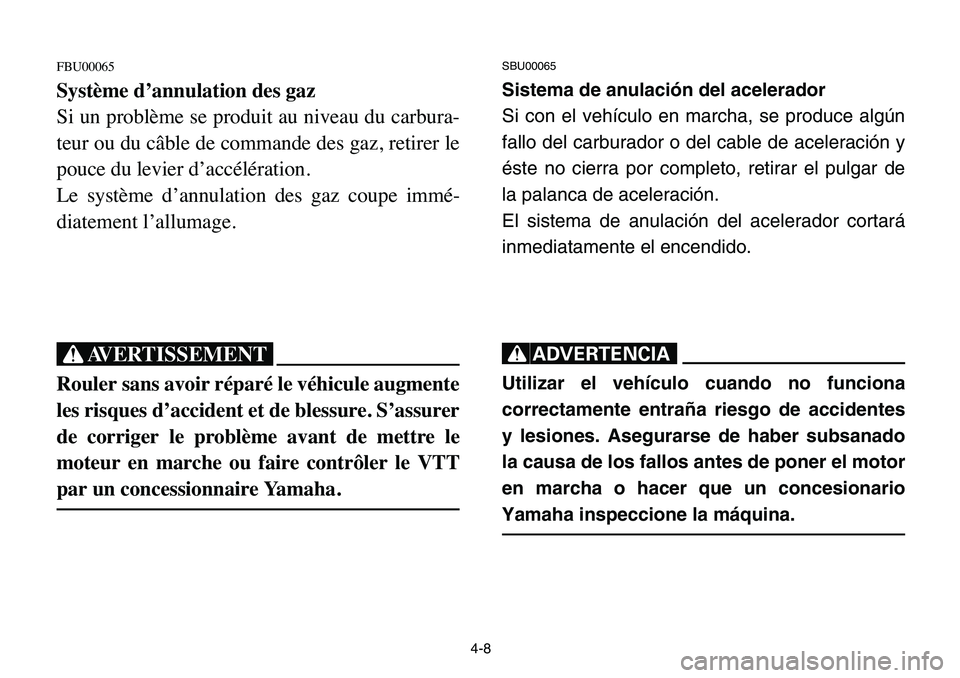

Page 65 of 400

YAMAHA BANSHEE 350 2006 Repair Manual 4-8
FBU00065
Système d’annulation des gaz
Si un problème se produit au niveau du carbura-
teur ou du câble de commande des gaz, retirer le
pouce du levier d’accélération.
Le système d’annu

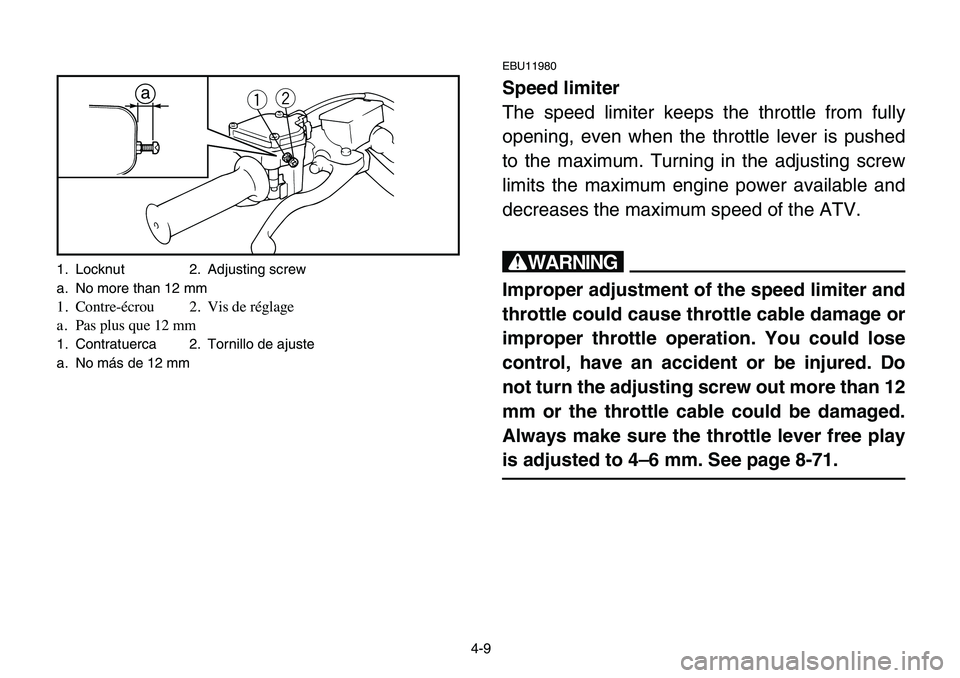

Page 66 of 400

YAMAHA BANSHEE 350 2006 Repair Manual 4-9
EBU11980
Speed limiter
The speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed
to the maximum. Turning in the adjusting screw
limits the maximum engine powe

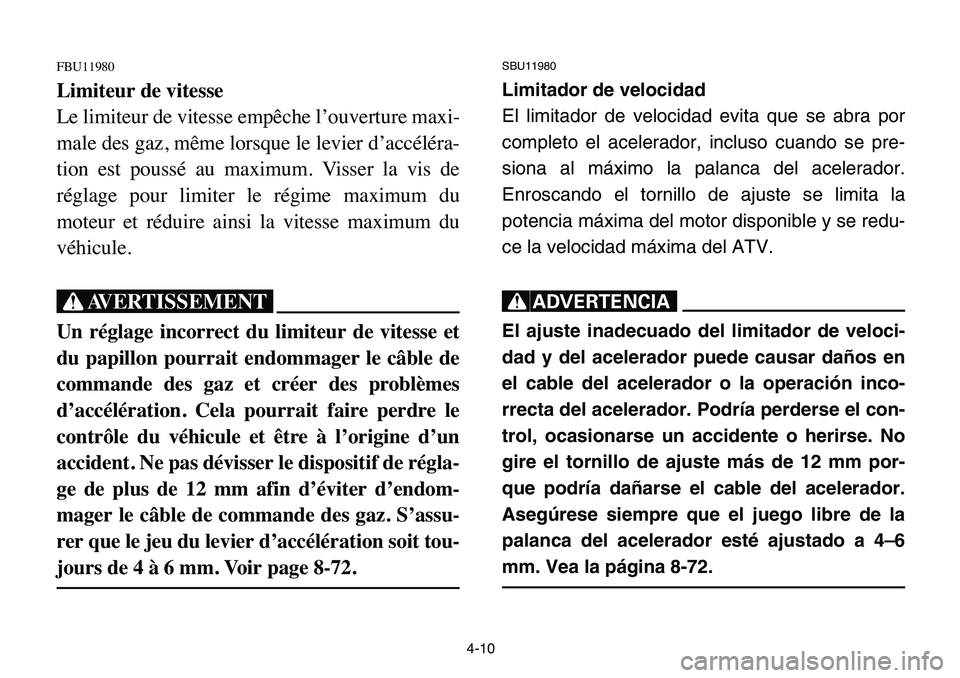

Page 67 of 400

YAMAHA BANSHEE 350 2006 Repair Manual 4-10
FBU11980
Limiteur de vitesse
Le limiteur de vitesse empêche l’ouverture maxi-
male des gaz, même lorsque le levier d’accéléra-
tion est poussé au maximum. Visser la vis de
réglage pour

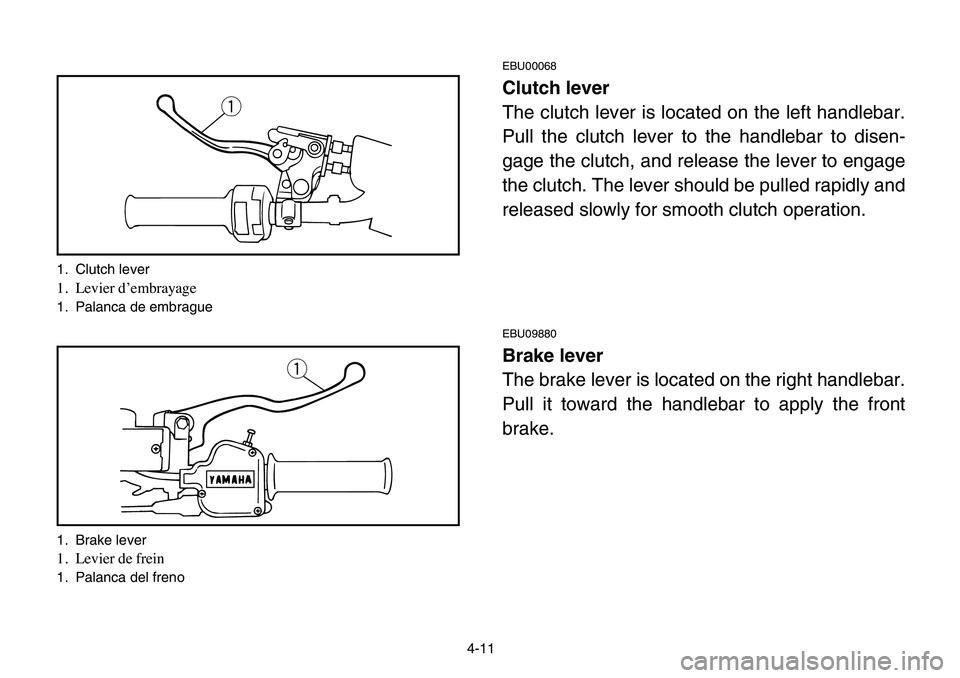

Page 68 of 400

YAMAHA BANSHEE 350 2006 Repair Manual 4-11
EBU00068
Clutch lever
The clutch lever is located on the left handlebar.
Pull the clutch lever to the handlebar to disen-
gage the clutch, and release the lever to engage
the clutch. The lever sh

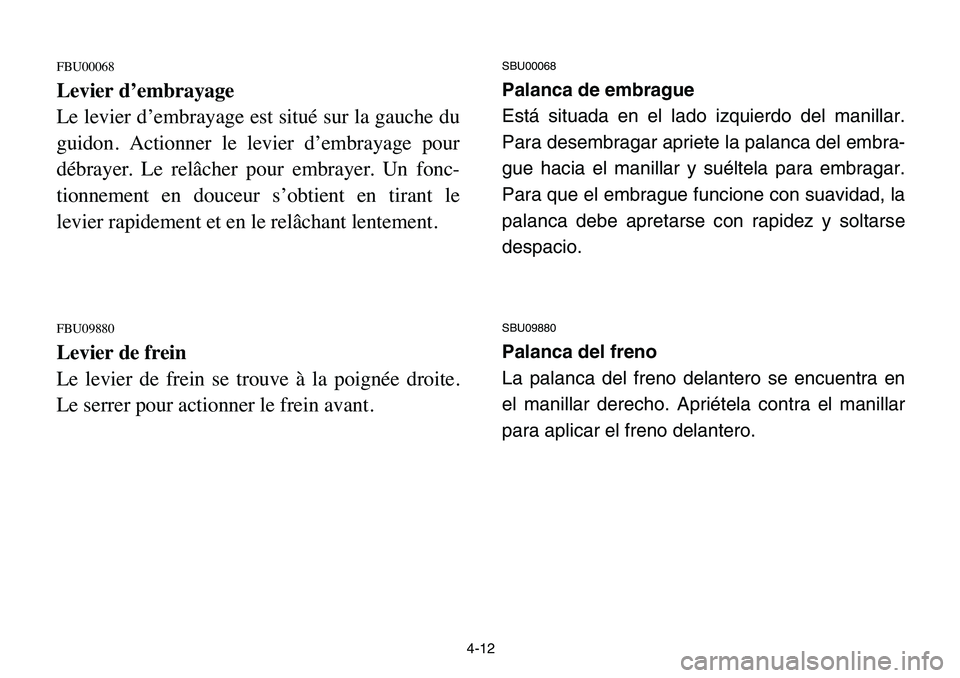

Page 69 of 400

YAMAHA BANSHEE 350 2006 Repair Manual 4-12
FBU00068
Levier d’embrayage
Le levier d’embrayage est situé sur la gauche du
guidon. Actionner le levier d’embrayage pour
débrayer. Le relâcher pour embrayer. Un fonc-
tionnement en douc

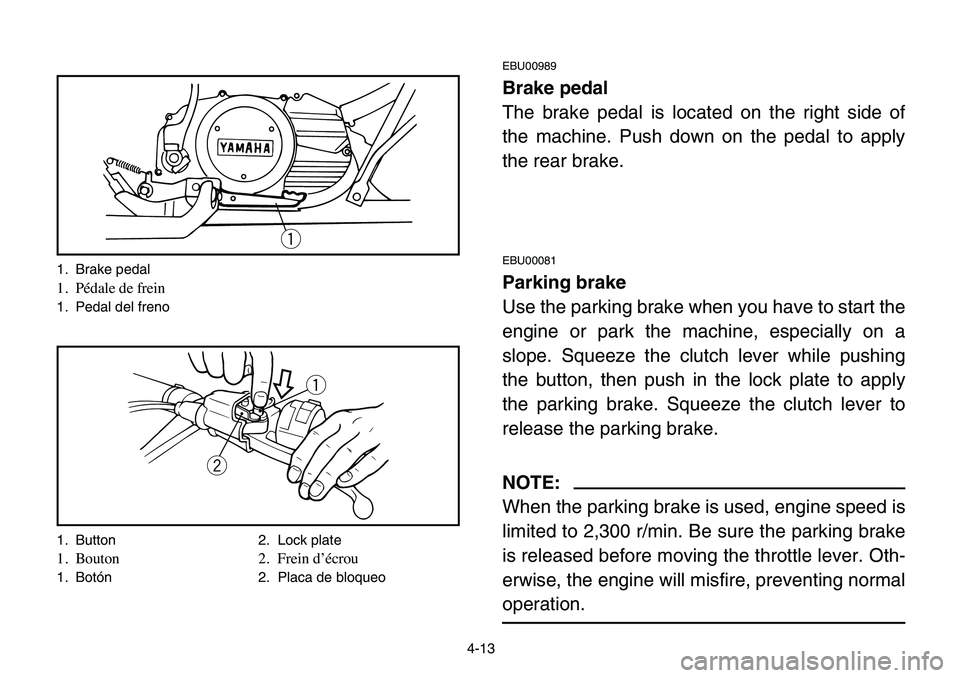

Page 70 of 400

YAMAHA BANSHEE 350 2006 Repair Manual 4-13
EBU00989
Brake pedal
The brake pedal is located on the right side of
the machine. Push down on the pedal to apply
the rear brake.
EBU00081
Parking brake
Use the parking brake when you have to sta
