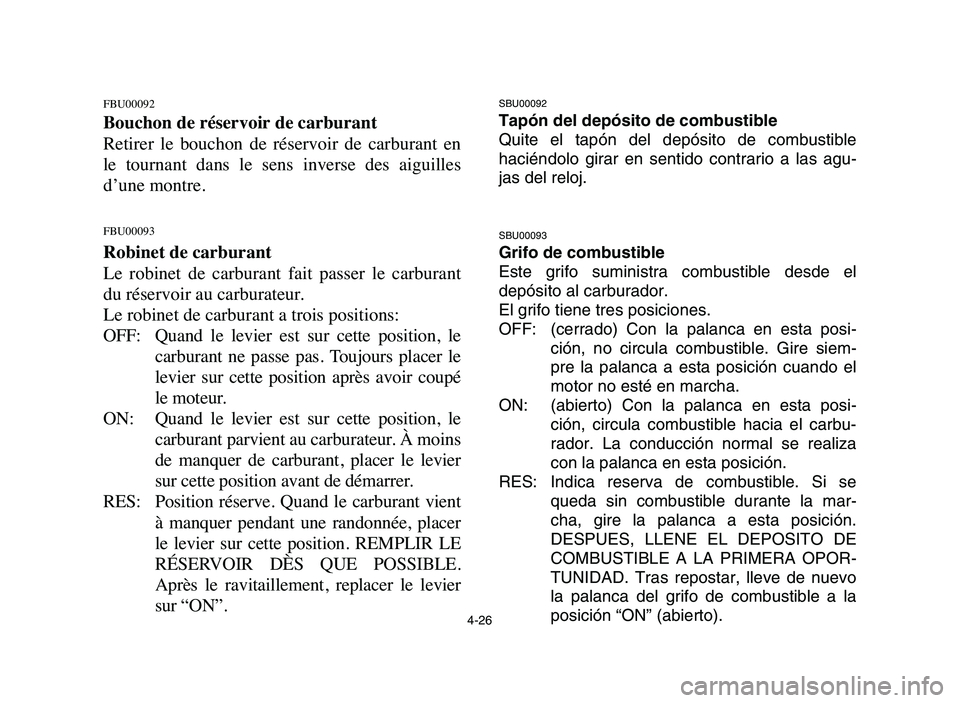

Page 91 of 388

YAMAHA BLASTER 200 2006  Owners Manual 4-26
FBU00092
Bouchon de réservoir de carburant
Retirer  le  bouchon  de  réservoir  de  carburant  en
le  tournant  dans  le  sens  inverse  des  aiguilles
d’une montre.
FBU00093
Robinet de carbu

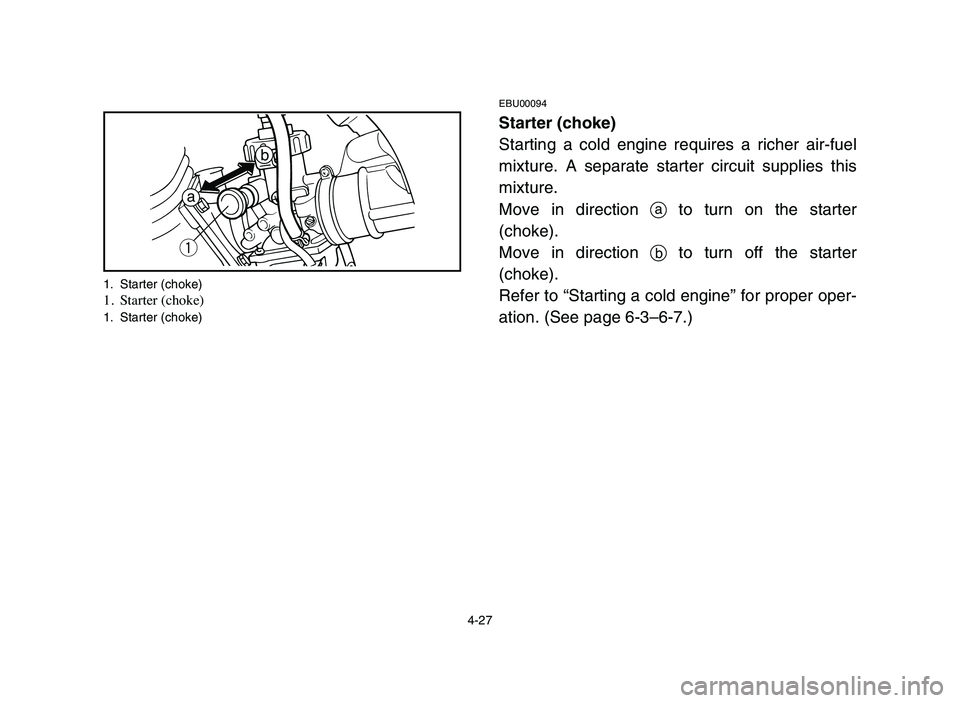

Page 92 of 388

YAMAHA BLASTER 200 2006  Owners Manual 4-27
EBU00094
Starter (choke)
Starting a cold engine requires a richer air-fuel
mixture. A separate starter circuit supplies this
mixture.
Move in direction ato turn on the starter
(choke).
Move in

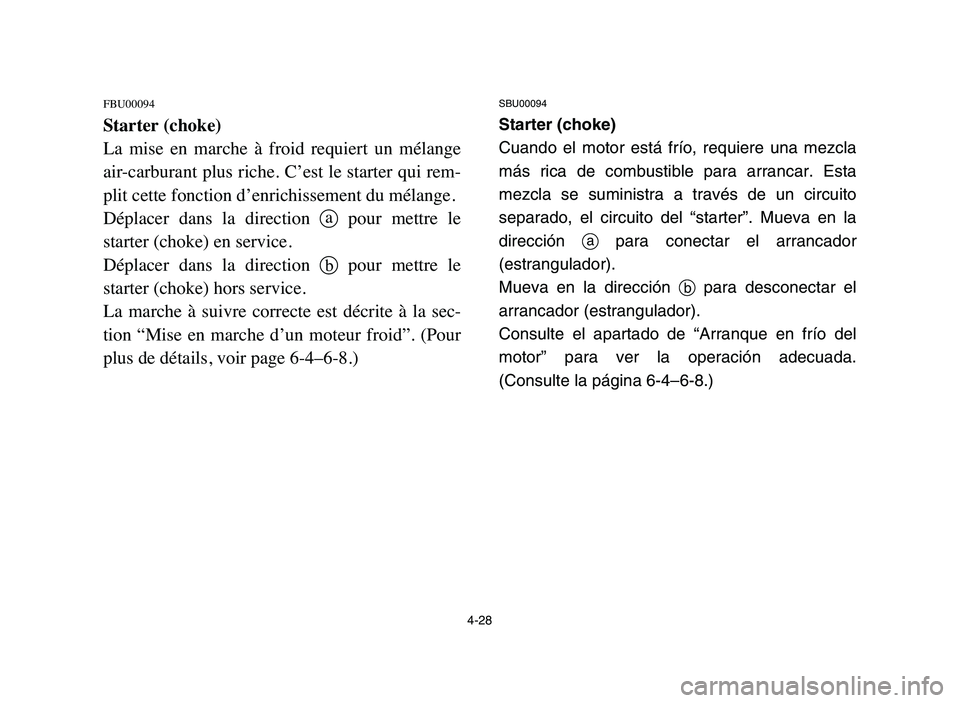

Page 93 of 388

YAMAHA BLASTER 200 2006  Owners Manual 4-28
FBU00094
Starter (choke)
La  mise  en  marche  à  froid  requiert  un  mélange
air-carburant plus riche. C’est le starter qui rem-
plit cette fonction d’enrichissement du mélange.
Déplace

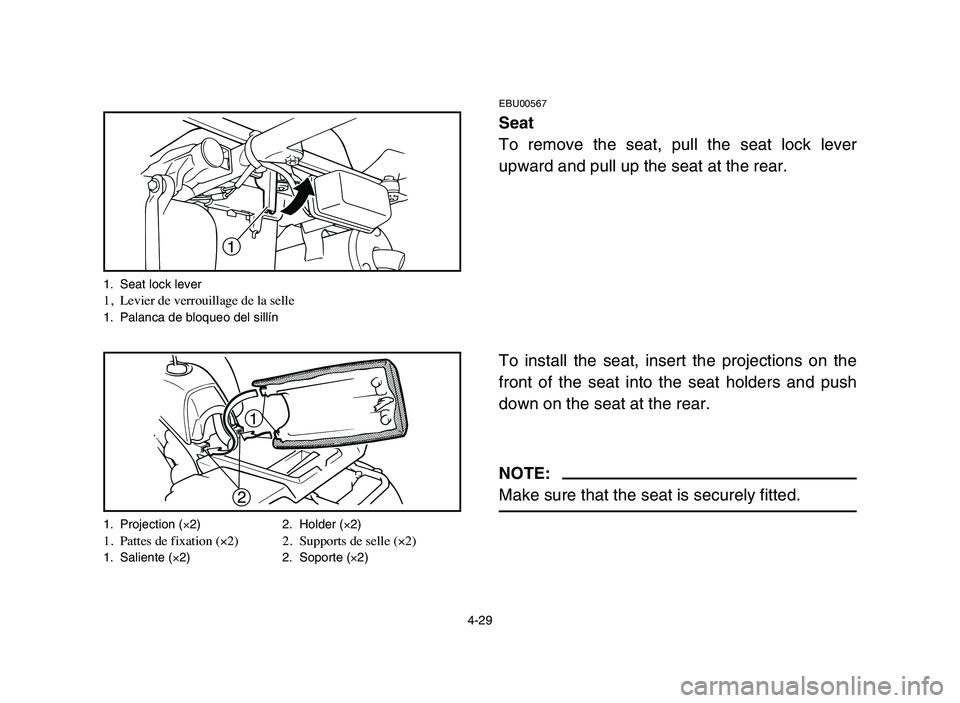

Page 94 of 388

YAMAHA BLASTER 200 2006  Owners Manual 4-29
EBU00567
Seat
To remove the seat, pull the seat lock lever
upward and pull up the seat at the rear.
To install the seat, insert the projections on the
front of the seat into the seat holders and

Page 95 of 388

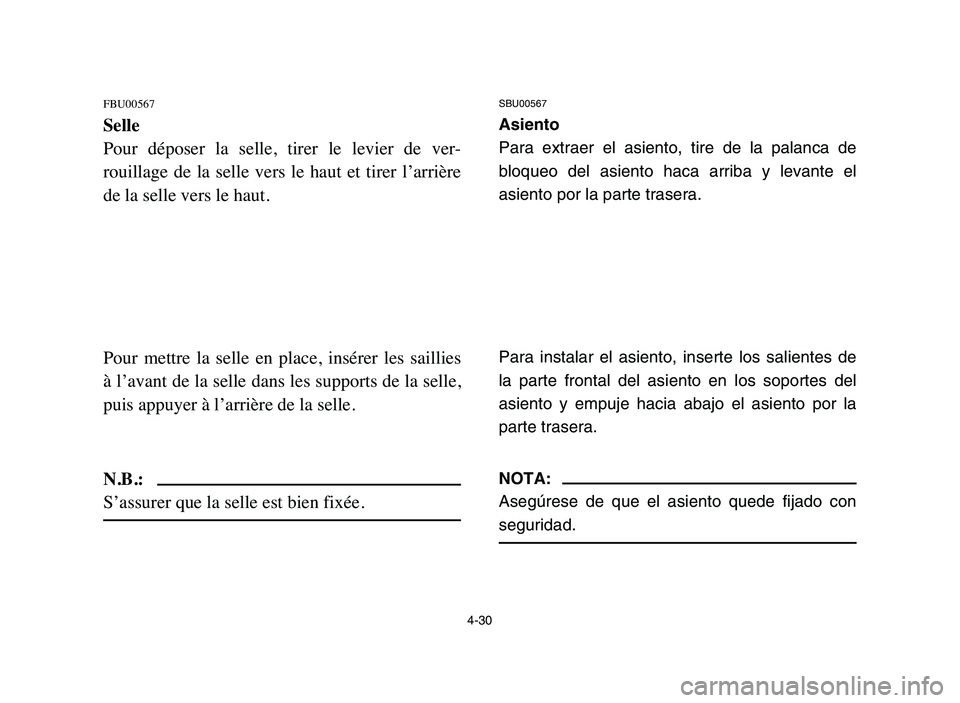

YAMAHA BLASTER 200 2006  Owners Manual 4-30
FBU00567
Selle
Pour  déposer  la  selle,  tirer  le  levier  de  ver-
rouillage  de  la  selle  vers  le  haut  et  tirer  l’arrière
de la selle vers le haut.
Pour  mettre  la  selle  en  pla

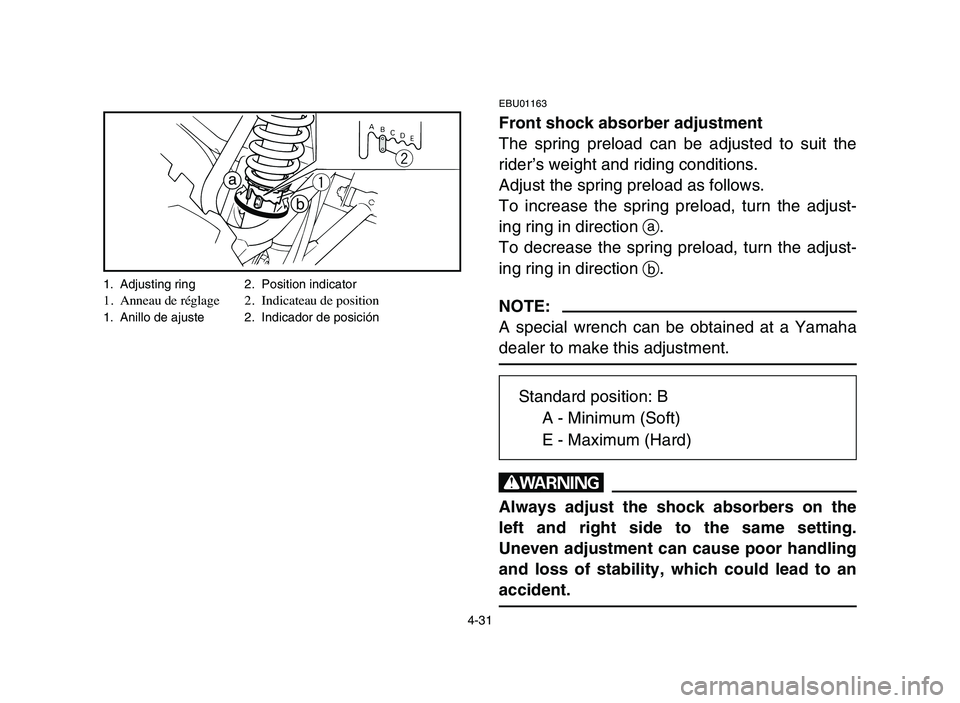

Page 96 of 388

YAMAHA BLASTER 200 2006  Owners Manual 1. Adjusting ring 2. Position indicator1. Anneau de réglage  2. Indicateau de position1. Anillo de ajuste 2. Indicador de posición
4-31
EBU01163
Front shock absorber adjustment
The spring preload ca

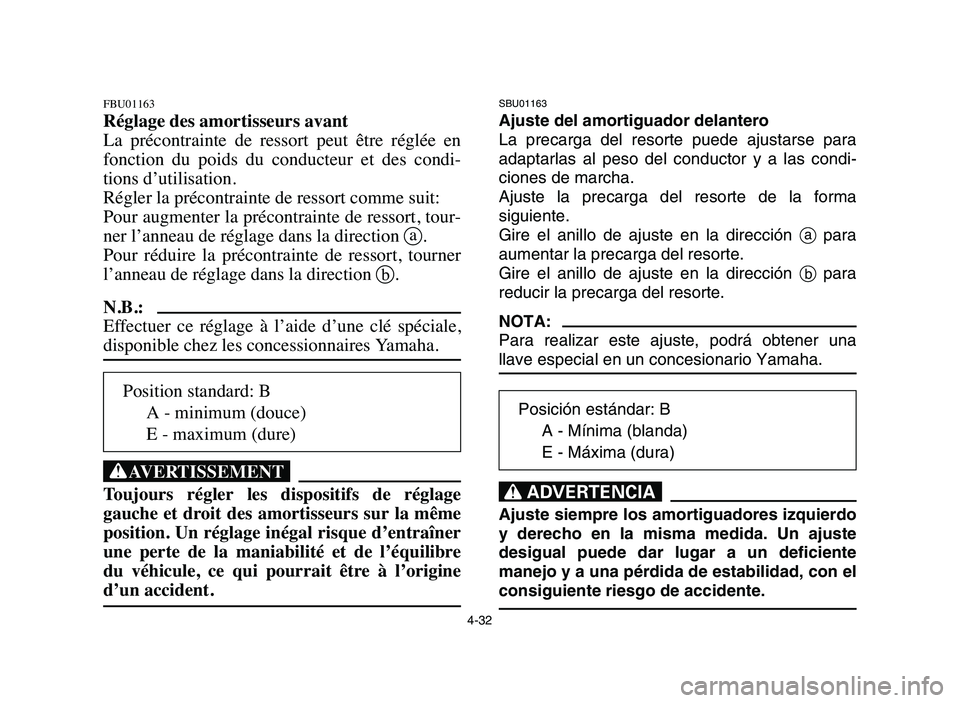

Page 97 of 388

YAMAHA BLASTER 200 2006  Owners Manual 4-32
FBU01163
Réglage des amortisseurs avant
La  précontrainte  de  ressort  peut  être  réglée  en
fonction  du  poids  du  conducteur  et  des  condi-
tions d’utilisation.
Régler la précont

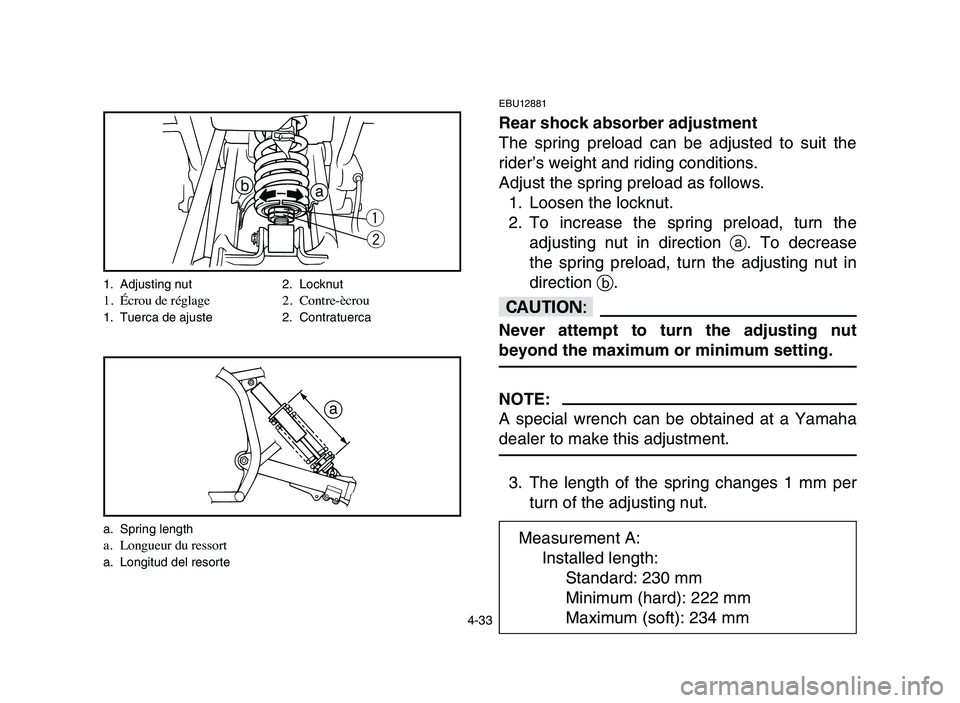

Page 98 of 388

YAMAHA BLASTER 200 2006  Owners Manual 4-33
EBU12881
Rear shock absorber adjustment
The spring preload can be adjusted to suit the
rider’s weight and riding conditions.
Adjust the spring preload as follows.
1. Loosen the locknut.
2. To i

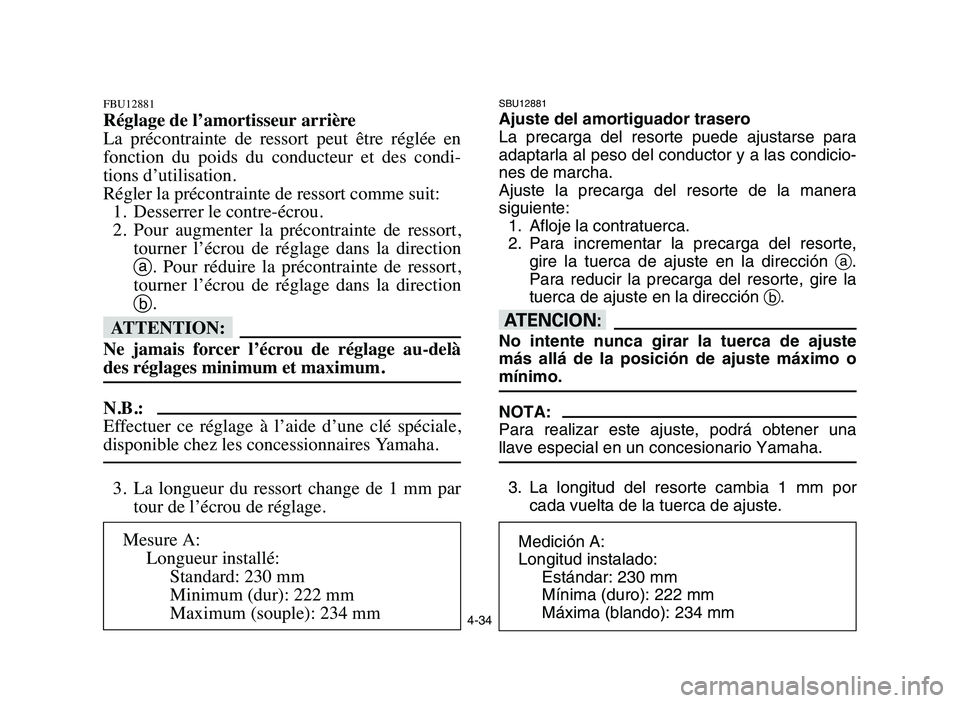

Page 99 of 388

YAMAHA BLASTER 200 2006  Owners Manual 4-34
FBU12881
Réglage de l’amortisseur arrière
La  précontrainte  de  ressort  peut  être  réglée  en
fonction  du  poids  du  conducteur  et  des  condi-
tions d’utilisation.
Régler la pr

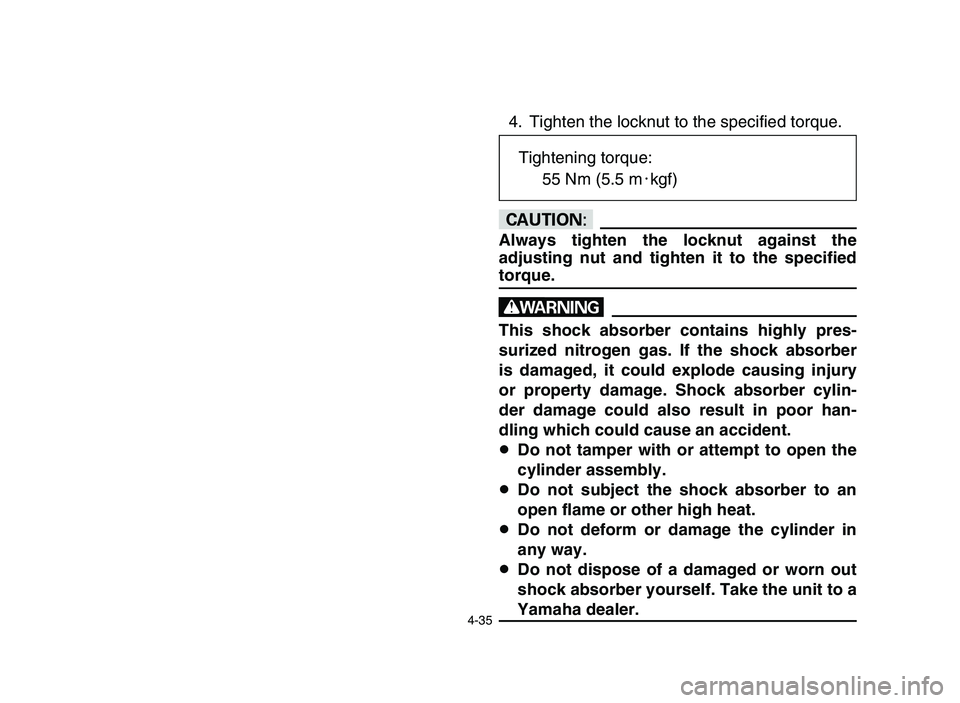

Page 100 of 388

YAMAHA BLASTER 200 2006  Owners Manual 4-35
4. Tighten the locknut to the specified torque.
cC
Always tighten the locknut against the
adjusting nut and tighten it to the specified
torque.
w
This shock absorber contains highly pres-
surized
