Features and functions
34

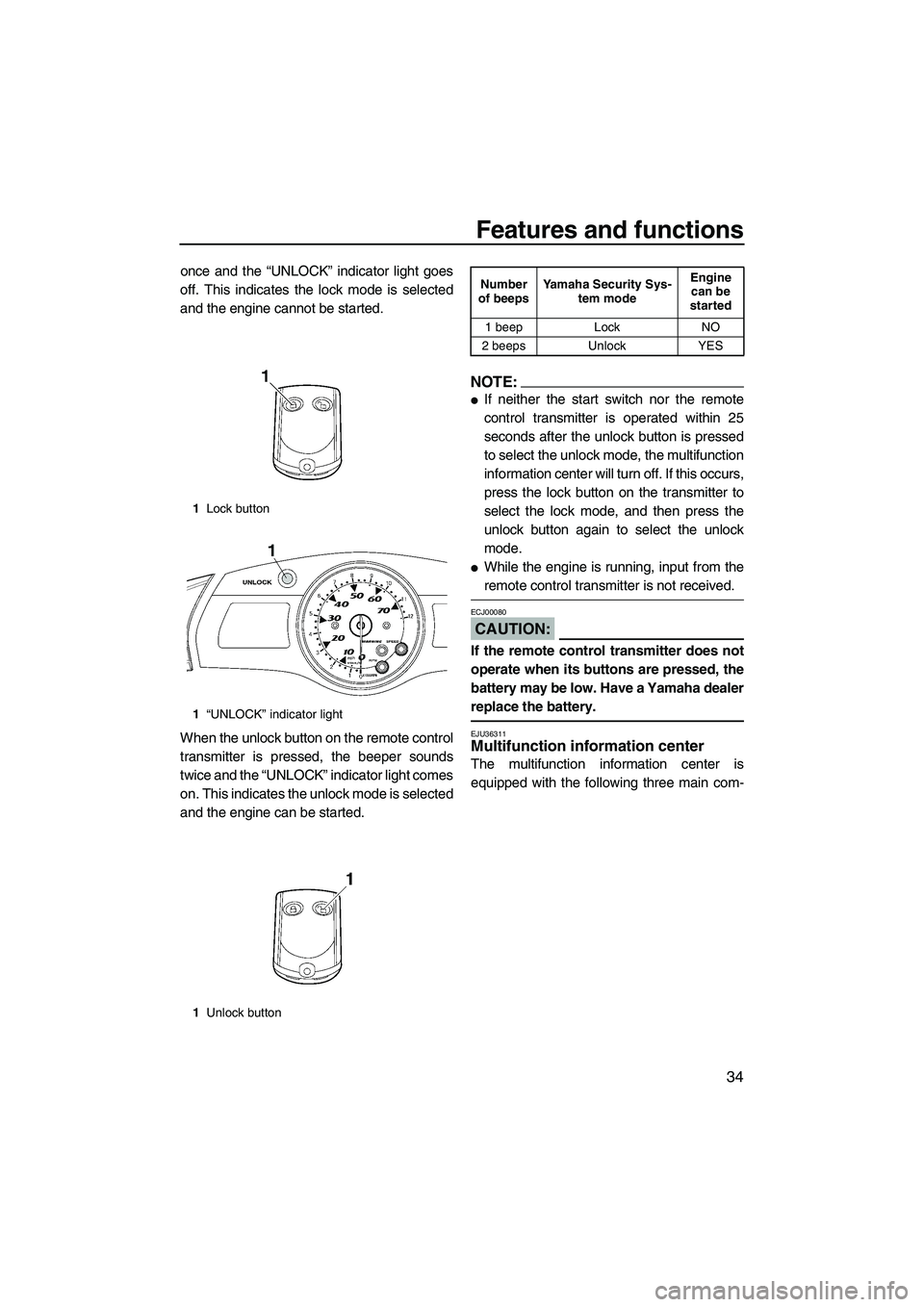

once and the “UNLOCK” indicator light goes
off. This indicates the lock mode is selected
and the engine cannot be started.
When the unlock button on the remote control
transmitter is pressed, the beeper sounds
twice and the “UNLOCK” indicator light comes
on. This indicates the unlock mode is selected
and the engine can be started.
NOTE:
If neither the start switch nor the remote
control transmitter is operated within 25
seconds after the unlock button is pressed
to select the unlock mode, the multifunction
information center will turn off. If this occurs,
press the lock button on the transmitter to
select the lock mode, and then press the
unlock button again to select the unlock
mode.
While the engine is running, input from the
remote control transmitter is not received.
CAUTION:
ECJ00080
If the remote control transmitter does not
operate when its buttons are pressed, the
battery may be low. Have a Yamaha dealer
replace the battery.
EJU36311Multifunction information center
The multifunction information center is
equipped with the following three main com-
1Lock button
1“UNLOCK” indicator light
1Unlock button
Number
of beepsYamaha Security Sys-
tem modeEngine
can be
started
1 beep Lock NO
2 beeps Unlock YES
UF1X71E0.book Page 34 Tuesday, September 26, 2006 9:52 AM
Page 42 of 108
Features and functions
35
ponents for help and convenience in operat-
ing the watercraft.
CAUTION:
ECJ00941
Do not run the engine for more than 15
seconds without supplying water or over
6000 r/min on land when checking the op-
eration of the multifunction information
center, otherwise the engine could over-
heat.
NOTE:
When the multifunction information center
starts operating, the analog speedome-
ter/tachometer makes one sweep, all dis-
plays light up for 2 seconds, and then it
starts to operate normally.
The multifunction information center will
continue to operate for 25 seconds after the
engine stops.

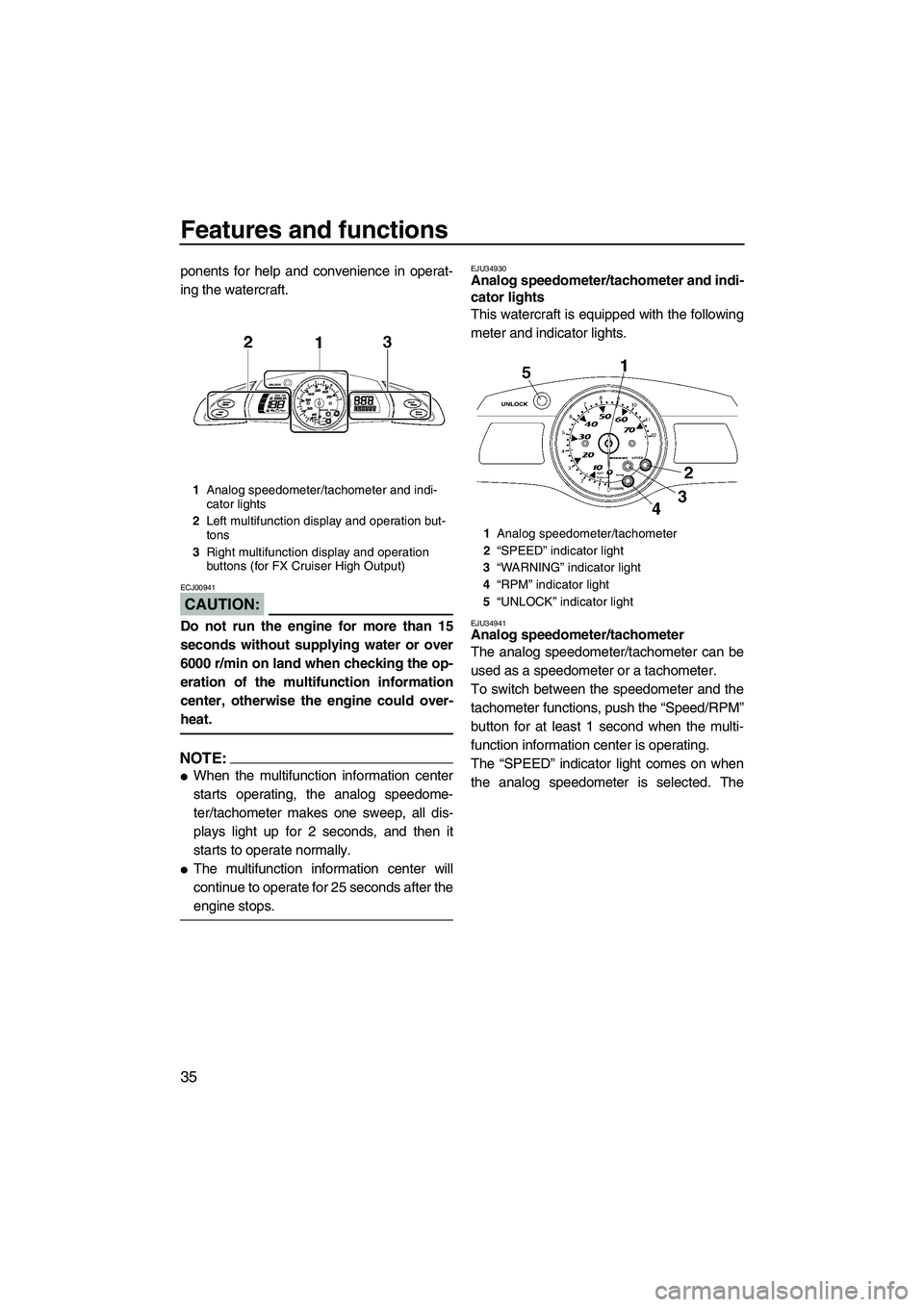

EJU34930Analog speedometer/tachometer and indi-
cator lights
This watercraft is equipped with the following
meter and indicator lights.
EJU34941Analog speedometer/tachometer
The analog speedometer/tachometer can be
used as a speedometer or a tachometer.
To switch between the speedometer and the
tachometer functions, push the “Speed/RPM”
button for at least 1 second when the multi-
function information center is operating.
The “SPEED” indicator light comes on when
the analog speedometer is selected. The
1Analog speedometer/tachometer and indi-
cator lights
2Left multifunction display and operation but-
tons
3Right multifunction display and operation
buttons (for FX Cruiser High Output)
1Analog speedometer/tachometer
2“SPEED” indicator light
3“WARNING” indicator light
4“RPM” indicator light
5“UNLOCK” indicator light
UF1X71E0.book Page 35 Tuesday, September 26, 2006 9:52 AM
Page 43 of 108
Features and functions
36
“RPM” indicator light comes on when the an-
alog tachometer is selected.
NOTE:
When the analog speedometer/tachometer is
switched to the speedometer function, the
“SPEED” indicator light blinks three times,
and then comes on.
Analog speedometer
The analog speedometer shows the water-
craft speed against water.
The large inner numbers on the meter show
the watercraft speed in miles per hour (mph)
and the small outer numbers show the speed
in kilometers per hour (km/h) when the speed-
ometer function is selected.
Analog tachometer
The analog tachometer shows the engine
speed (r/min).
The small outer numbers on the meter show
the engine speed when the tachometer func-
tion is selected.

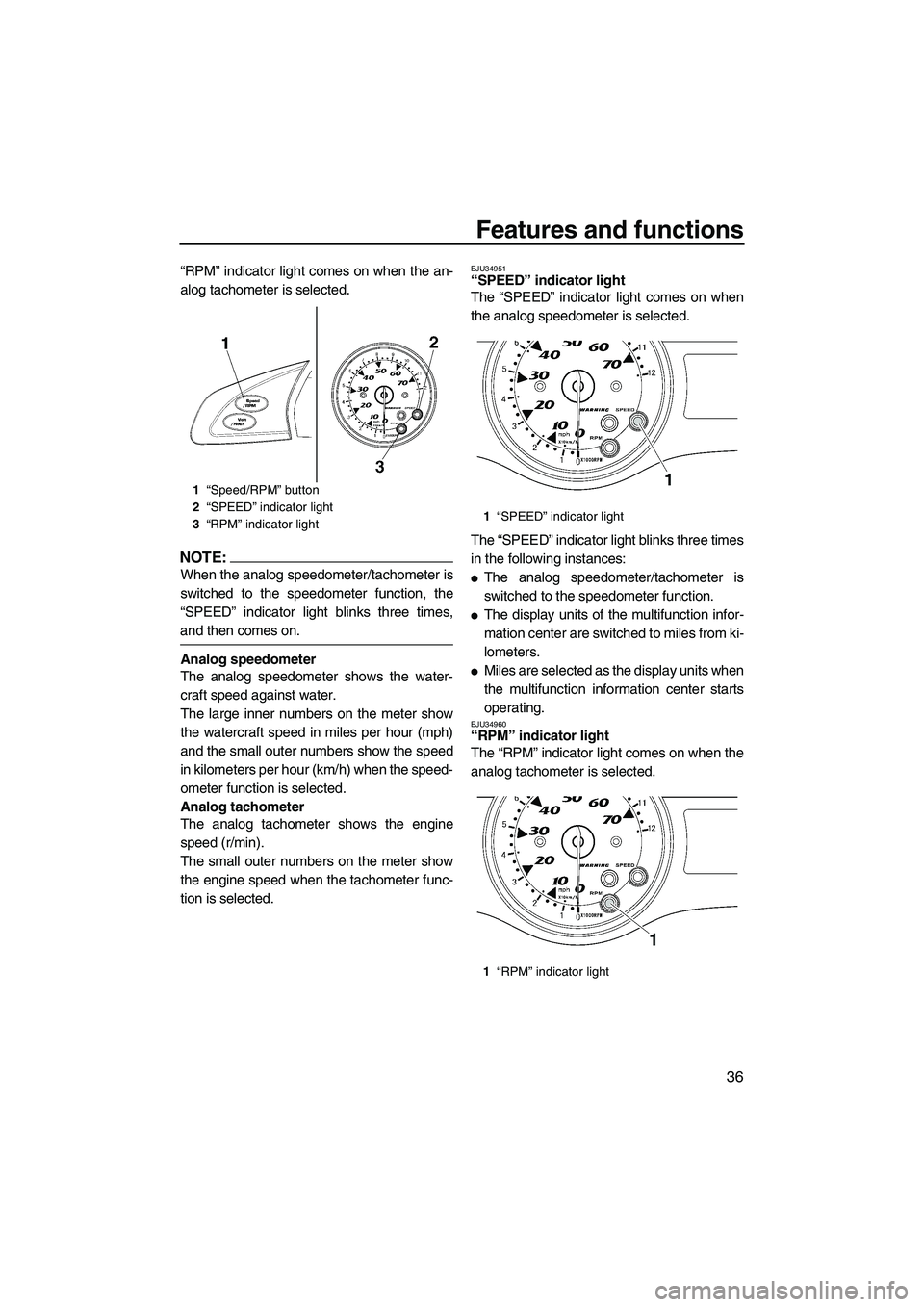

EJU34951“SPEED” indicator light
The “SPEED” indicator light comes on when
the analog speedometer is selected.
The “SPEED” indicator light blinks three times
in the following instances:
The analog speedometer/tachometer is
switched to the speedometer function.
The display units of the multifunction infor-
mation center are switched to miles from ki-
lometers.
Miles are selected as the display units when
the multifunction information center starts
operating.
EJU34960“RPM” indicator light
The “RPM” indicator light comes on when the
analog tachometer is selected.
1“Speed/RPM” button
2“SPEED” indicator light
3“RPM” indicator light
1“SPEED” indicator light
1“RPM” indicator light
UF1X71E0.book Page 36 Tuesday, September 26, 2006 9:52 AM
Page 44 of 108
Features and functions
37

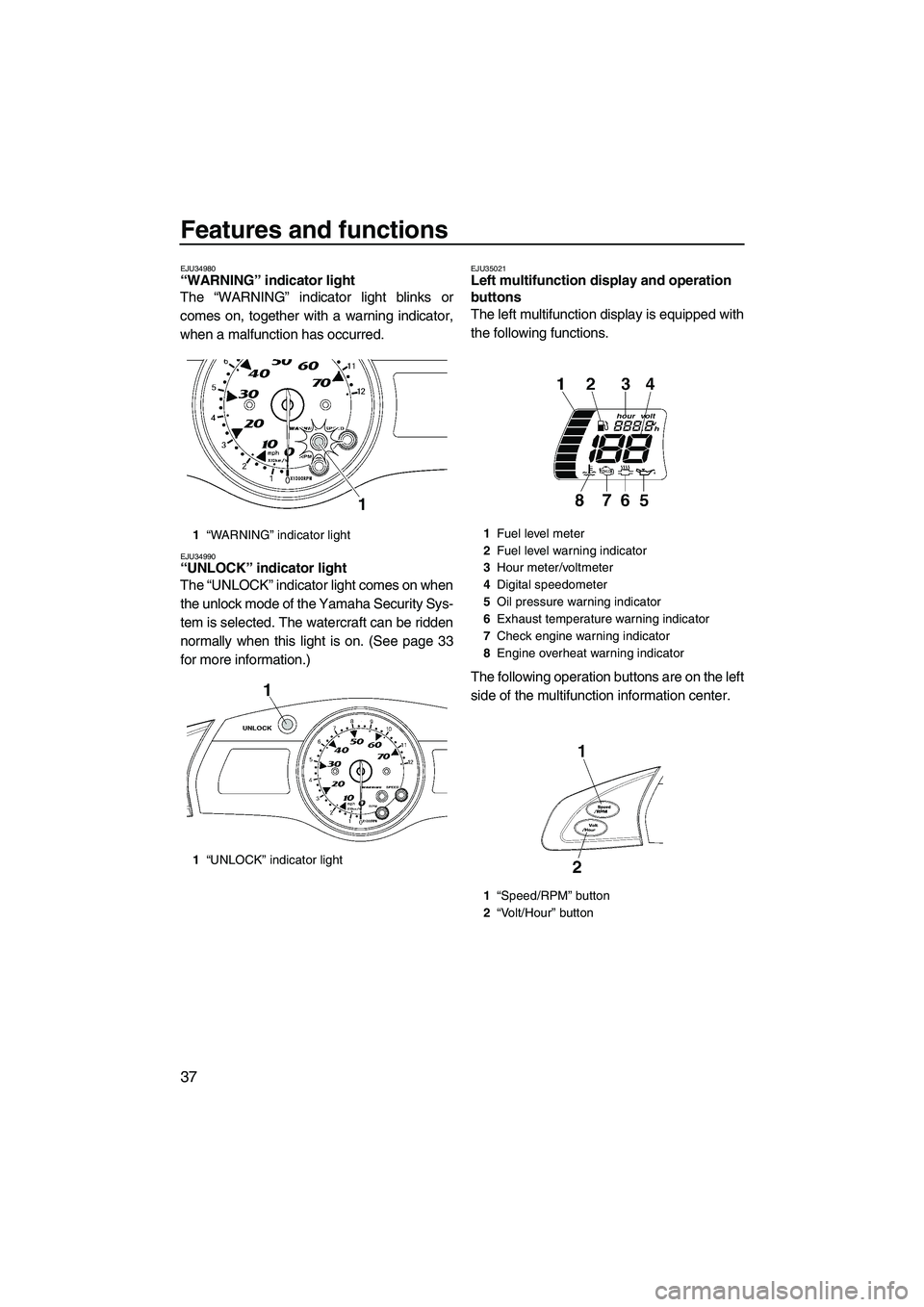

EJU34980“WARNING” indicator light
The “WARNING” indicator light blinks or
comes on, together with a warning indicator,
when a malfunction has occurred.
EJU34990“UNLOCK” indicator light
The “UNLOCK” indicator light comes on when
the unlock mode of the Yamaha Security Sys-
tem is selected. The watercraft can be ridden
normally when this light is on. (See page 33
for more information.)
EJU35021Left multifunction display and operation
buttons
The left multifunction display is equipped with
the following functions.
The following operation buttons are on the left
side of the multifunction information center.
1“WARNING” indicator light
1“UNLOCK” indicator light1Fuel level meter
2Fuel level warning indicator
3Hour meter/voltmeter
4Digital speedometer
5Oil pressure warning indicator
6Exhaust temperature warning indicator
7Check engine warning indicator
8Engine overheat warning indicator
1“Speed/RPM” button
2“Volt/Hour” button
UF1X71E0.book Page 37 Tuesday, September 26, 2006 9:52 AM
Page 45 of 108
Features and functions
38

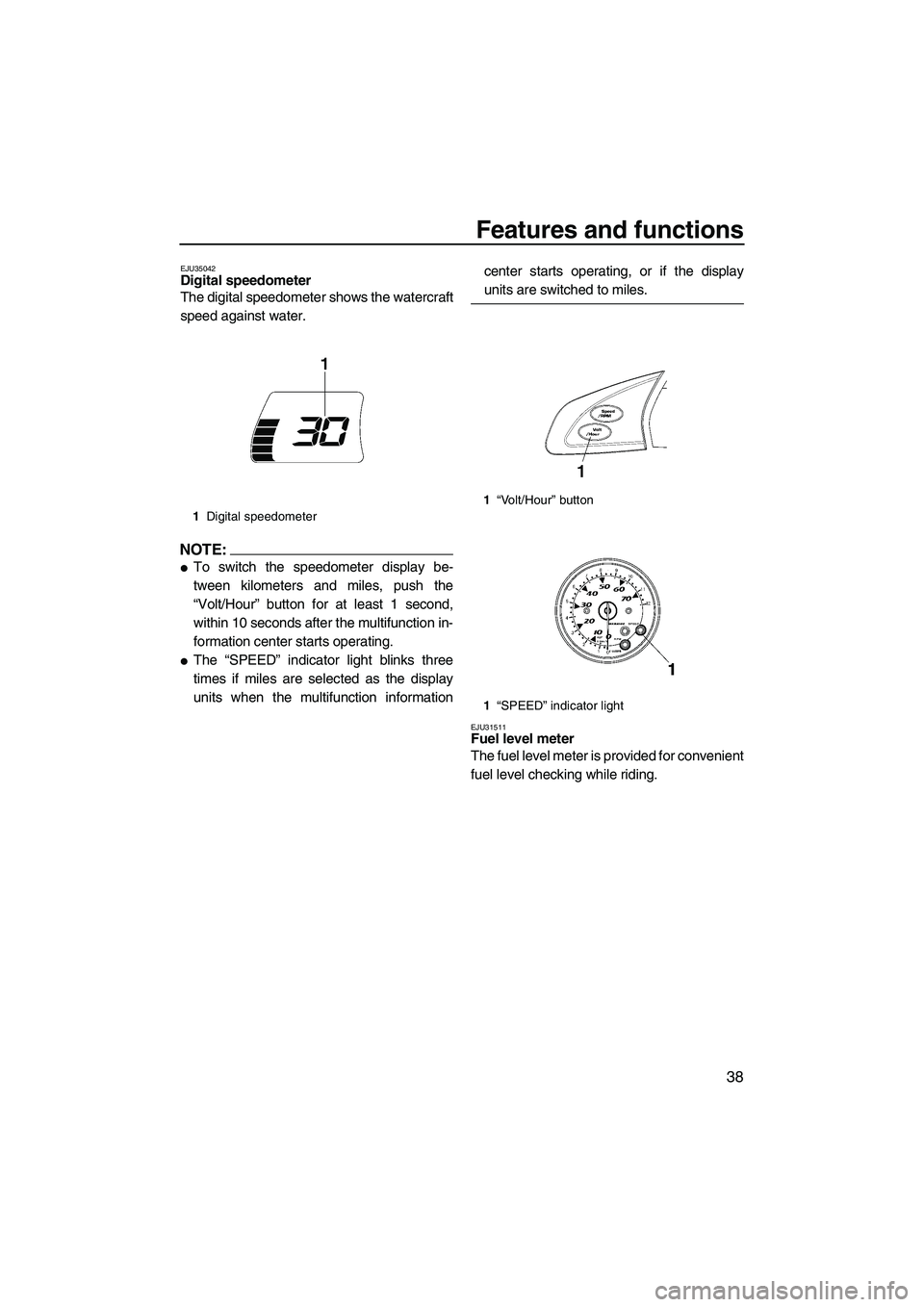

EJU35042Digital speedometer
The digital speedometer shows the watercraft
speed against water.
NOTE:
To switch the speedometer display be-
tween kilometers and miles, push the
“Volt/Hour” button for at least 1 second,
within 10 seconds after the multifunction in-
formation center starts operating.
The “SPEED” indicator light blinks three
times if miles are selected as the display
units when the multifunction informationcenter starts operating, or if the display
units are switched to miles.
EJU31511Fuel level meter
The fuel level meter is provided for convenient
fuel level checking while riding.
1Digital speedometer
1“Volt/Hour” button
1“SPEED” indicator light
UF1X71E0.book Page 38 Tuesday, September 26, 2006 9:52 AM
Page 46 of 108
Features and functions
39

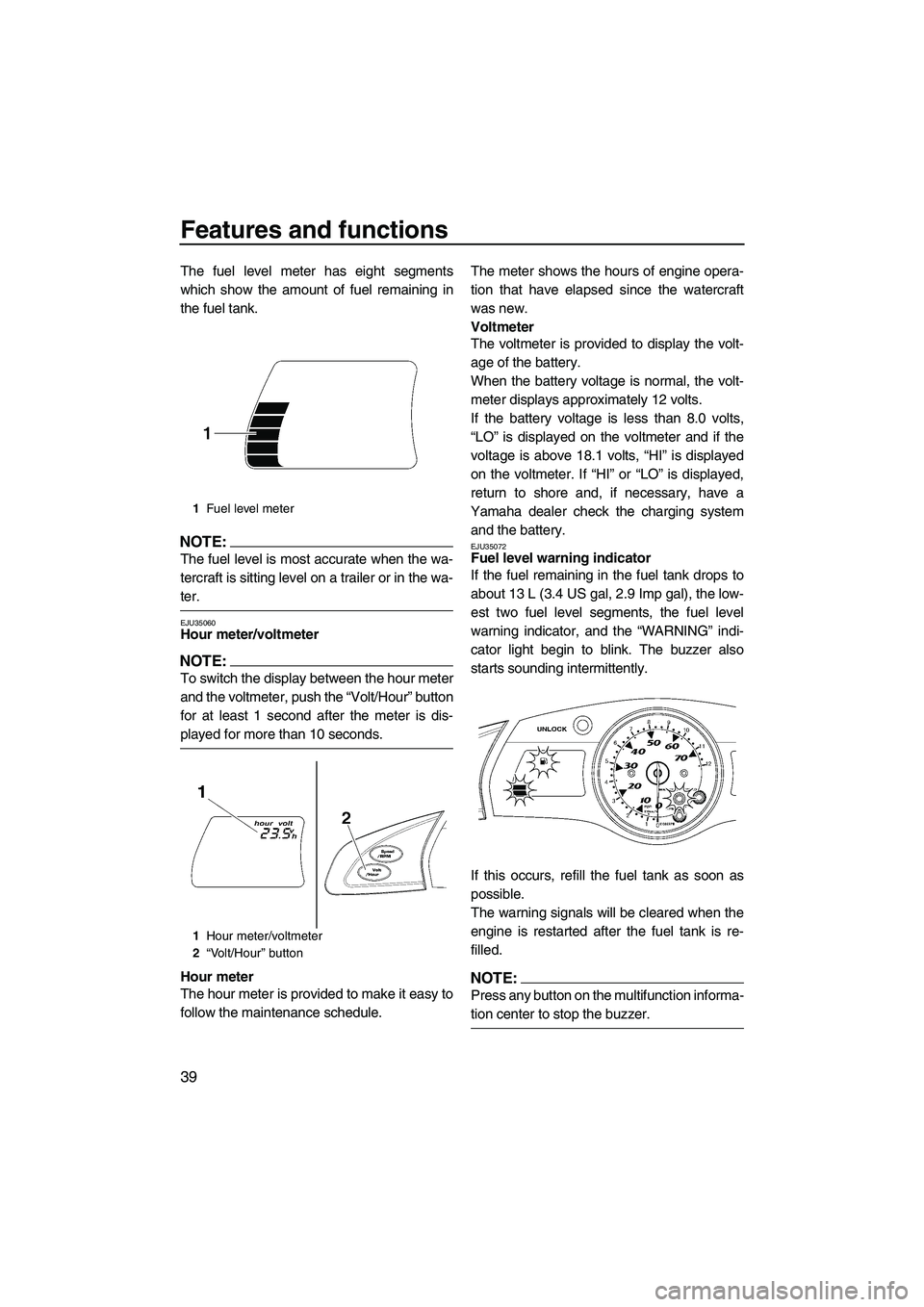

The fuel level meter has eight segments
which show the amount of fuel remaining in
the fuel tank.
NOTE:
The fuel level is most accurate when the wa-
tercraft is sitting level on a trailer or in the wa-
ter.
EJU35060Hour meter/voltmeter
NOTE:
To switch the display between the hour meter
and the voltmeter, push the “Volt/Hour” button
for at least 1 second after the meter is dis-
played for more than 10 seconds.
Hour meter
The hour meter is provided to make it easy to
follow the maintenance schedule.The meter shows the hours of engine opera-
tion that have elapsed since the watercraft
was new.
Voltmeter
The voltmeter is provided to display the volt-
age of the battery.
When the battery voltage is normal, the volt-
meter displays approximately 12 volts.
If the battery voltage is less than 8.0 volts,
“LO” is displayed on the voltmeter and if the
voltage is above 18.1 volts, “HI” is displayed
on the voltmeter. If “HI” or “LO” is displayed,
return to shore and, if necessary, have a
Yamaha dealer check the charging system
and the battery.
EJU35072Fuel level warning indicator
If the fuel remaining in the fuel tank drops to
about 13 L (3.4 US gal, 2.9 Imp gal), the low-
est two fuel level segments, the fuel level
warning indicator, and the “WARNING” indi-
cator light begin to blink. The buzzer also
starts sounding intermittently.
If this occurs, refill the fuel tank as soon as
possible.
The warning signals will be cleared when the
engine is restarted after the fuel tank is re-
filled.
NOTE:
Press any button on the multifunction informa-
tion center to stop the buzzer.
1Fuel level meter
1Hour meter/voltmeter
2“Volt/Hour” button
UF1X71E0.book Page 39 Tuesday, September 26, 2006 9:52 AM
Page 47 of 108
Features and functions
40

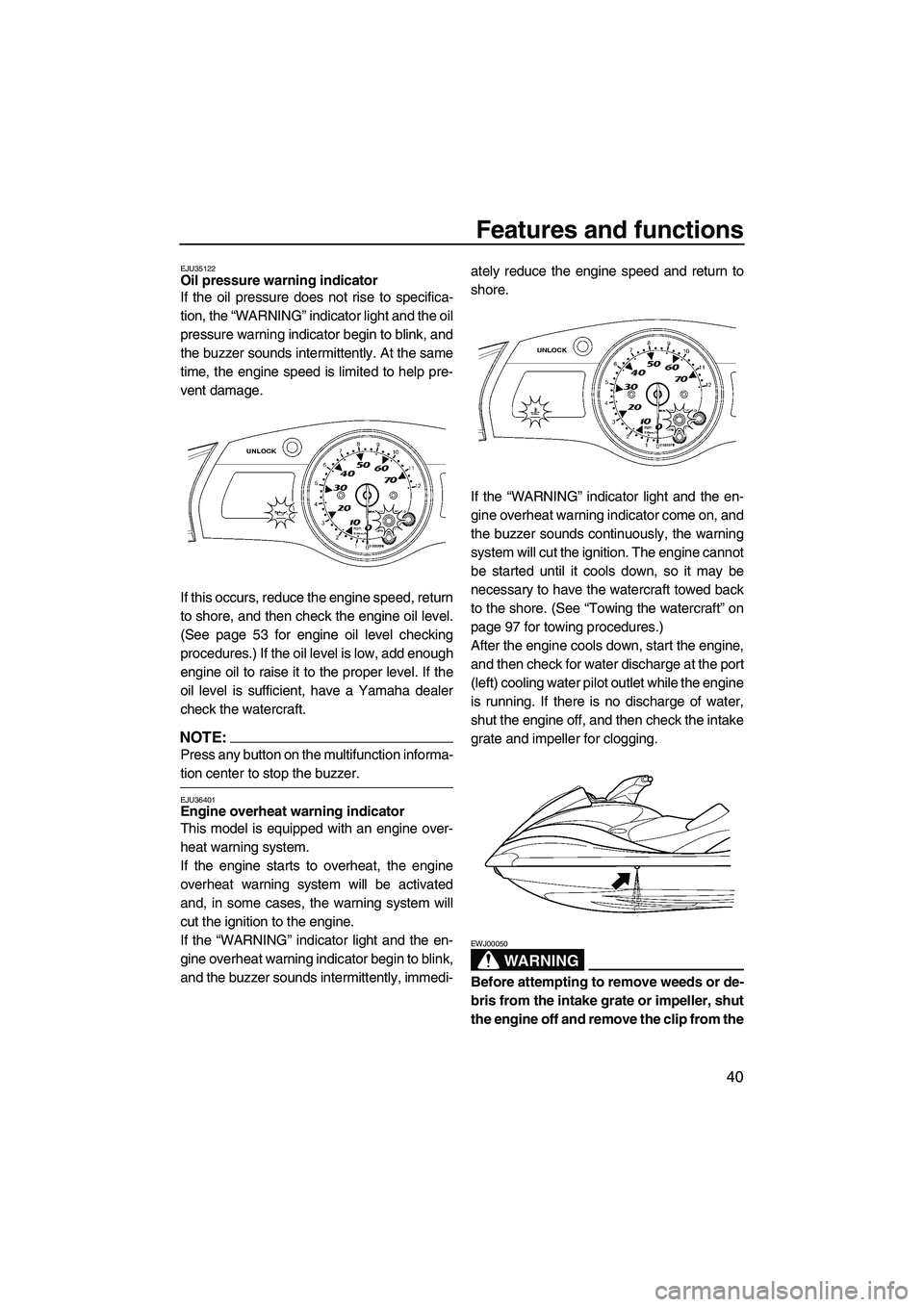

EJU35122Oil pressure warning indicator
If the oil pressure does not rise to specifica-
tion, the “WARNING” indicator light and the oil
pressure warning indicator begin to blink, and
the buzzer sounds intermittently. At the same
time, the engine speed is limited to help pre-
vent damage.
If this occurs, reduce the engine speed, return
to shore, and then check the engine oil level.
(See page 53 for engine oil level checking
procedures.) If the oil level is low, add enough
engine oil to raise it to the proper level. If the
oil level is sufficient, have a Yamaha dealer
check the watercraft.
NOTE:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU36401Engine overheat warning indicator
This model is equipped with an engine over-
heat warning system.
If the engine starts to overheat, the engine
overheat warning system will be activated
and, in some cases, the warning system will
cut the ignition to the engine.
If the “WARNING” indicator light and the en-
gine overheat warning indicator begin to blink,
and the buzzer sounds intermittently, immedi-ately reduce the engine speed and return to
shore.
If the “WARNING” indicator light and the en-
gine overheat warning indicator come on, and
the buzzer sounds continuously, the warning
system will cut the ignition. The engine cannot
be started until it cools down, so it may be
necessary to have the watercraft towed back
to the shore. (See “Towing the watercraft” on
page 97 for towing procedures.)
After the engine cools down, start the engine,
and then check for water discharge at the port
(left) cooling water pilot outlet while the engine
is running. If there is no discharge of water,
shut the engine off, and then check the intake
grate and impeller for clogging.
WARNING
EWJ00050
Before attempting to remove weeds or de-
bris from the intake grate or impeller, shut
the engine off and remove the clip from the
UF1X71E0.book Page 40 Tuesday, September 26, 2006 9:52 AM
Page 48 of 108
Features and functions
41
engine shut-off switch. Severe injury or
death could result from coming in contact
with the rotating parts of the jet pump.
CAUTION:
ECJ00951
If you cannot locate and correct the cause
of the overheating, consult a Yamaha deal-
er. Continuing to operate at higher speeds
could result in severe engine damage.
NOTE:
Press any button on the multifunction informa-
tion center to stop the buzzer.

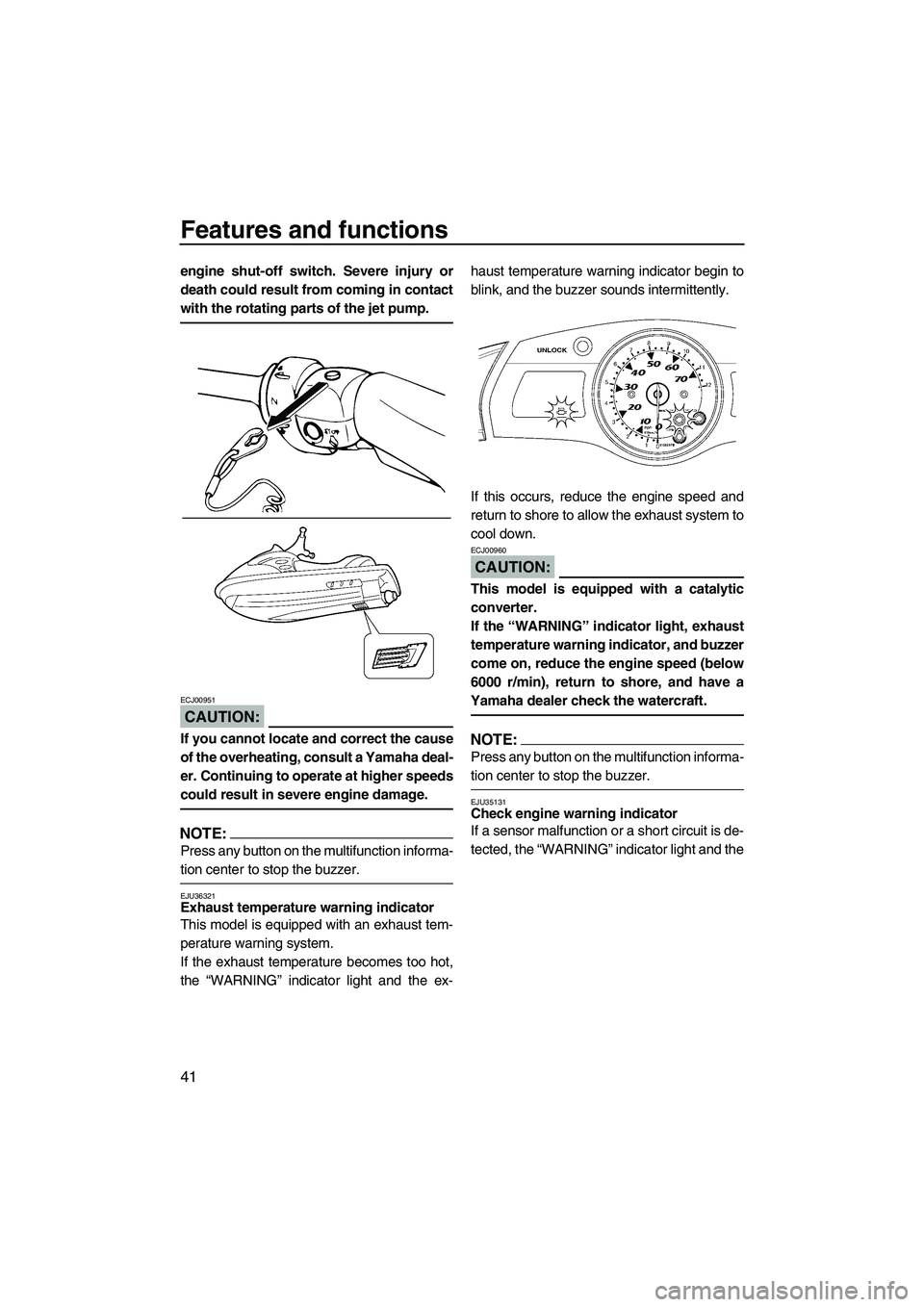

EJU36321Exhaust temperature warning indicator
This model is equipped with an exhaust tem-
perature warning system.
If the exhaust temperature becomes too hot,
the “WARNING” indicator light and the ex-haust temperature warning indicator begin to
blink, and the buzzer sounds intermittently.
If this occurs, reduce the engine speed and
return to shore to allow the exhaust system to
cool down.
CAUTION:
ECJ00960
This model is equipped with a catalytic
converter.
If the “WARNING” indicator light, exhaust
temperature warning indicator, and buzzer
come on, reduce the engine speed (below
6000 r/min), return to shore, and have a
Yamaha dealer check the watercraft.
NOTE:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU35131Check engine warning indicator
If a sensor malfunction or a short circuit is de-
tected, the “WARNING” indicator light and the
UF1X71E0.book Page 41 Tuesday, September 26, 2006 9:52 AM
Page 49 of 108
Features and functions
42
check engine warning indicator begin to blink,
and the buzzer sounds intermittently.
If this occurs, reduce the engine speed, return
to shore, and have a Yamaha dealer check
the engine.
NOTE:
Press any button on the multifunction informa-
tion center to stop the buzzer.

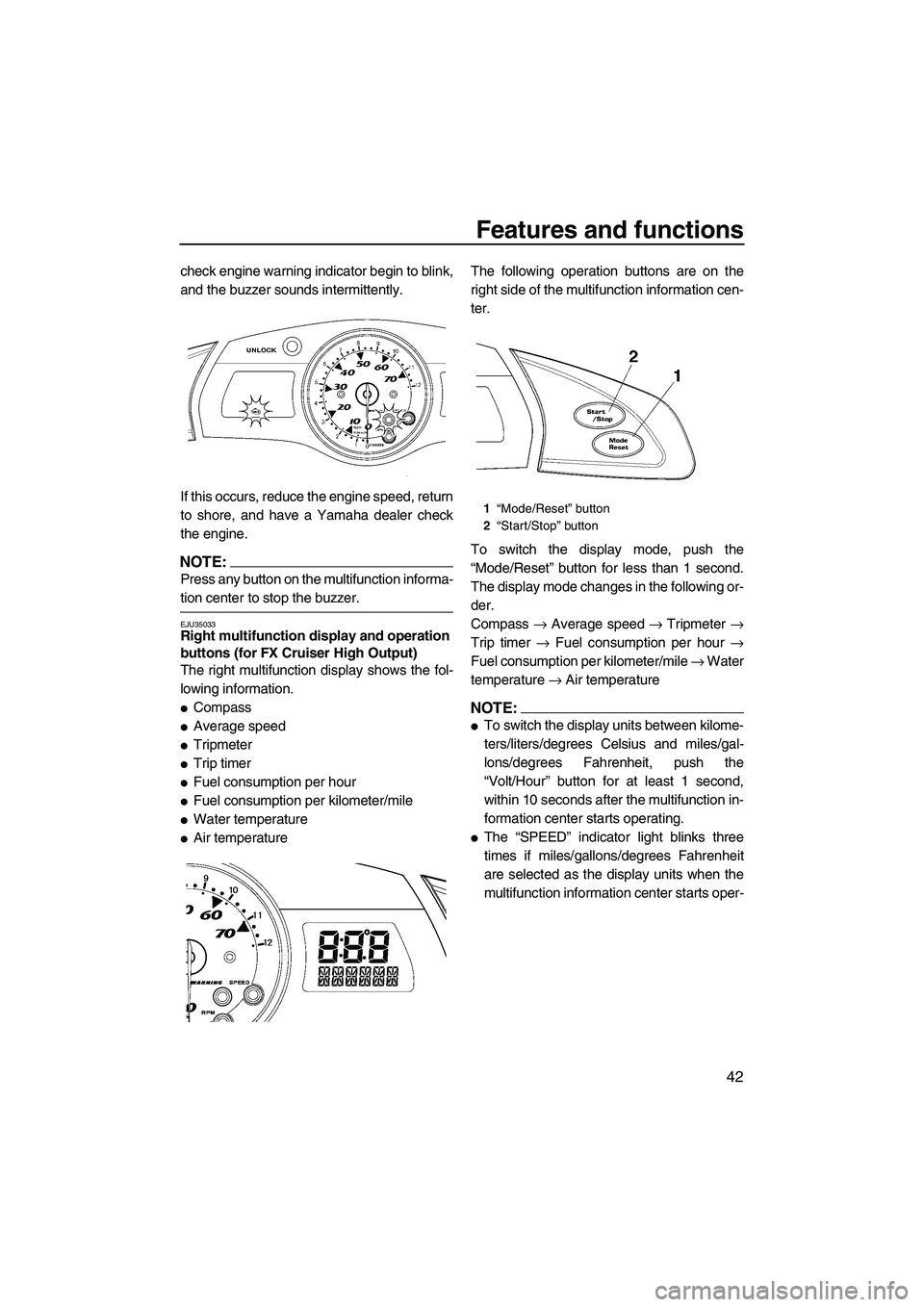

EJU35033Right multifunction display and operation
buttons (for FX Cruiser High Output)
The right multifunction display shows the fol-
lowing information.
Compass
Average speed
Tripmeter
Trip timer
Fuel consumption per hour
Fuel consumption per kilometer/mile
Water temperature
Air temperatureThe following operation buttons are on the
right side of the multifunction information cen-
ter.
To switch the display mode, push the
“Mode/Reset” button for less than 1 second.
The display mode changes in the following or-
der.
Compass → Average speed → Tripmeter →
Trip timer → Fuel consumption per hour →
Fuel consumption per kilometer/mile → Water
temperature → Air temperature
NOTE:
To switch the display units between kilome-
ters/liters/degrees Celsius and miles/gal-
lons/degrees Fahrenheit, push the
“Volt/Hour” button for at least 1 second,
within 10 seconds after the multifunction in-
formation center starts operating.
The “SPEED” indicator light blinks three
times if miles/gallons/degrees Fahrenheit
are selected as the display units when the
multifunction information center starts oper-
1“Mode/Reset” button
2“Start/Stop” button
UF1X71E0.book Page 42 Tuesday, September 26, 2006 9:52 AM
Page 50 of 108
Features and functions
43
ating, or if the display units are switched to
miles/gallons/degrees Fahrenheit.

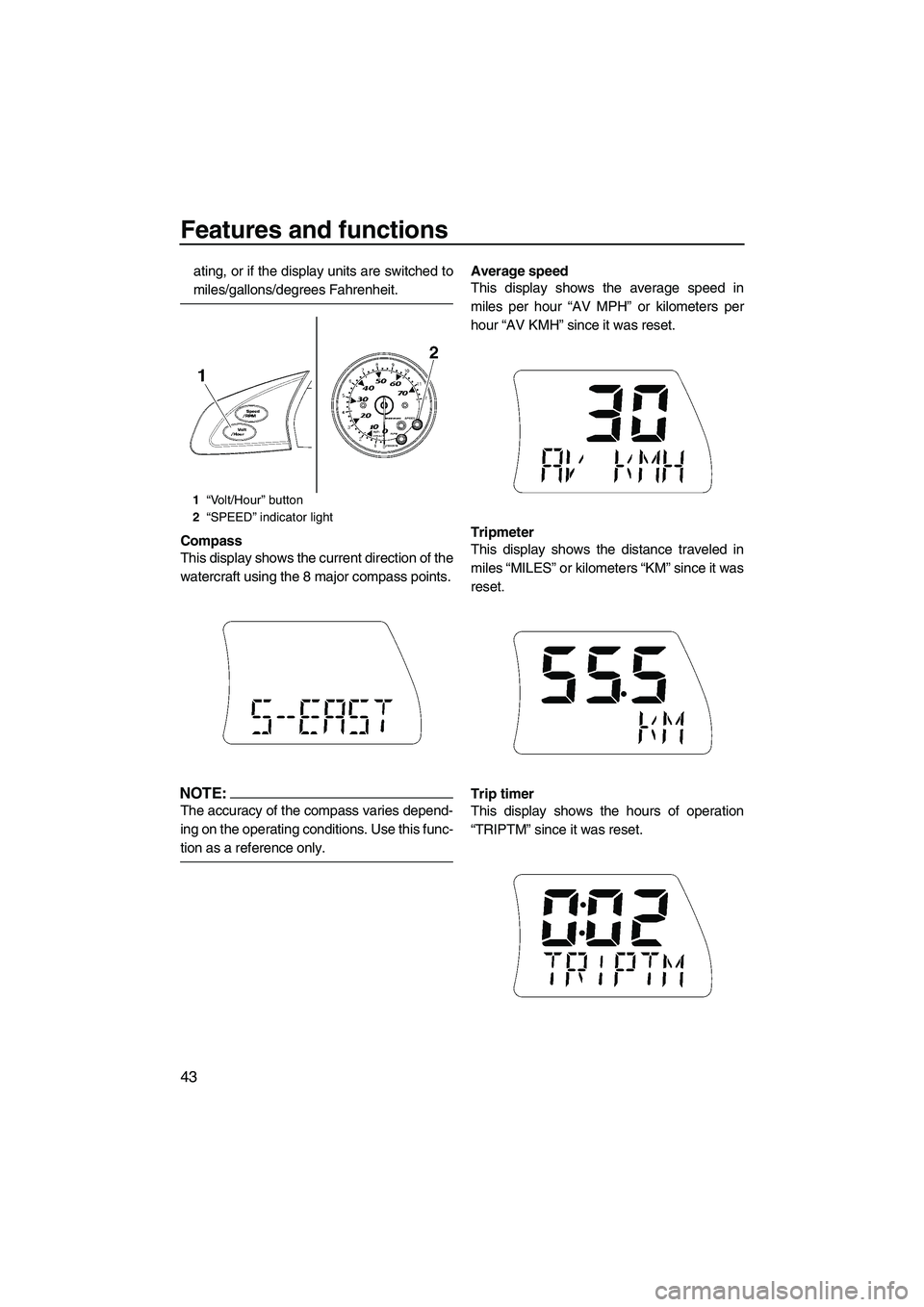

Compass
This display shows the current direction of the
watercraft using the 8 major compass points.
NOTE:
The accuracy of the compass varies depend-
ing on the operating conditions. Use this func-
tion as a reference only.
Average speed
This display shows the average speed in
miles per hour “AV MPH” or kilometers per
hour “AV KMH” since it was reset.
Tripmeter
This display shows the distance traveled in
miles “MILES” or kilometers “KM” since it was
reset.
Trip timer
This display shows the hours of operation
“TRIPTM” since it was reset.
1“Volt/Hour” button
2“SPEED” indicator light
UF1X71E0.book Page 43 Tuesday, September 26, 2006 9:52 AM
