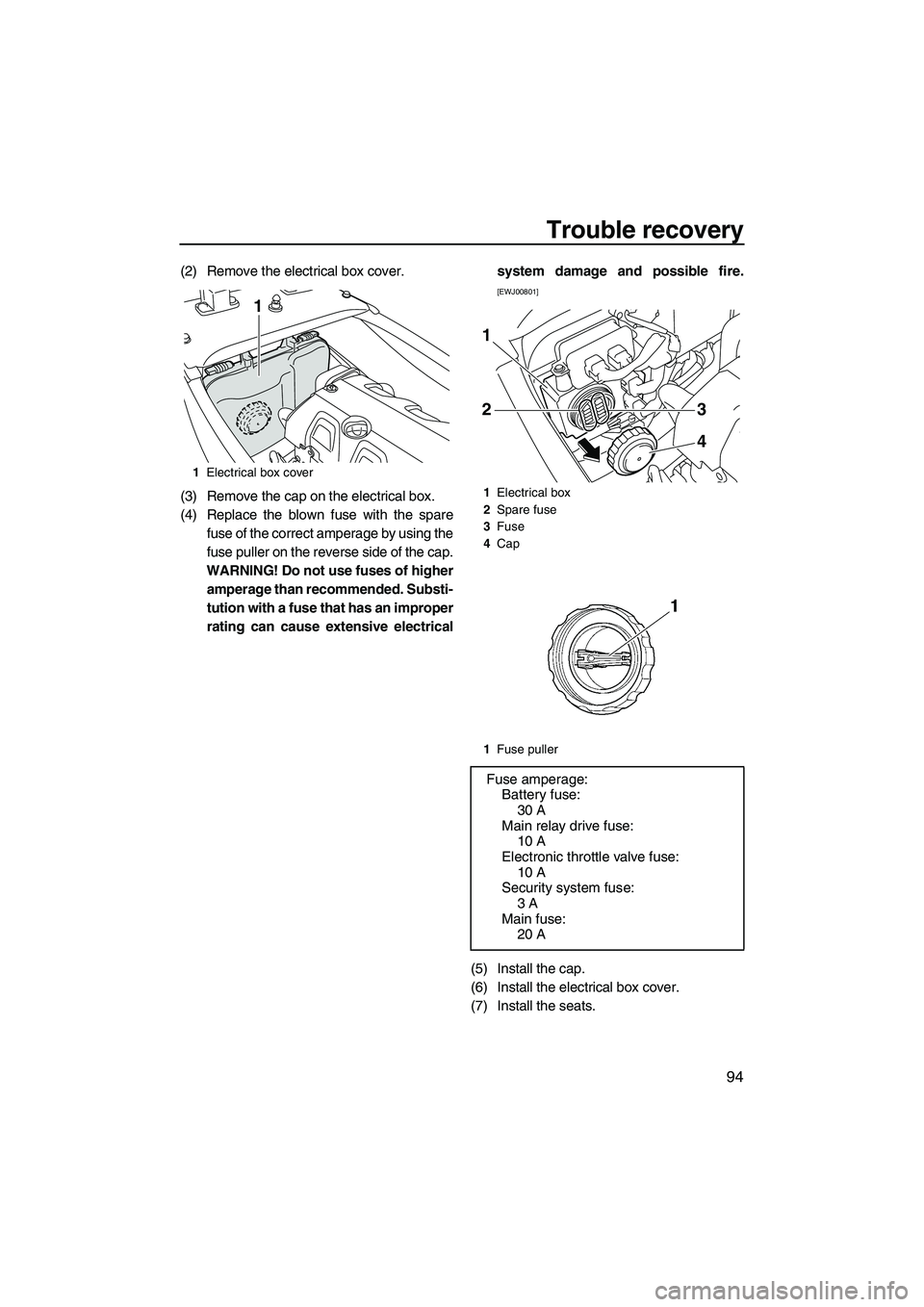

Trouble recovery
94
(2) Remove the electrical box cover.
(3) Remove the cap on the electrical box.
(4) Replace the blown fuse with the spare
fuse of the correct amperage by using the
fuse puller on the reverse side of the cap.
WARNING! Do not use fuses of higher
amperage than recommended. Substi-
tution with a fuse that has an improper
rating can cause extensive electricalsystem damage and possible fire.
[EWJ00801]
(5) Install the cap.
(6) Install the electrical box cover.
(7) Install the seats.
1Electrical box cover
1
1Electrical box
2Spare fuse
3Fuse
4Cap
1Fuse puller
Fuse amperage:
Battery fuse:
30 A
Main relay drive fuse:
10 A
Electronic throttle valve fuse:
10 A
Security system fuse:
3 A
Main fuse:
20 A
1
2
4 3
UF2H70E0.book Page 94 Thursday, January 15, 2009 10:49 AM

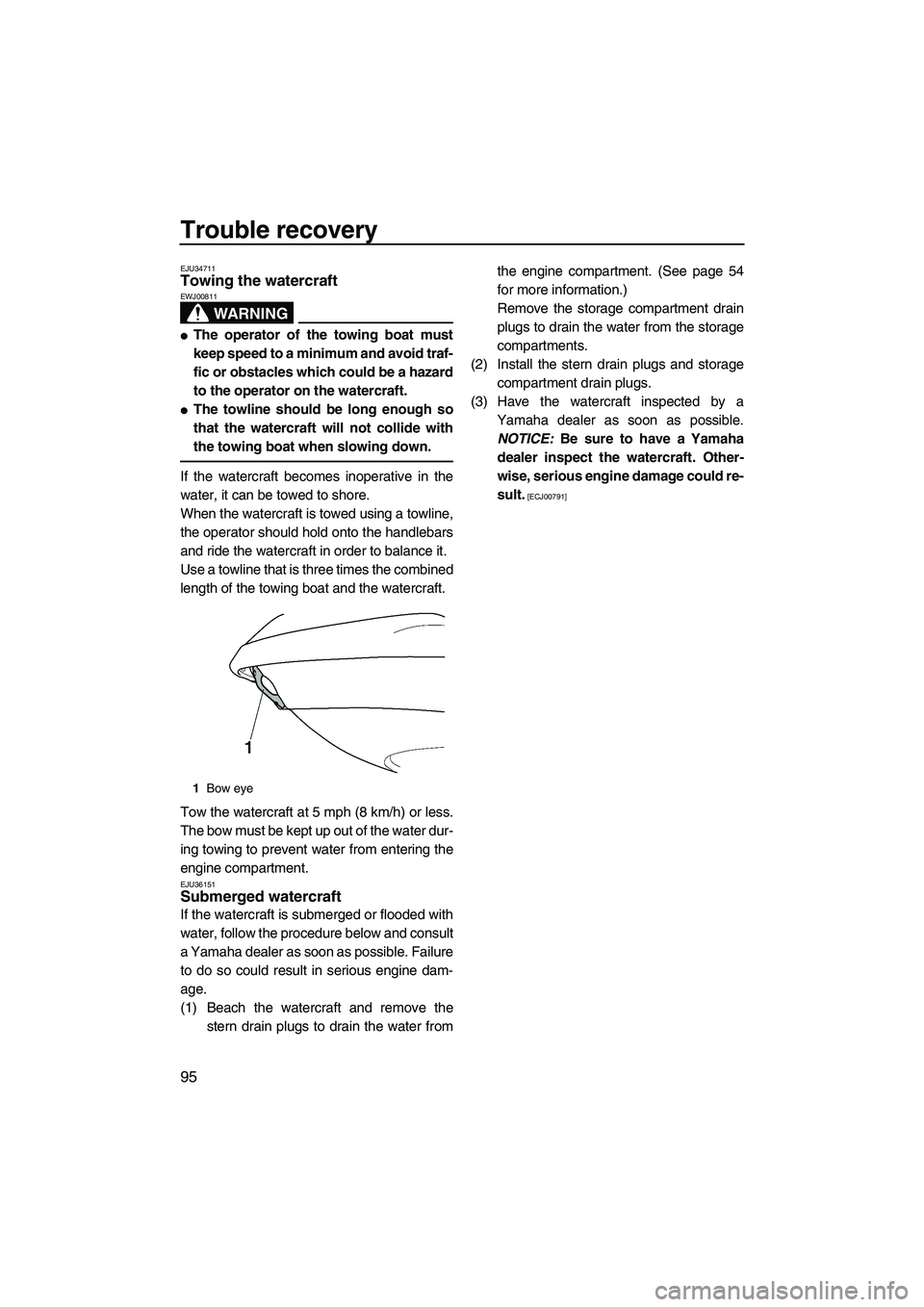

Trouble recovery
95
EJU34711Towing the watercraft
WARNING
EWJ00811

The operator of the towing boat must
keep speed to a minimum and avoid traf-
fic or obstacles which could be a hazard
to the operator on the watercraft.

The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore.
When the watercraft is towed using a towline,
the operator should hold onto the handlebars
and ride the watercraft in order to balance it.
Use a towline that is three times the combined
length of the towing boat and the watercraft.
Tow the watercraft at 5 mph (8 km/h) or less.
The bow must be kept up out of the water dur-
ing towing to prevent water from entering the
engine compartment.
EJU36151Submerged watercraft
If the watercraft is submerged or flooded with
water, follow the procedure below and consult
a Yamaha dealer as soon as possible. Failure
to do so could result in serious engine dam-
age.
(1) Beach the watercraft and remove the
stern drain plugs to drain the water fromthe engine compartment. (See page 54
for more information.)
Remove the storage compartment drain
plugs to drain the water from the storage
compartments.
(2) Install the stern drain plugs and storage
compartment drain plugs.
(3) Have the watercraft inspected by a
Yamaha dealer as soon as possible.
NOTICE: Be sure to have a Yamaha
dealer inspect the watercraft. Other-
wise, serious engine damage could re-
sult.
[ECJ00791]
1Bow eye
UF2H70E0.book Page 95 Thursday, January 15, 2009 10:49 AM

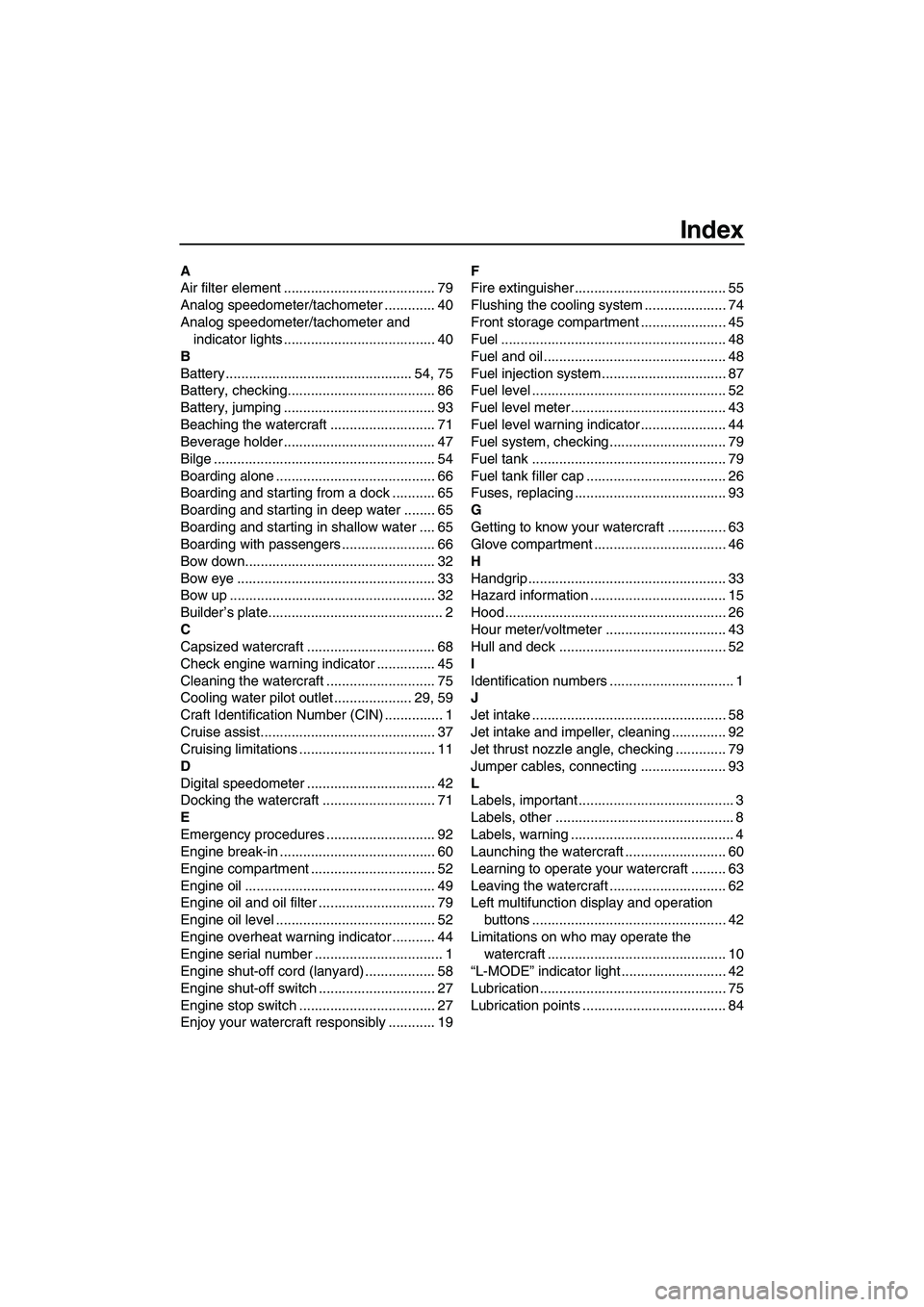

Index
A
Air filter element ....................................... 79
Analog speedometer/tachometer ............. 40
Analog speedometer/tachometer and
indicator lights ....................................... 40
B
Battery ................................................ 54, 75
Battery, checking...................................... 86
Battery, jumping ....................................... 93
Beaching the watercraft ........................... 71
Beverage holder ....................................... 47
Bilge ......................................................... 54
Boarding alone ......................................... 66
Boarding and starting from a dock ........... 65
Boarding and starting in deep water ........ 65
Boarding and starting in shallow water .... 65
Boarding with passengers ........................ 66
Bow down................................................. 32
Bow eye ................................................... 33
Bow up ..................................................... 32
Builder’s plate............................................. 2
C
Capsized watercraft ................................. 68
Check engine warning indicator ............... 45
Cleaning the watercraft ............................ 75
Cooling water pilot outlet .................... 29, 59
Craft Identification Number (CIN) ............... 1
Cruise assist............................................. 37
Cruising limitations ................................... 11
D
Digital speedometer ................................. 42
Docking the watercraft ............................. 71
E
Emergency procedures ............................ 92
Engine break-in ........................................ 60
Engine compartment ................................ 52
Engine oil ................................................. 49
Engine oil and oil filter .............................. 79
Engine oil level ......................................... 52
Engine overheat warning indicator ........... 44
Engine serial number ................................. 1
Engine shut-off cord (lanyard) .................. 58
Engine shut-off switch .............................. 27
Engine stop switch ................................... 27
Enjoy your watercraft responsibly ............ 19F
Fire extinguisher ....................................... 55
Flushing the cooling system ..................... 74
Front storage compartment ...................... 45
Fuel .......................................................... 48
Fuel and oil............................................... 48
Fuel injection system ................................ 87
Fuel level .................................................. 52
Fuel level meter ........................................ 43
Fuel level warning indicator ...................... 44
Fuel system, checking .............................. 79
Fuel tank .................................................. 79
Fuel tank filler cap .................................... 26
Fuses, replacing ....................................... 93
G
Getting to know your watercraft ............... 63
Glove compartment .................................. 46
H
Handgrip ................................................... 33
Hazard information ................................... 15
Hood ......................................................... 26
Hour meter/voltmeter ............................... 43
Hull and deck ........................................... 52
I
Identification numbers ................................ 1
J
Jet intake .................................................. 58
Jet intake and impeller, cleaning .............. 92
Jet thrust nozzle angle, checking ............. 79
Jumper cables, connecting ...................... 93
L
Labels, important ........................................ 3
Labels, other .............................................. 8
Labels, warning .......................................... 4
Launching the watercraft .......................... 60
Learning to operate your watercraft ......... 63
Leaving the watercraft .............................. 62
Left multifunction display and operation
buttons .................................................. 42
Limitations on who may operate the
watercraft .............................................. 10
“L-MODE” indicator light ........................... 42
Lubrication................................................ 75
Lubrication points ..................................... 84
UF2H70E0.book Page 1 Thursday, January 15, 2009 10:49 AM

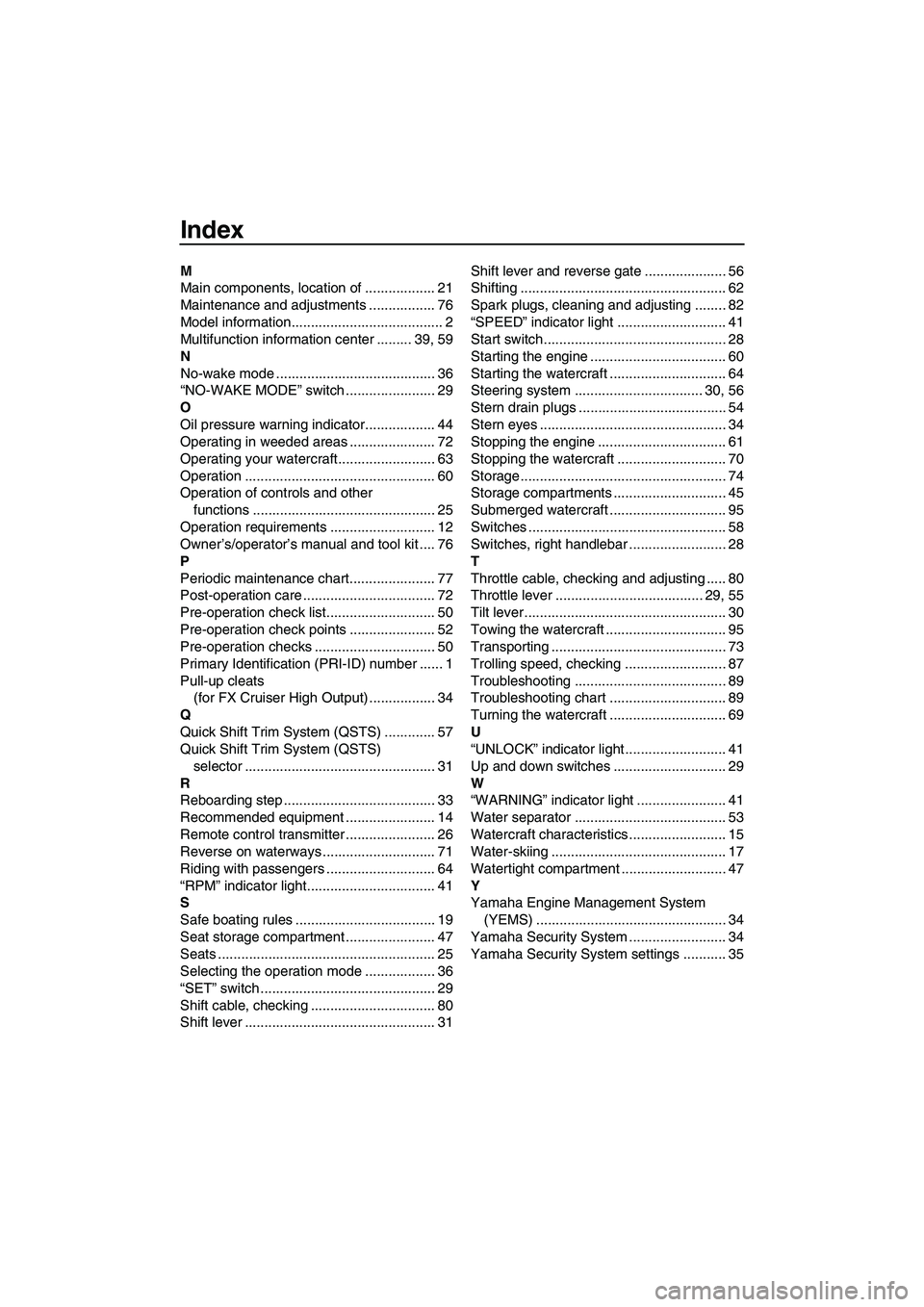

Index
M
Main components, location of .................. 21
Maintenance and adjustments ................. 76
Model information....................................... 2
Multifunction information center ......... 39, 59
N
No-wake mode ......................................... 36
“NO-WAKE MODE” switch ....................... 29
O
Oil pressure warning indicator.................. 44
Operating in weeded areas ...................... 72
Operating your watercraft......................... 63
Operation ................................................. 60
Operation of controls and other
functions ............................................... 25
Operation requirements ........................... 12
Owner’s/operator’s manual and tool kit .... 76
P
Periodic maintenance chart...................... 77
Post-operation care .................................. 72
Pre-operation check list............................ 50
Pre-operation check points ...................... 52
Pre-operation checks ............................... 50
Primary Identification (PRI-ID) number ...... 1
Pull-up cleats
(for FX Cruiser High Output) ................. 34
Q
Quick Shift Trim System (QSTS) ............. 57
Quick Shift Trim System (QSTS)
selector ................................................. 31
R
Reboarding step ....................................... 33
Recommended equipment ....................... 14
Remote control transmitter ....................... 26
Reverse on waterways ............................. 71
Riding with passengers ............................ 64
“RPM” indicator light................................. 41
S
Safe boating rules .................................... 19
Seat storage compartment ....................... 47
Seats ........................................................ 25
Selecting the operation mode .................. 36
“SET” switch ............................................. 29
Shift cable, checking ................................ 80
Shift lever ................................................. 31Shift lever and reverse gate ..................... 56
Shifting ..................................................... 62
Spark plugs, cleaning and adjusting ........ 82
“SPEED” indicator light ............................ 41
Start switch............................................... 28
Starting the engine ................................... 60
Starting the watercraft .............................. 64
Steering system ................................. 30, 56
Stern drain plugs ...................................... 54
Stern eyes ................................................ 34
Stopping the engine ................................. 61
Stopping the watercraft ............................ 70
Storage..................................................... 74
Storage compartments ............................. 45
Submerged watercraft .............................. 95
Switches ................................................... 58
Switches, right handlebar ......................... 28
T
Throttle cable, checking and adjusting ..... 80
Throttle lever ...................................... 29, 55
Tilt lever .................................................... 30
Towing the watercraft ............................... 95
Transporting ............................................. 73
Trolling speed, checking .......................... 87
Troubleshooting ....................................... 89
Troubleshooting chart .............................. 89
Turning the watercraft .............................. 69
U
“UNLOCK” indicator light .......................... 41
Up and down switches ............................. 29
W
“WARNING” indicator light ....................... 41
Water separator ....................................... 53
Watercraft characteristics ......................... 15
Water-skiing ............................................. 17
Watertight compartment ........................... 47
Y
Yamaha Engine Management System
(YEMS) ................................................. 34
Yamaha Security System ......................... 34
Yamaha Security System settings ........... 35
UF2H70E0.book Page 2 Thursday, January 15, 2009 10:49 AM

UF2H70E0.book Page 3 Thursday, January 15, 2009 10:49 AM

YAMAHA MOTOR CO., LTD.
Printed in U.S.A.
March 2009–1.5 × 1 CR
UF2H70E0.book Page 1 Thursday, January 15, 2009 10:49 AM
