YAMAHA KODIAK 450 2018 User Guide

Checking and lubricating the front and rear brake levers ..................................... 8-47
Checking and lubricating the brake pedal ....................................................... 8-48
Checking the wheel hub bearings............. 8-48
Lubricating the drive shaft universal joint ......................................................... 8-48
Checking the stabilizer bushes ................. 8-49
Lubricating the rear knuckle pivots ........... 8-49
Lubricating the steering shaft ................... 8-50
Battery....................................................... 8-51
Replacing a fuse ....................................... 8-54
Replacing a headlight bulb ....................... 8-57
Adjusting a headlight beam ...................... 8-60
Replacing the tail/brake light bulb ............ 8-61
Removing a wheel ..................................... 8-61
Installing a wheel....................................... 8-62
Troubleshooting ........................................ 8-63
Troubleshooting charts ............................. 8-64
CLEANING AND STORAGE ........................... 9-1 Cleaning ...................................................... 9-1
Storage........................................................ 9-2 SPECIFICATIONS ........................................ 10-1
CONSUMER INFORMATION....................... 11-1
Identification numbers .............................. 11-1
INDEX .......................................................... 12-1
UBB560E0.book Page 3 Tuesday, May 9, 2017 5:31 PM

1-1
1
EBU29681
LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU37160Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a re-
placement label from your Yamaha dealer.UBB560E0.book Page 1 Friday, March 10, 2017 10:20 AM

1-2
1

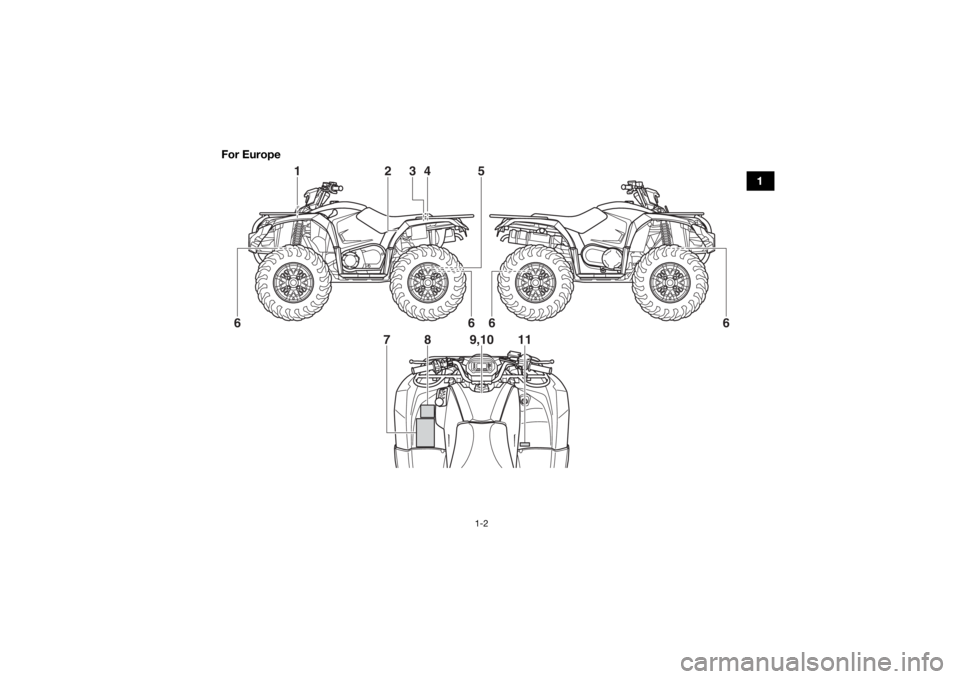

For Europe
1
4
2
3
7
8
9,10
11
56
6
6
6
UBB560E0.book Page 2 Friday, March 10, 2017 10:20 AM

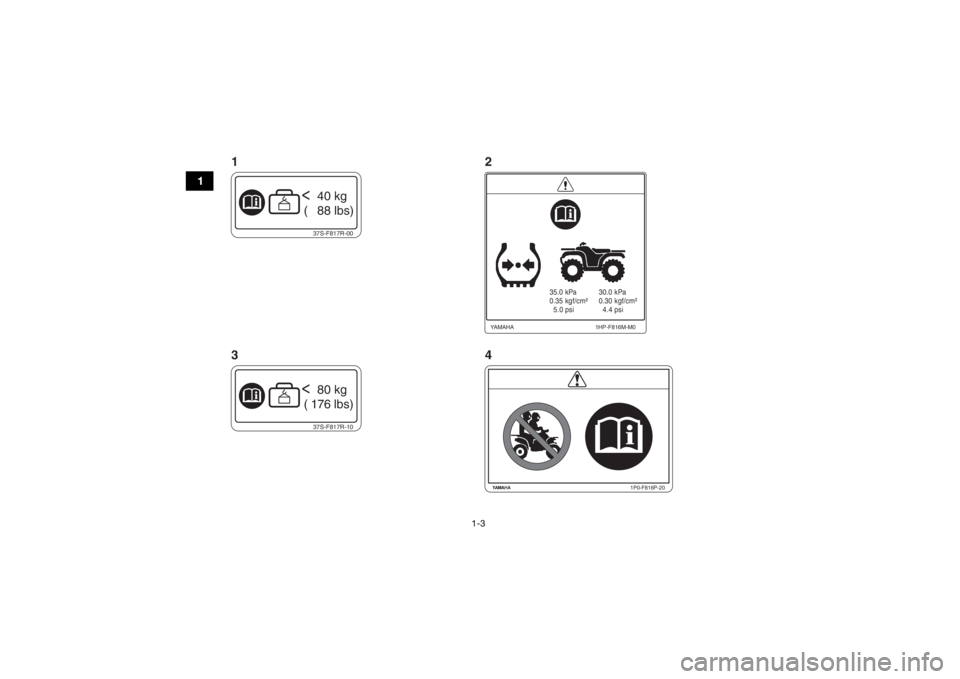

1-3
1
37S-F817R-00< 40 kg
( 88 lbs)37S-F817R-10< 80 kg
( 176 lbs)
35.0 kPa
0.35 kgf/cm²
5.0 psi 30.0 kPa
0.30 kgf/cm²
4.4 psi
1HP-F816M-M0
YA M A H A
1P0-F816P-20
12
34
UBB560E0.book Page 3 Friday, March 10, 2017 10:20 AM

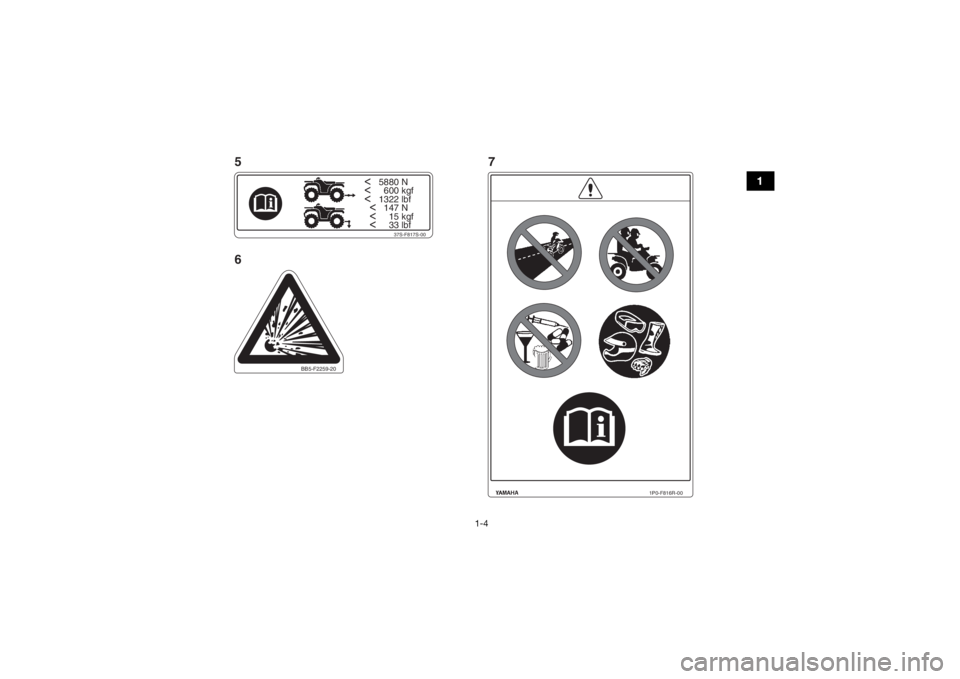

1-4
1
< 5880 N< 600 kgf< 1322 lbf
< 147 N
< 15 kgf
< 33 lbf
37S-F817S-00
1P0-F816R-00
BB5-F2259-20
7
5
6
UBB560E0.book Page 4 Friday, March 10, 2017 10:20 AM

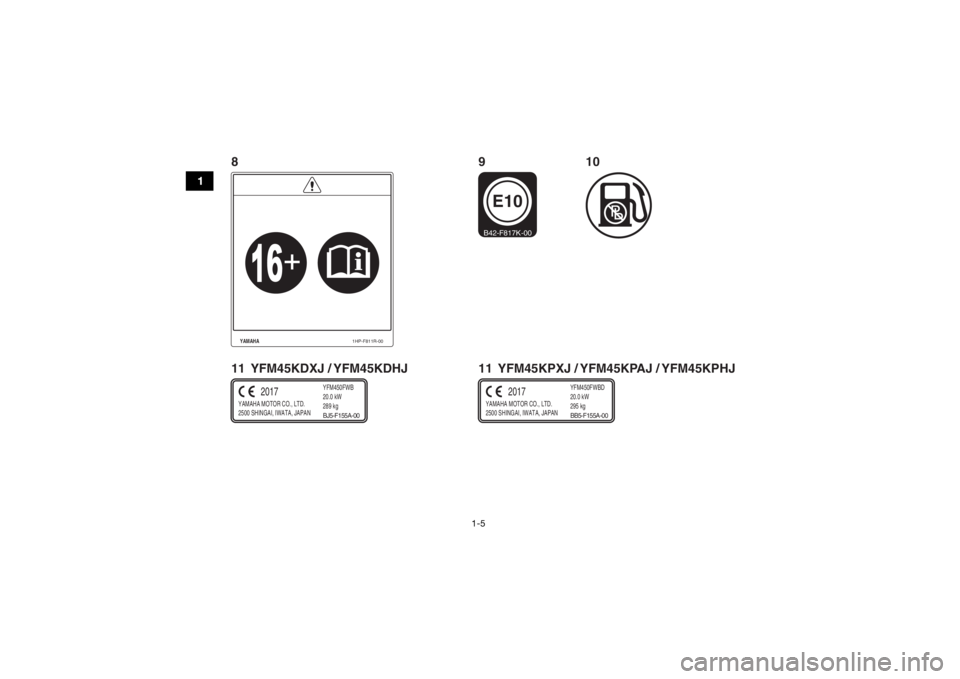

1-5
1
YAMAHA
1HP-F811R-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM450FWBD
20.0 kW
295 kg
2017
BB5-F155A-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM450FWB
20.0 kW
289 kg
2017
BJ5-F155A-00
E10B42-F817K-00
89
10
11 YFM45KDXJ / YFM45KDHJ 11 YFM45KPXJ / YFM45KPAJ / YFM45KPHJ
UBB560E0.book Page 5 Friday, March 10, 2017 10:20 AM

1-6
1

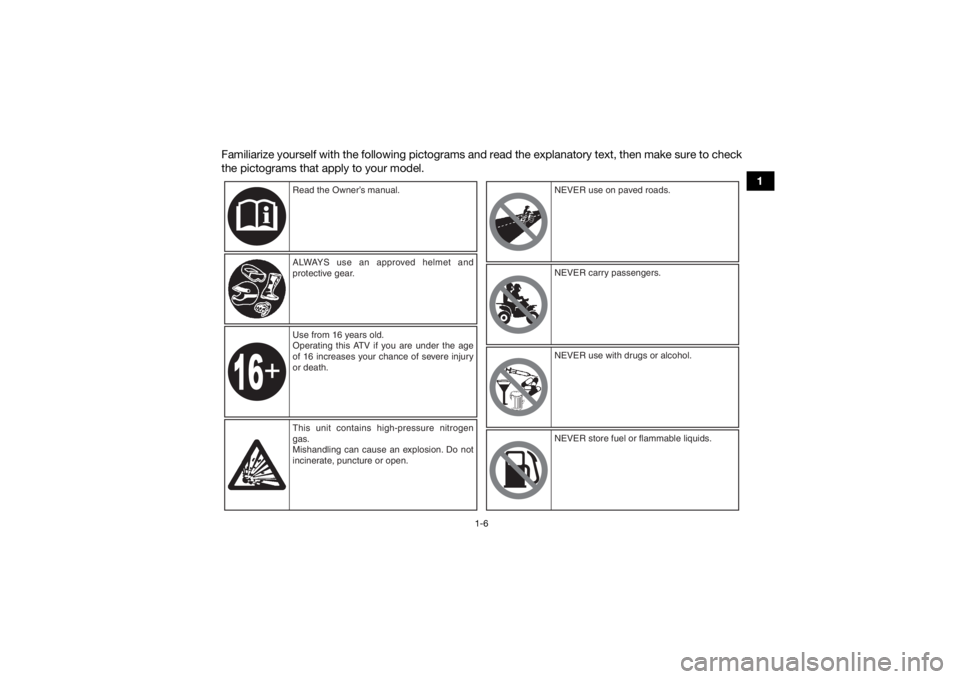

Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s manual.
ALWAYS use an approved helmet and
protective gear.
Use from 16 years old.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death. NEVER use on paved roads.
NEVER carry passengers.
NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
This unit contains high-pressure nitrogen
gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
UBB560E0.book Page 6 Friday, March 10, 2017 10:20 AM

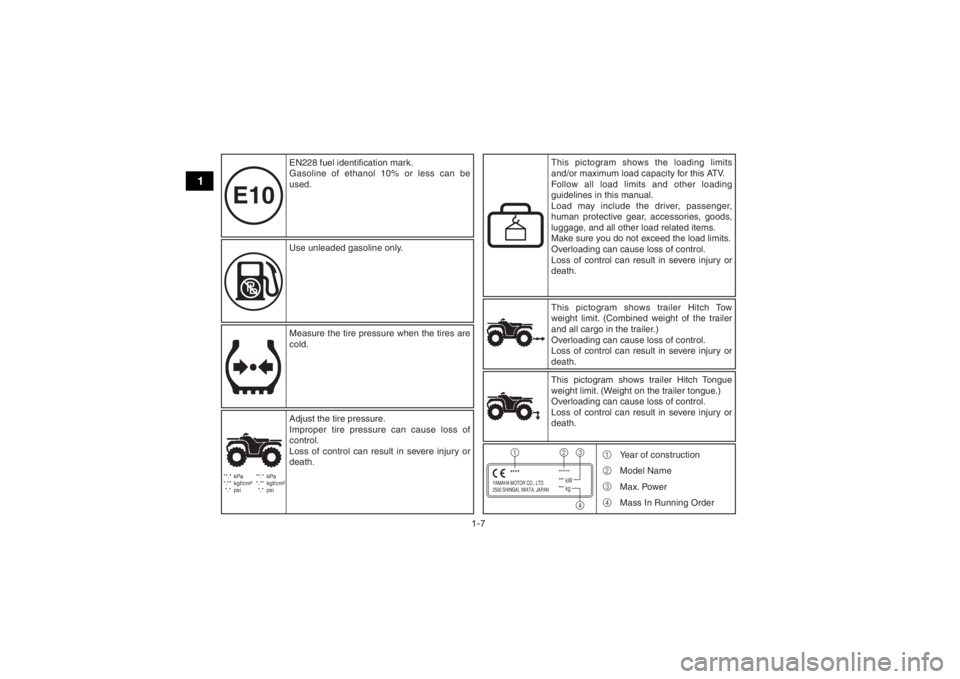

1-7
1
E10
**.* kPa
*.** kgf/cm²
*.* psi **.* kPa
*.** kgf/cm²
*.* psi
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
******
*** kW
*** kg
****1
2
34
This pictogram shows trailer Hitch Tow
weight limit. (Combined weight of the trailer
and all cargo in the trailer.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
EN228 fuel identification mark.
Gasoline of ethanol 10% or less can be
used.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold.
Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death. This pictogram shows the loading limits
and/or maximum load capacity for this ATV.
Follow all load limits and other loading
guidelines in this manual.
Load may include the driver, passenger,
human protective gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This pictogram shows trailer Hitch Tongue
weight limit. (Weight on the trailer tongue.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
1
2
3
4Year of construction
Model Name
Max. Power
Mass In Running Order
UBB560E0.book Page 7 Friday, March 10, 2017 10:20 AM

1-8
1

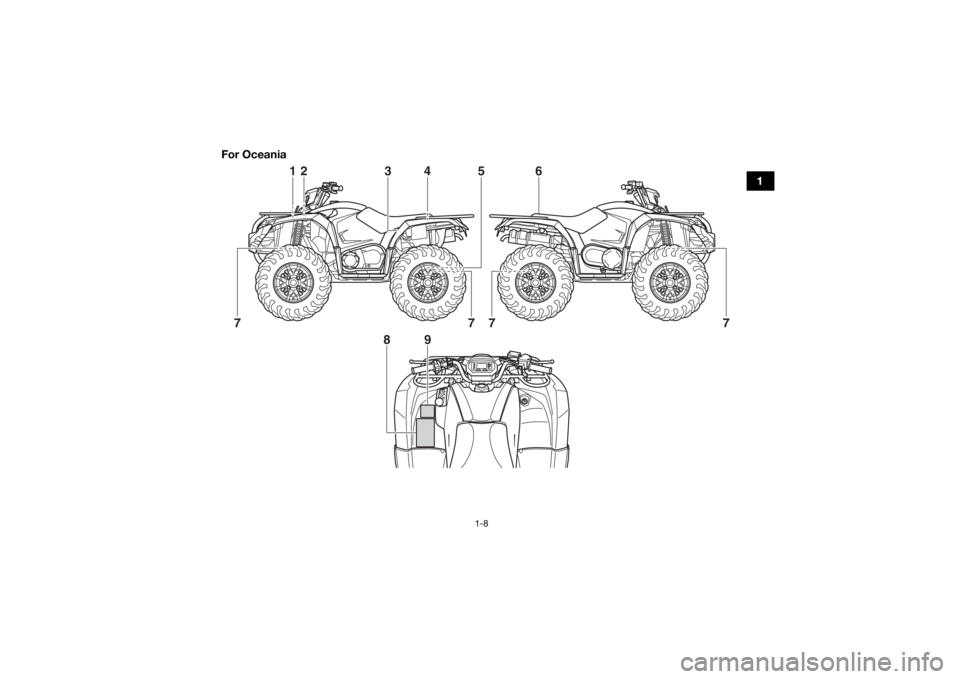

For Oceania
12
4
3
6
8
9
57
7
7
7
UBB560E0.book Page 8 Friday, March 10, 2017 10:20 AM

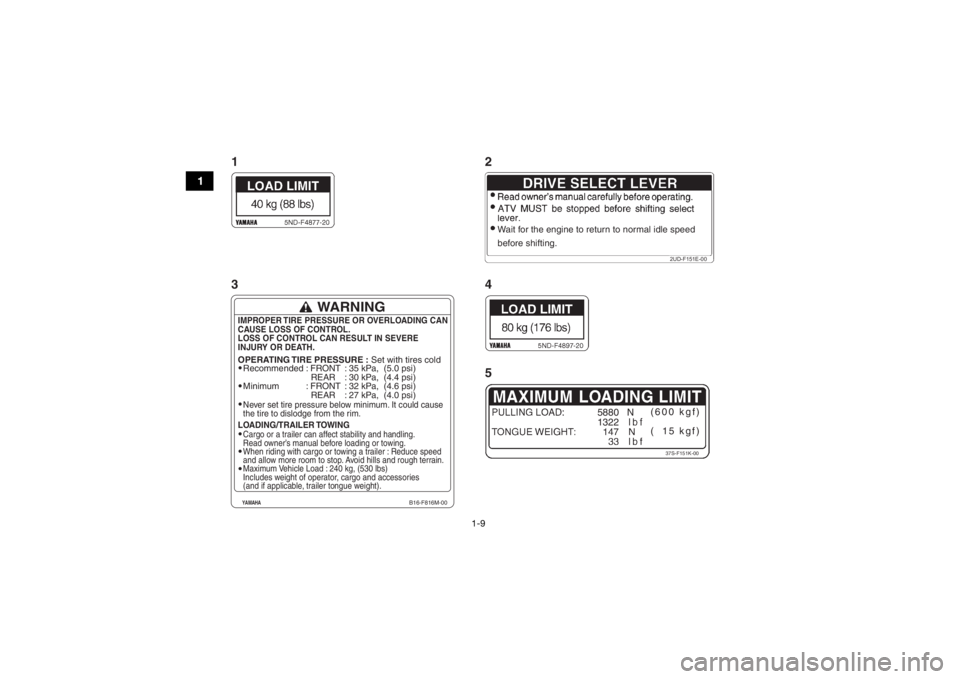

1-9
1
Wait for the engine to return to normal idle speed
before shifting.
2UD-F151E-00
Recommended
Minimum: FRONT
REAR
: FRONT
REAR: 35 kPa, (5.0 psi)
: 30 kPa, (4.4 psi)
: 32 kPa, (4.6 psi)
: 27 kPa, (4.0 psi)Never set tire pressure below minimum. It could cause
the tire to dislodge from the rim.Cargo or a trailer can affect stability and handling.
Read owner’s manual before loading or towing.
When riding with cargo or towing a trailer : Reduce speed
and allow more room to stop. Avoid hills and rough terrain.
Maximum Vehicle Load : 240 kg, (530 lbs)
Includes weight of operator, cargo and accessories
(and if applicable, trailer tongue weight).
WARNING
B16-F816M-00
YAMAHAIMPROPER TIRE PRESSURE OR OVERLOADING CAN
CAUSE LOSS OF CONTROL.
LOSS OF CONTROL CAN RESULT IN SEVERE
INJURY OR DEATH.OPERATING TIRE PRESSURE : Set with tires coldLOADING/TRAILER TOWING
5880 N
1322
(600 kgf)
( 15 kgf)
37S-F151K-00
12
34
5
