SAFETY INFORMATION
1-4

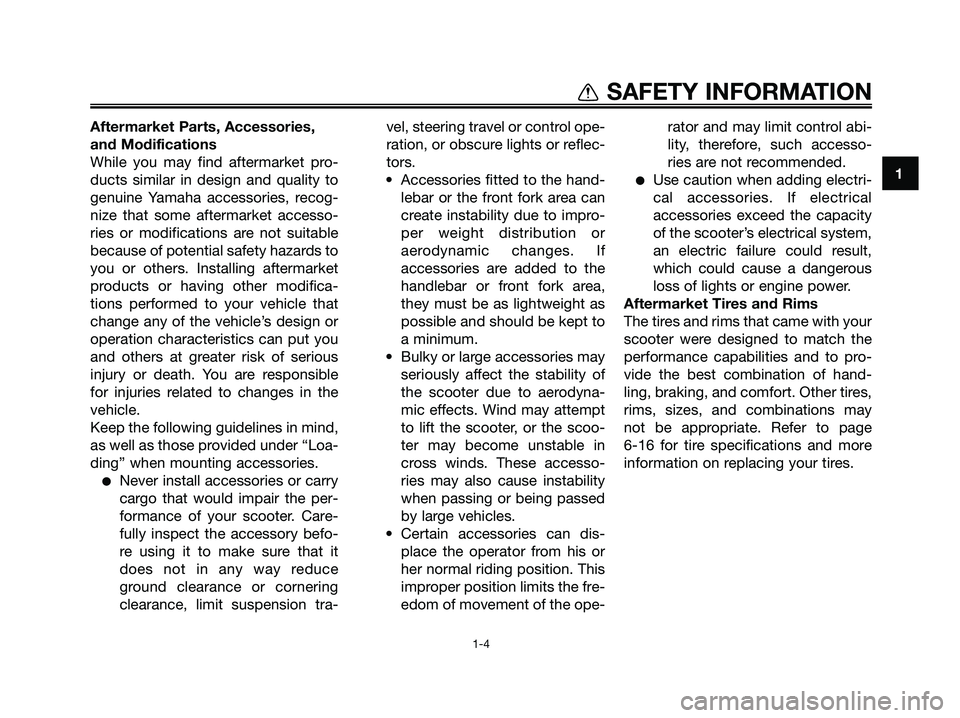

Aftermarket Parts, Accessories,
and Modifications
While you may find aftermarket pro-
ducts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifica-
tions performed to your vehicle that
change any of the vehicle’s design or
operation characteristics can put you
and others at greater risk of serious
injury or death. You are responsible
for injuries related to changes in the
vehicle.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
●Never install accessories or carry
cargo that would impair the per-
formance of your scooter. Care-
fully inspect the accessory befo-
re using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra-vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.
• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodyna-
mic effects. Wind may attempt
to lift the scooter, or the scoo-
ter may become unstable in
cross winds. These accesso-
ries may also cause instability
when passing or being passed
by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the fre-
edom of movement of the ope-rator and may limit control abi-
lity, therefore, such accesso-
ries are not recommended.
●Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the scooter’s electrical system,
an electric failure could result,
which could cause a dangerous
loss of lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
scooter were designed to match the
performance capabilities and to pro-
vide the best combination of hand-
ling, braking, and comfort. Other tires,
rims, sizes, and combinations may
not be appropriate. Refer to page
6-16 for tire specifications and more
information on replacing your tires.
5D8-F8199-E1.QXD 10/7/08 07:39 Página 11

EAU10372

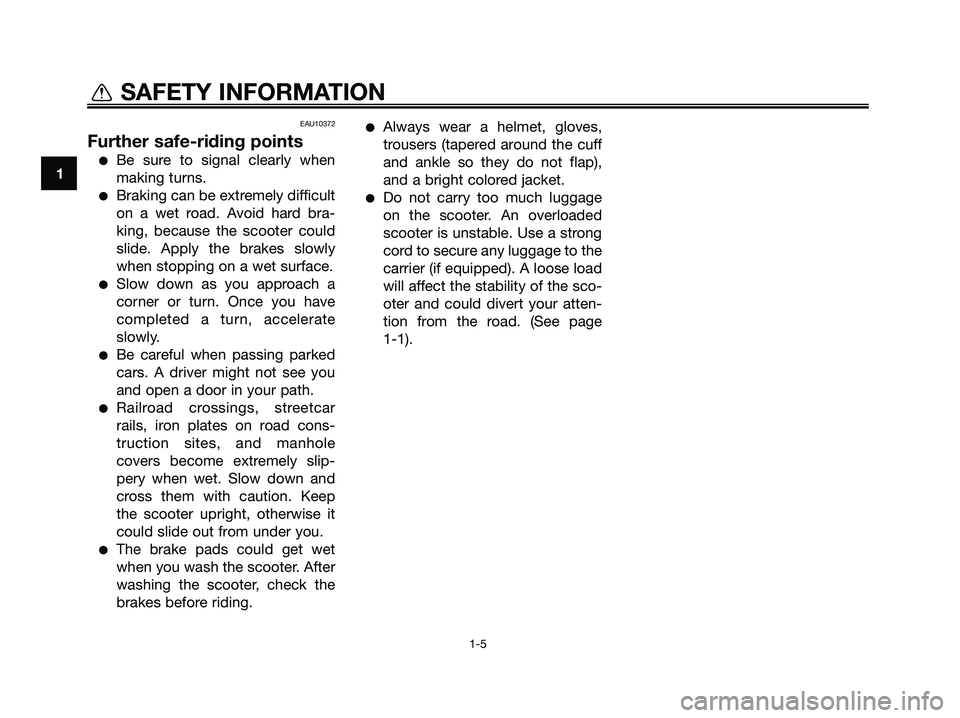

Further safe-riding points
●Be sure to signal clearly when
making turns.
●Braking can be extremely difficult
on a wet road. Avoid hard bra-
king, because the scooter could
slide. Apply the brakes slowly
when stopping on a wet surface.
●Slow down as you approach a
corner or turn. Once you have
completed a turn, accelerate
slowly.
●Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
●Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Slow down and
cross them with caution. Keep
the scooter upright, otherwise it
could slide out from under you.
●The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.
●Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap),
and a bright colored jacket.
●Do not carry too much luggage
on the scooter. An overloaded
scooter is unstable. Use a strong
cord to secure any luggage to the
carrier (if equipped). A loose load
will affect the stability of the sco-
oter and could divert your atten-
tion from the road. (See page
1-1).
1
SAFETY INFORMATION
1-5
5D8-F8199-E1.QXD 10/7/08 07:39 Página 12

EAU10410

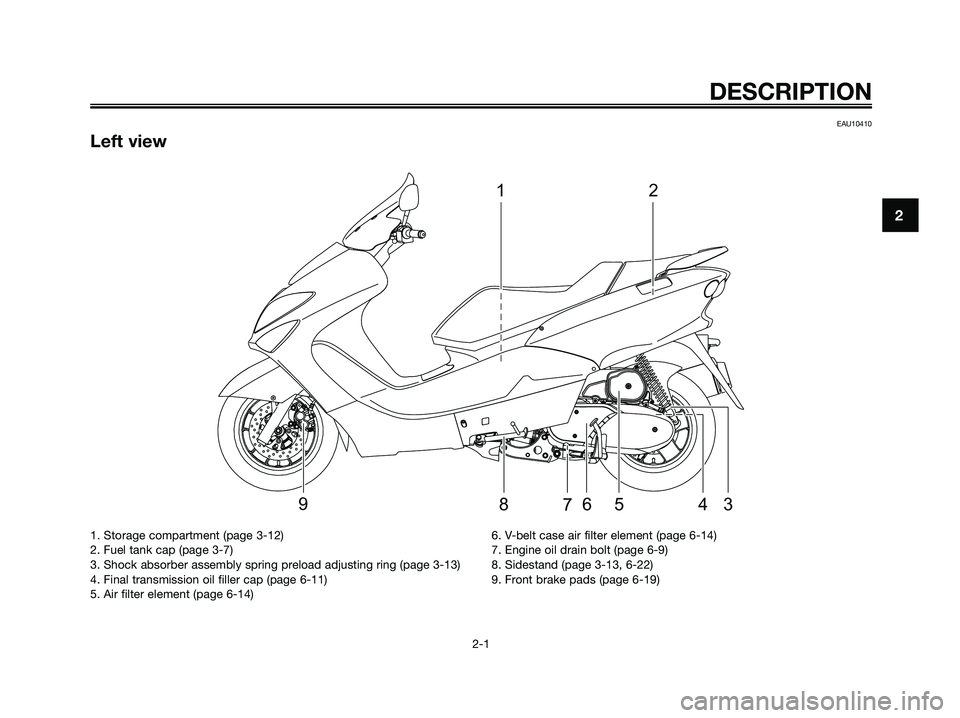

Left view
DESCRIPTION
2-1
2
21
3
45 6789
1. Storage compartment (page 3-12)
2. Fuel tank cap (page 3-7)
3. Shock absorber assembly spring preload adjusting ring (page 3-13)
4. Final transmission oil filler cap (page 6-11)
5. Air filter element (page 6-14)6. V-belt case air filter element (page 6-14)
7. Engine oil drain bolt (page 6-9)
8. Sidestand (page 3-13, 6-22)
9. Front brake pads (page 6-19)
5D8-F8199-E1.QXD 10/7/08 07:39 Página 13

EAU10420

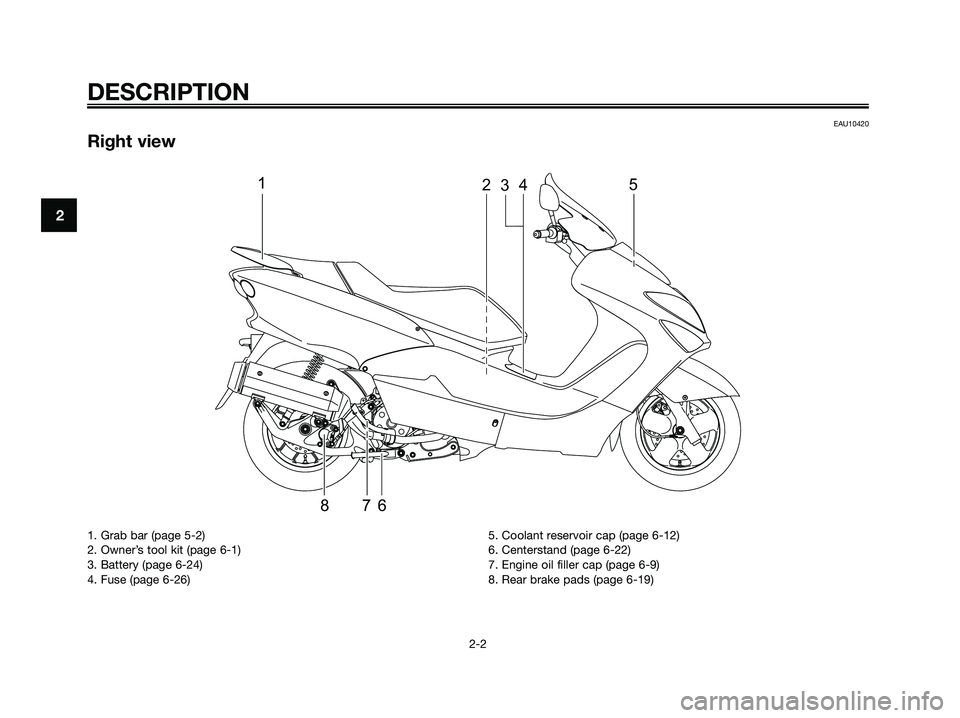

Right view
DESCRIPTION
2-2
2
12345
678
1. Grab bar (page 5-2)
2. Owner’s tool kit (page 6-1)
3. Battery (page 6-24)
4. Fuse (page 6-26)5. Coolant reservoir cap (page 6-12)
6. Centerstand (page 6-22)
7. Engine oil filler cap (page 6-9)
8. Rear brake pads (page 6-19)
5D8-F8199-E1.QXD 10/7/08 07:39 Página 14

EAU10430

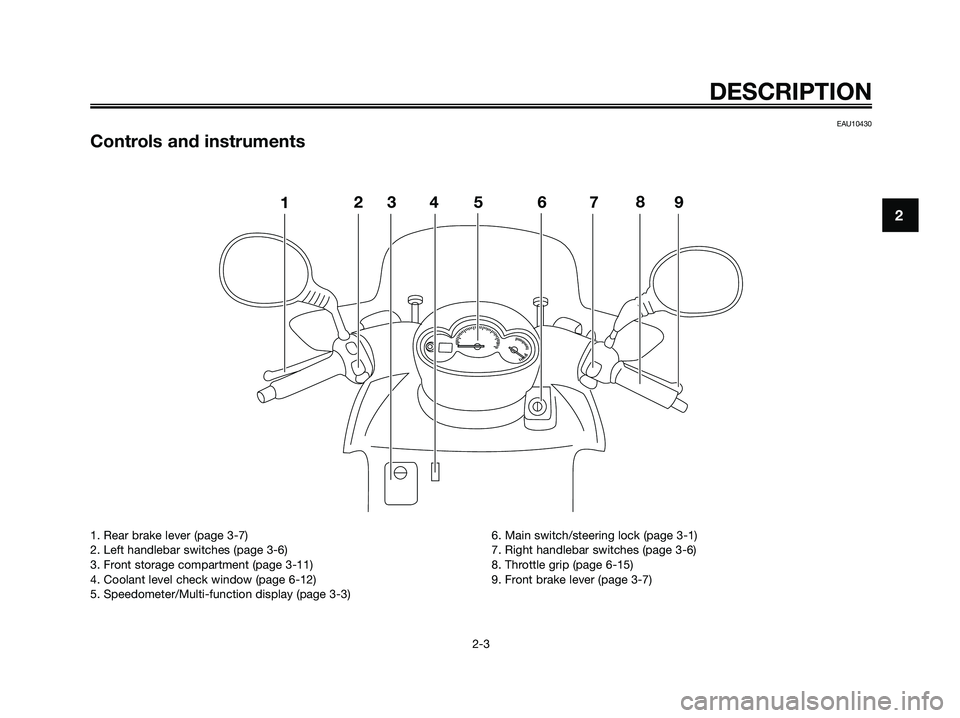

Controls and instruments
DESCRIPTION
2-3
2123546798
1. Rear brake lever (page 3-7)
2. Left handlebar switches (page 3-6)
3. Front storage compartment (page 3-11)
4. Coolant level check window (page 6-12)
5. Speedometer/Multi-function display (page 3-3)6. Main switch/steering lock (page 3-1)
7. Right handlebar switches (page 3-6)
8. Throttle grip (page 6-15)
9. Front brake lever (page 3-7)
5D8-F8199-E1.QXD 10/7/08 07:39 Página 15

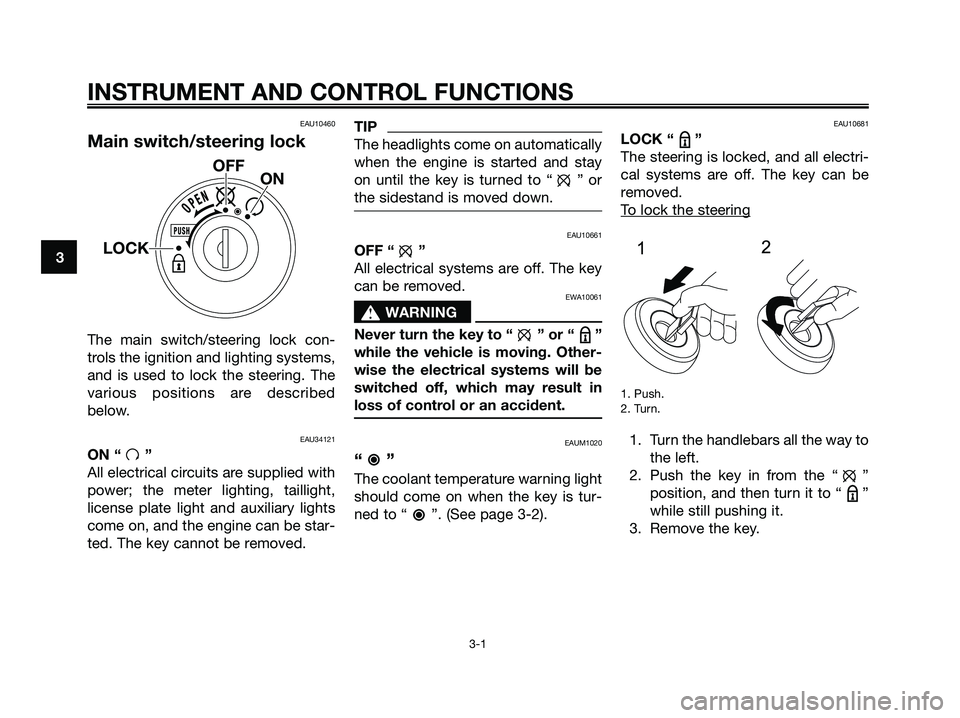

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU34121
ON “ ”
All electrical circuits are supplied with
power; the meter lighting, taillight,
license plate light and auxiliary lights
come on, and the engine can be star-
ted. The key cannot be removed.
TIP
The headlights come on automatically
when the engine is started and stay
on until the key is turned to “ ” or
the sidestand is moved down.
EAU10661
OFF “ ”
All electrical systems are off. The key
can be removed.
EWA10061
s s
WARNING
Never turn the key to “ ” or “ ”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
EAUM1020
“”
The coolant temperature warning light
should come on when the key is tur-
ned to “ ”. (See page 3-2).
EAU10681
LOCK “ ”
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
T
o lock the steering
1. Push.
2. Turn.
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “ ”
position, and then turn it to “ ”
while still pushing it.
3. Remove the key.
ON OFF
LOCK
5D8-F8199-E1.QXD 10/7/08 07:39 Página 16

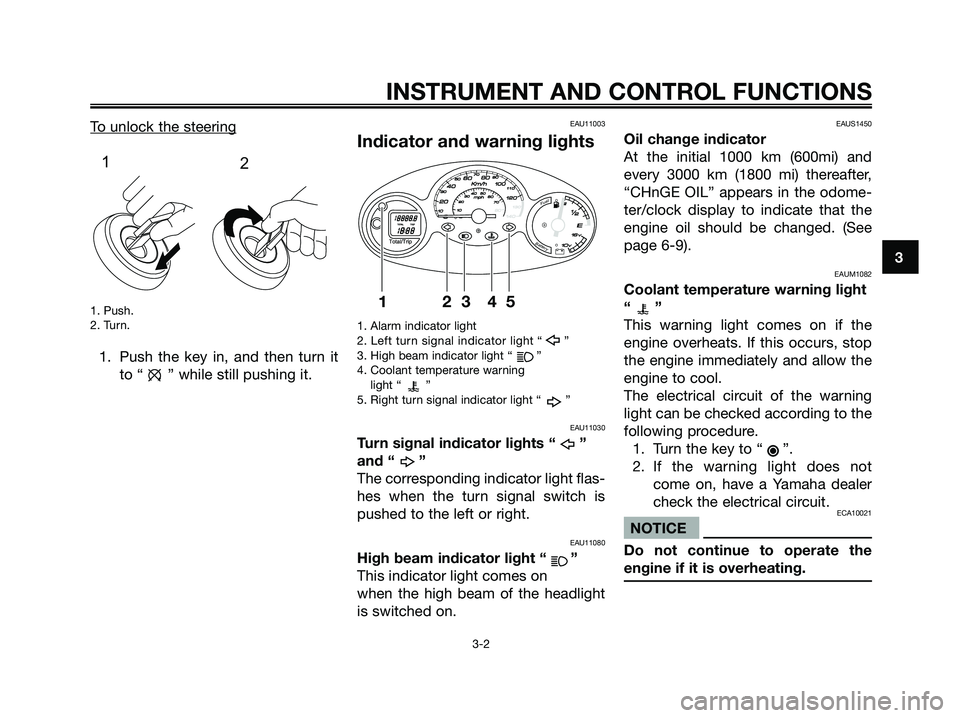

To unlock the steering
1. Push.
2. Turn.
1. Push the key in, and then turn it
to “ ” while still pushing it.
EAU11003
Indicator and warning lights
1. Alarm indicator light
2. Left turn signal indicator light “ ”
3. High beam indicator light “ ”
4. Coolant temperature warning
light “ ”
5. Right turn signal indicator light “ ”
EAU11030
Turn signal indicator lights “ ”
and “ ”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “ ”
This indicator light comes on
when the high beam of the headlight
is switched on.
EAUS1450
Oil change indicator
At the initial 1000 km (600mi) and
every 3000 km (1800 mi) thereafter,
“CHnGE OIL” appears in the odome-
ter/clock display to indicate that the
engine oil should be changed. (See
page 6-9).
EAUM1082
Coolant temperature warning light
“”
This warning light comes on if the
engine overheats. If this occurs, stop
the engine immediately and allow the
engine to cool.
The electrical circuit of the warning
light can be checked according to the
following procedure.
1. Turn the key to “ ”.
2. If the warning light does not
come on, have a Yamaha dealer
check the electrical circuit.
ECA10021
NOTICE
Do not continue to operate the
engine if it is overheating.
Fuel
Battery
TOTALTRIP
123 45
1
2
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 17

TIP
●For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the
radiator.
●If the engine overheats, see page
6-32 for further instructions.
EAUS1362

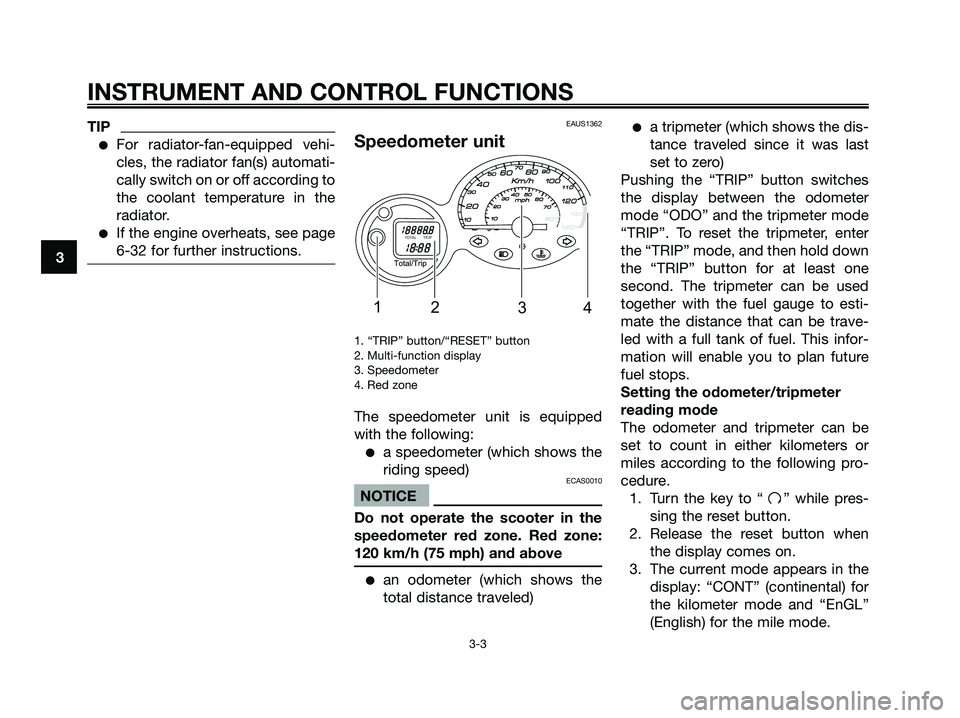

Speedometer unit
1. “TRIP” button/“RESET” button
2. Multi-function display
3. Speedometer
4. Red zone
The speedometer unit is equipped
with the following:
●a speedometer (which shows the
riding speed)
ECAS0010
NOTICE
Do not operate the scooter in the
speedometer red zone. Red zone:
120 km/h (75 mph) and above
●an odometer (which shows the
total distance traveled)
●a tripmeter (which shows the dis-
tance traveled since it was last
set to zero)
Pushing the “TRIP” button switches
the display between the odometer
mode “ODO” and the tripmeter mode
“TRIP”. To reset the tripmeter, enter
the “TRIP” mode, and then hold down
the “TRIP” button for at least one
second. The tripmeter can be used
together with the fuel gauge to esti-
mate the distance that can be trave-
led with a full tank of fuel. This infor-
mation will enable you to plan future
fuel stops.
Setting the odometer/tripmeter
reading mode
The odometer and tripmeter can be
set to count in either kilometers or
miles according to the following pro-
cedure.
1. Turn the key to “ ” while pres-
sing the reset button.
2. Release the reset button when
the display comes on.
3. The current mode appears in the
display: “CONT” (continental) for
the kilometer mode and “EnGL”
(English) for the mile mode.
TOTALTRIP
1
2
34
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 18

4. Press the reset button to switch
the mode.
5. Press the reset button for two
seconds to confirm the setting.
TIP
●The odometer/tripmeter reading
mode can be changed any num-
ber of times while the odometer
reading is below 10 (kilometers or
miles), but it cannot be changed
anymore after the reading has
reached 10 (kilometers or miles).
●Switching between the kilometer
mode and the mile mode does
not change or convert the current
odometer/tripmeter reading.
EAUS1460

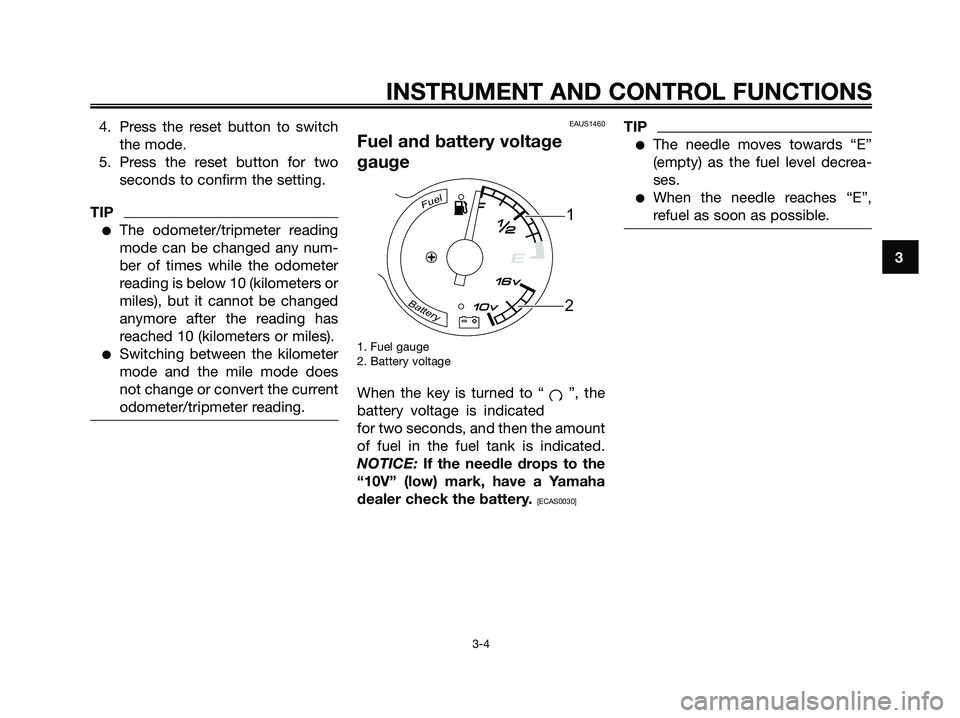

Fuel and battery voltage
gauge
1. Fuel gauge
2. Battery voltage
When the key is turned to “ ”, the
battery voltage is indicated
for two seconds, and then the amount
of fuel in the fuel tank is indicated.
NOTICE: If the needle drops to the
“10V” (low) mark, have a Yamaha
dealer check the battery.
[ECAS0030]
TIP
●The needle moves towards “E”
(empty) as the fuel level decrea-
ses.
●When the needle reaches “E”,
refuel as soon as possible.Fuel
Battery
1
2
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 19

EAUS1211

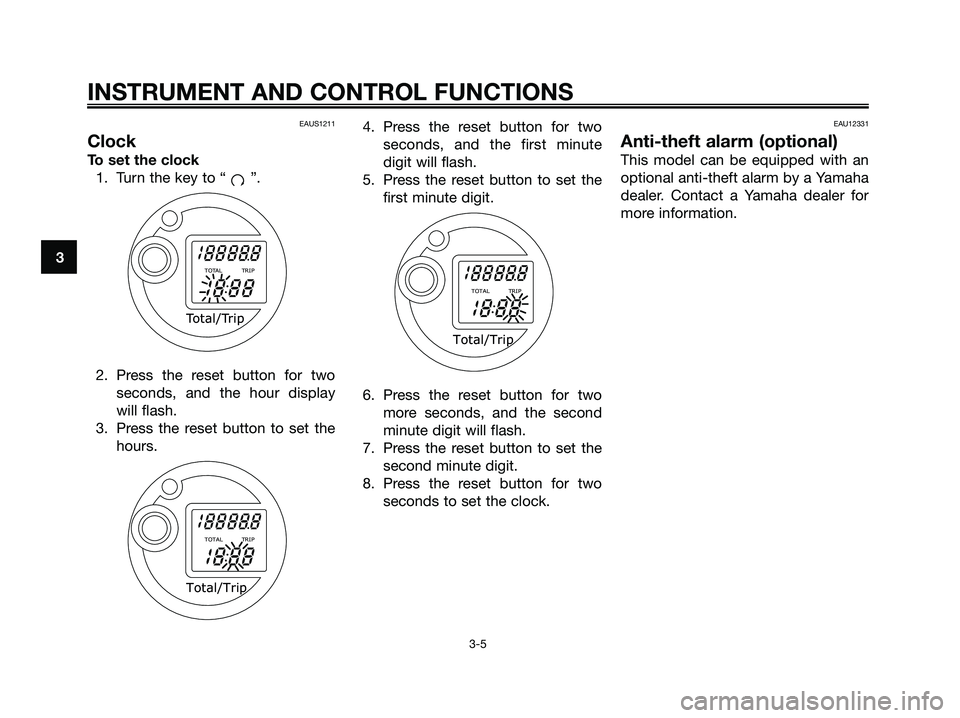

Clock
To set the clock
1. Turn the key to “ ”.
2. Press the reset button for two
seconds, and the hour display
will flash.
3. Press the reset button to set the
hours.4. Press the reset button for two
seconds, and the first minute
digit will flash.
5. Press the reset button to set the
first minute digit.
6. Press the reset button for two
more seconds, and the second
minute digit will flash.
7. Press the reset button to set the
second minute digit.
8. Press the reset button for two
seconds to set the clock.
EAU12331
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
Total/Trip
TOTAL TRIP
Total/Trip
TOTAL TRIP
Total/Trip
TOTAL TRIP
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 20
