YAMAHA MAJESTY 125 2009 Service Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6
ODOMETER READING
CHECK OR ANNUAL

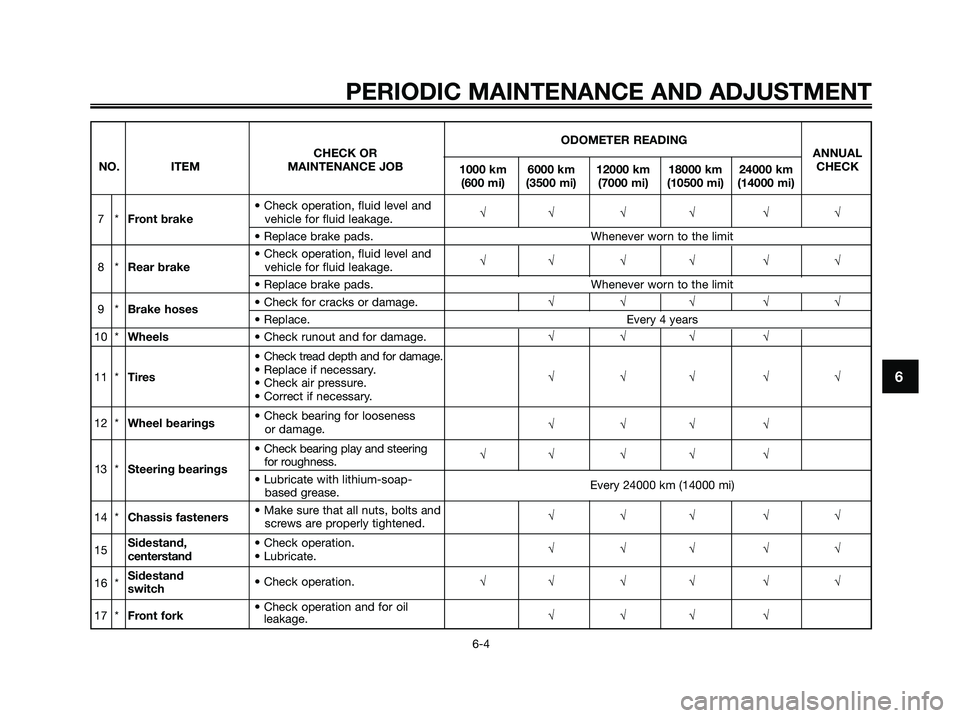

NO. ITEM MAINTENANCE JOB
1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)
• Check operation, fluid level and
√√ √√ √ √
7*Front brakevehicle for fluid leakage.
• Replace brake pads. Whenever worn to the limit
• Check operation, fluid level and
√√ √√ √ √
8*Rear brakevehicle for fluid leakage.
• Replace brake pads. Whenever worn to the limit
9*Brake hoses• Check for cracks or damage.√√√ √√• Replace. Every 4 years
10 *Wheels• Check runout and for damage.√√√ √
• Check tread depth and for damage.
11 *Tires• Replace if necessary.
√√√ √√
• Check air pressure.
• Correct if necessary.
12 *Wheel bearings• Check bearing for looseness
√√√ √
or damage.
• Check bearing play and steering
13 *Steering bearingsfor roughness.√√ √√ √
• Lubricate with lithium-soap-
based grease.Every 24000 km (14000 mi)
14 *Chassis fasteners• Make sure that all nuts, bolts and
screws are properly tightened.√√√ √√
15Sidestand, • Check operation.
centerstand• Lubricate.√√√ √√
16 *Sidestand
switch• Check operation.√√ √√ √ √
17 *Front fork• Check operation and for oil
√√√ √
leakage.
5D8-F8199-E1.QXD 10/7/08 07:39 Página 41

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)

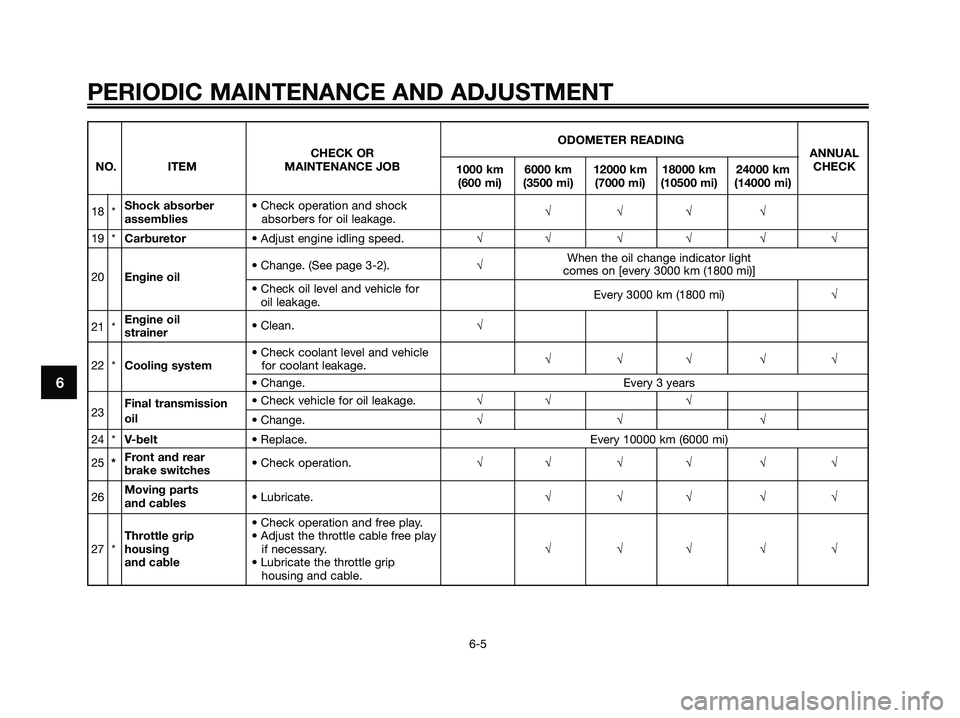

Shock absorber• Check operation and shock
√√√ √
18 *
assembliesabsorbers for oil leakage.
19 *Carburetor• Adjust engine idling speed.√√ √√ √ √
• Change. (See page 3-2). √When the oil change indicator light
20Engine oilcomes on [every 3000 km (1800 mi)]
• Check oil level and vehicle for
oil leakage.Every 3000 km (1800 mi)√
21 *Engine oil
strainer• Clean.√
• Check coolant level and vehicle
√√√ √√
22 *Cooling systemfor coolant leakage.
• Change. Every 3 years
Final transmission• Check vehicle for oil leakage.√√ √23
oil
• Change.√√ √
24 *V-belt• Replace. Every 10000 km (6000 mi)
Front and rear
25*
brake switches• Check operation.√√ √√ √ √
26Moving parts
• Lubricate.√√√ √√
and cables
• Check operation and free play.
Throttle grip • Adjust the throttle cable free play
27 *housingif necessary.√√√ √√
and cable• Lubricate the throttle grip
housing and cable.
5D8-F8199-E1.QXD 10/7/08 07:39 Página 42

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)

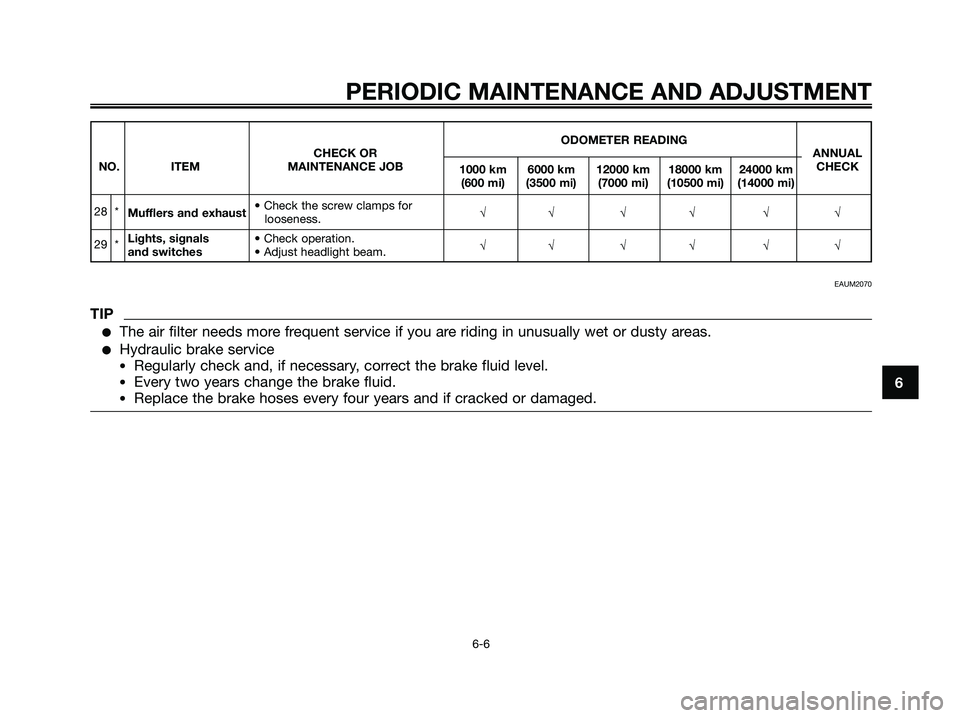

Mufflers and exhaust• Check the screw clamps for
√√ √√ √ √
28 *
looseness.
Lights, signals• Check operation.
√√ √√ √ √ 29 *
and switches• Adjust headlight beam.
EAUM2070
TIP
●The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
●Hydraulic brake service
•Regularly check and, if necessary, correct the brake fluid level.
•Every two years change the brake fluid.
•Replace the brake hoses every four years and if cracked or damaged.
5D8-F8199-E1.QXD 10/7/08 07:39 Página 43

EAU18771

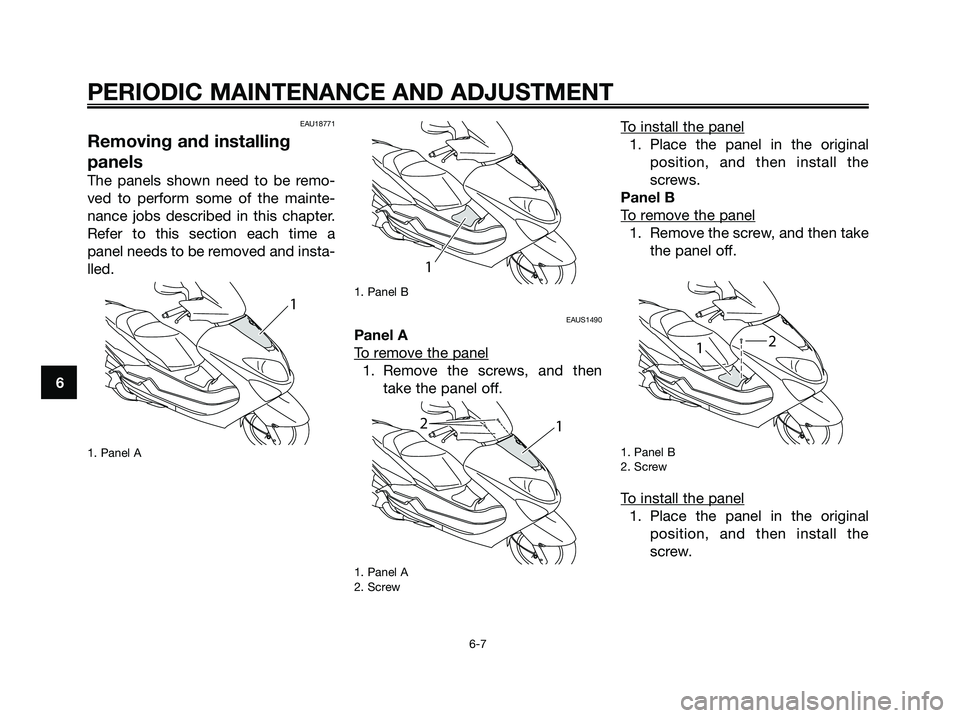

Removing and installing
panels
The panels shown need to be remo-
ved to perform some of the mainte-
nance jobs described in this chapter.
Refer to this section each time a
panel needs to be removed and insta-
lled.
1. Panel A1. Panel B
EAUS1490
Panel A
T
o remove the panel
1. Remove the screws, and then
take the panel off.
1. Panel A
2. Screw
To install the panel
1. Place the panel in the original
position, and then install the
screws.
Panel B
T
o remove the panel
1. Remove the screw, and then take
the panel off.
1. Panel B
2. Screw
To install the panel
1. Place the panel in the original
position, and then install the
screw.
12
12
1
1
PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 44

EAU19603

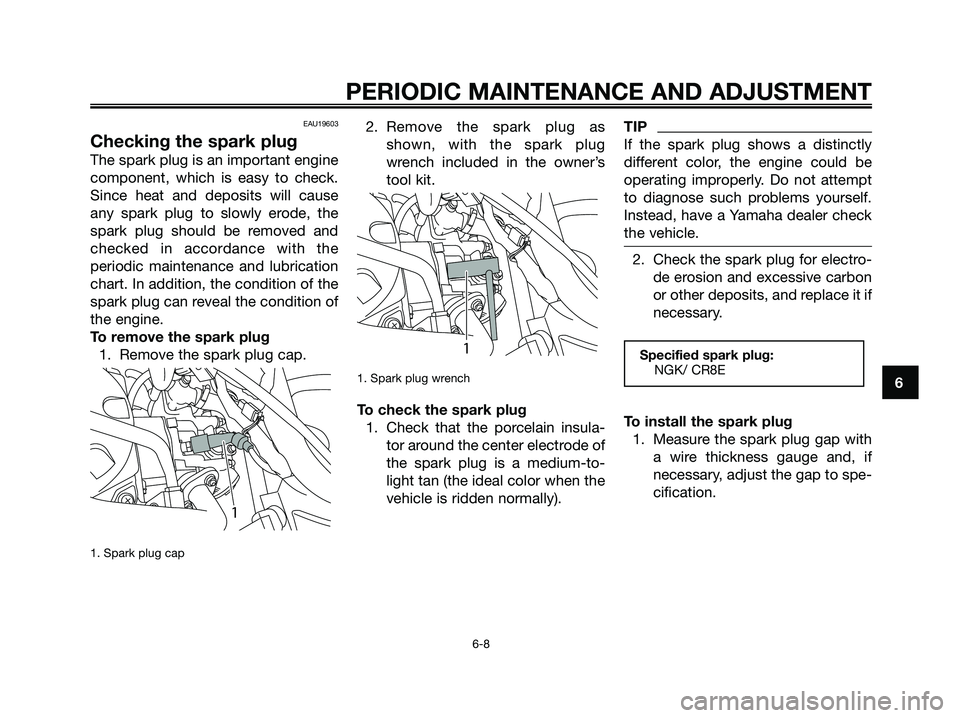

Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause
any spark plug to slowly erode, the
spark plug should be removed and
checked in accordance with the
periodic maintenance and lubrication
chart. In addition, the condition of the
spark plug can reveal the condition of
the engine.
To remove the spark plug
1. Remove the spark plug cap.
1. Spark plug cap
2. Remove the spark plug as
shown, with the spark plug
wrench included in the owner’s
tool kit.
1. Spark plug wrench
To check the spark plug
1. Check that the porcelain insula-
tor around the center electrode of
the spark plug is a medium-to-
light tan (the ideal color when the
vehicle is ridden normally).
TIP
If the spark plug shows a distinctly
different color, the engine could be
operating improperly. Do not attempt
to diagnose such problems yourself.
Instead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electro-
de erosion and excessive carbon
or other deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to spe-
cification.
Specified spark plug:
NGK/ CR8E1
1
PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 45

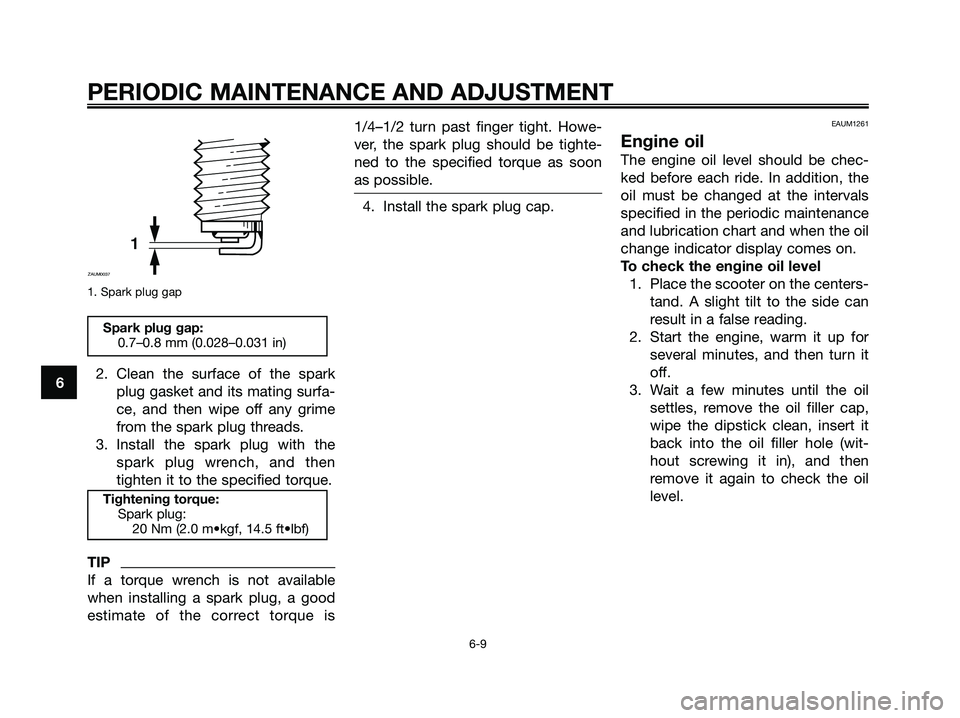

1. Spark plug gap
2. Clean the surface of the spark
plug gasket and its mating surfa-
ce, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then
tighten it to the specified torque.
TIP
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is1/4–1/2 turn past finger tight. Howe-
ver, the spark plug should be tighte-
ned to the specified torque as soon
as possible.
4. Install the spark plug cap.
EAUM1261

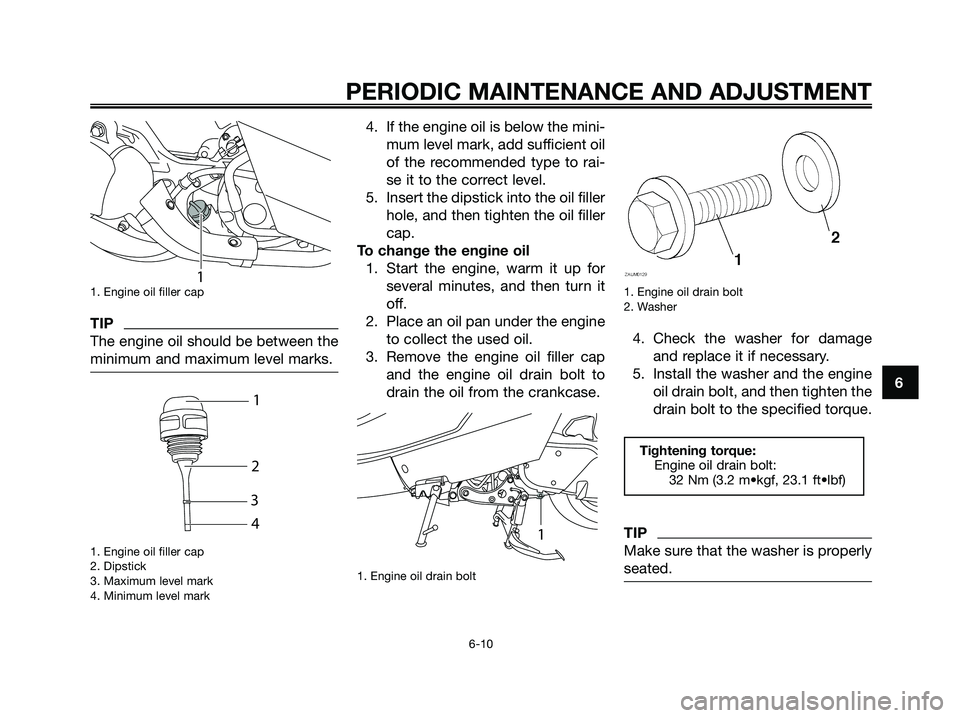

Engine oil
The engine oil level should be chec-
ked before each ride. In addition, the
oil must be changed at the intervals
specified in the periodic maintenance
and lubrication chart and when the oil
change indicator display comes on.
To check the engine oil level
1. Place the scooter on the centers-
tand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil
settles, remove the oil filler cap,
wipe the dipstick clean, insert it
back into the oil filler hole (wit-
hout screwing it in), and then
remove it again to check the oil
level.
Tightening torque:
Spark plug:
20 Nm (2.0 m•kgf, 14.5 ft•lbf)
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
1
ZAUM0037
PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 46

1. Engine oil filler cap
TIP
The engine oil should be between the
minimum and maximum level marks.
1. Engine oil filler cap
2. Dipstick
3. Maximum level mark
4. Minimum level mark
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to rai-
se it to the correct level.
5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
To change the engine oil
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and the engine oil drain bolt to
drain the oil from the crankcase.
1. Engine oil drain bolt1. Engine oil drain bolt
2. Washer
4. Check the washer for damage
and replace it if necessary.
5. Install the washer and the engine
oil drain bolt, and then tighten the
drain bolt to the specified torque.
TIP
Make sure that the washer is properly
seated.
Tightening torque:
Engine oil drain bolt:
32 Nm (3.2 m•kgf, 23.1 ft•lbf)
1
1
2
3
4
1
PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 47

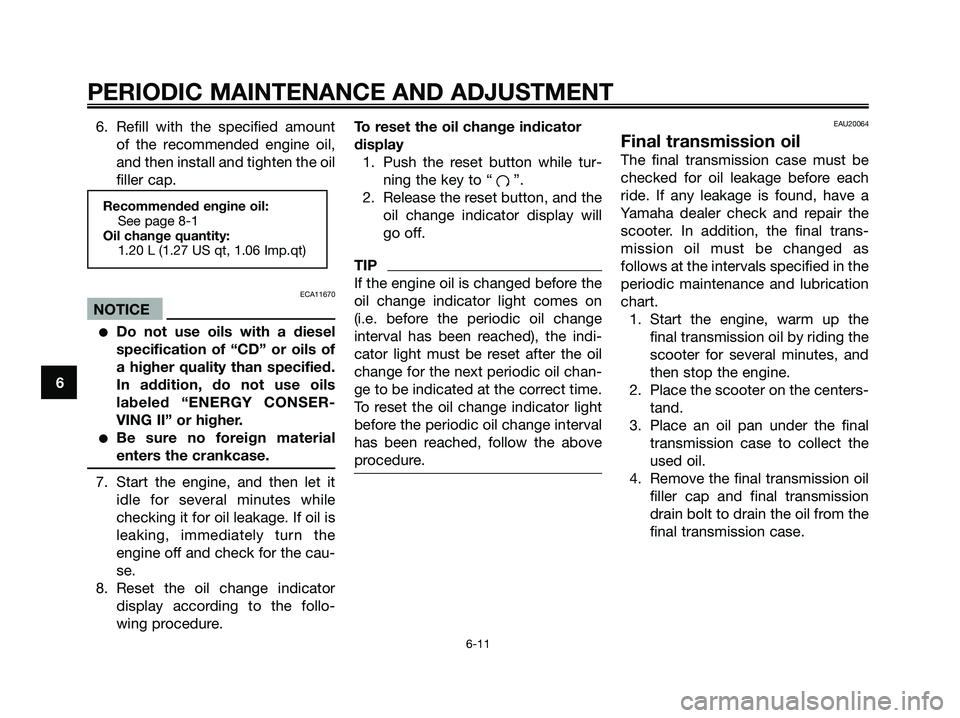

6. Refill with the specified amount
of the recommended engine oil,
and then install and tighten the oil
filler cap.
ECA11670
NOTICE
●Do not use oils with a diesel
specification of “CD” or oils of
a higher quality than specified.
In addition, do not use oils
labeled “ENERGY CONSER-
VING II” or higher.
●Be sure no foreign material
enters the crankcase.
7. Start the engine, and then let it
idle for several minutes while
checking it for oil leakage. If oil is
leaking, immediately turn the
engine off and check for the cau-
se.
8. Reset the oil change indicator
display according to the follo-
wing procedure.To reset the oil change indicator
display
1. Push the reset button while tur-
ning the key to “ ”.
2. Release the reset button, and the
oil change indicator display will
go off.
TIP
If the engine oil is changed before the
oil change indicator light comes on
(i.e. before the periodic oil change
interval has been reached), the indi-
cator light must be reset after the oil
change for the next periodic oil chan-
ge to be indicated at the correct time.
To reset the oil change indicator light
before the periodic oil change interval
has been reached, follow the above
procedure.
EAU20064
Final transmission oil
The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final trans-
mission oil must be changed as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Start the engine, warm up the
final transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the centers-
tand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the final transmission oil
filler cap and final transmission
drain bolt to drain the oil from the
final transmission case.
Recommended engine oil:
See page 8-1
Oil change quantity:
1.20 L (1.27 US qt, 1.06 Imp.qt)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 48

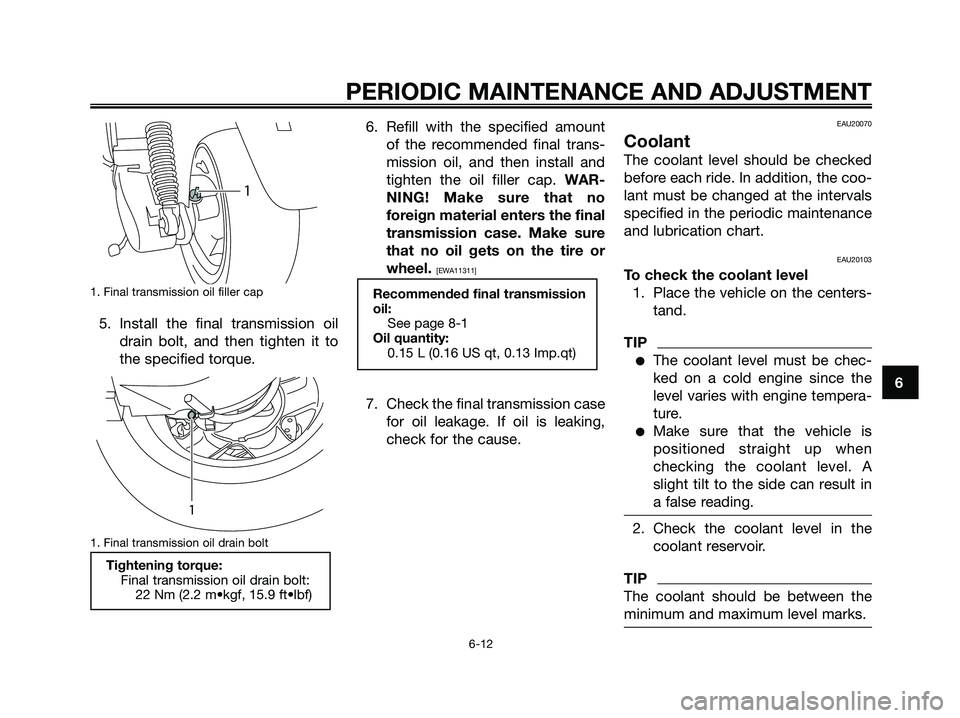

1. Final transmission oil filler cap
5. Install the final transmission oil
drain bolt, and then tighten it to
the specified torque.
1. Final transmission oil drain bolt
6. Refill with the specified amount
of the recommended final trans-
mission oil, and then install and
tighten the oil filler cap. WAR-
NING! Make sure that no
foreign material enters the final
transmission case. Make sure
that no oil gets on the tire or
wheel.
[EWA11311]
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the coo-
lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.

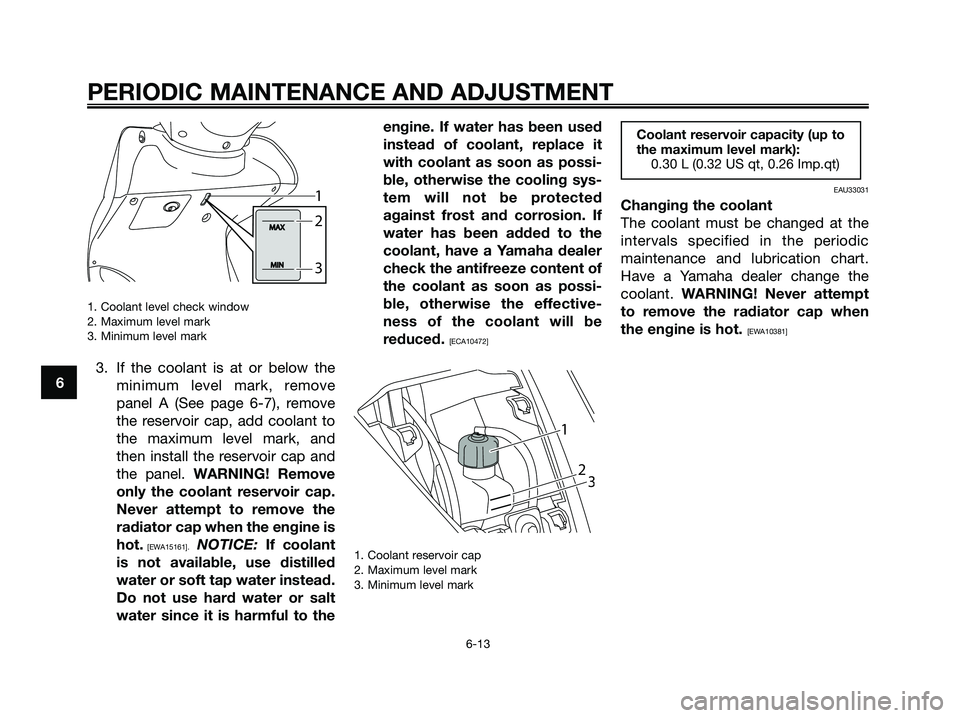

EAU20103
To check the coolant level
1. Place the vehicle on the centers-
tand.
TIP
●The coolant level must be chec-
ked on a cold engine since the
level varies with engine tempera-
ture.
●Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
2. Check the coolant level in the
coolant reservoir.
TIP
The coolant should be between the
minimum and maximum level marks.
Recommended final transmission
oil:
See page 8-1
Oil quantity:
0.15 L (0.16 US qt, 0.13 Imp.qt)
Tightening torque:
Final transmission oil drain bolt:
22 Nm (2.2 m•kgf, 15.9 ft•lbf)
1
1
PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 49

1. Coolant level check window
2. Maximum level mark
3. Minimum level mark
3. If the coolant is at or below the
minimum level mark, remove
panel A (See page 6-7), remove
the reservoir cap, add coolant to
the maximum level mark, and
then install the reservoir cap and
the panel. WARNING! Remove
only the coolant reservoir cap.
Never attempt to remove the
radiator cap when the engine is
hot.
[EWA15161]. NOTICE: If coolant
is not available, use distilled
water or soft tap water instead.
Do not use hard water or salt
water since it is harmful to theengine. If water has been used
instead of coolant, replace it
with coolant as soon as possi-
ble, otherwise the cooling sys-
tem will not be protected
against frost and corrosion. If
water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possi-
ble, otherwise the effective-
ness of the coolant will be
reduced.
[ECA10472]
1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
EAU33031
Changing the coolant
The coolant must be changed at the
intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer change the
coolant. WARNING! Never attempt
to remove the radiator cap when
the engine is hot.
[EWA10381]
Coolant reservoir capacity (up to
the maximum level mark):
0.30 L (0.32 US qt, 0.26 Imp.qt)
23
1
MAXMAX
MINMIN
2 1
3
PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 50
