YAMAHA MAJESTY 125 2009 Owner's Manual

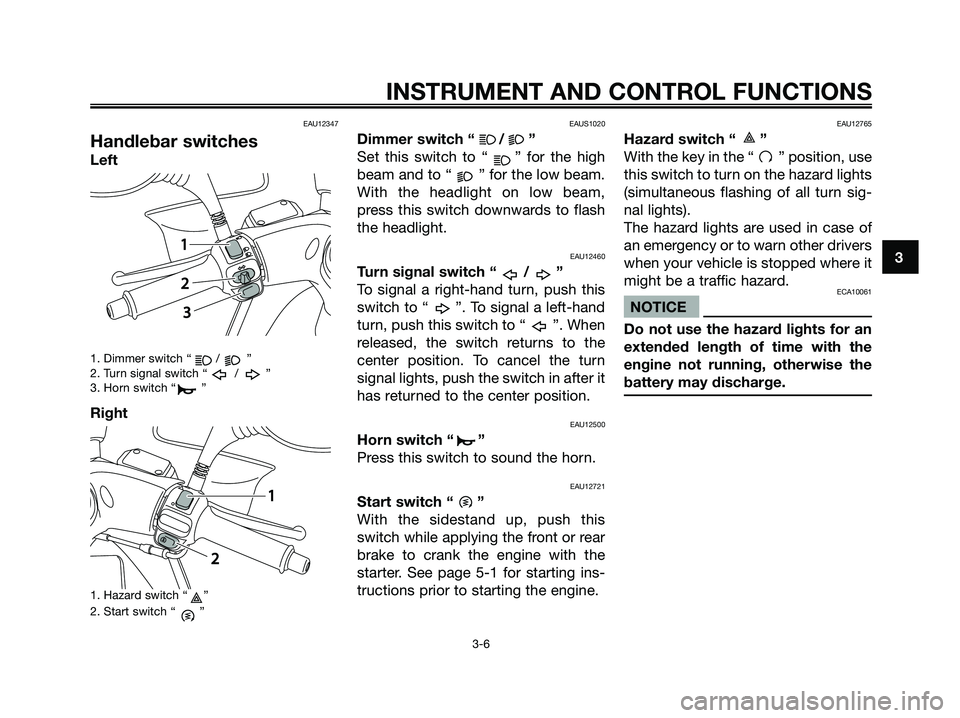

EAU12347
Handlebar switches
Left
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
Right
1. Hazard switch “ ”
2. Start switch “ ”
EAUS1020
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
With the headlight on low beam,
press this switch downwards to flash
the headlight.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12721
Start switch “ ”
With the sidestand up, push this
switch while applying the front or rear
brake to crank the engine with the
starter. See page 5-1 for starting ins-
tructions prior to starting the engine.
EAU12765
Hazard switch “ ”
With the key in the “ ” position, use
this switch to turn on the hazard lights
(simultaneous flashing of all turn sig-
nal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
ECA10061
NOTICE
Do not use the hazard lights for an
extended length of time with the
engine not running, otherwise the
battery may discharge.
11
22
11
22
33
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 21

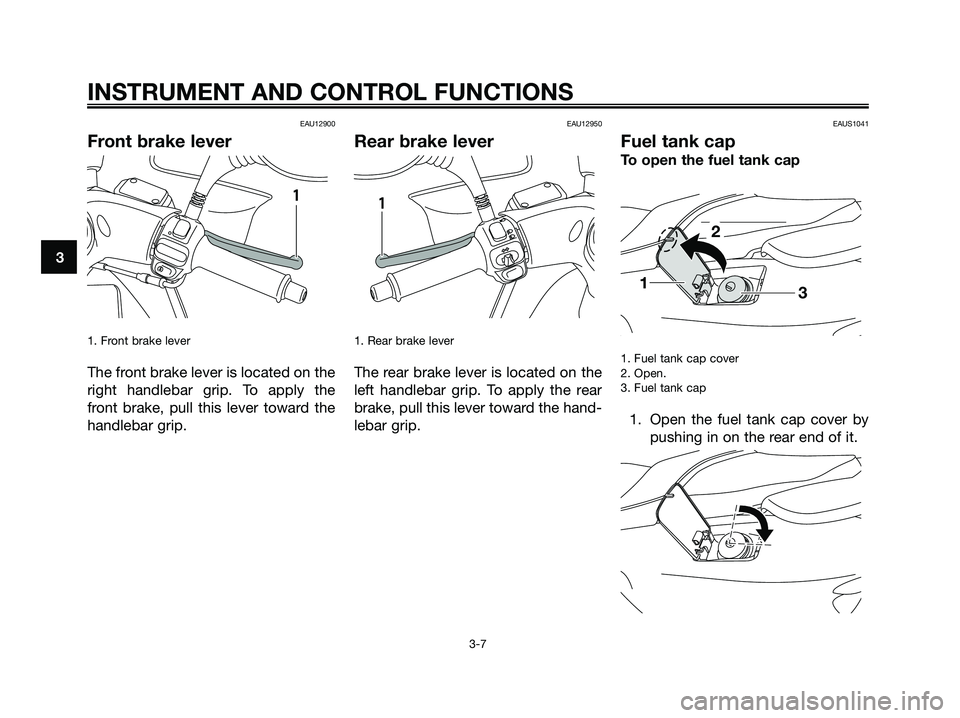

EAU12900
Front brake lever
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
EAUS1041
Fuel tank cap
To open the fuel tank cap
1. Fuel tank cap cover
2. Open.
3. Fuel tank cap
1. Open the fuel tank cap cover by
pushing in on the rear end of it.
13
2
1111
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 22

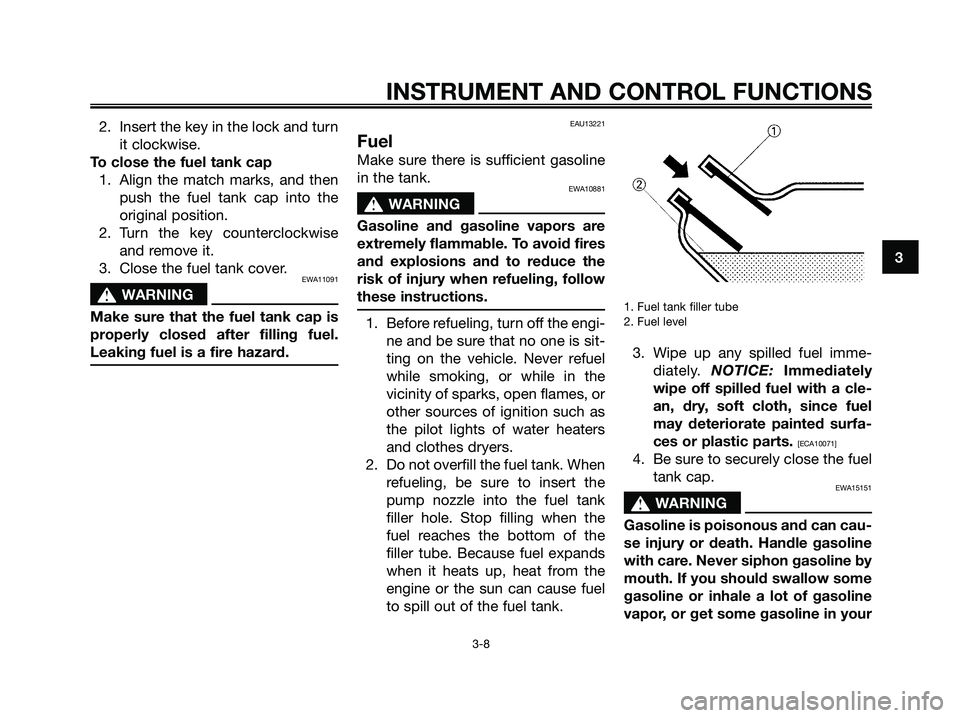

2. Insert the key in the lock and turn
it clockwise.
To close the fuel tank cap
1. Align the match marks, and then
push the fuel tank cap into the
original position.
2. Turn the key counterclockwise
and remove it.
3. Close the fuel tank cover.
EWA11091
s s
WARNING
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13221
Fuel
Make sure there is sufficient gasoline
in the tank.
EWA10881
s s
WARNING
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.
1. Before refueling, turn off the engi-
ne and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the
vicinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank
filler hole. Stop filling when the
fuel reaches the bottom of the
filler tube. Because fuel expands
when it heats up, heat from the
engine or the sun can cause fuel
to spill out of the fuel tank.
1. Fuel tank filler tube
2. Fuel level
3. Wipe up any spilled fuel imme-
diately. NOTICE: Immediately
wipe off spilled fuel with a cle-
an, dry, soft cloth, since fuel
may deteriorate painted surfa-
ces or plastic parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
EWA15151
s s
WARNING
Gasoline is poisonous and can cau-
se injury or death. Handle gasoline
with care. Never siphon gasoline by
mouth. If you should swallow some
gasoline or inhale a lot of gasoline
vapor, or get some gasoline in your
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 23

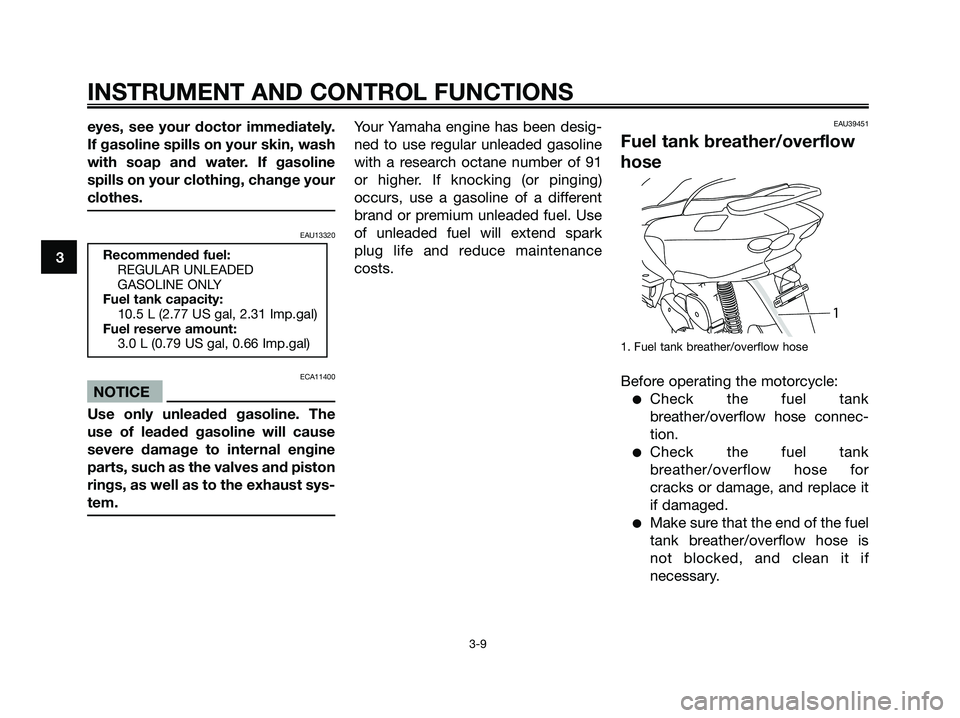

eyes, see your doctor immediately.
If gasoline spills on your skin, wash
with soap and water. If gasoline
spills on your clothing, change your
clothes.
EAU13320
ECA11400
NOTICE
Use only unleaded gasoline. The
use of leaded gasoline will cause
severe damage to internal engine
parts, such as the valves and piston
rings, as well as to the exhaust sys-
tem.
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark
plug life and reduce maintenance
costs.EAU39451
Fuel tank breather/overflow
hose
1. Fuel tank breather/overflow hose
Before operating the motorcycle:
●Check the fuel tank
breather/overflow hose connec-
tion.
●Check the fuel tank
breather/overflow hose for
cracks or damage, and replace it
if damaged.
●Make sure that the end of the fuel
tank breather/overflow hose is
not blocked, and clean it if
necessary.
1
Recommended fuel:
REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity:
10.5 L (2.77 US gal, 2.31 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal, 0.66 Imp.gal)
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 24

EAU13432

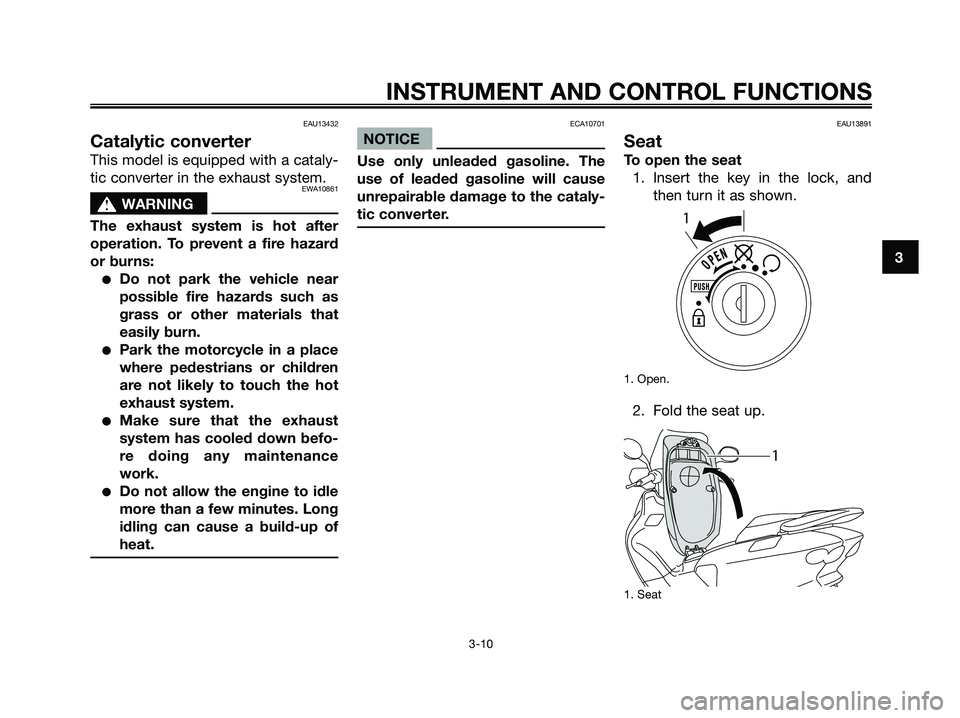

Catalytic converter
This model is equipped with a cataly-
tic converter in the exhaust system.
EWA10861
s s
WARNING
The exhaust system is hot after
operation. To prevent a fire hazard
or burns:
●Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
●Park the motorcycle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
●Make sure that the exhaust
system has cooled down befo-
re doing any maintenance
work.
●Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
ECA10701
NOTICE
Use only unleaded gasoline. The
use of leaded gasoline will cause
unrepairable damage to the cataly-
tic converter.
EAU13891
Seat
To open the seat
1. Insert the key in the lock, and
then turn it as shown.
1. Open.
2. Fold the seat up.
1. Seat
1
1
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 25

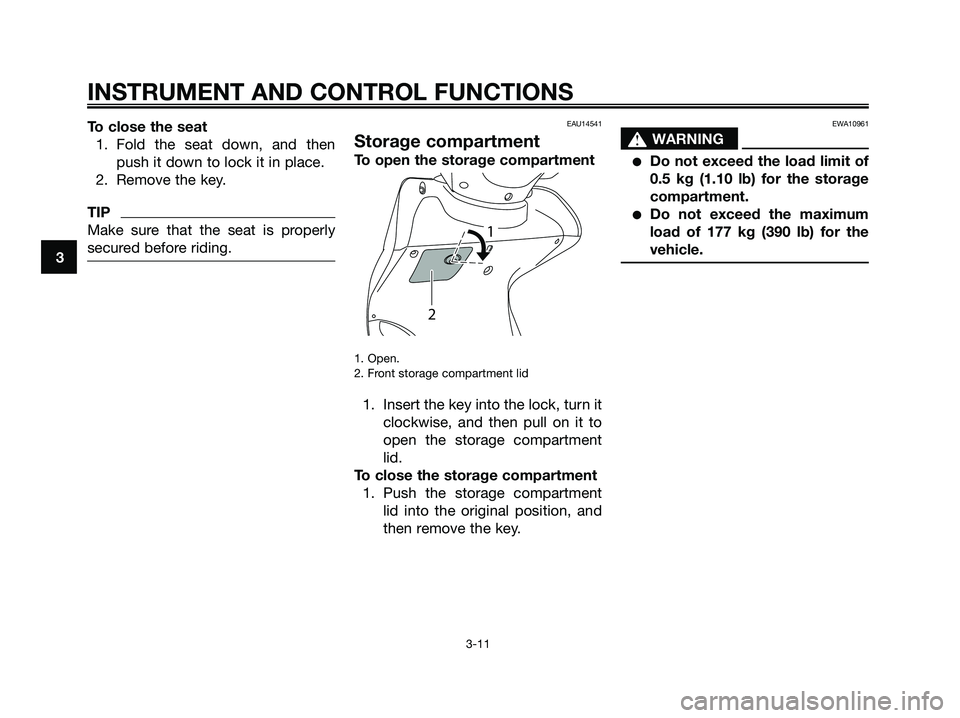

To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key.
TIP
Make sure that the seat is properly
secured before riding.
EAU14541
Storage compartment
To open the storage compartment
1. Open.
2. Front storage compartment lid
1. Insert the key into the lock, turn it
clockwise, and then pull on it to
open the storage compartment
lid.
To close the storage compartment
1. Push the storage compartment
lid into the original position, and
then remove the key.
EWA10961
s s
WARNING
●Do not exceed the load limit of
0.5 kg (1.10 lb) for the storage
compartment.
●Do not exceed the maximum
load of 177 kg (390 lb) for the
vehicle.
2
1
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 26

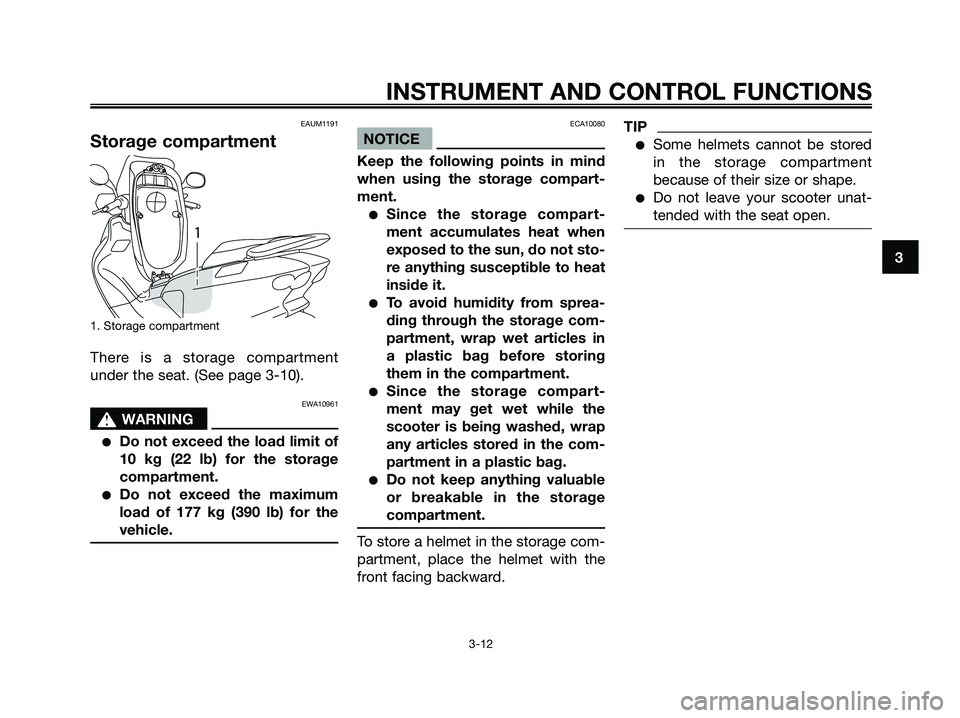

EAUM1191
Storage compartment
1. Storage compartment
There is a storage compartment
under the seat. (See page 3-10).
EWA10961
s s
WARNING
●Do not exceed the load limit of
10 kg (22 lb) for the storage
compartment.
●Do not exceed the maximum
load of 177 kg (390 lb) for the
vehicle.
ECA10080
NOTICE
Keep the following points in mind
when using the storage compart-
ment.
●Since the storage compart-
ment accumulates heat when
exposed to the sun, do not sto-
re anything susceptible to heat
inside it.
●To avoid humidity from sprea-
ding through the storage com-
partment, wrap wet articles in
a plastic bag before storing
them in the compartment.
●Since the storage compart-
ment may get wet while the
scooter is being washed, wrap
any articles stored in the com-
partment in a plastic bag.
●Do not keep anything valuable
or breakable in the storage
compartment.
To store a helmet in the storage com-
partment, place the helmet with the
front facing backward.
TIP
●Some helmets cannot be stored
in the storage compartment
because of their size or shape.
●Do not leave your scooter unat-
tended with the seat open.
1
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 27

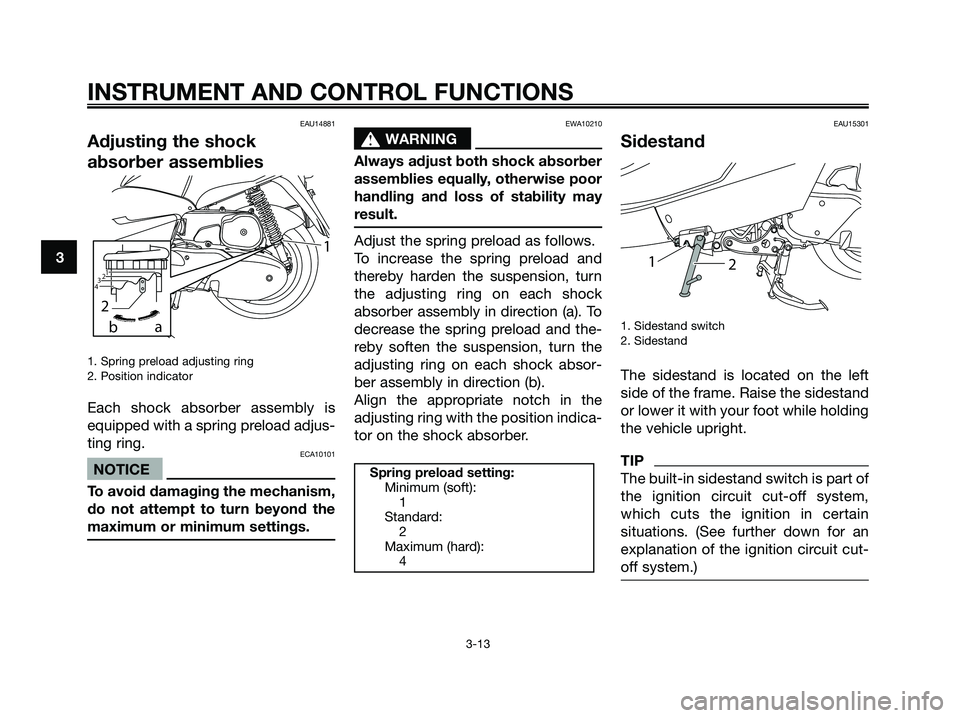

EAU14881
Adjusting the shock
absorber assemblies
1. Spring preload adjusting ring
2. Position indicator
Each shock absorber assembly is
equipped with a spring preload adjus-
ting ring.
ECA10101
NOTICE
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
EWA10210
s s
WARNING
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock
absorber assembly in direction (a). To
decrease the spring preload and the-
reby soften the suspension, turn the
adjusting ring on each shock absor-
ber assembly in direction (b).
Align the appropriate notch in the
adjusting ring with the position indica-
tor on the shock absorber.
EAU15301
Sidestand
1. Sidestand switch
2. Sidestand
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.
TIP
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain
situations. (See further down for an
explanation of the ignition circuit cut-
off system.)
1
2
Spring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
4
21
ba
2
431
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 28

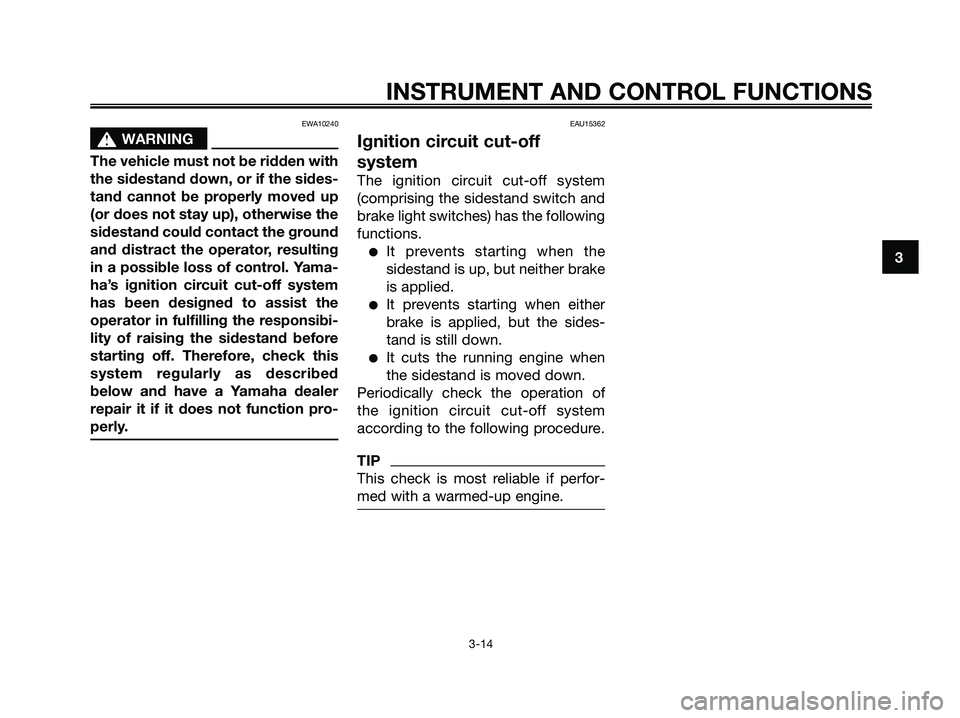

EWA10240
s s
WARNING
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
EAU15362
Ignition circuit cut-off
system
The ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the following
functions.
●It prevents starting when the
sidestand is up, but neither brake
is applied.
●It prevents starting when either
brake is applied, but the sides-
tand is still down.
●It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
TIP
This check is most reliable if perfor-
med with a warmed-up engine.
INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 29

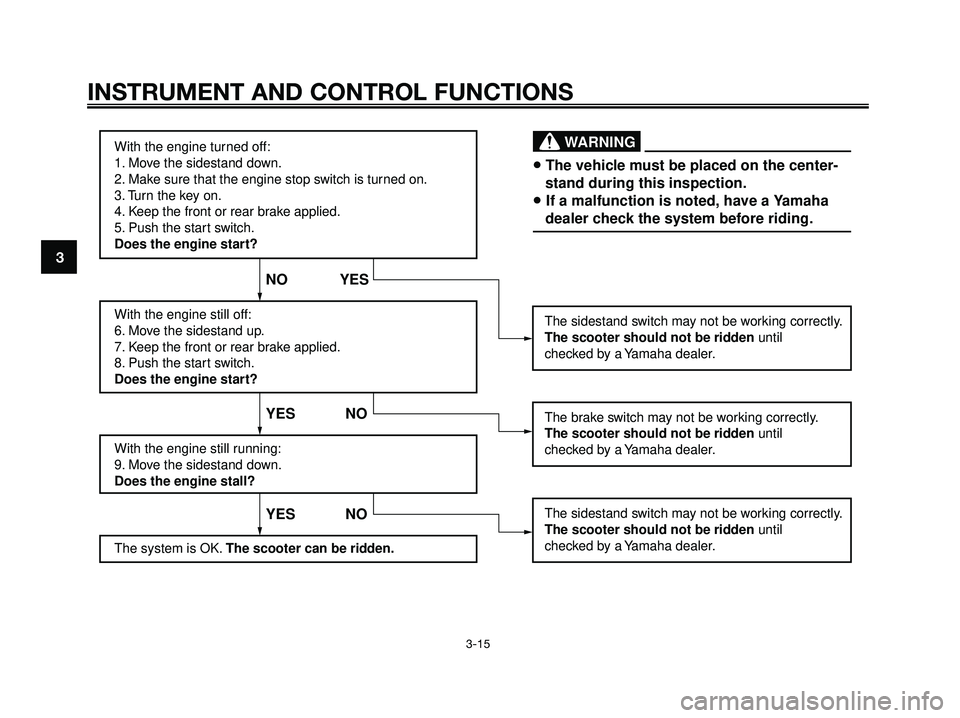

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YES
The brake switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
• The vehicle must be placed on the center-
stand during this inspection.
• If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 30
