PERIODIC MAINTENANCE AND MINOR REPAIR
EAUB1360
Replacing the headlight bulb
1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
2. Headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Turn the handlebar to the left side
to access the headlight coupler.
2. Disconnect the headlight coupler,
and then remove the bulb cover.
3. Unhook the headlight bulb holder,
and then remove the defective
bulb.
EWA10790
WARNING0
Headlight bulbs get very hot. There-
fore, keep flammable products
away from a lit headlight bulb, and
do not touch the bulb until it has
cooled down.
4. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
1. Do not touch this areaECA10650CAUTION:
Take care not to damage the fol-
lowing parts:
●Headlight bulb
•Do not touch the glass part
of the headlight bulb to keep
it free from oil, otherwise the
transparency of the glass,
the luminosity of the bulb,
and the bulb life will be ad-
versely affected. Thoroughly
clean off any dirt and finger-
prints on the headlight bulb
using a cloth moistened with
alcohol or thinner.
6-33

PERIODIC MAINTENANCE AND MINOR REPAIR
●Headlight lens
•Do not affix any type of tinted
film or stickers to the head-
light lens.
•Do not use a headlight bulb
of a wattage higher than
specified.
5. Install the headlight bulb cover,
and then connect the coupler.
6. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAUB1380
Replacing an auxiliary
light bulb

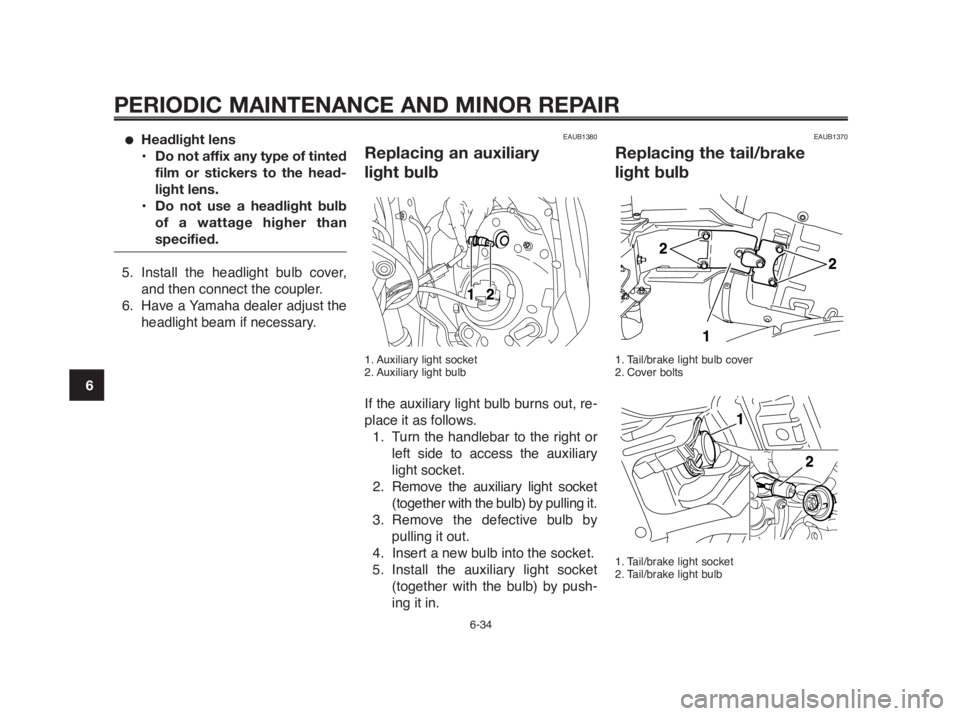

1. Auxiliary light socket
2. Auxiliary light bulb
If the auxiliary light bulb burns out, re-
place it as follows.
1. Turn the handlebar to the right or
left side to access the auxiliary
light socket.
2. Remove the auxiliary light socket
(together with the bulb) by pulling it.
3. Remove the defective bulb by
pulling it out.
4. Insert a new bulb into the socket.
5. Install the auxiliary light socket
(together with the bulb) by push-
ing it in.
EAUB1370
Replacing the tail/brake
light bulb
1. Tail/brake light bulb cover
2. Cover bolts
1. Tail/brake light socket
2. Tail/brake light bulb
6-34
1
2
3
4
5
6
7
8
9
10

SPECIFICATIONS
8-3
1
2
3
4
5
6
7
8
9
10
Electrical system:
Ignition system:
Transistorized coil ignition (digital)
Charging system:
A.C. magneto
Battery:
Model:
GT9B-4
Voltage, capacity:
12 V, 8 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:
Headlight:
12 V, 55 W/60 W x 1
Auxiliary light:
12 V, 3 W x 1
Tail/brake light:
12 V, 5 W/21 W x 1
Front turn signal light:
12 V, 10 W x 2
Rear turn signal light:
12 V, 10 W x 2
Meter lighting:
LED (backlight)
Neutral indicator light:
LED
Turn signal indicator light:
LED
High beam indicator light:
LED
Fuel level warning light:
LEDCoolant temperature warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30 A
Headlight fuse:
20 A
Signaling system fuse:
10 A
Ignition fuse:
10 A
Parking lighting fuse:
10 A
Radiator fan fuse:
7.5 A
Fuel injection system fuse:
10 A
Backup fuse (for odometer, clock and
immobilizer):
10 A

1
2
3
4
5
6
7
8
9
10
