YAMAHA RHINO 700 2009 Notices Demploi (in French)

9-10

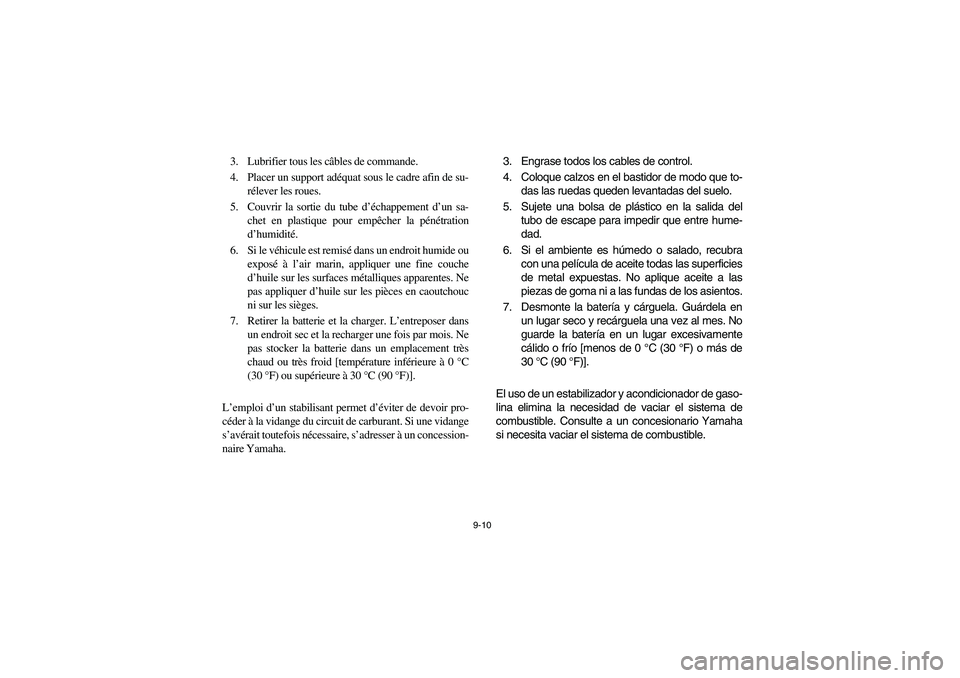

3. Lubrifier tous les câbles de commande.
4. Placer un support adéquat sous le cadre afin de su-
rélever les roues.
5. Couvrir la sortie du tube d’échappement d’un sa-
chet en plastique pour empêcher la pénétration
d’humidité.
6. Si le véhicule est remisé dans un endroit humide ou
exposé à l’air marin, appliquer une fine couche
d’huile sur les surfaces métalliques apparentes. Ne
pas appliquer d’huile sur les pièces en caoutchouc
ni sur les sièges.
7. Retirer la batterie et la charger. L’entreposer dans
un endroit sec et la recharger une fois par mois. Ne
pas stocker la batterie dans un emplacement très
chaud ou très froid [température inférieure à 0 °C
(30 °F) ou supérieure à 30 °C (90 °F)].
L’emploi d’un stabilisant permet d’éviter de devoir pro-
céder à la vidange du circuit de carburant. Si une vidange
s’avérait toutefois nécessaire, s’adresser à un concession-
naire Yamaha.3. Engrase todos los cables de control.
4. Coloque calzos en el bastidor de modo que to-
das las ruedas queden levantadas del suelo.
5. Sujete una bolsa de plástico en la salida del
tubo de escape para impedir que entre hume-
dad.
6. Si el ambiente es húmedo o salado, recubra
con una película de aceite todas las superficies
de metal expuestas. No aplique aceite a las
piezas de goma ni a las fundas de los asientos.
7. Desmonte la batería y cárguela. Guárdela en
un lugar seco y recárguela una vez al mes. No
guarde la batería en un lugar excesivamente
cálido o frío [menos de 0 °C (30 °F) o más de
30 °C (90 °F)].
El uso de un estabilizador y acondicionador de gaso-
lina elimina la necesidad de vaciar el sistema de
combustible. Consulte a un concesionario Yamaha
si necesita vaciar el sistema de combustible.
EE.book Page 10 Tuesday, June 17, 2008 9:00 AM

10-1
EVU01050
1 -SPECIFICATIONS
Model YXR70FSP2Y
Dimensions:
Overall length 2,885 mm (113.6 in)
Overall width 1,516 mm (59.7 in)
Overall height 1,901 mm (74.8 in)
Seat height 818 mm (32.2 in)
Wheelbase 1,910 mm (75.2 in)
Ground clearance 280 mm (11.0 in)
Minimum turning radius 3,900 mm (154 in)
Basic weight:
With oil and full fuel tank 548.0 kg (1,208 lb)
Noise and vibration level:
Noise level (77/311/EEC) (for Europe) 80.2 dB(A)
Vibration on seat (EN1032, ISO5008) (for Europe) Will not exceed 0.5 m/s
2
Vibration on steering wheel (EN1032, ISO5008)
(for Europe)Will not exceed 2.5 m/s
2
EE.book Page 1 Tuesday, June 17, 2008 9:00 AM

10-2
10
Engine:
Engine type Liquid cooled 4-stroke, SOHC
Cylinder arrangement Forward-inclined single cylinder
Displacement 686.0 cm
3
Bore × stroke 102.0 × 84.0 mm (4.02 × 3.31 in)
Compression ratio 9.20:1
Starting system Electric starter
Lubrication system Wet sumpModel YXR70FSP2Y
EE.book Page 2 Tuesday, June 17, 2008 9:00 AM

10-3

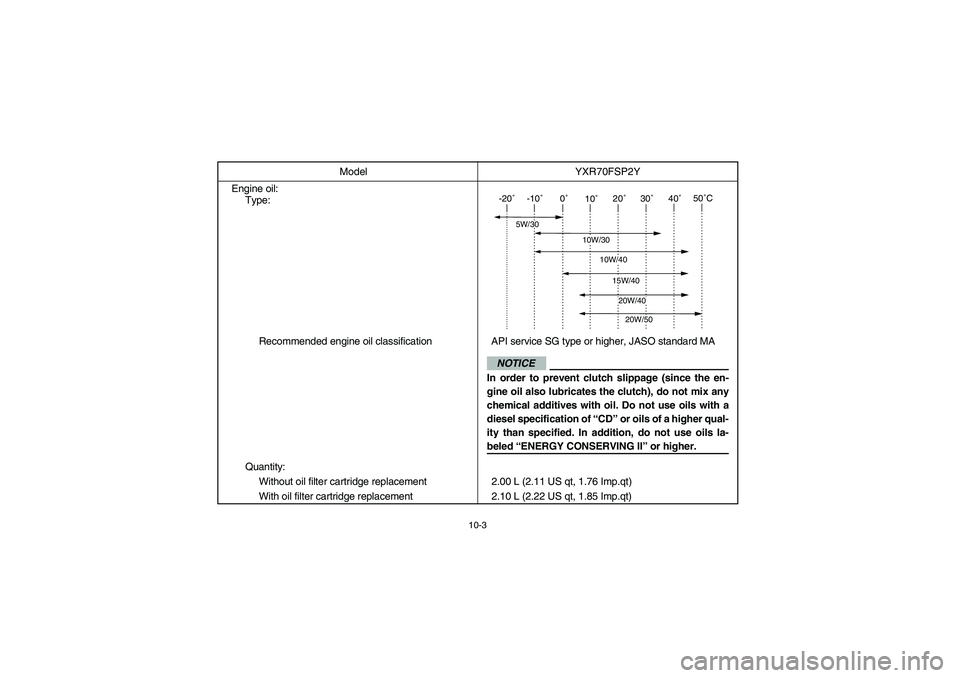

Engine oil:
Type:
Recommended engine oil classification API service SG type or higher, JASO standard MA
Quantity:
Without oil filter cartridge replacement 2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter cartridge replacement 2.10 L (2.22 US qt, 1.85 Imp.qt)Model YXR70FSP2Y
-20˚ -10˚ 0˚
10˚20˚ 30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
NOTICEIn order to prevent clutch slippage (since the en-
gine oil also lubricates the clutch), do not mix any
chemical additives with oil. Do not use oils with a
diesel specification of “CD” or oils of a higher qual-
ity than specified. In addition, do not use oils la-beled “ENERGY CONSERVING II” or higher.
EE.book Page 3 Tuesday, June 17, 2008 9:00 AM

10-4
Final gear case oil:
Type SAE 80 API GL-4 Hypoid gear oil
Quantity 0.25 L (0.26 US qt, 0.22 Imp.qt)
Differential gear case oil:
Type SAE 80 API GL-4 Hypoid gear oil
Quantity 0.18 L (0.19 US qt, 0.16 Imp.qt)
Radiator capacity (including all routes): 2.35 L (2.48 US qt, 2.07 Imp.qt)
Air filter:
Air filter element Wet element
Fuel:
Type Regular unleaded gasoline only with a research
octane number of 91 or higher
Fuel tank capacity 30.0 L (7.93 US gal, 6.60 Imp.gal)
Throttle body:
Type/quantity 41EHS/1
Manufacturer MIKUNI
Spark plug:
Type/manufacturer CPR7EA-9/NGK
Spark plug gap 0.8–0.9 mm (0.031–0.035 in)
Clutch type: Wet, centrifugal automaticModel YXR70FSP2Y
EE.book Page 4 Tuesday, June 17, 2008 9:00 AM

10-5
Transmission:
Primary reduction system V-belt
Secondary reduction system Shaft drive
Secondary reduction ratio 41/21 × 17/12 × 33/9 (10.142)
Transmission type V-belt automatic
Operation Right hand operation
Reverse gear 23/14 × 28/23 (2.000)
Sub transmission ratio low 31/16 (1.938)
high 31/21 (1.476)
Chassis:
Frame type Steel tube frame
Caster angle 5.0°
Trail 26.0 mm (1.02 in)
Tire:
Ty p e Tu b e l e s s
Size front 25
× 8-12NHS
rear 25 × 10-12NHS
Wheel:
Type Cast wheel
Rim size front 12 × 6.0AT
rear 12 × 7.5AT Model YXR70FSP2Y
EE.book Page 5 Tuesday, June 17, 2008 9:00 AM

10-6

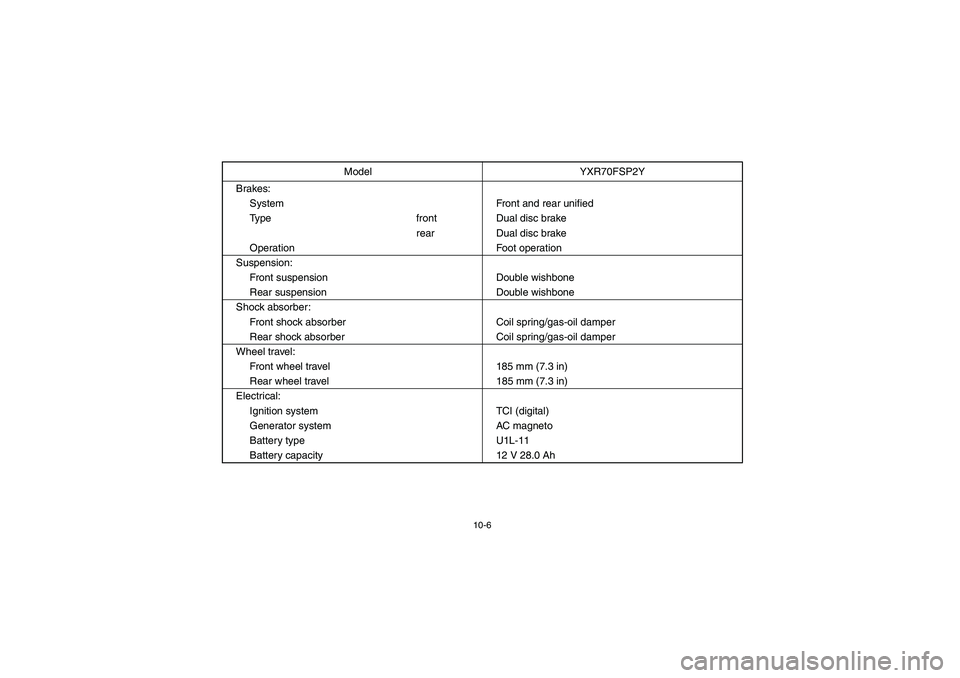

Brakes:
System Front and rear unified
Type front Dual disc brake
rear Dual disc brake
Operation Foot operation
Suspension:
Front suspension Double wishbone
Rear suspension Double wishbone
Shock absorber:
Front shock absorber Coil spring/gas-oil damper
Rear shock absorber Coil spring/gas-oil damper
Wheel travel:
Front wheel travel 185 mm (7.3 in)
Rear wheel travel 185 mm (7.3 in)
Electrical:
Ignition system TCI (digital)
Generator system AC magneto
Battery type U1L-11
Battery capacity 12 V 28.0 AhModel YXR70FSP2Y
EE.book Page 6 Tuesday, June 17, 2008 9:00 AM

10-7

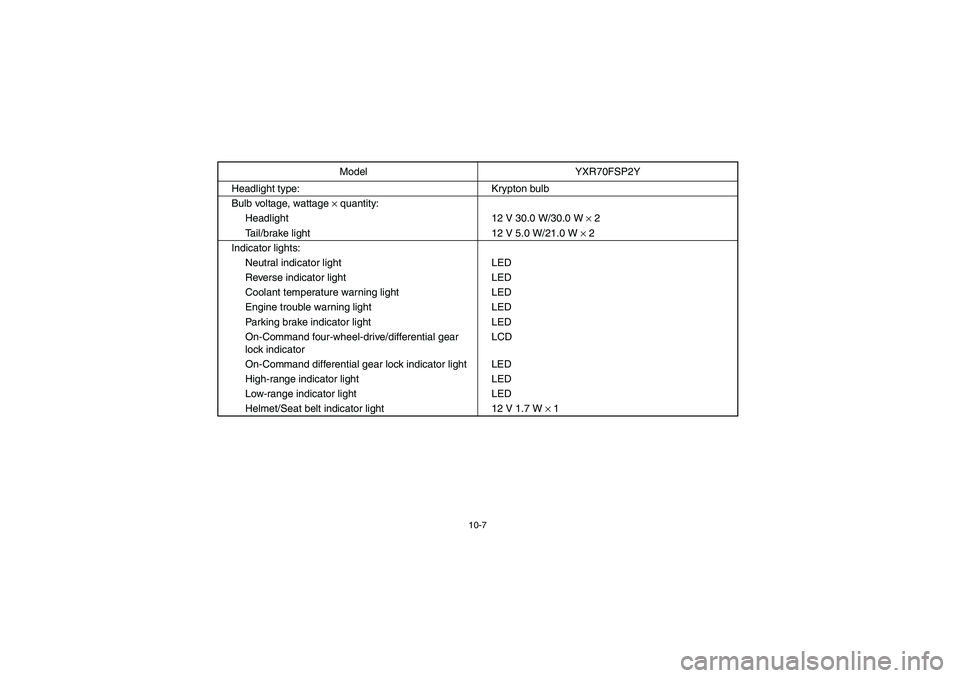

Headlight type: Krypton bulb
Bulb voltage, wattage × quantity:
Headlight 12 V 30.0 W/30.0 W × 2
Tail/brake light 12 V 5.0 W/21.0 W × 2
Indicator lights:
Neutral indicator light LED
Reverse indicator light LED
Coolant temperature warning light LED
Engine trouble warning light LED
Parking brake indicator light LED
On-Command four-wheel-drive/differential gear
lock indicatorLCD
On-Command differential gear lock indicator light LED
High-range indicator light LED
Low-range indicator light LED
Helmet/Seat belt indicator light 12 V 1.7 W × 1 Model YXR70FSP2Y
EE.book Page 7 Tuesday, June 17, 2008 9:00 AM

10-8

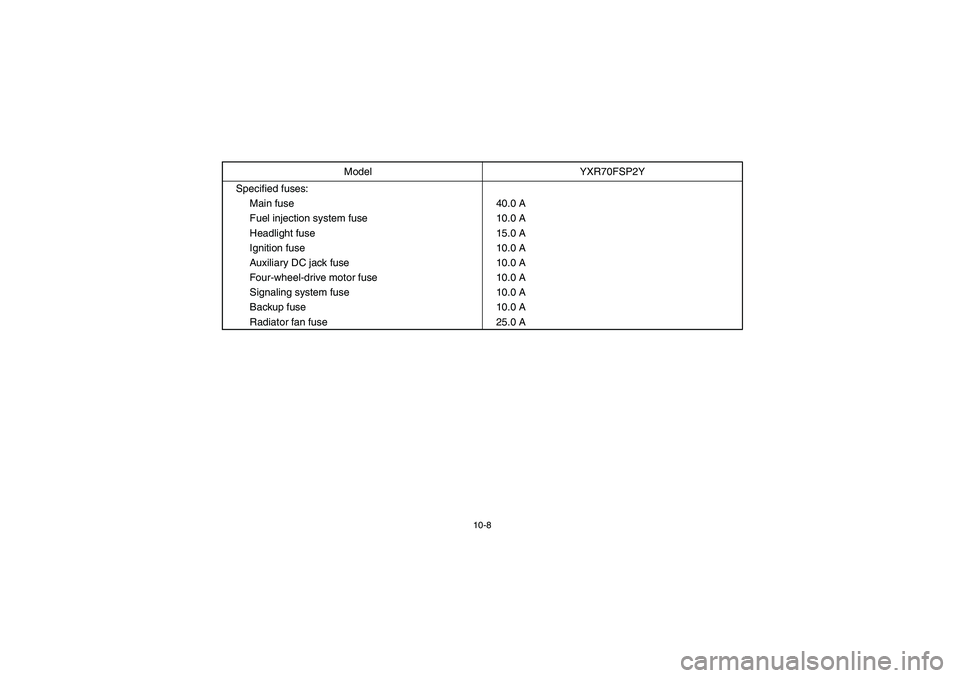

Specified fuses:
Main fuse 40.0 A
Fuel injection system fuse 10.0 A
Headlight fuse 15.0 A
Ignition fuse 10.0 A
Auxiliary DC jack fuse 10.0 A
Four-wheel-drive motor fuse 10.0 A
Signaling system fuse 10.0 A
Backup fuse 10.0 A
Radiator fan fuse 25.0 AModel YXR70FSP2Y
EE.book Page 8 Tuesday, June 17, 2008 9:00 AM

10-9
FVU01050

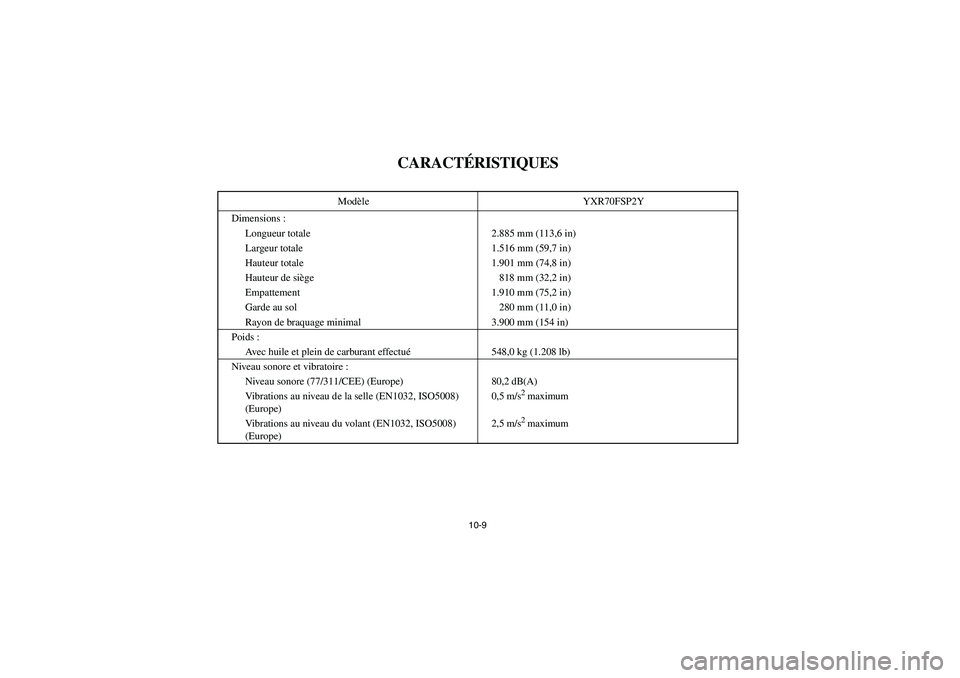

CARACTÉRISTIQUES
Modèle YXR70FSP2Y
Dimensions :
Longueur totale 2.885 mm (113,6 in)
Largeur totale 1.516 mm (59,7 in)
Hauteur totale 1.901 mm (74,8 in)
Hauteur de siège 818 mm (32,2 in)
Empattement 1.910 mm (75,2 in)
Garde au sol 280 mm (11,0 in)
Rayon de braquage minimal 3.900 mm (154 in)
Poids :
Avec huile et plein de carburant effectué548,0 kg (1.208 lb)
Niveau sonore et vibratoire :
Niveau sonore (77/311/CEE) (Europe) 80,2 dB(A)
Vibrations au niveau de la selle (EN1032, ISO5008)
(Europe)0,5 m/s
2 maximum
Vibrations au niveau du volant (EN1032, ISO5008)
(Europe)2,5 m/s2 maximum
EE.book Page 9 Tuesday, June 17, 2008 9:00 AM
