YAMAHA TMAX 2001 Owner's Manual

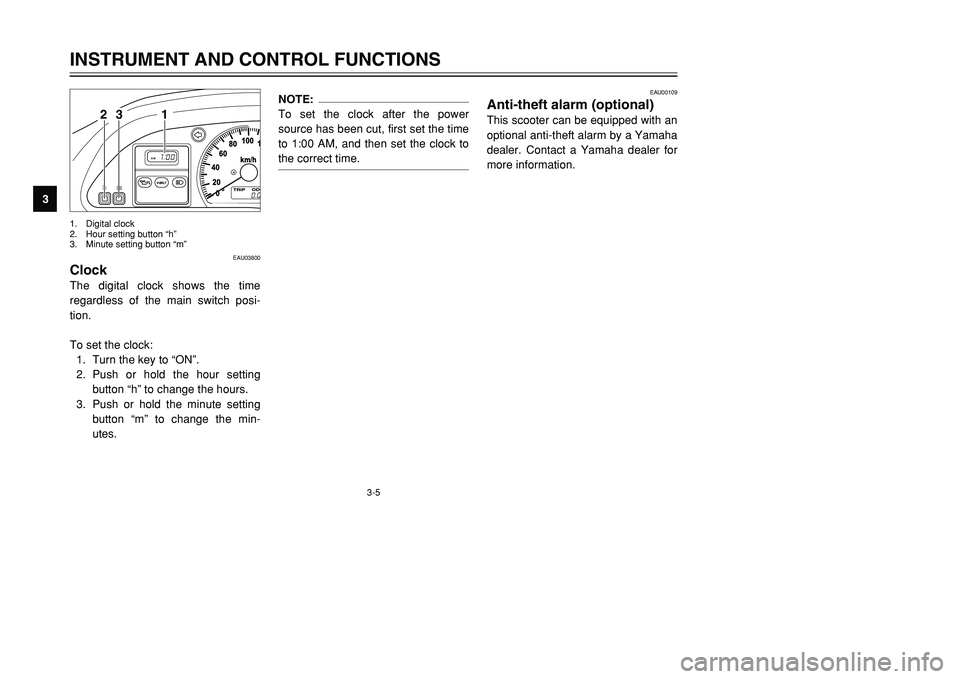

3-5
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
1 23
1. Digital clock
2. Hour setting button “h”
3. Minute setting button “m”
EAU03800
ClockThe digital clock shows the time
regardless of the main switch posi-
tion.
To set the clock:
1. Turn the key to “ON”.
2. Push or hold the hour setting
button “h” to change the hours.
3. Push or hold the minute setting
button “m” to change the min-
utes.
NOTE:
To set the clock after the power
source has been cut, first set the time
to 1:00 AM, and then set the clock to
the correct time.
EAU00109
Anti-theft alarm (optional)This scooter can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
5GJ-9-EV 5/26/01 11:04 AM Page 20

3-6
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
12
34
EAU00118
Handlebar switches
EAU00120
Pass switch “PASS”
Press this switch to flash the head-
light.
EAU00121
Dimmer switch
Set this switch to “&” for the high
beam and to “%” for the low beam.1. Pass switch “PASS”
2. Dimmer switch
3. Turn signal switch
4. Horn switch “*”
EAU03840
Self-diagnosis deviceThis model is equipped with a self-
diagnosis device for the throttle posi-
tion sensor, the speed sensor, and
the overturn switch. If any of those
circuits are defective, the oil change
indicator light will flash.
If the indicator light flashes, have a
Yamaha dealer check the scooter as
soon as possible.NOTE:
The oil change indicator light may
flash when the engine is revved with
the scooter on the centerstand, but
this does not indicate a malfunction.
EAU00127
Turn signal switch
To signal a right-hand turn, push this
switch to “6”. To signal a left-hand
turn, push this switch to “4”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after
it has returned to the center position.
EAU00129
Horn switch “*”
Press this switch to sound the horn.
5GJ-9-EV 5/26/01 11:04 AM Page 21

3-7
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
123
EAU00138
Engine stop switch
Set this switch to “$” to stop the
engine in case of an emergency,
such as when the scooter overturns
or when the throttle cable is stuck.
EAU00134
Light switch
Set this switch to “
'
” to turn on
the auxiliary light, meter lighting and
taillight. Set the switch to “:” to turn
on the headlight also.
1. Engine stop switch
2. Light switch
3. Start switch “,”
EAU03801
Start switch “,”
With the sidestand up, push this
switch while applying the front or rear
brake to crank the engine with the
starter.
EC000005
cCSee page 5-1 for starting instruc-
tions prior to starting the engine.
1
1. Front brake lever
EAU03882
Front brake leverThe front brake lever is located on
the right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
5GJ-9-EV 5/26/01 11:04 AM Page 22

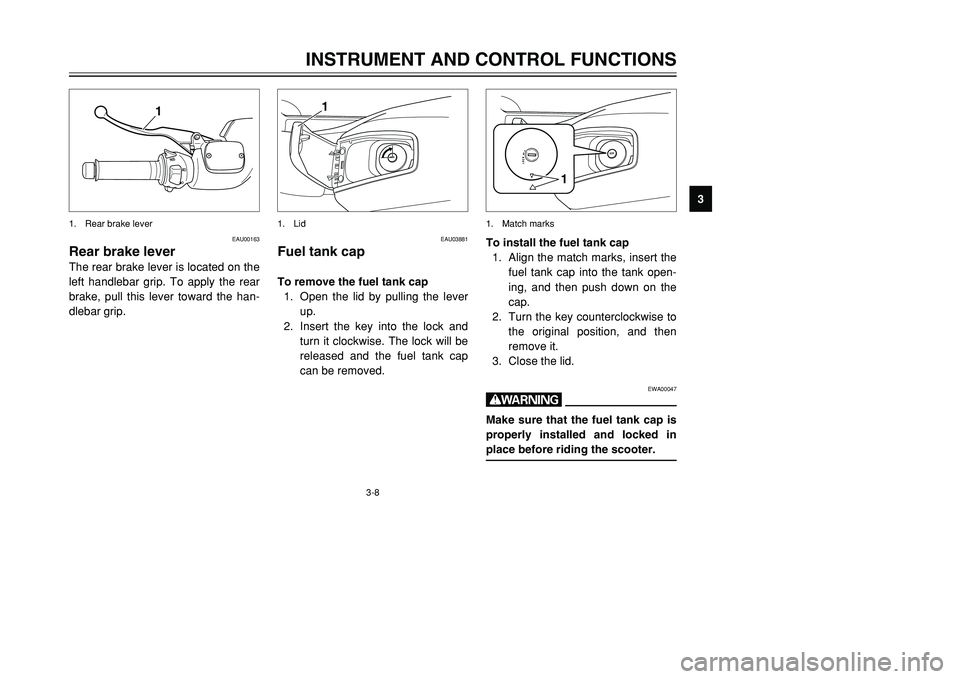

3-8
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
1
1. Rear brake lever
EAU00163
Rear brake leverThe rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the han-
dlebar grip.
1
EAU03881
Fuel tank capTo remove the fuel tank cap
1. Open the lid by pulling the lever
up.
2. Insert the key into the lock and
turn it clockwise. The lock will be
released and the fuel tank cap
can be removed.1. Lid
To install the fuel tank cap
1. Align the match marks, insert the
fuel tank cap into the tank open-
ing, and then push down on the
cap.
2. Turn the key counterclockwise to
the original position, and then
remove it.
3. Close the lid.
EWA00047
wMake sure that the fuel tank cap is
properly installed and locked in
place before riding the scooter.
1
1. Match marks
5GJ-9-EV 5/26/01 11:04 AM Page 23

3-9
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
21
EAU03753
FuelMake sure that there is sufficient fuel
in the tank. Fill the fuel tank to the
bottom of the filler tube as shown.
EW000130
w8Do not overfill the fuel tank,
otherwise it may overflow
when the fuel warms up and
expands.
8Avoid spilling fuel on the hot
engine.1. Fuel tank filler tube
2. Fuel level
EAU00185
cCImmediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted sur-
faces or plastic parts.
EAU03626
NOTE:
If knocking (or pinging) occurs, use
gasoline of a different brand or with a
higher octane grade.
Recommended fuel:
Regular unleaded gasoline with
a research octane number of 91
or higher
Fuel tank capacity:
14 L
IGNITION
P
LOCK
ON
OFF
OPENPUSHPUSH
EAU03802
SeatTo open the seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise.NOTE:
Do not push inward when turning the
key.3. Fold the seat up.
5GJ-9-EV 5/26/01 11:04 AM Page 24

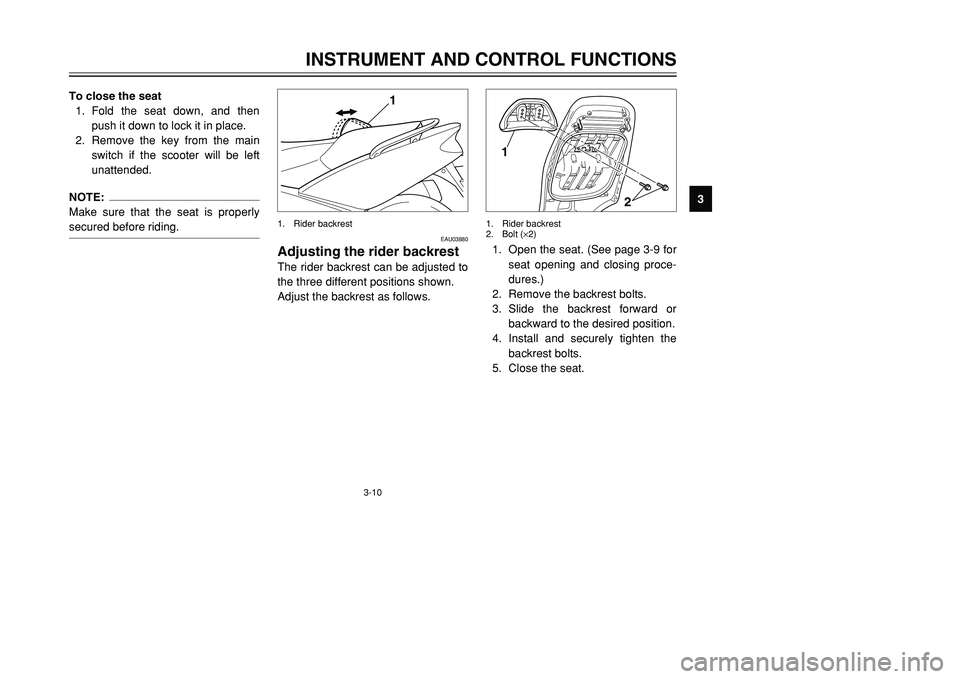

3-10
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9 To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
NOTE:
Make sure that the seat is properly
secured before riding.
1
1. Rider backrest
EAU03880
Adjusting the rider backrestThe rider backrest can be adjusted to
the three different positions shown.
Adjust the backrest as follows.
1
2
1. Rider backrest
2. Bolt (
×2)
1. Open the seat. (See page 3-9 for
seat opening and closing proce-
dures.)
2. Remove the backrest bolts.
3. Slide the backrest forward or
backward to the desired position.
4. Install and securely tighten the
backrest bolts.
5. Close the seat.
5GJ-9-EV 5/26/01 11:04 AM Page 25

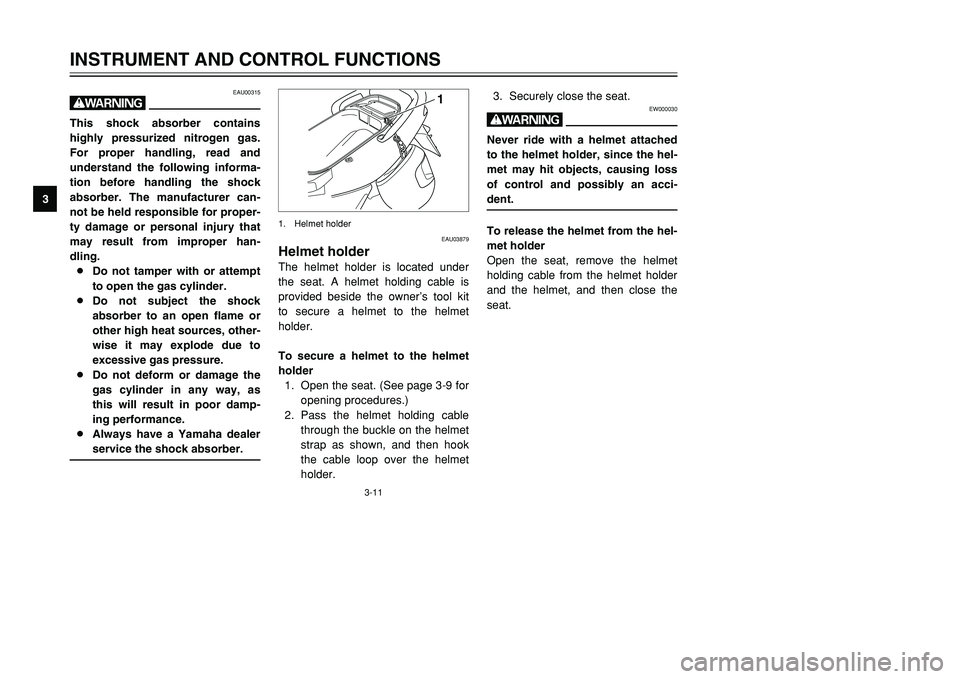

3-11
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
93. Securely close the seat.
EW000030
wNever ride with a helmet attached
to the helmet holder, since the hel-
met may hit objects, causing loss
of control and possibly an acci-
dent.To release the helmet from the hel-
met holder
Open the seat, remove the helmet
holding cable from the helmet holder
and the helmet, and then close the
seat.
EAU00315
wThis shock absorber contains
highly pressurized nitrogen gas.
For proper handling, read and
understand the following informa-
tion before handling the shock
absorber. The manufacturer can-
not be held responsible for proper-
ty damage or personal injury that
may result from improper han-
dling.
8Do not tamper with or attempt
to open the gas cylinder.
8Do not subject the shock
absorber to an open flame or
other high heat sources, other-
wise it may explode due to
excessive gas pressure.
8Do not deform or damage the
gas cylinder in any way, as
this will result in poor damp-
ing performance.
8Always have a Yamaha dealer
service the shock absorber.
1EAU03879
Helmet holderThe helmet holder is located under
the seat. A helmet holding cable is
provided beside the owner’s tool kit
to secure a helmet to the helmet
holder.
To secure a helmet to the helmet
holder
1. Open the seat. (See page 3-9 for
opening procedures.)
2. Pass the helmet holding cable
through the buckle on the helmet
strap as shown, and then hook
the cable loop over the helmet
holder.1. Helmet holder
5GJ-9-EV 5/26/01 11:04 AM Page 26

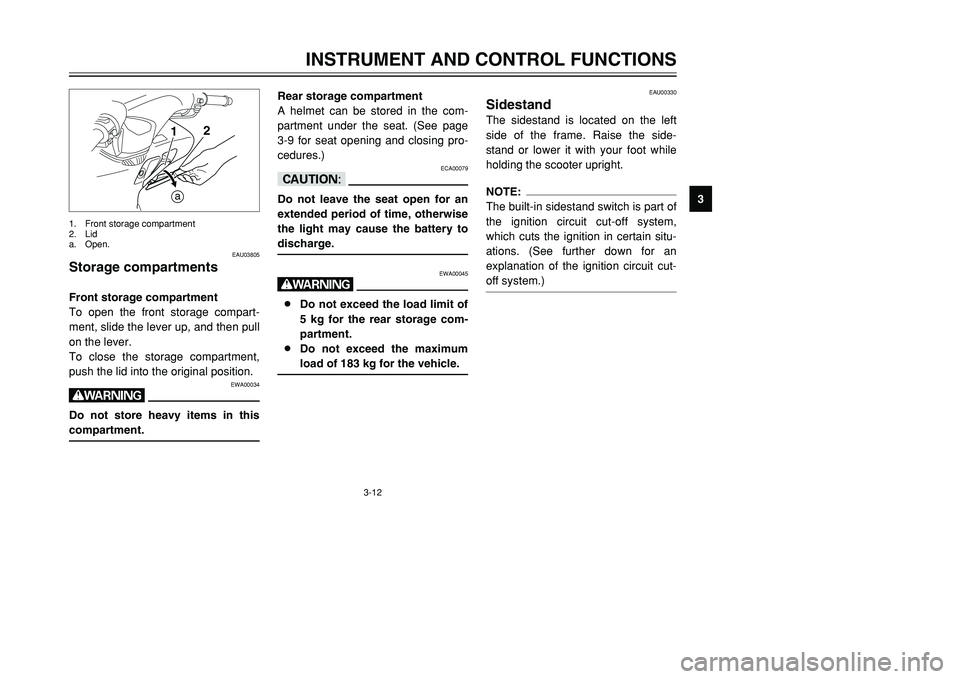

3-12
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
1
a2
EAU03805
Storage compartmentsFront storage compartment
To open the front storage compart-
ment, slide the lever up, and then pull
on the lever.
To close the storage compartment,
push the lid into the original position.
EWA00034
wDo not store heavy items in this
compartment.1. Front storage compartment
2. Lid
a. Open.
Rear storage compartment
A helmet can be stored in the com-
partment under the seat. (See page
3-9 for seat opening and closing pro-
cedures.)
ECA00079
cCDo not leave the seat open for an
extended period of time, otherwise
the light may cause the battery to
discharge.
EWA00045
w8Do not exceed the load limit of
5 kg for the rear storage com-
partment.
8Do not exceed the maximum
load of 183 kg for the vehicle.
EAU00330
SidestandThe sidestand is located on the left
side of the frame. Raise the side-
stand or lower it with your foot while
holding the scooter upright.NOTE:
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain situ-
ations. (See further down for an
explanation of the ignition circuit cut-
off system.)
5GJ-9-EV 5/26/01 11:04 AM Page 27

3-13
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
EW000044
wThe scooter must not be ridden
with the sidestand down, or if the
sidestand cannot be properly
moved up (or does not stay up),
otherwise the sidestand could con-
tact the ground and distract the
operator, resulting in a possible
loss of control. Yamaha’s ignition
circuit cut-off system has been
designed to assist the operator in
fulfilling the responsibility of rais-
ing the sidestand before starting
off. Therefore, check this system
regularly as described below and
have a Yamaha dealer repair it if it
does not function properly.
EAU00337
Ignition circuit cut-off
systemThe ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the follow-
ing functions.
8It prevents starting when the
sidestand is up, but neither brake
is applied.
8It prevents starting when either
brake is applied, but the side-
stand is still down.
8It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
EW000045
wIf a malfunction is noted, have a
Yamaha dealer check the system
before riding.
5GJ-9-EV 5/26/01 11:04 AM Page 28

3-14
The sidestand switch may be defective.The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “#”.
3. Turn the key to “ON”.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
The brake switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.NOTE:This check is most reliable if performed with
a warmed-up engine.
YES NO
The system is OK. The scooter can be ridden.
YES NO
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
5GJ-9-EV 5/26/01 11:04 AM Page 29
