YAMAHA TMAX 2001 Owners Manual

PRINTED ON RECYCLED PAPERPRINTED IN JAPAN
2001·5–0.4×1(E)
!
OWNER’S MANUAL
5GJ-28199-EVXP500
YAMAHA MOTOR CO., LTD.

EAU03338

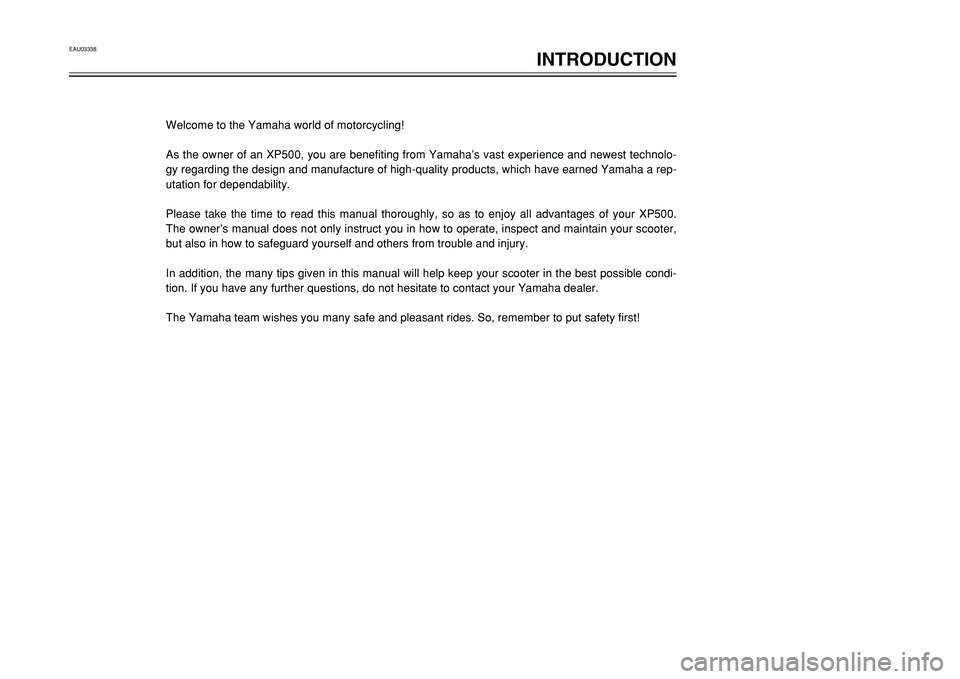

INTRODUCTION
1
2
4
5
6
7
8
9 Welcome to the Yamaha world of motorcycling!
As the owner of an XP500, you are benefiting from Yamaha’s vast experience and newest technolo-
gy regarding the design and manufacture of high-quality products, which have earned Yamaha a rep-
utation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your XP500.
The owner’s manual does not only instruct you in how to operate, inspect and maintain your scooter,
but also in how to safeguard yourself and others from trouble and injury.
In addition, the many tips given in this manual will help keep your scooter in the best possible condi-
tion. If you have any further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
5GJ-9-EV 5/26/01 11:03 AM Page 1

EAU00005

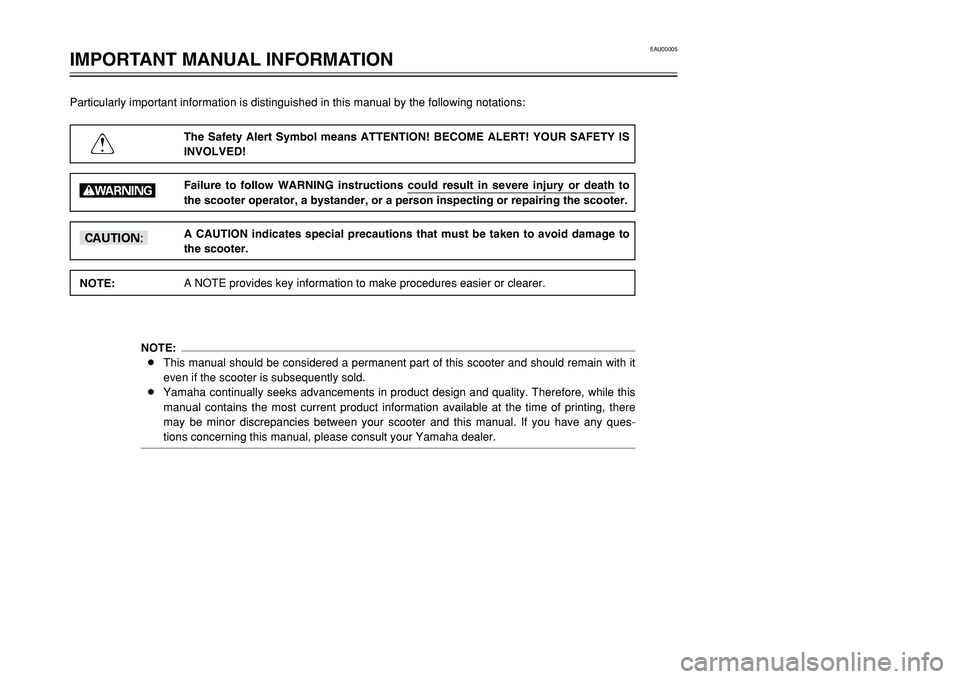

IMPORTANT MANUAL INFORMATION
1
2
3
4
5
6
7
8
9Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death to
the scooter operator, a bystander, or a person inspecting or repairing the scooter.A CAUTION indicates special precautions that must be taken to avoid damage to
the scooter.A NOTE provides key information to make procedures easier or clearer.
Qw
cCNOTE:
NOTE:
8This manual should be considered a permanent part of this scooter and should remain with it
even if the scooter is subsequently sold.
8Yamaha continually seeks advancements in product design and quality. Therefore, while this
manual contains the most current product information available at the time of printing, there
may be minor discrepancies between your scooter and this manual. If you have any ques-
tions concerning this manual, please consult your Yamaha dealer.
5GJ-9-EV 5/26/01 11:03 AM Page 2

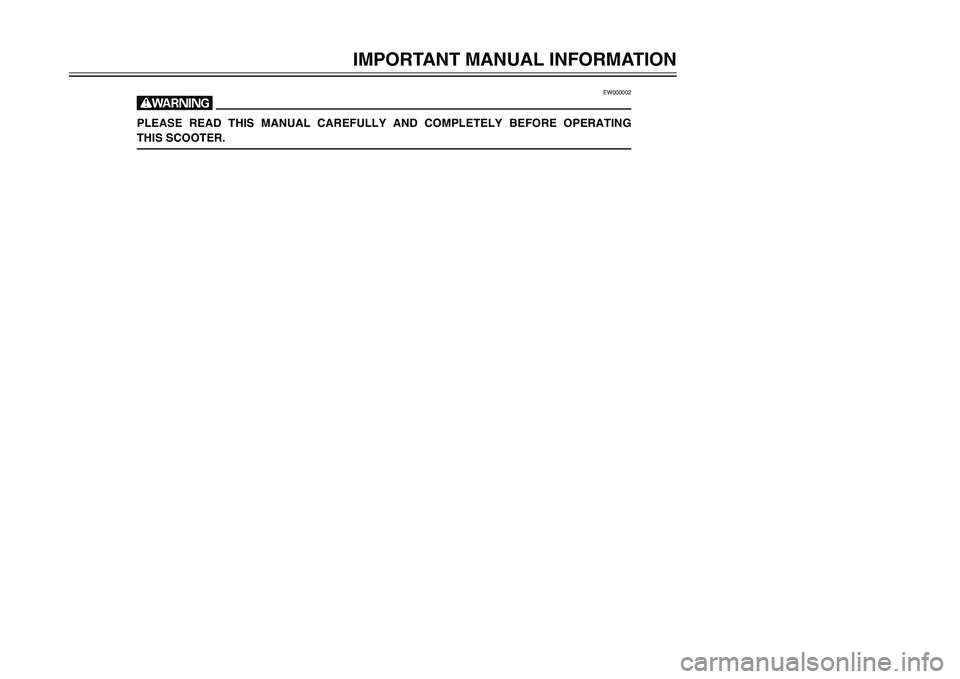

IMPORTANT MANUAL INFORMATION
1
2
4
5
6
7
8
9
EW000002
wPLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING
THIS SCOOTER.
5GJ-9-EV 5/26/01 11:03 AM Page 3

1
2
3
4
5
6
7
8

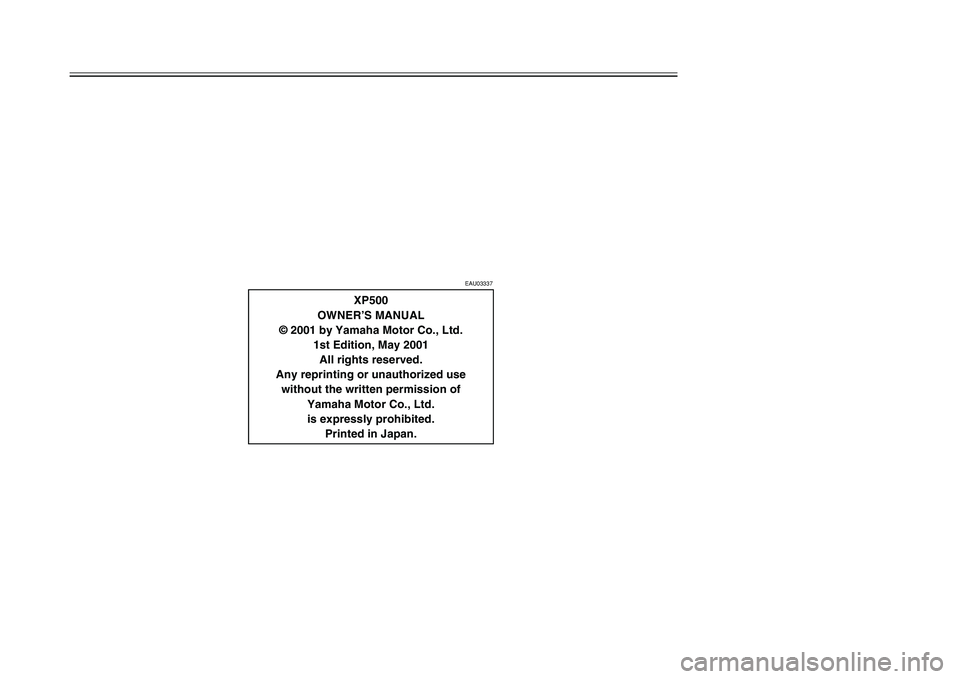

9XP500
OWNER’S MANUAL
© 2001 by Yamaha Motor Co., Ltd.
1st Edition, May 2001
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.
EAU03337
5GJ-9-EV 5/26/01 11:03 AM Page 4

EAU00009

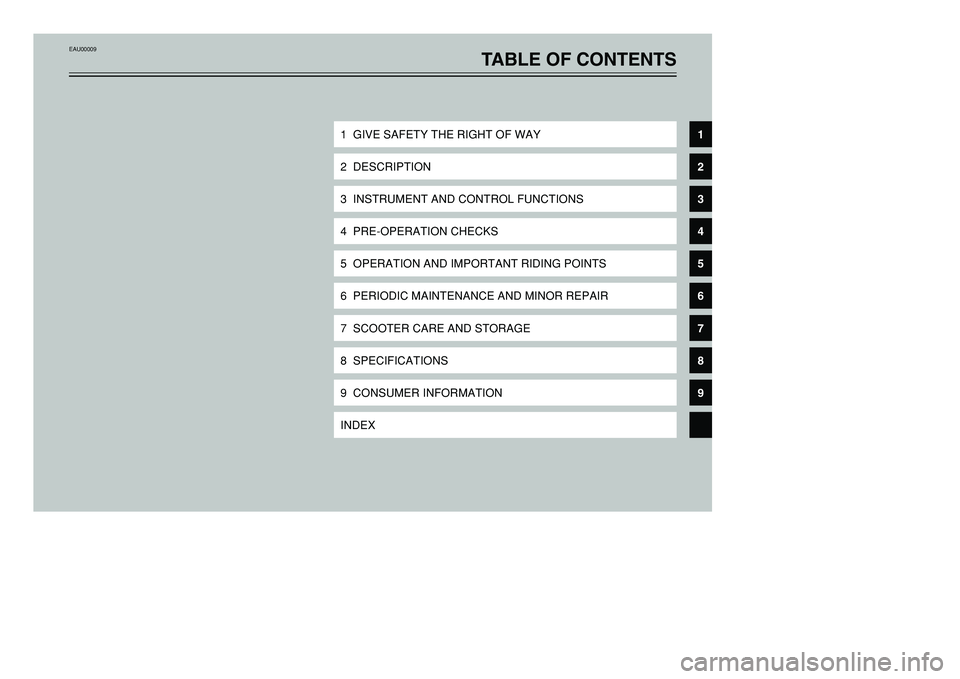

TABLE OF CONTENTS
1 GIVE SAFETY THE RIGHT OF WAY2 DESCRIPTION3 INSTRUMENT AND CONTROL FUNCTIONS4 PRE-OPERATION CHECKS5 OPERATION AND IMPORTANT RIDING POINTS6 PERIODIC MAINTENANCE AND MINOR REPAIR7 SCOOTER CARE AND STORAGE8 SPECIFICATIONS9 CONSUMER INFORMATIONINDEX
987654321
5GJ-9-EV 5/26/01 11:03 AM Page 5

5GJ-9-EV 5/26/01 11:03 AM Page 6

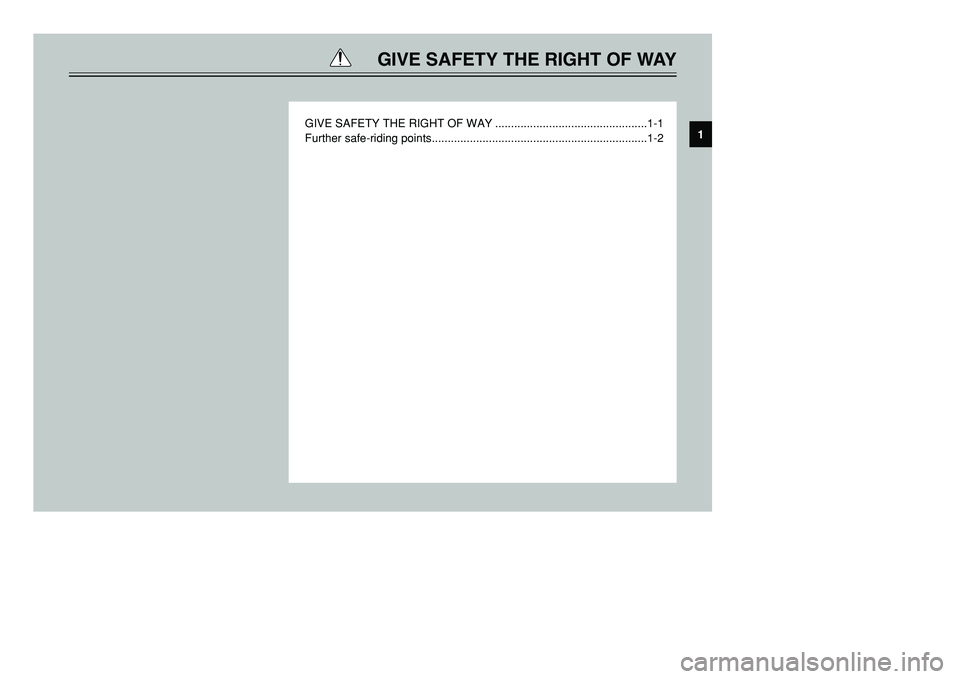

GIVE SAFETY THE RIGHT OF WAY
GIVE SAFETY THE RIGHT OF WAY ................................................1-1
Further safe-riding points....................................................................1-2
1
5GJ-9-EV 5/26/01 11:03 AM Page 7

1-1
EAU00021

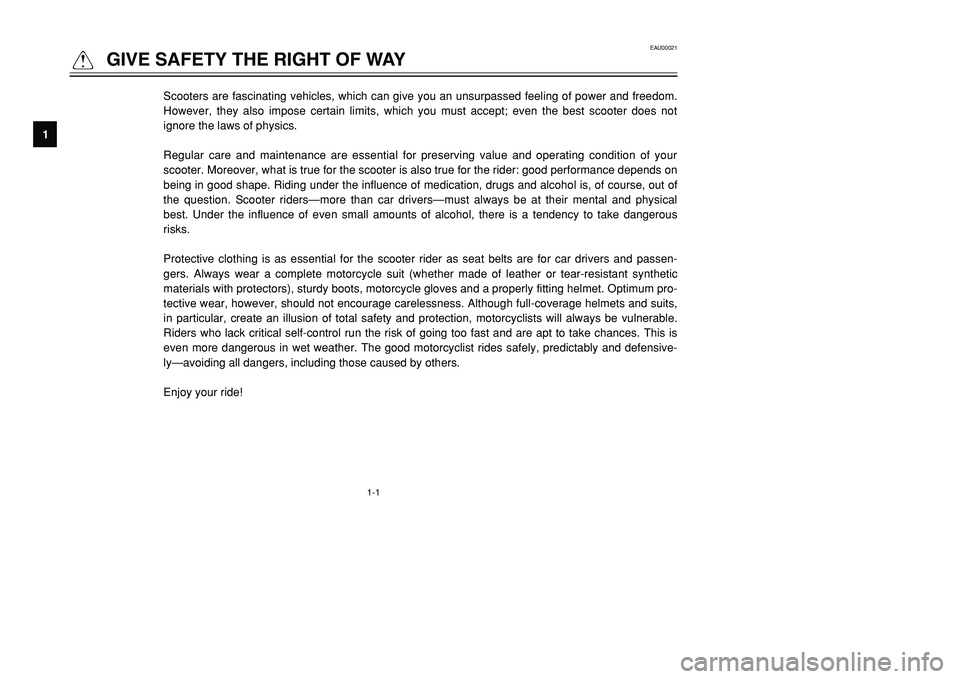

QGIVE SAFETY THE RIGHT OF WAY
1
2
3
4
5
6
7
8
9Scooters are fascinating vehicles, which can give you an unsurpassed feeling of power and freedom.
However, they also impose certain limits, which you must accept; even the best scooter does not
ignore the laws of physics.
Regular care and maintenance are essential for preserving value and operating condition of your
scooter. Moreover, what is true for the scooter is also true for the rider: good performance depends on
being in good shape. Riding under the influence of medication, drugs and alcohol is, of course, out of
the question. Scooter riders—more than car drivers—must always be at their mental and physical
best. Under the influence of even small amounts of alcohol, there is a tendency to take dangerous
risks.
Protective clothing is as essential for the scooter rider as seat belts are for car drivers and passen-
gers. Always wear a complete motorcycle suit (whether made of leather or tear-resistant synthetic
materials with protectors), sturdy boots, motorcycle gloves and a properly fitting helmet. Optimum pro-
tective wear, however, should not encourage carelessness. Although full-coverage helmets and suits,
in particular, create an illusion of total safety and protection, motorcyclists will always be vulnerable.
Riders who lack critical self-control run the risk of going too fast and are apt to take chances. This is
even more dangerous in wet weather. The good motorcyclist rides safely, predictably and defensive-
ly—avoiding all dangers, including those caused by others.
Enjoy your ride!5GJ-9-EV 5/26/01 11:03 AM Page 8

1-2
QGIVE SAFETY THE RIGHT OF WAY
1
2
3
4
5
6
7
8
9
EAU03099
Further safe-riding points8Be sure to signal clearly when making turns.
8Braking can be extremely difficult on a wet road. Avoid hard braking, because the scooter could
slide. Apply the brakes slowly when stopping on a wet surface.
8Slow down as you approach a corner or turn. Once you have completed a turn, accelerate slowly.
8Be careful when passing parked cars. A driver might not see you and open a door in your path.
8Railroad crossings, streetcar rails, iron plates on road construction sites, and manhole covers
become extremely slippery when wet. Slow down and cross them with caution. Keep the scooter
upright, otherwise it could slide out from under you.
8The brake pads could get wet when you wash the scooter. After washing the scooter, check the
brakes before riding.
8Always wear a helmet, gloves, trousers (tapered around the cuff and ankle so they do not flap),
and a bright colored jacket.
8Do not carry too much luggage on the scooter. An overloaded scooter is unstable.
5GJ-9-EV 5/26/01 11:03 AM Page 9
