6-34
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
1
EAU03875

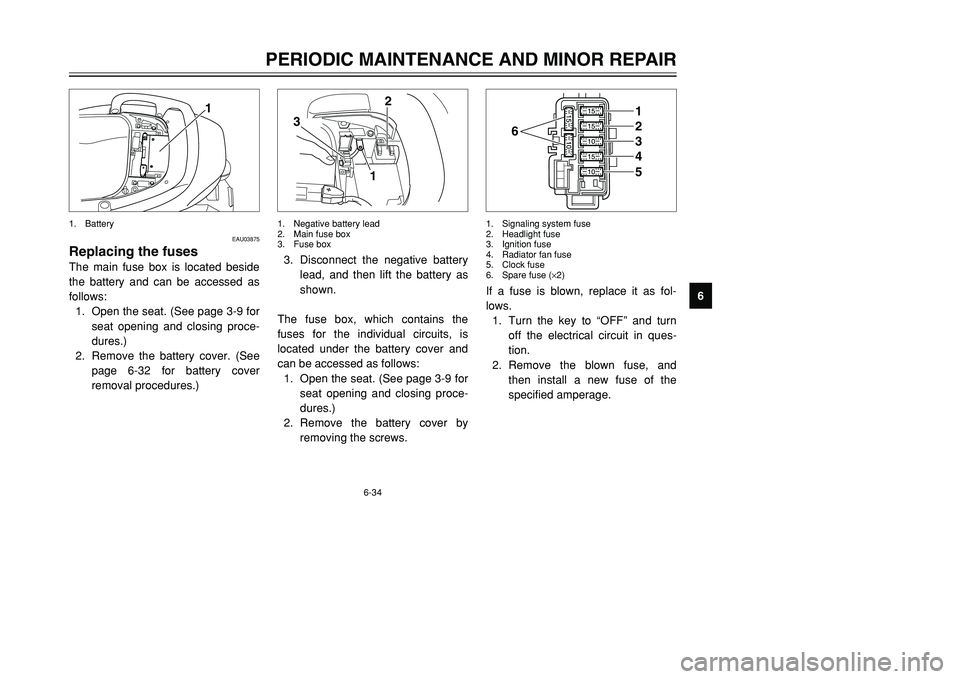

Replacing the fusesThe main fuse box is located beside
the battery and can be accessed as
follows:
1. Open the seat. (See page 3-9 for
seat opening and closing proce-
dures.)
2. Remove the battery cover. (See
page 6-32 for battery cover
removal procedures.)1. Battery
12
3
3. Disconnect the negative battery
lead, and then lift the battery as
shown.
The fuse box, which contains the
fuses for the individual circuits, is
located under the battery cover and
can be accessed as follows:
1. Open the seat. (See page 3-9 for
seat opening and closing proce-
dures.)
2. Remove the battery cover by
removing the screws.1. Negative battery lead
2. Main fuse box
3. Fuse box
If a fuse is blown, replace it as fol-
lows.
1. Turn the key to “OFF” and turn
off the electrical circuit in ques-
tion.
2. Remove the blown fuse, and
then install a new fuse of the
specified amperage.
6
12345
1. Signaling system fuse
2. Headlight fuse
3. Ignition fuse
4. Radiator fan fuse
5. Clock fuse
6. Spare fuse (×2)
5GJ-9-EV 5/26/01 11:04 AM Page 75
