6-3
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EAU03685
Periodic maintenance and lubrication chart
NOTE:
8The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.
8From 50,000 km, repeat the maintenance intervals starting from 10,000 km.
8Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
1
*Fuel line•Check fuel hoses and vacuum hose for cracks or damage.√√√√ √
2*Fuel filter•Check condition.√√
3 Spark plugs•Check condition.
•Clean and regap.√√
•Replace.√√
4*Valves•Check valve clearance.
•Adjust.Every 40,000 km
5 Air filter element•Clean.√√
•Replace.√√
6*V-belt case air filter
elements•Clean.√√
•Replace.√√
7*Front brake•Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-5.)√√√√√ √
•Replace brake pads.Whenever worn to the limit
5GJ-9-EV 5/26/01 11:04 AM Page 44

6-11
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9To check the spark plugs
1. Check that the porcelain insula-
tor around the center electrode
on each spark plug is a medium-
to-light tan (the ideal color when
the scooter is ridden normally).
2. Check that all spark plugs
installed in the engine have the
same color.
NOTE:
If any spark plug shows a distinctly
different color, the engine could be
defective. Do not attempt to diagnose
such problems yourself. Instead,
have a Yamaha dealer check the
scooter.3. Check each spark plug for elec-
trode erosion and excessive car-
bon or other deposits, and
replace it if necessary.To install a spark plug
1. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to
specification.
2. Clean the surface of the spark
plug gasket and its mating sur-
face, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then
tighten it to the specified torque.
NOTE:
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is
1/4–1/2 turn past finger tight.
However, the spark plug should be
tightened to the specified torque as
soon as possible.4. Install the spark plug cap.
Specified spark plug:
CR7E (NGK)
Spark plug gap:
0.7–0.8 mm
Tightening torque:
Spark plug:
12.5 Nm (1.25 m0kg)
a
a. Spark plug gap
5GJ-9-EV 5/26/01 11:04 AM Page 52

6-37
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EAU02990
Troubleshooting chartsStarting problems or poor engine performance
EW000125
wKeep away open flames and do not smoke while checking or working on the fuel system.Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.DryWet
The engine does not start.
Check the battery.Open the throttle halfway and operate
the electric starter.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
5GJ-9-EV 5/26/01 11:04 AM Page 78

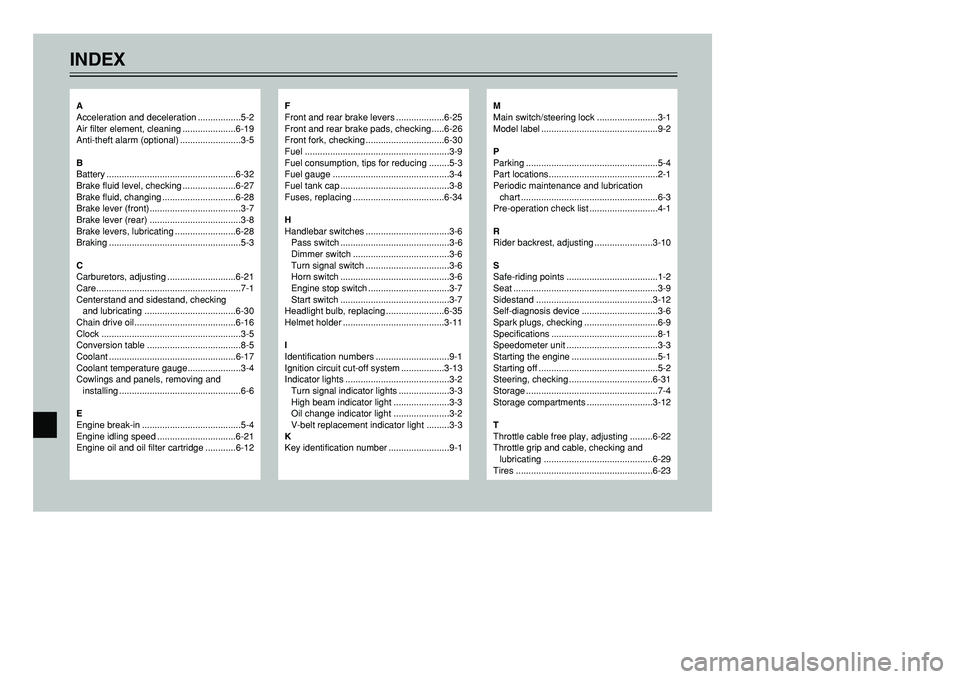

INDEX
F
Front and rear brake levers ...................6-25
Front and rear brake pads, checking.....6-26
Front fork, checking ...............................6-30
Fuel .........................................................3-9
Fuel consumption, tips for reducing ........5-3
Fuel gauge ..............................................3-4
Fuel tank cap ...........................................3-8
Fuses, replacing ....................................6-34
H
Handlebar switches .................................3-6
Pass switch ...........................................3-6
Dimmer switch ......................................3-6
Turn signal switch .................................3-6
Horn switch ...........................................3-6
Engine stop switch ................................3-7
Start switch ...........................................3-7
Headlight bulb, replacing .......................6-35
Helmet holder ........................................3-11
I
Identification numbers .............................9-1
Ignition circuit cut-off system .................3-13
Indicator lights .........................................3-2
Turn signal indicator lights ....................3-3
High beam indicator light ......................3-3
Oil change indicator light ......................3-2
V-belt replacement indicator light .........3-3
K
Key identification number ........................9-1
M
Main switch/steering lock ........................3-1
Model label ..............................................9-2
P
Parking ....................................................5-4
Part locations...........................................2-1
Periodic maintenance and lubrication
chart ......................................................6-3
Pre-operation check list ...........................4-1
R
Rider backrest, adjusting .......................3-10
S
Safe-riding points ....................................1-2
Seat .........................................................3-9
Sidestand ..............................................3-12
Self-diagnosis device ..............................3-6
Spark plugs, checking .............................6-9
Specifications ..........................................8-1
Speedometer unit ....................................3-3
Starting the engine ..................................5-1
Starting off ...............................................5-2
Steering, checking .................................6-31
Storage ....................................................7-4
Storage compartments ..........................3-12
T
Throttle cable free play, adjusting .........6-22
Throttle grip and cable, checking and
lubricating ...........................................6-29
Tires ......................................................6-23
A
Acceleration and deceleration .................5-2
Air filter element, cleaning .....................6-19
Anti-theft alarm (optional) ........................3-5
B
Battery ...................................................6-32
Brake fluid level, checking .....................6-27
Brake fluid, changing .............................6-28
Brake lever (front)....................................3-7
Brake lever (rear) ....................................3-8
Brake levers, lubricating ........................6-28
Braking ....................................................5-3
C
Carburetors, adjusting ...........................6-21
Care.........................................................7-1
Centerstand and sidestand, checking
and lubricating ....................................6-30
Chain drive oil........................................6-16
Clock .......................................................3-5
Conversion table .....................................8-5
Coolant ..................................................6-17
Coolant temperature gauge.....................3-4
Cowlings and panels, removing and
installing ................................................6-6
E
Engine break-in .......................................5-4
Engine idling speed ...............................6-21
Engine oil and oil filter cartridge ............6-12
5GJ-9-EV 5/26/01 11:04 AM Page 96
