EAU04402
ClockClockThe digital clock shows the time
regardless of the main switch posi-
tion.
To set the clock:
1. Push or hold the hour setting
button “h” to change the hours.
2. Push or hold the minute setting
button “m” to change the min-
utes.
NOTE:
To set the clock after the power
source has been cut, first set the time
to 1:00 AM, and then set the clock to
the correct time.
EAU03840
Self-diagnosis deviceSelf-diagnosis deviceThis model is equipped with a self-
diagnosis device for the throttle posi-
tion sensor, the speed sensor, and
the overturn switch. If any of those
circuits are defective, the oil change
indicator light will flash.
If the indicator light flashes, have a
Yamaha dealer check the scooter as
soon as possible.NOTE:
The oil change indicator light may
flash when the engine is revved with
the scooter on the centerstand, but
this does not indicate a malfunction.
INSTRUMENT AND CONTROL FUNCTIONS
3
1 23
1. Digital clock
2. Hour setting button “h”
3. Minute setting button “m”
5GJ-9-E1 9/4/01 1:27 PM Page 20

3-6
INSTRUMENT AND CONTROL FUNCTIONS
3
EAU00109
Anti-theft alarm (optional)Anti-theft alarm (optional)This scooter can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU03826
Hazard switch “0”Hazard switchWith the key in the “ON” or “
.” posi-
tion, use this switch to turn on the
hazard light (simultaneous flashing of
all turn signal lights).
The hazard light is used in case of an
emergency or to warn other drivers
when your scooter is stopped where
it might be a traffic hazard.EC000006
cCDo not use the hazard light for an
extended length of time, otherwise
the battery may discharge.
EAU00118
Handlebar switchesHandlebar switches
EAU00120
Pass switch “PASS”Pass switchPress this switch to flash the head-
light.
EAU03888
Dimmer switch “&/%”Dimmer switchSet this switch to “&” for the high
beam and to “%” for the low beam.
12
34
5
1. Pass switch “PASS”
2. Dimmer switch “&/%”
3. Turn signal switch “4/6”
4. Horn switch “*”
5. Hazard switch “0”
5GJ-9-E1 9/4/01 1:27 PM Page 21

3-7
EAU03889
Turn signal switch “4/6”Turn signal switchTo signal a right-hand turn, push this
switch to “6”. To signal a left-hand
turn, push this switch to “4”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after
it has returned to the center position.
EAU00129
Horn switch “*”Horn switchPress this switch to sound the horn.
EAU03801
Start switch “,”Start switchWith the sidestand up, push this
switch while applying the front or rear
brake to crank the engine with the
starter.
EC000005
cCSee page 5-1 for starting instruc-
tions prior to starting the engine.
INSTRUMENT AND CONTROL FUNCTIONS
3
12
34
5
1. Pass switch “PASS”
2. Dimmer switch “&/%”
3. Turn signal switch “4/6”
4. Horn switch “*”
5. Hazard switch “0”
EAU03890
Engine stop switch “#/$”Engine stop switchSet this switch to “#” before starting
the engine. Set this switch to “$” to
stop the engine in case of an emer-
gency, such as when the scooter
overturns or when the throttle cable is
stuck.
EAU03898
Light switch “9/
'
/:”
Light switchSet this switch to “
'
” to turn on the
auxiliary light, meter lighting and tail-
light. Set the switch to “:” to turn on
the headlight also. Set the switch to
“9” to turn off all the lights.
123
1. Engine stop switch “#/$”
2. Light switch “9/
'
/:”
3. Start switch “,”
5GJ-9-E1 9/4/01 1:27 PM Page 22

3-8
INSTRUMENT AND CONTROL FUNCTIONS
3
EAU00136

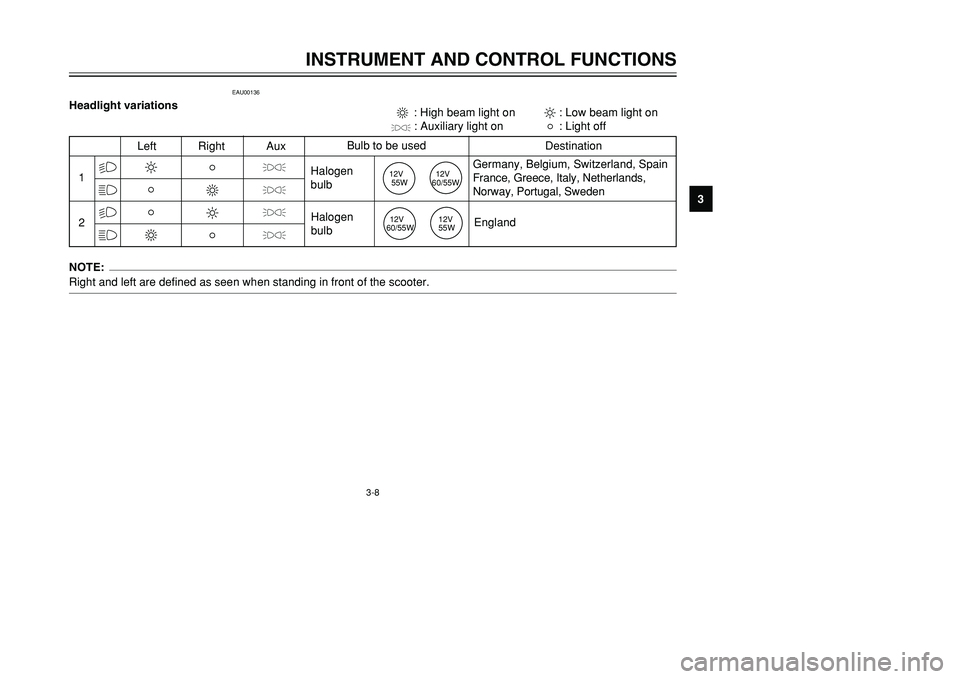

Headlight variationsNOTE:
Right and left are defined as seen when standing in front of the scooter.1
2
%
% &
&
Left Right AuxBulb to be used
Destination2
1
1
31
3
2
1
Halogen
bulb
Halogen
bulbGermany, Belgium, Switzerland, Spain
France, Greece, Italy, Netherlands,
Norway, Portugal, Sweden
England 3 : High beam light on 2: Low beam light on
'
: Auxiliary light on 1: Light off
12V
55W
12V
60/55W
12V
60/55W
12V
55W '
'
'
'
5GJ-9-E1 9/4/01 1:27 PM Page 23

3-9
EAU03882
Front brake leverBrake lever, frontThe front brake lever is located on
the right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.INSTRUMENT AND CONTROL FUNCTIONS
3
1
1. Front brake lever
EAU00163
Rear brake leverBrake lever, rearThe rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the han-
dlebar grip.
1
1. Rear brake lever
EAU03881
Fuel tank capFuel tank capTo remove the fuel tank cap
1. Open the lid by pulling the lever
up.
2. Insert the key into the lock and
turn it clockwise. The lock will be
released and the fuel tank cap
can be removed.
1
1. Lid
5GJ-9-E1 9/4/01 1:27 PM Page 24

3-10
INSTRUMENT AND CONTROL FUNCTIONS
3
To install the fuel tank cap
1. Align the match marks, insert the
fuel tank cap into the tank open-
ing, and then push down on the
cap.
2. Turn the key counterclockwise to
the original position, and then
remove it.
3. Close the lid.
EWA00047
wMake sure that the fuel tank cap is
properly installed and locked in
place before riding the scooter.
1
1. Match marks
EAU03753
FuelFuelMake sure that there is sufficient fuel
in the tank. Fill the fuel tank to the
bottom of the filler tube as shown.
EW000130
w8Do not overfill the fuel tank,
otherwise it may overflow
when the fuel warms up and
expands.
8Avoid spilling fuel on the hot
engine.211. Fuel tank filler tube
2. Fuel level
EAU00185
cCImmediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted sur-
faces or plastic parts.
5GJ-9-E1 9/4/01 1:27 PM Page 25

3-11
INSTRUMENT AND CONTROL FUNCTIONS
3
EAU04284
ECA00104
cCUse only unleaded gasoline. The
use of leaded gasoline will cause
severe damage to internal engine
parts, such as the valves and pis-
ton rings, as well as to the exhaust
system.
Your Yamaha engine has been
designed to use regular unleaded
gasoline with a research octane num-
ber of 91 or higher. If knocking (or
pinging) occurs, use a gasoline of a
different brand or premium unleaded
fuel. Use of unleaded fuel will extend
spark plug life and reduce mainte-
nance costs.
EAU03802
SeatSeatTo open the seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise.NOTE:
Do not push inward when turning the
key.3. Fold the seat up.
IGNITION
P
LOCK
ON
OFF
OPENPUSHPUSH
Recommended fuel:
REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity:
Total amount:
14 L
5GJ-9-E1 9/4/01 1:27 PM Page 26

3-12
INSTRUMENT AND CONTROL FUNCTIONS
3 To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
NOTE:
Make sure that the seat is properly
secured before riding.
EAU03880
Adjusting the rider backrestRider backrest, adjustingThe rider backrest can be adjusted to
the three different positions shown.
Adjust the backrest as follows.
1
1. Rider backrest
1. Open the seat. (See page 3-11
for seat opening and closing pro-
cedures.)
2. Remove the backrest bolts.
3. Slide the backrest forward or
backward to the desired position.
4. Install and securely tighten the
backrest bolts.
5. Close the seat.1
2
1. Rider backrest
2. Bolt (
×2)
5GJ-9-E1 9/4/01 1:27 PM Page 27

3-13
EAU03879
Helmet holderHelmet holderThe helmet holder is located under
the seat. A helmet holding cable is
provided beside the owner’s tool kit
to secure a helmet to the helmet
holder.
To secure a helmet to the helmet
holder
1. Open the seat. (See page 3-11
for opening procedures.)
2. Pass the helmet holding cable
through the buckle on the helmet
strap as shown, and then hook
the cable loop over the helmet
holder.3. Securely close the seat.
EW000030
wNever ride with a helmet attached
to the helmet holder, since the hel-
met may hit objects, causing loss
of control and possibly an acci-
dent.To release the helmet from the hel-
met holder
Open the seat, remove the helmet
holding cable from the helmet holder
and the helmet, and then close the
seat.
INSTRUMENT AND CONTROL FUNCTIONS
3
1
1. Helmet holder
EAU01343
Shock absorberShock absorber
EAU00315
wThis shock absorber contains
highly pressurized nitrogen gas.
For proper handling, read and
understand the following informa-
tion before handling the shock
absorber. The manufacturer can-
not be held responsible for proper-
ty damage or personal injury that
may result from improper han-
dling.
8Do not tamper with or attempt
to open the gas cylinder.
8Do not subject the shock
absorber to an open flame or
other high heat sources, other-
wise it may explode due to
excessive gas pressure.
8Do not deform or damage the
gas cylinder in any way, as
this will result in poor damp-
ing performance.
8Always have a Yamaha dealer
service the shock absorber.
5GJ-9-E1 9/4/01 1:27 PM Page 28

3-14
INSTRUMENT AND CONTROL FUNCTIONS
3
EAU03805

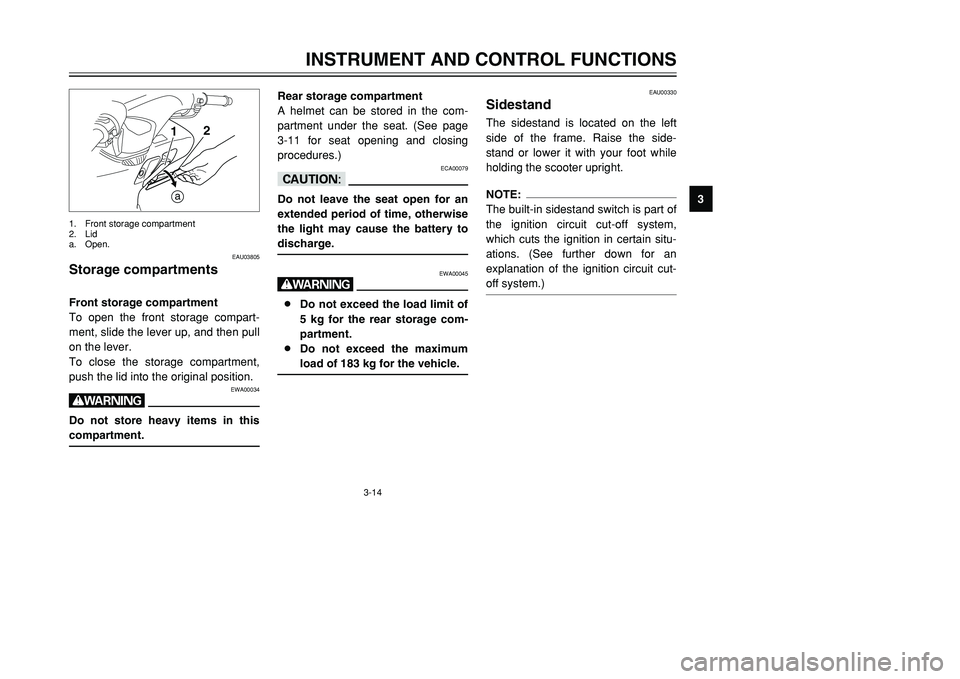

Storage compartmentsStorage compartmentsFront storage compartment
To open the front storage compart-
ment, slide the lever up, and then pull
on the lever.
To close the storage compartment,
push the lid into the original position.
EWA00034
wDo not store heavy items in this
compartment.
Rear storage compartment
A helmet can be stored in the com-
partment under the seat. (See page
3-11 for seat opening and closing
procedures.)
ECA00079
cCDo not leave the seat open for an
extended period of time, otherwise
the light may cause the battery to
discharge.
EWA00045
w8Do not exceed the load limit of
5 kg for the rear storage com-
partment.
8Do not exceed the maximum
load of 183 kg for the vehicle.
EAU00330
SidestandSidestandThe sidestand is located on the left
side of the frame. Raise the side-
stand or lower it with your foot while
holding the scooter upright.NOTE:
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain situ-
ations. (See further down for an
explanation of the ignition circuit cut-
off system.)
1
a2
1. Front storage compartment
2. Lid
a. Open.
