PERIODIC MAINTENANCE AND ADJUSTMENT
7-2
1
2
3
4
5
678
9
10
11
12
EAU17392

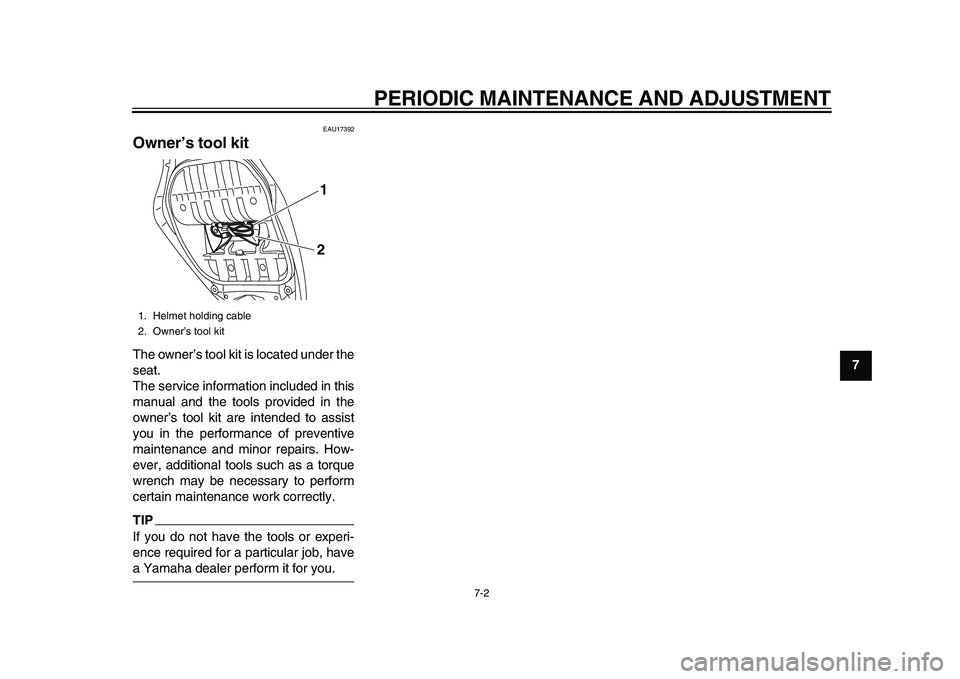

Owner’s tool kitThe owner’s tool kit is located under the
seat.
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.TIPIf you do not have the tools or experi-
ence required for a particular job, havea Yamaha dealer perform it for you.1. Helmet holding cable
2. Owner’s tool kit
12
2PW-9-E0_1.book 2 ページ ２０１５年２月１９日　木曜日　午後３時３０分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-3
1
2
3
4
5
67
8
9
10
11
12
EAU46862
TIP
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.

From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).

Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
EAU46911
Periodic maintenance chart for the emission control systemNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 *Fuel line Check fuel hoses for cracks or
damage. 
2 *Spark plugs Check condition.
Clean and regap.


3 *Valves Check valve clearance.
Adjust. Every 40000 km (24000 mi)
4 *Fuel injection Adjust engine idling speed and
synchronization. 
2PW-9-E0_1.book 3 ページ ２０１５年２月１９日　木曜日　午後３時３０分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-4
1
2
3
4
5
678
9
10
11
12
EAU1770K

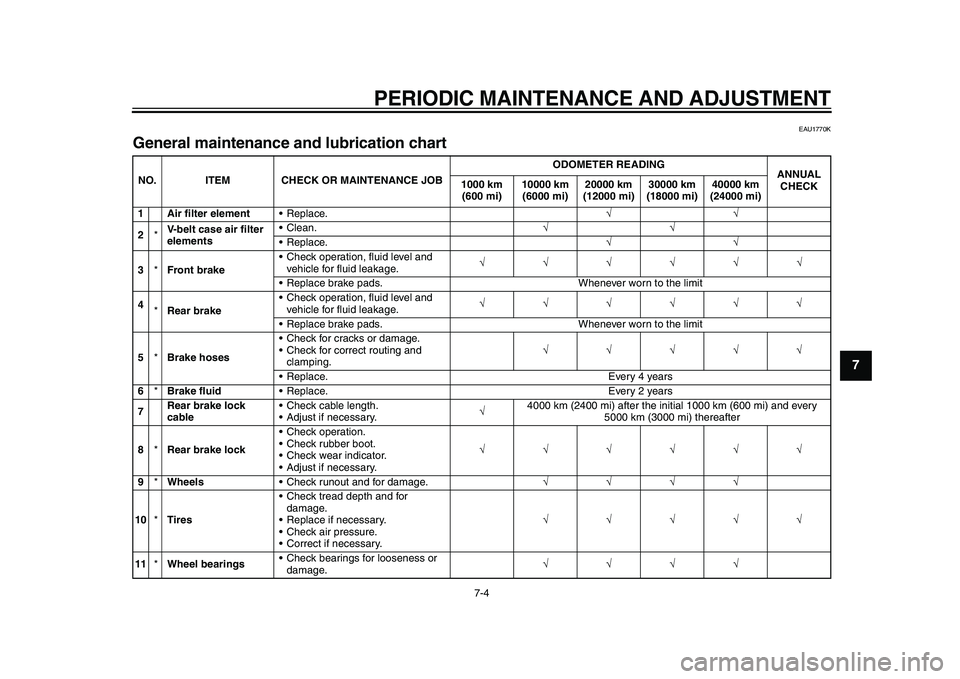

General maintenance an d lubrication chartNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 Air filter element Replace. 
2 *V-belt case air filter
elements Clean.

Replace. 
3 *Front brake Check operation, fluid level and
vehicle for fluid leakage. 
Replace brake pads. Whenever worn to the limit
4 *Rear brake Check operation, fluid level and
vehicle for fluid leakage. 
Replace brake pads. Whenever worn to the limit
5 *Brake hoses Check for cracks or damage.
Check for correct routing and
clamping. 
Replace. Every 4 years
6 *Brake fluid Replace. Every 2 years
7 Rear brake lock
cable Check cable length.
Adjust if necessary.
4000 km (2400 mi) after the initial 1000 km (600 mi) and every
5000 km (3000 mi) thereafter
8 *Rear brake lock Check operation.
Check rubber boot.
Check wear indicator.
Adjust if necessary. 
9 *Wheels Check runout and for damage. 
10 *Tires Check tread depth and for
damage.
Replace if necessary.
Check air pressure.
Correct if necessary. 
11 *Wheel bearings Check bearings fo
r looseness or
damage. 
2PW-9-E0_1.book 4 ページ ２０１５年２月１９日　木曜日　午後３時３０分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-5
1
2
3
4
5
67
8
9
10
11
12
12 *Drive belt Check belt condition.
Replace if damaged.
Check belt tension.
Adjust if necessary. 
Every 10000 km (6000 mi) until 40000 km (24000 mi), and every
5000 km (3000 mi) thereafter
13 *Drive pulley and
drive axle Lubricate.

14 *Steering bearings Check bearing play and steering
for roughness. 
Lubricate with lithium-soap-based grease. Every 20000 km (12000 mi)
15 *Chassis fasteners Make sure that all nuts, bolts and
screws are properly tightened. 
16 Front brake lever
pivot shaft Lubricate with silicone grease.

17 Rear brake lever
pivot shaft Lubricate with silicone grease.

18 Sidestand,
centerstand Check operation.
Lubricate with lithium-soap-based
grease. 
19 *Sidestand switch Check operation. 
20 *Front fork Check operation and for oil
leakage. 
21 *Shock absorber
assembly Check operation and shock
absorber for oil leakage. 
22 Engine oil Change. (See pages 4-6 and
7-11.) 
When the oil change indicator flashes
Check oil level and vehicle for oil leakage. Every 5000 km (3000 mi)

23 Engine oil filter
cartridge

NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)2PW-9-E0_1.book 5 ページ ２０１５年２月１９日　木曜日　午後３時３０分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-6
1
2
3
4
5
678
9
10
11
12

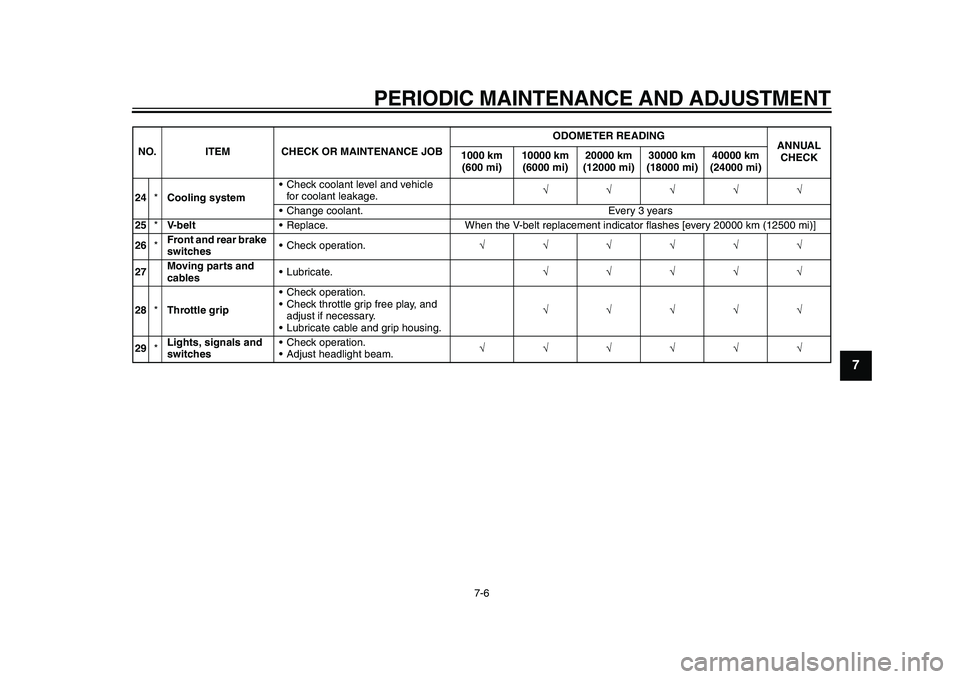

24 *Cooling system Check coolant level and vehicle
for coolant leakage. 
Change coolant. Every 3 years
25 *V- b e l t Replace. When the V-belt replacement indicator flashes [every 20000 km (12500 mi)]
26 *Front and rear brake
switches Check operation.

27 Moving parts and
cables Lubricate.

28 *Throttle grip Check operation.
Check throttle grip free play, and
adjust if necessary.
Lubricate cable and grip housing. 
29 *Lights, signals and
switches Check operation.
Adjust headlight beam.

NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
2PW-9-E0_1.book 6 ページ ２０１５年２月１９日　木曜日　午後３時３０分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-7
1
2
3
4
5
67
8
9
10
11
12
EAU38263
TIP
Engine air filter and V-belt air filters
This model’s engine air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with
compressed air to avoid damaging it.
The engine air filter element needs to be replaced and the V- belt air filter elements need to be serviced more frequent-
ly when riding in unusuall y wet or dusty areas.

Hydraulic brake service
After disassembling the brake master cylinders and calipers, always change the fluid. Regu larly check the brake fluid
levels and fill the reservoirs as required.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake fluid. Replace the brake hoses every four years and if cracked or damaged.
2PW-9-E0_1.book 7 ページ ２０１５年２月１９日　木曜日　午後３時３０分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-8
1
2
3
4
5
678
9
10
11
12
EAU18773
Removing and installing
panelsThe panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU63780
Panel A
To remove the panel1. Remove the quick fasteners.
2. Remove the panel by pulling it out- ward as shown. To install the panel
Place the panel in the original position,
and then install the quick fasteners.
Panel B
To remove the panel1. Remove the quick fastener.
1. Panel A
2. Panel B
3. Panel C
23
1
1. Panel D
1
1. Quick fastener
2. Panel A
12
2PW-9-E0_1.book 8 ページ ２０１５年２月１９日　木曜日　午後３時３０分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-9
1
2
3
4
5
67
8
9
10
11

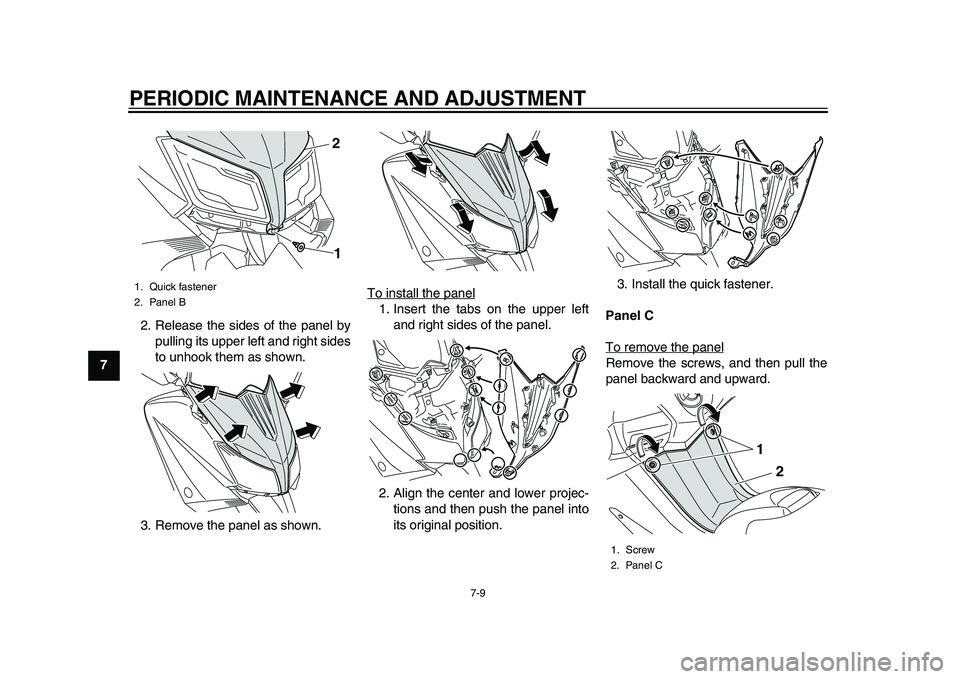

12 2. Release the sides of the panel by
pulling its upper left and right sides
to unhook them as shown.
3. Remove the panel as shown. To install the panel
1. Insert the tabs on the upper left
and right sides of the panel.
2. Align the center and lower projec- tions and then push the panel into
its original position. 3. Install the quick fastener.
Panel C
To remove the panel
Remove the screws, and then pull the
panel backward and upward.
1. Quick fastener
2. Panel B
12
1. Screw
2. Panel C
2
1
2PW-9-E0_1.book 9 ページ ２０１５年２月１９日　木曜日　午後３時３０分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-10
1
2
3
4
5
678
9
10
11
12
To install the panel
Place the panel in the original position,
and then install the screws.
Panel D
To remove the panelRemove the screws, and then pull the
panel outward.
To install the panelPlace the panel in the original position,
and then install the screws.
EAU19643
Checking the spark plugsThe spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be operating im-
properly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.
1. Screw
2. Panel D
1
2
1
Specified spark plug:
NGK/CR7E
2PW-9-E0_1.book 10 ページ ２０１５年２月１９日　木曜日　午後３時３０分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-11
1
2
3
4
5
67
8
9
10
11
12 Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
TIPIf a torque wrench is not available when installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
EAU1985D
Engine oil and oil filter
cartridgeThe engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on the center- stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for two minutes, and then turn it off.NOTICE
ECA11291
The engine must be cold before pro-
ceeding with the oil level check, oth-
erwise the check will result in a falsereading.
3. Wait two minutes until the oil set- tles, and then check the oil level
through the check window located
at the bottom-left side of the crank-
case.
1. Spark plug gapSpark plug gap:0.7–0.8 mm (0.028–0.031 in)
Tightening torque: Spark plug:13 Nm (1.3 m·kgf, 9.4 ft·lbf)
