INSTRUMENT AND CONTROL FUNCTIONS
4-14
1
2
345
6
7
8
9
10
11
12

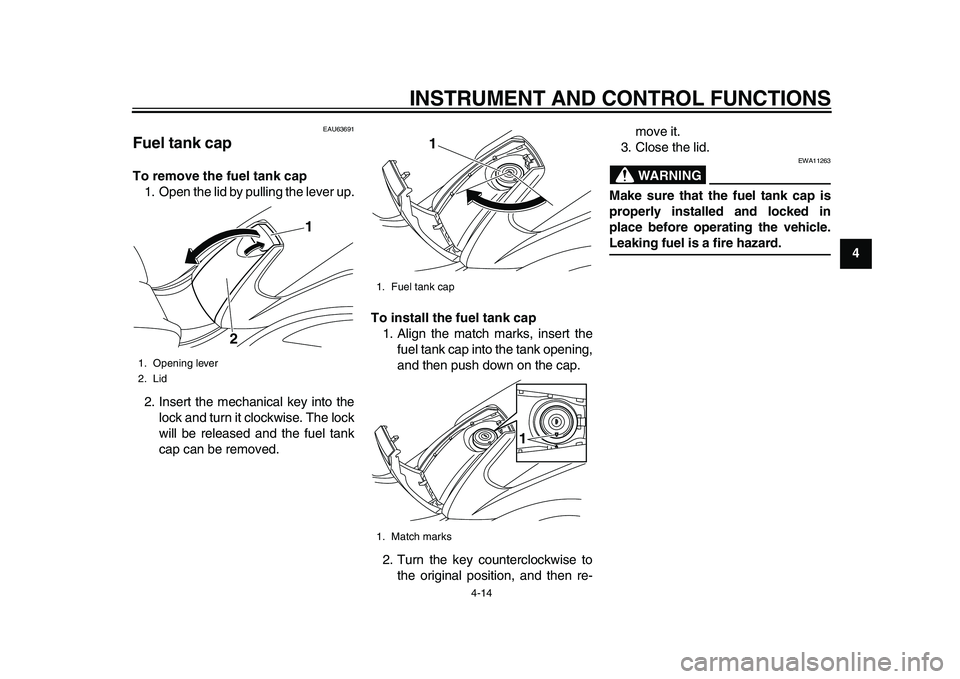

EAU63691
Fuel tank capTo remove the fuel tank cap 1. Open the lid by pulling the lever up.
2. Insert the mechanical key into the lock and turn it clockwise. The lock
will be released and the fuel tank
cap can be removed. To install the fuel tank cap
1. Align the match marks, insert the fuel tank cap into the tank opening,
and then push down on the cap.
2. Turn the key counterclockwise to the original position, and then re- move it.
3. Close the lid.
WARNING
EWA11263
Make sure that the fuel tank cap is
properly installed and locked in
place before operating the vehicle.Leaking fuel is a fire hazard.
1. Opening lever
2. Lid
1
2
1. Fuel tank cap
1. Match marks
1
1
2PW-9-E0_1.book 14 ページ ２０１５年２月１９日　木曜日　午後３時３０分

INSTRUMENT AND CONTROL FUNCTIONS
4-15
1
2
34
5
6
7
8
9
10
11
12
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, followthese instructions. 1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank. 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in your eyes, see your doctor immedi-
ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU49742
NOTICE
ECA11401
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
1. Fuel tank filler tube
2. Maximum fuel level2
1
Recommended fuel:
Regular unleaded gasoline (Gasohol
(E10) acceptable)
Fuel tank capacity: 15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal, 0.66 Imp.gal)
2PW-9-E0_1.book 15 ページ ２０１５年２月１９日　木曜日　午後３時３０分

INSTRUMENT AND CONTROL FUNCTIONS
4-16
1
2
345
6
7
8
9
10
11
12
leaded fuel will extend spark plug life
and reduce maintenance costs.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that contain-
ing methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
EAU13434
Catalytic converterThis model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.

Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.

Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.

Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up ofheat.
NOTICE
ECA10702
Use only unleaded gasoline. The use
of leaded gasoline will cause unre- pairable damage to the catalytic
converter.
2PW-9-E0_1.book 16 ページ ２０１５年２月１９日　木曜日　午後３時３０分

INSTRUMENT AND CONTROL FUNCTIONS
4-17
1
2
34
5
6
7
8
9
10
11
12

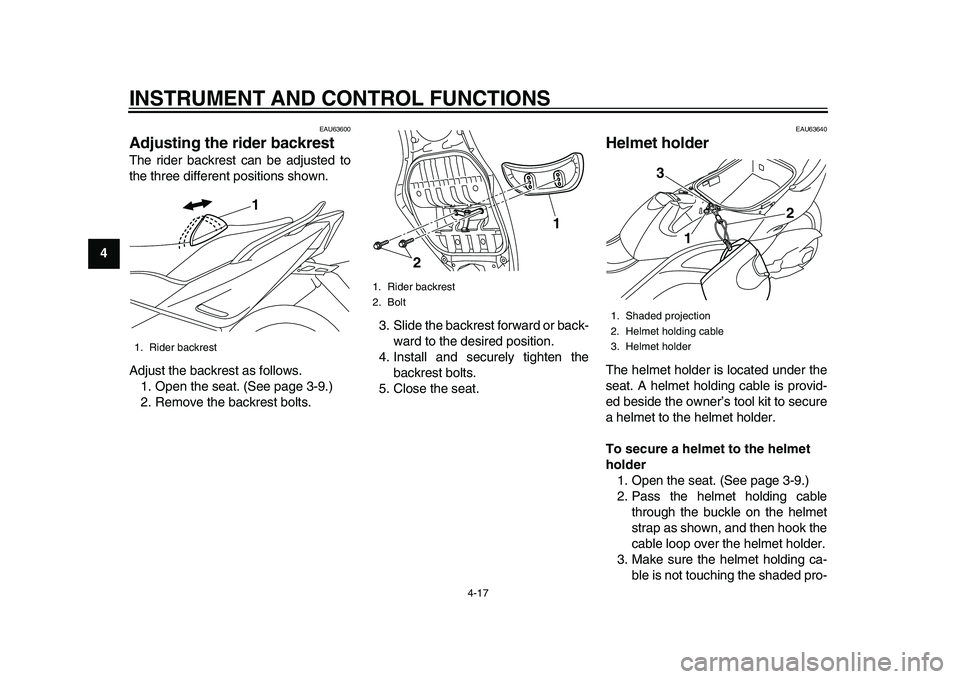

EAU63600
Adjusting the rider backrestThe rider backrest can be adjusted to
the three different positions shown.
Adjust the backrest as follows. 1. Open the seat. (See page 3-9.)
2. Remove the backrest bolts. 3. Slide the backrest forward or back-
ward to the desired position.
4. Install and securely tighten the backrest bolts.
5. Close the seat.
EAU63640
Helmet holderThe helmet holder is located under the
seat. A helmet holding cable is provid-
ed beside the owner’s tool kit to secure
a helmet to the helmet holder.
To secure a helmet to the helmet
holder 1. Open the seat. (See page 3-9.)
2. Pass the helmet holding cable through the buckle on the helmet
strap as shown, and then hook the
cable loop over the helmet holder.
3. Make sure the helmet holding ca- ble is not touching the shaded pro-
1. Rider backrest
1
1. Rider backrest
2. Bolt
1
2
1. Shaded projection
2. Helmet holding cable
3. Helmet holder
3
1
2
2PW-9-E0_1.book 17 ページ ２０１５年２月１９日　木曜日　午後３時３０分

INSTRUMENT AND CONTROL FUNCTIONS
4-18
1
2
345
6
7
8
9
10
11
12
jection, and securely close the
seat.
WARNING! Never ride with
a helmet attached to the helmet
holder, since the helmet may hit
objects, causing loss of control
and possibly an accident.
[EWA10162]
To release the helmet from the hel-
met holder
Open the seat, remove the helmet
holding cable from the helmet holder
and the helmet, and then close the
seat.

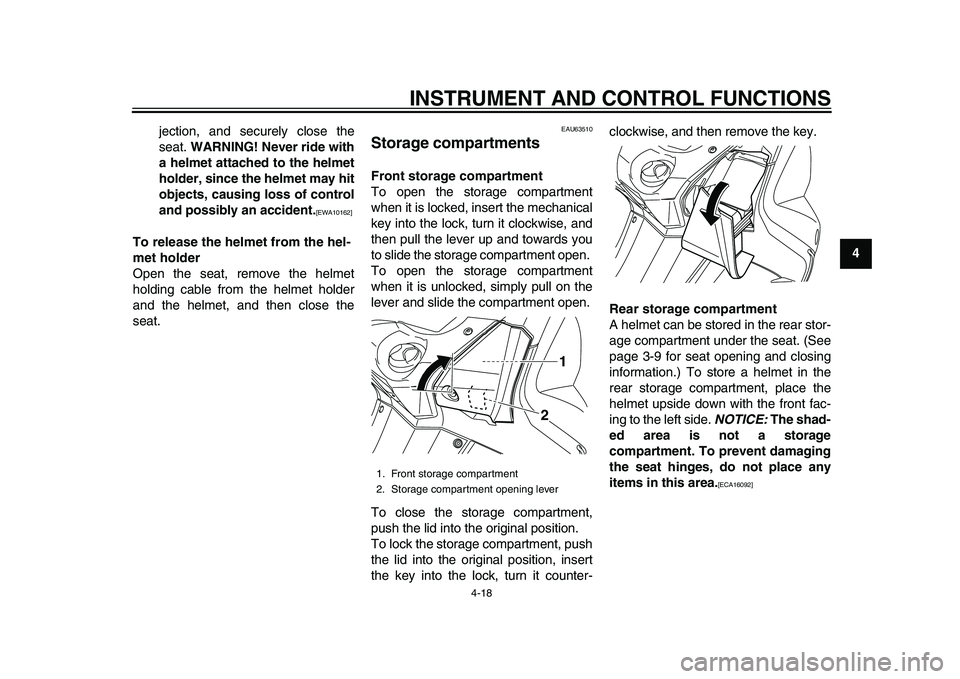

EAU63510
Storage compartmentsFront storage compartment
To open the storage compartment
when it is locked, insert the mechanical
key into the lock, turn it clockwise, and
then pull the lever up and towards you
to slide the storage compartment open.
To open the storage compartment
when it is unlocked, simply pull on the
lever and slide the compartment open.
To close the storage compartment,
push the lid into the original position.
To lock the storage compartment, push
the lid into the original position, insert
the key into the lock, turn it counter- clockwise, and then remove the key.
Rear storage compartment
A helmet can be stored in the rear stor-
age compartment under the seat. (See
page 3-9 for seat opening and closing
information.) To store a helmet in the
rear storage compartment, place the
helmet upside down with the front fac-
ing to the left side.
NOTICE: The shad-
ed area is not a storage
compartment. To prevent damaging
the seat hinges, do not place any
items in this area.
[ECA16092]
1. Front storage compartment
2. Storage compartment opening lever
1
2
2PW-9-E0_1.book 18 ページ ２０１５年２月１９日　木曜日　午後３時３０分

INSTRUMENT AND CONTROL FUNCTIONS
4-19
1
2
34
5
6
7
8
9
10
11
12

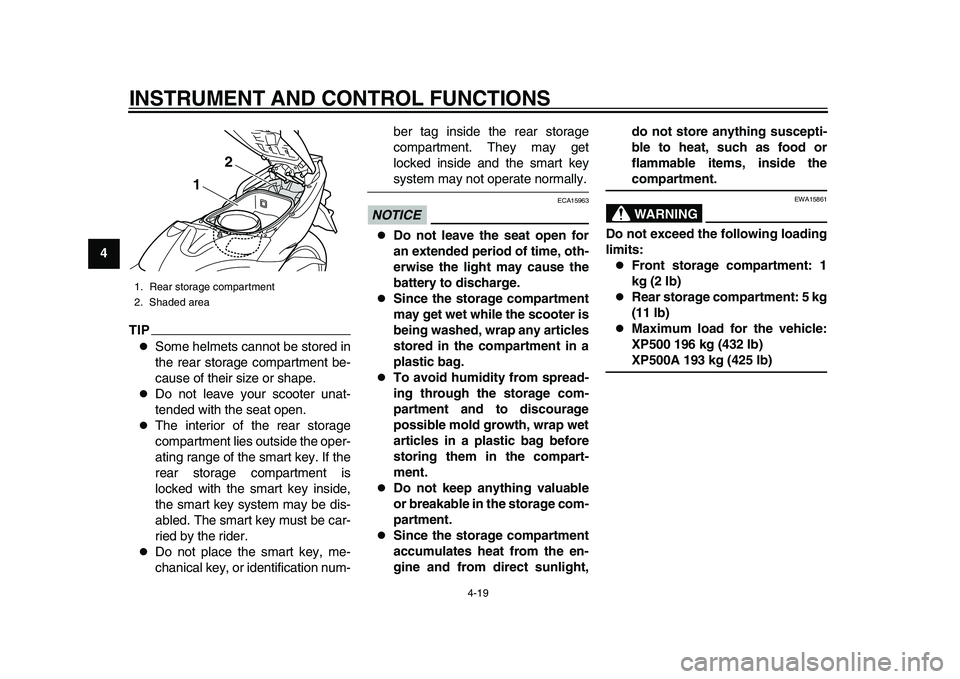

TIP
Some helmets cannot be stored in
the rear storage compartment be-
cause of their size or shape.

Do not leave your scooter unat-
tended with the seat open.

The interior of the rear storage
compartment lies outside the oper-
ating range of the smart key. If the
rear storage compartment is
locked with the smart key inside,
the smart key system may be dis-
abled. The smart key must be car-
ried by the rider.

Do not place the smart key, me-
chanical key, or identification num- ber tag inside the rear storage
compartment. They may get
locked inside and the smart key
system may not operate normally.
NOTICE
ECA15963

Do not leave the seat open for
an extended period of time, oth-
erwise the light may cause the
battery to discharge.

Since the storage compartment
may get wet while the scooter is
being washed, wrap any articles
stored in the compartment in a
plastic bag.

To avoid humidity from spread-
ing through the storage com-
partment and to discourage
possible mold growth, wrap wet
articles in a plastic bag before
storing them in the compart-
ment.

Do not keep anything valuable
or breakable in the storage com-
partment.

Since the storage compartment
accumulates heat from the en-
gine and from direct sunlight,
do not store anything suscepti-
ble to heat, such as food or
flammable items, inside the
compartment.WARNING
EWA15861
Do not exceed the following loading
limits:
Front storage compartment: 1
kg (2 lb)

Rear storage compartment: 5 kg
(11 lb)

Maximum load for the vehicle:
XP500 196 kg (432 lb)XP500A 193 kg (425 lb)
1. Rear storage compartment
2. Shaded area
1
2
2PW-9-E0_1.book 19 ページ ２０１５年２月１９日　木曜日　午後３時３０分

INSTRUMENT AND CONTROL FUNCTIONS
4-20
1
2
345
6
7
8
9
10
11
12

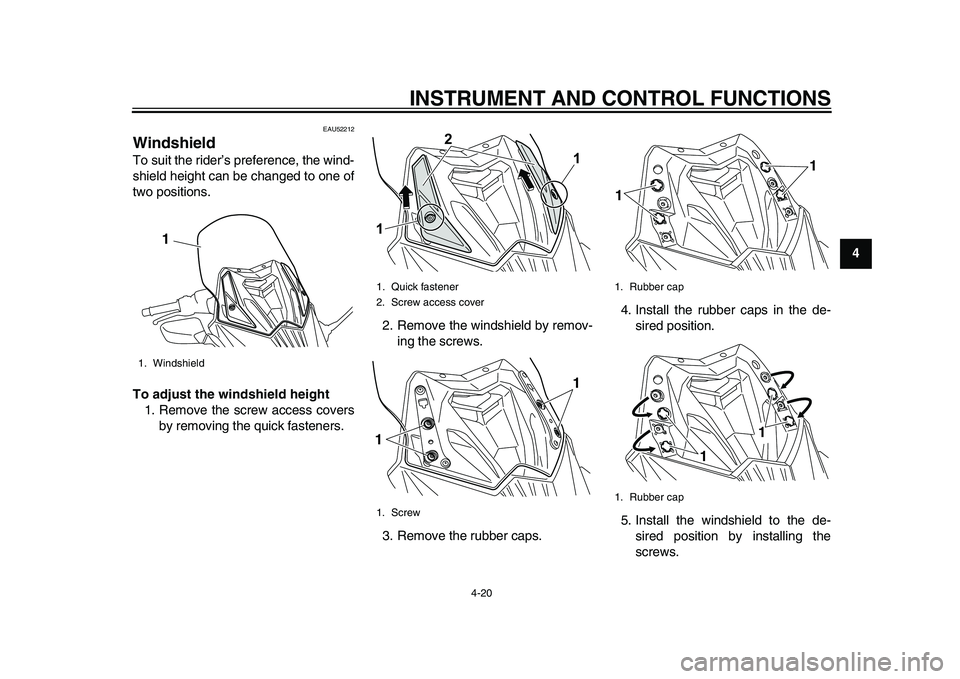

EAU52212
WindshieldTo suit the rider’s preference, the wind-
shield height can be changed to one of
two positions.
To adjust the windshield height 1. Remove the screw access covers by removing the quick fasteners. 2. Remove the windshield by remov-
ing the screws.
3. Remove the rubber caps. 4. Install the rubber caps in the de-
sired position.
5. Install the windshield to the de- sired position by installing the
screws.1. Windshield
1
1. Quick fastener
2. Screw access cover
1. Screw1
2
11
1
1. Rubber cap
1. Rubber cap
1
1
1
1
2PW-9-E0_1.book 20 ページ ２０１５年２月１９日　木曜日　午後３時３０分

INSTRUMENT AND CONTROL FUNCTIONS
4-21
1
2
34
5
6
7
8
9
10
11

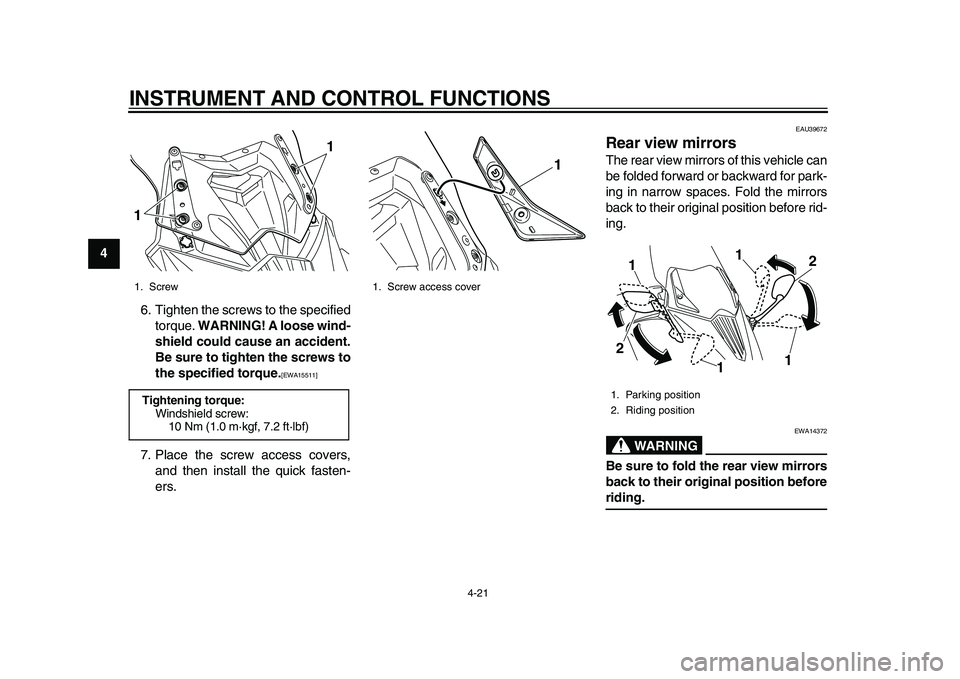

12 6. Tighten the screws to the specified
torque. WARNING! A loose wind-
shield could cause an accident.
Be sure to tighten the screws to
the specified torque.
[EWA15511]
7. Place the screw access covers, and then install the quick fasten-
ers.
EAU39672
Rear view mirrorsThe rear view mirrors of this vehicle can
be folded forward or backward for park-
ing in narrow spaces. Fold the mirrors
back to their original position before rid-
ing.
WARNING
EWA14372
Be sure to fold the rear view mirrors
back to their original position beforeriding.
1. ScrewTightening torque:Windshield screw:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
1
1. Screw access cover
1
1. Parking position
2. Riding position
1
1 2
2 1
1
2PW-9-E0_1.book 21 ページ ２０１５年２月１９日　木曜日　午後３時３０分

INSTRUMENT AND CONTROL FUNCTIONS
4-22
1
2
345
6
7
8
9
10
11
12

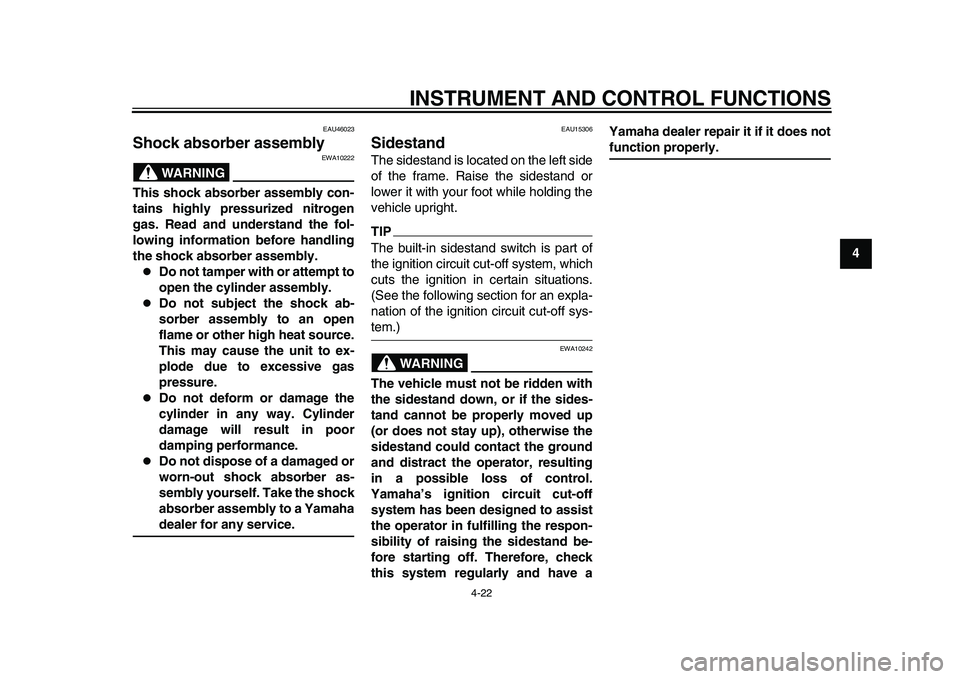

EAU46023
Shock absorber assembly
WARNING
EWA10222
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
Do not tamper with or attempt to
open the cylinder assembly.

Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.

Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.

Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamahadealer for any service.
EAU15306
SidestandThe sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See the following section for an expla-
nation of the ignition circuit cut-off sys-tem.)
WARNING
EWA10242
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly and have a Yamaha dealer repair it if it does not
function properly.
2PW-9-E0_1.book 22 ページ ２０１５年２月１９日　木曜日　午後３時３０分

INSTRUMENT AND CONTROL FUNCTIONS
4-23
1
2
34
5
6
7
8
9
10
11
12
EAU63612
Ignition circuit cut-off systemThe ignition circuit cut-off system (com-
prising the sidestand switch and brake
light switches) has the following func-
tions.
It prevents starting when the side-
stand is up, but neither brake is ap-
plied.

It prevents starting when either
brake is applied, but the sidestand
is still down.

It cuts the running engine when the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
2PW-9-E0_1.book 23 ページ ２０１５年２月１９日　木曜日　午後３時３０分
