EAU77223
Smart key
When the smart key is turned on and
brought within range, the smart key
system allows you to operate the vehi-
cle without inserting a mechanical key.
If the smart key is turned off, the vehicle
cannot be operated even if the smart
key is within operating range of the ve-
hicle.
The current status of the key can be
checked by briefly pressing the
“ON/OFF” switch.
Short flash: the key is on
Long flash: the key is off
To turn the smart key on or off
To turn the smart key on or off, press
the “ON/OFF” switch for one second.
The smart key indicator light will flash. If
the key does a short flash, the key is on.
If the key does a long flash, the key is
off.
TIP
To preserve the vehicle battery power,
the smart key system will turn off auto-
matically about a week after the vehicle
is last used. In this case, press the
“ON/ ” switch once to turn on the
smart key system, and then once more
to turn on the vehicle power.
To use the mechanical key
Pull out the mechanical key from the
smart key body. After using the me-
chanical key, insert it back into the
smart key.

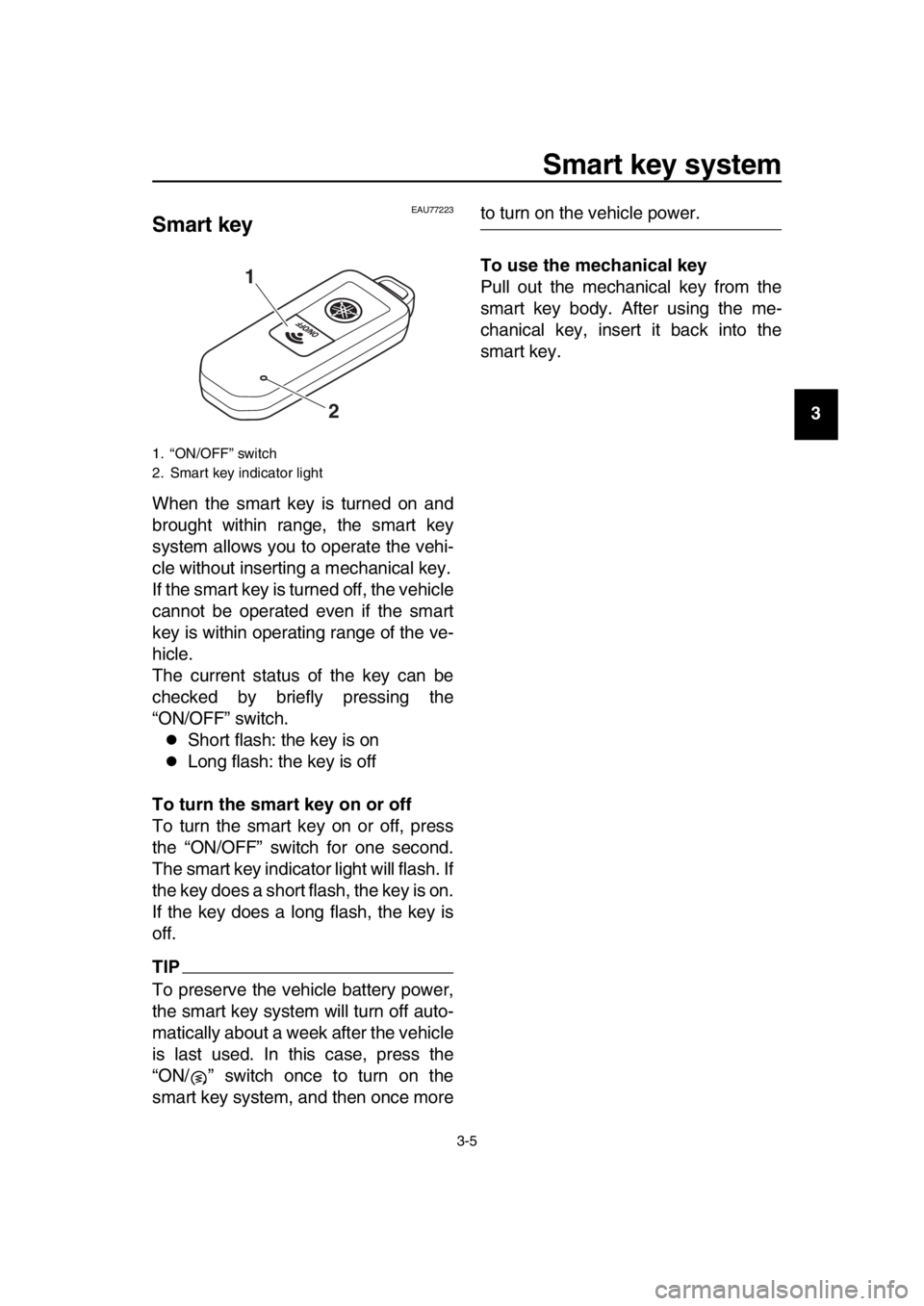

1. “ON/OFF” switch
2. Smart key indicator light
1
2
BV1-28199-E0.book 5 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Smart key system
3-6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU79070
Replacing the smart key
battery
Replace the battery in the following sit-
uations.
The smart key system indicator
light flashes for about 20 seconds
when the power of the vehicle is
turned on.
When the smart key indicator light
does not come on when the
“ON/OFF” switch is pushed.
WARNING
EWA14724
The battery and other remov-
able parts may cause injury if
swallowed. Keep the battery
and other removable parts away
from children.
Do not expose the battery to di-
rect sunlight or other heat
sources.
NOTICE
ECA24010
Do not apply excessive force to
the smart key when replacing
the battery.
Do not use a screwdriver or oth-
er hard object to force open the
key.
Take precautions to prevent the waterproof seal from being
damaged or contaminated by
dirt.
Do not touch the internal cir-
cuits and terminals. This may
cause malfunctions.
Make sure the battery is in-
stalled correctly. Confirm the di-
rection of the positive/“+” side
of the battery.
To replace the smart key battery 1. Gently pry open the smart key case.
2. Remove the battery cover and O- ring.
3. Remove the battery.
TIP
Dispose of the removed battery in ac-
cordance with local regulations.

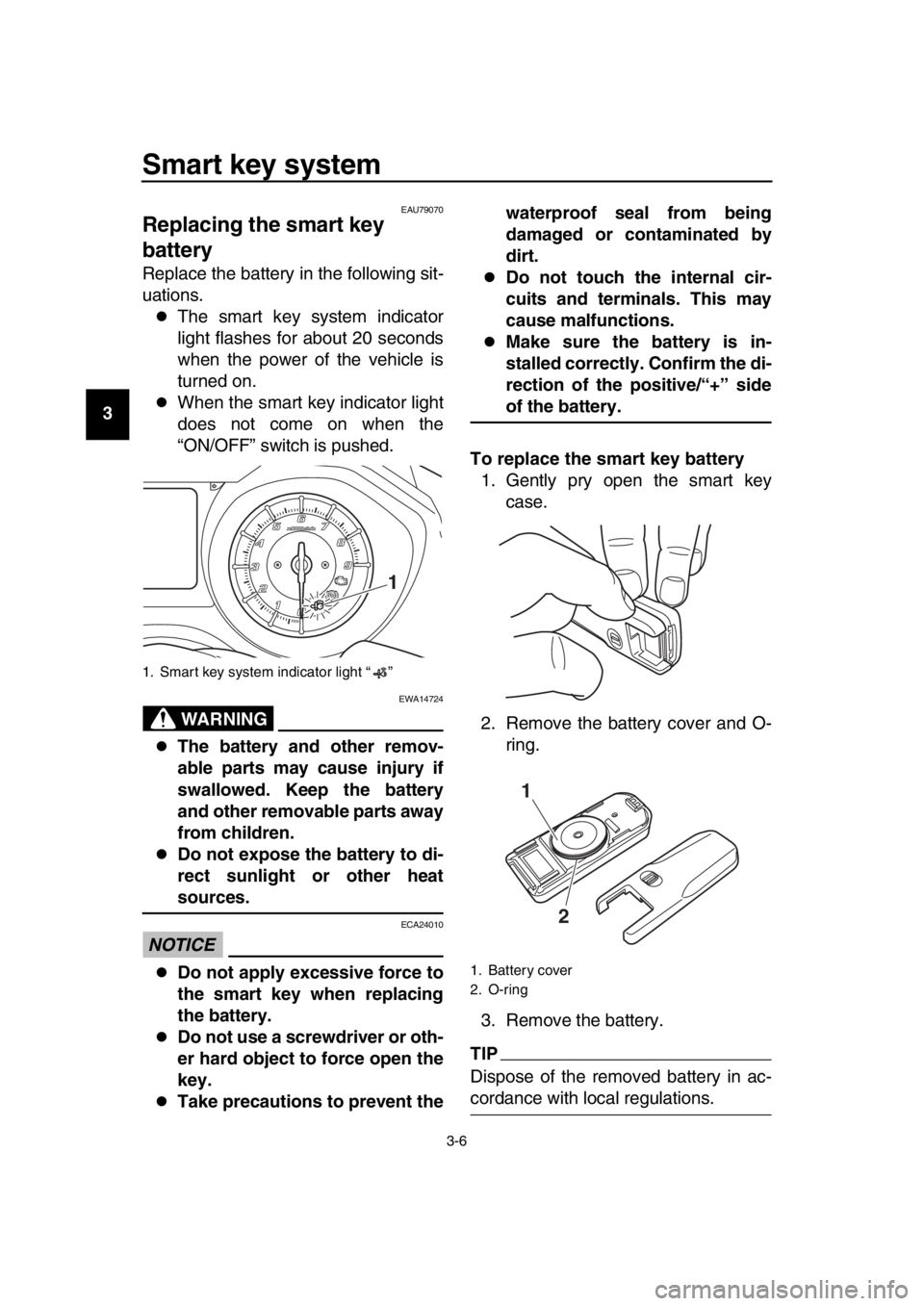

1. Smart key system indicator light “ ”
1
1. Battery cover
2. O-ring
1 2
BV1-28199-E0.book 6 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Smart key system
3-7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
4. Install a new battery as shown.
Note the polarity of the battery.
5. Install the O-ring and battery cov- er.
6. Gently snap the smart key case closed.
EAU77232
Powering on the vehicle
1. With the smart key on and in oper-ating range, briefly press the
“ON/ ” switch.
2. Upon authentication of the smart key, the beeper will sound twice
and the smart key system indicator
light will come on briefly. All locks
will release automatically.
TIP
The smart key system indicator
light will flash if the steering lock
cannot automatically release itself.
Try moving the handlebars gently
to the left or right and then press
the “ON/ ” switch one more time.
If the steering continues to be
locked and will not release, the
smart key system indicator light
will flash 16 times and the steering
lock release operation will stop
midway. Move the handlebar gen-
tly to the left and right to help re-
lease the steering lock and then
press the “ON/ ” switch again.
The smart key system indicator
light will flash if the centerstand
lock cannot automatically release
itself. Gently rock the vehicle for-
ward or backward and then press
Specified battery:CR2025
1. Battery
2. O-ring
3. Battery cover
1
2
3
1. “ON/ ” switch
M ODE
1
BV1-28199-E0.book 7 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Smart key system
3-8
1
2
3
4
5
6
7
8
9
10
11
12
13
14 the “ON/ ” switch one more time.
If the centerstand continues to be
locked and will not release, the
smart key system indicator light
will flash 16 times and the center-
stand lock release operation will
stop midway. Rock the vehicle for-
ward and backward to help release
the centerstand lock and then
press the “ON/ ” switch again.
NOTICE
ECA15826
If the steering lock or centerstand
lock will not release and the smart
key system indicator light is flash-
ing, have a Yamaha dealer check the
smart key system.
3. The power of the vehicle is turned on when all locks have been re-
leased. The multi-function display
will come on.
4. The engine can now be started. (See page 7-2.)
TIP
See page 8-37 for information about
emergency mode and how to turn the
vehicle power on without the smart key.
EAU78031
Powering off the vehicle
To turn the vehicle power off and stop
the engine if it is running, press the
“OFF/LOCK” switch.
Upon authentification of the smart key,
the beeper will sound once to confirm
that the vehicle power has been suc-
cessfully turned off and the storage
compartment and fuel tank cap lid locks
will be released.
TIP
The rider must turn off the power of
the vehicle manually.
The power of the vehicle will not
turn off automatically even if the
smart key is moved out of operat-
ing range of the smart key system.
The power of the vehicle cannot be
turned off via the “OFF/LOCK”
switch when the vehicle is moving.
If the smart key is not within operating
range or cannot communicate with the
vehicle when you press the
“OFF/LOCK” switch, the vehicle will not
be turned off and the beeper will sound
for three seconds (the smart key sys-
tem indicator light will also flash) to alert
you that the power was not successfully
turned off. Confirm the location and
condition of the smart key and try pow-

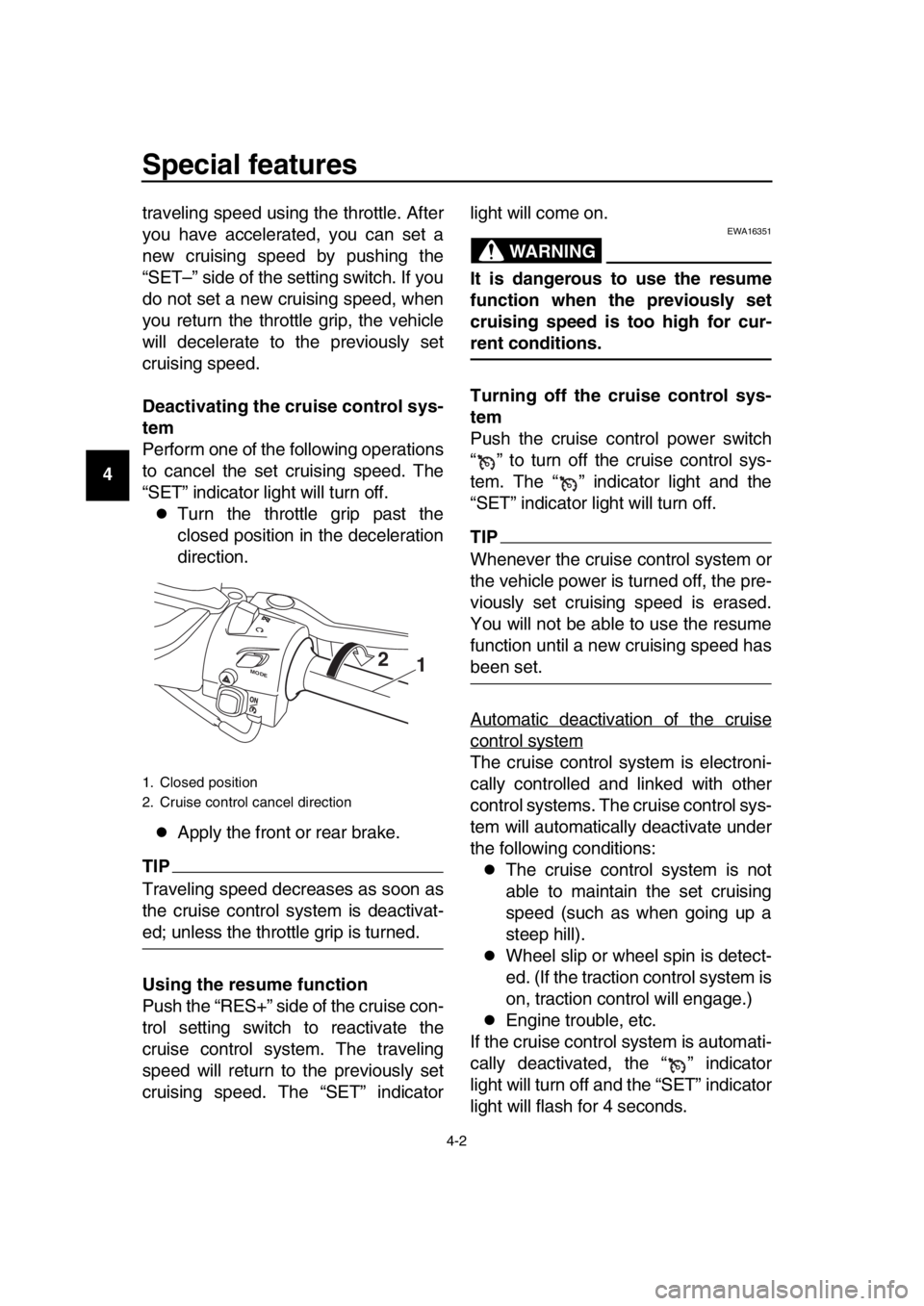

1. “OFF/LOCK” switch
1
BV1-28199-E0.book 8 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Smart key system
3-9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
ering off the vehicle again.
TIP
Without the smart key, the vehicle pow-
er can be turned off by pressing the
“OFF/LOCK” switch again while the
smart key system indicator light is
flashing.
Auto lock function
After the engine is stopped via the
“OFF/LOCK” switch, (or whenever the
vehicle power is turned from on to off),
all storage compartment locks (if
equipped) and the fuel tank cap lid lock
are released and these compartments
can be accessed temporarily. When 60
seconds have passed, all compart-
ments will automatically lock.
When the compartment locks are re-
leased via the “ / ” switch, the com-
partments will automatically lock after
10 seconds have passed.
EAU80000
How to lock the steering
After moving the vehicle to a safe park-
ing place, turn off the power of the vehi-
cle. Turn the handlebars fully to the left
and then briefly press the “OFF/LOCK”
switch.
TIP
If the steering lock function locks
correctly, the beeper will sound
once.
If the steering lock function does
not lock correctly, the beeper will
sound for three seconds and the
smart key system indicator light
will flash. Turn the handlebar fully
to the left one more time and press
the “OFF/LOCK” switch again for
one second.
WARNING
EWA14742
Do not operate the steering lock
while the vehicle is moving.
BV1-28199-E0.book 9 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Smart key system
3-10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU78052
How to lock the centerstand
Park the vehicle on a firm level surface
and then place it on the centerstand.
Press the “OFF/LOCK” switch for one
second.
TIP
If the centerstand lock function
locks correctly, the beeper will
sound once.
If the centerstand lock function
does not lock correctly, the beeper
will sound for three seconds and
the smart key system indicator
light will flash. Gently rock the vehi-
cle forward or backward and press
the “OFF/LOCK” switch for one
second.
EAU77243
Storage compartment and fuel
tank access

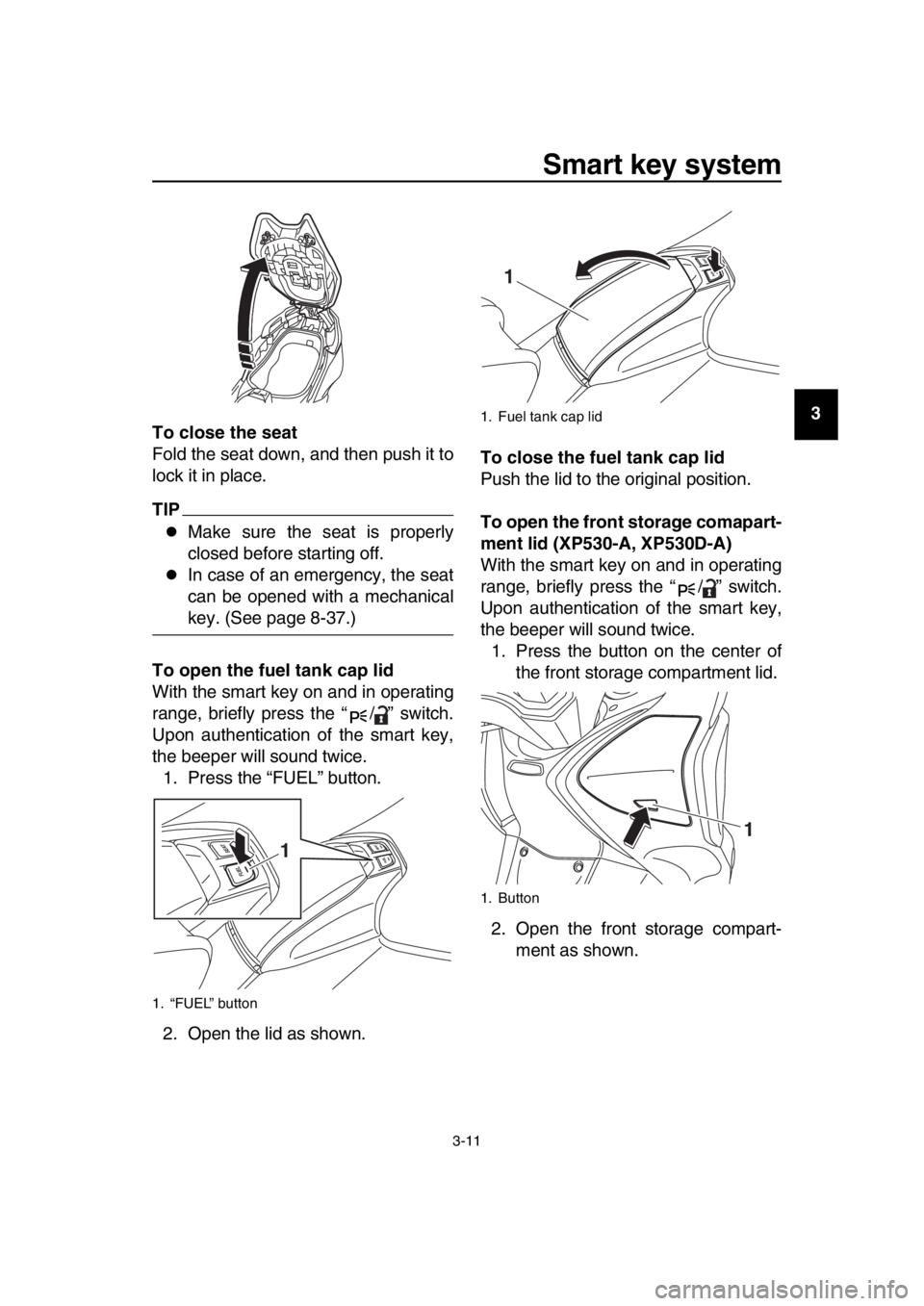

To open the seat 1. Place the vehicle on the center- stand.
2. Briefly press the “ / ” switch. Upon authentication of the smart
key, the beeper will sound twice.
3. Press the “SEAT” button and the seat lock will release.
4. Fold the seat up.
1. “OFF/LOCK” switch
1
1. “ / ” switch
1. “SEAT” button
1
1
BV1-28199-E0.book 10 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Smart key system
3-11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
To close the seat
Fold the seat down, and then push it to
lock it in place.
TIP
Make sure the seat is properly
closed before starting off.
In case of an emergency, the seat
can be opened with a mechanical
key. (See page 8-37.)
To open the fuel tank cap lid
With the smart key on and in operating
range, briefly press the “ / ” switch.
Upon authentication of the smart key,
the beeper will sound twice. 1. Press the “FUEL” button.
2. Open the lid as shown. To close the fuel tank cap lid
Push the lid to the original position.
To open the front storage comapart-
ment lid (XP530-A, XP530D-A)
With the smart key on and in operating
range, briefly press the “ / ” switch.
Upon authentication of the smart key,
the beeper will sound twice.
1. Press the button on the center of the front storage compartment lid.
2. Open the front storage compart- ment as shown.

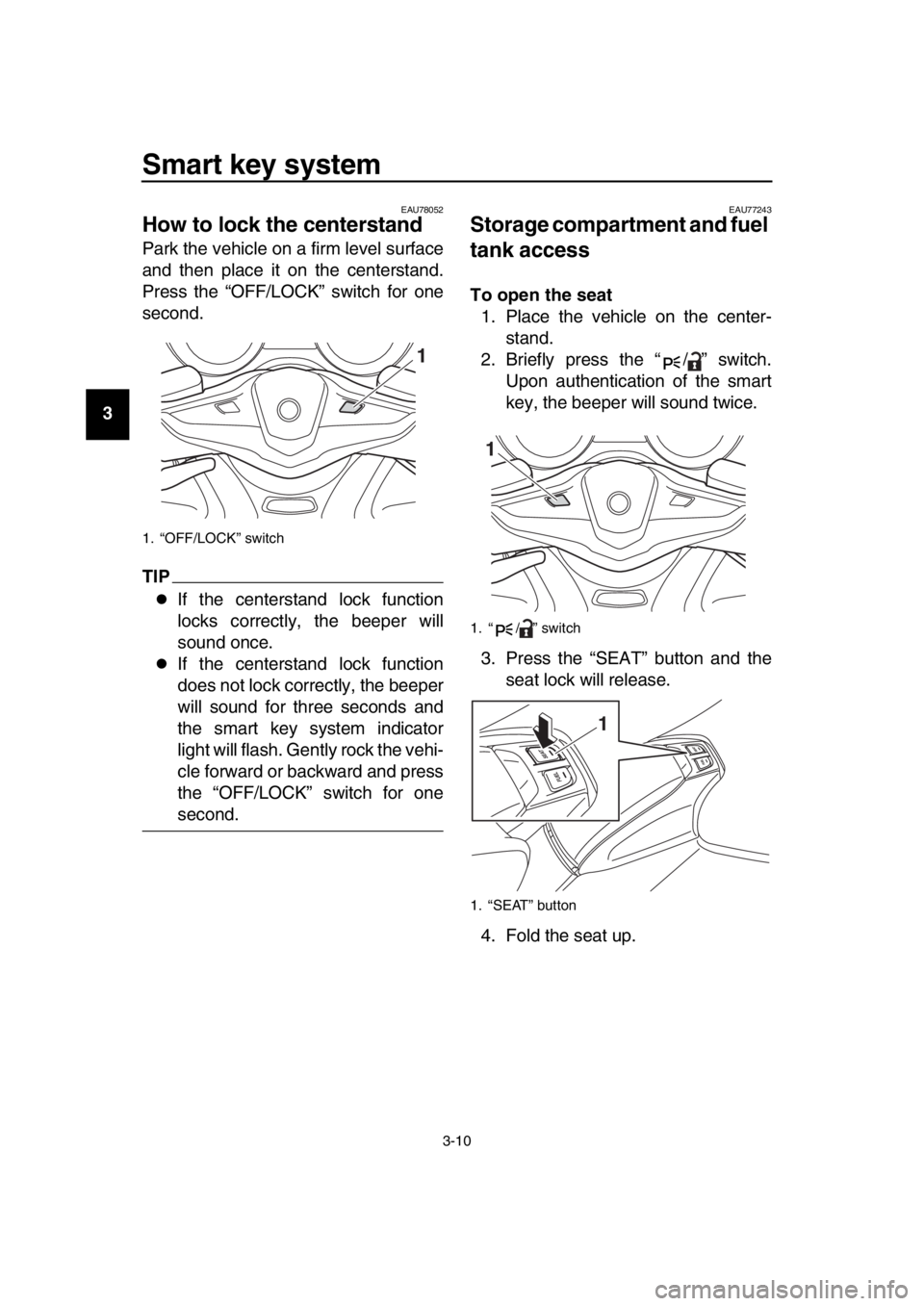

1. “FUEL” button
1
1. Fuel tank cap lid
1. Button
1
1
BV1-28199-E0.book 11 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Smart key system
3-12
1
2
3
4
5
6
7
8
9
10
11
12
13
14 To close the front storage compart-
ment lid
Push the lid into the original position.
EAU77251
Parking mode
The steering is locked, and the hazard
lights and turn signal lights can be
turned on, but all other electrical sys-
tems are off.
To enter parking mode
1. Lock the steering. (See page 3-9.）
2. Press the “ / ” switch for one second.
TIP
If the steering lock has not been ap-
plied, the beeper will sound for 3 sec-
onds (the smart key system indicator
light will also flash) and the vehicle will
not enter parking mode.
3. Upon authentification of the smart key, the beeper will sound twice
and the vehicle will enter parking
mode. The smart key system indi-
cator light will come on.
TIP
The seat, fuel tank cap lid, and the front
storage compartment (for XP530-A,
XP530D-A) cannot be opened while in
parking mode.
NOTICE
ECA20760
Using the hazard or turn signal
lights for an extended length of time
may cause the battery to discharge.
To exit parking mode
Press the “ / ” switch. Upon authen-
tication of the smart key, the beeper will
sound once and the smart key system
indicator light will go off.
1. Front storage compartment lid
1
BV1-28199-E0.book 12 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

4-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14

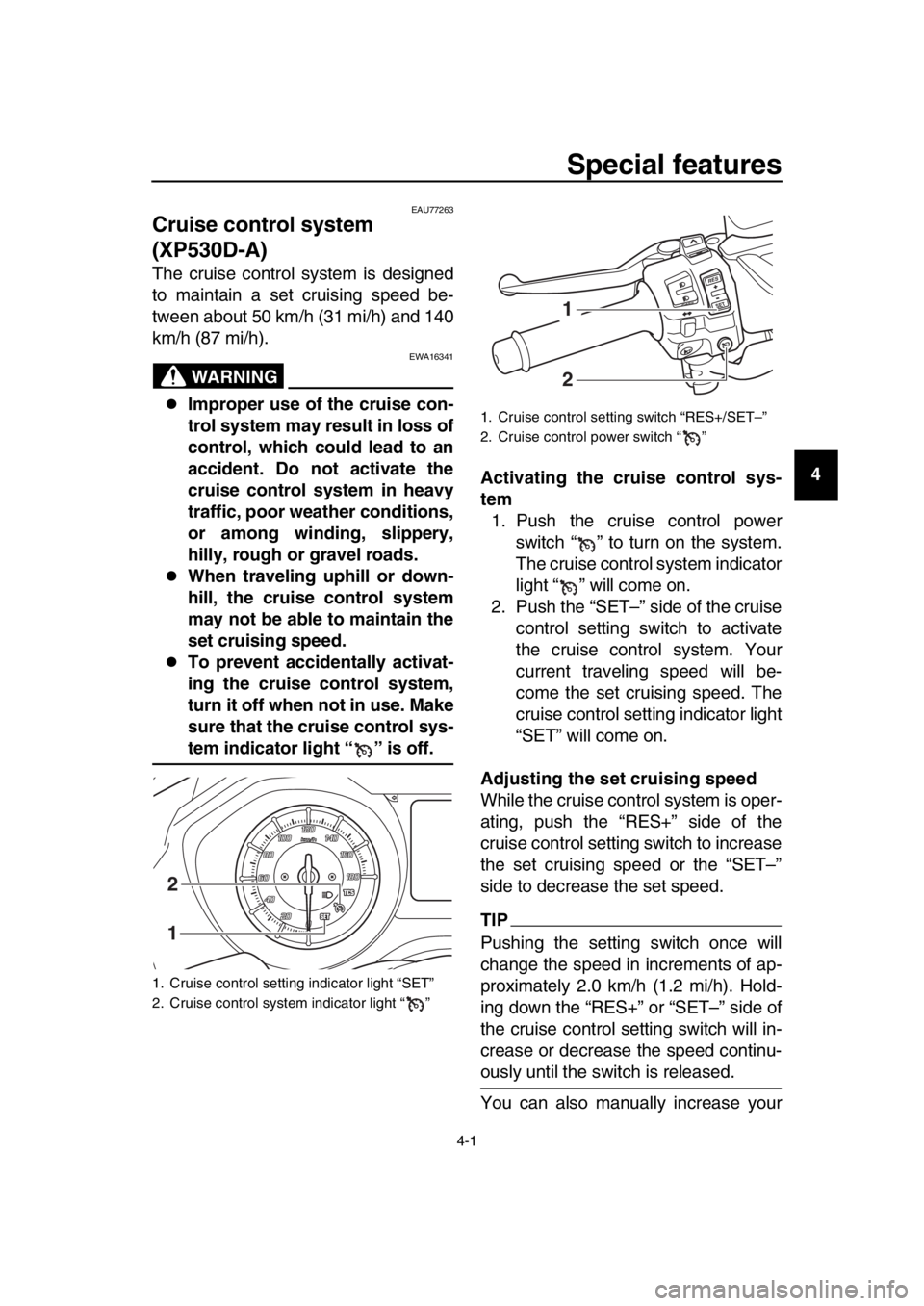

Special features
EAU77263
Cruise control system
(XP530D-A)
The cruise control system is designed
to maintain a set cruising speed be-
tween about 50 km/h (31 mi/h) and 140
km/h (87 mi/h).
WARNING
EWA16341
Improper use of the cruise con-
trol system may result in loss of
control, which could lead to an
accident. Do not activate the
cruise control system in heavy
traffic, poor weather conditions,
or among winding, slippery,
hilly, rough or gravel roads.
When traveling uphill or down-
hill, the cruise control system
may not be able to maintain the
set cruising speed.
To prevent accidentally activat-
ing the cruise control system,
turn it off when not in use. Make
sure that the cruise control sys-
tem indicator light “ ” is off. Activating the cruise control sys-
tem
1. Push the cruise control power switch “ ” to turn on the system.
The cruise control system indicator
light “ ” will come on.
2. Push the “SET–” side of the cruise control setting switch to activate
the cruise control system. Your
current traveling speed will be-
come the set cruising speed. The
cruise control setting indicator light
“SET” will come on.
Adjusting the set cruising speed
While the cruise control system is oper-
ating, push the “RES+” side of the
cruise control setting switch to increase
the set cruising speed or the “SET–”
side to decrease the set speed.
TIP
Pushing the setting switch once will
change the speed in increments of ap-
proximately 2.0 km/h (1.2 mi/h). Hold-
ing down the “RES+” or “SET–” side of
the cruise control setting switch will in-
crease or decrease the speed continu-
ously until the switch is released.
You can also manually increase your
1. Cruise control setting indicator light “SET”
2. Cruise control system indicator light “ ”
1 2
1. Cruise control setting switch “RES+/SET–”
2. Cruise control power switch “ ”
RE S
SETPASS1
2
BV1-28199-E0.book 1 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Special features
4-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14 traveling speed using the throttle. After
you have accelerated, you can set a
new cruising speed by pushing the
“SET–” side of the setting switch. If you
do not set a new cruising speed, when
you return the throttle grip, the vehicle
will decelerate to the previously set
cruising speed.
Deactivating the cruise control sys-
tem
Perform one of the following operations
to cancel the set cruising speed. The
“SET” indicator light will turn off.
Turn the throttle grip past the
closed position in the deceleration
direction.
Apply the front or rear brake.
TIP
Traveling speed decreases as soon as
the cruise control system is deactivat-
ed; unless the throttle grip is turned.
Using the resume function
Push the “RES+” side of the cruise con-
trol setting switch to reactivate the
cruise control system. The traveling
speed will return to the previously set
cruising speed. The “SET” indicator light will come on.
WARNING
EWA16351
It is dangerous to use the resume
function when the previously set
cruising speed is too high for cur-
rent conditions.
Turning off the cruise control sys-
tem
Push the cruise control power switch
“ ” to turn off the cruise control sys-
tem. The “ ” indicator light and the
“SET” indicator light will turn off.
TIP
Whenever the cruise control system or
the vehicle power is turned off, the pre-
viously set cruisi
ng speed is erased.
You will not be able to use the resume
function until a new cruising speed has
been set.
Automatic deactivation of the cruise
control system
The cruise control system is electroni-
cally controlled and linked with other
control systems. The cruise control sys-
tem will automatically deactivate under
the following conditions:
The cruise control system is not
able to maintain the set cruising
speed (such as when going up a
steep hill).
Wheel slip or wheel spin is detect-
ed. (If the traction control system is
on, traction control will engage.)
Engine trouble, etc.
If the cruise control system is automati-
cally deactivated, the “ ” indicator
light will turn off and the “SET” indicator
light will flash for 4 seconds.
1. Closed position
2. Cruise control cancel direction
M ODE1
2
BV1-28199-E0.book 2 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分
