Windshield (XP530E-A,
XP530-A)
The windshield height can be changed
to one of two positions.
To adjust the windshield height 1. Remove the screw access covers by removing the quick fasteners.
2. Remove the windshield by remov- ing the screws. 3. Install the windshield to the de-
sired position by installing the
screws.
4. Tighten the screws to the specified torque. WARNING! A loose wind-
shield could cause an accident.
Be sure to tighten the screws to
the specified torque.
[EWA15511]
5. Place the screw access covers, and then install the quick fasten-
ers.

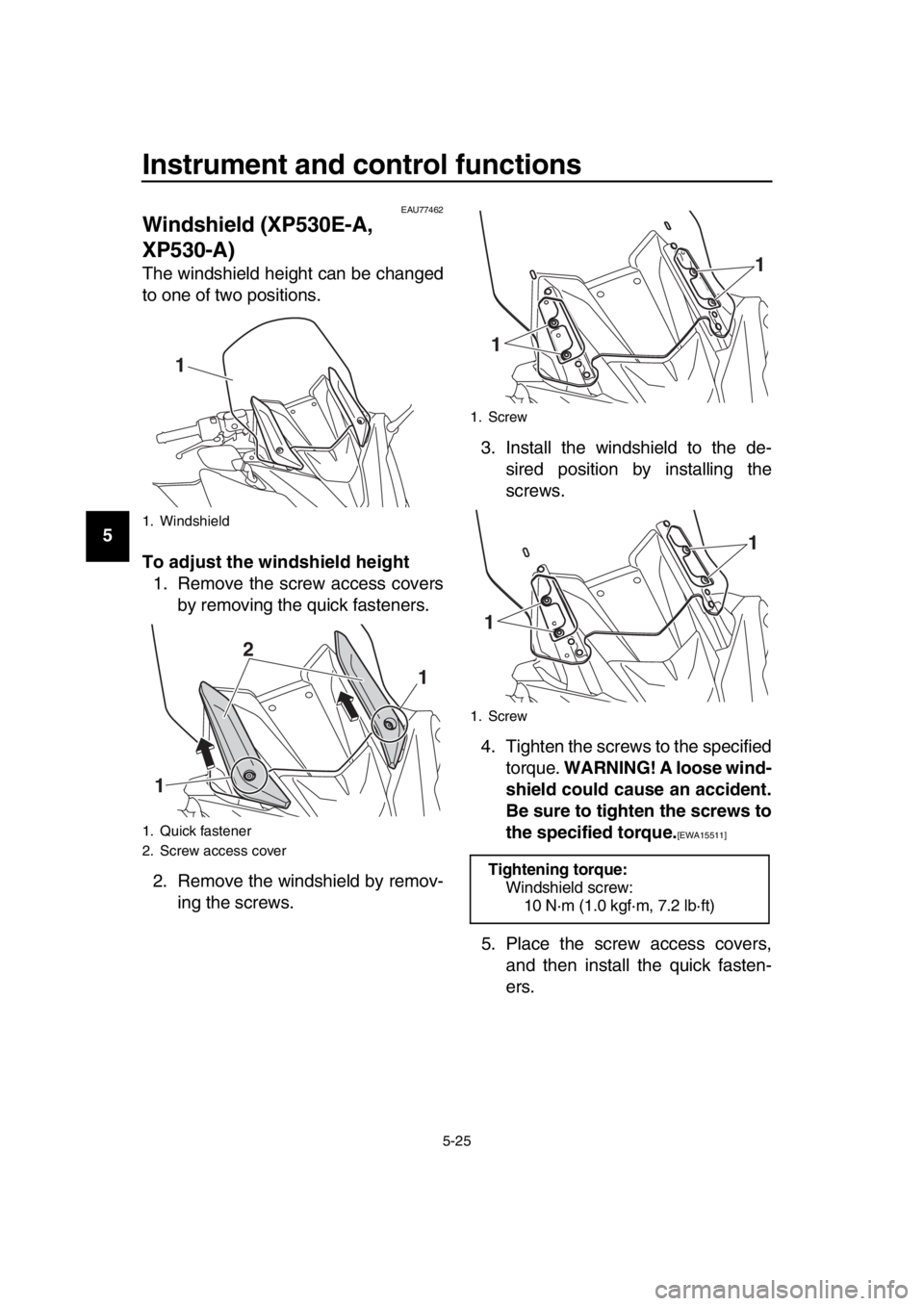

1. Windshield
1. Quick fastener
2. Screw access cover
1
1 2
1
1. Screw
1. Screw
Tightening torque:Windshield screw:10 N·m (1.0 kgf·m, 7.2 lb·ft)
1 1
11
BV1-28199-E0.book 25 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Periodic maintenance and adjustment
8-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU17303
Emission controls not only function to
ensure cleaner air, but are also vital to
proper engine operation and maximum
performance. In the following periodic
maintenance charts, the services relat-
ed to emissions control are grouped
separately. These services require
specialized data, knowledge, and
equipment. Maintenance, replacement,
or repair of the emission control devic-
es and systems may be performed by
any repair establishment or individual
that is certified (if applicable). Yamaha
dealers are trained and equipped to
perform these particular services.
EAU79580
Owner’s tool kit

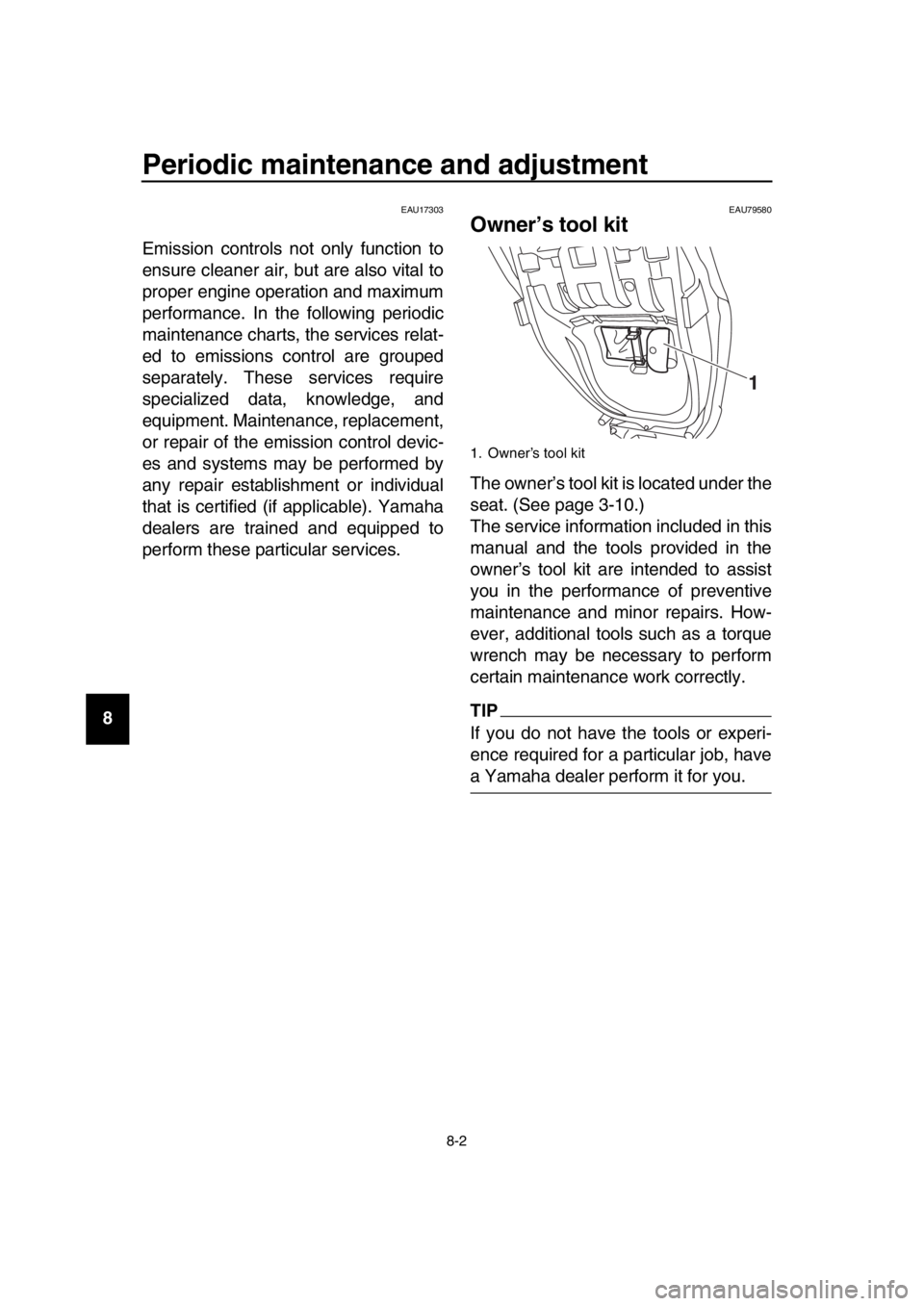

The owner’s tool kit is located under the
seat. (See page 3-10.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
TIP
If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.
1. Owner’s tool kit
1
BV1-28199-E0.book 2 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Periodic maintenance and adjustment
8-9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU19643
Checking the spark plugs
The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be operating im-
properly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.
Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification. Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
TIP
If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
Specified spark plug:
NGK/CR7E
1. Spark plug gap
Spark plug gap:0.7–0.8 mm (0.028–0.031 in)
Tightening torque: Spark plug:
13 N·m (1.3 kgf·m, 9.4 lb·ft)
BV1-28199-E0.book 9 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Periodic maintenance and adjustment
8-12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
TIP
An oil filter wrench is available at a
Yamaha dealer. 7. Apply a thin coat of clean engine oil to the O-ring of the new oil filter
cartridge.
TIP
Make sure that the O-ring is properly
seated.
8. Install the new oil filter cartridge, and then tighten it to the specified
torque with a torque wrench. 9. Install the engine oil drain bolt and
its new gasket, and then tighten
the bolt to the specified torque.
10. Check the O-ring for damage and replace it if necessary.
11. Refill with the specified amount of the recommended engine oil, and
then install and tighten the oil filler
cap.

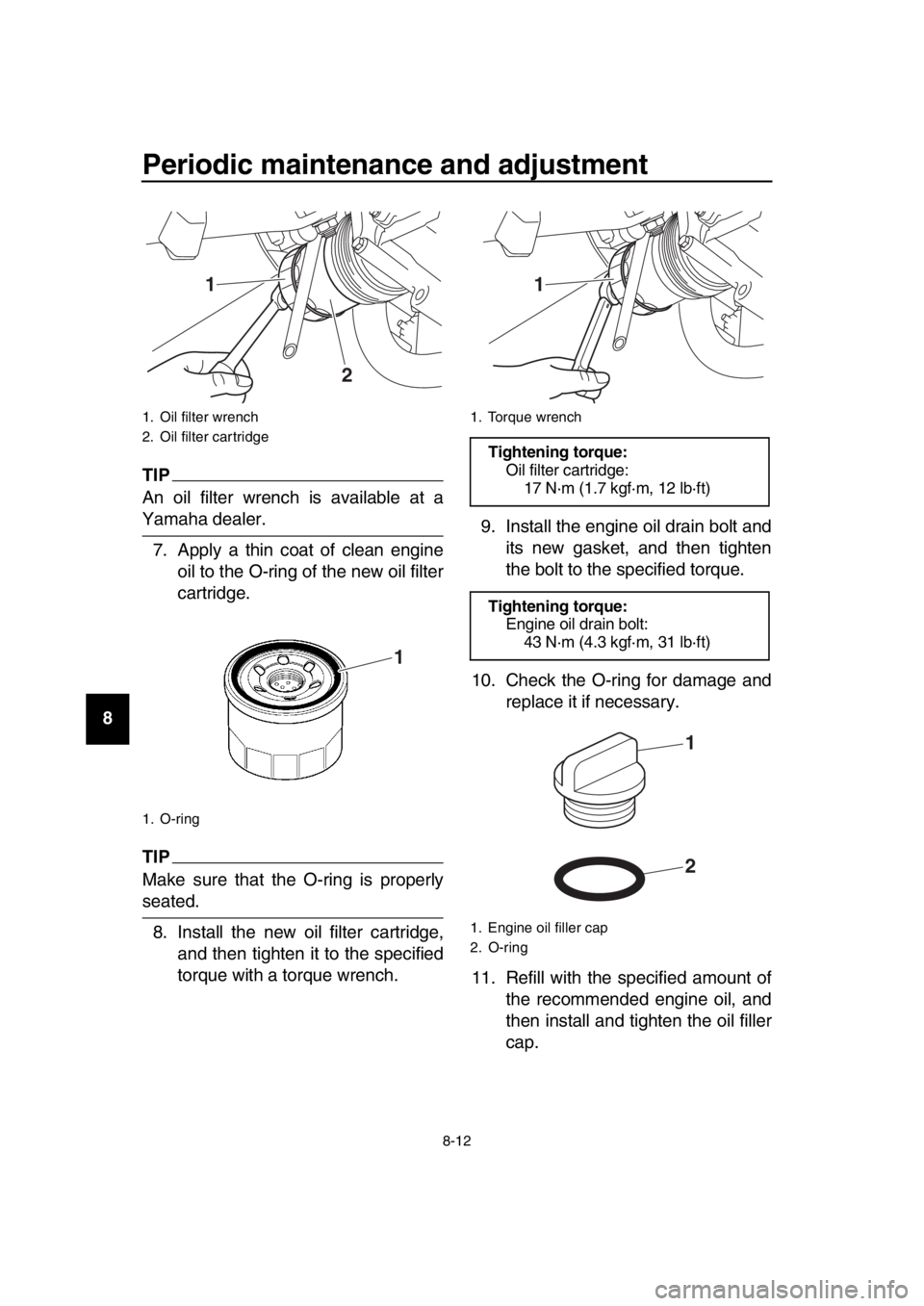

1. Oil filter wrench
2. Oil filter cartridge
1. O-ring
1
2
1
1. Torque wrench
Tightening torque:Oil filter cartridge:
17 N·m (1.7 kgf·m, 12 lb·ft)
Tightening torque: Engine oil drain bolt:43 N·m (4.3 kgf·m, 31 lb·ft)
1. Engine oil filler cap
2. O-ring
1
2
1
BV1-28199-E0.book 12 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Periodic maintenance and adjustment
8-20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU51921
Cast wheels
To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
The wheel rims should be checked
for cracks, bends, warpage or oth-
er damage before each ride. If any
damage is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
After repairing or replacing the
front tire, tighten the valve stem nut
and locknut to the specified
torques.
EAU50861
Checking the fr ont and rear
brake lever free play
Front
Rear
There should be no free play at the
brake lever ends. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14212
A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
braking performance, which may re-
sult in loss of control and an acci-
1. Valve stem nut
2. Valve stem locknut
Tightening torques: Valve stem nut:
2.0 N·m (0.20 kgf·m, 1.4 lb·ft)
Valve stem locknut: 3.0 N·m (0.30 kgf·m, 2.2 lb·ft)
1
2

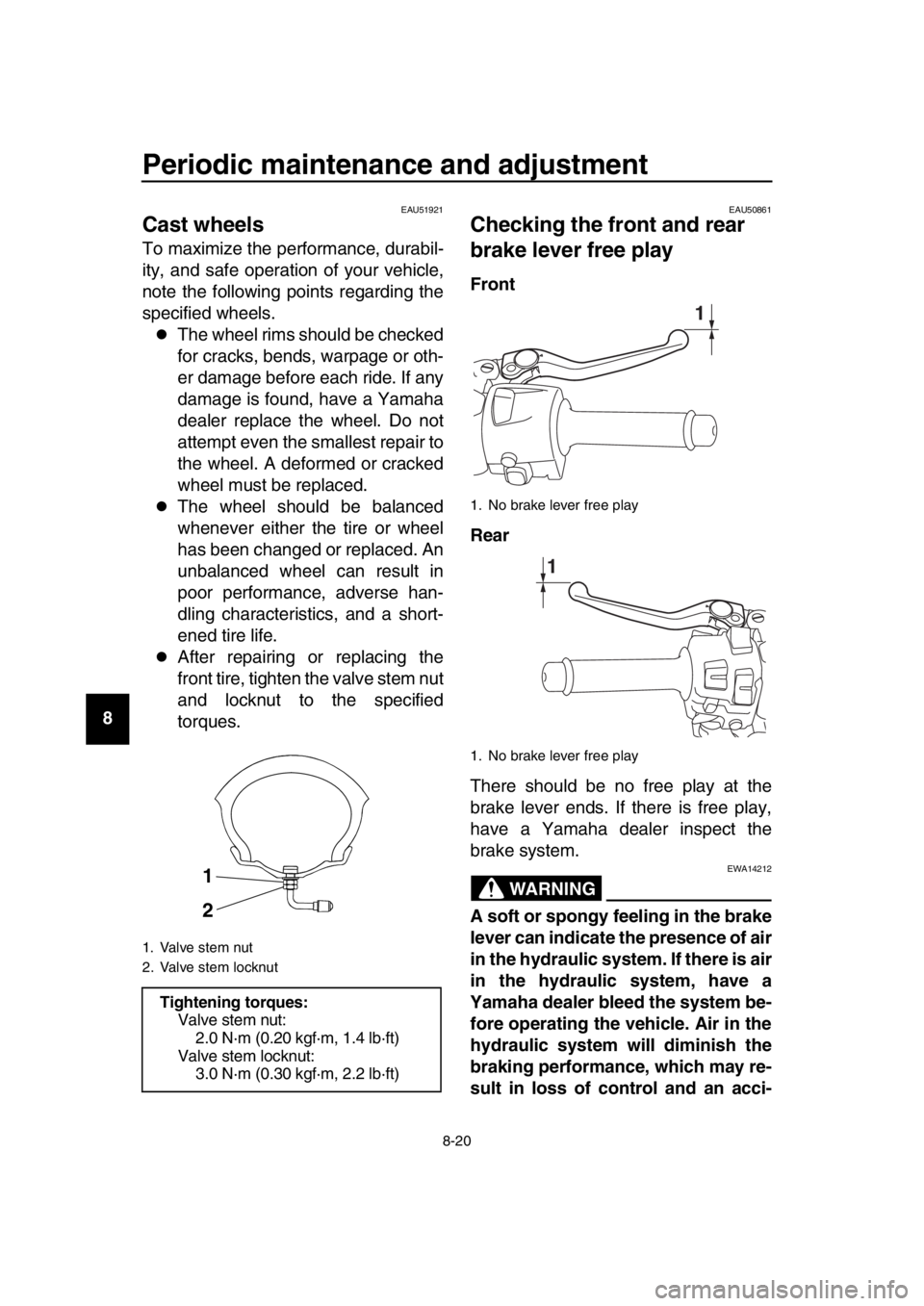

1. No brake lever free play
