Safety information
1-5

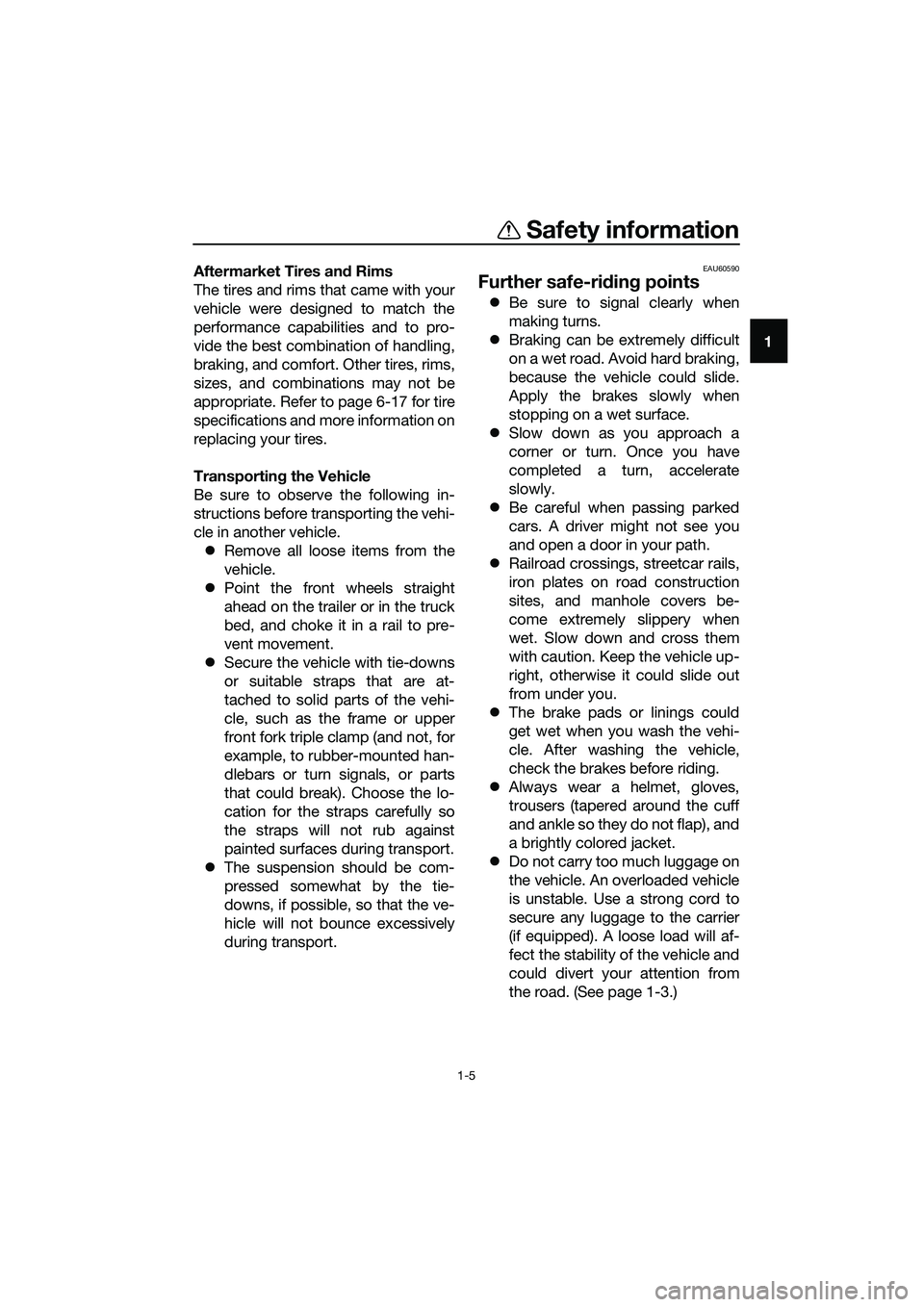

1 Aftermarket Tires and Rims
The tires and rims that came with your
vehicle were designed to match the
performance capabilities and to pro-
vide the best combination of handling,
braking, and comfort. Other tires, rims,
sizes, and combinations may not be
appropriate. Refer to page 6-17 for tire
specifications and more information on
replacing your tires.
Transporting the Vehicle
Be sure to observe the following in-
structions before transporting the vehi-
cle in another vehicle.
zRemove all loose items from the
vehicle.
zPoint the front wheels straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.
zSecure the vehicle with tie-downs
or suitable straps that are at-
tached to solid parts of the vehi-
cle, such as the frame or upper
front fork triple clamp (and not, for
example, to rubber-mounted han-
dlebars or turn signals, or parts
that could break). Choose the lo-
cation for the straps carefully so
the straps will not rub against
painted surfaces during transport.
zThe suspension should be com-
pressed somewhat by the tie-
downs, if possible, so that the ve-
hicle will not bounce excessively
during transport.
EAU60590
Further safe-riding points
zBe sure to signal clearly when
making turns.
zBraking can be extremely difficult
on a wet road. Avoid hard braking,
because the vehicle could slide.
Apply the brakes slowly when
stopping on a wet surface.
zSlow down as you approach a
corner or turn. Once you have
completed a turn, accelerate
slowly.
zBe careful when passing parked
cars. A driver might not see you
and open a door in your path.
zRailroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers be-
come extremely slippery when
wet. Slow down and cross them
with caution. Keep the vehicle up-
right, otherwise it could slide out
from under you.
zThe brake pads or linings could
get wet when you wash the vehi-
cle. After washing the vehicle,
check the brakes before riding.
zAlways wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap), and
a brightly colored jacket.
zDo not carry too much luggage on
the vehicle. An overloaded vehicle
is unstable. Use a strong cord to
secure any luggage to the carrier
(if equipped). A loose load will af-
fect the stability of the vehicle and
could divert your attention from
the road. (See page 1-3.)
UBR7E0E0.book Page 5 Tuesday, October 25, 2016 2:44 PM
Page 12 of 92
Description
2-1
2
EAU63371

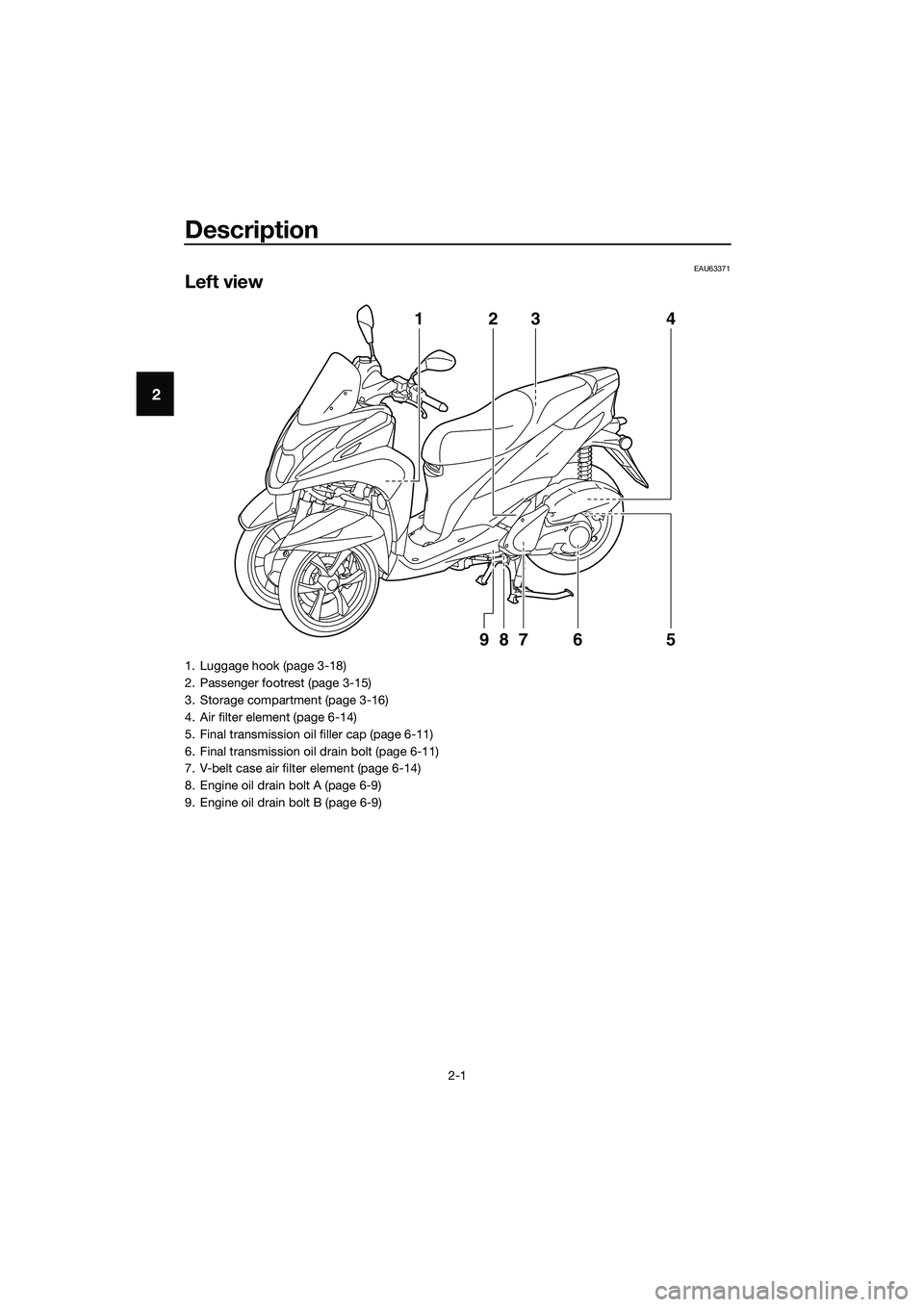

Left view
123 4
5 6 987
1. Luggage hook (page 3-18)
2. Passenger footrest (page 3-15)
3. Storage compartment (page 3-16)
4. Air filter element (page 6-14)
5. Final transmission oil filler cap (page 6-11)
6. Final transmission oil drain bolt (page 6-11)
7. V-belt case air filter element (page 6-14)
8. Engine oil drain bolt A (page 6-9)
9. Engine oil drain bolt B (page 6-9)
UBR7E0E0.book Page 1 Tuesday, October 25, 2016 2:44 PM
Page 13 of 92
Description
2-2
2
EAU63391

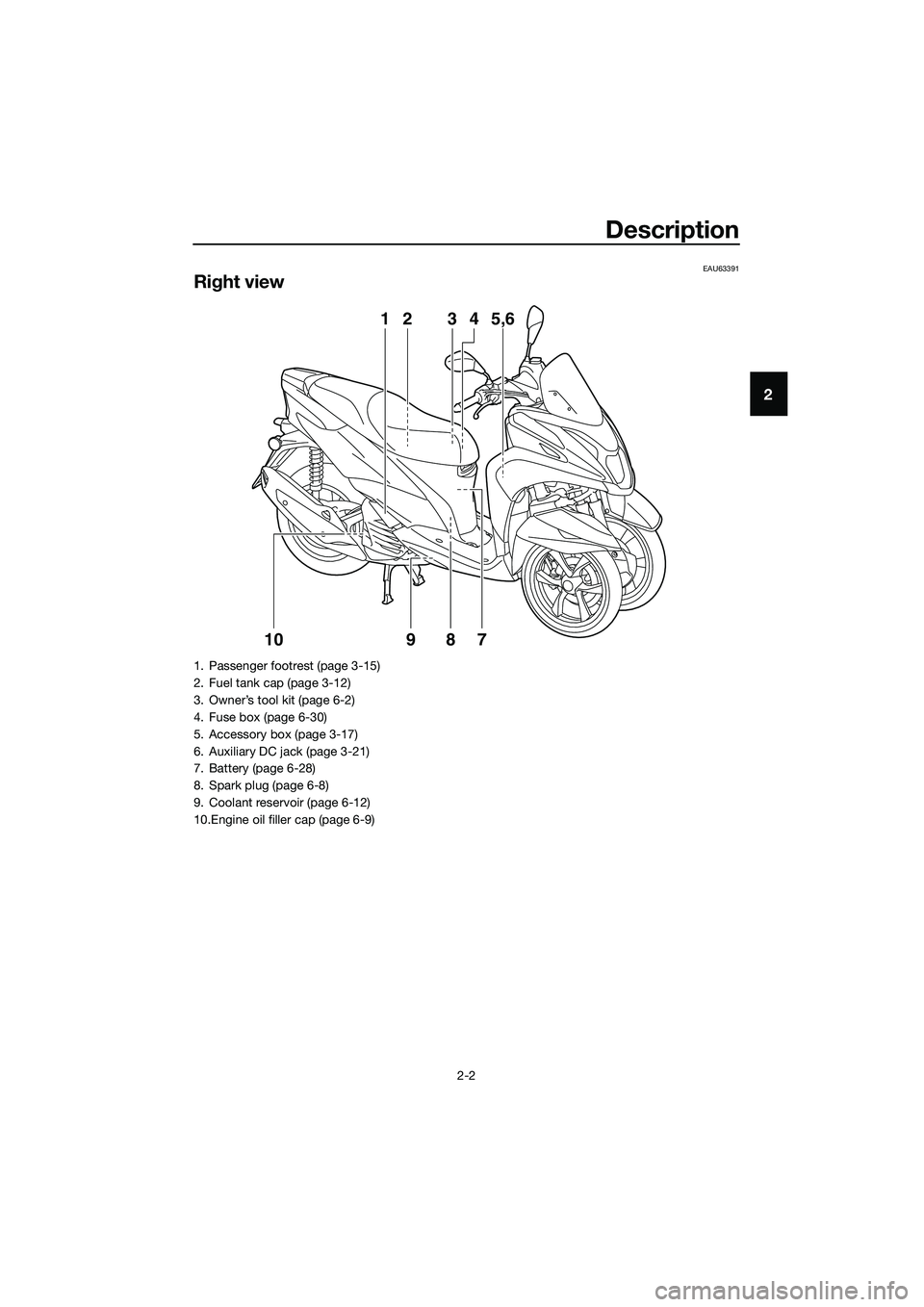

Right view
3 24
75,6 1
10
98
1. Passenger footrest (page 3-15)
2. Fuel tank cap (page 3-12)
3. Owner’s tool kit (page 6-2)
4. Fuse box (page 6-30)
5. Accessory box (page 3-17)
6. Auxiliary DC jack (page 3-21)
7. Battery (page 6-28)
8. Spark plug (page 6-8)
9. Coolant reservoir (page 6-12)
10.Engine oil filler cap (page 6-9)
UBR7E0E0.book Page 2 Tuesday, October 25, 2016 2:44 PM
Page 14 of 92
Description
2-3
2
EAU63401

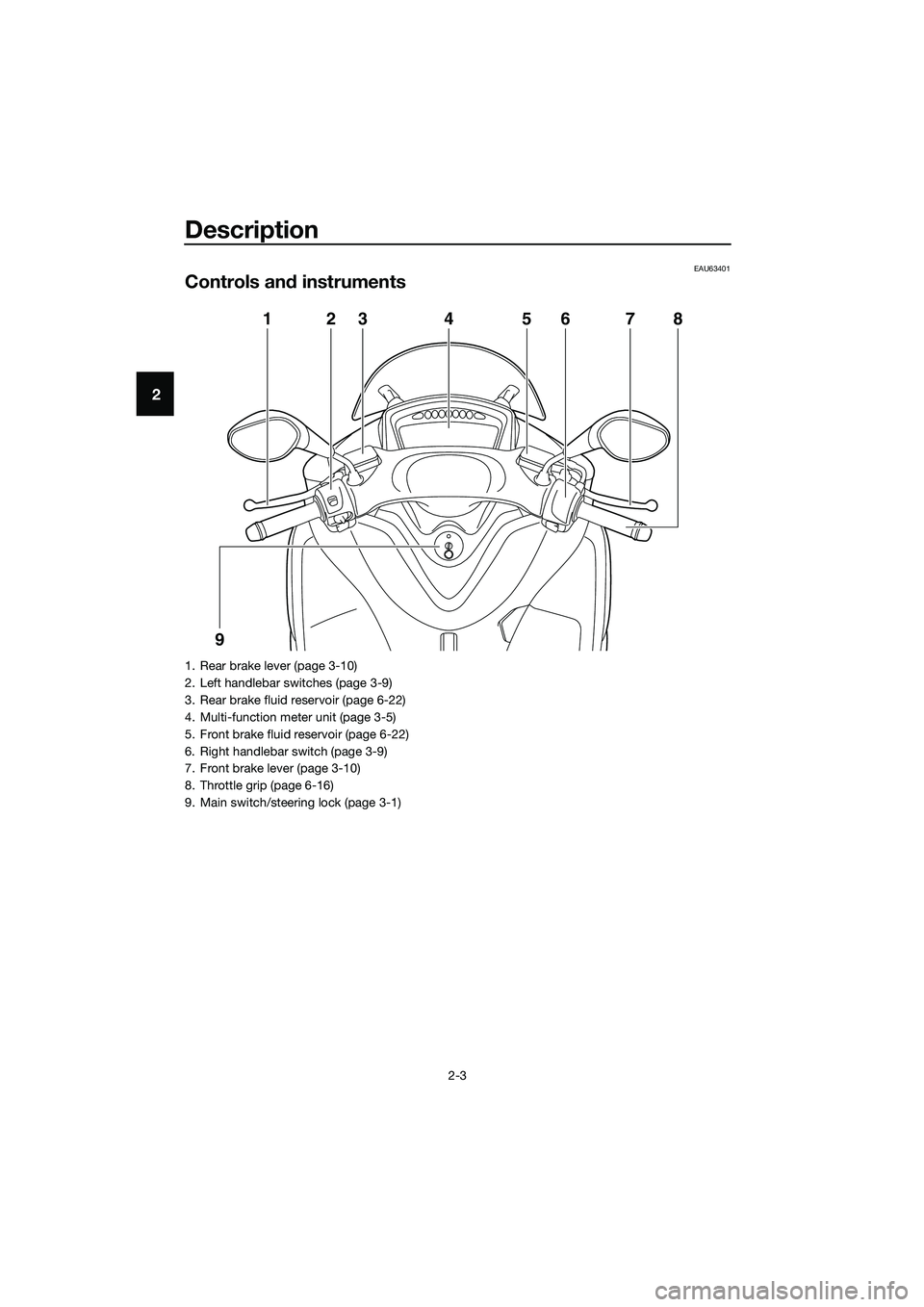

Controls and instruments
1
923 7 86 5 4
1. Rear brake lever (page 3-10)
2. Left handlebar switches (page 3-9)
3. Rear brake fluid reservoir (page 6-22)
4. Multi-function meter unit (page 3-5)
5. Front brake fluid reservoir (page 6-22)
6. Right handlebar switch (page 3-9)
7. Front brake lever (page 3-10)
8. Throttle grip (page 6-16)
9. Main switch/steering lock (page 3-1)
UBR7E0E0.book Page 3 Tuesday, October 25, 2016 2:44 PM
Page 15 of 92
Instrument and control functions
3-1
3
EAUN0264

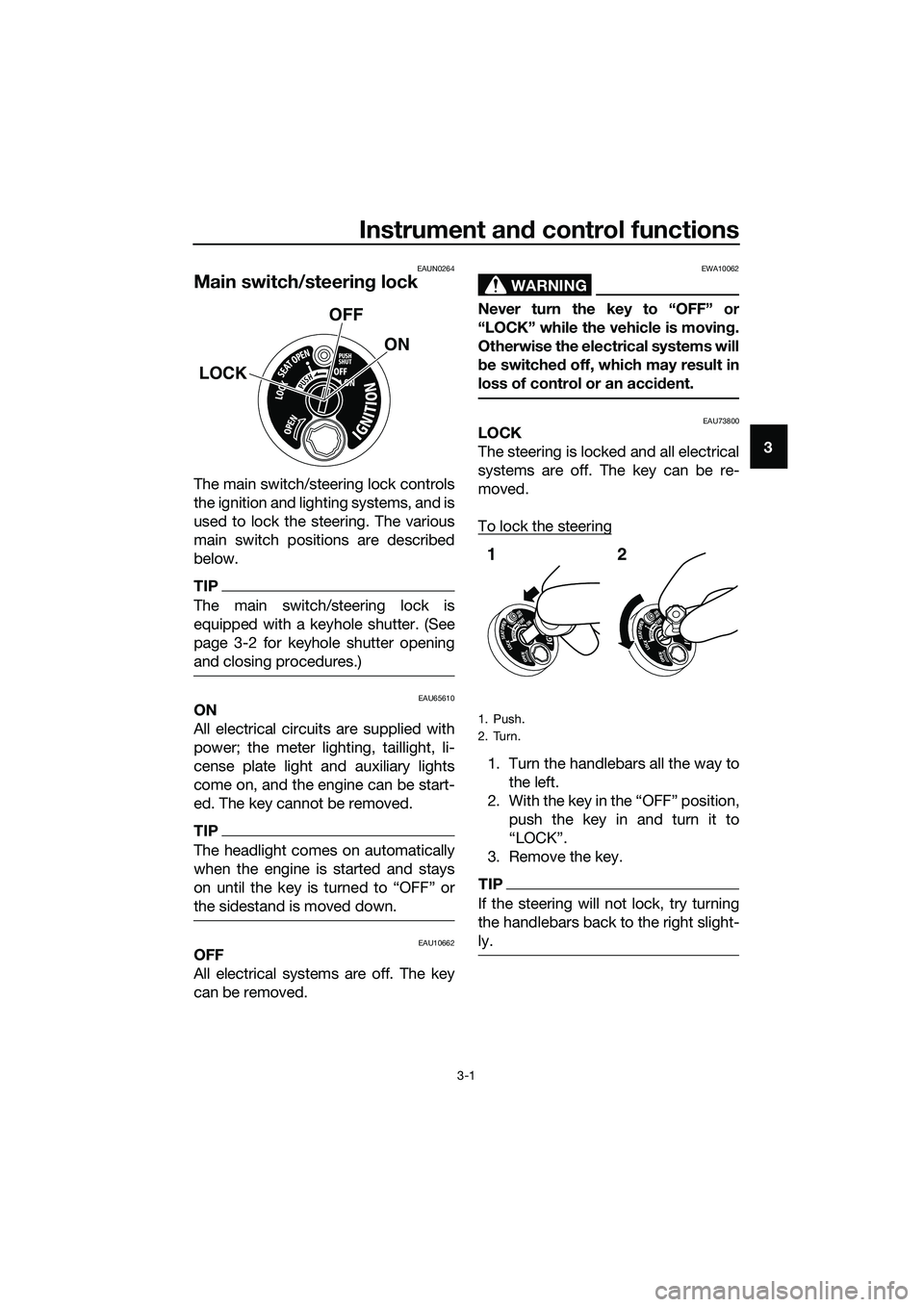

Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
main switch positions are described
below.
TIP
The main switch/steering lock is
equipped with a keyhole shutter. (See
page 3-2 for keyhole shutter opening
and closing procedures.)
EAU65610ON
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.
TIP
The headlight comes on automatically
when the engine is started and stays
the sidestand is moved down.
EAU10662OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU73800LOCK
The steering is locked and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left.
2. With the key in the “OFF” position,
push the key in and turn it to
“LOCK”.
3. Remove the key.
TIP
If the steering will not lock, try turning
the handlebars back to the right slight-
ly.
LOCKOFF
ON
1. Push.
2. Turn.
12
UBR7E0E0.book Page 1 Tuesday, October 25, 2016 2:44 PM
Page 16 of 92
Instrument and control functions
3-2

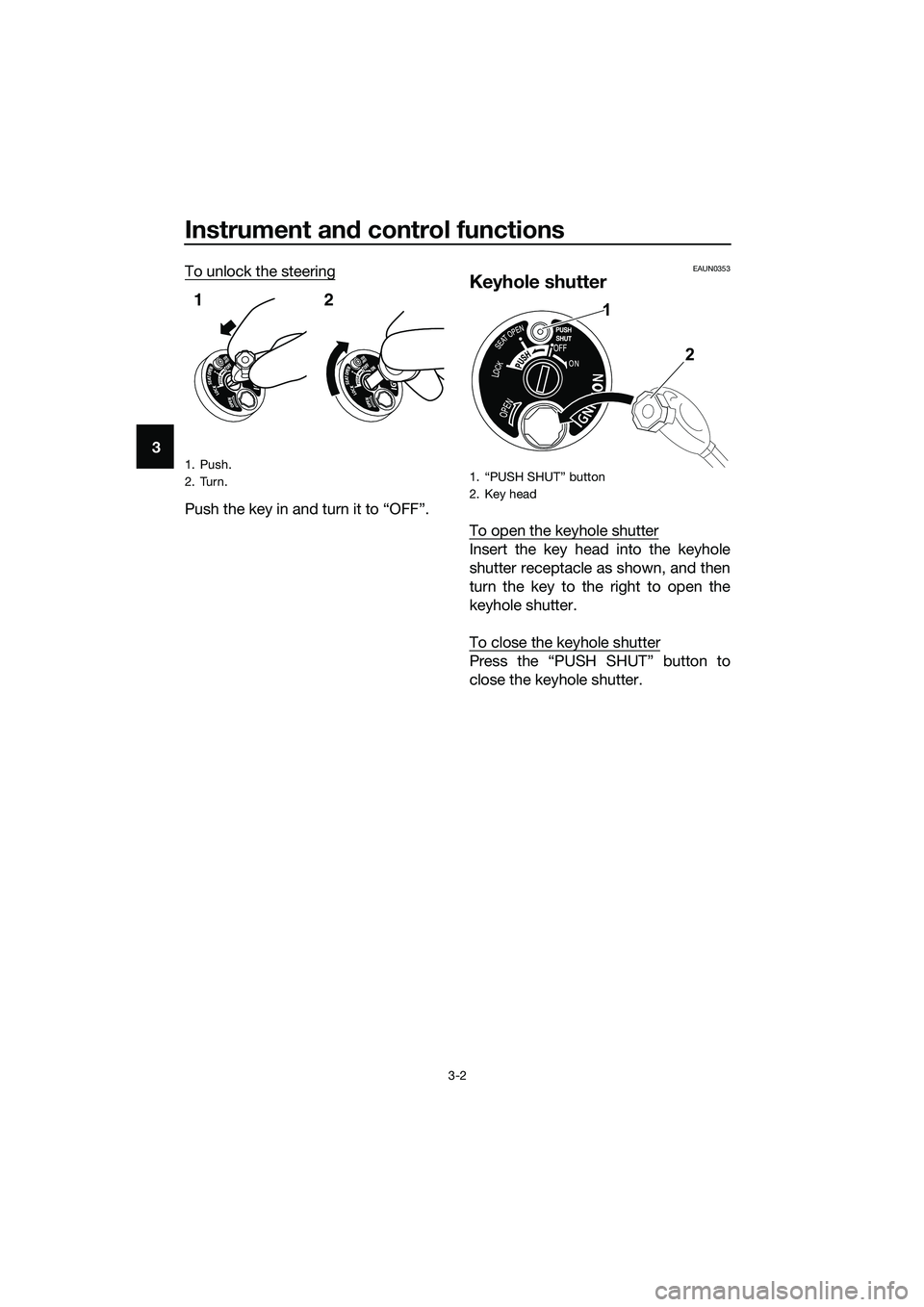

3To unlock the steering
Push the key in and turn it to “OFF”.
EAUN0353
Keyhole shutter
To open the keyhole shutter
Insert the key head into the keyhole
shutter receptacle as shown, and then
turn the key to the right to open the
keyhole shutter.
To close the keyhole shutter
Press the “PUSH SHUT” button to
close the keyhole shutter.
1. Push.
2. Turn.
12
1.
2. Key head
1
2
UBR7E0E0.book Page 2 Tuesday, October 25, 2016 2:44 PM
Page 17 of 92
Instrument and control functions
3-3
3
EAU4939C
Indicator lights and warning
lights
EAU11032Turn signal indicator lights “ ”
and“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU11081High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAUN0711Eco indicator light “ECO”
This indicator light comes on when the
vehicle is being operated in an environ-
mentally friendly, fuel-efficient manner.
The indicator light goes off when the
vehicle is stopped.
TIP
Consider the following tips to reduce
fuel consumption: zAvoid high engine speeds during
acceleration.
zTravel at a constant speed.
EAU67441Coolant temperature warning
light “ ”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool.
The electrical circuit of the warning
light can be checked by turning the
main switch on. The warning light
should come on for a few seconds, and
then go off.
If the warning light does not come on
initially when main switch is turned on,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
NOTICE
ECA10022
Do not continue to operate the en-
gine if it is overheating.
TIP
If the engine overheats, see page 6-36
for further instructions.
EAU73171Engine trouble warning light “ ”
This warning light comes on if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system.
The electrical circuit of the warning
light can be checked by turning the key
to “ON”. The warning light should
come on for a few seconds, and then
go off.
1. Left turn signal indicator light “ ”
2. Anti-lock Brake System (ABS) warning
light “ ” (for ABS models)
3. Coolant temperature warning light “ ”
4. High beam indicator light “ ”
5. Eco indicator light “ECO”
6. Engine trouble warning light “ ”
7. Right turn signal indicator light “ ”
1234567
ABS
UBR7E0E0.book Page 3 Tuesday, October 25, 2016 2:44 PM
Page 18 of 92
Instrument and control functions
3-4
3If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the vehicle.
EAUU1961ABS warning light “ ” (for ABS
models)
In normal operation, the ABS warning
light comes on when the main switch is
turned on, and goes off after traveling
at a speed of 10 km/h (6 mi/h) or high-
er.
If the ABS warning light:
zdoes not come on when the main
switch is turned on
zcomes on or flashes while riding
zdoes not go off after traveling at a
speed of 10 km/h (6 mi/h) or high-
er
The ABS may not work correctly. If any
of the above occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 3-11 for an expla-
nation of the ABS.)
WARNING
EWA16041
If the ABS warning light does not go
off after traveling at a speed of 10
km/h (6 mi/h) or higher, or if the
warning light comes on or flashes
while riding, the brake system re-
verts to conventional braking. If ei-
ther of the above occurs, or if the
warning light does not come on at
all, use extra caution to avoid possi-
ble wheel lock during emergency
braking. Have a Yamaha dealer
check the brake system and electri-
cal circuits as soon as possible.
TIP
The ABS warning light may come on
while accelerating the engine with the
vehicle on its centerstand, but this
does not indicate a malfunction.
ABS
UBR7E0E0.book Page 4 Tuesday, October 25, 2016 2:44 PM
Page 19 of 92
Instrument and control functions
3-5
3
EAU74444

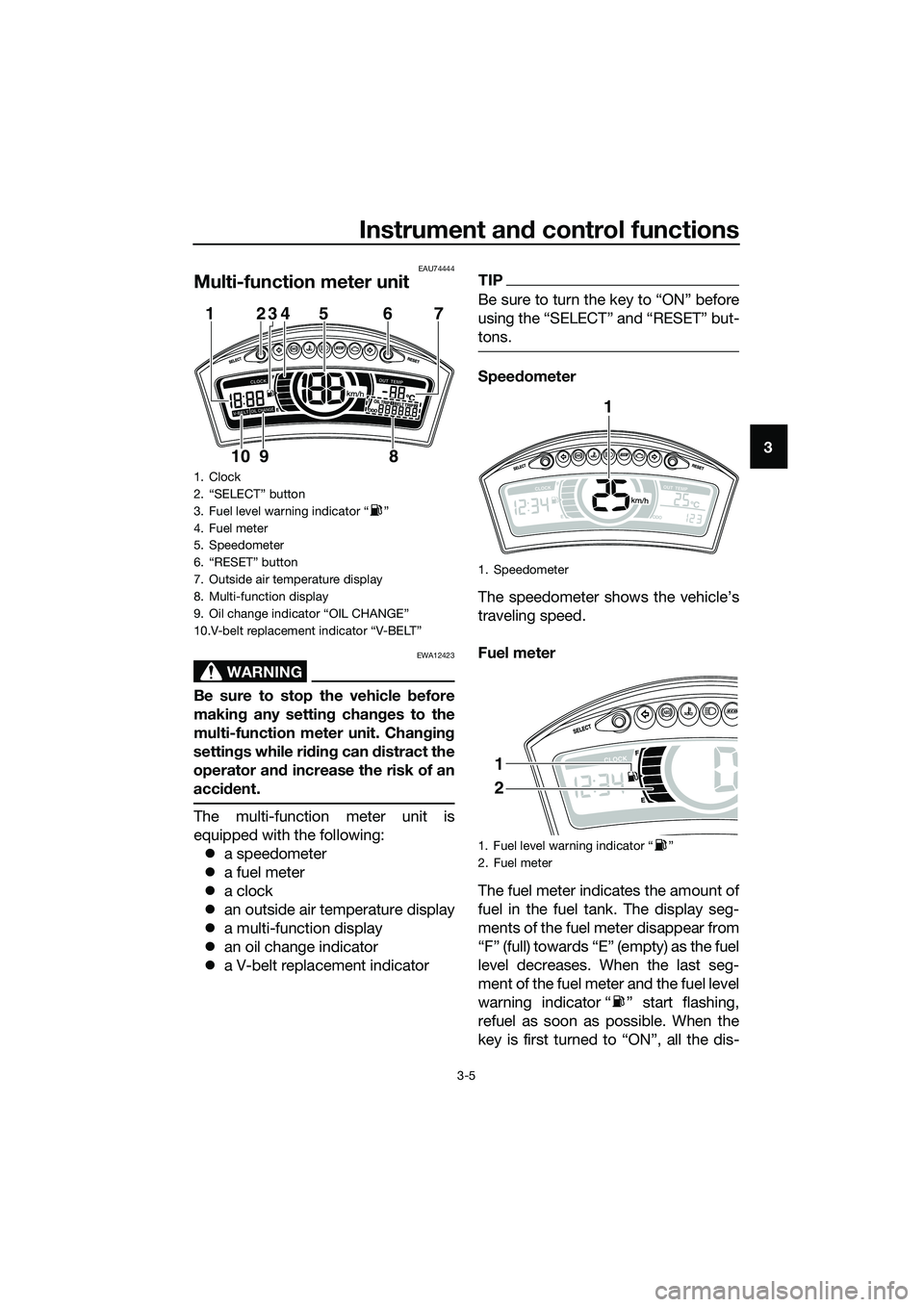

Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
The multi-function meter unit is
equipped with the following:
za speedometer
za fuel meter
za clock
zan outside air temperature display
za multi-function display
zan oil change indicator
za V-belt replacement indicator
TIP
tons.
Speedometer
The speedometer shows the vehicle’s
traveling speed.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear from
“F” (full) towards “E” (empty) as the fuel
level decreases. When the last seg-
ment of the fuel meter and the fuel level
warning indicator “ ” start flashing,
refuel as soon as possible. When the
key is first turned to “ON”, all the dis-
1. Clock
2. “SELECT” button
3. Fuel level warning indicator “ ”
4. Fuel meter
5. Speedometer
6. “RESET” button
7. Outside air temperature display
8. Multi-function display
9. Oil change indicator “OIL CHANGE”
10.V-belt replacement indicator “V-BELT”
12345 6
9 107
8
1. Speedometer
1. Fuel level warning indicator Ž
2. Fuel meter
1
1
2
UBR7E0E0.book Page 5 Tuesday, October 25, 2016 2:44 PM
Page 20 of 92
Instrument and control functions
3-6
3play segments of the fuel meter will
come on for a few seconds, and then
the fuel meter will show the actual fuel
level.
TIP
If a problem is detected in the fuel me-
ter electrical circuit, all the display seg-
ments and the fuel level warning
indicator start flashing. Have a Yamaha
dealer check the vehicle.

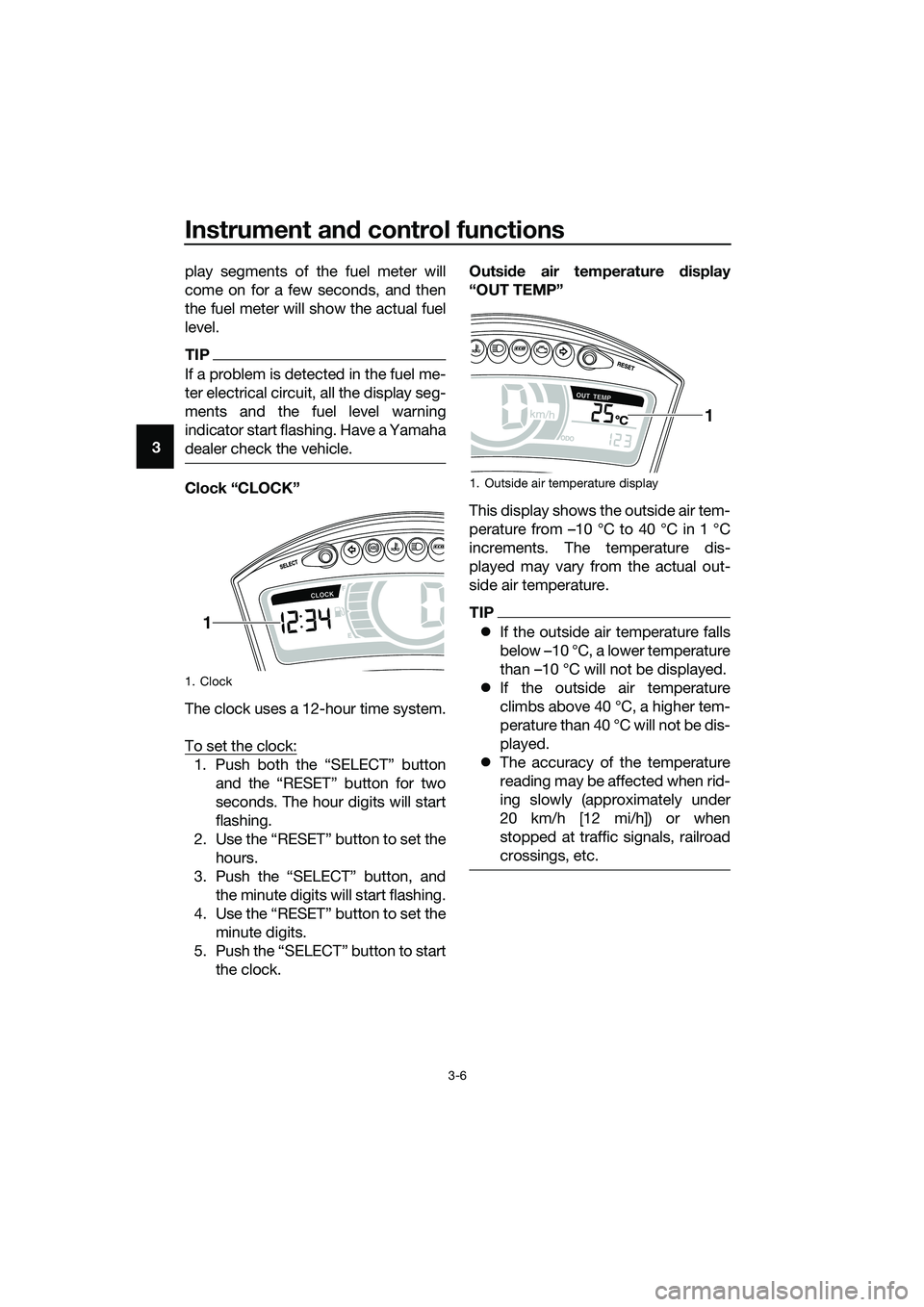

Clock “CLOCK”
The clock uses a 12-hour time system.
To set the clock:
1. Push both the “SELECT” button
and the “RESET” button for two
seconds. The hour digits will start
flashing.
2. Use the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Use the “RESET” button to set the
minute digits.
5. Push the “SELECT” button to start
the clock.Outside air temperature display
“OUT TEMP”
This display shows the outside air tem-
perature from –10 °C to 40 °C in 1 °C
increments. The temperature dis-
played may vary from the actual out-
side air temperature.
TIP
zIf the outside air temperature falls
below –10 °C, a lower temperature
than –10 °C will not be displayed.
zIf the outside air temperature
climbs above 40 °C, a higher tem-
perature than 40 °C will not be dis-
played.
zThe accuracy of the temperature
reading may be affected when rid-
ing slowly (approximately under
20 km/h [12 mi/h]) or when
stopped at traffic signals, railroad
crossings, etc.
1. Clock
1
1. Outside air temperature display
1
UBR7E0E0.book Page 6 Tuesday, October 25, 2016 2:44 PM
